Product Type	Cordless Portable Inflator
Brand	Milwaukee
Model	2475-20 (Cat. No.)
Power Source	M12™ Lithium-Ion Battery (12 V DC)
Charger Type	M12™ (specific charger)
Maximum Pressure	120 PSI (8.27 bar, 827 kPa)
Air Flow	0.88 CFM at 0 PSI; 0.63 CFM at 35 PSI
Operating Ambient Temperature	-18°C to 50°C (0°F to 125°F)
Weight (with battery)	Approximately 0.9 kg (estimate)
Dimensions (L x W x H)	Approximately 24 x 10 x 18 cm (estimate)
Display	Digital pressure gauge with unit selection (PSI, BAR, kPa)
Main Functions	Inflation with auto stop at target pressure; sensor reset; battery level indicator; thermal and overload protection
Included Accessories	Integrated hose, sports needle, canoe nozzle, Presta valve
Maintenance and Cleaning	Clean vents with a damp cloth and mild soap; do not immerse
Safety	Eye protection recommended; do not overinflate; do not use for spraying; let cool for 10 min after 10 min of use
Spare Parts and Repairability	Repairs exclusively by an authorized Milwaukee service center; use original parts
Warranty	5 years (power tool); 2 years for battery packs

Frequently Asked Questions - 247520 MILWAUKEE

How to set the target pressure on the Milwaukee 2475-20 inflator?

Turn on the tool with the power button, then use the - and + buttons to adjust the desired pressure. Press and hold for quick adjustment. The inflator stops automatically at the target pressure.

What accessories are included with the inflator?

The kit includes an integrated hose, a sports inflation needle, a canoe nozzle, and a Presta valve. No accessories are needed for Schrader tire valves.

How to change the pressure unit (PSI, BAR, kPa)?

Press and hold the - or + button until the unit flashes (about 1.5 s), then use - or + to select PSI, BAR, or kPa. After 3 seconds, the new unit is saved.

What to do if the thermal protection indicator lights up?

The temperature indicator (1) signals that the tool has overheated. Let it cool for at least 10 minutes before continuing. In cold weather, indicator (2) may light up if the battery is too cold.

How to reset the pressure sensor if the reading is not at zero?

Make sure nothing is connected to the inflator. Press and hold the power button and press the + button three times. The pressure resets to zero.

What is the maximum pressure the inflator can reach?

The maximum pressure is 120 PSI (8.27 bar, 827 kPa). The tool stops automatically at this pressure if no target is set.

Can the inflator be used for other purposes than inflation?

No. The tool is designed only for inflating tires, sports equipment, mattresses, etc. Do not use it to fill air tanks, as a blower, or to spray chemicals.

How to maintain the Milwaukee inflator?

Clean the vents with a damp cloth and mild soap. Never immerse the tool. Keep handles clean and dry. For repairs, contact an authorized Milwaukee service center.

What is the warranty period for model 2475-20?

The power tool is warranted for 5 years from the date of purchase. M12™ battery packs have a 2-year warranty. The warranty covers defects in materials and workmanship.

Why doesn't the inflator turn on even though the battery is charged?

Check that the battery is properly inserted and that the contacts are clean. If the problem persists, return the tool, battery, and charger to an authorized Milwaukee service center.

USER MANUAL 247520 MILWAUKEE

Line drawing of a 3D printer or machine casing with control panel and buttons (no text or symbols)

Cat. No. / No de cat.

2475-20

M12 ^TM COMPACT INFLATOR

GONFLEUR COMPACT M12™

INFLADOR COMPACTO M12™

WARNING To reduce the risk of injury, user must read and understand operator's manual.

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmosphere, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,

additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not use a battery pack or tool that is damaged modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130°C) may cause explosion.

- Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging im properly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR INFLATOR

- Do not use this tool for purposes other than inflating items such as car tires, bike tires, lawn equipment tires, sports equipment, air mattresses, beach toys and other inflatables. Use of the tool for operations different from those intended could result in a hazardous situation. Do NOT use this tool to fill air tanks or shocks. Do NOT use this tool as a breathing device. Do NOT use this tool to spray chemicals.

- Do not leave the tool unattended during operation.

- Risk of Bursting. Do not overinflate. Follow all manufacturer's instructions for the item. Do not set the tool to an output pressure greater than marked maximum pressure of item to be inflated.

- Use only recommended MILWAUKEE inflator accessories. Others may be hazardous.

- Never block or plug the air outlet during operation.

- Never carry tool by the air hose. Damage may occur.

- Check air hose for wear or damage before each use. Check all accessory connections are secure. Repair all damaged parts before use. Contact a MILWAUKEE service facility for ALL repairs.

• CAUTION Allow tool to cool for 10 minutes after each 10 minutes of continuous use.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

- Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

- ⚠️WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- lead from lead-based paint

- crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SYMBOLGY

Direct Current

Read Operator's Manual

Wear Eye Protection

UL Listing for Canada and U.S.

SPECIFICATIONS

Cat. No....2475-20

Volts....12 DC

Battery Type M12™

Charger Type.... M12™

Maximum Pressure....120 PSI, 8.27 BAR, 827 kPa

Output 0.88 CFM @ 0 PSI

0.63 CFM @ 35 PSI

Recommended Ambient

Operating Temperature 0°F to 125°F

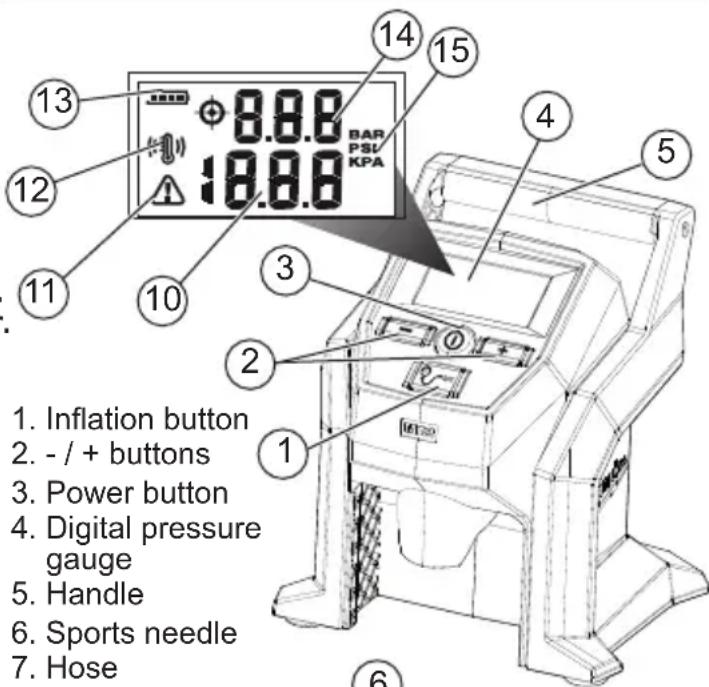

FUNCTIONAL DESCRIPTION

13 12 11 10 8.8.8 BAR PST/ KPA 14 15 4 5 3 2 1 6 1. Inflation button 2. - / + buttons 3. Power button 4. Digital pressure gauge 5. Handle 6. Sports needle 7. Hose

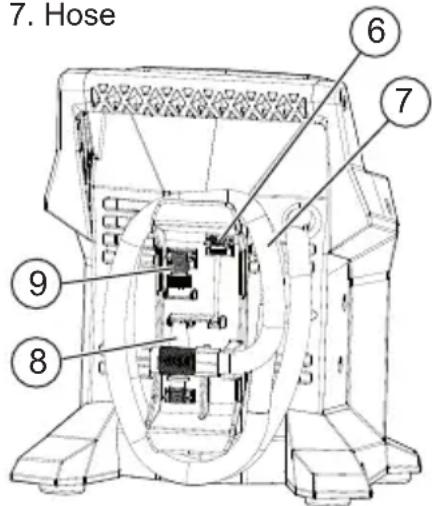

7. Hose ⑥ ⑦ ⑨ ⑧

1. Raft nozzle

2. Presta valve

3. Actual value

4. Overload indicator

5. Temperature protection indicator

6. Battery indicator

7. Target input value

8. Units

AWARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

Removing/Inserting the Battery

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

AWARNING Always remove battery pack before changing or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

AWARNING Only use accessories specifically recommended for this tool. Others may be hazardous.

Battery Indicator

The Battery Indicator is displayed when the tool is on. When the battery power is very low ☐, the battery indicator will flash.

Setting the Units (PSI, BAR or kPa)

To select the desired unit of pressure, press and hold the — and +buttons until the units of measure begin to flash (about 1.5 seconds). Use the — and + buttons to scroll through the units (PSI, BAR or kPa) to select. After about 3 seconds, the screen will return with the new unit of pressure displayed.

Temperature Protection

During extended use or constricted air flow, the tool temperature may rise. If the Temperature Protection Indicator ( ① ) comes on, allow the tool to cool at least 10 minutes before continuing. In extremely low temperatures, the Temperature Protection Indicator ( ② ) may come on if the battery is too cold.

⚠️CAUTION Allow tool to cool for 10 minutes after each 10 minutes of continuous

use.

Overload Warning

If airflow is constricted during use, the Overload Warning Indicator ⚠ may come on. Check all connections for blockages before continuing use.

Accessories/Hose Storage

Accessories provided with the inflator can be stored on the back of the tool. The hose can be wrapped around the storage area and secured in the hose clamp.

⚠ WARNING To reduce the risk of injury, always wear safety goggles or glasses with side shields.

Only use accessories specifically recommended for this tool. Others may be hazardous.

Do not leave the tool unattended during operation. Risk of Bursting. Do not overinflate. Follow all manufacturer's instructions for the item.

Using the Inflator

1. Place the tool on flat surface.
2. Insert the proper accessory for the item to be inflated.

3. Attach the accessory to the item to be inflated.

4. Always attach the inflator to desired object before starting inflation.

5. No accessory is needed for common car/truck tire schrader valves.

6. For car/truck tires, screw schrader chuck onto tire valve and ensure it is tight.

7. Insert the battery pack.

8. To turn on, press the Power ⓘ button. The too will detect the current air pressure of the item.

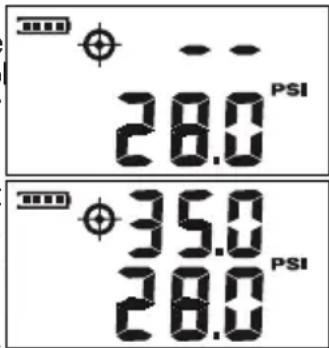

9. Use the — and + buttons to set the target pressure, if desired. Press and hold — or + buttons to jump down or up faster.

NOTE: Setting target pressure is not recomm accessory nozzles.

28.0 PSI 35.0 PSI 28.0

NOTE: If the current pressure item to be inflated is greater than the target pressure, the tool will not begin inflation.

1. To start, press the Inflation Ⓞr≈ button.
   NOTE: Flashing dashes during inflating or connecting indicate the tool is recalibrating pressure.
2. The tool will shut off automatically once the target pressure has been reached. Target mode shows -- if no target pressure is set. Inflator will run until 120 psi max pressure.

CAUTION: Allow tool to cool for 10 minutes after each 10 minutes of continuous use.

1. To stop, press the Inflation Ⓤ= button or power button.

NOTE: The tool will shut down after 5 minutes of inactivity.

Troubleshooting

If pressure accuracy becomes poor or the inflator's actual value reads greater than zero when not connected to any object, the pressure sensor may have drifted due to altitude or other factors.

To reset:

With nothing connected to inflator, hold power button and press the + button 3 times to reset pressure to zero.

Sports Needle/Raft Nozzle

Insert needle or nozzle into the item to be inflated. Be careful not to bend the accessory. Remove after inflation.

Presta Valve

Use the Presta valve with Presta valve stems. Before inflating, loosen the locking nut on the valve stem. Once inflation is complete, tighten the locking nut to seal the valve.

MAINTENANCE

WARNING

To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tool

Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection.

If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work properly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs.

WARNING

To reduce the risk of personal injury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Repairs

For repairs, return the tool, battery pack and charger to the nearest service center.

ACCESSORIES

WARNING

Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.

*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.

**The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the Drain Cleaning Cables and AIRSNAKE™ Drain Cleaning Air Gun Accessories is two (2) years from the date of purchase. The warranty period for the M18™ Compact Heat Gun, 8 Gallon Dust Extractor, and M18™ Framing Nailers is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA & CARIBBEÁN

TECHTRONIC INDUSTRIES' warranty is for 5 years since the original purchase date.

This warranty card covers any defect in material and workmanship on this Product.

To make this warranty valid, present this warranty card, sealed, stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call 55 4160-3547 to find the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed/ stamped by the distributor or store where you purchased the product, and any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process.

Exceptions

This warranty is not valid in the following situations

a) When the product is used in a different manner from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modified or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

Call to 55 4160-3547

IMPORTED AND COMMERCIALIZED BY

TECHTRONIC INDUSTRIES MEXICO, S.A. DE C.V.

Miguel de Cervantes Saavedra No.301 Piso 5, Torre Norte

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

www.milwaukeetool.ca

GARANTIE LIMITÉE - AUX ÉTATS-UNIS ET AU CANADA

Lunes a Viernes (9am a 6pm)
