Product type	Laser fax machine
Brand	Panasonic
Model	KX-FL501E
Dimensions (H x W x D)	190 x 417 x 345 mm
Weight	Approx. 6.5 kg
Power supply	220-240 V AC, 50 Hz
Power consumption	Standby: approx. 4 W, Reception: approx. 200 W, Copy: approx. 200 W, Maximum: approx. 560 W
Print speed	10 pages per minute (A4)
Print resolution	Up to 600 x 600 dpi
Memory capacity	Approx. 120 pages for transmission / 170 pages for reception (based on ITU-T No.1 chart in standard mode)
Paper tray capacity	Up to 150 sheets (60-75 g/m²) or 120 sheets (90 g/m²)
Quick dialer	10 direct dial keys + 100-name directory (Easy Dial)
Main functions	Fax, copy, telephone, caller ID, broadcast, delayed send, toner save mode

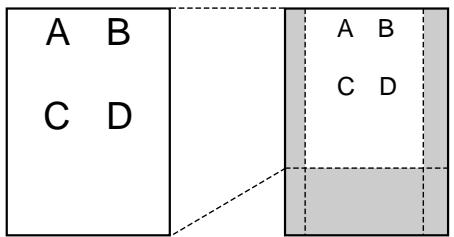

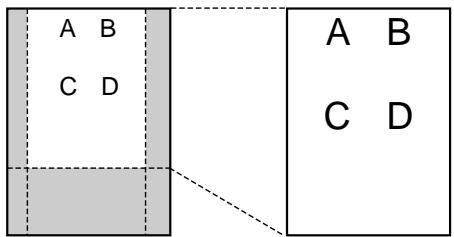

Copy reduction/enlargement	50% to 200% in 5% increments

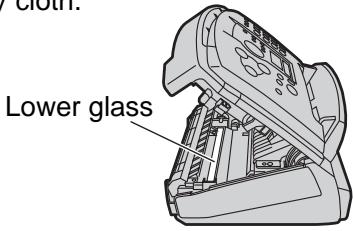

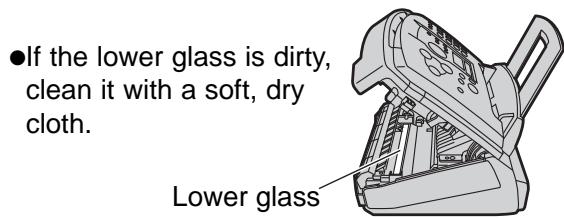

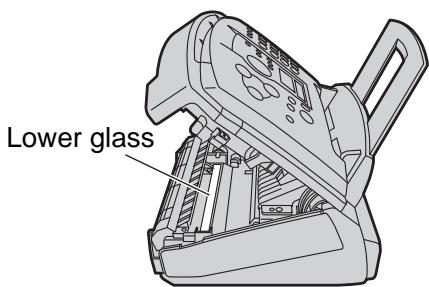

Maintenance guide	Clean the feed rollers and glass with a damp cloth (isopropyl alcohol). Do not use solvents.
Safety	Earth connection mandatory. Use only the appropriate power outlet. Do not expose to moisture.

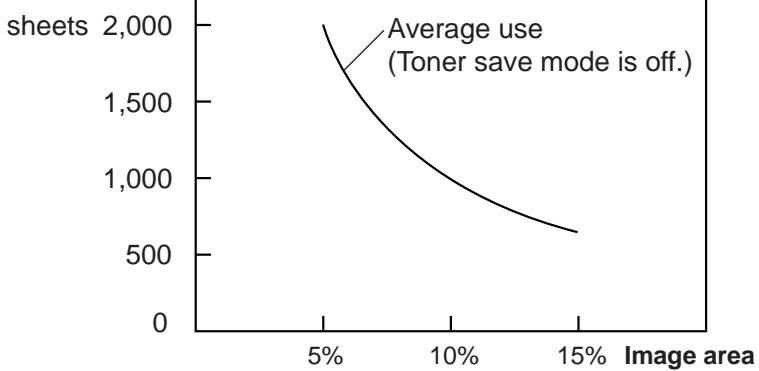

Spare parts and consumables	Toner cartridge KX-FA76X (approx. 2000 pages at 5% coverage), drum KX-FA77X/KX-FA78X (approx. 6000 pages)
Warranty	1 year standard exchange (subject to conditions). Registration recommended within 7 days.
Compatible documents	A4, 60-90 g/m², up to 15 pages at a time
General information	Complies with European standards (CE). Use only on the analog telephone network of the United Kingdom and Ireland.

Frequently Asked Questions - KXFL501E PANASONIC

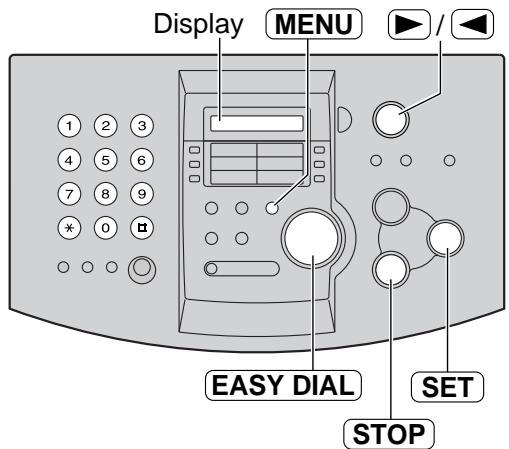

How to set the date and time on the Panasonic KX-FL501E?

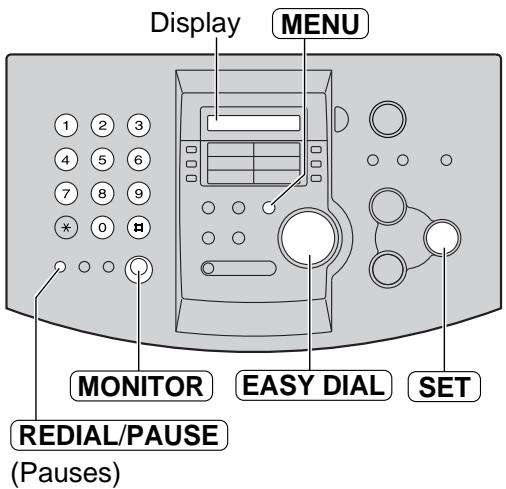

Press MENU, then 0 and 0 for date/time setting. Enter the date (dd/mm/yy) and time (hh:mm) using the numeric keypad, then press SET. For 24-hour format, use function #19.

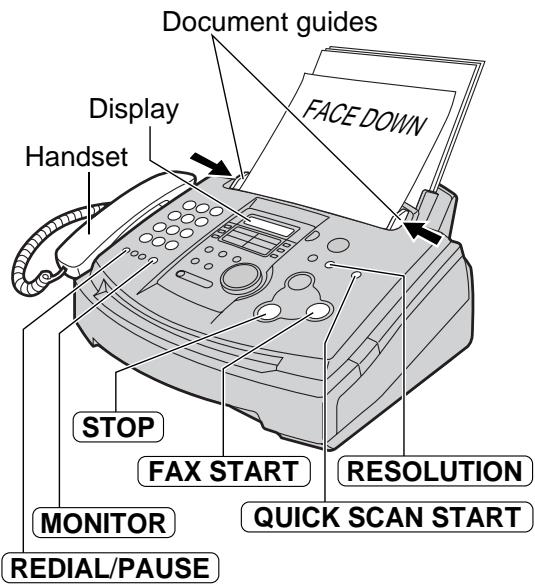

How to send a fax manually?

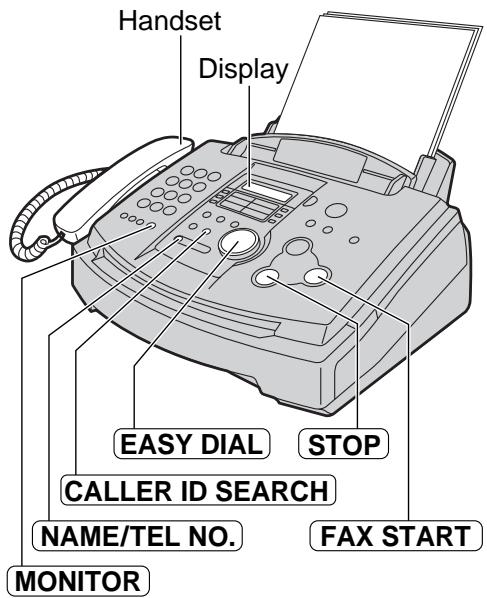

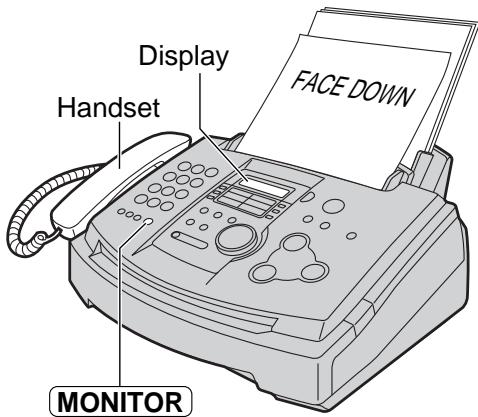

Place the document face down in the feeder. Press MONITOR or lift the handset, dial the number, wait for the fax tone, then press FAX START.

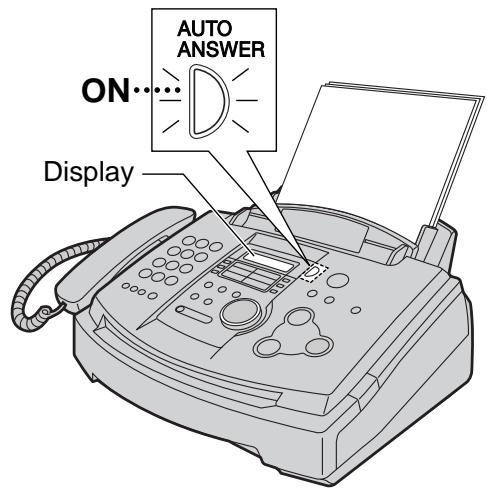

How to receive a fax automatically?

Make sure the reception mode is set to FAX ONLY (via function #77) and the AUTO ANSWER indicator is lit. The fax will answer after the set number of rings (function #06).

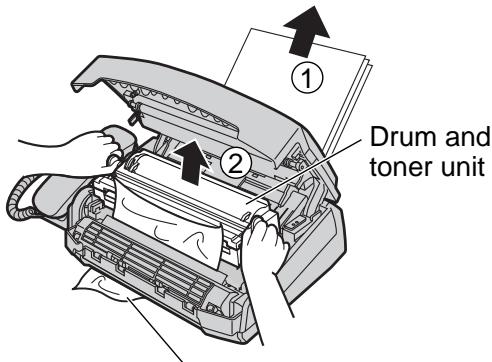

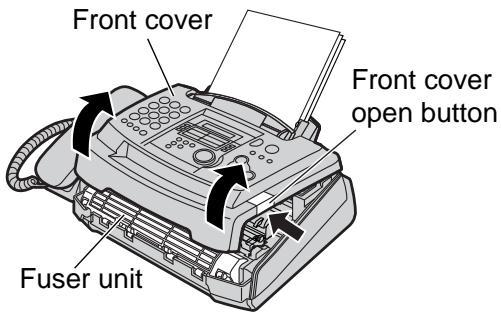

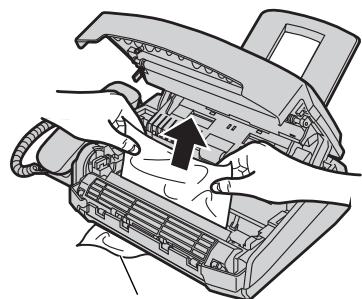

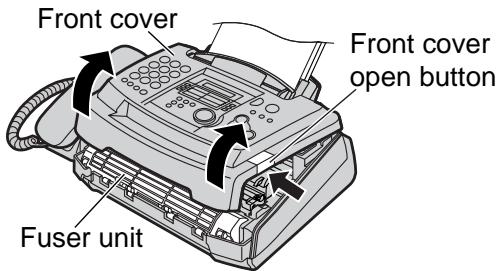

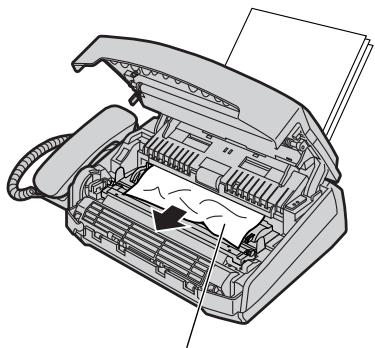

What to do in case of a paper jam?

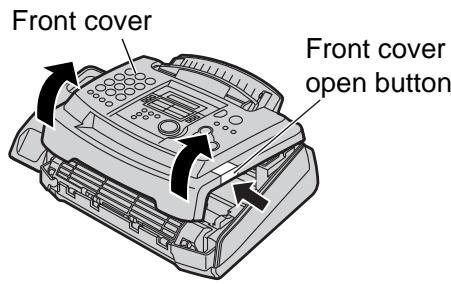

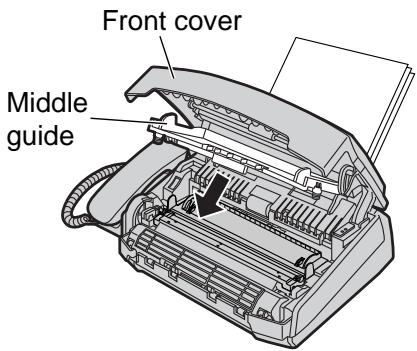

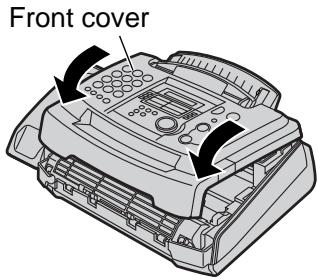

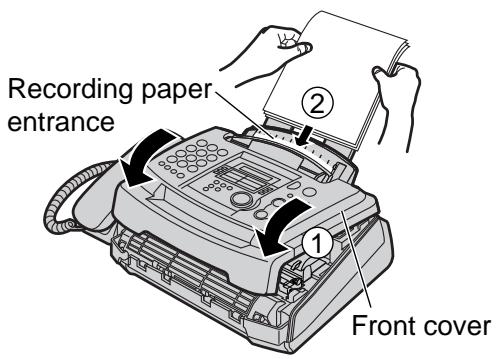

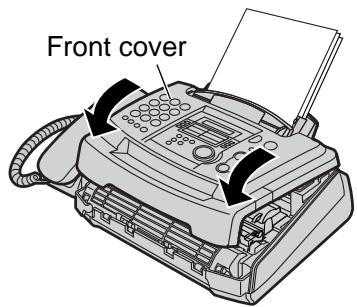

Open the front cover. Gently remove the jammed paper, avoiding touching the hot fuser unit. Close the cover and reinsert the recording paper correctly.

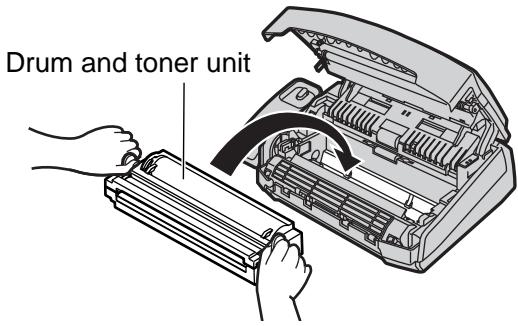

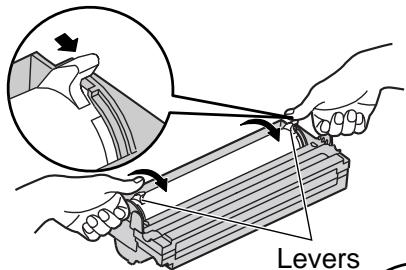

How to replace the toner cartridge?

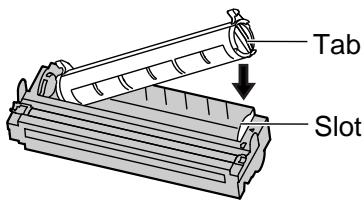

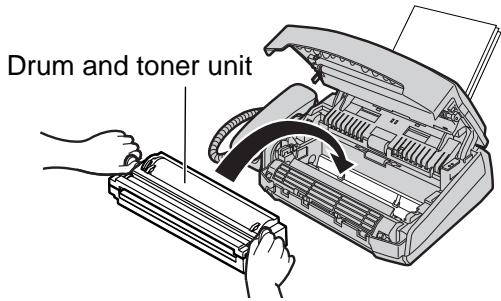

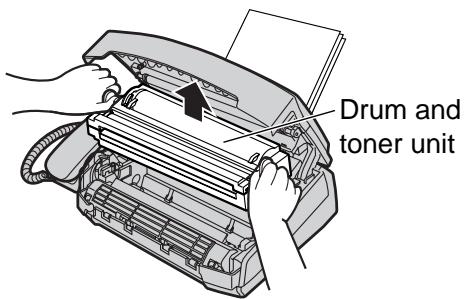

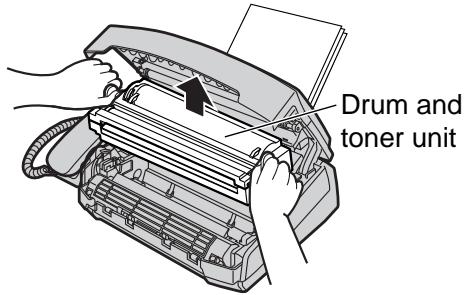

Open the front cover, remove the drum-toner assembly. Shake the new cartridge vertically more than 5 times, remove the seal, then insert it into the drum unit aligning the arrows. Turn the levers to lock, then reinstall the assembly and close the cover.

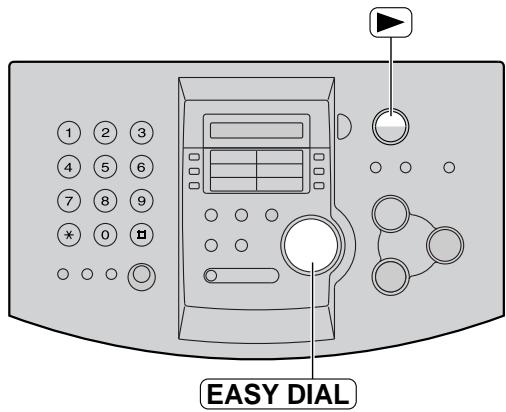

How to use the quick dial function (Easy Dial)?

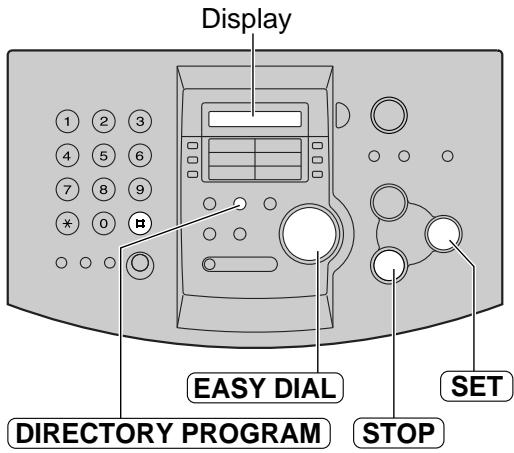

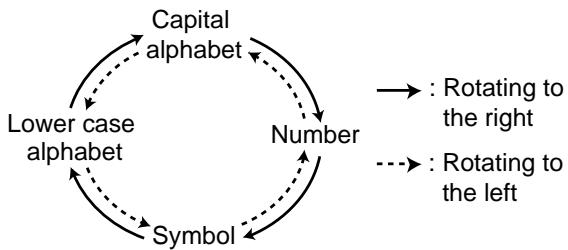

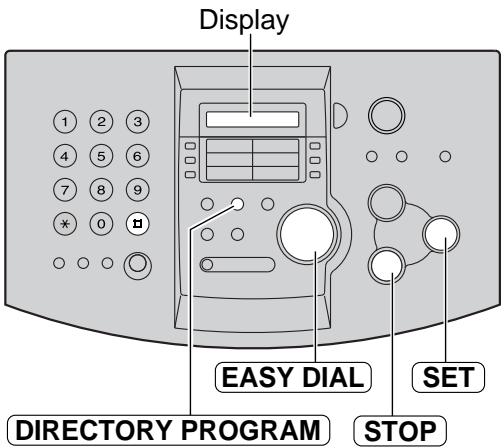

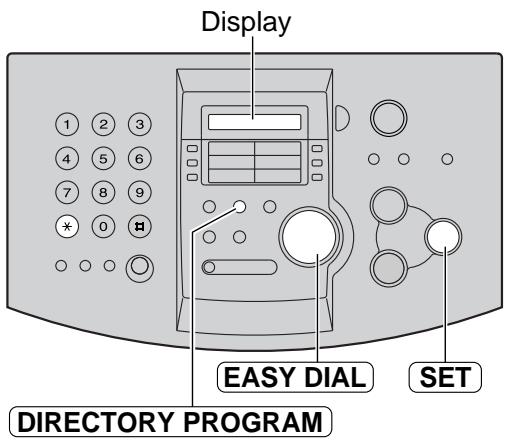

Press DIRECTORY PROGRAM, turn the EASY DIAL dial to select a location, enter the name (up to 10 characters) and number (up to 30 digits) using the keypad, then press SET.

How to activate the toner save mode?

Go to advanced functions (MENU then ADVANCED MODE), select function #79 TONER SAVE and set it to ON. Toner life increases by about 40%, but print quality may be reduced.

How to print the list of stored numbers?

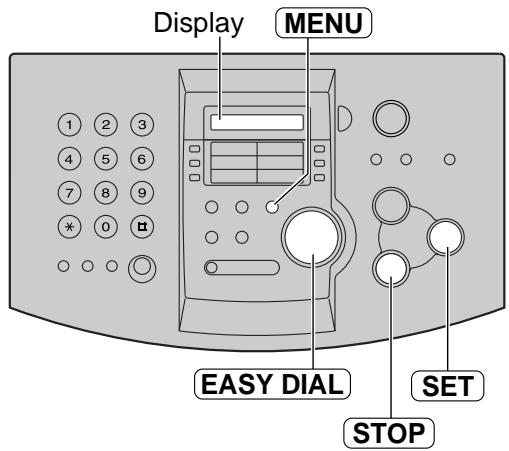

Press MENU twice, turn the dial to TEL NO. LIST, then press SET to print.

What to do if the screen displays 'TONER EMPTY'?

The toner cartridge is empty. Replace it with a new one (model KX-FA76X). If the message persists after replacement, check that the cartridge is installed correctly.

How to use the delayed send function?

Insert the document, press MENU, select function #25 DELAYED SEND, set it to ON, enter the fax number and desired send time. The document will be sent automatically at the scheduled time (within 24 hours).

USER MANUAL KXFL501E PANASONIC

Operating Instructions

Model No. KX-FL501E

Please read these Operating Instructions before using the unit and save for future reference.

This model is designed to be used only in the United Kingdom and Ireland.

Thank you for purchasing a Panasonic facsimile.

For your future reference

Date of purchase

Serial number

(found on the rear of the unit)

Dealer's name and address

Dealer's telephone number

Caution:

• Do not rub or use an eraser on the printed side of recording paper, as the print may smear.
• In the event of problems, you should contact your equipment supplier in the first instance.
  This equipment is designed for use on the UK and Republic of Ireland analogue telephone network.

Copyright:

This manual is copyrighted by Kyushu Matsushita Electric Co., Ltd. (KME) and its licensee. Under the copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of KME and its licensee.

© Kyushu Matsushita Electric Co., Ltd. 2001

IMPORTANT

Panasonic

WARRANTY REGISTRATION

PLEASE FAX BACK TO REGISTER FOR

YOUR 12 MONTHS WARRANTY

FAX BACK NUMBER 08700 600001

Thank you for purchasing your Panasonic facsimile. By filling in the section below, this will ensure the following:

• Should you ever require a service call under warranty, your call will be dealt with quickly and efficiently.
• If you have any problems, please call our customer helpline on 08701 580560 for UK. For Republic of Ireland, please call 01289 8333
• Please have your serial number and D. O. P. ready.

Simply, follow these instructions:

1. Please fill in the section below in block capitals and in ink.

Your name

Company name (if applicable)

Your address

Your postcode

Telephone no. Fax no.

Model no.

Serial no.

1. Please fax this completed form to 08700 600001
2. For information on Warranty Upgrades please contact us on 08701 580560 or, for Republic of Ireland, please call 01289 8333

TERMS AND CONDITIONS

1. This machine is supplied with a one year swap out warranty. Please retain your Proof of Purchase and Packaging in the unlikely event that your machine should require attention. For further information please contact us on 08701 580560 or visit our web site at www.panasonic.co.uk
2. This warranty is in addition to and does not in any way affect any statutory or other right of consumer purchasers. This warranty relates only to product used within Mainland Great Britain, please refer to your dealer warranty information relating to use elsewhere within the United Kingdom.
3. This product is designed for use only on the United Kingdom and Ireland's Public Switched Telephone Network and should be used only for normal purposes and in accordance with standard operating instructions.
4. You should complete the registration form overleaf and fax it to us with 7 days of purchase; failure to do so may result in delays in providing warranty service.
5. This warranty covers breakdowns due to design or manufacturing faults; it does not apply to damage, however caused, wear or tear, neglect, incorrect adjustment or repair, or to any items of limited natural life.
6. This warranty does not cover consumables, i.e. ink films, film refills, ink cartridges, toner cartridges, drum units, paper and paper loads or any optional accessories which may have been purchased either at the same time, as or subsequent to, the main unit. Such accessories should be returned to the point of purchase if found to be faulty.
7. In the event of a failure, please take the following action;

a. Refer to the "Help" section of your instruction manual in order to identify and possibly correct the problem:
b. If the problem is not resolved after referring to the user guide, please contact our customer helpline on 08701 580560 for UK or 01289 8333 for the Republic of Ireland

1. In the event the helpline cannot resolve the problem, a like for like exchange fax will be despatched overnight (if the call is received before 4pm) or, by a mutually convenient arrangement. The helpline operator will give you specific instructions on how the exchange will be executed. Failure to comply with these instructions may result in delay and cost to you.
2. The exchange fax will be delivered in a customised case by courier. It is the customer's responsibility to promptly remove the exchange fax and insert the faulty fax in the case provided for collection, to enable the courier to return it to Panasonic.
3. The exchange fax is to be regarded as a like for like exchange under warranty and the balance of the warranty period will transfer to the exchange unit.

The liability of Panasonic under the terms of this warranty is limited to the exchange of the fax, or the repair and return of the original fax (subject to any additional charges).

1. Where the original fax is found to be faulty as a result of unauthorised repairs or modifications or damage either by accident, misuse or improper installation then Panasonic reserves the right to charge the customer the sum of £50.00 plus VAT, as a contribution towards repair costs.
2. This warranty applies to the original purchaser only and is not transferable.
3. The warranty period applicable to this product shall be 12 months from the date of purchase.

Important safety instructions

When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from power outlets before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example near a bathtub, wash bowl, kitchen sink, or the like.
5. Place the unit securely on a stable surface. Serious damage and/or injury may result if the unit falls.
6. Do not cover slots and openings on the unit. They are provided for ventilation and protection against overheating. Never place the unit near radiators, or in a place where proper ventilation is not provided.
7. Use only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
8. For safety purposes this unit is equipped with a grounded plug. If you do not have this type of outlet, please have one installed. Do not use any type of adaptor plug to defeat this safety feature.
9. Do not place objects on the mains lead. Install the unit where no one can step or trip on the mains lead.

10. Do not overload wall outlets and extension cords. This can result in the risk of fire or electric shock.

11. Never push any objects through slots in this unit. This may result in the risk of fire or electric shock. Never spill any liquid on the unit.

12. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an authorised service centre when service is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the unit is subsequently used.
13. Unplug this unit from the wall outlet and refer servicing to an authorised service centre when the following conditions occur:

A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating instructions. Adjust only controls covered by the operating instructions. Improper adjustment may require extensive work by an authorised service centre.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.

1. During thunderstorms, avoid using telephones except cordless types. There may be a remote risk of an electric shock from lightning.

2. Do not use this unit to report a gas leak, when in the vicinity of the leak.

SAVE THESE INSTRUCTIONS

CAUTION:

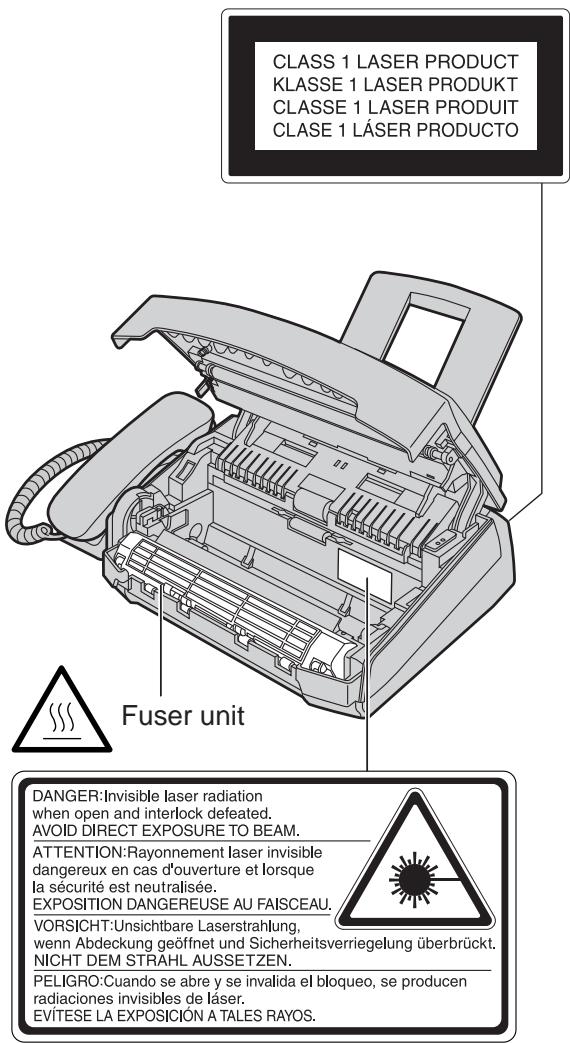

Laser radiation

• The printer of this unit utilises a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• The fuser unit gets hot. Do not touch it.

Toner cartridge

• Be careful of the following when you handle the toner cartridge.

• If you ingest any toner, drink several glasses of water to dilute your stomach contents, and seek immediate medical treatment.
  If any toner comes into contact with your eyes, flush them thoroughly with water, and seek medical treatment.
  —If any toner comes into contact with your skin, wash the area thoroughly with soap and water.

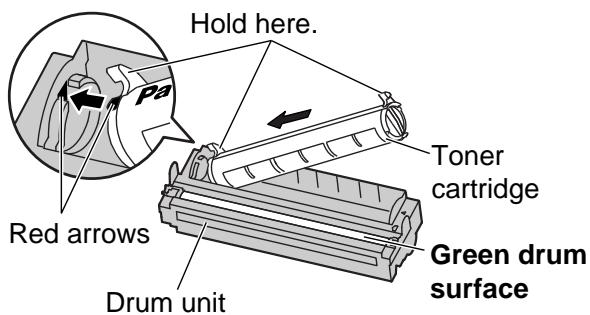

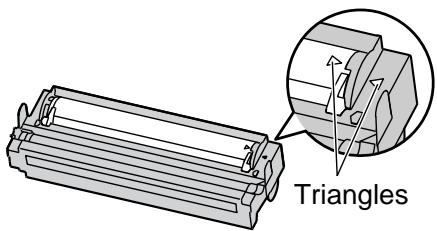

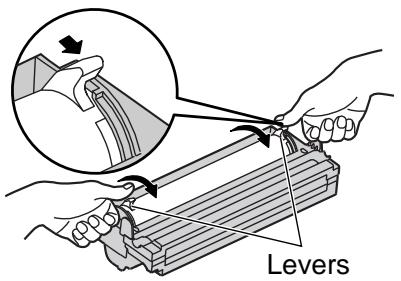

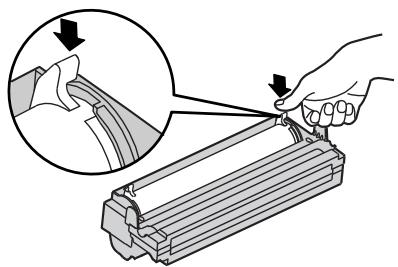

Drum unit

• Read the instructions on pages 12 and 13 before you begin installation of the drum unit. After you have read them, open the drum unit protection bag. The drum unit contains a photosensitive drum. Exposing it to light may damage the drum.

Once you have opened the protection bag:

—Do not expose the drum unit to light for more than 5 minutes.
—Do not touch or scratch the green drum surface.
—Do not place the drum unit near dust or dirt, or in a high humidity area.
—Do not expose the drum unit to direct sunlight.

CAUTION:

Installation

• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
• Use caution when installing or modifying telephone lines.

WARNING:

• To prevent the risk of fire or electrical shock, do not expose this product to rain or any type of moisture.

OTHER INFORMATION:

• Keep the unit away from electrical noise generating devices, such as fluorescent lamps and motors.
  The unit should be kept free from dust, high temperature and vibration.
  The unit should not be exposed to direct sunlight.
• Do not place heavy objects on top of this unit.
  -Do not touch the plug with wet hands.

Table of Contents

Initial Preparation
Accessories	Included accessories	8
	Accessory information	9

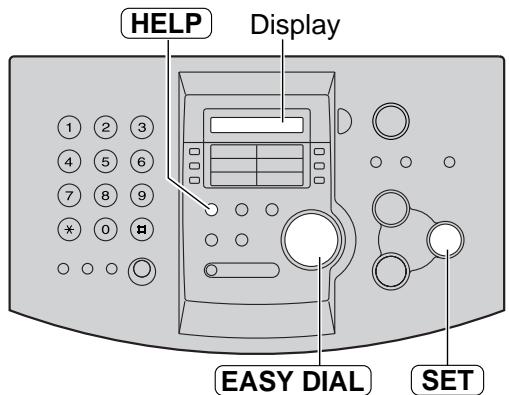

Help Button	Help function	10
Finding the Controls	Overview	10

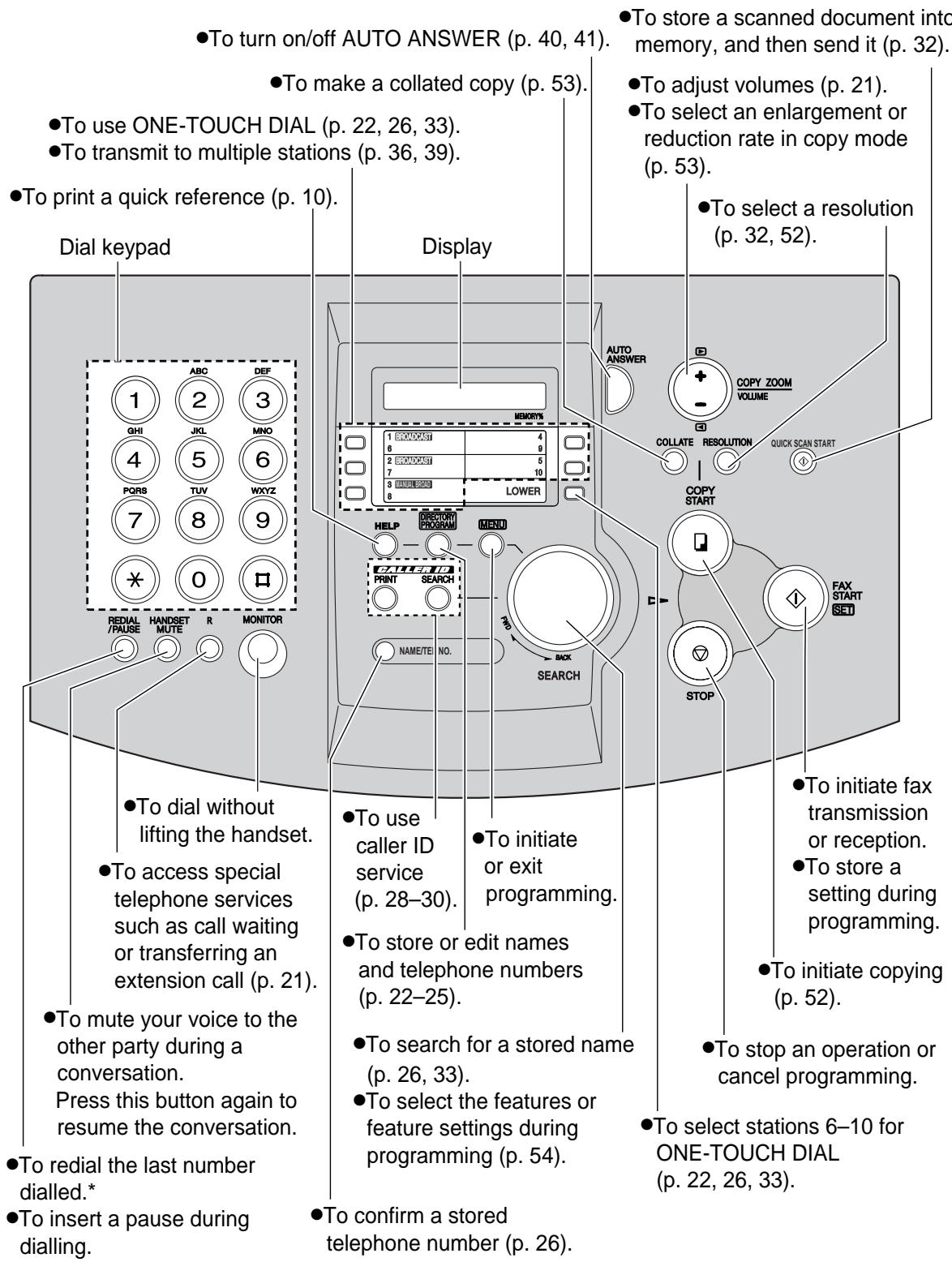

	Location	11

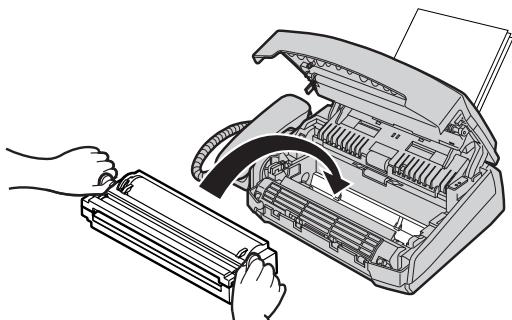

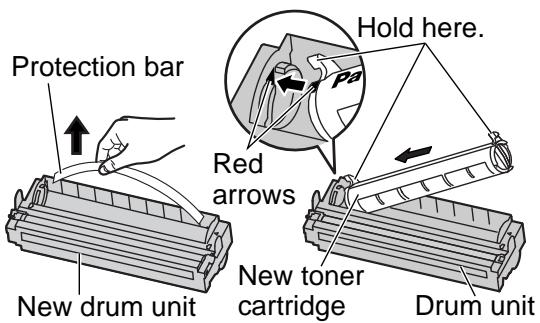

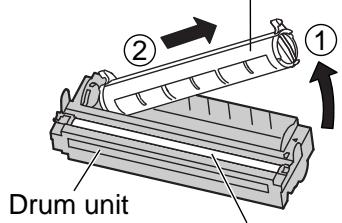

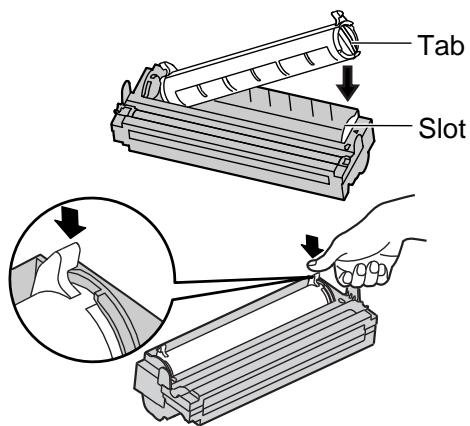

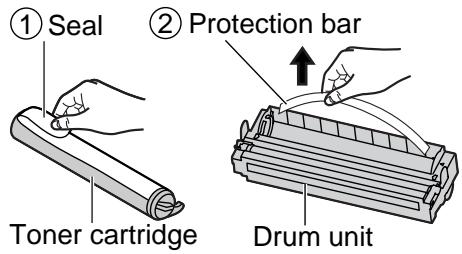

Setup	Toner cartridge and drum unit	12

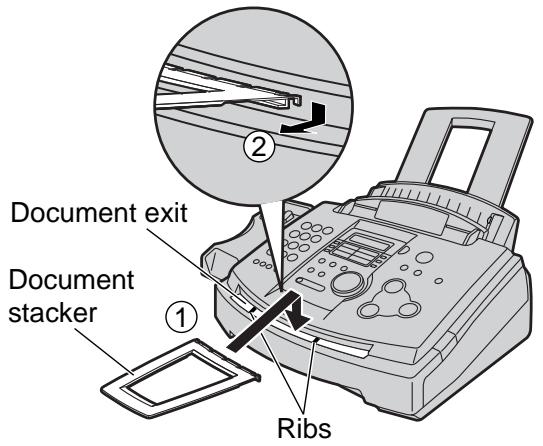

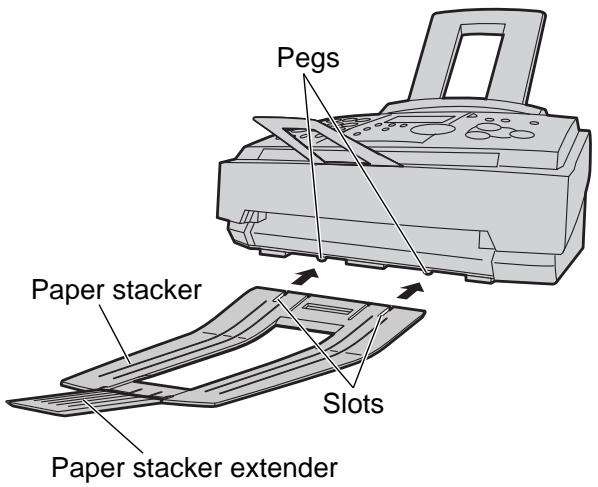

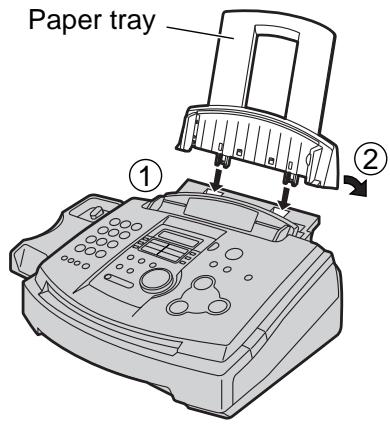

	Paper tray, document stacker and paper stacker	14

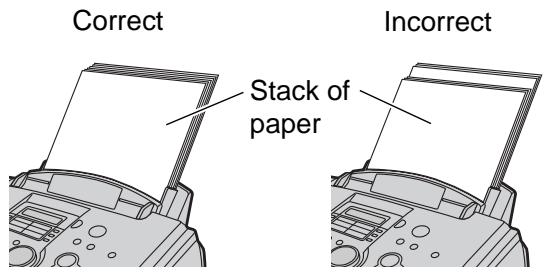

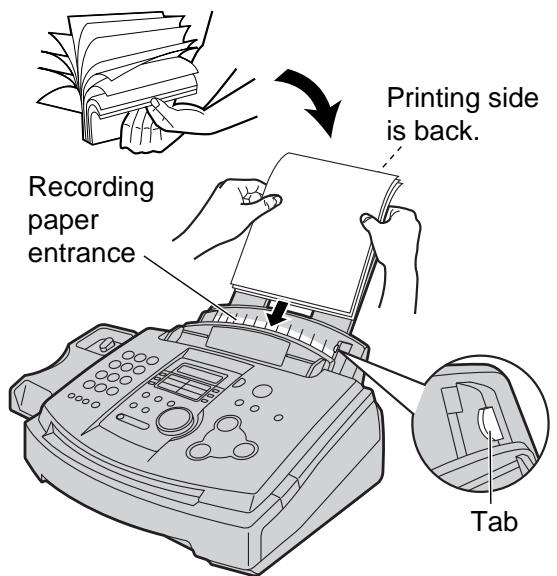

	Recording paper	15

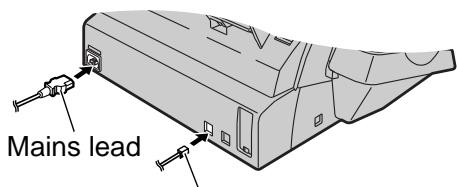

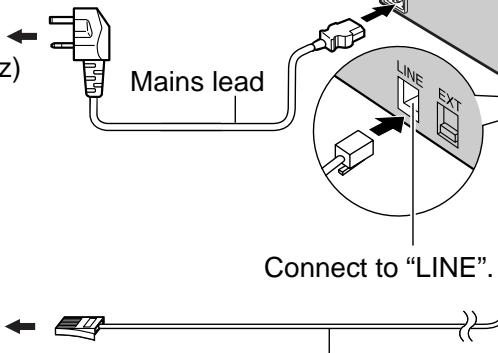

	Connections	16

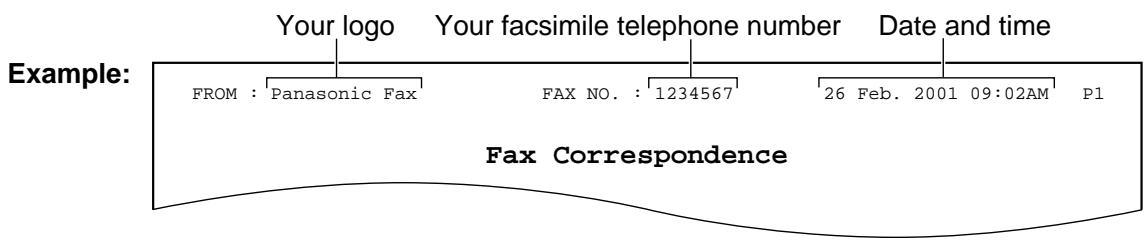

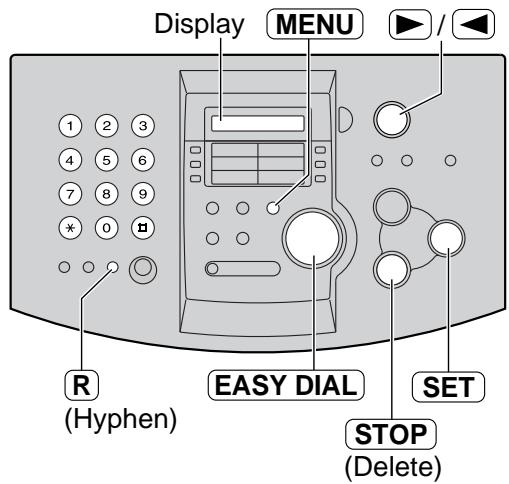

	Date and time, your logo and facsimile telephone number	17

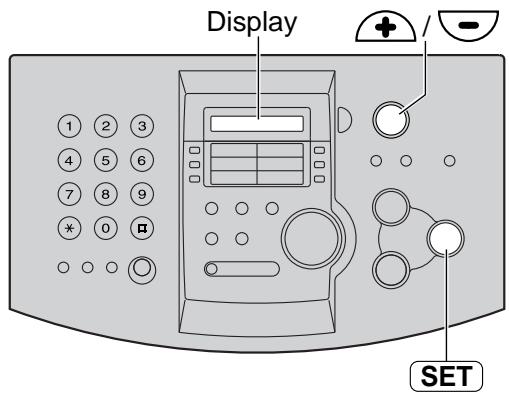

Volumes	Adjusting volumes	21
Telephone

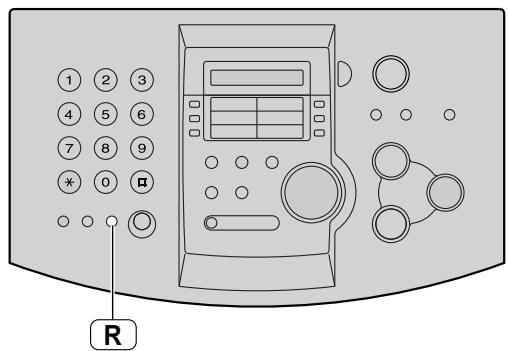

Recall Feature	R button	21

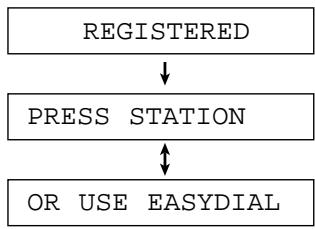

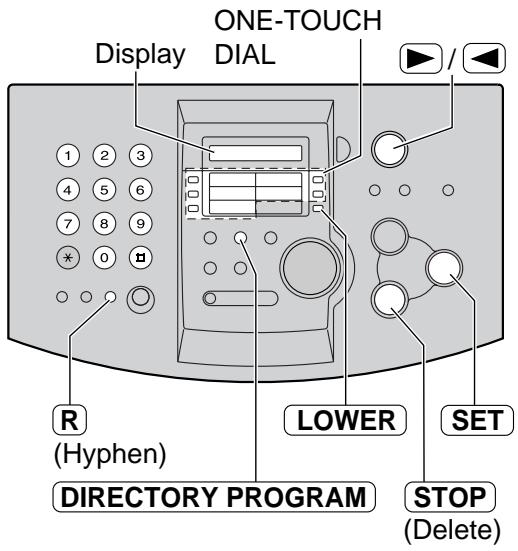

Automatic Dialling	Storing names and telephone numbers in ONE-TOUCH DIAL	22

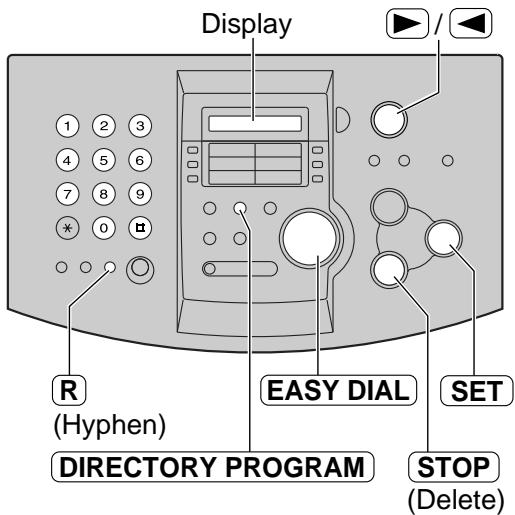

	Storing names and telephone numbers in EASY DIAL	23

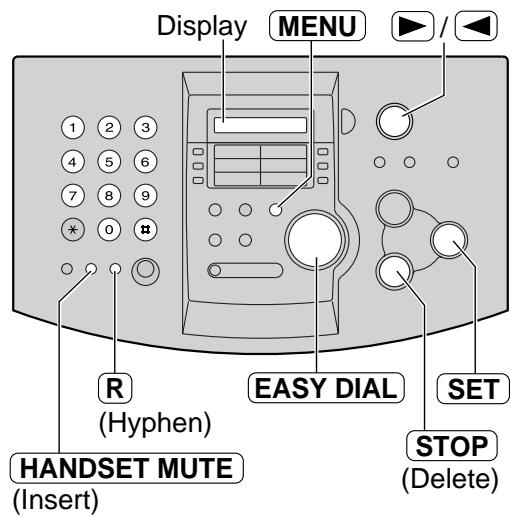

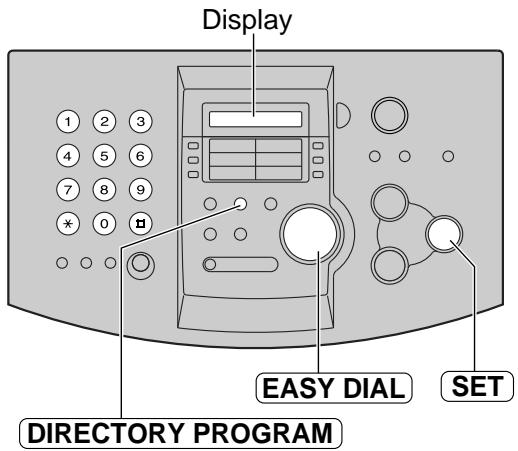

	Editing and erasing a stored name and number	24

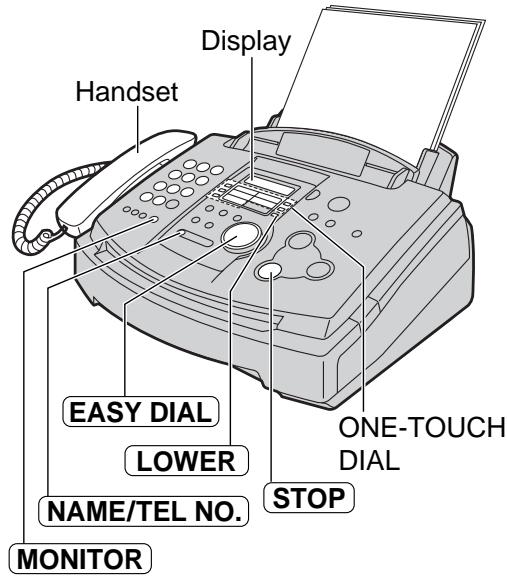

	Making a voice call using ONE-TOUCH DIAL and EASY DIAL	26

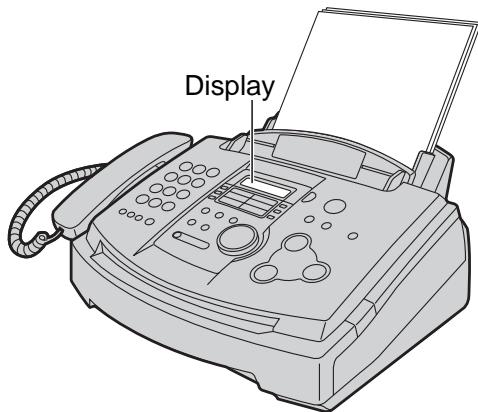

Caller ID	Caller ID service from your phone company	27
	Viewing and calling back using caller information	28

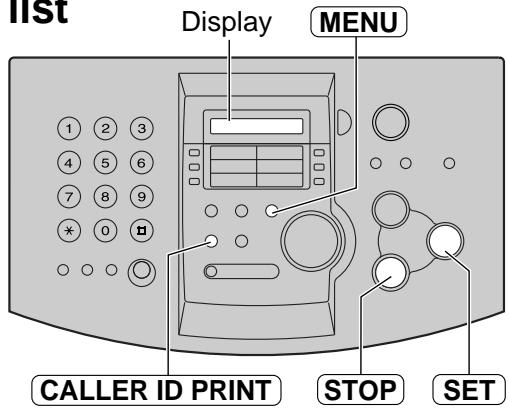

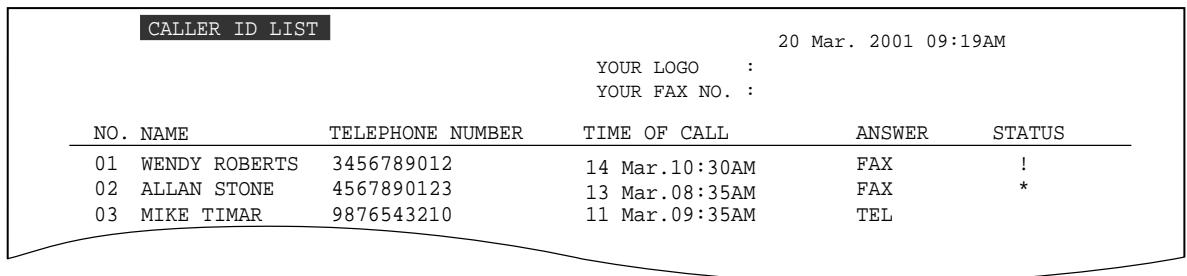

	Confirming caller information using the Caller ID list	29
	Storing caller information in ONE-TOUCH DIAL and EASY DIAL	30
Voice Contact	Talking to the other party after fax transmission or reception	31
Fax

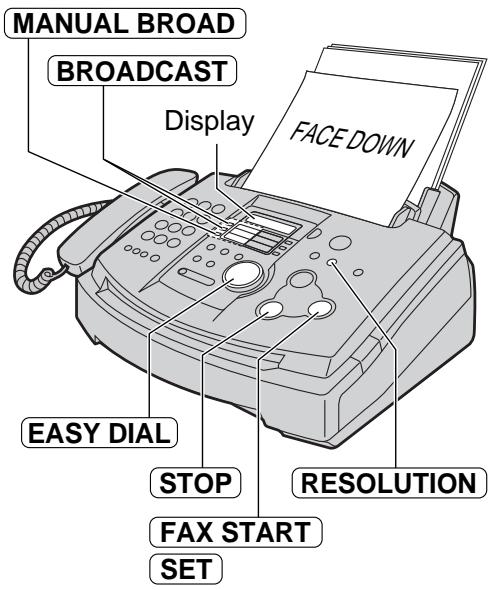

Sending Faxes	Sending a fax manually	32

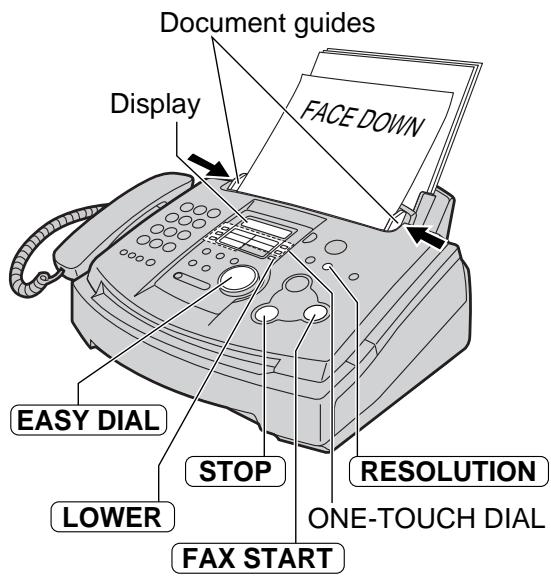

	Sending a fax using ONE-TOUCH DIAL and EASY DIAL	33

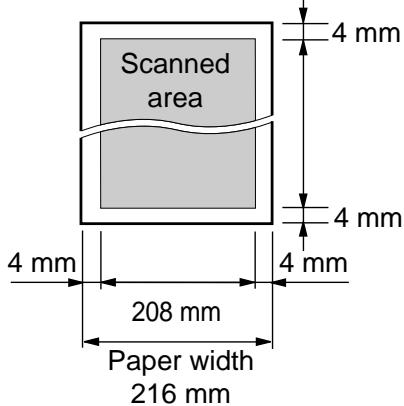

	Documents you can send	34

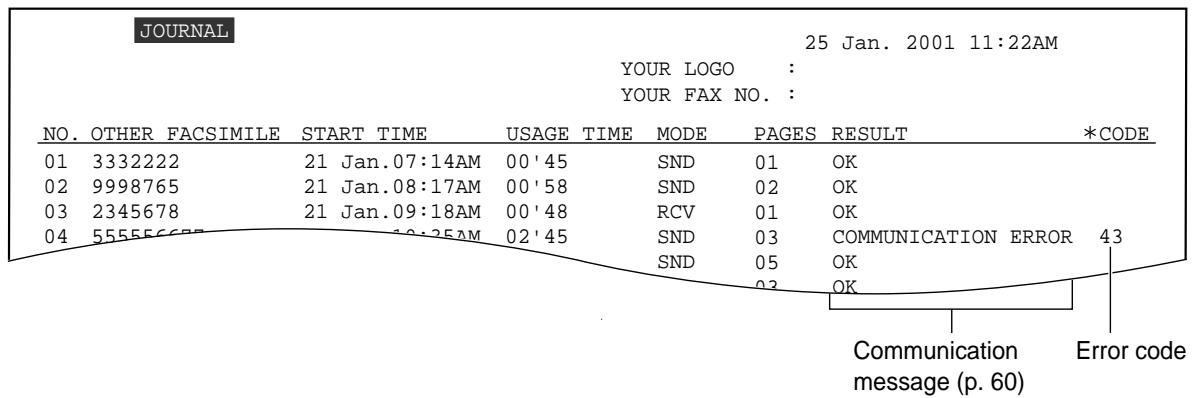

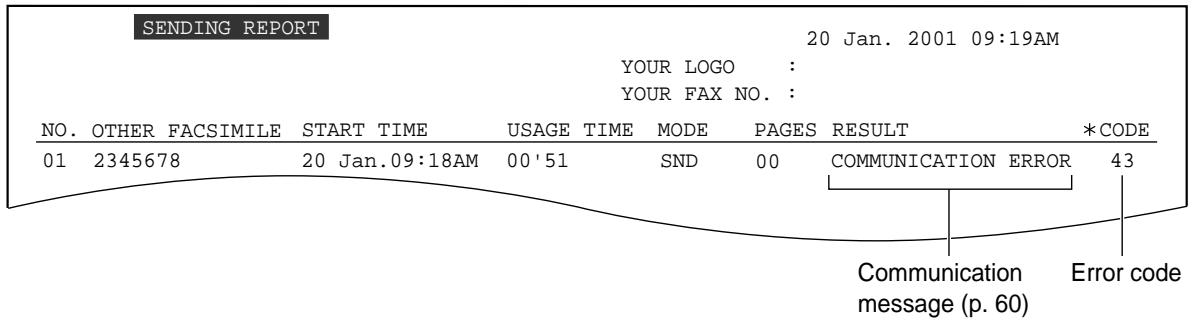

	Reports for confirmation	35

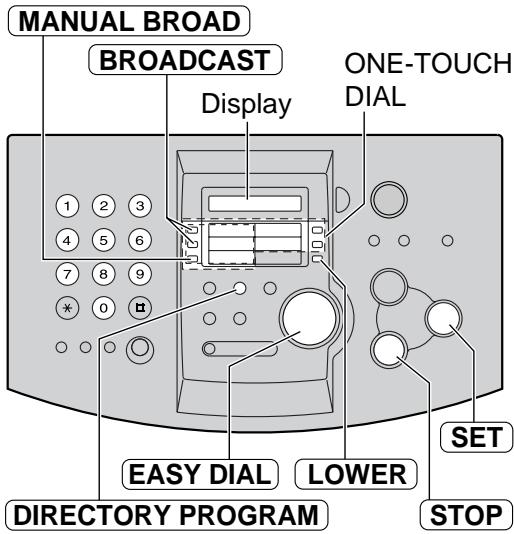

	Broadcast transmission	36

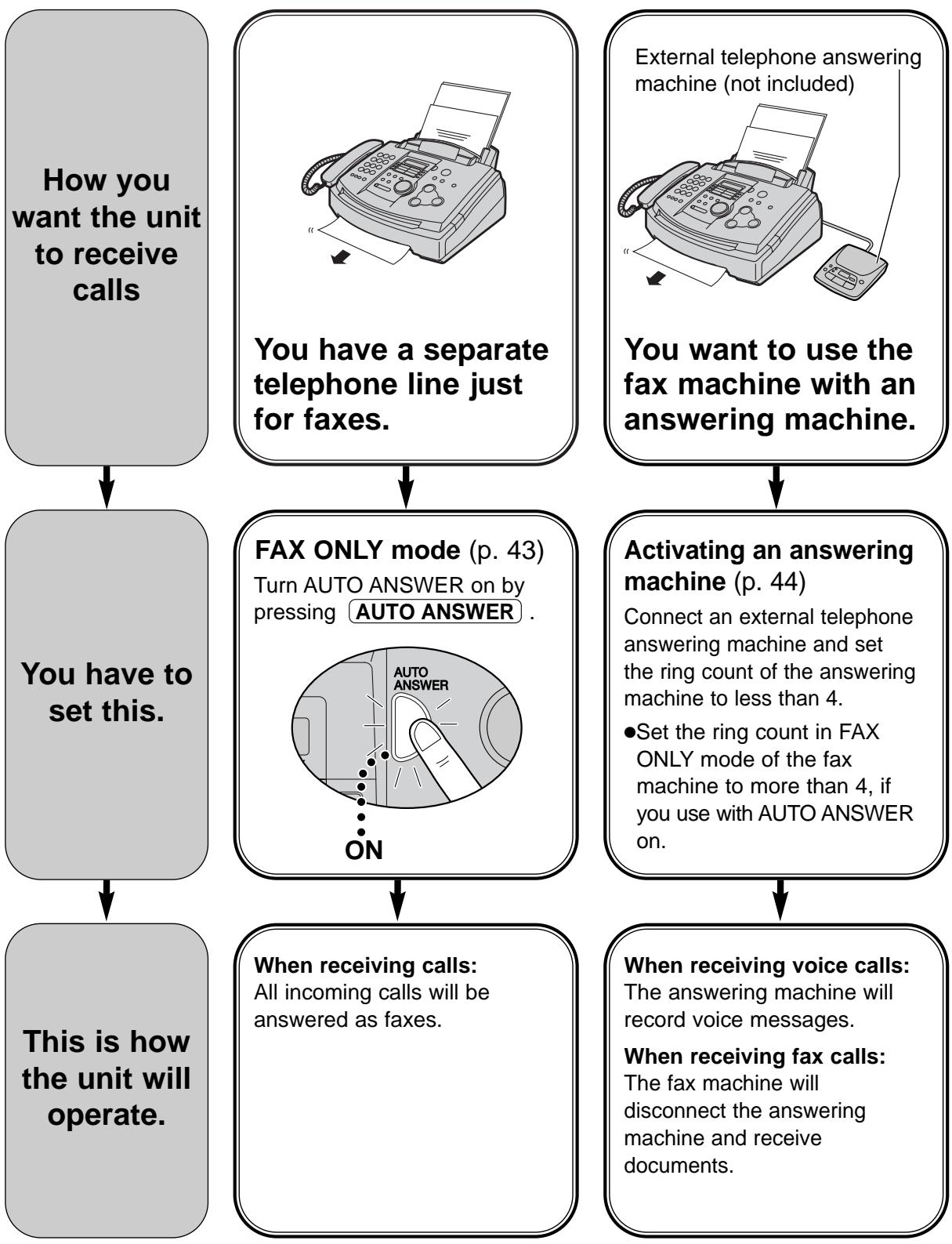

Receiving Faxes	Setting the unit to receive faxes	40

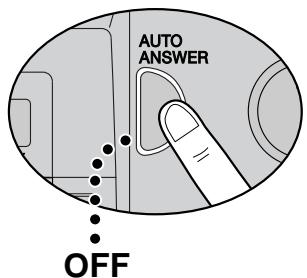

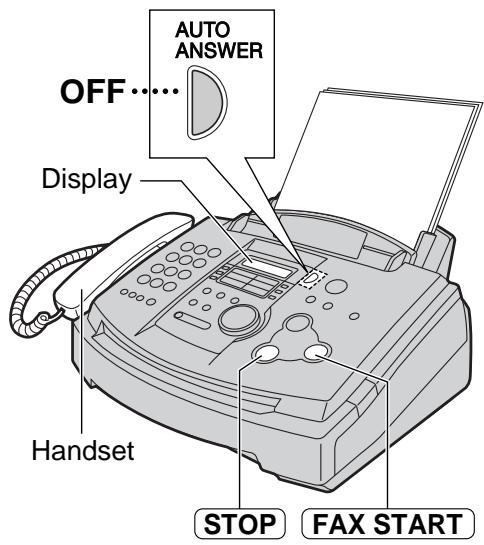

	TEL mode (answering all calls manually).	42

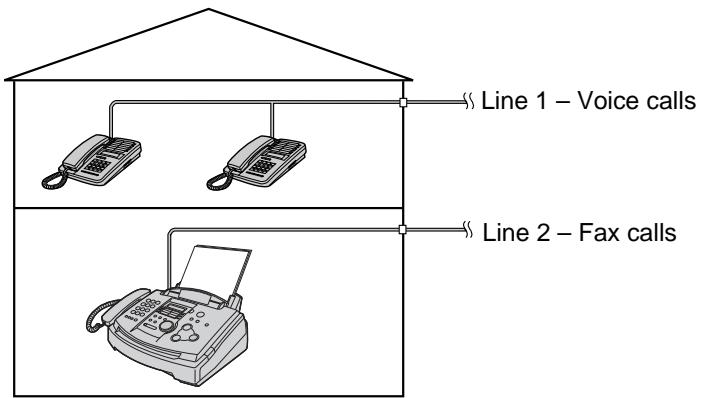

	FAX ONLY mode (all calls are received as faxes)	43

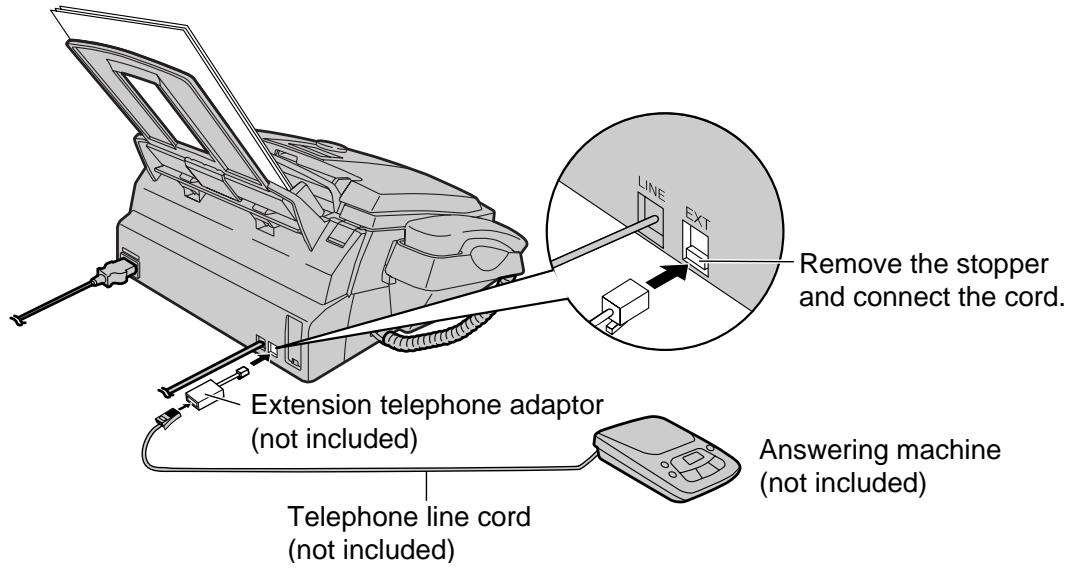

	Using the unit with an answering machine	44

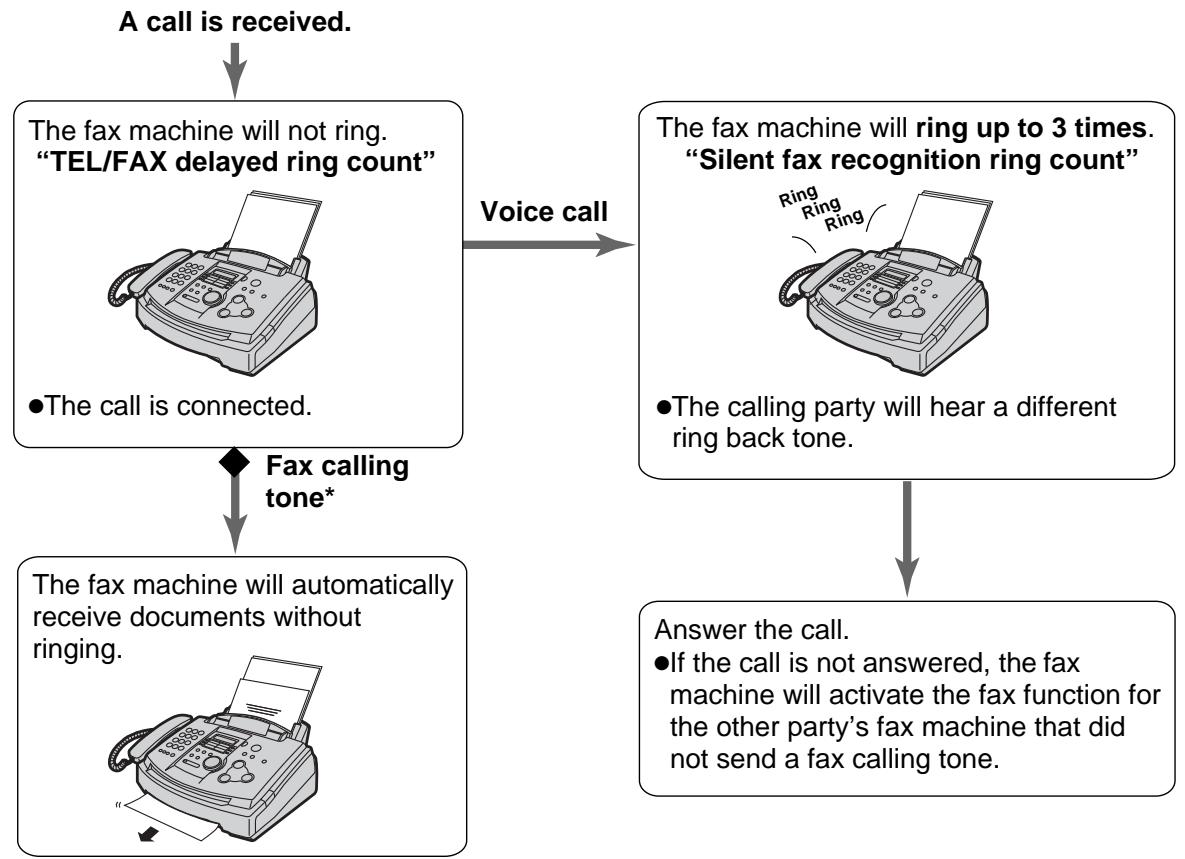

	TEL/FAX mode (receiving voice calls with rings and fax calls without rings when you are near the unit)	46

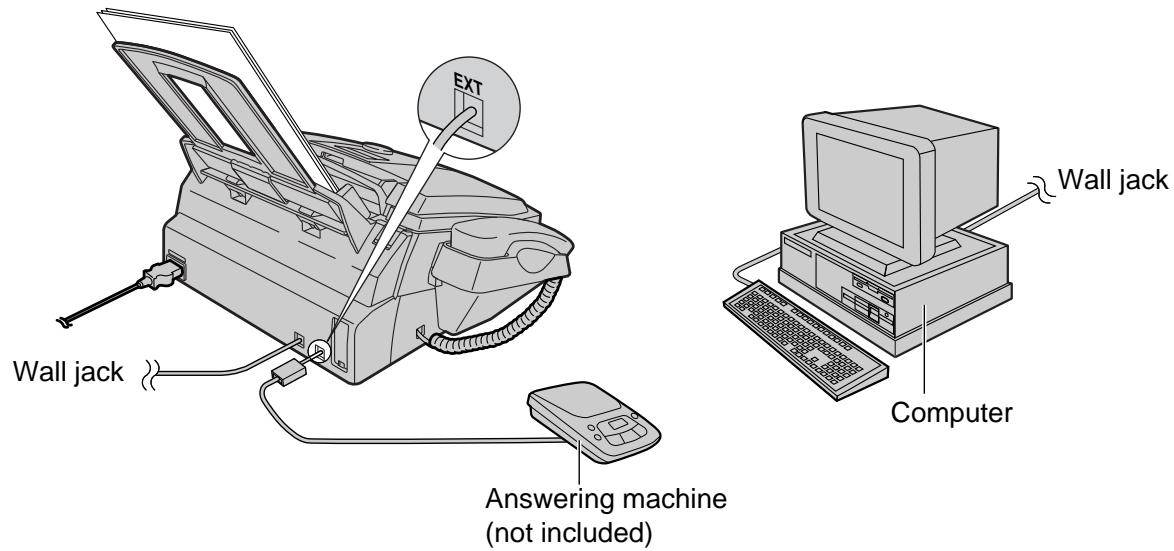

	Using the unit with a computer	48

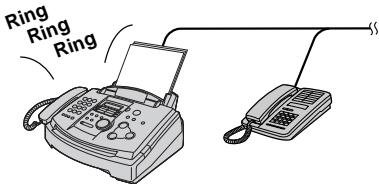

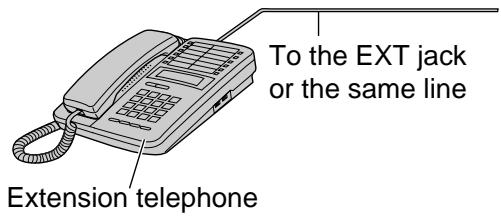

	Extension telephone	48
	Turning the AUTO ANSWER mode on remotely	49

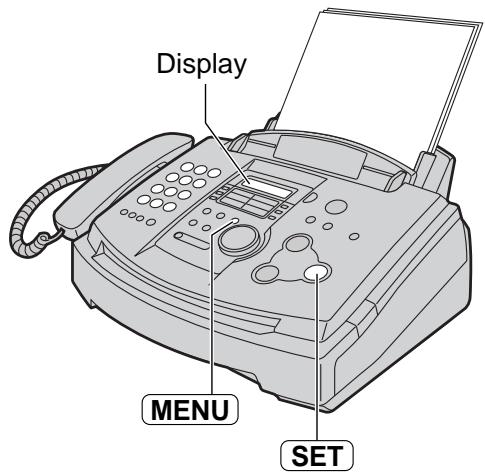

	Receive polling (retrieving a fax placed on another fax machine)	50
	Pager call	51

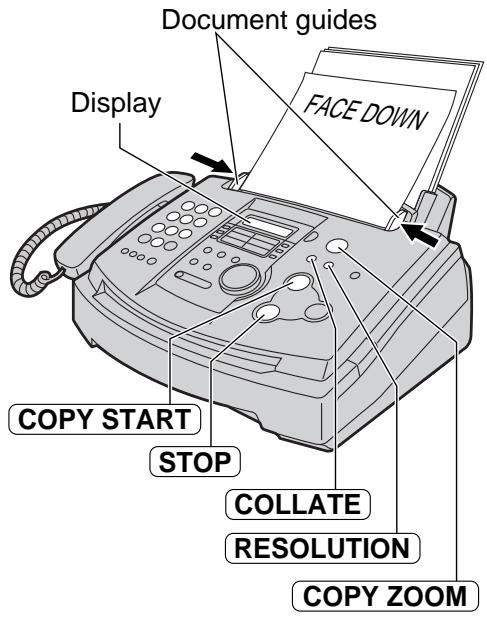

Copy

Copying 52

Convenient way to make a copy 52

Programmable Features

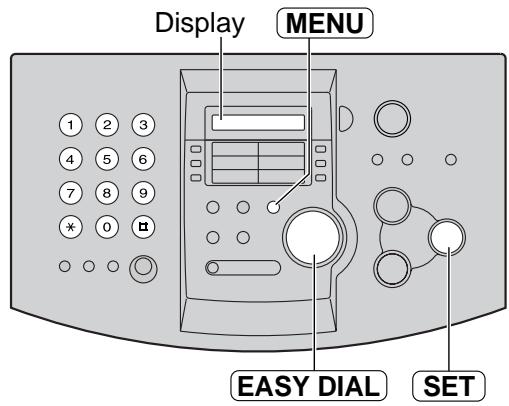

Features Programming. 54

Summary Basic features 55

Advanced features. 56

Help

Error Messages Reports. 60

Display 61

Operations When a function does not work, check here before

requesting help 63

If a power failure occurs 67

Replacement Replacing the toner cartridge and the drum unit 68

Jams Recording paper jam. 70

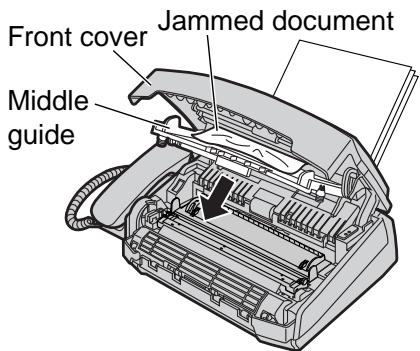

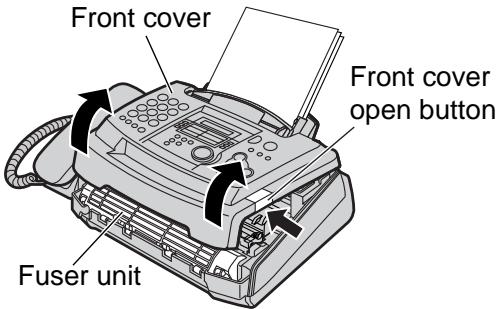

Document jams - sending 72

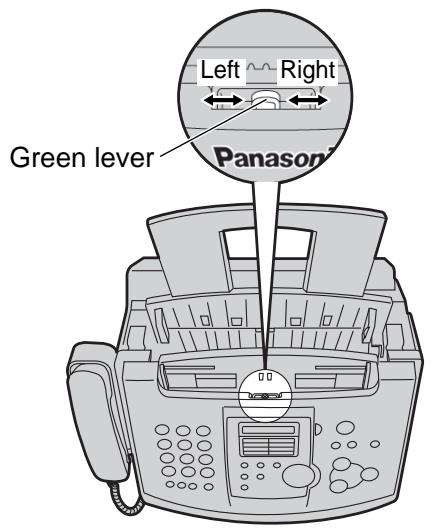

No feeding or multiple feeding occurs while sending 73

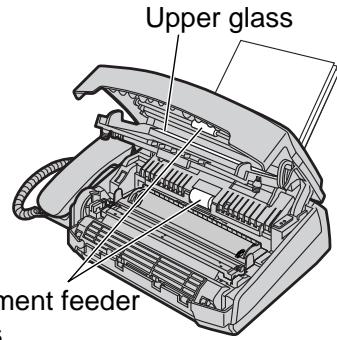

Cleaning Cleaning the inside of the unit. 74

General Information

Printed Reports Reference lists and reports 76

Specifications Technical data about this product 77

Important Important Information 79

Information Fitting a plug to the mains lead 80

Guarantee Condition of guarantee 81

Index Index 82

Included accessories

Mains lead....................1 Order No. PFJA03A005Z	Telephone line cord...1 Order No. PQJA87S	Handset....................1 Order No. PFJXE0905Z	Handset cord....................1 Order No. PFJA1029Z
Paper stacker....................1 Order No. PFZX1FL501M	Document stacker...1 Order No. PFKS1055Z	Paper tray....................1 Order No. PFZXFL501G	Operating instructions...1 Order No. PFQX1519Z
Quick Start Sheet....................1 Order No. PFQW1481Z	Drum unit....................1	Toner cartridge....................1 (complementary starter toner cartridge) This cartridge can print approx. 800 sheets of A4 size paper with a 5% image area. Refer to image area on page 78. Please purchase a replacement toner cartridge Model No. KX-FA76X for continuous use of your unit.

• If any item is missing or damaged, check with the place of purchase.
  The part numbers listed above are subject to change without notice.
• Save the original carton and packing materials for future shipping and transportation of the unit.

Accessory information

Panasonic Accessories and Consumables DIRECT

• Order accessory and consumable items for all Facsimile Products with ease and confidence either by going on line through our Internet Accessory ordering application at www.panasonic.co.uk

● Or telephone our Customer Care Centre on 08701 580560 Mon - Friday 9:00am - 5:30pm
- Most major credit and debit cards accepted.
- All enquires transactions and distribution facilities are provided directly by Panasonic UK Ltd.
It couldn't be simpler!

Model No.	Item	Usage	Specifications
KX-FA76X	Toner cartridge	For replacement, see page 68.	See page 78.
KX-FA77X/KX-FA78X	Drum unit	For replacement, see page 68.	See page 78.

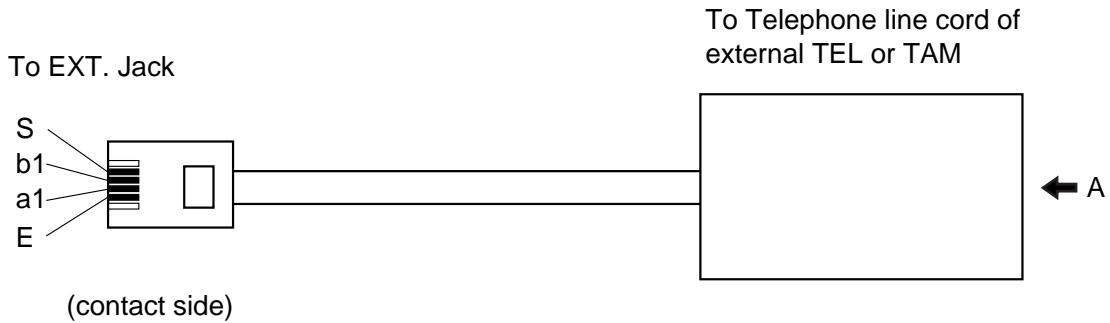

Extension telephone adaptor for UK

When using the unit with an external answering machine (p. 44), please purchase an extension telephone adaptor by contacting one of the following:

www.Panasonic.co.uk
— Panasonic Customer Care Centre on Telephone number 08701 580560
— local Panasonic authorised dealer

a1, b1: Line

S : Shunt

E : Earth Recall (This function is not provided on KX-FL501E.)

_view:A)

Help function

You can print a quick reference for assistance as follows.

1 Press HELP

Display: ROTATE 已 & SET

2 Rotate EASYDIAL until the desired item is displayed.

1. How to set the date, time, your logo and fax number.

QUICK SET UP

1. How to program the features.

FEATURE LIST

1. How to store names in the EASY DIAL directory and how to dial them.

EASY DIAL

1. Help with problems receiving faxes.

FAX RECEIVING

1. How to use the copier function.

COPIER

1. List of available reports.

REPORTS

1. How to use the Caller ID service.

CALLER ID

3 Press SET.

PRINTING

Overview

Handset

To make or answer calls.

Speaker

(Left side of the unit)

Front cover

Document stacker

Paper stacker extender

Document guides

Document exit

Paper stacker

Paper tray

Recording paper entrance

Document entrance

Front cover open button

boe stacker

• The document stacker and paper stacker may not be shown in all illustrations.

Location

*If the line is busy when you make a voice call using the MONITOR button, the unit will automatically redial the number up to 5 times.

Toner cartridge and drum unit

Caution:

• Read the instructions below before you begin installation. After you have read them, open the drum unit protection bag. The drum unit contains a photosensitive drum. Exposing it to light may damage the drum. Once you have opened the protection bag:

—Do not expose the drum unit to light for more than 5 minutes.
—Do not touch or scratch the green drum surface.
—Do not place the drum unit near dust or dirt, or in a high humidity area.
—Do not expose the drum unit to direct sunlight.

1 Before opening the protection bag of the new toner cartridge, shake it vertically more than 5 times.

2 Remove the toner cartridge and drum unit from the protection bags.

Peel off the seal from the toner cartridge (①).

Remove the protection bar from the drum unit (②).

3 With Panasonic face up on the toner cartridge, match the red arrows on the cartridge and the drum unit.

4 Slide the tab of the toner cartridge into the slot of the drum unit.

5a Hold right side of the toner cartridge under the lip on the drum unit and...

5b turn the two levers on the toner cartridge with firm pressure.

The toner cartridge is installed when the triangles match.

Push the front cover open button then open the front cover.

8 Install the drum and toner unit by holding the tabs.

• If the lower glass is dirty, clean it with a soft, dry cloth.

9 Close the front cover, until locked, by pushing down on both sides.

Toner save feature

• If you want to save on toner consumption, set the toner save setting to on (feature #79 on page 59). The toner cartridge will last approx. 40% longer. This feature may reduce print quality.

Paper tray, document stacker and paper stacker

Paper tray

Insert the paper tray into the two slots on the back of the unit (①).

Let it lean back until it clicks into place (②).

Document stacker

Align with the ribs on the document exit (①).

Pull the document stacker forward gently until it clicks into place (②).

Paper stacker

Line up the slots in the paper stacker with the pegs on the bottom of the unit, then slide until locked.

Open the paper stacker extender.

• The paper stacker can hold approx. 100 sheets of printed paper. Remove the printed paper before they are filled on the paper stacker.

Note for installation:

• Do not place the unit in an area where the paper tray may be obstructed by a wall, etc.
• Document and recording paper will be ejected from the front of the unit. Do not place anything in front of the unit.

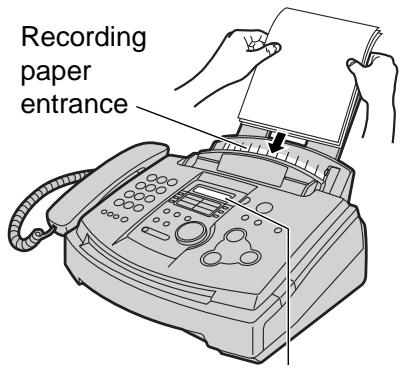

Recording paper

A4 size recording paper can be loaded. The unit can hold up to 150 sheets of 60g / m^2 to 75g / m^2 paper or 120 sheets of 90g / m^2 paper.

Fan the stack of paper to prevent a paper jam.

2 Insert the paper into the recording paper entrance.

The paper should not be over the tab.
-If the paper is not inserted correctly, readjust the paper, or the paper may jam.

Note for recording paper:

• Avoid using paper with a cotton and/or fiber content that is over 20% , such as letterhead paper or paper used for resumes.
• Do not use different types or thicknesses of paper at the same time. This may cause a paper jam.
• Avoid extremely smooth or shiny paper that is highly textured.
• Avoid paper that is coated, damaged or wrinkled.

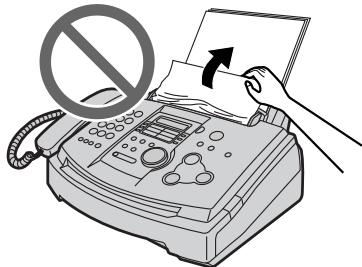

Note:

• Avoid double-sided printing.
• Do not use paper printed from this unit for double-sided printing with other copiers or printers, or the paper may jam.
• Some paper only accepts print on one side. Try using the other side of paper if you are not happy with the print quality.

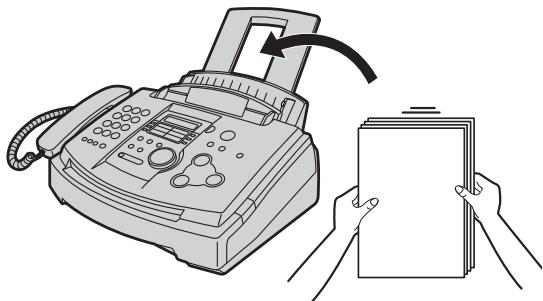

Adding paper

1. Remove all of the installed paper.
2. Add paper to the removed paper and straighten.
3. Fan the stack of paper.
4. Insert the paper into the recording paper entrance.

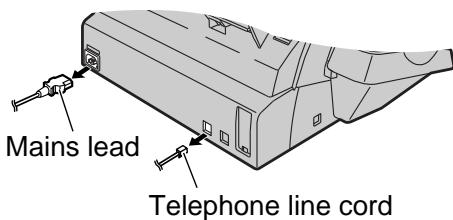

Connections

1 Connect the handset cord.
2 Connect the telephone line cord.
3 Connect the mains lead. When the power is turned on for the first time, the unit will print some basic information.

To Household Mains Supply (220-240 V, 50 Hz)

Handset cord

Telephone line cord

Caution:

• When you operate this product, the power outlet should be near the product and easily accessible.

Note:

• You can connect an extension telephone or answering machine to the external telephone jack (EXT) on this unit (p. 44, 48).
• Telephone line connection is TNV (Telecommunication Network Voltage).

Date and time, your logo and facsimile telephone number

You should program the date and time, your logo and facsimile telephone number. This information will be printed on each page transmitted from your unit.

Setting the date and time

1 Press MENU

Display: SYSTEM SET UP

Press 0 , then 0

SET DATE & TIME

3 Press SET.

Example: D:01/M:01/Y:01

Cursor

4 Enter the correct day/month/year by selecting 2 digits for each, using the dial keypad.

6 Enter the correct hour/minute by selecting 2 digits for each, using the dial keypad.

Press * to select "AM" or "PM".

Example: 3:15PM

1. Press 03 15.

TIME: 03:15AM

1. Press * until "PM" is displayed.

TIME: 03:15PM

7 Press SET

SETUP ITEM[ ]

8 Press MENU.

Note:

• You can enter the number by rotating EASY DIAL in steps 4 and 6. In this case, press to move the cursor.
• If you select "24H" for the clock display (feature #19 on page 55), the time is set using a 24 hour clock (military time).

Example: 3:15PM: Press 15 15.

The accuracy of the clock is approximately ± 60 seconds a month.

To correct a mistake

• Press or to move the cursor to the incorrect number, and make the correction.
• If you press STOP while programming, the display will return to the previous one.

Setting your logo

The logo can be your company, division or name.

1 Press MENU

Display: SYSTEM SET UP

Press 1 , then 02

Press 1 , then 0 .

YOUR LOGO

3 Press SET

Press SET

LOGO=

4 Enter your logo, up to 30 characters, using the dial keypad. See the next page for details. Example: "Bill"

1. Press 2 twice.

LOGO=B

Cursor

1. Press 4 six times.

LOGO=B

1. Press 5 six times.

LOGO=Bi

1. Press to move the cursor to the next space and press 5 six times.

LOGO=Bil

5 Press SET

SETUP ITEM[ ]

6 Press MENU.

Note:

• You can enter your logo by rotating EASY DIAL (see the next page).

To correct a mistake

• Press or to move the cursor to the incorrect character, and make the correction.

To delete a character

• Move the cursor to the character you want to delete and press STOP.

To change capital or lower case letters

Pressing the key will change to capital or lower case alternatively.

1. Press 2 twice.

Display: LOGO=B

1. Press 4 three times.

LOGO BI

1. Press .

LOGO=B

1. Press 5 three times.

LOGO=Bil

To insert a character

1. Press or to move the cursor to the position to the right of where you want to insert the character.
2. Press HANDSET MUTE (Insert) to insert a space and enter the character.

To select characters with the dial keypad

Pressing the dial keys will select a character as shown below.

Keys	Characters
1	1 [ ] { } + - / = , . _ ` ; ? |
2	A B C a b c 2
3	D E F d e f 3
4	G H I g h i 4
5	J K L j k l 5
6	M N O m n o 6
7	P Q R S p q r s 7
8	T U V t u v 8
9	W X Y Z W x y z 9
0	0 () < > ! " # % & ¥ * @ ^ ' →
II	To change capital or lower case letter.
R	Hyphen button (To insert a hyphen.)
HANDSET MUTE	Insert button (To insert one character or one space.)
STOP	Delete button (To delete a character.)
+	▶ key (To move the cursor to the right.)
-	To enter another character using the same number key, move the cursor to the next space.
-	< key (To move the cursor to the left.)

To select characters using EASY DIAL

Instead of pressing the dial keys, you can select characters using EASY DIAL.

1. Rotate EASYDIAL until the desired character is displayed.
2. Press to move the cursor to the next space. The character displayed in step 1 is inserted.
3. Return to step 1 to enter the next character.

Display order of characters

Setting your facsimile telephone number

1 Press MENU
Display: SYSTEM SET UP
Press 1 , then 03
YOUR FAX NO.
Press SET
NO. =
4 Enter your facsimile telephone number, up to 20 digits, using the dial keypad.
Example: NO. = 1234567
5 Press SET
SETUP ITEM []
6 Press MENU.

Note:

• You can enter your facsimile telephone number by rotating EASY DIAL. If you use EASY DIAL, press to move the cursor.
• The * button replaces the digit with a "+" and the button replaces it with a space.

Example (using the dial keypad): +234 5678

Press *234#5678

To enter a hyphen in a telephone number, press R (Hyphen).

To correct a mistake

• Press or to move the cursor to the incorrect number, and make the correction.

To delete a number

• Move the cursor to the number you want to delete and press STOP.

Adjusting volumes

Ringer volume

4 levels (high/middle/low/off) are available.

While the unit is idle, press + or - .

• If any documents are in the document entrance, you cannot adjust the ringer volume. Confirm that there are no documents in the entrance.

To turn the ringer off:

1. Press repeatedly until the following message is displayed.

1. Press SET

To turn the ringer back on, press

■ While the ringer volume is set to off:

The display will show the following message.

RINGER OFF

When a call is received, the unit will not ring and will display the following.

INCOMING CALL

Monitor volume

8 levels (high to low) are available.

While using the monitor, press + or

Melody ringer

• You can select one of the four melodies instead of the bell. Change the setting (feature #17 on page 55). The melody you selected will sound when the unit receives a call.

R button (to use the recall feature)

R is used to access special telephone services (optional) such as call waiting.

Contact your telephone company business office for details.

Example: Call waiting

When a call waiting tone is heard during a conversation:

To hold the existing call and accept the waiting call

Press R.

Each time you press R, you can switch between the first and second call.

Incoming calls cannot be dropped by the person who has received the call.

If your unit is connected to a PBX, pressing R allows you to access some features of your host PBX such as transferring an extension call.

Storing names and telephone numbers in ONE-TOUCH DIAL

For rapid access to frequently dialled numbers, the unit provides 10 stations of ONE-TOUCH DIAL keys.
- ONE-TOUCH DIAL 1 to 3 can be used alternatively as broadcast keys (p. 36).

Press DIRECTIONALPROGRAM

Display:

PRESS STATION

OR USE EASYDIAL

For ONE-TOUCH DIAL 1-3:

Press one of the ONE-TOUCH DIAL keys.

DIAL MODE

C2

Press SET to go to the next prompt.

Press one of the ONE-TOUCH DIAL keys.

Press LOWER, then press one of the ONE-TOUCH DIAL keys.

3 Enter the name, up to 10 characters (see page 19 for instructions).

Example:

NAME=John

Press SET

Example:

< S02> =

5 Enter the telephone number, up to 30 digits, using the dial keypad.

Example:

< S02> = 1114497

• If you want to enter a hyphen, press R.

6 Press SET

• To program other stations, repeat steps 2 to 6.

7 Press STOP to exit the program. If you press DIRECTION PROGI

instead of STOP, you can print the one-touch label card (see right).

Helpful hint:

• You can confirm the stored items on the display (p. 26) or on the telephone number list (p. 76).

Note:

• A hyphen or a space entered in a telephone number counts as two digits.

To correct a mistake

• Press or to move the cursor to the incorrect character/number, and then make the correction.

To delete a character/number

• Move the cursor to the character/number you want to delete, and press STOP.

To print the one-touch label card with stored names

Press Directory PROGRAM in step 7.

Display:

PRINT LABEL OK?

YES:SET/NO:STOP

Press SET to start printing.

• Put the card in the ONE-TOUCH DIAL location.

Storing names and telephone numbers in EASY DIAL

For rapid access to frequently dialled numbers, the unit provides a EASY DIAL directory (100 stations).

Press Directory PROGRAM

Display: PRESS STATION

OR USE EASYDIAL

2 Rotate EASYDIAL until the following is displayed. NAME

Rotate EASYDIAL until the following is displayed.

3 Enter the name, up to 10 characters (see page 19 for instructions).

Example: NAME Alice

4 Press SET

NO. =

5 Enter the telephone number, up to 30 digits, using the dial keypad.

Example: NO. = 5552233

-If you want to enter a hyphen,press R

6 Press SET

REGISTERED

NAME=

• To program other items, repeat steps 3 to 6.

7 Press Directory PROGRAM to exit the program.

Helpful hint:

• You can confirm the stored items on the display (p. 26) or on the telephone number list (p. 76).

Note:

• When the following message is displayed in step 6, you can store only 5 more items.

Display: SPACE=5DIRS.

• If there is no space to store new stations, the following message is displayed in step 1.

EASY DIAL FULL

Erase unnecessary stations (p. 25).

• A hyphen or a space entered in a telephone number counts as two digits.

To correct a mistake

• Press or to move the cursor to the incorrect character/number, and then make the correction.

To delete a character/number

• Move the cursor to the character/number you want to delete, and press STOP.

Editing and erasing a stored name and number = Editing a stored name and number

You can edit a name or number that is stored in ONE-TOUCH DIAL and EASY DIAL.

1 Rotate EASYDIAL until the desired name is displayed.

Press DIRECTIONALPROGRAM

EDIT *DELETE = #

Press * to select "EDIT".

NAME=Mary

• If you do not need to edit the name, skip to step 5.

4 Edit the name (see page 19 for instructions).
Press SET
Example: =0123456
- If you do not need to edit the telephone number, skip to step 7.
6 Edit the telephone number. For further details, see page 23.
7 Press SET

Erasing a stored station and item

You can erase ONE-TOUCH DIAL station and EASY DIAL item.

1 Rotate EASYDIAL until the desired name is displayed.

Example: Mary

Press DIRECTIONALPROGRAM

EDIT *DELETE = #

Press to select "DELETE".

DELETE OK?

YES:SET/NO:STOP

• To cancel erasing, press STOP.

4 Press SET

DELETED

• The stored name and number are deleted.

Making a voice call using ONE-TOUCH DIAL and EASY DIAL

Before using this feature, program the desired names and telephone numbers into ONE-TOUCH DIAL and EASY DIAL (p. 22, 23).

• Confirm that there are no documents in the document entrance.

2 For ONE-TOUCH DIAL 1-5: Press the desired ONE-TOUCH DIAL key.

For ONE-TOUCH DIAL 6-10: Press LOWER, then press the desired ONE-TOUCH DIAL key.

Example: TEL=

The unit will start dialling automatically.

Using EASY DIAL

1 Rotate EASYDIAL until the desired name is displayed.

Example: Lisa

• If the desired name has not been stored, press STOP and dial the number manually.

2 Press MONITOR or lift the handset. The unit will start dialling automatically.

To confirm the stored telephone number on the display

1. Rotate EASY DIAL until the desired name is displayed.

Example: John means the station number for ONE-TOUCH DIAL

1. Press NAME/TEL NO.

1114497

• To stop the confirmation, press STOP.
• To make a call, press MONITOR or lift the handset.

To search for a name by initial

Example: "Lisa"

1. Rotate EASY DIAL until any name is displayed.

Example: Alan

1. Press ⑤ repeatedly until any name with the initial "L" is displayed (see the character table on page 19).

Larry

1. Rotate EASYDIAL to the right until "Lisa" is displayed.

Lisa

• To stop the search, press STOP.
  To make a call, press MONITOR or lift the handset.

Note:

• When you want to search for symbols (not letters or numbers), press * in step 2.

Caller ID service from your phone company

This unit is compatible with the Caller ID service offered by your local telephone company. To use this feature, you must subscribe to the Caller ID service.

Important:

• This unit is designed in accordance with the "FSK based subscriber line protocol" under the ETS (European Telecommunication Standard) and only supports the basic CLIP (Calling Line Identification Presentation) features.
• This unit will only display the caller's telephone number and name.
• This unit will not support future additional telephone services.
• This unit cannot support services based on the "DTMF based subscriber line protocol".
  Depending on the service of the local telephone company, the date/time of the call or the caller's name may not be displayed.

Set the following ring count settings to 2 or more rings beforehand.

—FAX ring count (feature #06 on page 55)

—TEL/FAX ring count (feature #78 on page 59)

How Caller ID is displayed

The calling party's telephone number or name will be displayed after the first ring.

You then have the option of whether or not to answer the call depending on the caller.

Example: 1234567890

The unit will automatically store the caller information (telephone number, name and the time of the call). You can view the caller information (p. 28) and print the caller ID list (p. 29).

Note:

• If the unit is connected to a PBX (Private Branch Exchange) system, you may not receive the caller information. Consult your PBX supplier.
• If the unit cannot receive caller information, the unit will show the following.

OUT OF AREA The caller dialled from an area which does not provide Caller ID service.

PRIVATE CALLER The caller requested not to send caller information.

OR

WITHHELD

LONG DISTANCE

The caller made a long distance call.

Viewing and calling back using caller information

You can easily view caller information and call back.

Important:

• Calling back will not be available in the following cases.
  The telephone number includes data other than numbers (i.e. or #
  —The caller information does not include a telephone number.
  Depending on the service of the local telephone company, the date/time of the call or the caller's name may not be displayed.

1 Press CALLER ID SEARCH. Example (2 new calls are rec

Rotate EASYDIAL to the right (clockwise).

The display will show the most recent caller's number.
- If you rotate to the left, the display will show the reviewed calls.
- To stop viewing, press STOP.

Press MONITOR or lift the handset to make a call.

The unit will start dialling automatically.
- To send a fax - insert the document FACE DOWN and press FAX START.

To display the date/time of the call and the caller's name

Press NAME/TEL NO. repeatedly in step 2.

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Display while viewing

NO NAME RCVD

When the unit could not receive a name.

END OF NEW CALL

After the last new call has been displayed.

END

After all calls have been displayed.

NO CALLER DATA

When no calls have been received.

Confirming caller information using the Caller ID

list

The unit will store the 30 most recent caller information.

-To print manually, see below.

-To print automatically after every 30 new calls, activate feature #26 (p. 56).

Important:

Depending on the service of the local telephone company, the date/time of the call or the caller's name may not be displayed.

Sample of a Caller ID list

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Printing and erasing the Caller ID list

Press CALLER ID PRINT to start printing.

Display: PRINTING

The display will show the following after printing.

ERASE ALL OK?

YES:SET/NO:STOP

2 Press STOP to exit the program, or press SET to erase all of the stored caller information.

To erase caller information without printing

1. Press (MENU) three times.

Display: CALLER SET UP

1. Press SET

ERASE COMPLETED

1. Press SET

CALL LIST ERASE

1. Press STOP to exit the program.

2. Press SET

ERASE ALL OK?

-To cancel erasing, press STOP, then MENU

Storing caller information in ONE-TOUCH

DIAL and EASY DIAL

Important:

This feature is not available in the following cases.

The telephone number includes data other than numbers (i.e. or # ).
The caller information does not include a telephone number.

Press CALLER ID SEARCH.

2 Rotate EASYDIAL until the number you want to store is displayed.

Press DIRECTIONALPROGRAM

4 For ONE-TOUCH DIAL 1-3:

Press the desired ONE-TOUCH DIAL key.

Press SET

Example: NAME=

Press SET

Example: < S02> = 3453809

Press the desired ONE-TOUCH DIAL key.

NAME=

Press SET

< S04> = 3453809

• You can confirm the stored items on the display (p. 26) or on the telephone number list (p. 76).
• You can only store a name of up to 10 characters long.
  To edit a name and number, see page 24.
• If you enter a new item into ONE-TOUCH DIAL, the previous entry will be overwritten.
• If you use ONE-TOUCH DIAL 1-3 as a broadcast station, you cannot store caller information.
• If the EASY DIAL directory is full, you cannot store caller information.
• If you store a name in step 4, the name will be shown when using ONE-TOUCH DIAL or EASY DIAL. However, the name will not be displayed when the same caller calls unless the Caller ID service offers the name service.

Talking to the other party after fax transmission or reception

You can talk to the other party after a fax message is completed. This will save the added expense and time of making another call.

This feature only works when the other party's fax machine is equipped with a voice contact feature.

Initiating voice contact

1 Press MONITOR while transmitting or receiving documents.

Display: VOICE STANDBY

• Your unit will call the other party with a distinctive ring.
• When the other party answers, your unit will emit a distinctive ring.

2 Lift the handset to start talking.

Note:

• If you initiate voice contact during transmission, the unit will call you with a distinctive ring after all of the documents have been transmitted.
• If you initiate voice contact during reception, the unit will call you with a distinctive ring after the current page of the document has been received.

Receiving a request for voice contact

If the other party initiates voice contact, your unit will sound a distinctive ring and the following will be displayed.

PLEASE PICK UP

2 Lift the handset within 10 seconds of the distinctive ring to start talking.

Note:

• If you do not answer within 10 seconds of the distinctive ring, the line will be disconnected.

Sending a fax manually

1 Adjust the width of the document guides to the size of the document.
2 Insert the document (up to 15 pages) FACE DOWN until the unit grasps the document and a single beep is heard.

Display: STANDARD

3 If necessary, press RESOLUTION repeatedly to select the desired setting (see below).
Press MONITOR or lift the handset.

TEL=

Dial the fax number.

Example: TEL=5678901

When the fax tone is heard:

Press FAX START, and replace the handset if you are using it. OR

When the other party answers your call: Using the handset, ask them to press their start button. When the fax tone is heard, press FAX START and replace the handset.

CONNECTING....

To stop transmission

Press STOP

To radial the last number

Press (REDIAL/PAUSE).

• If the line is busy, the unit will automatically redial the number up to 5 times.
• During radial, the following will be displayed.

Display: WAITING REDIAL

• To cancel redialling, press STOP.

Convenient way to send a fax

You can dial the fax number first before inserting the document. This is convenient if the other party's number is indicated on the document.

1. Enter the fax number.
2. The handset must be on the cradle.
3. Insert the document.
4. Press FAX START

To select the resolution

Select the desired resolution according to the type of document.

STANDARD: For printed or typewritten originals with normal-sized characters.

FINE: For originals with small printing.

SUPER FINE: For originals with minute printing.

PHOTO: For originals containing photograph.

PHOTO WITH TEXT: For originals containing photograph and text.

• Using the "FINE", "SUPER FINE", "PHOTO" or "PHOTO WITH TEXT" setting will increase transmission time.
• If the resolution setting is changed during feeding, it will be effective from the next sheet.
• The "SUPER FINE" resolution only works with other compatible fax machines.

Sending from memory

You can press QUICK SCAN START

instead of FAX START to scan the document into memory before sending.

After storing, the unit will transmit the document.

• If the document exceeds the memory capacity (p. 77), sending will be cancelled.

Sending a fax using ONE-TOUCH DIAL and EASY DIAL

Before using this feature, program the desired names and telephone numbers into ONE-TOUCH DIAL and EASY DIAL (p. 22, 23).

1 Adjust the width of the document guides to the size of the document.
2 Insert the document (up to 15 pages) FACE DOWN until the unit grasps the document and a single beep is heard.

Display: STANDARD

3 If necessary, press RESOLUTION repeatedly to select the desired setting (p. 32).
4 Enter the fax number. Using ONE-TOUCH DIAL 1-5: Press the desired ONE-TOUCH DIAL key.

Using ONE-TOUCH DIAL 6-10: Press LOWER, then press the desired ONE-TOUCH DIAL key.

Using EASYDIAL: Display the desired name and press FAX START

Fax auto redial

If the line is busy or if there is no answer, the unit will automatically redial the number up to 5 times.

This feature is also available for delayed transmission (feature #25 on page 56).
- During radial, the following will be displayed.

Display: WAITING REDIAL

• To cancel redialling, press STOP.

If your unit does not send a fax

• Confirm the stored telephone number on the display and check that the number dialled is answered by the other party's machine (p. 26).
  The connecting tone will be heard during dialling to tell you the status of the other party's machine (feature #76 on page 58).

Documents you can send

Minimum size

Maximum size

Effective scanning area

Document weight

Single sheet: 45 g/m² to 90 g/m²

Multiple sheets: 60 g/m^2 to 80 g/m^2

Note:

• Remove clips, staples or other similar fasteners.
• Check that ink, paste or correction fluid has dried.
• Do not send the following types of documents. Use copies for fax transmission.

Chemically treated paper such as carbon or carbonless duplicating paper
—Electrostatically charged paper
Heavily curled, creased or torn paper
—Paper with a coated surface
—Paper with a faint image
—Paper with printing on the opposite side that can be seen through the front (e.g. newspaper)

To transmit more than 15 pages at a time

• Insert the first 15 pages of the document. Add the extra pages (up to 15) before the last page is fed into the unit.

Reports for confirmation

To confirm the communication results, the following reports are available.

Sending report

This report will provide you with a printed record of transmission results. To use this feature, activate feature #04 (p. 55).

Sample of a sending report

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Journal report

The unit stores the 30 most recent fax communication results. When a new communication occurs, the oldest communication result will be erased.

-To print manually, see page 76.

-To print automatically after every 30 new fax communications, activate feature #22 (p. 56).

Sample of a journal report

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Broadcast transmission

This feature is useful for sending the same document often to selected parties (up to 20 stations). First program the stations, then see page 39 for transmission.

The broadcast function utilises ONE-TOUCH DIAL 1-3. The one-touch dial function will be cancelled.
- BROADCAST key 1 and 2 can accept ONE-TOUCH DIAL and EASY DIAL entries. MANUAL BROAD key can also accept manual dialling entries.

Programming the stations

1 Press DIRECTIONAL PROGRAM

Display: PRESS STATION

OR USE EASYDIAL

2 For BROADCAST 1-2: Press the desired BRO

DIAL MODE

C2

Rotate EASYDIAL to select "BROADCAST".

Example: BROADCAST 1

For MANUAL BROADCAST: Press MANUAL BROAD

DIAL MODE

Rotate EASY DIAL to select "MANUAL BROAD".

MANUAL BROAD

Press SET

4 Enter stations. Using ONE-TOUCH DIAL 1-5:

Press the desired ONE-TOUCH DIAL key.

Example: DIR=ANN [01]

Using ONE-TOUCH DIAL 6-10:

Press LOWER, then press the desired ONE-TOUCH DIAL key.

Example: DIR=Luke [01]

Using EASYDIAL :

Display the desired name and press SET

Example: John [01]

↓

DIR=John [02]

Using the dial keypad (only for MANUAL BROAD):

Enter the fax number and press SET

Example:

DIR=3456789

DIR=3456789 [01]

• To enter other stations, repeat this step (up to 20 stations).

Press SET after programming all of the desired stations.

REGISTERED

PRESS STATION

OR USE EASYDIAL

• To program another broadcast key, repeat steps 2 to 5.

6 Press STOP to exit the program.

Note:

• If you enter the wrong station, press STOP after step 4 to erase the station.
• Confirm the stored items by printing a broadcast programming list (p. 76).

Adding a new station

1 Rotate EASYDIAL until the desired key name is displayed. Example:

2 Press DIRECTIONAL PROGRAM

Press ※ to select "ADD".

4 Rotate EASY DIAL until the desired name you want to add is displayed (only using EASY DIAL is available). Example (EASY DIAL): Mike

Example (ONE-TOUCH DIAL-2): Peter

Press SET

• REGISTERED

• ↓ Example: Nikki

• To add other stations, repeat steps 4 and 5 (up to 20 stations).

6 Press Directory PROGRAM to exit the program.

Erasing a stored station

1 Rotate EASY DIAL until the desired key name is displayed. Example:
2 Press DIRECTIONAL PROGRAM . ADD= * DEL
Press to select "DELETE".
4 Rotate EASYDIAL until the desired station you want to erase is displayed.

Example (EASY DIAL): Dick

Example (ONE-TOUCH DIAL-3): Sam

• To cancel erasing, press STOP.

Press SET

Press SET

• To delete other stations, repeat steps 4 to 6.

7 Press DIRECTIONAL PROGRAM to exit the program.

Sending the same document to pre-programmed parties

Insert the document FACE DOWN.

If necessary, press RESOLUTION repeatedly to select the desired setting (p. 32).

Press the desired (1-2) or MANUAL BROAD.

• You can also use EASY DIAL. Display the desired key name, and press FAX START.

Example:

• The document will be fed into the unit and scanned into memory. The unit will then transmit the data to each station, calling each number sequentially.
• After transmission, the stored document will be erased automatically, and the unit will automatically print a broadcast sending report (see below).

Note:

• If one of the stations is busy or does not answer, the station will be skipped. All skipped stations will be redialled up to 5 times after all of the other stations have been called.

To cancel the broadcast setting

1. Press STOP while the unit displays the following message.

Display:

BROADCASTING

The display will show the following.

SEND CANCELLED?

YES:SET/NO:STOP

1. Press SET

Sample of a broadcast sending report

BROADCAST REPORT 1

NO.	OTHER	FACSIMILE	START TIME	USAGE TIME	PAGES	RESULT
01	Mike		10 Jan.09:31AM	01'10	02	OK
02	Peter		10 Jan.09:33AM	01'08	02	OK
03	Sam		10 Jan.09:34AM	01'09	02	OK
04	Kim		10 Jan.09:35AM	01'10	02	OK
			TOTAL	004'37	008

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Setting the unit to receive taxes

Use only as a fax

With answering machine

Use as telephone/ automatic fax

You want to answer the voice call yourself and receive fax calls without rings.

Mostly voice calls

You plan to answer the calls yourself.

Other options

With a PC

If you have a computer attached to the same telephone line, see page 48.

Remote

fax activation

You can also receive a fax using an extension telephone. While hearing a fax calling tone with an extension telephone, press *9 (pre-selected fax activation code) to receive a fax (p. 48).

TEL/FAX mode (p. 46)

Set feature #77 to "TEL/FAX" (p. 59).

Turn AUTO ANSWER on by pressing AUTO ANSWER

TEL mode (p. 42)

Turn AUTO ANSWER off by pressing AUTO ANSWER

When receiving voice calls:

The unit will ring.

When receiving fax calls:

The unit will receive fax documents without ringing.

When receiving calls:

You have to answer all calls manually.

To receive a fax document, press FAX START for each fax call.

TEL mode (answering all calls manually)

Activating TEL mode

If the AUTO ANSWER light is on, turn it off by pressing AUTO ANSWER

Display:

TEL MODE

Receiving a fax manually

When the unit rings, lift the handset to answer the call.
2 When:
document reception is required,
a fax calling tone (slow beep) is heard, or no sound is heard,
press FAX START.

CONNECTING....

3 Replace the handset. The unit will start fax reception.

To stop receiving

Press STOP

Friendly reception feature

When you answer a call and hear a fax calling tone (slow beep), the unit will automatically start fax reception.

• If this feature is not required, set feature #46 to off (p. 57).

Auto reduction feature

If the other party sends a document that is longer than your recording paper, your unit will reduce the receiving document to the proper size and print it. If you want to print the original size, set feature #37 to off (p. 57).

Fax reception in memory

When a printing problem is detected, the unit will temporarily store the received document into memory.

While the document is in memory:

the display will show an error message and the following message alternately,

Display:

FAX IN MEMORY

—slow beeps will sound if feature #44 is set to on (p. 57).

• Follow the instructions on pages 61 and 62 to solve the problem.
  -For memory capacity, see page 77.

FAX ONLY mode

(all calls are received as faxes)

Activating FAX ONLY mode

1 Set feature #77 to "FAX ONLY" (p. 59).
2 If the AUTO ANSWER light is off, turn it on by pressing AUTO ANSWER

Display:

FAX ONLY MODE

The unit will automatically answer all calls and only receive fax documents.

Note:

• The number of rings before a call is answered in the FAX ONLY mode can be changed (feature #06 on page 55).
• This mode should not be used with a telephone line which is used for both voice and fax calls. Fax communication will be attempted even if someone is trying to call you.

If you have a telephone line just for faxes, we recommend the following setup.

Example: One telephone line is used for voice calls and a separate telephone line for faxes.

Only a fax machine is connected.

Using the unit with an answering machine

Setting up the fax machine and an answering machine

1 Connect the answering machine.

Set the number of rings on the answering machine to less than 4.
- This will allow the answering machine to answer the call first.
Record a greeting message on the answering machine.

Example: "This is (your name, business and/or telephone number). We are unable to answer the phone right now. To send a fax, start transmission. To leave a message, please speak after the beep. Thank you."

• We recommend you record your message around 10 seconds long and not to pause for more than 4 seconds during the message. Otherwise, both machines will not function correctly.

4 Activate the answering machine.
5 Set the receive mode of the fax machine to TEL mode (p. 42) or FAX ONLY mode (p. 43).
If you set to FAX ONLY mode, set the ring count in FAX ONLY mode to more than 4 (feature #06 on page 55). Using FAX ONLY mode will allow you to receive taxes if the answering machine is full.
6 Check the remote access code of the answering machine and program the same code into the remote operation ID of the fax machine. See feature #12 on page 55.

How the fax machine and answering machine work

Receiving voice calls

The answering machine will record voice messages automatically.

Receiving fax calls

The fax machine will receive documents automatically when the machine detects a fax calling tone.

Receiving a voice message and fax document in one call

The answering machine will record the voice message first. The fax machine will then be activated by the caller's request and will receive the document.

Note:

• Every time the fax machine receives a document, a silent pause or fax tone may be recorded on the answering machine.

Receiving a voice message and fax document in one call

The caller can leave a voice message and send a fax document during the same call. Inform the caller of the following procedure beforehand.

1. The caller calls your fax machine.

The answering machine will answer the call.

1. The caller can leave a message after the greeting message.

2. The caller presses ×9 (pre-selected fax activation code).

The fax machine will activate the fax function.

1. The caller presses the start button to send a document.

Note:

The fax activation code can be changed in feature #41 (p. 57).

• If the wrong fax activation code is entered, the caller must wait at least 5 seconds to reenter the correct code.

TEL/FAX mode

(receiving voice calls with rings and fax calls without rings when you are near the unit)

Use this mode when you are always near the fax machine, and want to receive faxes without the unit ringing. When a call is received, the fax machine will work as follows. To set TEL/FAX mode, see below.

• A fax calling tone is automatically generated by the sending fax machine. Some fax machines do not have this capability.

Note:

The fax machine will display the following when a call is received.

Display:

INCOMINGCALL

The ringer should be on (p. 21).

To set TEL/FAX mode

1. Set feature #77 to "TEL/FAX" (p. 59).
2. If the AUTO ANSWER light is off, turn it on by pressing AUTO ANSWER

When an extension telephone is connected

A call is received.

The fax machine will not ring, but the extension telephone will ring twice.

"TEL/FAX delayed ring count"

The call is connected.

Fax calling tone*

The fax machine will automatically receive documents without ringing.

Voice call

The extension telephone will not ring, but the fax machine will ring up to 3 times. "Silent fax recognition ring count"

The calling party will hear a different ring back tone.
You can answer the call with the extension telephone.**
1. Lift the handset.
2. Enter *0 (default code) while the ring back tone is heard.
The code number can be changed in feature #49 (p. 57).

Answer the call.

• If the call is not answered, the fax machine will activate the fax function for the other party's fax machine that did not send a fax calling tone.

• A fax calling tone is automatically generated by the sending fax machine. Some fax machines do not have this capability.
  ** This feature may not function depending on the type of an extension telephone. If the fax machine activates the fax function, press STOP on the fax machine in step 2 to talk with the calling party.

TEL/FAX delayed ring count

The number of rings generated before the fax machine answers depends on the setting of feature #78 on page 59. The fax machine will not generate an audible ring during this time.

Silent fax recognition ring count

The fax machine generates audible rings to indicate that it is receiving a voice call. The number of rings generated depends on the setting of feature #30 on page 57. This signal will not ring at an extension telephone.

Using the unit with a computer

We recommend that you always connect the fax machine directly to the wall jack.

Note:

• Set the fax machine to TEL mode.
  The device which has the shortest ring count will answer a call first.
• If you use your computer as an answering machine, connect the telephone line cord from the EXT jack to the computer.

Extension telephone

If you use the fax machine with an extension telephone, you can receive fax documents using the extension telephone. You do not have to press FAX START on the fax machine.

Important:

• Use a touch tone telephone as the extension telephone and enter the fax activation code firmly.

When the extension telephone rings, lift the handset of the extension telephone.
2 When: document reception is required, a fax calling tone (slow beep) is heard, or no sound is heard, press *9 (pre-selected fax activation code) firmly.
3 Hang up the handset. The fax machine will start reception.

Note:

• You can change the fax activation code in feature #41 (p. 57).

Turning the AUTO ANSWER mode on remotely

When you are not in, and the AUTO ANSWER mode of your unit is set to off (TEL mode), you can turn the AUTO ANSWER mode (FAX ONLY or TEL/FAX) on from a remote location using a touch tone telephone.

1. Call your unit and wait for 10 rings.

2. You will hear a beep signal.

3. — To switch to the FAX ONLY mode:

Press * within 8 seconds.

To switch to the TEL/FAX mode:

Press within 8 seconds.

1. Hang up the handset.

Note:

• Press * or # within 8 seconds after hearing the beep, otherwise the call will be interrupted and the unit will remain in the TEL mode.

Receive polling

(retrieving a fax placed on another fax machine)

This feature allows you to retrieve a document from another compatible machine. Therefore you pay for the call.

Make sure that no documents are fed into your unit and that the other party's machine is ready for your call.

Press MENU four times.

Display: POLLING

2 Press SET

Dial the fax number.

Example: FAX=3331111

A Press SET

CONNECTING....

The unit will start reception.

Pager call

This feature allows your unit to call your pager when your unit receives a fax document.

1 Press MENU.

Display: SYSTEM SET UP

Press , then 7 .

FAX PAGER CALL

Press SET

MODE=OFF C2

Rotate EASY DIAL to select "ON".

MODE=ON

• If this feature is not required, select "OFF".

Press SET

NO. =

Enter your pager number.

• You can enter a total of 46 digits and/or pauses.

Example:

1 202 555 1234PP12345678PP5555#

Message you want displayed on your pager

7 Press SET

• The unit will dial the stored number.

PAGER TEST

8 Check that your pager receives a pager test call.

9 Press MONITOR

When your pager receives a pager call

Your pager will display the message you entered in step 6. (For example: 5555)

Making a copy

The unit can make single or multiple copies (up to 99).

1 Adjust the width of the document guides to the size of the document.
2 Insert the document (up to 15 pages) FACE DOWN until the unit grasps the document and a single beep is heard.

Display:

STANDARD

-Make sure the handset is on the cradle.

3 Press COPY START

100% FINE [01]

• If necessary, enter the number of copies (up to 99).
  Press COPY START
  The unit will start copying.

Note:

• Any transmittable document can be copied (p. 34).

To stop copying

Press STOP

Convenient way to make a copy

The following settings are available before you start copying.

Resolution
-Reduction/enlargement rate
- Collation (sort)

To select the resolution according to the type of document

Press RESOLUTION repeatedly to select the desired setting.

FINE: For printed or typewritten originals with small printing.

SUPER FINE: For originals with minute printing.

PHOTO: For originals containing photograph.

PHOTO WITH TEXT: For originals containing photograph and text.

• If you select "STANDARD", copying will be done using "FINE" mode.

Display while copying

100% FINE [01]

100% S-FINE[01]

100% PHOTO [01]

100% MIXED [01]

To reduce or enlarge a document

To make a reduced copy, press

COPY ZOOM repeatedly and

select the desired reduction rate. The unit can reduce copies to as little as 50% of the original by changing the reduction rate 5% at a time.

Example: 70% reduced copy

Original document

Reduced copy

To make an enlarged copy, press

COPY ZOOM

repeatedly and

select the desired enlargement rate. The unit can enlarge copies to as much as 200% of the original by changing the enlargement rate 5% at a time.

Example: 150% enlarged copy

Original document

Enlarged copy

Note:

• The display will show the rate you selected while copying.

• For an enlarged copy, the unit will only enlarge the centre of the upper part of the document. To make an enlarged copy of the bottom of the document, turn the document around, insert it into the unit, and then make a copy.

To collate multiple copies

The unit can collate multiple copies in the same order as the original document pages.

Press COLLATE until the following is displayed and start copying.

Example: Making two copies of a 4-page original document

Note:

• The unit will store the documents into memory while collating copy. If memory becomes full while storing, the unit will only print out the stored pages.
  While collating copies, the display will show the following.

Programming

The unit provides various programming features. Program the desired settings by referring to the programming tables (p. 55-59).

General programming method

1 Press MENU

Display: SYSTEM SET UP

Select the feature you wish to program.

For basic features (p. 55):

Rotate EASYDIAL until the desired feature is displayed.

■For advanced features (p. 56-59): Rotate EASY DIAL until the following is displayed.

ADVANCED MODE

Press SET and rotate EASYDIAL until the desired feature is displayed.

Press SET
The current setting of the feature will be displayed.
4 Rotate EASYDIAL until the desired setting is displayed.
- This step may be slightly different depending on the feature.
Press SET
The setting you selected is set, and the next feature will be displayed.
6 To exit programming, press MENU

Programming by entering the program code number directly

You can select a feature by directly entering the program code (# and 2-digit number) instead of using EASYDIAL.

1. Press MENU
2. Press 1 and the 2-digit code number.
3. Follow steps 3 to 6 above.
   See programming tables for code numbers (p. 55-59).

To cancel programming

Press MENU to exit the program.

Basic features

Programming table

Code	Display & Feature	Settings	How the unit operates
#01	SET DATE & TIME To set the date and time.	dd/mm/yy hh:mm (2 digits for each entry)	See page 17 for details.
#02	YOUR LOGO To set your logo.	(Up to 30 characters)	See page 18 for details.
#03	YOUR FAX NO. To set your facsimile telephone number.	(Up to 20 digits)	See page 20 for details.
#04	SENDING REPORT To print and check the sending report for fax transmission results (p. 35).	ERROR	“ERROR”: The sending report will be printed only when fax transmission fails. “ON”: The sending report will be printed out after every transmission.
		ON
		OFF
#06	FAX RING COUNT To change the number of rings before the unit answers a call in FAX ONLY mode.	1, 2, 3, 4, 5, 6, 7, 8, 9	If you are using the unit with an answering machine, set to more than 4 (p. 44).
#12	REMOTE TAM ACT. If you are using the unit with an answering machine, activate this feature, and set the remote activation ID to secure the remote operation for the answering machine.	ON / ID=11	To select “ON” and enter ID: 1. Press MENU. 2. Rotate EASY DIAL and select this feature. 3. Press SET. 4. Rotate EASY DIAL to select “ON”. 5. Press SET. 6. Enter your ID from 1 to 5 digits, using 0-9, * and #. 7. Press SET. 8. Press MENU.
		OFF
#17	MELODY RINGER To set the ring melody.	BELL	You can select the bell or the melody. The selected bell or melody will sound while setting.
		MELODY (A, B, C, D)
#19	CLOCK DISPLAY To select either 12 hour clock or 24 hour clock for display messages and reports.	12H	“12H”: 12 hour clock is used. “24H”: 24 hour clock is used.
		24H

(The default setting is in bold type.)

Advanced features

How to set menu options

1. Press MENU
2. Rotate EASYDIAL until the following is displayed.

Display: ADVANCED MODE

Press SET and rotate EASYDIAL until the desired feature is displayed.

1. Press SET

2. Rotate EASY DIAL until the desired setting is displayed.

3. Press SET
4. Press MENU

Note:

• Step 4 may be slightly different depending on the feature.
  See page 54 for more details.

Programming table

Code	Display & Feature	Settings	How the unit operates
#22	AUTO JOURNAL	ON	“ON”: The unit will print the journal report automatically after every 30 new fax communications (p. 35).
	To print the journal report automatically for fax communications.	OFF
#23	OVERSEAS MODE	ON	After transmission, the unit will turn off automatically. ●This feature is not available for broadcast transmission. ●The calling charge may be higher.
	If you have difficulty sending an overseas fax, activate this feature before starting transmission. This feature makes sending documents easier as the transmission speed is slowed down.	OFF
#25	DELAYED SEND	ON / fax no. / hh:mm	To send a document: 1. Insert the document. 2. Follow steps 1-3 above. 3. Rotate EASY DIAL to select “ON”. 4. Press SET. 5. Enter the fax number. 6. Press SET. 7. Enter the transmission start time. Press * to select “AM” or “PM”. 8. Press SET. 9. Press MENU. ●To cancel after programming, press STOP then SET.
	To send a fax automatically at a specified time. This allows you to take advantage of low-cost calling hours offered by your telephone company. ●The setting can be reserved to take place up to 24 hours in advance. ●If you select “24H” for the clock display (feature #19 on page 55), the time is set using a 24 hour clock (military time).	OFF
#26	AUTO CALL. LIST	ON	“ON”: The unit will print the Caller ID list automatically after every 30 new calls (p. 29).
	To print the Caller ID list automatically.	OFF

(The default setting is in bold type.)

Code	Display & Feature	Settings	How the unit operates
#30	SILENT FAX RINGTo change the number of rings when the unit detects a voice call in TEL/FAX mode.	3, 4, 5, 6, 7,8, 9	See pages 46 and 47 for details.
#37	AUTO REDUCTIONTo receive a fax document that is longer than your recording paper.	ON	“ON”: The unit will fit a received document onto your recording paper. “OFF”: The unit will print the original size.
		OFF
#39	LCD CONTRASTTo adjust the display contrast.	NORMAL	“NORMAL”: For normal contrast “DARKER”: Used when the display contrast is too light.
		DARKER
#41	FAX ACTIVATIONIf you use an extension telephone and wish to use it to receive a fax, activate this feature, and enter the code (p. 48).This code is also used to receive a voice message and a fax in the same call (p. 45).	ON / CODE=* 9	1. Follow steps 1–3 on page 56. 2. Rotate EASY DIAL to select “ON”. 3. Press SET. 4. Enter your code from 2 to 4 digits, using 0–9 and *. 5. Press SET. 6. Press MENU. Do not enter “0000”.
		OFF
#44	RECEIVE ALERTTo alert you with beeps when a received document is stored into memory due to a problem.	ON	If you hear slow beeps, clear the printing problem or supply paper to print the stored document. The beeps will stop.
		OFF
#46	FRIENDLY RCVTo receive a fax automatically when you answer a call and hear a fax calling tone (slow beep).	ON	“ON”: You do not have to press FAX START for fax reception.
		OFF
#49	AUTO DISCONNECTTo answer a call with an extension telephone in TEL/FAX mode (p. 47).	ON / CODE=* 0	1. Follow steps 1–3 on page 56. 2. Rotate EASY DIAL to select “ON”. 3. Press SET. 4. Enter your code from 2 to 4 digits, using 0–9 and *. 5. Press SET. 6. Press MENU.
		OFF

(The default setting is in bold type.)

Advanced features (cont.)

How to set menu options

1. Press MENU
2. Rotate EASYDIAL until the following is displayed.

Display: ADVANCED MODE

Press SET and rotate EASYDIAL until the desired feature is displayed.

1. Press SET

2. Rotate EASY DIAL until the desired setting is displayed.

3. Press SET
4. Press MENU

Note:

• Step 4 may be slightly different depending on the feature.
  See page 54 for more details.

Programming table (cont.)

Code	Display & Feature	Settings	How the unit operates
#68	ECM SELECTION	ON	This feature is available when the transmitting/receiving stations are ECM compatible.
	ECM stands for Error Correction Mode. To send a fax even if there is static interference on the telephone line.	OFF	●If documents are in memory, clear them before making the setting (p. 42).
#70	FAX PAGER CALL	ON	See page 51 for details.
	If you have a pager and wish to know when your unit receives a fax, activate this feature.	OFF
#76	CONNECTING TONE	ON	You can confirm the status of the other party's machine.●If the ring back tone continues, the other party's machine may not be a facsimile or may have run out of paper. Check with the other party.●The connecting tone volume cannot be adjusted.
	If you often have trouble when sending a fax, this feature allows you to hear connecting tones: fax tone, ring back tone and busy tone.	OFF

(The default setting is in bold type.)

Code	Display & Feature	Settings	How the unit operates
#77	AUTO ANSWER To change the receive mode in the AUTO ANSWER setting.	FAX ONLY	“FAX ONLY”: Facsimile only mode (p. 43) “TEL/FAX”: Telephone/Facsimile mode (p. 46, 47)
		TEL/FAX
#78	TEL/FAX RING If you use an extension telephone in TEL/FAX mode, select the desired number of rings of the extension telephone.	1, 2, 3, 4, 5, 6, 7, 8, 9	See pages 46 and 47 for details.
#79	TONER SAVE To save on toner consumption.	ON	“ON”: The toner cartridge will last longer. ●This feature may reduce print quality.
		OFF
#80	SET DEFAULT To reset on advanced features to their default settings.	YES	1. Follow steps 1–3 on page 58. 2. Rotate EASY DIAL to select “YES”. 3. Press SET. 4. Press SET again. 5. Press MENU.
		NO

(The default setting is in bold type.)

Reports

If your unit cannot send a fax, check the following:

the number you dialled is correct,

the other party's machine is a facsimile.

If the problem remains, correct it by following the communication message printed on the sending and journal reports (p. 35).

Communication message	Error code	Cause & solution
COMMUNICATION ERROR	40-4246-5258, 6568, 72FF	•A transmission or reception error occurred. Try again or check with the other party.
	4344	•A line problem occurred. Connect the telephone line cord to a different jack and try again. •An overseas transmission error occurred. Try using the overseas mode of feature #23 (p. 56).
DOCUMENT JAMMED	—	•The document is jammed. Remove the jammed document (p. 72).
ERROR-NOT YOUR UNIT	545970	•A transmission or reception error occurred because of a problem with the other party's fax machine. Check with the other party.
MEMORY FULL	—	•The document was not received due to memory being full.
NO DOCUMENT	—	•The document was not fed into the unit properly. Reinsert the document and try again.
OTHER FAX NOT RESPOND	—	•The other party's fax machine is busy or has run out of recording paper. Try again. •The document was not fed properly. Reinsert the document and try again. •The other party's fax machine rings too many times. Send the fax manually – dial the number, confirm the fax tone, and press FAX START. •The other party's machine is not a facsimile. Check with the other party. •The number you dialled is not in service.
PRESSED THE STOP KEY	—	•STOP was pressed and fax communication was cancelled.
THE COVER WAS OPENED	—	•The front cover was opened. Close it and try again.
OK	—	•Fax communication was successful.

Display

If the unit detects a problem, one or more of the following messages will appear on the display.

Display message	Cause & solution
CALL SERVICE	●There is something wrong with the unit. Contact our Customer Care Centre (see page 9).
CHANGE DRUM	●There is something wrong with the drum unit. Replace the drum unit and the toner cartridge (p. 68).
CHECK DOCUMENT	●The document was not fed into the unit properly. Reinsert the document. If misfeeding occurs frequently, clean the document feeder rollers (p. 74) and try again. If the problem remains, adjust the feeder pressure (p. 73).
CHECK DRUM	●The drum unit was not inserted properly. Reinsert it correctly (p. 12).
CHECK MEMORY	●Memory (telephone numbers, parameters, etc.) has been erased. Re-program.
COVER OPEN	●The front cover is open. Close it.
EASY DIAL FULL	●There is no space to store new stations in the EASY DIAL directory. Erase unnecessary stations (p. 25).
FAILED PICK UP	●Recording paper was not fed into the unit properly. Reinsert the recording paper (p. 71).
FAX IN MEMORY	●The unit has a document in memory. See the other displayed message instructions to print out the document.
FAX MEMORY FULL	●Memory is full of received documents due to a lack of recording paper or a recording paper jam. Install paper or clear the jammed paper. ●When performing memory transmission, the document being stored exceeds the memory capacity of the unit. Transmit the entire document manually.
MEMORY FULL	●When making a copy, the document being stored exceeds the memory capacity of the unit. Press STOP to clear the message. Divide the document into sections.

(continued)

Display message	Cause & solution
MODEM ERROR	●There is something wrong with the modem circuit. Contact our service personnel.
NO FAX REPLY	●The other party's fax machine is busy or has run out of recording paper. Try again.
OUT OF PAPER	●Recording paper is not installed or the unit has run out of paper. Install paper (p. 15).●Recording paper is not fed into the unit properly. Reinstall paper (p. 15).
PAPER JAMMED	●A recording paper jam occurred. Clear the jammed paper (p. 70).
PLEASE WAIT	●The unit is warming up. Wait for a while.
POLLING ERROR	●The other party's fax machine does not provide the polling function. Check with the other party.
REDIAL TIME OUT	●The other party's fax machine is busy or has run out of recording paper. Try again.
REMOVE DOCUMENT	●The document is jammed. Remove the jammed document (p. 72).●Attempted to transmit a document longer than 600 mm. Press STOP to remove the document. Divide the document into two or more sheets and try again.
TONER EMPTY	●The toner cartridge is empty. Replace the toner cartridge (p. 68).
TONER LOW	●The remaining toner is low. Replace the toner cartridge as soon as possible (p. 68). We recommend you replace the drum unit every third time you replace the toner cartridge. To check the drum life and quality, please print the printer test list (p. 76).
TRANSMIT ERROR	●A transmission error occurred. Try again.
WRONG PAPER	●The unit printed on paper which is shorter than A4 size paper. To prevent the drum unit from becoming dirty, use A4 size paper.

When a function does not work, check here before requesting help

General

Problem	Cause & solution
I cannot make and receive calls.	●The mains lead or telephone line cord is not connected. Check the connections (p. 16). ●If you used a splitter to connect the unit, remove the splitter and connect the unit to the wall jack directly. If the unit operates properly, check the splitter.
The unit does not work.	●Disconnect the unit from the telephone line and connect the line to a known working telephone. If the working telephone operates properly, contact our service personnel to have the unit repaired. If the working telephone does not operate properly, contact your telephone company.
The unit does not ring.	●The ringer volume is set to off. Adjust it (p. 21).
The other party complains they only hear a fax tone and cannot talk.	●FAX ONLY mode is set. Tell the other party the number is only used for faxes. ●Change to TEL mode (p. 42) or TEL/FAX mode (p. 46).
The REDIAL/PAUSE button does not function properly.	●If this button is pressed during dialling, a pause will be inserted. If pressed immediately after a dial tone is obtained, the last number dialled will be redialled.
During programming, I cannot enter the code or ID number.	●All or part of the numbers are the same. Change the code or ID number of features #12 (p. 55), #41 (p. 57) and #49 (p. 57).
The unit beeps.	●Recording paper has run out. Press STOP to stop the beeps and install paper.

Fax - sending

Problem	Cause & solution
I cannot send documents.	●The telephone line cord is connected to the EXT jack on the unit. Connect to the LINE jack (p. 16).●The other party's fax machine is busy or has run out of recording paper. Try again.●The other party's machine is not a facsimile. Check with the other party.●The other party's fax machine rings too many times. Send the fax manually – dial the number, confirm the fax tone, then press FAX START.
The other party complains that letters on their received document are distorted or not clear.	●If your line has special telephone services such as call waiting, the service may have been activated during fax transmission. Connect the unit to a line that does not have these services.●The extension telephone on the same line is off the hook. Hang up the extension telephone and try again.●Try copying the document. If the copied image is clear, there may be something wrong with the other party's machine.
The other party complains that dirty patterns or black lines appear on their received document.	●The glass or rollers are dirty. Clean them (p. 74).
I cannot make an international fax call.	●Use the overseas transmission mode of feature #23 (p. 56).●Add two pauses at the end of the telephone number or dial manually.

Fax - receiving

Problem	Cause & solution
I cannot receive documents.	●The telephone line cord is connected to the EXT jack on the unit. Connect to the LINE jack (p. 16).
I cannot receive documents automatically.	●The receive mode is set to TEL mode. Set to FAX ONLY mode (p. 43) or TEL/FAX mode (p. 46, 47).●The time taken to answer the call is too long. Decrease the number of rings of features #06 (p. 55), #30 (p. 57) and #78 (p. 59).
The display shows the following message, but faxes are not received.CONTNECTING . . . .	●The incoming call is not a fax. Change the receive mode to TEL mode (p. 42).

(continued)

Fax - receiving (cont.)

Problem	Cause & solution
A blank sheet is ejected.	●The other party placed the document in their fax machine the wrong way. Check with the other party.
A white line or a dirty pattern appears on your recording paper.	●The glass or rollers are dirty. Clean them (p. 74).
The printing quality is poor.	●The other party sent a faint document. Ask them to send a clearer copy of the document. ●Some paper has instructions recommending which side to print on. Try turning the paper over. ●You may have used paper with a cotton and/or fiber content that is over 20%, such as letterhead or resume paper. ●The remaining toner is low. Replace the toner cartridge (p. 68). ●We recommend you replace the drum unit every third time you replace the toner cartridge (p. 68). To check the drum life and quality, please print the printer test list (p. 76). ●The toner save mode of feature #79 is on (p. 59).

Receive mode

Problem	Cause & solution
I cannot select the desired receive mode.	●If you want to set FAX ONLY or TEL/FAX mode: —select the desired mode using feature #77 (p. 59), and —press AUTO ANSWER to turn on the AUTO ANSWER light. ●If you want to set TEL mode: —press AUTO ANSWER to turn off the AUTO ANSWER light.	AUTO ANSWER ON……
		AUTO ANSWER OFF……
The other party complains that they cannot send a document.	●The unit is not in AUTO ANSWER mode. Press AUTO ANSWER to turn on the AUTO ANSWER light.	AUTO ANSWER ON……

Copying

Problem	Cause & solution
The unit does not make a copy.	●You cannot make a copy during programming. Make the copy after programming or stop programming.
A black line, a white line or a dirty pattern appears on the copied document.	●The glass or rollers are dirty. Clean them (p. 74).

(continued)

Copying (cont.)

Problem

Cause & solution

The printing quality is poor.OriginalCopyABCABC

●Some paper has instructions recommending which side to print on. Try turning the paper over.You may have used paper with a cotton and/or fiber content that is over 20%, such as letterhead or resume paper.The remaining toner is low. Replace the toner cartridge (p. 68).●We recommend you replace the drum unit every third time you replace the toner cartridge (p. 68). To check the drum life and quality, please print the printer test list (p. 76).●The toner save mode of feature #79 is on (p. 59).

Using an answering machine

Problem	Cause & solution
I cannot receive documents automatically.	●Your greeting message on the answering machine is too long. Shorten the message (up to 10 seconds). ●The answering machine rings too many times. Set to 1 or 2 rings.
I cannot receive voice messages.	●Check if the answering machine is turned on and connected to the fax machine properly (p. 44). ●Set the number of rings on the answering machine to 1 or 2.
I cannot retrieve recorded voice messages on the answering machine from a remote location.	●You did not program your remote access code in your fax machine correctly. Program the same code that is programmed on the answering machine to the fax machine with feature #12 (p. 55).
I pressed the remote access code to access the answering machine remotely, but the line was disconnected.	●The code may include "#” which is used for certain features provided by telephone companies. Change the code on the answering machine to another number which does not include "#". Also change the code of the fax machine with feature #12 (p. 55).
Callers complain that they cannot send a document.	●Your answering machine has run out of recording tape. Rewind the tape to record messages. ●You set the answering machine to only give a greeting message.

If a power failure occurs

The unit will not function.
- The unit is not designed for making emergency telephone calls when the power fails.

Alternative arrangements should be made for access to emergency services.

Fax transmission and reception will be interrupted.
- If delayed transmission of feature #25 (p. 56) is programmed and the start time has passed during a power failure, transmission will be attempted soon after power is restored.
- If fax documents are stored in memory, they will be lost. When power is restored, a power down report will be printed out stating which contents in memory have been erased.

Sample of a power down report

POWER DOWN REPORT

FOR ADDITIONAL INFORMATION, PLEASE SEE THE JOURNAL REPORT.

NO. OTHER FACSIMILE

MODE

PAGES

FUNCTION

01

RCV

01

MEMORY RECEIVE

Note:

• If you select "24H" for the clock display (feature #19 on page 55), the time is shown using a 24 hour clock (military time).

Replacing the toner cartridge and the drum unit

■When the display shows the following message, replace the toner cartridge.

TONER LOW

or

TONER EMPTY

■We recommend you replace the drum unit every third time you replace the toner cartridge. To check the drum life and quality, please print the printer test list (p. 76).

Model No. KX-FA76X toner cartridge and Model No. KX-FA77X/KX-FA78X drum unit are available for replacement (p. 9).

Caution:

• The drum unit contains a photosensitive drum. Exposing it to light may damage the drum. Once you have opened the protection bag:
  —Do not expose the drum unit to light for more than 5 minutes.
  —Do not touch or scratch the green drum surface.
  —Do not place the drum unit near dust or dirt, or in a high humidity area.
  —Do not expose the drum unit to direct sunlight.
• Do not unplug the fax machine to prevent loss of fax documents in memory.
• Do not pour any toner into the toner cartridge.

Before opening the protection bag of the new toner cartridge, shake it vertically more than 5 times.

2 Remove the new toner cartridge from the protection bag. Peel off the seal from the toner cartridge.

Push the front cover open button then open the front cover.

Caution: The fuser unit gets hot. Do not touch it.

4 Tap on the used toner cartridge several times to allow the remaining toner to fall into the drum unit. Remove the drum and toner unit by holding the two tabs.

• If you replace the toner cartridge and the drum unit at the same time, skip to step 7.

5 Turn the two levers on the used toner cartridge firmly.

Used toner cartridge

6 Pull up the right edge of the used toner cartridge (①). Remove the cartridge from the drum unit (②).

• The toner may stick to the cartridge and the drum unit. Be careful in handling. See page 4 for details.
  -Do not drop the toner on the green drum surface.
• Put the used toner cartridge into the protection bag.

7 If you replace the drum unit at the same time, remove the new drum unit from the protection bag. Remove the protection bar from the drum unit.

With Panasonic face up on the toner cartridge, match the red arrows on the cartridge and the drum unit.

8 Slide the tab of the toner cartridge into the slot of the drum unit.
9a Hold right side of the toner cartridge under the lip on the drum unit and...
9b turn the two levers on the toner cartridge with firm pressure.
10 The toner cartridge is installed when the triangles match.

Used toner cartridge
Green drum surface

11 Install the drum and toner unit by holding the tabs.

12 Close the front cover, until locked, by pushing down on both sides.

Waste disposal method

• Waste material may be dumped or incinerated under conditions which meet all country and local environmental regulations.

Recording paper jam

When the recording paper has jammed in the unit

The display will show the following message.

PAPER JAMMED

Push the front cover open button then open the front cover.

Caution: The fuser unit gets hot. Do not touch it.

2 When the recording paper has jammed near the drum and toner unit:

Remove the jammed paper by pulling it toward you.

Jammed paper

When the recording paper has jammed near the recording paper exit (Fuser unit):

Remove the recording paper (①), then remove the drum and toner unit to allow the jammed paper to pull free from the rear cabinet (②).

Jammed paper

Remove the jammed paper from fuser unit by pulling it upwards carefully.

Jammed paper

3 Close the front cover by pushing down on both sides until locked (①). Straighten and reinsert the recording paper into the recording paper entrance (②).

When the recording paper was not fed into the unit properly

The display will show the following message.

FAILED PICK UP

Remove the recording paper. Straighten and reinsert it into the recording paper entrance.

Display

Document jams - sending

Push the front cover open button then open the front cover.

Caution: The fuser unit gets hot. Do not touch it.

2 Pull down the middle guide while holding the front cover.
3 Remove the jammed document carefully.
4 Lift the middle guide firmly.
5 Close the front cover, until locked, by pushing down on both sides.

Note:

• Do not pull out the jammed document forcibly before opening the front cover.

No feeding or multiple feeding occurs while sending

If no feeding or multiple feeding occurs frequently, adjust the feeder pressure.

Shift the position of the green lever by using a stick like instrument with a pointed end.

Left: When documents do not feed.

Centre: Standard position (pre-selected)

Right: When documents multi-feed.

Cleaning the inside of the unit

If any of the following problems occurs, clean the inside of the unit:
—If misfeeding of your original occurs frequently.
—If a black line, a white line or a dirty pattern appears on your recording paper, on your original, or on the fax document received by the other party.

Caution:

• Be careful in handling the toner drum unit.
  See the caution for the drum unit on page 68 for details.
• Do not use paper products, such as paper towels or tissues, to clean the inside of the unit.

1 Disconnect the mains lead and the telephone line cord.

Push the front cover open button then open the front cover.

Caution:

The fuser unit gets hot.

Do not touch it.

3 Pull down the middle guide while holding the front cover.

4 Clean the document feeder rollers with a cloth moistened with isopropyl rubbing alcohol, and let all parts dry thoroughly.

Clean the upper glass with a soft, dry cloth.

5 Lift the middle guide firmly.

6 Remove the drum and toner unit by holding the two tabs.

Clean the lower glass with a soft, dry cloth.

8 Reinstall the drum and toner unit by holding the tabs.

9 Close the front cover, until locked, by pushing down on both sides.

10 Reconnect the mains lead and the telephone line cord.

Telephone line cord

Reference lists and reports

You can print out the following lists and reports for your reference.

Setup list: provides you with the current settings of the basic and advanced programming features (p. 55-59).

Telephone number list: provides you with names and telephone numbers which are stored in ONE-TOUCH DIAL and EASY DIAL.

Journal report: keeps records of fax transmission and reception. This report will be printed automatically after every 30 fax communications (p. 35).

Broadcast programming list: provides you with items which are stored in the broadcast feature (p. 36).

Printer test list: allows you to check the print quality of your unit. If the test print has a dirty pattern, or blurred points or lines, clean the inside of the unit (p. 74). If printing quality is still poor, replace the toner cartridge and drum unit.

One-touch label card: provides you with names which are stored in the ONE-TOUCH DIAL keys (p. 22). You can put the card in the one-touch dial location.

1 Press MENU two times.

Display: PRINT REPORT

2 Rotate EASYDIAL until the desired item is displayed.

SETUP LIST

TEL NO. LIST

JOURNAL REPORT

BROADCAST LIST

PRINTER TEST

ONE-TOUCH LABEL

3 Press SET to start printing.

PRINTING

-To stop printing,press STOP
After printing, the printed item will be displayed.

4 Press MENU.

Technical data about this product

Applicable Lines: Public Switched Telephone Network

Document Size: Max. 216 mm in width / Max. 600 mm in length

Effective Scanning Width: 208 mm

Recording Paper Size: A4: 210 mm x 297 mm

Effective Printing Width: 202 mm

Transmission Time: Approx. 8 s/page (ECM-MMR)*

Scanning Density: Horizontal: 8 pels/mm

Vertical: 3.85 lines/mm -STANDARD
7.7 lines/mm -FINE/PHOTO/PHOTO WITH TEXT
15.4 lines/mm -SUPER FINE

Halftone Level: 64-level

Scanner Type: Contact Image Sensor (CIS)

Printer Type: Laser Beam Printer

Data Compression System: Modified Huffman (MH), Modified READ (MR), Modified Modified READ (MMR)

Modem Speed: 14,400 / 12,000 / 9,600 / 7,200 / 4,800 / 2,400 bps; Automatic Fallback

Operating Environment: 10^ - 32.5^, 20% - 80% RH (Relative Humidity)

Dimensions (H x W x D): 190 mm x 417 mm x 345 mm

Mass (Weight): Approx. 6.5 kg

Power Consumption: Standby: Ap

Transmission: Approx. 25 W

Reception: Approx. 200 W

Copy: Approx. 200 W

Maximum: Approx. 560 W (When the fuser unit turns on)

220-240 V AC, 50 Hz

Power Supply: 220-240 V AC, 50 Hz

Memory Capacity: Fax memory: Approx. 120 pages of memory transmission Approx. 170 pages of memory reception (Based on the ITU-T No. 1 Test Chart in standard resolution.)

Laser diode properties: Laser output: Max. 5 mW

Wave length: 760 nm - 800 nm

Emission duration: Continuous

Print Speed: 10 ppm (pages per minute)

Printing Resolution: 600 x 600 dpi

ITU-T No. 1 Test Chart

• Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of the other party's machine.

** Transmission speed is based upon the ITU-T No. 1 Test Chart and original mode.

If the capability of the other party's machine is inferior to your unit, the transmission time may be longer.

Our Ref. 350/PJ/ELG

18th January, 1972.

Dr. P.W. Cunwell,
Windsor University, [1]

Manning Survey Ltd., Melbourne, NSW

Reading,

Bertsek.

Dear Pete,

Pertis no in forrundue my to the facillity of faesfite

transfessio.

in familiar with a postscript is caused to perform a raster scan overthe subject copy . The variations of print density on the document

cause the photocell to generate an analogous electrical video signal.

This is a user based to distribute a carrier , which is transmitsremote destination via a radio or cable communications link .

At the vemote termaal, demodulation reconstructs the video

signal , which is used to modulate the density of print produced by aprinting device . This device is scanning in a raster scan synchronised

with that at the transmitting Terminal. As a result, a facsimile

Probably you have used for this facility in your organization.

foure sincereely,

phid.

P.J. Cross Group Leader - Possibilie Research

Toner life

Model No. KX-FA76X toner cartridge can print approx. 2,000 sheets of A4 size paper with a 5% image area. Toner life depends on the amount of content in a received, copied or printed document. The following is the approximate relationship between image area and toner life for Model No. KX-FA76X toner cartridge. Toner life varies in actual usage.

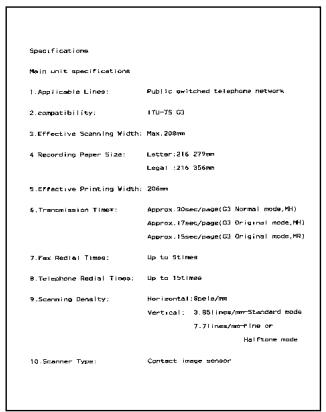

5% image area

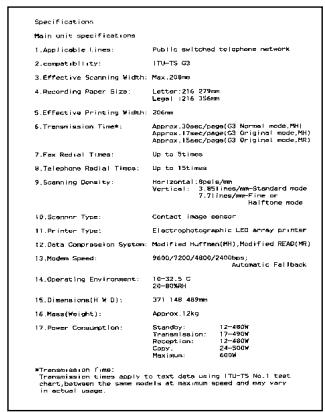

10% image area

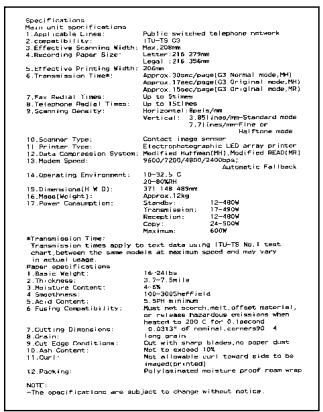

15% image area

Toner life for KX-FA76X

Note:

• The image area changes with the depth, thickness and size of the characters.

• If you change the toner save setting to on, the toner cartridge will last approx. 40% longer.

Drum life

The included drum unit or Model No. KX-FA77X/KX-FA78X can print approx. 6,000 sheets of A4 size paper regardless of the content of the image area.

Note:

• Any details given in these instructions are subject to change without notice.
• The pictures and illustrations in these instructions may vary slightly from the actual product.

Important Information

The connection to the telecommunication systems must not be hard wired and must be unplugged before the earth is disconnected.

Method of connection

This apparatus is connected to the exchange line or PABX/PMBX extension by the new standard British Telecom plug and socket. Arrangements for provision of this type of termination can be made through the nearest British Telecom Sales Office.

This apparatus may be connected to the following types of installation.

a) For connection to the public switched telephone network (PSTN) and compatible (Private Branch Exchange), which use DTMF signalling. (Please consult your supplier for an up to date list of compatible PBX's.)
b) The apparatus can be used on extension sockets connected to a direct exchange line (D.E.L.).
c) This apparatus is suitable for connection to the telecommunication system directly or via compatible private branch exchange as an extension. The supplier of the apparatus should be consulted for an up to date list of PBX's with which the apparatus is compatible.

It cannot be guaranteed that the apparatus will operate under all possible conditions of connection to compatible PBX's.

• This apparatus is suitable for connection to a PBX with or without initial proceed indication.
• This apparatus is suitable for connection to a PBX with or without secondary proceed indication.

Any cases of difficulty should be referred in the first instance to the supplier of the apparatus.

d) The apparatus must not be connected in the following manner:
- As an extension to a pay phone
- As a party line with shared service

NOTES:

• If you experience any problems with the normal use of your apparatus, you should unplug it from the telephone outlet and connect a known working telephone in its place. If the known working telephone still gives problems, then please contact the customer service department of your PSTN operator (e.g. BT etc.). If it operates properly, then the problems are likely to be a fault in your apparatus. In this case, consult your supplier for advice.
• Your PSTN operator may charge you if they attend a service call that is not due to apparatus supplied by them.

Fitting a plug to the mains lead

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for ASTA mark A or the BSI

mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol 12 or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with letter L or coloured RED.

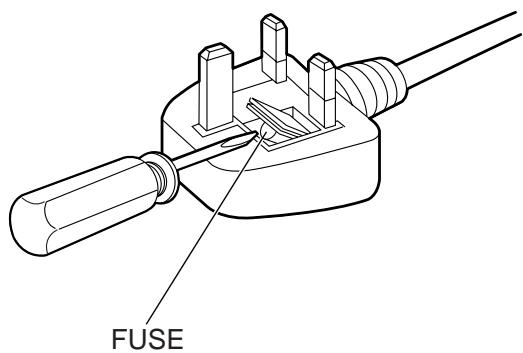

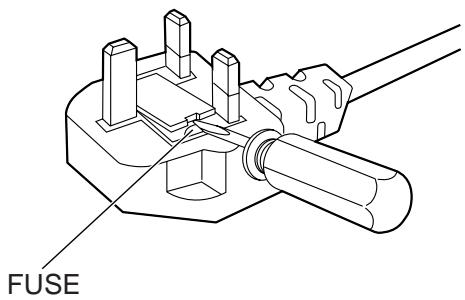

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse (and fuse cover).

Condition of guarantee

This guarantee is in addition to and does not in any way affect any statutory or other rights of consumer purchasers. If within the applicable guarantee period, the appliance proves to be defective by reason of faulty design, workmanship or materials, we undertake subject to the following conditions to have the defective appliance (or any part or parts there of) repaired or replaced free of charge.

1. The appliance shall have been purchased and used solely within the UK and in accordance with standard operating instructions and the technical and/or Safety Standards required in the UK.
2. The purchaser will within 7 days of purchase complete the included warranty registration form (folded inside front cover) and fax it to us for registration. Failure to return such a form could result in delay in providing the guarantee service.
3. The appliance should be returned together with this guarantee and proof of date of purchase promptly on being found defective at the purchaser's risk and expense to the authorised dealer from whom the appliance was purchased or to the nearest authorised dealer. All enquiries must be through such dealers.
4. This guarantee shall not apply to damage caused through fire, accident, lightning, misuse, wear and tear, neglect, incorrect adjustment or repair, to damage caused through installation, adaption, modification or use in an improper manner or inconsistent with the technical and/or safety standards required in the country where this appliance is used, or to damage occurred during transit to or from the purchaser.
5. If at any time during the guarantee period any part or parts of the appliance are replaced with a part or parts not supplied or approved by us or of an objective quality safe and suitable for the appliance, or the appliance has been dismantled or repaired by any person not authorised by us, we shall have the right to terminate this guarantee in whole or in part immediately without further notice.
6. The purchaser's sole and exclusive remedy under this guarantee against us is for the repair or replacement of the appliance or any defective part or parts and no other remedy, including, but not limited to, incidental or consequential damage or loss of whatsoever nature shall be available to the purchaser.
7. This guarantee shall not apply to cassette tapes, batteries and any other items of limited nature life.
8. Our decision on all matters relating to complaints shall be final. Any appliance or defective part which has been replaced shall become our property.
9. The guarantee period applicable to this product shall be 12 months from the date of purchase.

Please keep these Operating Instructions with your receipt.

Panasonic Business Systems U.K.

Receipt No.	Date of Purchase
Model No. KX-FL501E	Serial No.

Index

A Accessories 8,9

Advanced features 56-59

Alert (Memory reception)(Feature #44) . . . .57

Answering machine 44

AUTO ANSWER button 42, 43, 46

Auto Answer setting (Feature #77) . . .59

Auto disconnection (Feature #49) . .57

Auto reduction (Feature #37) 42, 57

B Basic features .55

BROADCAST keys 36, 39

Broadcast sending report 39

Broadcast transmission .36

C Caller ID

(Calling back) 28

(Storing into directory) 30

Caller ID list (Feature #26) . . . . . . 29, 56

CALLER ID PRINT button .29

CALLER ID SEARCH button . . .28, 30

Character table 19

Cleaning 74

Clock display (Feature #19) .55

COLLATE button .53

Communication messages 60

Connecting tone (Feature #76) .58

Connections 16,48

Copy .52

Copy reduction/enlargement 53

COPY ZOOM button .53

D Date and time (Feature #01) 17

Delayed transmission (Feature #25) . .56

Delete button 19

DIRECTORY PROGRAM button .22, 23

Display (Contrast)(Feature #39) 57

(Error messages) 61, 62

Document jam .72

Document size 34

Document stacker 14

Drum life 78

Drum unit 12,68

E EASYDIAL

(Making a voice call) 26

(Selecting characters) 19

(Sendingfaxes) 33

(Storing) 23

Error correction mode (Feature #68) .58

Error messages .60-62

Extension telephone 47, 48

F Facsimile telephone number (Feature #03) 20

Fax activation code (Feature #41) .45, 48, 57

Fax auto redial 33

FAX ONLY mode 43

Fax receiving 40, 41

Fax ring count (Feature #06) .55

Feeder pressure 73

Friendly reception (Feature #46) .42, 57

H HELP button 10

Hyphen button 19

Insert button 19

J Jams .70-73

Journal report (Feature #22) . . . .35, 56

L List (Broadcast programming) 76

(Broadcast sending) 39

(Journal) 35, 76

(One-touch label) 22, 76

(Power down) 67

(Printer test) 76

(Sending) 35

(Setup) 76

(Telephone number) 76

Logo (Feature #02) 18

LOWER key 22, 26, 33

M MANUAL BROAD button .36

Melody ring (Feature #17) 21, 55

Memory reception 42

MONITOR button 31

Monitor volume 21

N NAME/TEL NO. button 26, 28

One-touch dial (Card) 22, 76

(Making a voice call) 26

(Sendingfaxes) 33

(Storing) 22

Overseas mode (Feature #23) . . . . . .56

P Pager call (Feature #70) 51, 58

Paper jam 70

Paper stacker 14

Paper tray 14

Power down report 67

Power failure 67

Power supply 77

Q QUICK SCAN START button . . . . .32

R R button .21

Receive polling 50

Receiving alert (Feature #44) .57

Receiving setting 40, 41

Recording paper 15

Recording paper size 77

REDIAL button .32

Remote activation ID (Feature #12) .55

Report (Broadcast sending) 39

(Journal) 35, 76

(Sending) 35

Reset (Feature #80) 59

RESOLUTION button 32, 52

Ring count (FAX ONLY)(Feature #06) 55

(Silent fax)(Feature #30) .57

(TEL/FAX)(Feature #78) .59

Ringer volume 21

S Sending

(Broadcast) 39

(EASYDIAL) 33

(From memory) 32

(Manually) 32

(One-touch dial) 33

Sending report (Feature #04) . . . .35, 55

Set default (Feature #80) 59

Silent fax recognition ring (Feature #30) 46, 47, 57

Specifications 77

Storing (Broadcast key) 36

(EASYDIAL) 23

(One-touch dial) 22

T TEL mode 42

TEL/FAX delayed ring count (Feature #78) 46, 47, 59

TEL/FAX mode 46

Toner cartridge 12,68

Toner life 78

Toner save (Feature #79) 13, 59

Transmission (Broadcast) 39

(EASYDIAL) 33

(From memory) 32

(Manually) 32

(One-touch dial) 33

V Voice contact 31

VOLUME button 21

National Panasonic

Kyushu Matsushita Electric Co., Ltd.

1-62,4-chome,Minoshima,Hakata-ku,Fukuoka 812 Japan Phone:Fukuoka(092)431-2111

Teiex:723579"KMEFUK J" Cable Address:"KMEFUKUOKA"FUKUOKA

D00-KM7-D022-1-02

004343

Declaration of Conformity

We, ..., Kyushu. Matsushita. Electric Co., Ltd., Telecom Division

of Matsushita Electric Industrial Co. Ltd.

Minoshima, Fukuoka, Japan

declare under our sole responsibility that the product

Facsimile...Machine.

Model No. ..KX-FL501E

Trade Name: Panasonic.

to which this declaration relates is in conformity with the following standard(s) or other normative document(s)

EN60950(1992)/A1(1993)/A2(1993)/A3(1995)/A4(1997)/A11(1997).

EN60825-1(1994)./A11(1996)...EN55022(1998)...EN55024(1998).

EN61000-3-2(1995)/A1(1998)/A2(1998)...and EN61000-3-3(1995).

following the provisions of EC Council Directive(s)

199.9/.5/EC

Issued on : 29th.September..2000

Signed by the manufacturer;

(Printed name) Katsuhei Tawara

(Title) :Director

Signed by authorized representative in the EU/EEA ;

06.Okt.2000

(Date)

(sigature)

(Printed Name)

(Company Name)

(Address)

Mitsuru Ishii

Asonic...Testing.Centre...(Europe)...GmbH

1. Hamburg.F.R.Germany

C€ 0682

Kyushu Matsushita Electric Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
