USER MANUAL BEMW472ES BLACK & DECKER

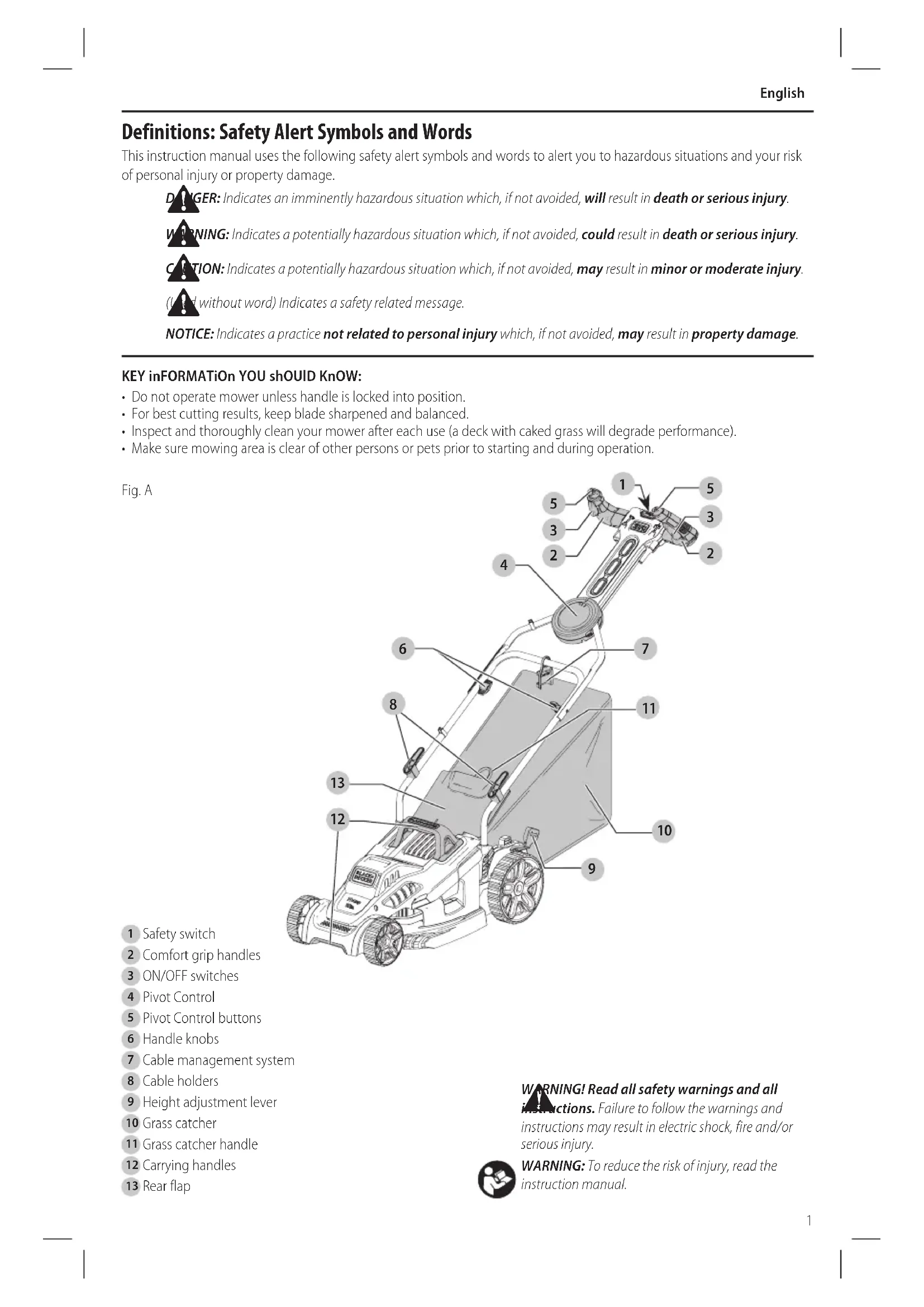

English (original instructions) Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

Cable management system

Height adjustment lever

• Do not operate mower unless handle is locked into position.

• For best cutting results, keep blade sharpened and balanced.

• Inspect and thoroughly clean your mower after each use (a deck with caked grass will degrade performance).

• Make sure mowing area is clear of other persons or pets prior to starting and during operation.

IMPORTANT SAFETY HAZARD PICTORIALS

ON THE MOWER. User must read and understand the instruction manual. To avoid the risk of serious injury do not mow up and down slopes. Always mow across slopes. To avoid the risk of injury to bystanders keep all persons and pets at a safe distance from the mower while operating. Rotating blades can cause serious injury. Keep hands and feet clear of mower deck and discharge opening at all times. Always be sure blade has stopped. Wait for the blade to stop rotating (approximately 3 seconds) after releasing ON/OFF switches

. Unplug mower before removing or replacing grass catcher, cleaning, servicing, transporting or lifting the mower. Objects struck by mower blade can cause serious injury. Stay behind the handle when the motor is running. Always ensure persons and pets are clear of the discharge from the mower while operating. Always inspect mowing area before mowing and remove objects that could be thrown by blade. Release ON/OFF switches

turn mower off and wait for the blade to stop rotating (approximately 3 seconds) before crossing walk, roads, patio and gravel drives.

WARNING: Important Safety Warnings

WARNING: When using electric lawn mowers,

basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:.

READ ALL INSTRUCTIONS

To reduce risk of injury:

• Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and review frequently prior to use and in instructing others.

This mower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION

• Read, understand, and follow all instructions on the mower and in the instruction manual before starting.

• Do not put hands or feet near or under the mower. Keep clear of the discharge opening at all times.

• Only allow responsible adults, who are familiar with the instructions, to operate this mower.

• Clear the area where the mower is to be used of objects such as rocks, sticks, wire, toys, etc., which could be thrown by the blade. Objects struck by the blade can cause severe injury to persons. Stay behind the handle when the motor is running.

• Be sure the area surrounding the mower is clear of bystanders before operating. All bystanders and pets should be kept at a safe distance. Stop the mower if anyone enters the area surrounding the mower.

• Do not operate mower barefooted or while wearing sandals. Always wear substantial footwear.

• Do not pull mower backward unless absolutely necessary. Always look down and behind before and while moving backward.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Release ON/OFF switches

to turn mower off and stop the blade when crossing gravel surfaces.

• Do not operate mower without the entire grass catcher, discharge guard, rear guard, or other safety protective devices in place and working. Periodically check all guards and safety protective devices to ensure they are in good working order and will operate properly and perform their intended function. Replace a damaged latch, guard or other safety device before further use.

• Never leave a running mower unattended.

• Always release the ON/OFF switches

to stop the motor and wait until the blade comes to a complete stop and unplug the mower before cleaning the mower, removing the grass catcher, un-clogging the discharge guard, when leaving the mower, or before making any adjustments, repairs or inspections.

• Operate mower only in daylight or good artificial light when objects in the path of the blade are clearly visible from the operating area of the mower.

• Do not operate mower while under the influence of alcohol or drugs, or when you are tired or ill. Always stay alert, watch what you are doing, and use commonsense.

• Avoid dangerous environments. Never operate mower in damp or wet grass, never use mower in the rain. Always be sure of your footing; walk; never run.

• Disengage the drive system, if so equipped, before starting the motor.

• If the mower should start to vibrate abnormally, release the ON/OFF switches

, wait for the blade to stop and unplug mower, then check for the cause immediately. Vibration is generally a warning of trouble.English

• Always wear proper eye and respiratory protection when operating the mower.

• The use of any accessory or attachment not recommended for use with this mower could be hazardous. Only use accessories approved by BLACK+DECKER.

• Never overreach while operating the mower. Always be sure to keep proper footing and balance at all times while operating the mower. SLOPE OPERATION Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction onslopes.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.

• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.

• Do not mow near drop-offs, ditches, or embankments. You could lose your footing or balance. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than theoperator.

• Be alert and turn mower off if a child enters the area.

• Never allow children to operate the mower.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of achild. GENERAL SERVICE

• Never operate mower in a closed area.

• Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep mower free of grass, leaves, or other debris build- up. Allow mower to cool before storing.

• If you strike a foreign object, release ON/OFF switches

to turn mower off, wait for the blade to stop and unplug mower, then inspect the mower. Repair, any damage, before starting and operating the mower.

• Never make any adjustments or repairs with the motor running or while the mower is plugged in.

• Always unplug mower before adjusting, cleaning, repairing, inspecting, transporting, storing or leaving the mower.

• Check grass catcher components and the discharge guard frequently and when necessary replace with BLACK+DECKER recommended parts only.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

• Maintain or replace safety and instruction labels, asnecessary.

• Replacement Parts. When servicing use only identical replacement parts.

• Polarized Appliance Connections To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The appliance plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in anyway.

WARNING: GENERAL SAFETY

• THIS TOOL CAN BE DANGEROUS. Follow all warnings and Safety Instructions in this manual. The operator is responsible for following warnings and instructions in this manual and on unit. Restrict use of this mower to persons who read, understand and follow warnings and instructions in this manual and on unit.

• Avoid Dangerous Environment – Don’t use lawn mowers in damp or wet locations.

• Keep Children Away – All visitors should be kept a safe distance from work area.

• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and footwear is recommended when workingoutdoors.

• Use Safety Glasses – Always use face or dust mask if operation is dusty.

• Use Right Appliance – Do not use lawn mower for any job except that for which it is intended.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the lawn mower. Receptacles are available having built- in GFCI protection and may be used for this measure of safety.

WARning: To prevent electric shock use only with an

extension cord suitable for outdoor use, such as SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTOW.English

• Use of Extension Cords Make sure the extension cord is in good condition before using. Always use the proper size extension cords with the tool – that is, proper wire size for various lengths of cord and heavy enough to carry the current the tool will draw. Use of an undersized cord will cause a drop in line voltage resulting in loss of power and overheating. For proper size cords see chart below. To reduce the likelihood of disconnection of lawn mower cord from the cord set during operating:

i) Make a knot as shown, or

Connect plug and receptacle Appliance cord Cord set Tie cord as shown

ii) Use one of the plug-receptacle retaining straps or

connectors described in this manual.

• Don’t Abuse Cord – Never pull lawn mower by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.

• Don’t Force Lawn Mower – It will do the job better and safer at the rate for which it was designed.

• Don’t Overreach – Keep proper footing and balance at all times.

• Stay Alert – Watch what you are doing. Use common sense. Do not operate lawn mower when you are tired.

• Disconnect Lawn Mower – Disconnect the lawn mower from the power supply when not in use, before servicing, when changing accessories such as blades, and the like.

• Store Idle Lawn Mower Indoors – When not in use, lawn mower should be stored in an indoor dry and locked-up place – out of reach of children.

• Maintain Lawn Mower With Care – Keep cutting edges sharp and clean for best and safest performance.

• Follow instructions for lubricating and changingaccessories.

• Inspect lawn mower cord periodically and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.

• Keep guards in place and in working order.

• Keep hands and feet away from cutting area.

• Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

• If lawn mower strikes a foreign object, follow these steps: - Stop lawn mower. Release the switch - Unplug power cord. - Inspect for damage. - Repair any damage before restarting and operating the lawn mower. - Use identical replacement blades only.

SAVE THESE INSTRUCTIONS

• CHECK FOR DAMAGED PARTS. Before further use of the mower, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect their operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual. REPAIRS AND SERVICE. Repairs, maintenance and any adjustments not specified in this manual should be performed by Black+Decker authorized service centers or other qualified service organizations, always using identical replacement parts Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust created by this product

contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides andpesticides

• arsenic and chromium from chemically treatedlumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.ENGLISH

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

SAVE THESE INSTRUCTIONS FOR

of it. Damage or personal injury couldresult. Refer to Figure A at the beginning of this manual for a complete list ofcomponents. Intended Use This mower is designed for residential lawn mowingapplications. DO NOT use under wet conditions or in presence of flammable liquids orgases. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. See Fig. A to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

WARNING: Before assembly, make sure the ON/

OFF switches are released. Assembling the grass catcher (Fig. B, B1, B2, B3)

WARNING: Under normal usage, the collection

bag assembly is subject to deterioration and wear and should, therefore, be frequently checked for replacement. Any replacement assembly should be checked for compliance with BLACK+DECKER recommendations.

1. Before starting to assemble the grass bag to the frame,

check that the grass bag and frame are similar to Fig. B.

2. Slide the grass bag onto the frame as shown in Fig. B1.

3. Assemble the top clips to the frame as shown in

Fig. B2, then assemble the two side clips and the bottom clip last.

4. Completely assembled grass catcher is shown in Fig. B3.

1. Insert the ends of the lower handle into the

corresponding holes in the mower.

2. Press the handle down as far as it will go.

3. Secure the handle using the screws.

, washers and screws as shown. Fig. D

1. The motor cable has to be fixed using the cable restraint.

around the cable and lower handle about 6 inches (152.4mm) below the handle knob

around the cable and upper handle about 6 inches (152.4mm) below the pivot control

1. Lift the rear flap

and place the grass catcher

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. Proper Hand Position (Fig. G)

WARNING: To reduce the risk of serious personal injury,

ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires two hands on the comfort grip handles

READ THIS INSTRUCTION MANUAL AND SAFETY

RULES BEFORE OPERATING YOUR MOWER. See Fig. A to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

WARNING: Sharp moving blade. Do not operate

the mower if the rear door is not closed under spring tension as serious injury could result. Take your mower to the nearest service center for repair.

WARNING: Sharp moving blade. Never operate the

mower unless the hanger hooks on the grass catcher are seated properly on the mower and the rear discharge door rests firmly against the top of the grass catcher as serious injury could result.

WARNING: Do not operate mower without grass

WARNING: Let the appliance work at its own pace.

Do not overload. Adjusting the height of cut (Fig. H) The height of cut is adjusted by the central height adjust mechanism, there are 6 positions to choose from. To set the height of cut

1. Pull the height adjustment lever

away from the body of the unit.

2. Move the lever towards the rear of the appliance to

lower the height of cut.

3. Move the lever towards the front of the appliance to

raise the height of cut.

4. Push the height adjustment lever into one of the 6

height locations. nOTE: The height of cut can be viewed on the height of cut gauge

on the side of the unit. Fig. H

Switching on and off (Fig. I)

1. Push in and hold the safety switch

nOTE: You can not pull both ON/OFF switches when the safety switch is being held

towards the handle and hold it in.

3. Release the safety switch

4. The mower will run with either ON/OFF

actuated. Switching off

1. Release the both ON/OFF switches

WARNING: Never attempt to lock a switch in the

Pivot Control (Fig. L) This mower is equipped with Pivot Control. This function allows for close quarters maneuverability and turning.

and move the comfort grip handles

2. The handles will automatically lock in normal operating

position when the handles are positioned at zero degrees.

CAUTION: Ensure the Pivot Control handle is locked in place before using the mower. Fig. L

1. Release the ON/OFF switches

and unplug the mower.

2. Remove the grass catcher

3. Empty the contents.

provide a safe and convenient way to store the extension cord when not in use.

1. Wrap the extension cord around the cable holders in a

Figure eight pattern. Fig.N

WARNING: Rotating blade can cause serious injury.

Release both ON/OFF switches

to turn mower off and unplug mower before lifting, transporting, or storing the mower. Store in a dry place.

• The mower can be carried using the convenient carry handles

Mowing (Fig. J, K) nOTE: AlWAYs insPECT AREA WhERE MOWER is TO BE UsED AnD REMOVE All sTOnEs, sTiCKs, WiRE, AnD OThER DEBRis WhiCh MighT BE ThROWn BY ThE ROTATing BlADE. We recommend to use your mower as outlined in this section in order to achieve optimum results and to reduce the risk of cutting the main cable.

1. Loop the extension cord through the cable

as shown (Fig. J). Ensure you leave approximately 3 feet (100 cm) of cord between the safety switch

and the cable management system.

2. Ensure that the cable management system can slide

freely from one side to the other.

3. Place the bulk of the extension cord on the lawn, close

to the starting point (position 1 in Fig. K).

4. Switch the mower on as described above.

5. Proceed as shown in Fig. K.

6. Move from position 1 to position 2.

7. Turn right, stepping over the extension cord and

proceed towards position 3. The cable management system will slide from one side to the other, ensuring the extension cord is kept away from the cutting blade.

8. Turn left, stepping over the extension cord and move

towards position 4. The extension cord will slide from one side of the handle to the other, ensuring the extension cord is kept away from the cutting blade.

9. Repeat the above procedure as required.

WARNING: Do not work towards the cable as shown

WARNING: Ensure the blade has completely stopped

and disconnect the mower from the power source.

blade: BEMW472ES and BEMW482ES release ON/OFF switches

to turn mower off, WAIT FOR THE BLADE TO STOP, AND UNPLUG MOWER.

CAUTION: Whenever the blade is being removed, installed or sharpened, wear gloves and proper eye protection. Be careful of sharp edges on blade.

1. Cut a piece of 2x4 wood

[about 1 foot long (305 mm)] to keep blade from turning while removing flange nut.

2. Turn the appliance onto its side.

nOTE: Wear gloves and proper eye protection. Be careful of sharp edges of blade.

3. Position piece of wood

to keep blade from turning as shown in Fig. O.

by turning counterclockwise.

, as shown in Fig. P. Examine all pieces for damage and replace if necessary. Fig. O

with the raised sides toward the blade onto the bolt shaft, making sure it aligns with the double D shape on the bolt shaft.

2. Place the blade in between the raised sides of the

, making sure that the lettering on the blade is away from the insulator.

3. Screw the blade bolt into the bolt shaft and tighten the

blade bolt as firmly as possible by hand.

4. Position piece of wood

to keep blade from turning as shown in Fig. O.

5. Use a 9/16 inch wrench to securely tighten the blade

bolt by turning the wrench clockwise. Fig. Q

Blade Sharpening KEEP BlADE shARP FOR BEsT MOWER PERFORMAnCE. A DUll BlADE DOEs nOT CUT gRAss ClEAnlY OR MUlCh PROPERlY. UsE PROPER EYE PROTECTiOn WhilE REMOVing, shARPEning, AnD insTAlling BlADE. EnsURE ThAT ThE MOWER is UnPlUggED. Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required. REPlACE BEnT OR DAMAgED BlADE iMMEDiATElY. When sharpening the blade:

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting angle.

3. Sharpen cutting edges on both ends of blade, removing

equal amounts of material from both ends. To sharpen blade in a vise (Fig. R):

1. Be sure the comfort grip handles

is released, the blade has stopped and the mower is unplugged.

2. Remove blade from mower. See instructions for

removing and installing blade.

4. Wear proper eye protection and gloves and be careful

not to cut yourself.

5. Carefully file the cutting edges of the blade with a fine

or sharpening stone, maintaining the original cutting edge.

6. Check balance of blade. See instructions for

7. Replace blade on mower and tighten securely.English

by placing center hole in blade over a nail or round shank screwdriver, clamped horizontally in a vise.

2. If either end of the blade rotates downward, file that

end. Blade is properly balanced when neither end drops. Fig. S

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthis.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Preventing Corrosion (Fig. A) Fertilizers and other garden chemicals contain agents which greatly accelerate the corrosion of metals. If you mow in areas where fertilizers or chemicals have been used, the mower should be cleaned immediately afterward as follows:

1. To turn mower off, release ON/OFF switch lever

2. Wipe all exposed parts with a damp cloth.

CAUTION: DO NOT POUR OR SPRAY WATER ON THE MOWER IN AN ATTEMPT TO CLEAN IT. Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion. Storage Position For more compact storing the mower can be stored in an upright position, with the handle folded over. Loosen the two handle knobs

and lower the upper handle section. Be careful not to pinch power cord. Tighten the two lower knobs.

CAUTION: Pinch point. To avoid being pinched, keep fingers away from area between handles whenlowering. Hints for optimum use - If the grass is longer than approximately 4 inches (10 cm), make two cuts to obtain a better finish. First mow at maximum height of cut, then use a low or medium height of cut. - In order to achieve optimum results, only mow drygrass. Mower Overloaded To prevent damage due to overload conditions, do not try to cut too much grass at one time. Slow down your cutting pace, or raise the cut height.

MEETS CPSC SAFETY REQUIREMENTS

BLACK+DECKER Mowers conform to the safety standards of the American National Standards Institute, and the U.S. Consumer Product Safety Commission. The Blade turns when the motor is running. ACCESSORIES Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not

recommended for use with this tool could behazardous. SERVICE INFORMATION All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidentalENGLISH

damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns orexchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER’s option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights aand you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.. Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 BlackandDecker.com 1-800-544-6986 Troubleshooting Guide BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS For assistance with your product, visit our website at www.blackanddecker.com for a list of service centers, or call the BLACK+DECKER Customer Care Center at 1-800-544-6986.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

• Mower will notstart. • Cord is not pluggedin.

• Circuit breaker istripped.

• Cord or switch isdamaged.

• Thermal cut out activated.

• Plug mower into a workingoutlet.

• Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced by an authorized BLACK+DECKER servicecenter.

• Reset circuit breaker. (If the product repeatedly causes the circuit breaker trip, discontinue use immediately and have it serviced by an authorized BLACK+DECKER servicecenter.

• Have cord or switch replaced at an authorized BLACK+DECKER servicecenter.

• Increase the height of cut and move mower to shorter grass to start.

• Allow motor to cool and increase height of cut.

• Mower functions intermittenly.

• Thermal cut out activated. • Allow motor to cool and increase height of cut.

• Mower leaves ragged finish or motor labors.

• Height of cut too low.

• Cutting blade is dull.

• Underside of mower is clogged.

• Blade is installed upside-down.

• Increase height of cut.

• Replace or sharpen the blade.

• Unplug mower. Check underneath the mower and clear out debris as necesary. (Always wear heavy duty gloves)

(if there is no assembly, this section may be Ajustements)
