USER MANUAL HMS 12 B4LDC Hertz

NERTZ NERTZ marine NERTZ Technology: i.e. Brand Manufactured by elettromedia

marine

OWNER'S MANUAL

Comp - Coax - Sub

Arabic / العربية

النفابها للكا لل BKال، مستجنا: ع PINKS. المُحَبْلِي الْأَدْلَى يُسْمَى مُجْتَانِه بِلَى تَّيَّةِ، وَالْمَالِكِ فِي مِسُواي رَرُّهَا بِلَى الْمُعُصُولِ بِلَى تُّيَّةِ وَالْمُعُصُولِ الْأَدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأَدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأَدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأَدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأُدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأُدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأُدْلَى مُجْتَانِهِ الْمُعُصُولِ الْأُدْلَى مُجْتَانٍ

Congratulations on purchasing our product. Your satisfaction is the first requirement that our products must meet: the same satisfaction as the one gained by those who long for "The Sound Experience". This manual has been drawn to provide the main instructions required to install and use the system properly. However, the range of possible applications is wide; for further information, please feel free to contact your trusted dealer or our technical support at the email [e-mail] Before installing the components, please carefully read all of the instructions contained in this manual. Failure to respect these instructions may cause unintentional harm or damage to the product.

1. All components must be firmly secured to the vehicle/vessel structure. Do the same when installing any custom structures you may have built. Confirm your installation is solid and safe. A component coming loose while driving may cause serious damage to the passengers, as well as to other vehicles/vessels.

2. Always wear protective eyewear when using tools, as splints or product residue may become airborne.

3. In order to avoid incidental damage, keep the product in the original packaging until you are ready for the final installation.

4. Do not carry out any installation inside the engine compartment.

5. Before starting with the installation turn the head unit and all other audio system devices off, avoiding any possible damage.

6. Make sure that the location you choose to install the components does not interfere with the normal operation of any mechanical or electrical devices of the vehicle/vessel.

7. Do not install loudspeakers where they may be exposed to excessive water, humidity, dust, dirt or immersion.

8. Do not install the tweeter without the protective grille.

9. Do not install the components or make cable run close to electronic or mechanical devices of the vehicle/vessel.

10. Be very cautious when drilling or cutting into the vehicle/vessel chassis, making sure there are no cables or structural elements essential to the vehicle/vessel underneath or in the selected area.

11. When routing cables, make sure that the cable does not come in contact with sharp edges or near moving mechanical devices. Make sure that it is firmly attached and protected along its entire length and its insulation is self-extinguishing.

12. Only use cables with the proper section (AWG) indicated herein.

13. When running the cable through a hole in the vehicle/vessel chassis, protect the cable with a rubber ring (grommet). Be sure to provide proper protection for cables running close to heat-generating devices.

14. Do not run the wires outside of the vehicle/vessel.

15. Use top quality cables, connectors and accessories such as found in the Connection catalogue.

16. Warranty certificate: For more information visit the Hertz website.

Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste). Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the disposal of these products and components. In order to know where and how to deliver these products to the nearest recycling/disposal site please contact your local municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and to prevent harmful effects on health.

Eesti / Estonian

These speakers are designed to be water and spray resistant, but they are not designed to be submerged or to withstand high-pressure water spray. Please exercise care when washing your boat to avoid damaging the speakers. Do not install on submersibles, personal watercraft or any other vessel likely to be under water for even a short time.

Installation and Use

When installing speakers in your vessel, it is extremely important that the speakers and their supporting structures are firmly secured to avoid causing harm to persons or property in case of collision. Please review the mounting information carefully and use the supplied accessories to mount this product. Unless otherwise specified these products are developed for infinite-baffle applications, which means installed without box. Installing these components in a box or in small enclosures may compromise their low frequency performance.

Tweeter and lighting

The tweeters and lighting circuit (when this is available) are permanently fixed to the grille. Do not use the product without the grille unless otherwise specified. Do not attempt to remove the tweeter and/or the lighting LEDs from the grille. Any damages caused by the attempt to remove the grille and/or tweeter/lighting LEDs will not be covered under warranty.

Tweeter Protection

The crossover is equipped with an electronic tweeter protection circuit designed to minimize the risk of damages to the tweeter. This electronic device monitors the current going to the tweeter and disconnects the tweeter from the signal when it senses an overload. Should this occur while listening to the audio system, simply reduce the volume for a few seconds to reset the protection circuit.

ATTENZIONE

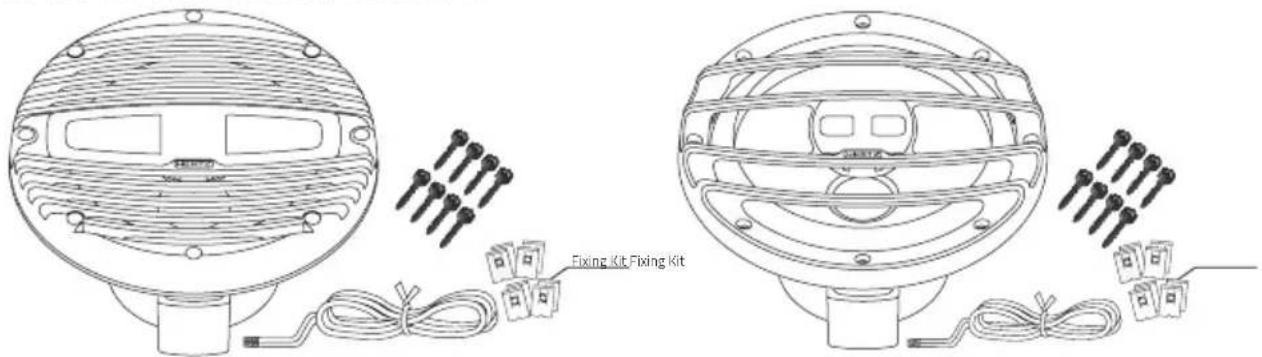

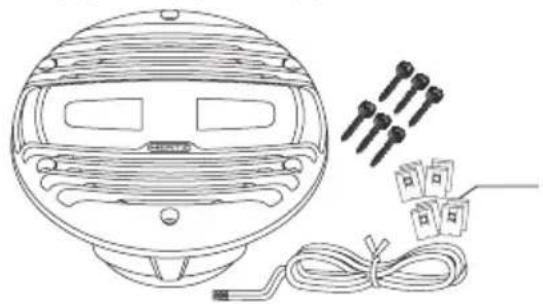

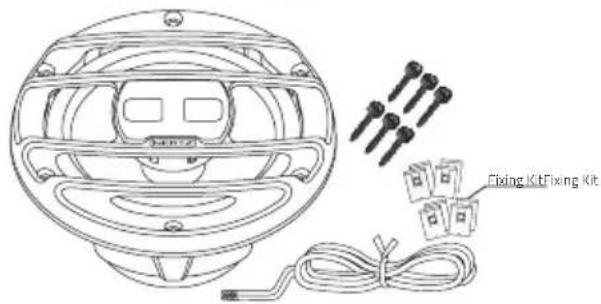

HMX 6.5 / HMX 6.5-C / HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-TC / HMX 6.5-TW / HMX 6.5-LD-TC / HMX 6.5-LD-TW

Line drawing of a helmet with attached cable and accessories (no text or symbols)

HMX 6.5 S / HMX 6.5 S-LD

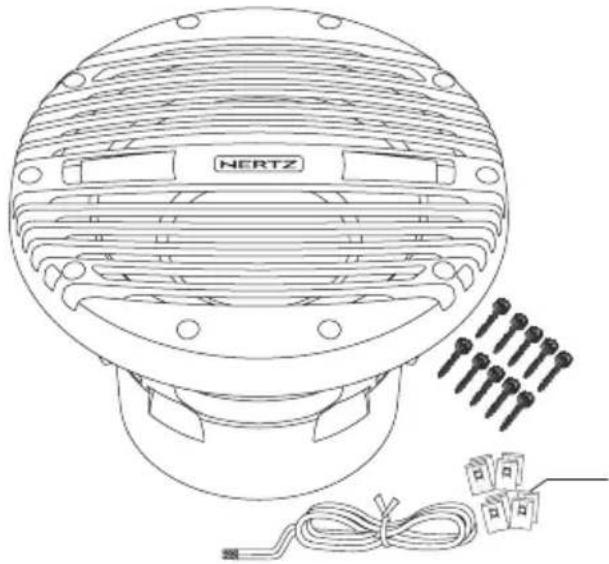

Fixing Kit Fixing Kit

HMX 8 / HMX 8-C / HMX 8-LD / HMX 8-LD-C / HMX 8-TC / HMX 8-TW / HMX 8-LD-TC / HMX 8-LD-TW HMX 8 S / HMX 8 S-LD

Fixing Kit Fixing Kit

HMS 10 B / HMS 10 B-C / HMS 10 B-C2 / HMS 10 B-2

Line drawing of a NERTZ air conditioner fan with attached components including a coiled cable and terminal blocks (no text or symbols)

HMS 10 S-LD-G / HMS 10 S2-LD-G

HERTZ Fixing KitFixing Kit

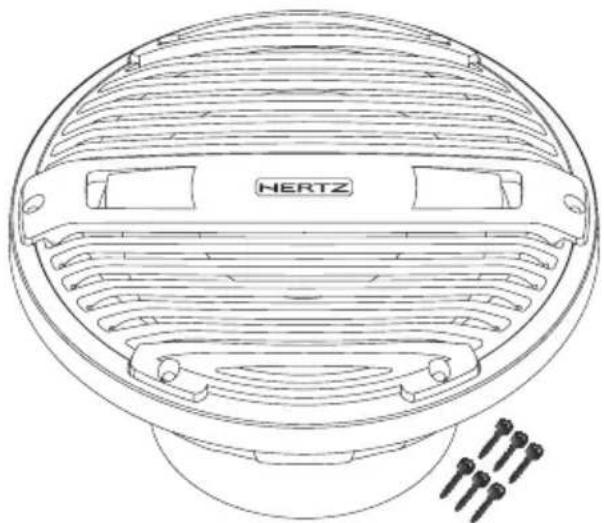

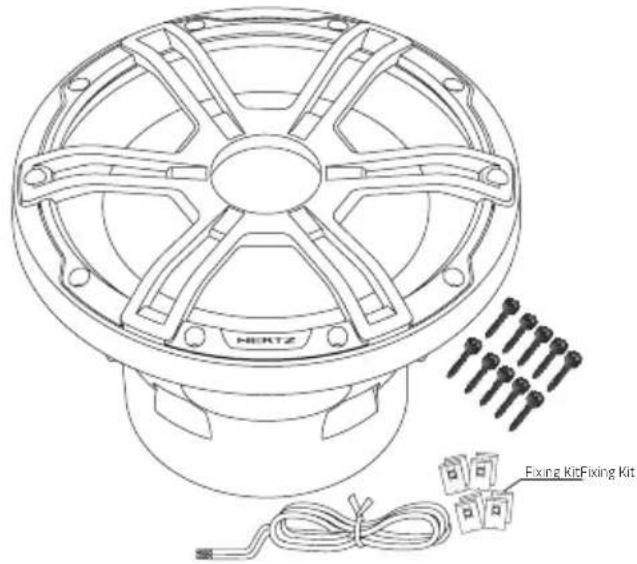

HMS 12 B2-LD-W / HMS 12 B4-LD-W HMS 12 B2-LD-C / HMS 12 B4-LD-C

Line drawing of a NERTZ brand air purifier head with ventilation grilles and mounting hardware (no text or symbols)

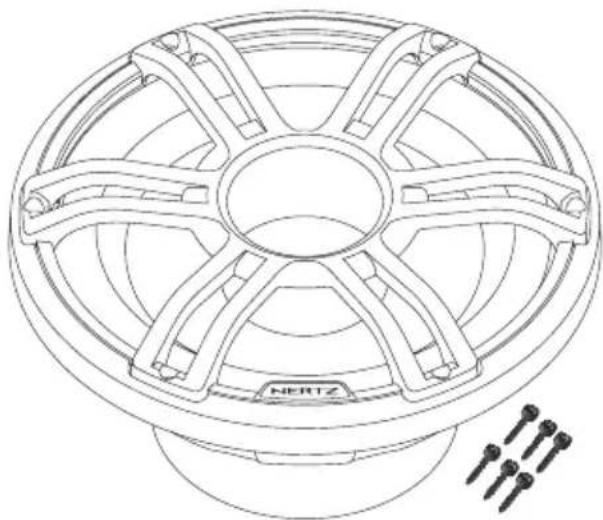

HMS 12 S4-LD-G / HMS 12 S2-LD-G

Technical line drawing of a NERTZ wheel rim with six spokes and mounting base (no text or symbols)

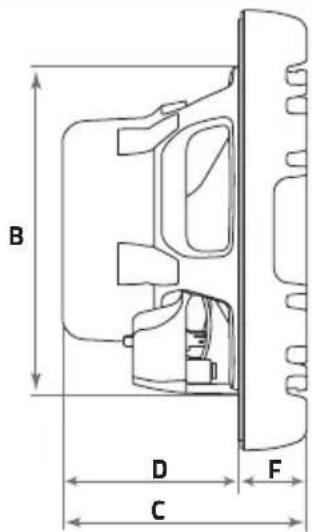

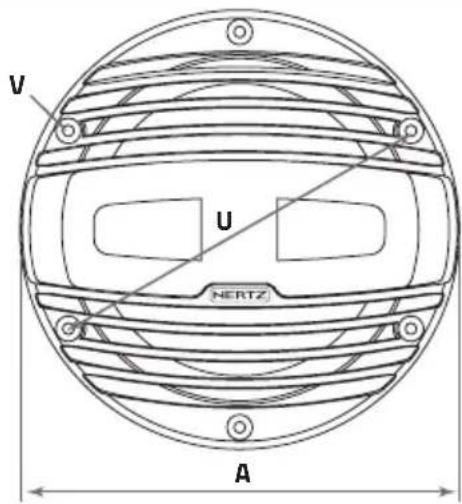

الحجم / Размер / 尺寸 / 规格 / Veličina / Velikost / Størrelse / Afmetingen / Size / Suurus / Koko / Dimensions / Größe / Διαστάσεις / اندازه / Méretek / Ukuran / Ingombro / サイズ / ヨフ | Izmērs / Dydis / Størrelse / Wielkość / Dimensão / Dimensiuni / Размер / Rozmery / Velikost / Tamaño / Storlek / ขนาด / Ebat

HMX 6.5 / HMX 6.5-C / HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-TC / HMX 6.5-TW / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S / HMX 6.5 S-LD / HMX 8 / HMX 8-C / HMX 8-LD / HMX 8-LD-C / HMX 8-TC / HMX 8-TW / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S / HMX 8 S-LD / HMS 10 B / HMS 10 B-C / HMS 10 B-C2 / HMS 10 B-2 / HMS 10 S-LD-G / HMS 10 S2-LD-G / HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C / HMS 12 S4-LD-G / HMS 12 S2-LD-G

V U NERTZ A

B D C F

	A	B	C	D	F	U	V
HMX 6.5HMX 6.5-CHMX 6.5-TCHMX 6.5-TWHMX 6.5-LDHMX 6.5-LD-CHMX 6.5-LD-TCHMX 6.5-LD-TWHMX 6.5 SHMX 6.5 S-LD	172,2	128	95,6	69	26,6	155	4,5	mm
	6.78	5,04	3.76	2.72	1.05	6.1	0.18	in.
HMX 8HMX 8-CHMX 8-TCHMX 8-TWHMX 8-LDHMX 8-LD-CHMX 8-LD-TCHMX 8-LD-TWHMX 8 SHMX 8 S-LD	225	180	123	91	32	205	5 mm
	8.86	7.09	4.84	3.58	1.19	8.07	0.2	in.
HMS 10 BHMS 10 B-CHMS 10 B-C2HMS 10 B-2	277	230	191	145	46	254	5,5	mm
	10.91	9.06	7.52	5.71	1.81	10	0.22	in.
HMS 10 S-LD-GHMS 10 S2-LD-G	279	230	186	145	41	254	5,5	mm
	10.98	9.06	7.32	5.71	1.61	10	0.22	in.
HMS 12 B2-LD-WHMS 12 B4-LD-WHMS 12 B2-LD-CHMS 12 B4-LD-C	342,9	279,4	190,9	140,6	50,3	314	5,5	mm
	13.50	11	7.52	5.54	1.98	12.36	0.22	in.
HMS 12 S2-LD-GHMS 12 S4-LD-G	342,9	279,4	192,8	140,6	52,2	314	5,5	mm
	13.50	11	7.59	5.54	2.06	12.36	0.22	in.

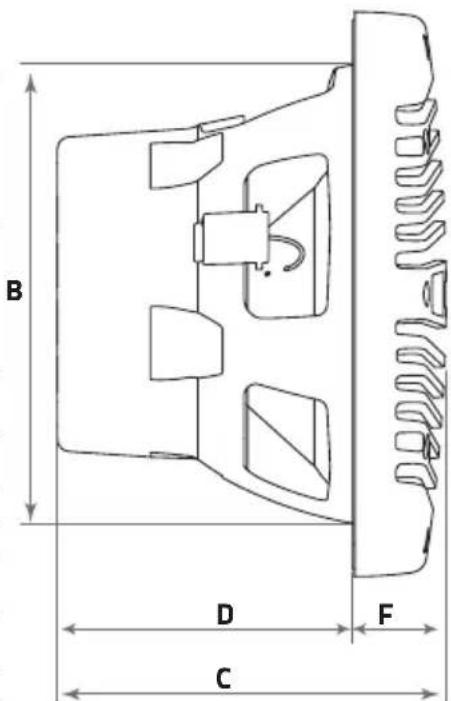

B D C F

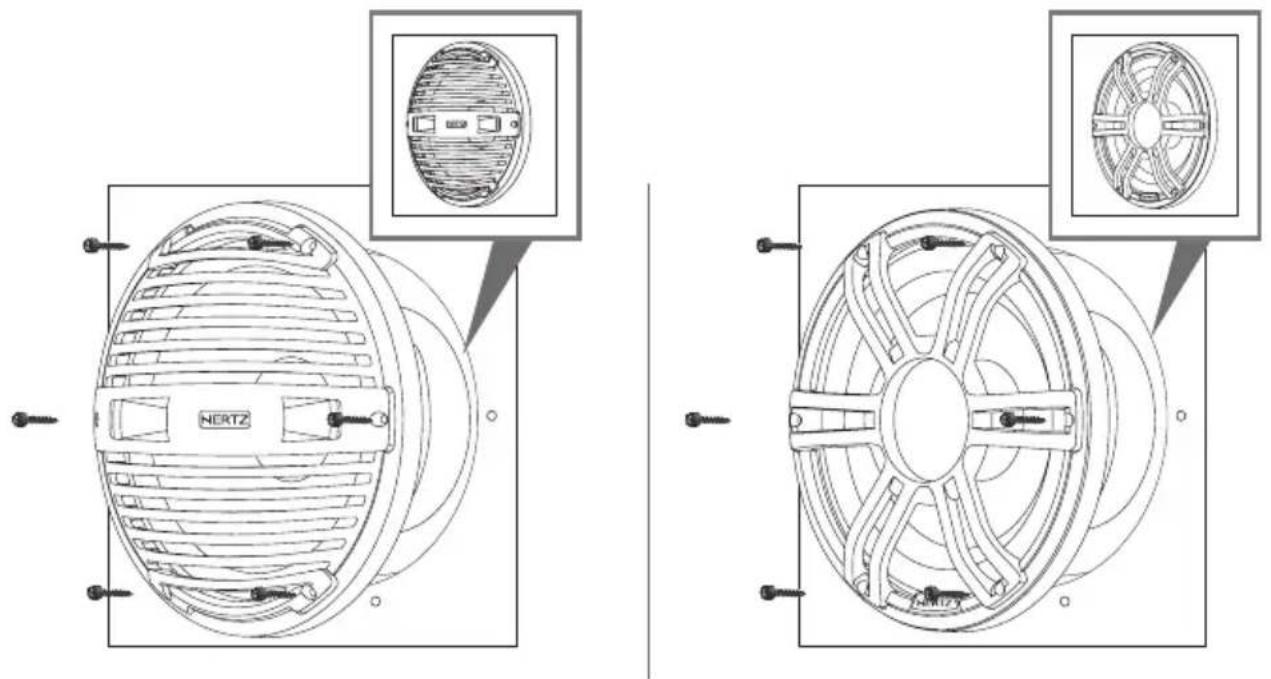

التشmit / Монтаж / 安装 / 安装 / Montaža / Montáž / Montering / Montage / Mounting / Paigaldamine / Kiinnitys / Montage / Montage / Тотоθέτηση / सिप्ति / Beszerelés / Pemasangan / Montaggio / マウント / 마운트 / Uzstādišana / Montavimas / Montering / 4 تَمْبِي / Montaž / Montagem / Montaj / Монтаж / Montáž / Namestitev / Montaje / Montering / コการใส่لَاًโพง / Montaj

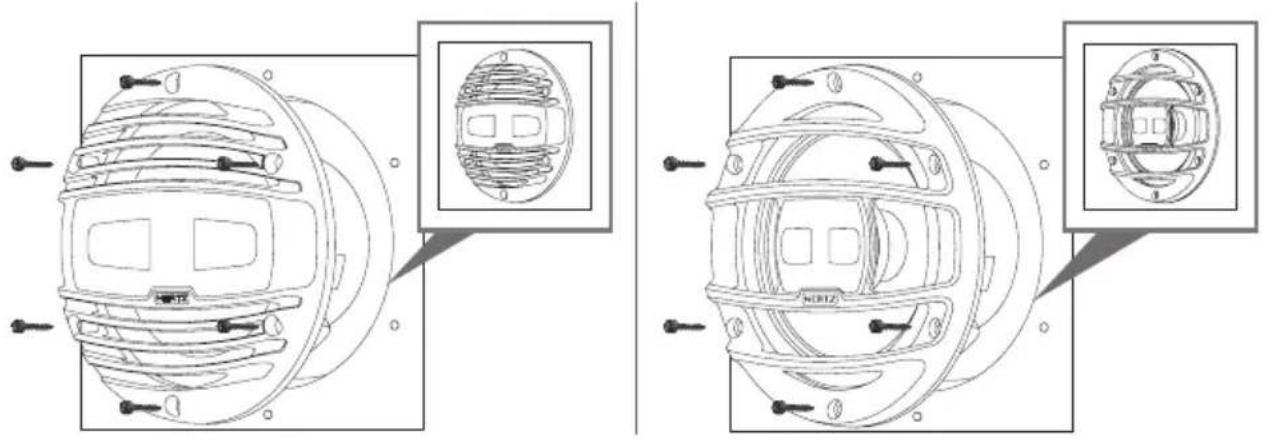

HMX 6.5 / HMX 6.5-C / HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-TC / HMX 6.5-TW / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S / HMX 6.5 S-LD / HMX 8 / HMX 8-C / HMX 8-LD / HMX 8-LD-C / HMX 8-TC / HMX 8-TW / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S / HMX 8 S-LD

Technical line drawings of a mechanical component with internal structure and two inset views (no text or symbols)

Unless otherwise specified these products are developed for infinite-baffle applications, which means installed without box. Installing these components in a box or in small enclosures may compromise their low frequency performance.

Technical line drawings of a NERTZ air vent fan assembly, showing internal components and mounting brackets (no text or symbols)

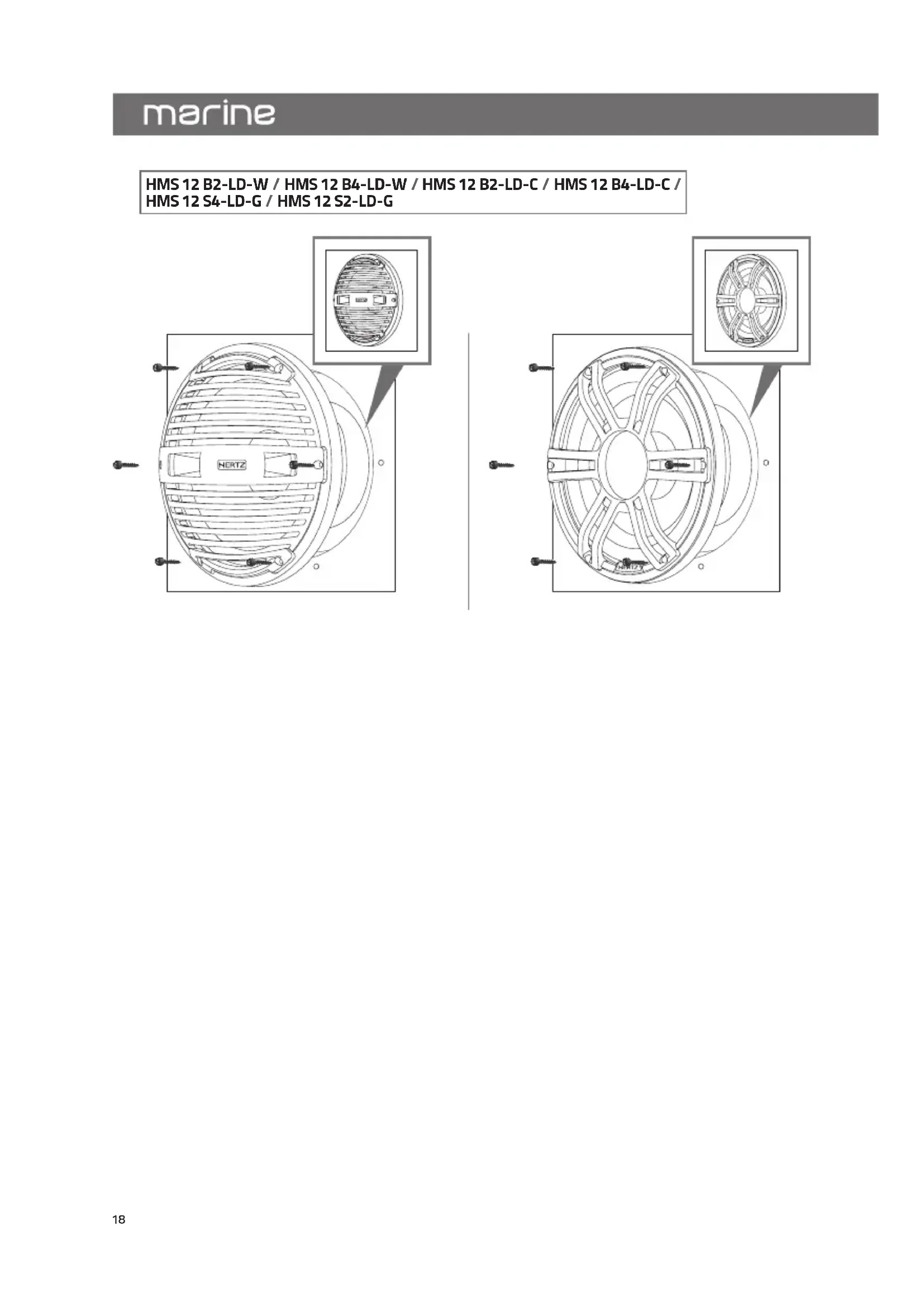

HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C / HMS 12 S4-LD-G / HMS 12 S2-LD-G

Technical line drawings of a NERTZ fan assembly, showing front and side views with no text or symbols

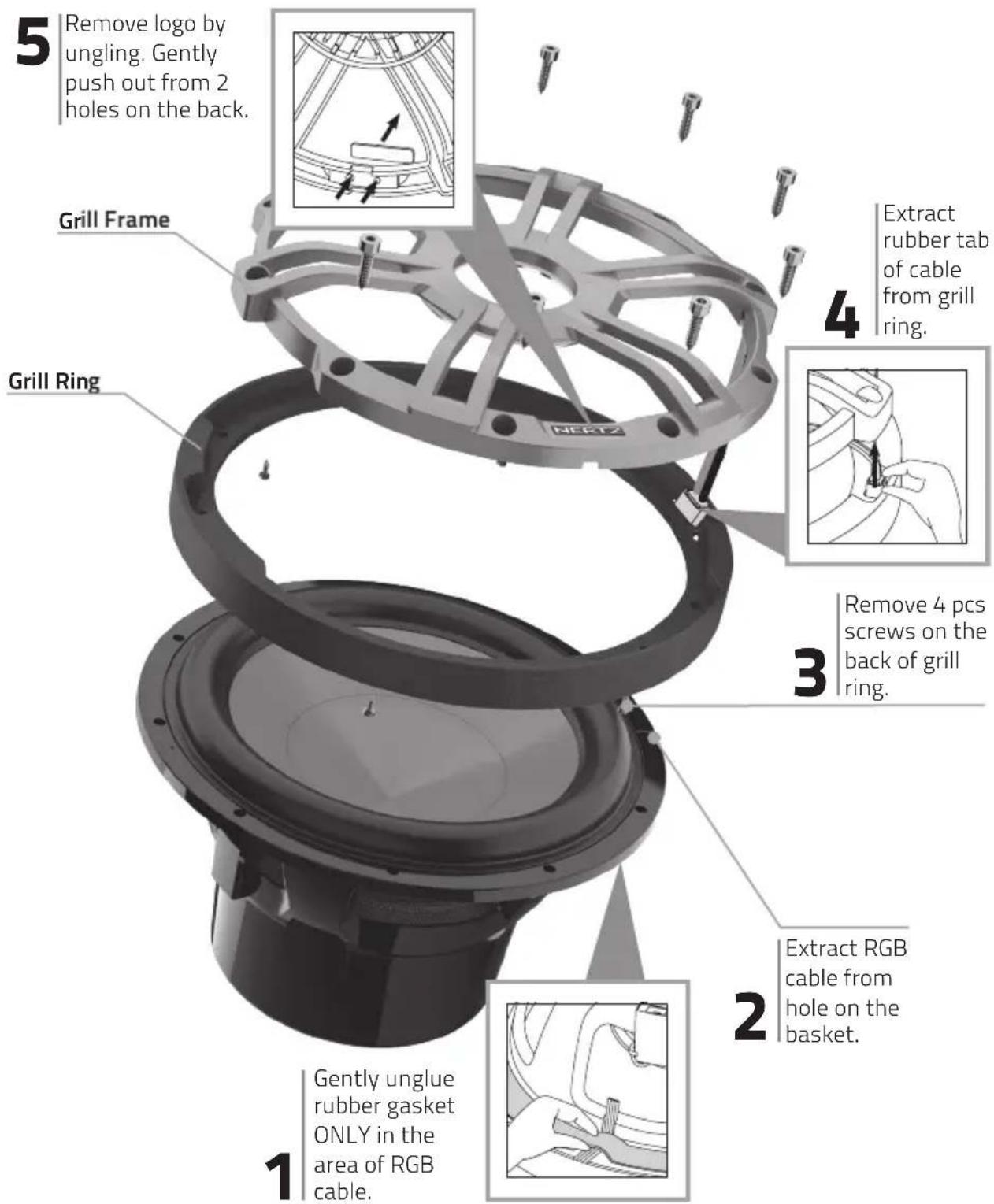

HMS 10 S-LD-G / HMS 10 S2-LD-G Grille disassembly / assembly

Follow below steps to disassembly the grill. To re-assembly follow the steps back from 5 to 1. Use soft glue to glue back logo (step 5) and gasket (step 1)

5 Remove logo by ungling. Gently push out from 2 holes on the back. Grill Frame Grill Ring 4 Extract rubber tab of cable from grill ring. 3 Remove 4 pcs screws on the back of grill ring. 2 Extract RGB cable from hole on the basket. 1 Gently unglue rubber gasket ONLY in the area of RGB cable.

HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C Grille disassembly / assembly

Follow below steps to disassembly the grill. To re-assembly follow the steps back from 3 to 1.

Grill Frame Grill Ring 2 UNCLIP male/female connectors. 3 Remove 5 pcs screws at the back of grill ring. 1 Remove 6 pcs screws at the back of the basket.

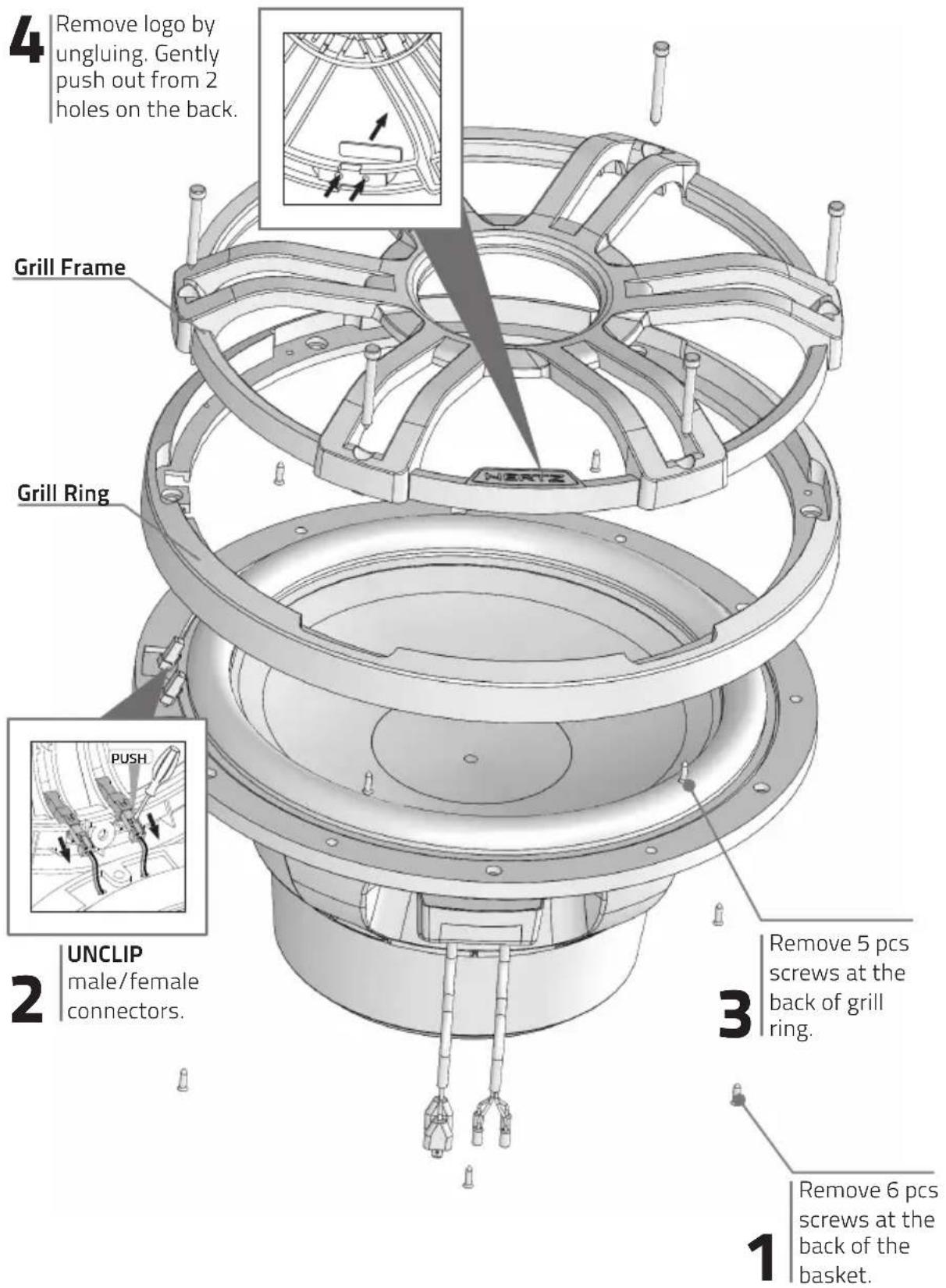

HMS 12 S4-LD-G / HMS 12 S2-LD-G Grille disassembly / assembly

Follow below steps to disassembly the grill. To re-assembly follow the steps back from 4 to 1. Use soft glue to glue back logo (step 4).

4 Remove logo by ungluing. Gently push out from 2 holes on the back. Grill Frame Grill Ring PUSH 2 UNCLIP male/female connectors. 3 Remove 5 pcs screws at the back of grill ring. 1 Remove 6 pcs screws at the back of the basket.

التوصيلات / Свързвания / 連接 / 连接 / Spajanje / Pripojení / Forbindelser / Verbindingen / Connections / Ühendused / Kytkennät / Connexions / Verbindungen / Συνδέσεις / प्रधान / Csatlakozók / Sambungan / Connessioni / 接続 / 연결 / Savienojumi / Jungtys / Tilkoblinger / إتصالات / Połączenia / Ligações / Conectarea / Подключения / Pripojenie / Vezave / Conexiones / Anslutningar / การเชื่อมต่อ / Bağlantılar

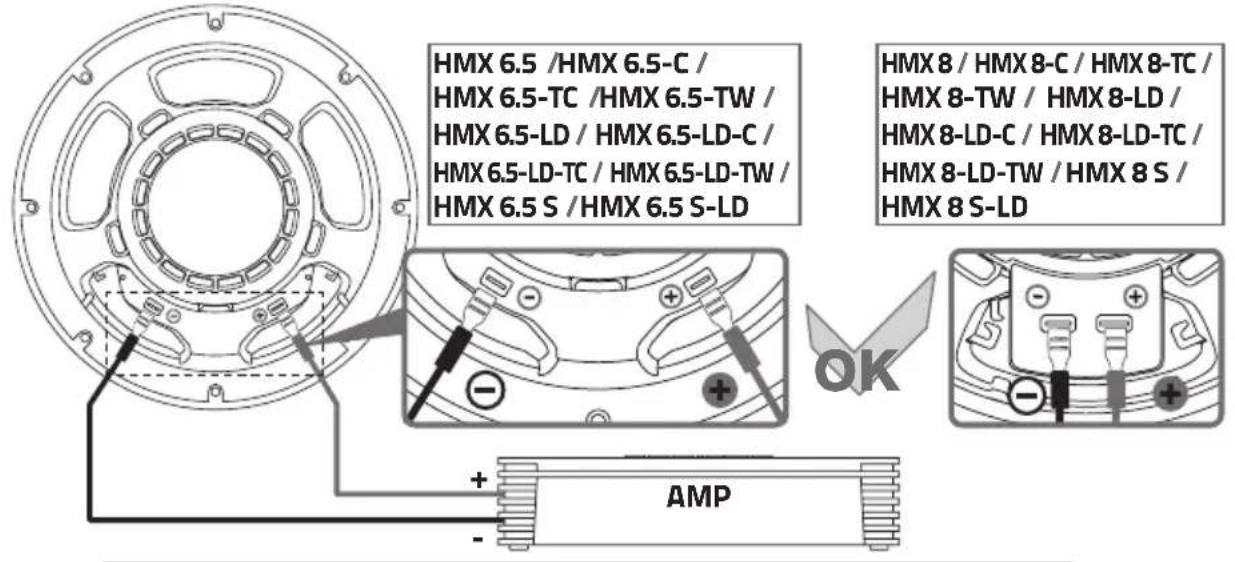

HMX 6.5 /HMX 6.5-C / HMX 6.5-TC /HMX 6.5-TW / HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S /HMX 6.5 S-LD HMX 8 / HMX 8-C / HMX 8-TC / HMX 8-TW / HMX 8-LD / HMX 8-LD-C / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S / HMX 8 S-LD + AMP ok

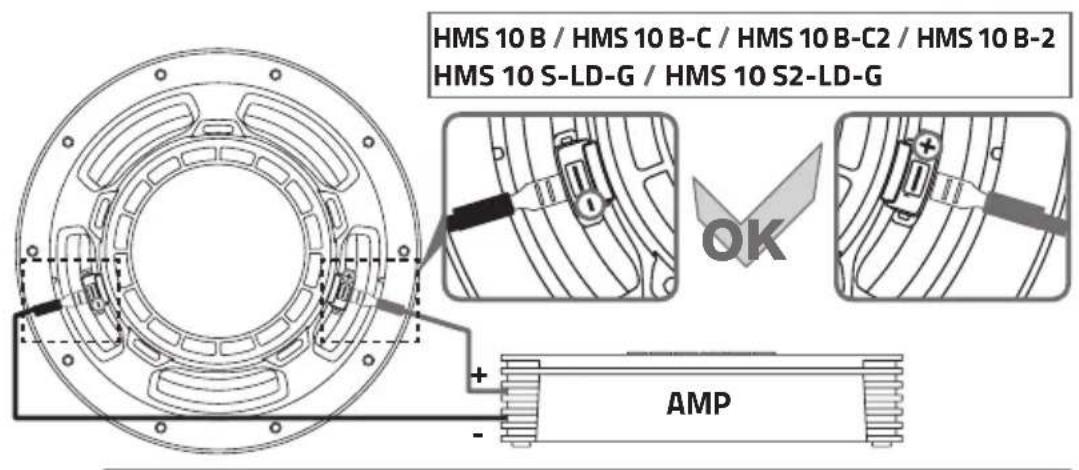

HMS 10 B / HMS 10 B-C / HMS 10 B-C2 / HMS 10 B-2 HMS 10 S-LD-G / HMS 10 S2-LD-G + AMP

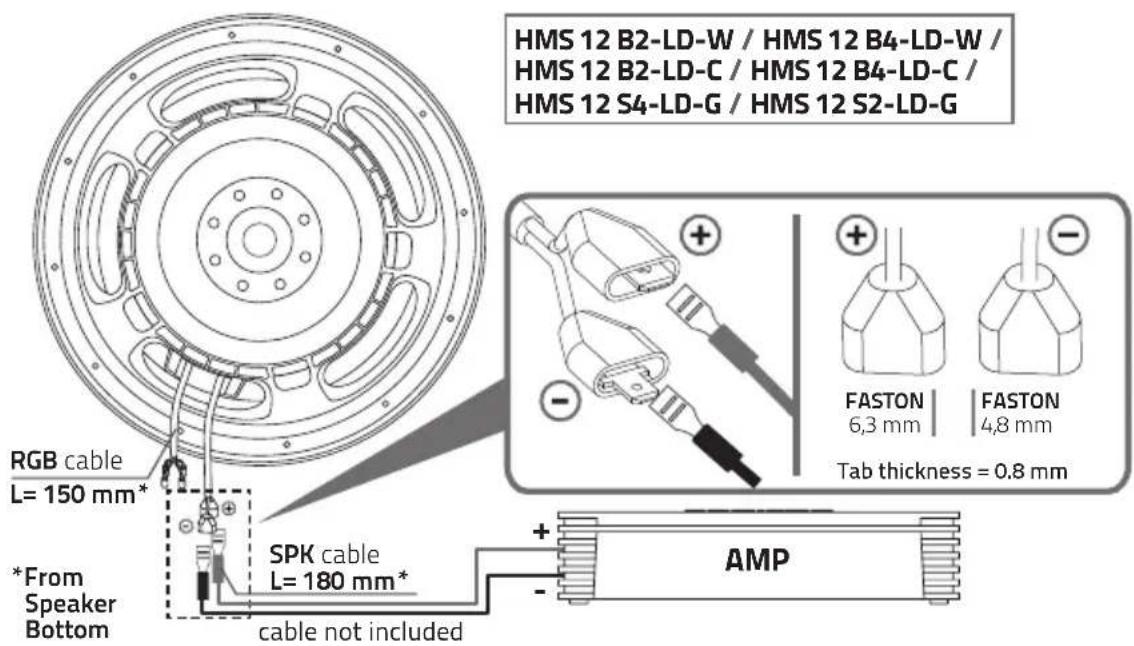

HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C / HMS 12 S4-LD-G / HMS 12 S2-LD-G RGB cable L= 150 mm* *From Speaker Bottom SPK cable L= 180 mm* cable not included FASTON 6,3 mm FASTON 4,8 mm Tab thickness = 0.8 mm AMP

HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S-LD / HMX 8-LD / HMX 8-LD-C / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S-LD / HMS 10 S-LD-G / HMS 10 S2-LD-G / HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C / HMS 12 S4-LD-G / HMS 12 S2-LD-G LED direct wiring

HMX 6.5 / HMX8 / HMS 10 series

RED GREEN BLUE YELLOW (+ 12 V)

SERIES FU\$E VALUE

HMX 6.5HMX 8	100 mA
HMS 10	250 mA
HMS 12	250 mA

WHITE X X X
RED X
GREEN X
BLUE X
YELLOW X X
PURPLE X X
CYAN X X

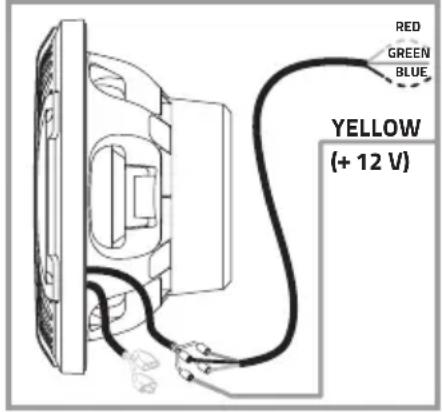

HMS 12 series

RED GREEN BLUE YELLOW (+ 12 V)


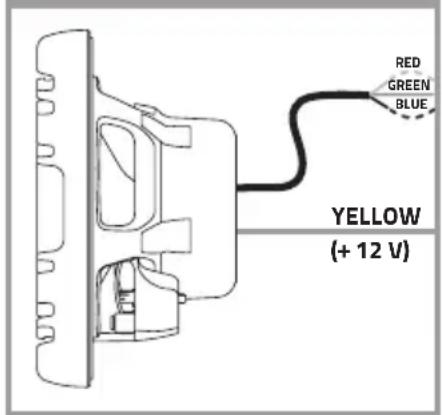

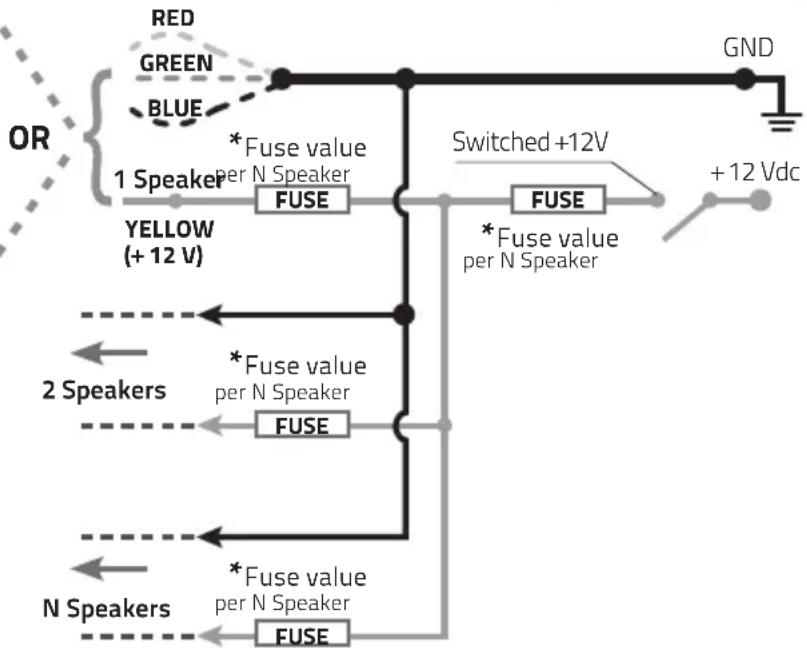

LED CIRCUIT WIRING

• Voltage provided to the LED circuit must not exceed +12.5 Vdc referred to the system ground (GND).
• Voltage provided to the LED circuit should be switched by an activation circuit in order to turn-on the LED lighting only when
  required and turn it off when vessel is not used or put into storage.
• Protect the YELLOW (+12V) wire with a 100mA fuse, then connect the YELLOW (+12V) wires from all the speakers together to the main Switched +12 Vdc.
• Fuse the Switched +12 Vdc according to the total number of speakers connected in parallel. We suggest for the fuse value to be as close as possible to the standard value corresponding to 100mA or 250 mA x N speakers rounded in excess. I.e. 6 speakers (3 pairs) in parallel requires 100mA x 6 = 600mA, for which the closest standard fuse value rounded in excess would be 630mA.
• Connect the R(Red), G(Green), B(Blue) wires from the speaker to the system ground (GND) referring to the below table according to the color desired among the 7 available options.

COLLEGAMENTO DEL CIRCUITO LED

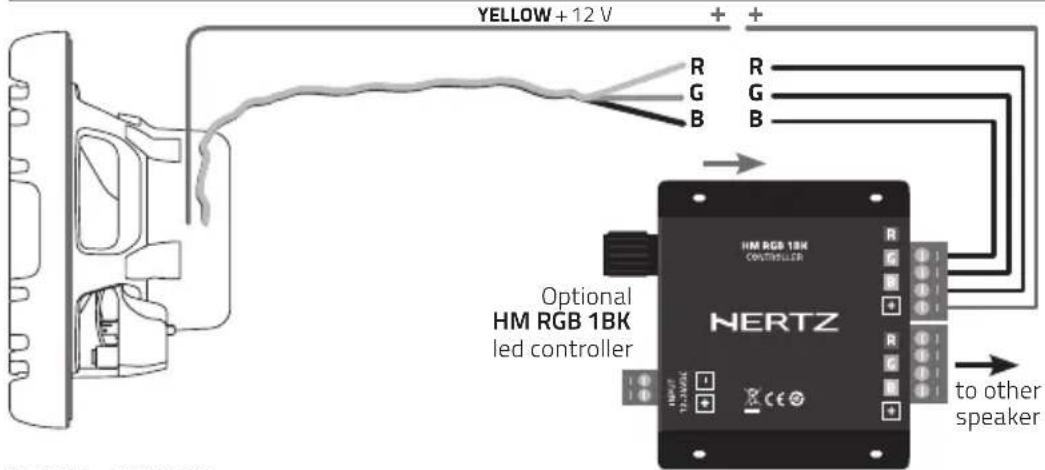

HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S-LD / HMX 8-LD / HMX 8-LD-C / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S-LD / HMS 10 S-LD-G / HMS 10 S2-LD-G / HMS 12 B2-LD-W / HMS 12 B4-LD-W / HMS 12 B2-LD-C / HMS 12 B4-LD-C / HMS 12 S4-LD-G / HMS 12 S2-LD-G LED wiring with HM RGB 1BK

YELLOW +12 V R G B + + R G B Optional HM RGB 1BK led controller Hertz NERTZ to other speaker

HM RGB 1 BK WIRING:
For detailed instructions on HM RGB 1 BK wiring please check the HM RGB 1 BK owner's manual.
COLLEGAMENTO HM RGB 1 BK:
Per istruzioni dettagliate sul collegamento dell'HM RGB1 BK consultate il relativo manuale d'istruzioni.
التوصيلات / Свързвания / 连接 / 连接 / Spajanje / Pripojeni / Forbindelser / Verbindingen / Connections / Ühendused / Kytkennät / Connexions / Verbindungen / Συνδέσεις / στατής / Csatlakozók / Sambungan / Connessioni / 接続 / 연결 / Savienojumi / Jungtys / Tilkoblinger / ετρασίας / Połączenia / Ligações / Conectarea / Подключения / Pripojenie / Vezave / Conexiones / Anslutningar / การเชื่อมต่อ / Bağlantılar

1 SPEAKER AMP

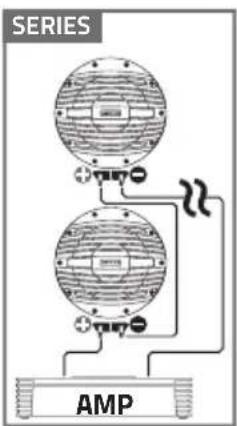

SERIES AMP

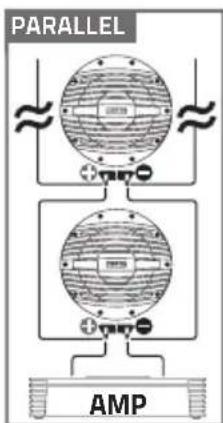

PARALLEL AMP

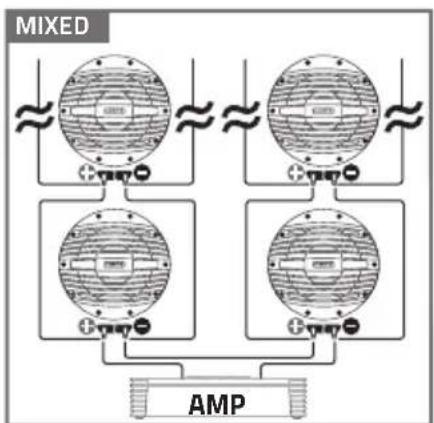

MIXED AMP

FREE AIR DC RESISTANCE		HMX 6.5 / HMX 6.5-C / HMX 6.5-LD / HMX 6.5-LD-C / HMX 6.5-TC / HMX 6.5-TW / HMX 6.5-LD-TC / HMX 6.5-LD-TW / HMX 6.5 S / HMX 6.5 S-LD	HMX 8 / HMX 8-C / HMX 8-LD / HMX 8-LD-C / HMX 8-TC / HMX 8-TW / HMX 8-LD-TC / HMX 8-LD-TW / HMX 8 S / HMX 8 S-LD	HMS 10 B / HMS 10 B-C / HMS 10 S-LD-G	HMS 10 B-C2 / HMS 10 B-2 / HMS 10 S2-LD-G	HMS 12 B2-LD-W / HMS 12 B2-LD-C / HMS 12 S2-LD-G	HMS 12 B4-LD-W HMS 12 B4-LD-C HMS 12 S4-LD-G /
1 Speaker		3,5 3,1 4,5 2,1 1,8 3,3 Ω
Series	2 Speaker	7 6,2 9,0 4,2 3,6 6,6 Ω
	3 Speaker	10,5 9,3 13,5 6,3 5,4 9,9 Ω
	4 Speaker	14 12,4 18,0 8,4 7,2 13,2 Ω
Parallel	2 Speaker	1,8 1,6 2,3 1,1 0,9 1,7 Ω
	3 Speaker	1,2 1	1,5 0,7 0,6 1,1 Ω
	4 Speaker	0,9 0,8 1,1 0,5	0,45 0,8 Ω
Mixed	4 Speaker	3,5 3,1 4,5 2,1 1,8 3,3 Ω
	6 Speaker	2,3 2,1 3,0 1,4 1,2 2,2 Ω
	8 Speaker	1,8 1,6 2,3 1,1 0,9 1,6 Ω

- Almelfats (Mewolai) / Proekti za resonatorni kutii za cубвуфери / 低音扬声器的谐波箱的设计 / Projekti harmoničnih spojeva za niskotonski zvučnik / Projekty pro harmonické reproduktory subwoofer / Ontwerpen voor harmonische boxen voor subwoofers / Design of subwoofer enclosures / Subwooferite harmooniliste korpuste projektid / Harmonisten subwoofer-kaiutinkoteloiden rakennussarjat / Projets de caisses de résonance pour subwoofer / Entwürfe für Subwoofer-Boxen / Σχέδια ηχείων για subwoofer / Hangfal tervezés mélysugárzóhoz / Desain soundboards untuk subwoofer / Progetti di casse armoniche per subwoofer / サブウーファー用の共鳴ボックス / 肯브우퍼를 위한 듣기좋은 스피커 프로젝트 / Rezonansinių garso dėžių projektai žemų dažnių garsiakalbiui / Projekty skrzyń do subwoofera / Projetos de caixas harmônicas para subwoofer / Проекты акустического короба для сабвуфера / Projekty pre harmonické reproduktory subwoofer / Projekti harmoničnih ohišij za subwoofer / Proyectos de cajas armônicas para subwoofer / Resonanslådor projekt för subwoofer / แผนการ হামুন্নার সিত্বিপ্লিয়ার / Subwoofer için ses kasaları projeleri.

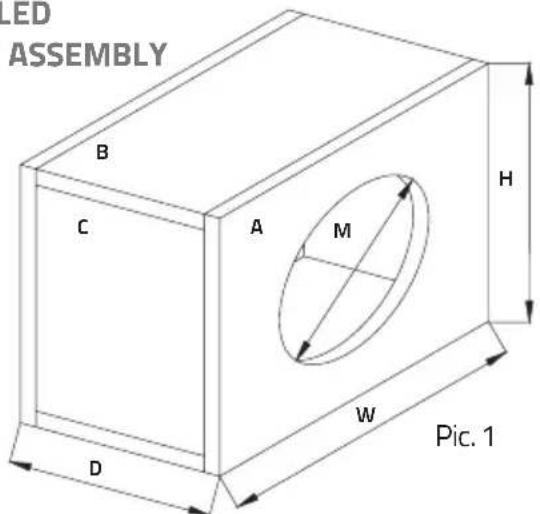

ENCLOSURE DESIGN

SEALED BOX ASSEMBLY

LED ASSEMBLY B C A M H W D Pic. 1

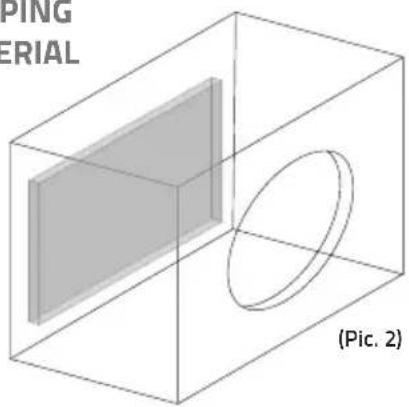

DAMPING MATERIAL

3D wireframe diagram of a rectangular prism with an elliptical cutout, labeled 'PING' and '(PIC. 2)' (no text or symbols on the diagram itself)

BOXTECHDATA	Vb	Fb	Qtc	External dimensionsPic. 1			MountingHole - M	WoodThickness	SuggestedSubsonicfiltercut-off	SuggestedLo-passfiltercut-off	DampingMaterial
				W	H	D
	I(cu. ft.)	Hz		mm(in.)	mm(in.)	mm(in.)	mm(in.)	mm(in.)
HMS 10 B / HMS 10 B-CHMS 10 B-C2 / HMS 10 B-2HMS 10 S-LD-G /HMS 10 S2-LD-GCOMPACT	50(1.77)	54	1,05	440(17.32)	440(17.32)	365(14.37)	230(9.06)	19(0.75)	20 Hz24dB Oct	100 Hz12dB Oct	Pic. 2
HMS 10 B / HMS 10 B-CHMS 10 B-C2 / HMS 10 B-2HMS 10 S-LD-G /HMS 10 S2-LD-GPERFORMANCE	71(2.51)	51	0,99	460(18.11)	460(18.11)	450(17.72)	230(9,06)	19(0.75)	20 Hz24dB Oct	150 Hz12dB Oct	Pic. 2

PANELS LAYOUT

B

C

B

A

BOX ASSEMBLY AND SHAPE

This manual features the box assemblies and shapes which are easiest to create. However, the bass frequency performance can be noticeably improved with different box shapes, assembly methods and construction materials.

PANELS CUT LIST	A	Qty	B	Qty	C	Qty
	mm(in.)	Pcs	mm(in.)	Pcs	mm(in.)	Pcs
HMS 10 B / HMS 10 B-C HMS 10 B-C2 / HMS 10 B-2 HMS 10 S-LD-G / HMS 10 S2-LD-G COMPACT (50lt)	440 x 440(17.32 x 17.32)	2	440 x 327(17.32 x 12.87)	2	402 x327(15.83 x 12.87)	2
HMS 10 B / HMS 10 B-C HMS 10 B-C2 / HMS 10 B-2 HMS 10 S-LD-G / HMS 10 S2-LD-G PERFORMANCE (70lt)	460 x 460(18.11 x 18.11)	2	460 x 412(18.11 x 16.22)	2	422 x 412(16.61 x 16.22)	2

العملات الكهرو صوتية / Електро-акустични параметри / 電聲参数 / 电声参数 / Elektro-akustički parametri / Elektroakustické parametry / Electro-Acoustic parametre / Elektro-akoestische parameters / Electro-Acoustic parameters / Elektroakustilised parameetrid / Sähköakustiset parametrit / Paramètres électro-acoustiques / Elektro-akustische Parameter / Нлектро-акουστικές παράμετροι / Μηνωστήσινησίνη συστήσινησίνη/ Elektro-akusztikus paraméterek / Parameter elektro-akustik / Parametri elettroacustici / 電気音響パラメ-タ / 전자 어쿠스틱 파라미터 / Elektro-akustiskie parametri / Elektriniai-akustiniai parametrai / Elektro-akustiske parametre / پارامترهای الكتروانوستيکی / Parametry elektro-akustyczne / Parâmetros electro-acústicos / Specificatii tehnice / Электроакустические параметры / Elektro-akustické parametre / Elektro-akustični parametri / Parâmetros electroacústicos / Elektroakustiska parametrar / όλείξιθητρ-ασυστήσινη παραμπιτεος / Elektro-akustik parametreler

	HMX 6.5 / HMX 6.5-C /HMX 6.5-LD / HMX 6.5-LD-C /HMX 6.5-TC / HMX 6.5-TW /HMX 6.5-LD-TC /HMX 6.5-LD-TW /HMX 6.5 S /HMX 6.5 S-LD	HMX 8 / HMX 8-C /HMX 8-LD /HMX 8-LD-C /HMX 8-TC / HMX 8-TW /HMX 8-LD-TC /HMX 8-LD-TW /HMX 8 S / HMX 8 S-LD	HMS 10 B /HMS 10 B-C /HMS 10 S-LD-G	HMS 10 B-C2 /HMS 10 B-2 /HMS 10 S2-LD-G	HMS 12 B2-LD-W /HMS 12 B2-LD-C /HMS 12 S2-LD-G	HMS 12 B4-LD-WHMS 12 B4-LD-CHMS 12 S4-LD-G /
Dmm	125 174 210 210	300 300
Xmaxmm	3.65 4.5 13.5 12.3	19 19
ReΩ	3.5 3.1 4.5 2,1 1.8	3.3
FsHz	65 50 41 41 30	30
LemH	0.53	0.52	0.9	0,46	0.41	0.62
Vasil	8.8	29.46	37 31 95.4	104.7
Mmsg	14	27.3	69	75,6 114 112
Cmsmm/N	0.4 0.37	0.22 0,18	0.225	0.247
BLT·m	5.2 6.6 10.2	8,3	8	8
Qts	0.7	0.58	0.71	0,6	1	1
Qes	0.75	0.61	0.76	0,63	1.1	1.1
Qms	11.5	11	11	12,3	11.1	12.9
SpldB	89 91 88	88,5	89,5 89,5

المواصفات الفنية / Технически спецификации / 技術規格 / 技术規格 / Tehnički podaci / Technické údaje / Tekniske specifikationer / Technische specificaties / Technical specifications / Tehnilised andmed / Tekniset tiedot / Caractéristiques techniques / Technische daten / Τεχνικά χαρακτηριστικά / ⁴⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁰⁸ / Műszaki adatok / Spesifikasi teknis / Specifiche tecniche / 技術仕様 / 기술 사양 / Tehniskā specifikācija / Techniniai duomenys / Tekniske spesifikasjoner / مشخصات فتى / Szczegóły techniczne / Especificações técnicas / Parametrii electro-acustici / Технические условия / Technické informácie / Tehnične specifikacije / Especificaciones técnicas / Tekniska specifikationer / ความต้องการทางเทคนิค / Teknik veriler

	Component	Size Power	handling		Impedance	Magnet Size	Voice Coil ∅	Magnet Cone	Weight	of one component
			Peak	Continuous
		mm(in.)	W W	Ω mm		(in.)	mm(in.)			Kg(lb.)
HMX 6.5HMX 6.5-CHMX 6.5-TCHMX 6.5-TWHMX 6.5-LDHMX 6.5-LD-CHMX 6.5-LD-TCHMX 6.5-LD-TWHMX 6.5 SHMX 6.5 S-LD	Two WayCoaxial	Woofer 165 (6.5)	150	75 4		78,5 x 32 x 17(3.09x1.26x0.67)	25 (1)	High density flux ferrite	Polypropylene with UV inhibitors	1 (2.2)
		Tweeter diaphragm 36 (1.4)				19,7 x 0 x 3(0.78 x 0 x 0.12)	20 (0.8)	Neodymium
HMX 8HMX 8-CHMX 8-TCHMX 8-TWHMX 8-LDHMX 8-LD-CHMX 8-LD-TCHMX 8-LD-TWHMX 8 SHMX 8 S-LD	Two WayCoaxial	Woofer 200 (8)	200	100 4		90 x 40 x 20(3.54x1.57x0.79)	32 (1,26)	High density flux ferrite	Polypropylene with UV inhibitors	1,66 (3.66)
		Tweeter diaphragm 36 (1.4)				19,7 x 0 x 3(0.78 x 0 x 0.12)	20 (0.8)	Neodymium
HMS 10 BHMS 10 B-CHMS 10 S-LD-G	Subwoofer	250 (10) 500 250 4				140 x 60 x 30(5.51 x 2.36 x 1.18)	50 (2)	High density flux ferrite	Polypropylene with UV inhibitors	5,1 (11.24)
HMS 10 B-C2HMS 10 B-2HMS 10 S2-LD-G	Subwoofer	250 (10) 500 250 2				140 x 60 x 30(5.51 x 2.36 x 1.18)	50 (2)	High density flux ferrite	Polypropylene with UV inhibitors	5,1 (11.24)
HMS 12 B2-LD-WHMS 12 B2-LD-CHMS 12 S2-LD-G	Subwoofer	300 (12) 1000 500 2				156 x 80 x 40(6.14 x 3.15 x 1.57)	65,5 (2.6)	High density flux ferrite	Polypropylene with UV inhibitors	7,6 (16.8)
HMS 12 B4-LD-WHMS 12 B4-LD-CHMS 12 S4-LD-G	Subwoofer	300 (12) 1000 500 4				156 x 80 x 40(6.14 x 3.15 x 1.57)	65,5 (2.6)	High density flux ferrite	Polypropylene with UV inhibitors	7,6 (16.8)
