EM 6001 sw - Ice Maker Exquisit - Free user manual and instructions

Product Type	Ice Maker
Brand	Exquisit
Model	EM 6001 sw
Color	White
Ice Production Capacity	13 kg per 24 hours
Ice Storage Capacity	1 kg
Water Tank Capacity	1.9 L
Cycle Time	Approximately 7 to 15 minutes
Net Weight	Approximately 10 kg
Dimensions (L x D x H)	Approximately 30 x 40 x 35 cm
Power Supply	220-240 V ~ 50 Hz
Power	Approximately 150 W
Refrigerant	R600a
Recommended Ambient Temperature	+5°C to +32°C
Functions	LED indicators (empty tank, full basket, ICE), auto shut-off
Maintenance	Clean exterior with damp cloth, interior with vinegar water, do not immerse, do not put in dishwasher
Safety	Use under supervision, unplug before cleaning, do not use near water
Included Accessories	Ice basket, ice scoop
Warranty	Legal (manufacturer warranty per conditions)
Country of Origin	Germany (estimated)
Usage	Household use only

Frequently Asked Questions - EM 6001 sw Exquisit

What type of water should I use for the ice maker?

Use only potable water, preferably mineral water. Non-mineral purified or distilled water may not be detected correctly by the machine.

Why does the 'empty tank' indicator light up when there is water in the tank?

This may indicate the water pump is not working. Contact customer service. Make sure to use mineral water, as purified or distilled water may not be detected.

What to do if the 'full basket' indicator lights up when the basket is not full?

The infrared sensor may be blocked or water droplets may be on the sensor. Check that nothing is obstructing the sensor and wipe it with a soft cloth.

How to clean the ice maker?

Unplug the appliance and empty the tank. Clean the exterior with a slightly damp cloth. Clean the interior with a cloth soaked in warm water and a little vinegar, then rinse with clean water. Wash the basket and scoop in warm soapy water. Never immerse the appliance or put it in the dishwasher.

Why are the ice cubes stuck together or forming a block?

This can happen if the water temperature or ambient temperature is too low. Turn off the appliance, wait for the water to warm up, then restart the cycle.

The machine stops suddenly after running for a while, what should I do?

This may be due to a high ambient temperature triggering the thermal protector. Turn off the appliance and wait at least one hour before restarting.

Can I leave the machine on continuously?

No, this appliance is not intended for continuous use. It must be turned off for at least 1 hour after 5 hours of operation.

What to do if the compressor makes an abnormal noise?

A dull noise may indicate the voltage is too low or too high. Turn off the machine and only restart it when the voltage is normal.

How to empty the water tank?

Place a container under the drain outlet at the bottom of the appliance and unscrew the drain cap. Once the tank is empty, screw the cap back on tightly.

What is the ice storage capacity and production capacity?

The machine produces up to 13 kg of ice per 24 hours and can store about 1 kg of ice cubes in the basket. The water tank has a capacity of 1.9 L.

USER MANUAL EM 6001 sw Exquisit

1. Lid
2. Lid window
3. Control panel

A. ON/OFF button
B. ON/OFF indicator (ICE)
C. "Ice full" indicator
D. "Add water" indicator

1. Ice basket
2. Ice scoop
3. Water tank

F

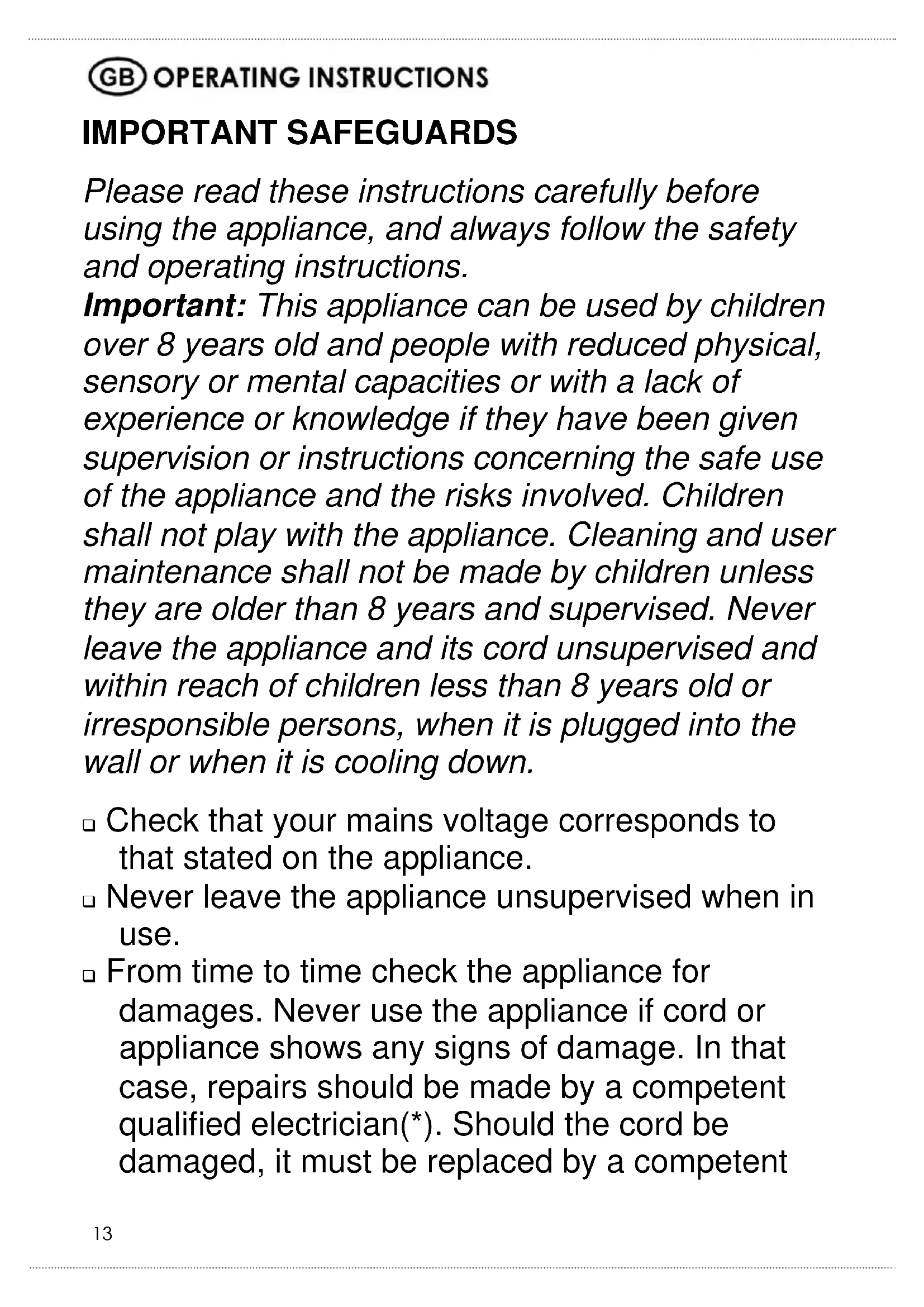

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, when it is plugged into the wall or when it is cooling down.

• Check that your mains voltage corresponds to that stated on the appliance.
  Never leave the appliance unsupervised when in use.
  □ From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^(*) . Should the cord be damaged, it must be replaced by a competent

qualified electrician* in order to avoid all danger.

• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Otherwise the appliance may be damaged.
  Never use the appliance near hot surfaces.
  □ Before cleaning or storing the appliance, always unplug it and let it cool down to avoid electric shocks.
• Never use the appliance outside and always place it in a dry environment.
• Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
• Stand the appliance on a table or flat surface to prevent it from falling down.
  □ It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.
  Make sure the cord does not come into contact with the hot parts of the appliance.

• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

• Never touch the ice cubes with your naked hand as you would risk frost bite.

• Do not place the appliance near heat sources or in direct sunlight.
  In order to prevent the appliance from tipping over, do not move the appliance when it is filled.
• Do not let the appliance switched on if you do not use it for a long period of time.
• Do not touch the appliance if your hands or feet are wet.
  Do not move the appliance when it is in use.
  If the appliance does not function properly, unplug it and contact a competent qualified electrician*
• Avoid sudden temperature changes, such as adding hot water in the ice basket.
  Do not tip the appliance over.
  □ If the ice maker is brought in from outside in the wintertime, give it a few hours to warm up to room temperature before plugging it in.
  □ Only use drinkable water to prepare ice.
• Never block the ventilation grid.

(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de).

UNPACKING THE APPLIANCE

IMPORTANT: This appliance is heavy, so to avoid any risk of injury or fall, let someone help to take the appliance out of its cardboard box.

• Do not use the lid to lift up the ice maker, as this could damage the appliance.
• Do not put your appliance upside down, as this would damage the compressor.
• Put the ice maker on a stable level surface which is able to hold its weight.
• For sufficient ventilation, please let a free space of 20~cm at the back and at the sides of the appliance.
  This appliance is not intended for a continuous use. Therefore it is necessary to switch it off for at least 1 hour after 5 hours of use.

INSTALLATION INSTRUCTIONS

• As with any other cooling appliance, your ice maker should not be started up immediately after its installation.
• Please wait at least 2 hours before starting up the appliance after its installation.
• Use an earthed socket.

USE

After having unpacked the appliance, open the lid and remove the ice basket. Clean the water tank and ice basket thoroughly.
- Pour drinkable water in the water tank. Do not fill above the MAX water level mark.
- Put the ice basket in the appliance in such a way that it covers the water tank.
- Close the lid.
Plug in the appliance (the ICE indicator lamp starts to blink).
- Press the ON/OFF button to start the ice making process (the ICE indicator lamp becomes green steadily).
- Press the ON/OFF button to switch off the appliance (the ICE indicator lamp starts to blink).
- If the water tank is getting empty, the "ADD WATER" pilot light will turn on. In that case, the ice maker will stop the ice-making cycle automatically. Fill water in the water tank. Wait for 3 minutes before pressing the ON/OFF button to resume the ice making process.
- When the "ICE FULL" pilot light switches on, it means that you should empty the ice basket. In that case, the ice maker will stop the ice-making cycle automatically. Empty the ice basket with the ice scoop and about 5 seconds later the ice maker will resume the ice making process automatically.
It takes about 7-15 minutes to make ice cubes depending on the ambient temperature and the water temperature.
- Unplug the appliance after use and empty the tank (cf. CLEANING).

CLEANING

• Unplug the appliance.
• Remove the ice basket. When you have just used the appliance, do not touch the ice cubes with your naked hand as they are cold/frozen and you would risk getting your fingers burned.

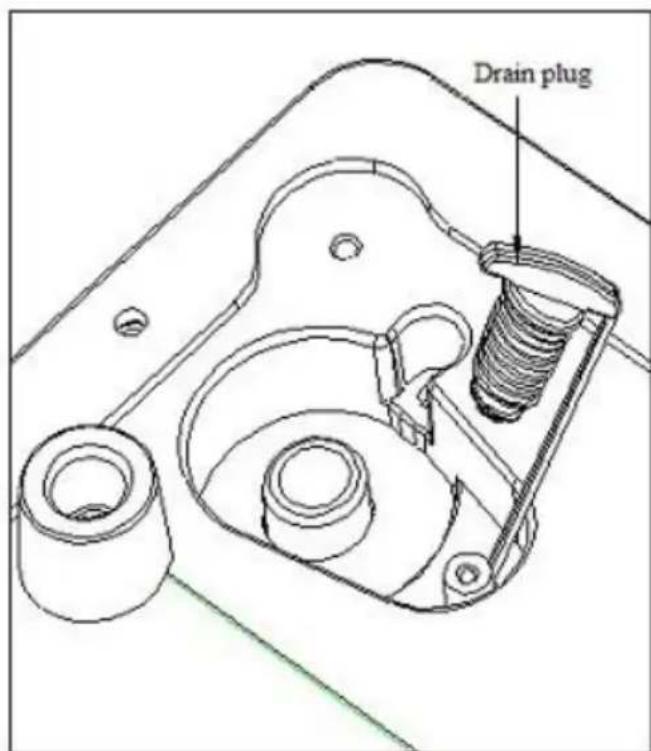

• Empty the tank. To do so, put a receptacle under the emptying drain situated at the bottom of the appliance and unscrew the drain plug. When the tank is empty, screw back the plug.

• Clean the outside only with a slightly damp cloth.
  NEVER USE THIS APPLIANCE IN THE PROXIMITY OF WATER. DO NOT IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.
• Clean the inside of the ice maker with a soft cloth soaked with warm water and vinegar, then rinse with clean water and then drain all the water.
• Wash the ice basket and ice scoop in warm soapy water. Rinse and dry.
• Do not use any abrasive products or solvents.
  Do not put any part of your appliance in the dishwasher.
  We will not accept any responsibility for defects resulting from wrong use due to the non-observance of the instruction manual. No guarantee claims will be accepted if the appliance has been opened or damaged previously.

TROUBLESHOOTING

Problem	Possible Cause	Suggested Solutions
The compressor works abnormally with a buzzing noise.	The voltage is lower/higher than recommended.	Stop the ice maker and do not restart until the voltage is normal.
“Add water” warning light is ON but there is water in the water tank.	The water pump fails.	Contact the after sales service.
	The water cannot be detected; non-mineral purified water or distilled water may be used.	Use mineral water.
“Ice full” warning light is ON but there is little ice in the ice basket.	The infrared lamp may be blocked or there are water drops on the lamp.	Check whether the infrared lamp is blocked, and wipe the lamp with a soft cloth.
“Add water” & “Ice full” warning lights turn on simultaneously.	Ice may be jammed under the water tray.	Remove the ice & restart the equipment.
	The ice cubes are too big or stick together, thus the water tray is seized.	Turn off the appliance, remove the ice cubes & restart the equipment.
	Poor contact of the travel switch occurs.	Contact the after sales service.
ICE lamp on display is not ON.	Blown fuse / No power.	Replace fuse / Turn power on.
The ice falls like a single block, with a lot of cubes sticking together.	The water temperature in the water storage box or the ambient temperature is too low.	Stop the machine and reset the ice making cycle. Restart the machine after turning it off.
The compressor operates, but no ice can be made.	The refrigerant leaks.	Contact the after sales service.
	The solenoid valve leaks.
Ice making is normal, but ice dumping function fails.	The solenoid valve fails.	Contact the after sales service.
	The computer board fails.
The equipment stops suddenly after ice making for some time.	Excessively high environmental temperature results in start-up of the thermal protector of the equipment.	Turn off the appliance & restart it 1 hour later.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Specifications

Model: EM6001sw

Rated voltage: 220-240V~

Power: 120W

Safety class: I

Ambient conditions: Temperature: +5 to +32°C

Ice output: 13kg / 24 hours

Ice storage: 1kg

High efficiency compressor CFC-free: R600a

Water storage: 1.9 L

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service (www.ggv-service.de).

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.

Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

The user manual is by simple request also available in electronic format from the after-sales service.

POUR VOTRE SECURITE

Specifications Techniques

Modèle: EM6001sw

Tension nominale: 220-240V~

Puissance: 120W

Classe de protection: I

CONDITIONS DE GARANTIE
