HT 3201 swp - Hair dryer Exquisit - Free user manual and instructions
Find the device manual for free HT 3201 swp Exquisit in PDF.
| Product type | Travel hair dryer |
| Brand | Exquisit |
| Model | HT 3201 swp |
| Power supply | 120/230 V~, 50/60 Hz (dual voltage) |
| Rated power | 1200-1600 W |
| Protection class | II (double insulation) |
| Speeds | 2 (soft and strong) |
| Cold air function | Yes, separate button to set the hairstyle |
| Included accessories | Swivel concentrator |
| Features | Foldable, hanging ring, anti-suction protection grille |
| Safety | Automatic shut-off in case of obstruction, overheat protection |
| Care and cleaning | Clean the air grilles with a vacuum cleaner or a pointed object; do not immerse |
| Color | White (estimated) |
| Weight | Approx. 350 g (estimated) |
| Dimensions (L x W x H) | Approx. 18 x 8 x 12 cm (folded, estimated) |
Frequently Asked Questions - HT 3201 swp Exquisit
User questions about HT 3201 swp Exquisit
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hair dryer in PDF format for free! Find your manual HT 3201 swp - Exquisit and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT 3201 swp by Exquisit.
USER MANUAL HT 3201 swp Exquisit
Bedienungsanleitung
Travel Hair Dryer
Instruction manual
A. Concentrator nozzle
B. Air intake grille
C. Cool shot button
D. Switch/2 speed settings
E. Hanging loop
F. Dual voltage (120/230V\~)
F

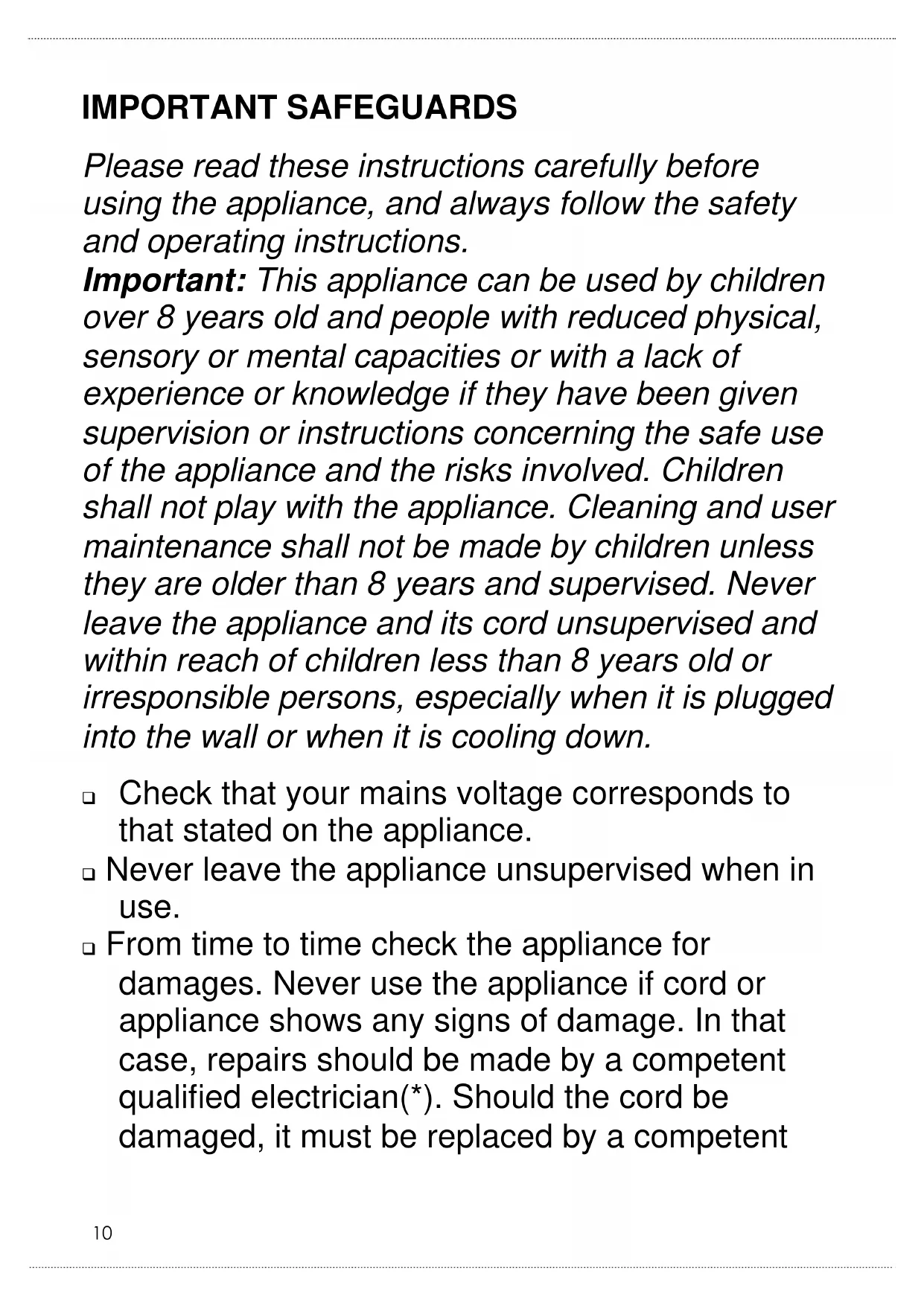

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.
Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down.
☐ Check that your mains voltage corresponds to that stated on the appliance.
- Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be damaged, it must be replaced by a competent
qualified electrician(*) in order to avoid all danger.
This hairdryer has been designed exclusively to dry and dress natural human hair. Artificial hair should not be treated with the hairdryer. The hairdryer has been designed for private use. It is not suitable for commercial use, e.g. in hairdressing salons or beauty salons. Only use the hairdryer in the way indicated in these instructions. Any other use is considered as improper and can lead to property damage or even personal injury. The hairdryer is not a child's toy. The manufacturer or distributor will not assume any responsibility for damage resulting from inappropriate or wrong use.
- Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Otherwise the appliance may be damaged.
- Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply to avoid electric shocks.
- Never use the appliance outside and always place it in a dry environment.
☐ To ensure a major security, it is recommended to set up a current flight jump of 30 mA in the electric circuit that supplies the bathroom. Ask your electrician for advice.
- Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
- Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Never expose the appliance to possible water splashes and never use the appliance in bath, shower or more generally when you are in contact with water or near a sink or other receptacle filled with water! However, should the appliance happen to fall into the water:
- immediately unplug it
- do not put your hands into the water
- make sure your appliance is verified by a competent qualified electrician(*) before using it again.
- When using the hairdryer in the bathroom, always unplug it when not in use as the proximity of water could constitute a danger even when the hairdryer is switched off.
□ Always make sure your appliance is not wet (water splashes...) and never handle it with wet hands to avoid electric shocks.
□ Unplug the appliance when not in use or even if you put it down only for a moment.
☐ Inevitably the air intake grille becomes hot when using the appliance. Make sure the cord does not come into contact with the air intake grille when using the appliance.
☐ The air intake and outgoing openings must never be blocked. However, should the air ventilation get blocked, the safety device will stop the appliance immediately. The latter will restart when it has cooled down. You will have to wait a couple of minutes.
☐ The safety grille in the air intake opening prevents the hairs from being sucked in. If you notice after some time that the grille gets blocked by dust, you have to clean it. If you don't clean it, the air flux will progressively decrease and the appliance might get damaged.
☐ Make sure the hair does not come into direct contact with the air intake opening.
(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de).
BEFORE THE FIRST OPERATION
Your appliance can function with 2 voltages (visible by a small 2-position switch graded to the 2 most frequent voltages which is situated at the back of the appliance). You have to verify that the tension switch is set to the position that corresponds with the voltage of your region. Otherwise the appliance might suffer serious damages that will not be covered by the guarantee.
SPECIAL ATTENTION
When plugged in and operating for the first time, there may be a little momentary smoking. This presents no danger to the user and does not indicate a defect in the unit. When using for the first time, allow the appliance to continue running until the smoke dissipates. This should last only about 30 seconds. Should the smoke last longer, please have it checked by the nearest customer service.
HOW TO USE YOUR HAIR DRYER
Speed switch
0 = Off
I = Normal
II = Fast
WHILE IN USE: Untwist the cord from time to time to avoid tangling.
WITHOUT CONCENTRATOR NOZZLE: If you want to dry your hair without styling it, make back and forth or circular movements above the humid areas, but make sure you do not insist too long on the same area in order not to get burned. You can use your hands or a comb to raise your hair in order to dry equally everywhere. The choice of the speed setting depends on your sensitivity and the thickness and length of your hair. If you want to style your hair afterwards, it is advisable not to dry your hair totally.
You can also dry your hair as described above, but combing it at the same time to avoid tufts.
WITH CONCENTRATOR NOZZLE: The concentrator nozzle attaches easily onto the barrel of your dryer and allows you to direct the airflow on a small section of hair at a time as you style and shape the hair with a vent brush or comb. You can also build body and fullness into fine, thin hair by directing the airflow against the natural growth of the hair.
COOL SHOT FUNCTION: Use this function to make your hair more flexible and shape it as you want. This function will strengthen the shape you gave to your hair when styling it.
CLEANING AND CARE: Unplug the appliance and let it cool down. Make sure the air inlet and outlet grilles are free. To clean the grilles, use a vacuum cleaner or a sharp object to unblock the holes. Make sure you do not insert the sharp object too far in the appliance, as it might damage the appliance and even catch fire.
You can clean the housing of the appliance with a soft damp cloth. Make sure the appliance is completely dry before using it again.
AFTER USE
Unplug the appliance, allow it to cool, and store it in its box or in a dry place. Never store it while it is hot or still plugged in. Never wrap the cord tightly around the appliance. Never hang the unit by the cord - use the hanging ring provided. Disentangle the cord before and after use. This device has a folding handle. Therefore, after use, you can fold the hair dryer by gently joining the two parts together.
PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing
waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
ErP Declaration – Regulation 1275/2008/EC
We, GGV Handelsgesellschaft mbH & Co. KG, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible!
For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.
Specifications
Model: HT3201swp
Rated voltage: 120/230V\~
Power: 1200-1600W
Safety class: II
Ambient conditions: Temperature: 0 to +40°C
TERMS OF GUARANTEE
For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.
If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.
Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service (www.ggv-service.de).
In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.
Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!
AFTER THE LEGAL PERIOD OF GUARANTEE
Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
The user manual is by simple request also available in electronic format from the after-sales service.
