USER MANUAL FR 3101 isw Exquisit

1. Lid
2. Basket
3. Power light
4. Pilot light
5. Thermostat
6. Heating element
7. Handle
8. Removable bowl
9. Support of the basket
10. Handle of the basket
11. Handle of the lid

FR

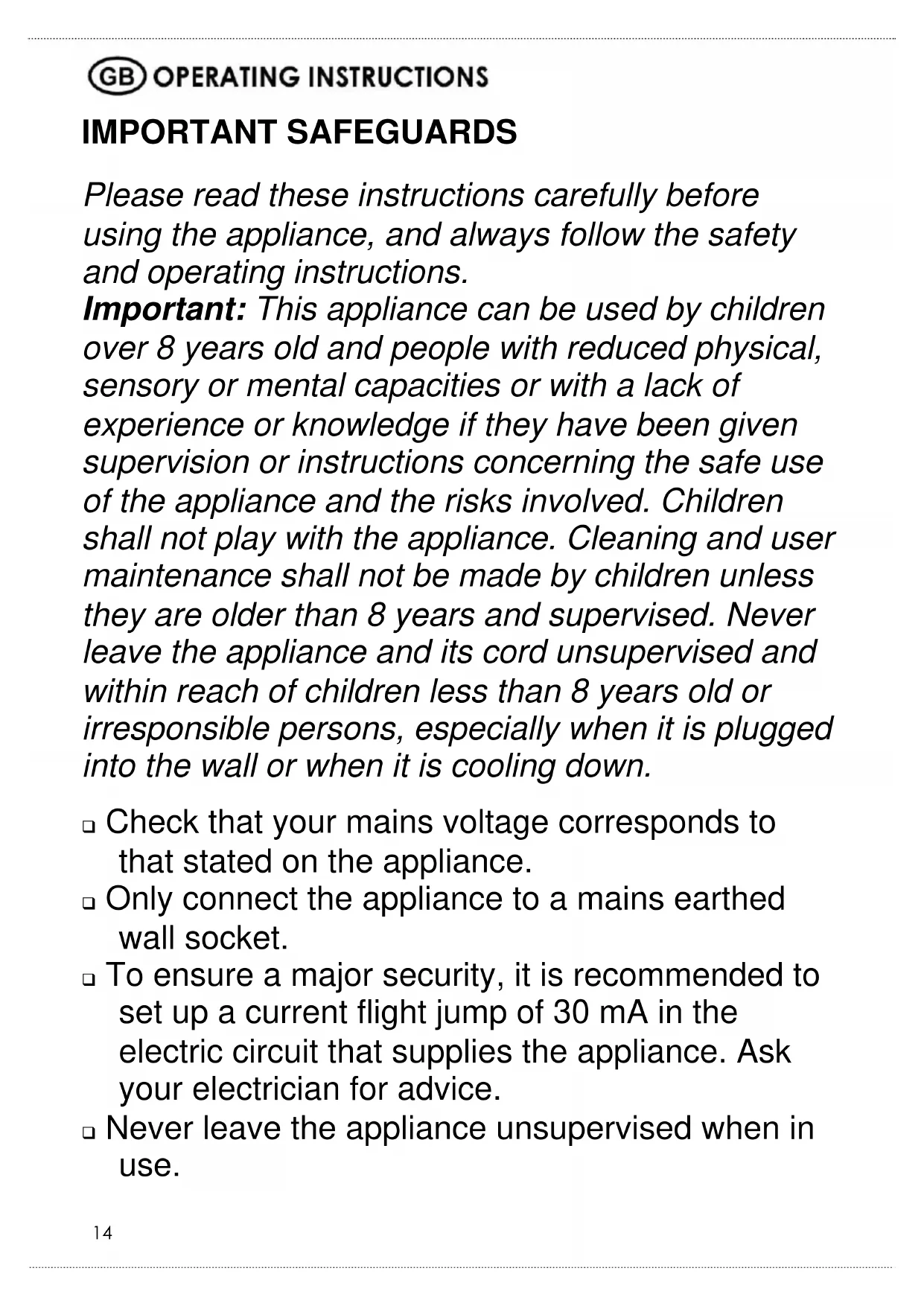

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, especially when it is plugged into the wall or when it is cooling down.

Check that your mains voltage corresponds to that stated on the appliance.
- Only connect the appliance to a mains earthed wall socket.
To ensure a major security, it is recommended to set up a current flight jump of 30 ~mA in the electric circuit that supplies the appliance. Ask your electrician for advice.
Never leave the appliance unsupervised when in use.

□ From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^() . Should the cord be damaged, it must be replaced by a competent qualified electrician ^() in order to avoid all danger.

• Only use the appliance for domestic purposes and in the way indicated in these instructions.
  Never use the appliance near hot surfaces.
  □ Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down to avoid electric shocks.
• Never use the appliance outside and always place it in a dry environment.
• Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Use the cord storage at the back of the appliance.
• Stand the appliance on a flat surface to prevent it from falling.
• Only use the appliance for deep-frying. Only cook friable and consumable foodstuffs.

□ Housing, inner bowl, lid, basket and handle can be washed by hand. Never immerse the appliance or its control panel in water or any other liquid for cleaning or for any reason whatsoever (see "Cleaning" section).
- Wait until the appliance is completely cool before moving, cleaning or storing it. Always take the appliance by the carrying handles. Always unplug the appliance before handling it.
- Never operate the appliance without oil or fat in it. Ensure that the oil or fat level is always between the minimum and maximum marks inside the bowl. Never overfill as hot oil or fat might be ejected.
□ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
- Make sure the cord never comes in contact with the hot parts of the appliance. Be aware never to touch these hot parts.
- Make sure the hot parts of the appliance are not exposed to inflammable materials, such as curtains, tablecloth... as a fire might occur.
- Never cover the appliance with any kind of material.
Never add water to the oil.
□ It is forbidden to place the lid on the deep fat fryer when it is in use, as this could cause fire or oil overflow. For this kind of fryer the lid

should only be used for storing and moving (as soon as the deep fat fryer has cooled down).

Caution: the deep fryer can reach high temperatures when in use. Oil and fat preparations might catch fire if overheated. Be extremely cautious never to leave your deep fryer in use for long periods. Do not forget to switch off the appliance once your preparation is ready and the fryer is no longer in use. Before pulling the mains plug, switch the temperature selector to the lowest position ("MIN").
- Provide proper ventilation when using the appliance.
□ If you wish to use solid fat, cut it into small pieces and place them into the bowl. Turn the temperature knob to its minimum position ("MIN"). Each time the pilot light goes out, turn the temperature knob to a slightly higher temperature until all the fat has melted. Once all the fat has melted, set the temperature knob to the desired cooking temperature. This type of fat will solidify when the appliance cools down.
- Your appliance must never be switched on through an external timer or any kind of separate remote control system.
Please note: Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means:

CAUTION, this surface may get very hot during use.

The symbol s always put on the surface with the highest temperature, however the other metallic or non-metallic surfaces can also become very hot during use and it is therefore advisable to always handle them with care and if possible with the help of isothermal gloves or other thermal protection. In case of doubt concerning the temperature of a certain surface it is always preferable to protect oneself.

(*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de).

BEFORE USE

• Remove all packaging from the unit.
• Remove the lid, basket, handle and any accessory from the appliance.
• Before you use the deep fat fryer for the first time, we recommend that you clean the lid, bowl, basket, handle and housing of the deep fat fryer with warm soapy water with a soft cloth.

DISASSEMBLING THE DEEP FAT FRYER

• Remove the control panel from the appliance. To do this, gently pull the control panel upwards until it is released.
  Take the interior bowl with your two hands and pull it up gently.

ASSEMBLING THE DEEP FAT FRYER

• Stand the appliance on a dry horizontal surface.
• Place the bowl back in the housing and push it downwards.
• Replace the control panel and the accessories. To replace the control panel, firmly slide the control panel downward into the location grooves on the back of the housing until it is locked.

NOTE: The appliance will only operate when the control panel is correctly fitted to the outer jacket.

• Press the end of the basket's handle together, insert its pins into the holes foreseen on the basket and unfold the handle of the basket until it is locked to allow rising the basket easily.
• Put the remaining power cord length in the cord storage in the back of the appliance.

FIRSTUSE

• When using the appliance for the first time, pour the required amount of oil into the bowl, making sure that the level is between the MIN and MAX marks indicated inside the bowl.
  We recommend that you use liquid oil that is suitable for deep fat frying. Check the label on the bottle. If you wish to use a solid fat (see also the preceding safeguards), cut the fat into small pieces. Plug in the appliance, put the thermostat on the minimum position ("MIN") and add the pieces of fat slowly. When the fat has melted, set the thermostat to the desired temperature. WARNING: FAILURE TO OBSERVE THESE INSTRUCTIONS WILL DAMAGE YOUR DEEP FAT FRYER.

PREHEATING

When the appliance has been switched on, set the thermostat on the desired temperature. To reach a stable and correct temperature for use, it is necessary to wait 10 to 15 minutes. During this time, the temperature control light will go on and off several times. A good preheating will allow you to have browned and crispy fries.

USE

Plug in the appliance and set the thermostat to the desired temperature. The power light and the pilot light will illuminate. As soon as the desired temperature is reached, the pilot light will go out. When the temperature falls, the thermostat will be activated again, and the pilot light will illuminate. It will go out again as soon as the temperature is reached.
It is forbidden to place the lid on the deep fat fryer when it is in use. Only put the lid on the appliance when the appliance has cooled down to avoid dust getting into the oil.
- When the fryer has reached the desired temperature, raise the basket using the handle and attach it to the edge of the fryer.
- Place the food into the basket slowly to avoid splashes and lower the basket fully into the oil or fat.
- When the food is ready, raise the basket by lifting the handle and attach it to the edge of the fryer in order to let the food drain.
If necessary you can take the basket out of the appliance.
- Ensure the food is thoroughly cooked inside and out.
- Your deep fat fryer does not have a separate ON/OFF switch. After use, turn the thermostat to its "MIN" position and unplug the appliance. Never move the appliance as long as the oil or fat is still hot.

FOR BEST RESULTS

Always dry food well before frying. Very wet' food can cause the oil to foam' and may overflow.
The foodstuffs for frying should be roughly of the same size to ensure the food cooks evenly and thoroughly.
- Many types of food may need to be coated before frying - typical coatings are batter or breadcrumbs.

Always wait until the fryer has reached the desired temperature and the pilot light has gone out, before adding the food.
- Do not overfill the basket.

CAUTION: This fryer has a built-in safety cut-off switch that triggers if the unit accidentally overheats (e.g. temperature control fails to function). Should this happen, firstly switch off and unplug the deep fat fryer. Wait until the element cools down (about 15 minutes). Then press the restart button situated in the back of the control panel, above the cord storage, using a toothpick. This will reset the deep fat fryer. Your deep fat fryer is now ready for use. To make sure this does not happen again, please read the instruction manual thoroughly.

RECIPES

Fresh Chips

• Fresh chips are best fried in two stages.
• Use 'old' potatoes (no 'new' potatoes). Cut the potatoes into equal sizes. Rinse the chipped potatoes under running water to reduce the starch level. Dry thoroughly and separate the pieces.
• Do not exceed the recommended weight. When the temperature has reached 180^ , place the chips in the basket and slowly lower the basket into the oil.
  For 500g of chips, fry for 6 minutes on 180^ then raise the basket.
• Wait until the temperature light goes out again, lower the basket and fry for a further 2 minutes.
• Raise the basket and let the chips drain.
• For best results, before serving gently dab the chips with absorbent paper to remove excess oil.
• Frying times may vary slightly depending on the type of potatoes used and the thickness of the chips.

Onion Rings

• Frying temperature - 175^ for 4 to 5 minutes.
• Peel the onions and slice. Separate the slices into rings.
• Dip the rings into a bowl of seasoned milk.
• Then dust the rings in plain flour.
• Place the rings separately in the frying basket and fry a few at a time.

Breaded Mushrooms

• Frying temperature - 175^ for 4 to 5 minutes.
• Beat 1 egg and dip the mushrooms into the egg.
• Then coat the mushrooms with breadcrumbs.
• Place separately into the frying basket and fry a few at a time.

Goujons of Sole

• Frying temperature - 160^ for 3-4 minutes.
  Cut the sole fillet into small strips. Coat the strips in some seasoned plain flour.
• Then dip the strips into beaten egg and coat with breadcrumbs.
• Place separately into the frying basket and fry a few at a time.

TEMPERATURE GUIDE FOR BEST RESULTS

FOOD	TEMPERATURE (℃)	MINUTES (approximately)
Breaded fillet of fish	170	6-7
Scampi	170	4-6
Chicken Breast	175	4-5
Breaded chicken pieces	170	12-15
Onion Rings	180	4
Breaded Mushrooms	180	3-4
Broccoli Fritters	185	3-4
Courgette Fritters	185	3-4
Celery in batter	180	3-4
Chips First Stage	170	8
Chips Second Stage	180	3

CLEANING

• Caution: never immerse the appliance in water or any other liquid.
• Unplug the deep fat fryer.
• Wait until the unit is completely cool before cleaning. Be careful when touching the heating element as it might stay hot for quite some time after you have unplugged the appliance. NEVER IMMERSE THE CONTROL PANEL IN WATER OR ANY OTHER LIQUID FOR ANY REASON WHATSOEVER.
• Follow the section 'Disassembling the deep fat fryer'.
• Do not use strong detergents or abrasive cloths/liquid, as this will damage the deep fat fryer.
  Clean the fryer with warm soapy water. It may help to soak the parts for a short time.
• Thoroughly dry all parts of the appliance.
• Change the oil regularly.
  To assemble, follow the section 'Assembling the deep fat fryer'.

STORING

• Wait until the deep fat fryer is completely cool before storing.
• The unit can be stored with the oil inside. Ensure the lid is tightly closed to avoid dust getting into the oil.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

ErP Declaration - Regulation 1275/2008/EC

We, GGV Handelsgesellschaft mbH & Co. KG, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this

is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible!

For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.

Specifications

Model: FR3101isw

Rated voltage: 220-240V~

Power: 2000W

Safety class: I

Ambient conditions: Temperature: 0 to +40^

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observation of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

On website www.ggv-service.de you can find a quick and easy solution to register a complaint in case of a defect within the warranty period. Just log on to the service portal (www.ggv-service.de), designate the appliance and then you will be guided through the menu, with all necessary information and advantages, to help you and solve your problem. We are at your service on the service portal during and also after the warranty period.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.

Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

The user manual is by simple request also available in electronic format from the after-sales service.

POUR VOTRE SECURITE

Specifications Techniques

Modèle: FR3101sw

Tension nominale: 220-240V~

Puissance: 2000W

Classe de protection: I
