KM0514 - Subwoofer Krüger&Matz - Free user manual and instructions

Product type	Subwoofer
Brand	Krüger&Matz
Model	KM0514
Output power (RMS)	200 W
Frequency response	40 Hz ~ 200 Hz
Phase adjustment	0° ~ 180°
Signal-to-noise ratio (S/N)	>= 80 dB
Standby power consumption	0.5 W
Impedance	4 Ohms
Bass adjustment (bass boost)	0 ~ 6 dB
Crossover frequency	40 ~ 200 Hz
Speaker	12 inches (30.5 cm)
Power supply	AC 220-240 V / 50 Hz
Dimensions (approx.)	360 x 360 x 400 mm
Weight (approx.)	15 kg
Main functions	Power/standby button, volume, phase, crossover, bass adjustment; line input
Cleaning	Soft, damp cloth, no chemicals
Safety	Unplug before cleaning; do not open; indoor use only
Country of manufacture	People's Republic of China

Frequently Asked Questions - KM0514 Krüger&Matz

How to connect the subwoofer to my amplifier?

Use an RCA cable from the subwoofer output of your amplifier to the line input of the subwoofer. Make sure the device is turned off before connecting.

What to do if the subwoofer does not turn on?

Check that the power cord is properly plugged in and that the outlet works. Press the power button to turn on the device.

How to adjust the bass level?

Use the volume control knob (volume) and the bass boost knob (bass boost) to adjust the bass intensity according to your preferences.

What is the phase adjustment for?

The phase adjustment (0° to 180°) allows temporal alignment of the subwoofer with the main speakers to avoid frequency cancellations. Test both positions for better performance.

How to adjust the crossover frequency?

Adjust the crossover knob between 40 and 200 Hz. For a harmonious integration, set it to a value close to the crossover frequency of your main speakers.

What to do if the sound is distorted or weak?

Check that the volume is not too high, that connections are correct, and that the subwoofer is not overloaded. Reduce the gain and increase gradually.

How to clean the subwoofer?

Unplug the device, then wipe it with a soft, slightly damp cloth. Never use solvents or abrasive products.

Can I use the subwoofer outdoors?

No, this subwoofer is designed for indoor use only. Protect it from moisture, rain, and extreme temperatures.

What to do in case of humming (hum)?

Check that all cables are properly connected and that the ground plug is functional. Keep the subwoofer away from sources of electromagnetic interference.

Where to find the replacement fuse?

The fuse is located on the rear panel near the power cord. Use a fuse of the same type and rating (see manual). If in doubt, contact an authorized service.

USER MANUAL KM0514 Krüger&Matz

Read the instruction manual carefully before first use and keep it for future reference.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user the presence of uninsulated, dangerous voltage, within the product enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance.

1. The appliance should be connected to a power supply as per specification in the operating instructions/as marked on the appliance.
2. Make sure to place this product on flat, dry and stable surface.
3. Place the device in a properly ventilated place.
4. Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
5. Keep the device beyond children's reach.
6. Product suitable for indoor use only.
7. Never use this device if the power cord is damaged.
8. Power cord protection: power-supply cords should be routed so that they are not likely to be pinched by items placed upon or against them.
9. Disconnect the device from the power supply if it is not going to be used for a long time.
10. Do not attempt to repair or dismantle this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
11. ALWAYS disconnect this device from power supply mains before cleaning.
12. Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.
13. IMPORTANT: Make sure the equipment is turned OFF before making any connections.

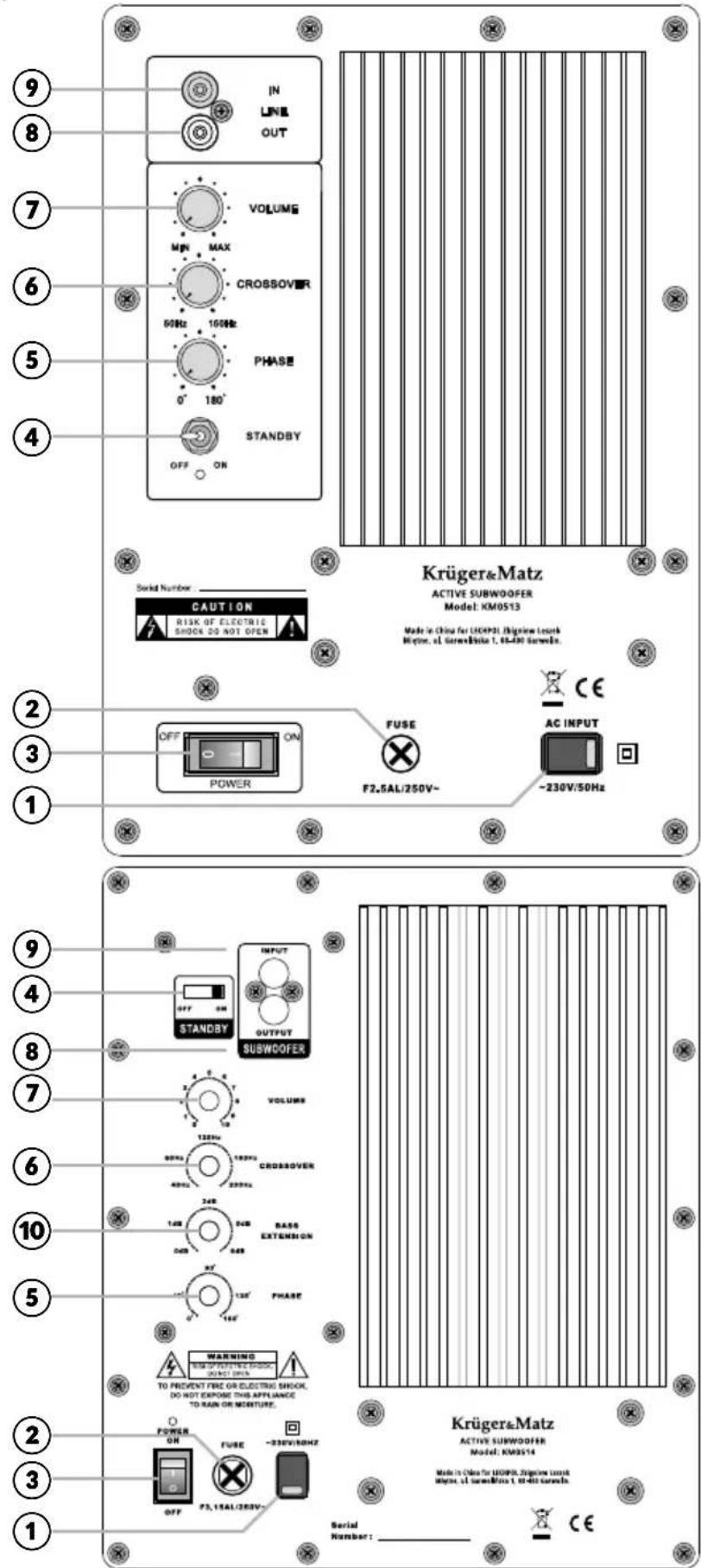

PRODUCT DESCRIPTION

Back panel

KM0513

KM0514

Z

1. Power cable
2. Fuse
3. Power switch
4. Standby switch
5. Phase knob
6. Crossover knob
7. Volume knob
8. Line output
9. Line input
10. Bass adjustment knob

TROUBLESHOOTING

If you're experiencing difficulties while using this product, read the table below. Check if the problem was not caused by other equipment (please check the connection). If you are unable to solve the problem, contact an authorized service point for check up/repair.

Problem Possible reason Solution
No sound 1.	Power was turned off 2. Power plug has been unplugged 3. Volume set to minimum	1. Turn the power on 2. Connect power cord (make sure it's properly plugged) 3. Adjust the volume level
No power 1.	Power was turned off 1. Turn the p	power on

SPECIFICATION

	KM0513 KM0514
Power output (RMS) 120 W 200 W
Frequency response 50 Hz ~ 150 Hz	40 Hz ~ 200 Hz
Phase selection 0° ~ 180° 0° ~ 180°
S/N ratio >= 80 dB >= 80 dB
Power consumption in standby	0,5 W	0,5 W
Impedance	4 Ohm	4 Ohm
Bass extension	----	0~6 dB
Crossover	50~150 Hz 40~200 Hz
Speaker size	10"	12"
Power supply	AC 220-240 V / 50 Hz	AC 220-240 V / 50 Hz

Specifications are subject to change without prior notice.
