Vertical GPU Mounting Kit - Computer accessory NZXT - Free user manual and instructions

Product Type	Vertical GPU Mounting Kit
Brand	NZXT
Model	Vertical GPU Mounting Kit
Bracket Material	Steel
Riser Cable	PCIe 4.0 x16, length 175 mm
Package Contents	Steel GPU bracket, PCIe Riser cable, mounting bracket (H9 exclusive), #6-32UNC screws
Main Features	Mount the graphics card vertically to improve aesthetics and airflow
Compatibility	NZXT cases (especially H9), PCIe 4.0/3.0 slot
Installation	Insert the GPU into the female connector, attach to bracket with screws, install the bracket into the case's GPU slots
Weight (estimated)	500 g
Dimensions (estimated)	150 x 200 x 60 mm
Care and Cleaning	Clean with a soft, dry cloth
Safety	Make sure the GPU is fully engaged, use the provided screws, follow the recommended torque
BIOS Configuration (PCIe Gen 4)	Set PCIe mode to Auto in the BIOS
Spare Parts and Reparability	Replacement parts available at nzxt.com/customer-support
Customer Support	Email: [e-mail]
Warranty	See NZXT website for details

Frequently Asked Questions - Vertical GPU Mounting Kit NZXT

How to install the NZXT vertical mounting kit?

First insert the graphics card into the female connector of the Riser cable, then secure it to the bracket using the #6-32UNC screws. Next, insert the male connector of the Riser cable into the PCIe slot of the motherboard. Mount the bracket into the case and secure it into the GPU slots with the screws. For H9 cases, a specific mounting bracket is provided.

Is this kit compatible with all cases?

The kit is designed for NZXT cases, especially the H9. It may be compatible with other cases that have enough space and GPU slots. Check the dimensions and layout of your case before purchasing.

Is the Riser cable PCIe 4.0?

Yes, the included Riser cable is a PCIe 4.0 x16 175 mm. It is backward compatible with PCIe 3.0.

Can I use this kit with a PCIe 3.0 graphics card?

Yes, the PCIe 4.0 Riser cable is compatible with PCIe 3.0 cards. Make sure the BIOS is set to Auto mode for optimal detection.

How to attach the adjustable bracket?

After mounting the GPU bracket, pivot the adjustable bracket to provide additional support. It should be positioned to stabilize the assembly without forcing.

What to do if the graphics card is not detected after installation?

Check that the Riser cable is properly connected to the motherboard PCIe slot (preferably a PCIe 4.0 slot). Ensure that the BIOS is in Auto mode for PCIe generation. If the problem persists, contact NZXT support.

Is the kit delivered with all necessary screws?

Yes, the kit includes #6-32UNC screws for attaching the graphics card to the bracket and for securing the bracket in the case. For the H9, an additional mounting bracket is provided.

Can I use this kit with an NZXT H9 case?

Yes, the kit is compatible with the H9. It includes a special mounting bracket for this case. Follow steps 2 and 3 of the manual for correct installation.

How to contact NZXT support in case of a problem?

You can send an email to [e-mail] with a detailed description of the problem and your proof of purchase. To order spare parts, visit nzxt.com/customer-support.

What safety precautions should I take during installation?

Make sure the graphics card is fully engaged in the female connector before securing it. Use only the provided screws and do not overtighten. Handle the Riser cable with care to avoid damaging the connectors.

USER MANUAL Vertical GPU Mounting Kit NZXT

Technical line drawing of a device labeled 'NZXT' with internal components (no readable text or symbols beyond label)

KIT DE MONTAGE

VERTICAL DU PROCESSEUR GRAPHIQUE

SUPPORT GPU & CÂBLE RISER PCIE 4.0

TABLE DES MATIERES

VERSION 3.0

1. LISTE DE COMPOSANTS ..... 02

2. INSTALLATION 04

3. DESCRIPTION DU MATÉRIEL ... 03

4. ANNEXE A-1

1. LISTE DES COMPOSANTS

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

Line drawing of a mechanical device with no visible text or symbols

B. Vis #6-32UNC

×3

Technical diagram of a dual fan device with internal blades and a scale ruler, showing no text or symbols.

ÉTAPE 2

Technical line drawing of a dual-flux HVAC unit with mounting flanges and ventilation slots (no text or symbols)

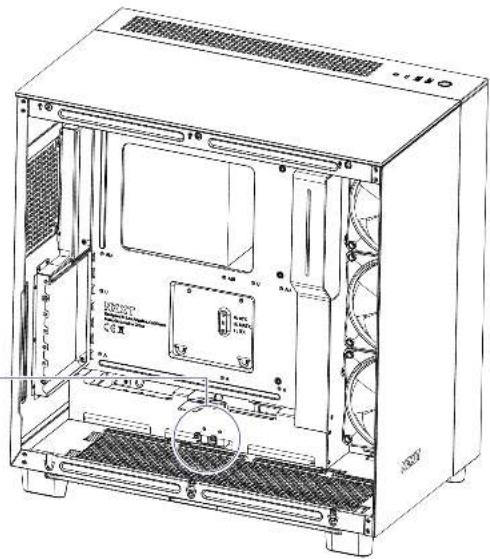

ÉTAPE 2-1 H9 ONLY

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a computer tower case with visible internal components and ventilation slots (no text or labels)

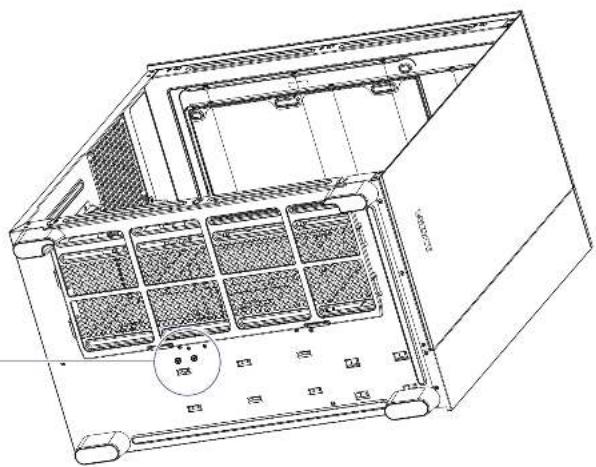

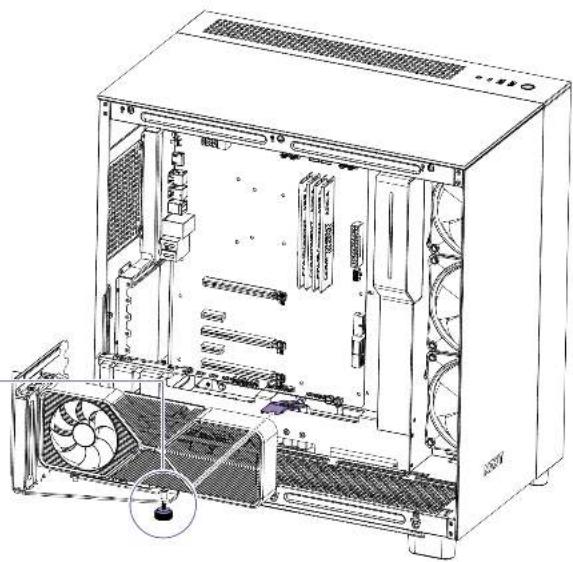

ÉTAPE 2-2 H9 ONLY

Diagram of a mechanical assembly with rollers, gears, and clamps (no text or labels)

Technical line drawing of a 3D printer or enclosure with internal grid structure and mounting holes (no text or symbols)

Diagram of a roof structure with a sensor and directional arrow, no visible text or symbols

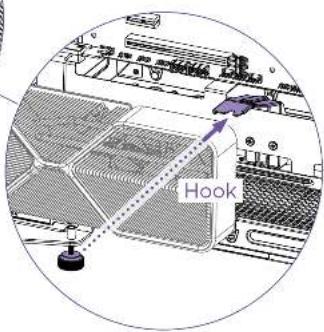

Image A

Hook

Technical line drawing of a computer tower case with visible internal components and fan base (no text or labels)

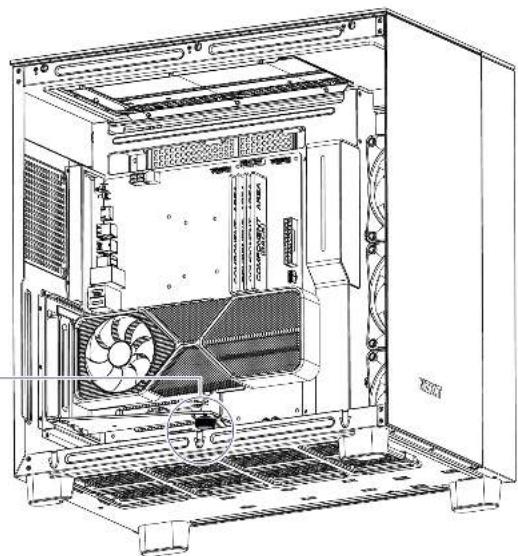

ÉTAPE 2-4 H9 ONLY

Circular diagram showing a traditional building with tiled roof and a person holding a device, labeled 'Image B' (no text or symbols on the diagram itself)

Technical line drawing of an internal server rack with fan and cooling unit (no text or symbols)

ÉTAPE 3

Technical diagram of an electronic device showing internal components and wiring (no text or labels)

ÉTAPE 4

Technical line drawing of an internal machine or enclosure with visible fan and door components (no text or symbols)

INSTALLATION

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

ÉTAPE 5

Technical line drawing of a mechanical fan assembly with an inset showing a component detail (no text or symbols)

INSTALLATION

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

IMPORTANT

4.2 NZXT Global Warranty Policy....A-3

4.3 Support and Service....A-9

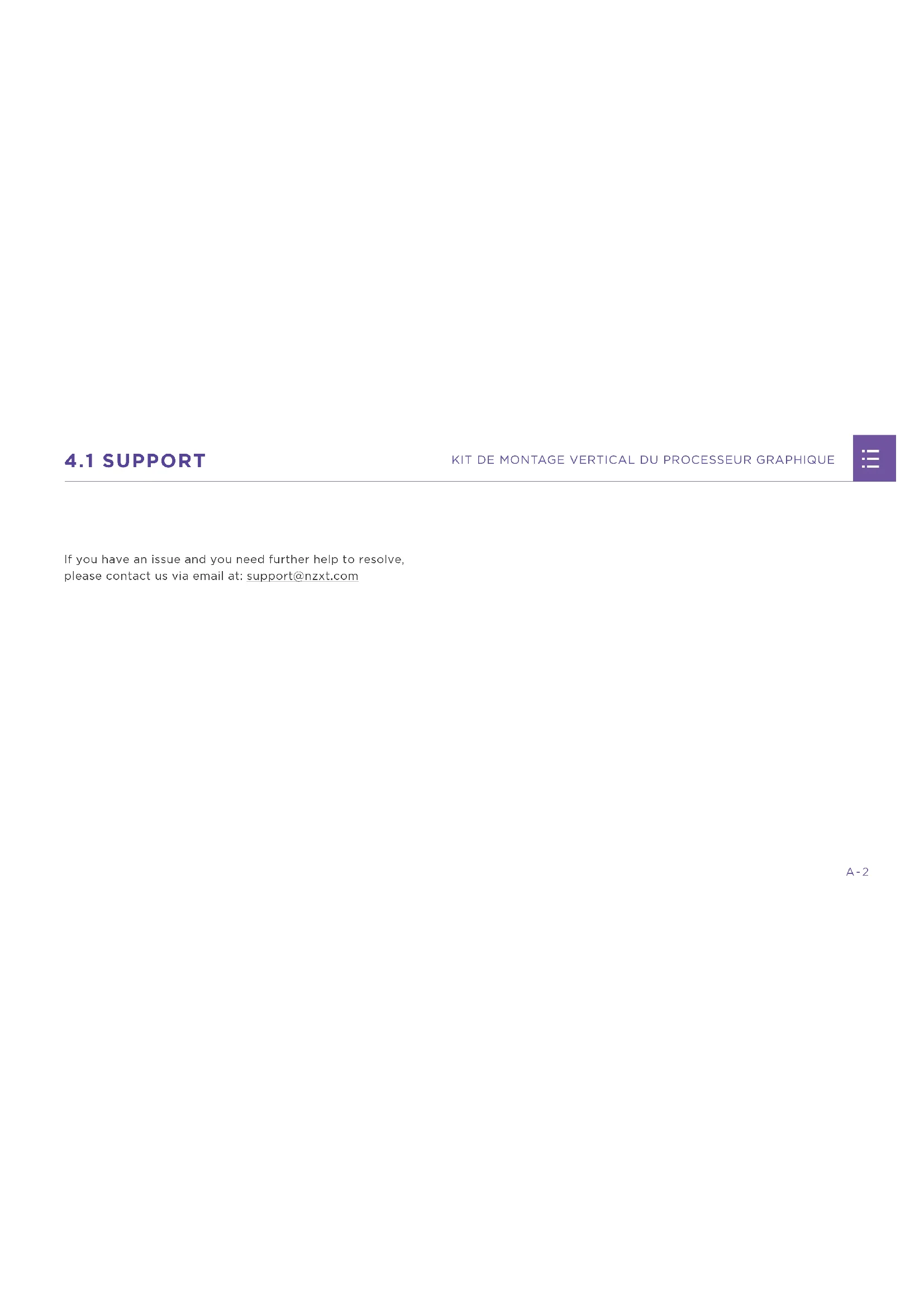

4.1 SUPPORT

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

If you have an issue and you need further help to resolve, please contact us via email at: [e-mail]

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

NEW NZXT PRODUCT WARRANTY LENGTH

Accessories 2 Years

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
  • normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

V. LIMITATIONS OF IMPLIED WARRANTYEST

There are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary. For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

In the United Kingdom:

- For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

Up to 30 days: if your goods are faulty, then you can get an immediate refund.
Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

- If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.

- The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

4.2 NZXT GLOBAL WARRANTY POLICY

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc. | 15736 E. Valley Blvd, City of Industry, CA 91744, USA

NZXT UK Ltd. | First Floor 5 Fleet Place London EC4M 7RD, GB United Kingdom

[phone] | [e-mail] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
제품 보증 범위와 서비스 정보를 확인하시러면 nzxt.com/warranty 또는 support.nzxt.com 을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.comとnzxt.com/warrantyにアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

4.3 SUPPORT AND SERVICE

KIT DE MONTAGE VERTICAL DU PROCESSEUR GRAPHIQUE

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. nzxt.com/customer-support

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.

For more information about NZXT, please visit us online. NZXT Website: NZXT.com
