ORH75 - Hand blender Orima - Free user manual and instructions

Product type	Hand mixer (electric mixer)
Brand	Orima
Model	ORH75
Use	Household use only
Number of speeds	5 (1 to 5) + turbo
Turbo button	Yes
Eject button	Yes
Included accessories	2 whisks: one for egg whites, one for dough
Whisk material	Stainless steel (estimate)
Continuous use time (speeds 1-5)	5 minutes maximum
Continuous use time (turbo)	1 minute maximum
Power cord	Length: approximately 1 m
Maintenance and cleaning	Wash whisks with soapy water, do not immerse the body
Safety	Do not immerse the appliance in water, unplug before maintenance
Repairs	Entrust to a qualified technician
Recycling	Do not dispose of with household waste, take to a recycling center

Frequently Asked Questions - ORH75 Orima

How to insert the whisks into the mixer?

Insert the whisks into the designated holes until they click into place. Use the whisk for egg whites (thin) or the whisk for dough (thick) as needed.

What is the maximum continuous use time?

For speeds 1 to 5, do not exceed 5 minutes of continuous use. For turbo speed, do not exceed 1 minute. Allow the appliance to cool down between uses.

How to use the turbo function?

During operation, press the turbo button for maximum power. Release it to return to the selected speed. Warning: maximum duration of 1 minute.

How to clean the whisks?

Unplug the appliance, remove the whisks by pressing the eject button. Wash the whisks with soapy water, dry them thoroughly before storing. Never immerse the mixer body in water.

Can I mix hard foods?

No, the whisks are not designed for very hard foods (such as bones or very hard nuts). Use the appliance only for suitable preparations (dough, creams, eggs, etc.).

What to do if the mixer stops working?

First check the power supply. If the cable is damaged or the appliance has been dropped, do not use it. Entrust the repair to a qualified technician.

Can the mixer be used with wet hands?

No, to avoid any risk of electric shock, use the appliance with dry hands and do not handle it near water.

What types of preparations for each speed?

Speed 1: combine (flour, butter). Speed 2: mix (liquid sauces). Speed 3: stir (cake batter). Speed 4: cream (buttercream). Speed 5: beat (egg whites, whipping cream).

How to safely turn off and remove the whisks?

Set the speed selector to 0 to stop the appliance. Wait for the whisks to stop completely, then press the eject button to remove them. Always unplug before cleaning.

Can children use this mixer?

This appliance can be used by children under the supervision of a responsible adult. Do not let children play with the appliance.

USER MANUAL ORH75 Orima

White electric mixer with two metal handles and a coiled cord, no visible text or symbols

www.orima.pt

facebook.com/orima.pt

MMA

MÁRIO MIRANDA DE ALMEIDA

BATEDEIRA

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Line drawing of a portable electric heater with coiled cable and two separate motor components (no text or symbols)

220-240V 50/60Hz 300W 5 Velocidades

Labeled diagram of a portable water heater with numbered parts for identification

ESPECIFICAÇÕES:

Modelo: ORH 75;

Pure technical diagram of a device casing with internal components and directional arrows (no text or symbols)

LIMPEZA

Line drawing of a portable electric heater with coiled cable and two separate electrical components (no text or symbols)

220-240V

50/60Hz

300W

5speeds

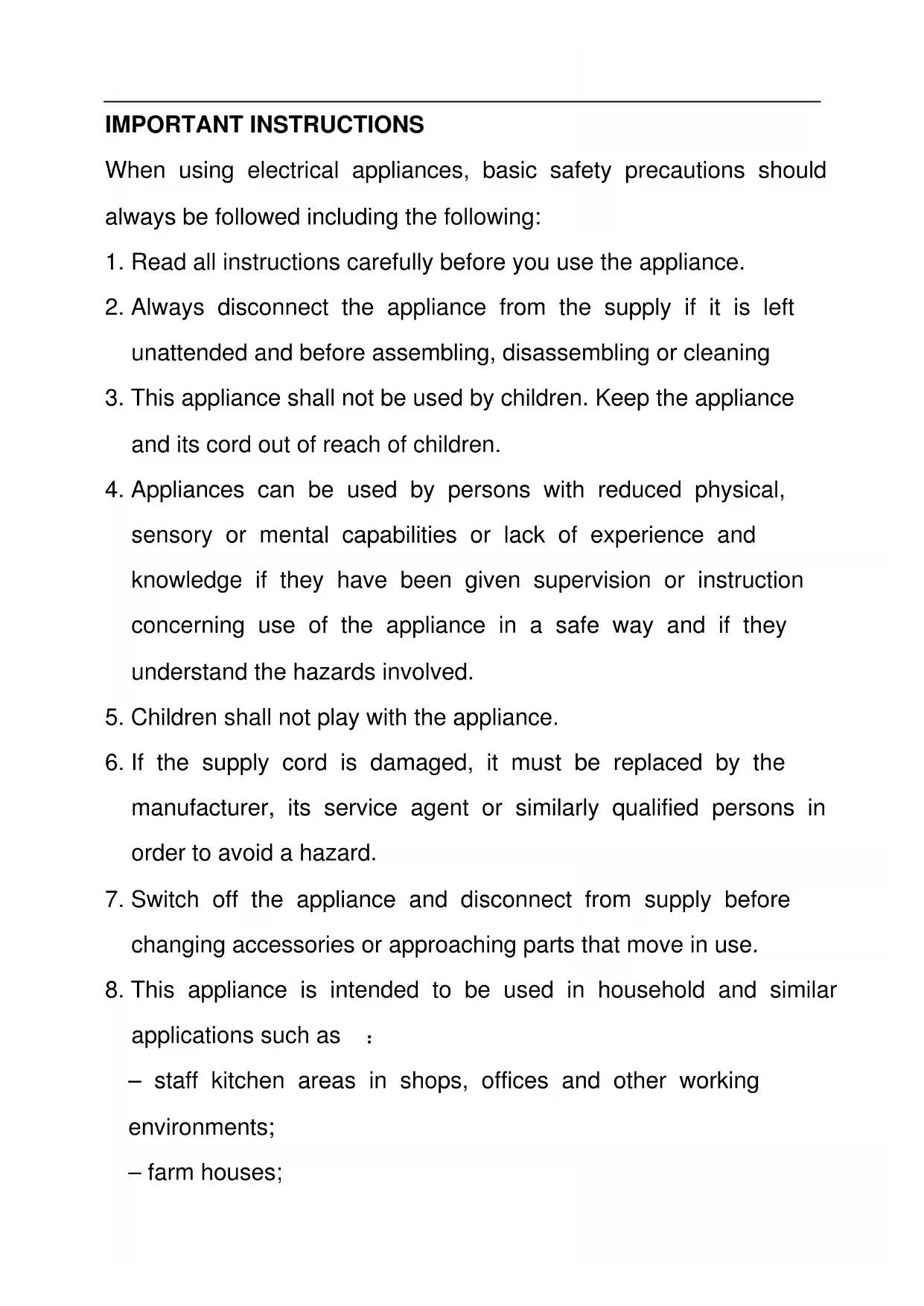

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully before you use the appliance.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning

3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

8. This appliance is intended to be used in household and similar applications such as :

- staff kitchen areas in shops, offices and other working environments; - farm houses;

– by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

1. WARNING: Risks of injuries if you don't use this appliance correctly.

2. Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the section “Cleaning”.

3. Regarding the operating times and speed setting, thanks to refer to the section “Operation/Use of the appliance”.

4. Read all instructions carefully before you use the appliance.

5. To protect against risk of electrical shock do not put the hand mixer in water or other liquid.

6. Do not operate the hand mixer with wet hands.

7. Unplug from outlet when it is not in use, before putting on or taking off parts, before moving the appliance or adding the food, and before cleaning.

8. Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.

9. Remove beaters from the hand mixer before washing them.

10. Do not continuously operate the mixer too long. The motor may overheat. The continuous operating time must be less than 5 minutes.

11. Do not use the appliance to mix too stiff or too sticky ingredients.

12. The use of attachments not recommended or sold by the

manufacturer may cause fire, electric shock or injury.

21.Do not let cord contact hot surface, including the stove.

22.Do not let cord hang over edge of the table or counter.

1. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

24.Do not use outdoors.

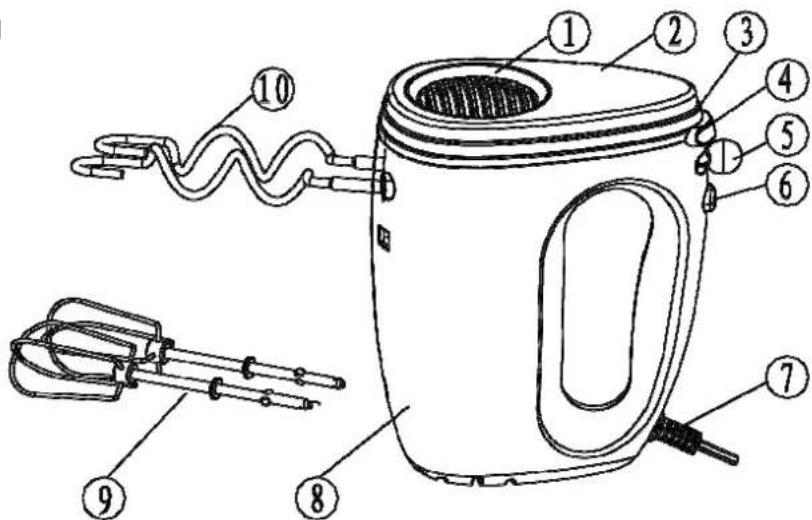

Description:

1. Front cover decorative ring

2. Front cover

3. Decorative ring

4. Ejector Knob

5. Speed control

6. Turbo control

7. Power cord assembly

8. Main body

9. Egg beater

10. Kneading beater

Labeled diagram of a portable electric heater with numbered parts for identification

MIXING GUIDE:

SPEED DESCRIPTION
1WHIP	For cooked icings, whipping cream. etc
2-3CREAM	For creaming butter and sugar. Beating uncooked candy. desserts. etc.
4BLEND	Best speed to start liquid ingredients for mixing salad dressings.
5FOLD or MIX	This is a good starting speed for bulk and dry foods such as flour (Maximum 1376g, proportion: 800g flour per 576g water), butter and potatoes, and for mixing cakes, cookies and quick breads, and for beating eggs.

Note 1: Use the kneading beaters to mix thick sticky flour; use the egg beaters to beat eggs.

Note 2: For the thick sticky food (such as flour), it is recommended, in order to avoid splashing the mixture about, that the food should be blended using the lowest speed “1” for 30 seconds when starting to blend it; after that using the highest speed “5” until desired consistency is achieved.

USING YOUR HAND MIXER

1. Fit the kneading beaters (10) or egg beaters (9) to the beater holes.(refer to the beater markings). The beater with the end washer should be fitted into the large hole and the other for the small one.

2. Plug in the appliance.

3. Hold the mixer handle. Lower the kneading beaters or egg beaters into ingredients.

4. Switch on and select the speed desired (5). The mixer begins to mix the ingredients in the container.

5. When you have finished mixing, stop the mixer by pushing the speed control to "0" immediately.

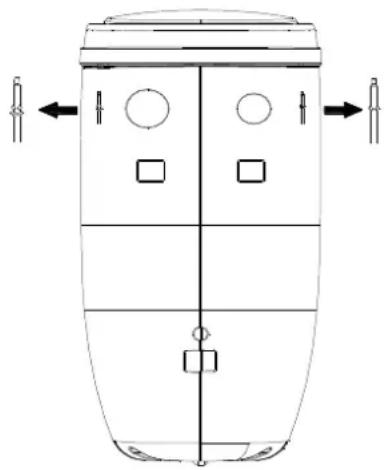

6. Wait until the kneading beaters or egg beaters have stopped revolving, press the ejector knob (4) to remove the kneading beaters or egg beaters "Switch off the appliance before changing accessories or approaching which move in use."

Technical line drawing of a mechanical device with no visible text or symbols

1. You can press "Turbo" control (6) to accelerate the speed during mixing.
2. Unplug the appliance when you have finished mixing. Clean the kneading beaters or egg beaters with water. Make them dry, store in the box together with the main body.

CLEANING

1. Unplug the appliance from outlet before cleaning and maintenance.
2. Wash the Kneading beaters and egg beaters with water after using.

Warning: Do not immerse the motor unit in water or other liquid. Only clean it by dry cloth.

Caution: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.
3. Dry thoroughly before storage.

WARNING:

Any other servicing should be performed by an authorized service representative

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Line drawing of a portable electric heater with coiled cable and two separate handles (no text or symbols)

220-240V

50/60Hz

300W

5 vitesses

Labeled diagram of a portable water heater with numbered parts for identification

Spécifications:

Modèle: ORH 75;

Courant: 230V\~, 50/60Hz, 300W;

Vitesse: 1-5, KB 5 minutes;

Technical line drawing of a mechanical device with no visible text or symbols
