Product Type	DECT Digital Cordless Additional Handset
Brand	PANASONIC
Model	KX-TGA860EXM
Power Supply	AC Adaptor PNLV226CE (220-240 V, 50/60 Hz)
Batteries	2 Ni-MH AAA (R03) rechargeable batteries
Initial Charging Time	Approximately 7 hours
Compatibility	Panasonic bases series KX-TG6611, KX-TG8051, KX-TG8611, KX-TG8621, etc.
Display Languages	Multilingual (selectable after installing batteries)
Main Functions	Calls, phonebook, caller ID (if base supports), answering machine (if base compatible)
Range	Up to 50 m indoors, up to 300 m outdoors (typical DECT)
Supplied Accessories	Charger, AC adaptor, 2 rechargeable batteries, belt clip, handset cover
Maintenance and Cleaning	Clean with a soft, damp cloth; do not use benzene, thinner, or abrasive
Safety	Use only the supplied adaptor; do not expose to rain; use only Ni-MH AAA batteries
Disposal	Do not dispose of with household waste; recycle according to local regulations

Frequently Asked Questions - KX-TGA860EXM PANASONIC

How to register the handset to the base?

Make sure the handset is on. On the handset, lift the handset and press the [✗] key. On the base, press and hold the [•••] key for about 5 seconds until a registration tone sounds. Then place the handset on the base or charger. Wait for a confirmation tone and the display of ⭕.

What type of batteries should I use?

Use only Ni-MH AAA (R03) rechargeable batteries. Do not use alkaline, manganese, or Ni-Cd batteries. For replacement, use Panasonic recommended batteries as specified in the base manual.

How to change the display language?

Press the middle soft key, then dial #110. Use the [▲] or [▼] keys to select the desired language, then press OK and finally [✗] to exit.

What to do if the batteries do not hold a charge?

Clean the battery terminals and charging contacts with a dry cloth. If the problem persists, replace the batteries with new ones of the same type. If the operating time remains short, contact customer service.

Can I use the handset without registering it to a base?

No, the handset must be registered to a compatible Panasonic base to function. Without registration, the screen will display 'Wait 1 minute' and you will not be able to make calls.

How to clean the handset and charger?

Use a soft, damp cloth to clean the exterior surfaces. Never use benzene, thinner, or abrasive powder. Do not allow liquid to enter the openings.

The handset does not ring on an incoming call, what to do?

Check that the ringer volume is not set to 'Off' or minimum. Also check that the handset is properly registered to the base and that the base is plugged in. If the problem persists, refer to the base manual.

Can I add multiple handsets to the same base?

Yes, this handset is an additional handset. You can register up to 6 handsets (depending on the base) to the same compatible Panasonic base.

What to do if the screen displays 'Wait 1 minute'?

This message appears if the handset is not registered or the battery is too low. Place the handset on the charger and wait for it to charge. If not registered, follow the registration procedure described in the manual.

How to delete personal data before reselling the handset?

To protect your privacy, delete the phonebook and caller list by accessing the handset menu. Refer to the base manual for detailed instructions. You can also reset the handset to factory settings.

USER MANUAL KX-TGA860EXM PANASONIC

Additional Digital Cordless Handset

Line drawing of a mobile phone with a display and keypad (no text or symbols)

KX-TGA661

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 2 Wednesday, April 13, 2011 4:16 PM

TGA661EX(ex).book Page 3 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Contents/Inhalt/Table des matières/Inhoud/Innehåll/Innholdsfortegnelse/Sisällysluettelo/Índice/Περιεχόμενα/Indholdsfortegnelse/Contenido/Índice/İçindekiler

English 4

Deutsch 9

Français.... 14

Nederlands.... 19

Svenska....24

Norsk 29

Suomi 34

Português.... 39

Ελληνικά...... 44

Dansk...... 49

Español 54

Italiano....59

Türkçe....64

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA661EX(ex).book Page 4 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone:

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger......1AC adaptor/PNLV226CE......1	Rechargeable batteries*1......2
Belt clip (KX-TGA806/KX-TGA860)......1	Handset cover*2......1

*1 Please read the base unit's operating instructions for replacement battery information.

*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• Please read "General information" of the base unit's operating instructions for information regarding R&TTE Directive.

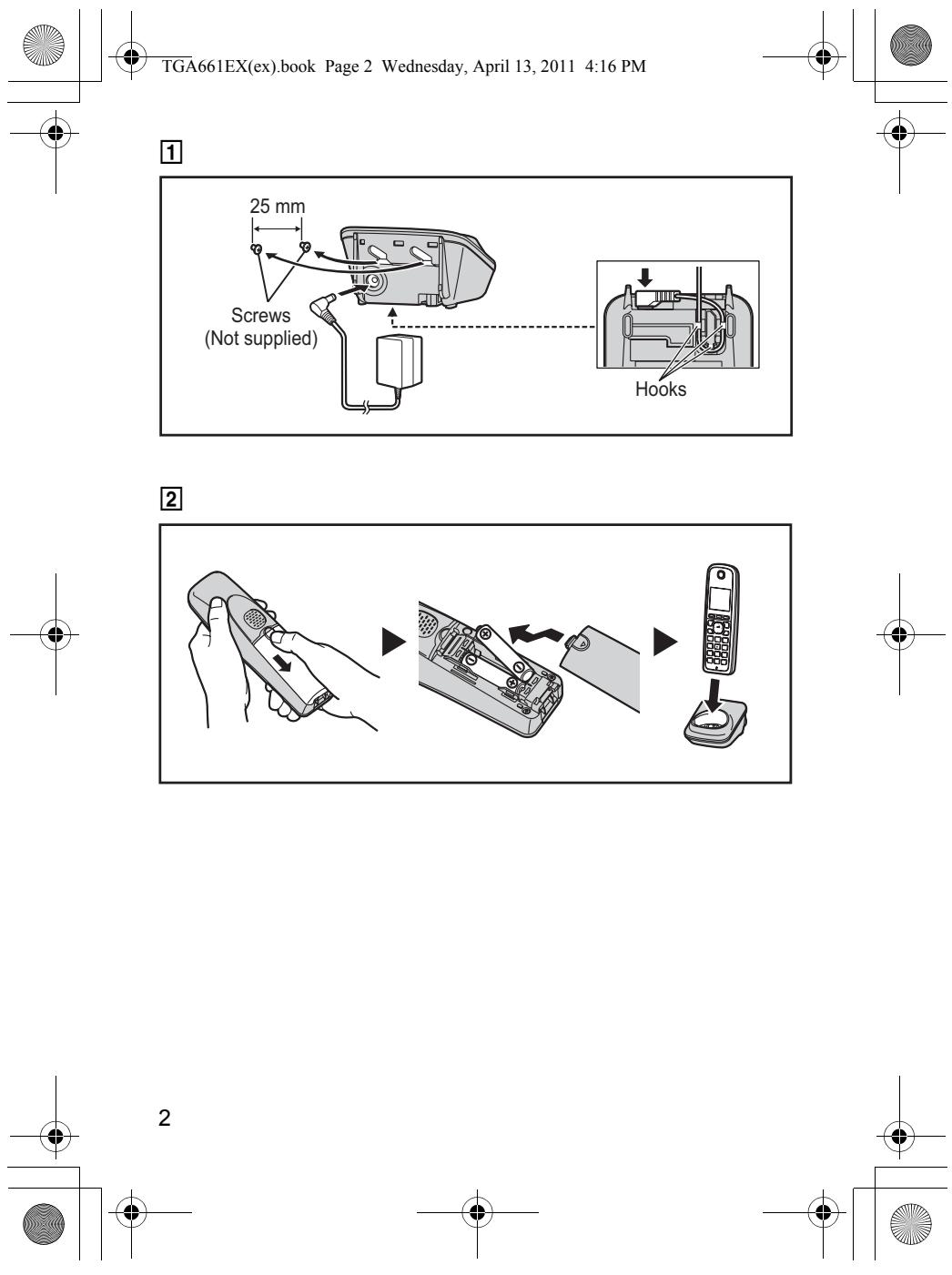

Connection/Wall mounting (page 2: 1)

• Use only the supplied Panasonic AC adaptor PNLV226CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall and the fixing method are strong enough to support the weight of the unit. (KX-TGA661/KX-TGA806)

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 5 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Battery installation/Battery charging (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

【▲】: Select your desired language. → OK → 【✗○】

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (, ) with a dry cloth.
• Avoid touching the battery ends (, ) or the unit contacts.
• Confirm correct polarities (⊕, ⊖)
• USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show “Please wait for 1 minute.” when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (, ) and the charge contacts with a dry cloth and charge again.

Display language

1 / (middle soft key) #110
2 [▲]: Select your desired language. → OK → [✗]

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [×○] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [✗️].

2 Base unit:

Proceed with the operation for your model.

■ KX-TG6611/KX-TG8051/KX-TG8611/KX-TG8621
Press and hold [•••] for about 5 seconds. (No registration tone)
■ KX-TG6621/KX-TG6631/KX-TG8061
Press and hold [•••] for about 5 seconds, until the registration tone sounds.

5

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

- If all registered handsets start ringing, press [•••] again to stop, then repeat this step.

3 Handset:

Place the handset on the base unit or charger.

- Continue the operation even when the handset display shows "Please wait for 1 minute.".

4 With the handset still on the base unit or charger, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
• The KX-TG6611/KX-TG8051/KX-TG8611 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG6621/KX-TG6631/KX-TG8061/KX-TG8621.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Operating safeguards

- The use of excessive sound volume through earphones, headphones, or headsets may cause hearing loss. (KX-TGA806/KX-TGA860)

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

6

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 7 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 8 Wednesday, April 13, 2011 4:16 PM

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

Abstract geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with crosshair and concentric circles, no text or symbols present

TGA661EX(ex).book Page 9 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Deutsch

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

9

TGA661EX(ex).book Page 10 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

1 Mobilteil:

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA661EX(ex).book Page 12 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 13 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

13

TGA661EX(ex).book Page 14 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Français

VEUILLEZ LIRE CE DOCUMENT AVANT TOUTE UTILISATION ET LE CONSERVER

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Raccordement/Montage mural (page 2: 1)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 15 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 16 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 17 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

17

TGA661EX(ex).book Page 18 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 19 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Nederlands

LEES DE HANDLEIDING VOOR HET GEBRUIK EN BEWAAR DEZE

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

19

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 20 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Batterijen installeren/Batterij laadt op (pagina 2: 2)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

20

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 21 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

2 Basisstation:

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Installatie

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 23 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

23

TGA661EX(ex).book Page 24 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Svenska

LÄS INFORMATIONEN INNAN ENHETEN ANVÄNDS OCH SPARA DEN FÖR FRAMTIDA BRUK

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 25 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Installera/Batteriladdning (sid 2: 2)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

25

TGA661EX(ex).book Page 26 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 27 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

FÖRSIKTIGHET

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

27

TGA661EX(ex).book Page 28 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 29 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Norsk

LES F∅R BRUK OG TA VARE PÅ

Denne enheten er et ekstra håndsett som er kompatibelt med følgende serie av Panasonic digitale, trådløse telefoner:

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

29

TGA661EX(ex).book Page 30 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded circle (no text or symbols)

Installere/Batteri lader (side 2: 2)

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 31 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Håndsett:

Pure electrical circuit lines without any symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 32 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 33 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

33

TGA661EX(ex).book Page 34 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Suomi

LUE OHJEET ENNEN KÄYTTÖÄ JA SÄILYTÄ NE

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 35 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded circle (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

35

TGA661EX(ex).book Page 36 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Luuri:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 37 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

37

TGA661EX(ex).book Page 38 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 39 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Português

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

39

TGA661EX(ex).book Page 40 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 41 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 43 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

43

TGA661EX(ex).book Page 44 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Ελληνικά

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 45 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

45

1 Ακουστικό:

■KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 47 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 48 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 49 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Dansk

LÆSES F∅R BRUG OG OPBEVARES DEREFTER

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

49

TGA661EX(ex).book Page 50 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

50

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 51 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

■ KX-TG6621/KX-TG6631/KX-TG8061

Hold [•••] nede i ca. 5 sekunder, til registreringstonen lyder.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

51

TGA661EX(ex).book Page 52 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

FORSIGTIG

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 53 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with concentric circles and intersecting lines (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 54 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Español

• KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)
• KX-TG8051/KX-TG8061(KX-TGA806)
• KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 55 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

55

TGA661EX(ex).book Page 56 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles, labeled 'hay' at bottom left (no text or symbols within shapes)

■ KX-TG6611/KX-TG8051/KX-TG8611/KX-TG8621

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 57 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Colocación

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 59 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Italiano

LEGGERE PRIMA DELL'USO E CONSERVARE

• KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)
• KX-TG8051/KX-TG8061(KX-TGA806)
• KX-TG8611/KX-TG8621(KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

59

TGA661EX(ex).book Page 60 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded circle (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 61 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

61

TGA661EX(ex).book Page 62 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Precauzioni d'uso

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

62

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 63 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

63

TGA661EX(ex).book Page 64 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Türkçe

LÜTFEN KULLANMADAN ÖNCE OKUYUNUZ VE SAKLAYINIZ

- KX-TG6611/KX-TG6621/KX-TG6631(KX-TGA661)

- KX-TG8051/KX-TG8061(KX-TGA806)

- KX-TG8611/KX-TG8621(KX-TGA860)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Tel: [phone], Faks: [phone]

Web: http://www.panasonic-tc.de

64

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 65 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Abstract geometric diagram with intersecting lines, circles, and a shaded circle (no text or symbols)

Ekran dili

■ KX-TG6621/KX-TG6631/KX-TG8061

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

66

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 67 Wednesday, April 13, 2011 4:16 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

UYARI

Güç bağlantısı

Abstract geometric pattern with intersecting lines and a central circular motif (no text or symbols)

67

TGA661EX(ex).book Page 68 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 69 Wednesday, April 13, 2011 4:16 PM

Uyumluluk Beyani

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No. PCTP-100095-01

017638

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic

(Model Nr.) Base unit -KX-TG6611E,KX-TG6612E,KX-TG6613E,KX-TG6621E, KX-TG6622E,KX-TG6623E,KX-TG6624E,KX-TG6611G,KX-TG6612G,KX-TG6621G, KX-TG6622G,KX-TG6623G,KX-TG6624G,KX-TG6611SP,KX-TG6612SP,KX-TG6621SP, KX-TG6611J,KX-TG6612J,KX-TG6621J,KX-TG6611NE,KX-TG6612NE,KX-TG6613NE, KX-TG6622NE,KX-TG6611FX,KX-TG6612FX,KX-TG6621FX,KX-TG6611FR,KX-TG6612FR, KX-TG6621FR,KX-TG6622FR,KX-TG6623FR,KX-TG6611TR,KX-TG6612TR,KX-TG6621TR, KX-TG6611PD,KX-TG6612PD,KX-TG6621PD,KX-TG6611NL,KX-TG6612NL,KX-TG6613NL, KX-TG6621NL,KX-TG6622NL,KX-TG6623NL,KX-TG6532NL,KX-TG6611AR,KX-TG6622AR, KX-TG6611GR,KX-TG6612GR,KX-TG6612GR,KX-TG6611BL,KX-TG6612BL,KX-TG6613BL, KX-TG6621BL, KX-TG6611SL, KX-TG6612SL, KX-TG6621SL, Handset -KX-TGA661F, KX-TGA60E, KX-TGA661EX, KX-TGA660EX, KX-TGA661FX, AC Adaptor -PNLV226E, PNLV226CE

(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC

(Council recommendation) : 1999/519/EC

(Harmonized Standards) : EN 60950-1:2006+A11:2009, EN 301 406 V2.1.1 < C >

EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1

EN 50385:2002, EN 50360:2001

(Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 10

Signed for and on behalf of

H. Matano

Printed Name : Hiroshi Matsuo
Title : Senior Technical Regulation Manager
Date of issue : 7 December, 2010

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

(Signature)

(Printed name)

(Date)

69

TGA661EX(ex).book Page 70 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

(Model Nr.) Ana birim - KX-TG6611E,KX-TG6612E,KX-TG6613E, KX-TG6621E, KX-TG6622E,KX-TG6623E, KX-TG6624E, KX-TG6611G,KX-TG6612G,KX-TG6621G, KX-TG6622G,KX-TG6623G,KX-TG6624G,KX-TG6611SP,KX-TG6612SP,KX-TG6621SP, KX-TG6611JT,KX-TG6612JT,KX-TG6621JT,KX-TG6611NE,KX-TG6612NE,KX-TG6613NE, KX-TG6622NE,KX-TG6611FX,KX-TG6612FX,KX-TG6621FX,KX-TG6611FR, KX-TG6612F, KX-TG6621FR,KX-TG6622FR,KX-TG6623FR,KX-TG6611TR,KX-TG6612TR,KX-TG6621TR, KX-TG6611PD,KX-TG6612PD,KX-TG6621PD,KX-TG6611NL,KX-TG6612NL,KX-TG6613N, KX-TG6621NL,KX-TG6622NL,KX-TG6623NL,KX-TG6632NL,KX-TG6611AR,KX-TG6622AF, KX-TG6611GR,KX-TG6612GR,KX-TG6621GR,KX-TG6611BL,KX-TG6612BL,KX-TG6613B, KX-TG6612BL,KX-TG6611SL,KX-TG6612SL,KX-TG6621SL

Mobil cihaz - KX-TGA661E, KX-TGA660E,KX-TGA661EX, KX-TGA660EX,KX-TGA661FX, AC adaptörü - PNLV226E, PNLV226CE

Şari Ünitesi - PNLC1018,PNLC1019

:Çin

(Menşei) : Çin

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 71 Wednesday, April 13, 2011 4:16 PM

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No. PCTP-110098-01

017807

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic

KX-TG8051SL.KX-TG8052SL.KX-TG8061SL.KX-TG8051NL.KX-TG8052NL.KX-TG8053NL.

KX-TG8061NL KX-TG8062NL KX-TG8063NL KX-TG8051BL KX-TG8051ER KX-TG8052ER

KY-TG8061ER KY-TG8062ER

Handset - KX-TGA806E KX-TGA806EX KX-TGA806EX

KY TGA805E KY TGA805EX KY TGA805EX

AC Adaptor. PNLV226E PNLV226CE

Charger Unit - PNL C1018 PNL C1019

(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the

following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC

(Council recommendation) : 1999/519/EC

(Harmonized Standards) : EN 60950-1:2006+A11:2009, EN 301 406 V2.1.1 < C >

EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1

EN 50385:2002, EN 50360:2001

(Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 11

Signed for and on behalf of

H. Matsuo

Printed Name : Hiroshi Matsuo

Title : Senior Technical Regulation Manager

Date of issue : 31 January, 2011

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

KX-TG8051FX KX-TG8061FX KX-TG8051G KX-TG8052G KX-TG8061G KX-TG8062G

KX TC8051ITKY TC8061IT KY TC8051RD KY TC8061RD KY TC8051SRKY TC8052SR

KX-TG8051J1,KX-TG8061J1,KX-TG8051FD,KX-TG8061FD,KX-TG8051SF,KX-TG8052SF, KX-TG8054NF,KX-TG8059NF,KX-TG8054TR,KX-TG8064TR,KX-TG8054OR,KX-TG8064OR

KX-TG8051NE,KX-TG8052NE,KX-TG8051TR,KX-TG8061TR,KX-TG8051GR,KX-TG8061GR,

KX-TG8051SL,KX-TG8052SL,KX-TG8061SL,KX-TG8051NL,KX-TG8052NL,KX-TG8053NL,

KX-TG8061NL, KX-TG8062NL, KX-TG8063NL, KX-TG8051BL, KX-TG8051FR, KX-TG8052FR,

KX-TG8061FR.KX-TG8062FR

Mobil cihaz - KX-TGA806E.KX-TGA806EX.KX-TGA806EX.

KX-TGA805E.KX-TGA805EX.KX-TGA805EX.

AC adaptörü - PNLV226F PNLV226CF

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 73 Wednesday, April 13, 2011 4:16 PM

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No. PCTP-110099-01

018130

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic

KX-TG8621FR.KX-TG8622FR.KX-TG8611FX.KX-TG8611G.KX-TG8621G.KX-TG8611GR.

KX-TG8611JT,KX-TG8621JT,KX-TG8611NE,KX-TG8612NE,KX-TG8611NL,KX-TG8612NL

KX-TG8621NL,KX-TG8622NL,KX-TG8611PD,KX-TG8611SL,KX-TG8621SL,KX-TG8611SP,

KX-TG8611TR.

Handset - KX-TGA860E, KX-TGA860EX, KX-TGA860FX,

AC Adaptor - PNLV226E, PNLV226CE

Charcer Unit - PNLC1021

(Country of Origin): Malaysia

The object of the declaration described above is in conformity with the requirements of the

following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC < B >

(Council recommendation) : 1999/519/EC

(Harmonized Standards) : EN 60950-1:2006+A11:2009, EN 301 406 V2.1.1, EN 300 328 V.1.7.1

EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1

EN 50385:2002, EN 50360 :2001

(Council directive)

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 11

Signed for and on behalf of

H. Matsuo

Printed Name : Hiroshi Matsuo

Title : Senior Technical Regulation Manager

Date of issue : 8 April, 2011

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

(Signature)

(Printed name)

(Date)

73

TGA661EX(ex).book Page 74 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 75 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Sales department/Vertrieb/Organisation Commerciale/Klantenservice/Försäljning/Importør/Maahantuonti/Departamento Comercial/Tμήμα Πωλήσεων/Salgskontor/Departamento de ventas/Ufficio Vendite/Satış bölümü

■ Österreich

Panasonic Marketing

Europe GmbH

Panasonic Benelux a branch of

Panasonic Marketing Europe GmbH

Europalaan 30

5232 BC's-Hertogenbosch, The Netherlands

E-Care Repair Services

Fruitweg 34

2321 DH Leiden

Tel: [phone]

Fax: [phone]

Homepage: www.panasonic.nl

E-mail: [e-mail]

Branch of Panasonic Nordic AB

Produktionsvej 26

DK-2600 Glostrup

http://www.panasonic.dk

■ Suomi

Panasonic Finland

Branch of Panasonic Nordic AB

Sinimäentie 8 B

02630 Espoo

http://www.panasonic.fi

■ France

Panasonic France SAS

1-3 avenue François Mitterrand

93218 Saint-Denis La Plaine

Cedex France

Panafax: 210.9648.588

e-mail: [e-mail]

Υποκατάστημα

Βόρειας Ελλάδας

Panafax: 2310.968.083

e-mail: [e-mail]

www.panasonic.gr

■ Italiana

Panasonic Italia S.p.a.

E-Care Repair Services

Fruitweg 34

2321 DH Leiden

Tel: [phone]

Fax: [phone]

Homepage: www.panasonic.nl

E-mail: [e-mail]

Telefoonnummer klantenservice Nr.:

073 6 402 802

■ Norge

Panasonic Norge

Branch of Panasonic Nordic AB

Karihaugsveien 89

N-1086 Oslo

http://www.panasonic.no

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661EX(ex).book Page 77 Wednesday, April 13, 2011 4:16 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ Portugal

Prosonic S.A.

Service Centre & Support

Littauerboden 1

CH - 6014 Luzern

Support - Hotline

Service Centre & Support

Littauerboden 1

CH-6014 Lucerne

Support - Hotline

0900 809 809 (CHF 2.15/min.

Service Centre & Support

Littauerboden

CH-6014 Lucerna

Support - Hotline

0900 809 809 (CHF 2.15/min.

Pure geometric lines and crosshair symbols without any text, numbers, or labels

Manufacturer Firm/Herstellerfirma/Société du fabricant/Fabrikant/Tillverkare/Produsent/Valmistaja/Empresa fabricante/Kataoškeuostiký etaírpeía/Fremstillende virksomhed/Fabricante/Azienda produttrice/Üretici Firma

Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© Panasonic System Networks Co., Ltd. 2010

PNQX3284WA TT1210YK3041 (A)
