Product Type	Additional digital cordless handset (DECT)
Brand	Panasonic
Model	KX-TGA671EX
Category	Cordless phone
Compatibility	Compatible with Panasonic bases KX-TG6711, KX-TG6721, KX-TG8151, KX-TG8161, KX-TG8551, KX-TG8561
Power supply	Rechargeable Ni-MH AAA (R03) batteries x2 + AC adaptor PNLV226CE for charger
Included accessories	Charger, AC adaptor PNLV226CE, 2 rechargeable batteries, belt clip (depending on model), handset cover
Display type	Backlit LCD display
Main features	Handset with speakerphone, phonebook, caller list, handset locator feature, language selection, base registration
Available languages	French, German, Danish, Greek, English, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish, Turkish
Cleaning	Use a soft damp cloth. Do not use benzene, thinner, or abrasive.
Safety	Use only rechargeable Ni-MH AAA batteries. Do not expose to water. Unplug if any abnormality occurs.
Recycling	Follow local regulations for disposal of batteries and WEEE.
Batteries	Rechargeable Ni-MH AAA (R03) supplied; replace with recommended Panasonic models
Warranty	Refer to the base user manual

Frequently Asked Questions - KX-TGA671EX PANASONIC

How to install the batteries in the handset?

Remove the handset cover, insert the two rechargeable Ni-MH AAA (R03) batteries respecting polarity, then replace the cover. Place the handset on the charger for an initial charge of 7 hours.

How to register the handset to the base?

Make sure the handset is turned on. Lift the handset and press the [✗️] key. On the base, press and hold the [•••] key for about 5 seconds. Place the handset on the base or charger and wait for the confirmation tone and display of ⭕.

How long to charge the batteries before first use?

Place the handset on the charger for about 7 hours before first use for a full charge.

What to do if the screen displays 'Wait 1 minute'?

This message appears if the handset is not registered to the base. Continue the registration procedure even if the message is displayed. After registration, the message will disappear.

Can I use alkaline or Ni-Cd batteries?

No, use only rechargeable Ni-MH AAA (R03) batteries. Do not use alkaline, manganese, or Ni-Cd batteries.

How to change the display language?

Press the middle soft key, then # 1 1 0. Use [◀] to select the desired language, then press OK and [✗ ⏻] to confirm.

What to do if the handset does not register?

If an error tone sounds or ? is displayed, repeat the registration procedure or refer to the base user manual for detailed instructions.

How to clean the device?

Clean the outer surface with a soft damp cloth. Do not use benzene, thinner, or abrasive powder.

What accessories are supplied with the handset?

The box contains: a charger, an AC adaptor PNLV226CE, two rechargeable batteries, a belt clip (only for KX-TGA815/KX-TGA855) and the handset cover already attached.

How to dispose of used batteries?

Do not dispose of batteries with household waste. Follow local regulations for recycling batteries and electrical and electronic equipment (WEEE).

USER MANUAL KX-TGA671EX PANASONIC

Additional Digital Cordless Handset

Line drawing of a mobile phone with keypad and front panel (no text or symbols)

KX-TGA671

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA671EX(ex).book Page 3 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Contents/Inhalt/Table des matières/Inhoud/Innehåll/Innholdsfortegnelse/Sisällysluettelo/Índice/Περιεχόμενα/Indholdsfortegnelse/Contenido/Índice/İçindekiler

English 4

Deutsch 9

Français.... 14

Nederlands.... 19

Svenska 25

Norsk 30

Suomi 35

Português.... 40

Ελληνικά 45

Dansk.... 51

Español 56

Italiano....61

Türkçe....66

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3

TGA671EX(ex).book Page 4 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone:

- KX-TG6711/KX-TG6721(KX-TGA671)

- KX-TG8151/KX-TG8161(KX-TGA815)

- KX-TG8551/KX-TG8561(KX-TGA855)

(The corresponding models are subject to change without notice.)

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger......1AC adaptor/PNLV226CE......1	Rechargeable batteries*1......2
Belt clip (KX-TGA815/KX-TGA855)......1	Handset cover*2......1

*1 Please read the base unit's operating instructions for replacement battery information.
*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• Please read "General information" of the base unit's operating instructions for information regarding R&TTE Directive.

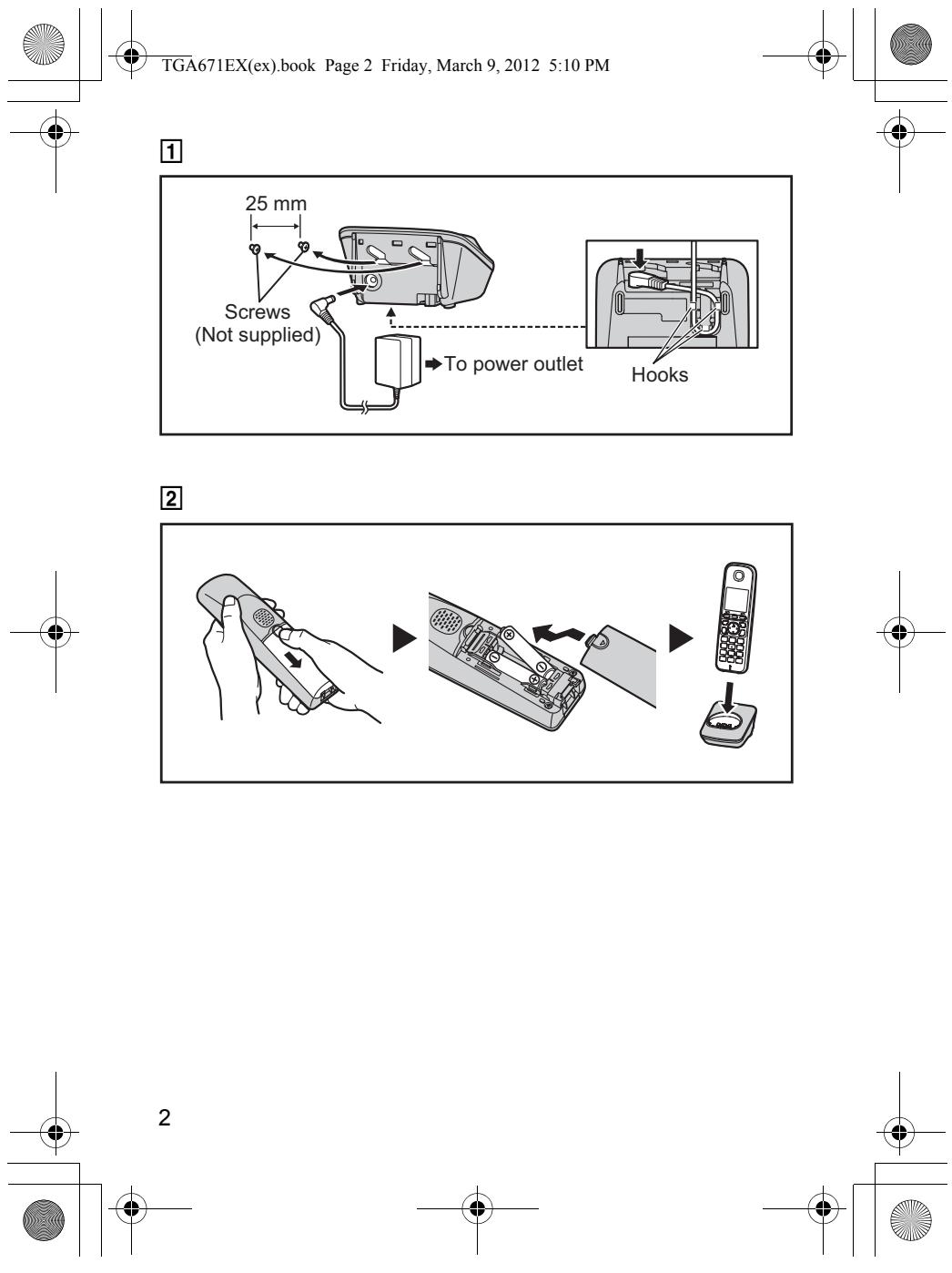

Connection/Wall mounting (page 2: 1)

• Use only the supplied Panasonic AC adaptor PNLV226CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall and the fixing method are strong enough to support the weight of the unit. (KX-TGA671/KX-TGA815)

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Battery installation/Battery charging (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

【▲】: Select your desired language. → OK → 【✗○】

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (, ) with a dry cloth.
• Avoid touching the battery ends (, ) or the unit contacts.
• Confirm correct polarities (, )
• USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show “Please wait for 1 minute.” when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (, ) and the charge contacts with a dry cloth and charge again.

Display language

1 / (middle soft key) #110
2 [▲]: Select your desired language. → OK → [✗]

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [×○] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [✗️].

2 Base unit:

Press and hold [•••] for about 5 seconds.

• Depending on the base unit, a registration tone sounds.
• If all registered handsets start ringing, press [•••] again to stop, then repeat this step.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

3 Handset:

Place the handset on the base unit or charger. - Continue the operation even when the handset display shows "Please wait for 1 minute.".

4 With the handset still on the base unit or charger, wait until a confirmation tone sounds and is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
• The KX-TG6711/KX-TG8151/KX-TG8551 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG6721/KX-TG8161/KX-TG8561.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

- Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.

• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Operating safeguards

- The use of excessive sound volume through earphones, headphones, or headsets may cause hearing loss. (KX-TGA815/KX-TGA855)

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

6

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 7 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

- Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

Abstract geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Deutsch

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA671EX(ex).book Page 10 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded square (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 12 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

SICHERHEITSHINWEIS

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pflege

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

13

TGA671EX(ex).book Page 14 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Français

VEUILLEZ LIRE CE DOCUMENT AVANT TOUTE UTILISATION ET LE CONSERVER

Raccordement/Montage mural (page 2: 1)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 15 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 17 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ATTENTION

Pure geometric diagram with intersecting lines and circles, no text or symbols present

17

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Entretien habituel

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 19 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Nederlands

LEES DE HANDLEIDING VOOR HET GEBRUIK EN BEWAAR DEZE

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 20 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

20

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 21 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

21

TGA671EX(ex).book Page 22 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Installatie

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

TGA671EX(ex).book Page 23 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded region (no text or symbols)

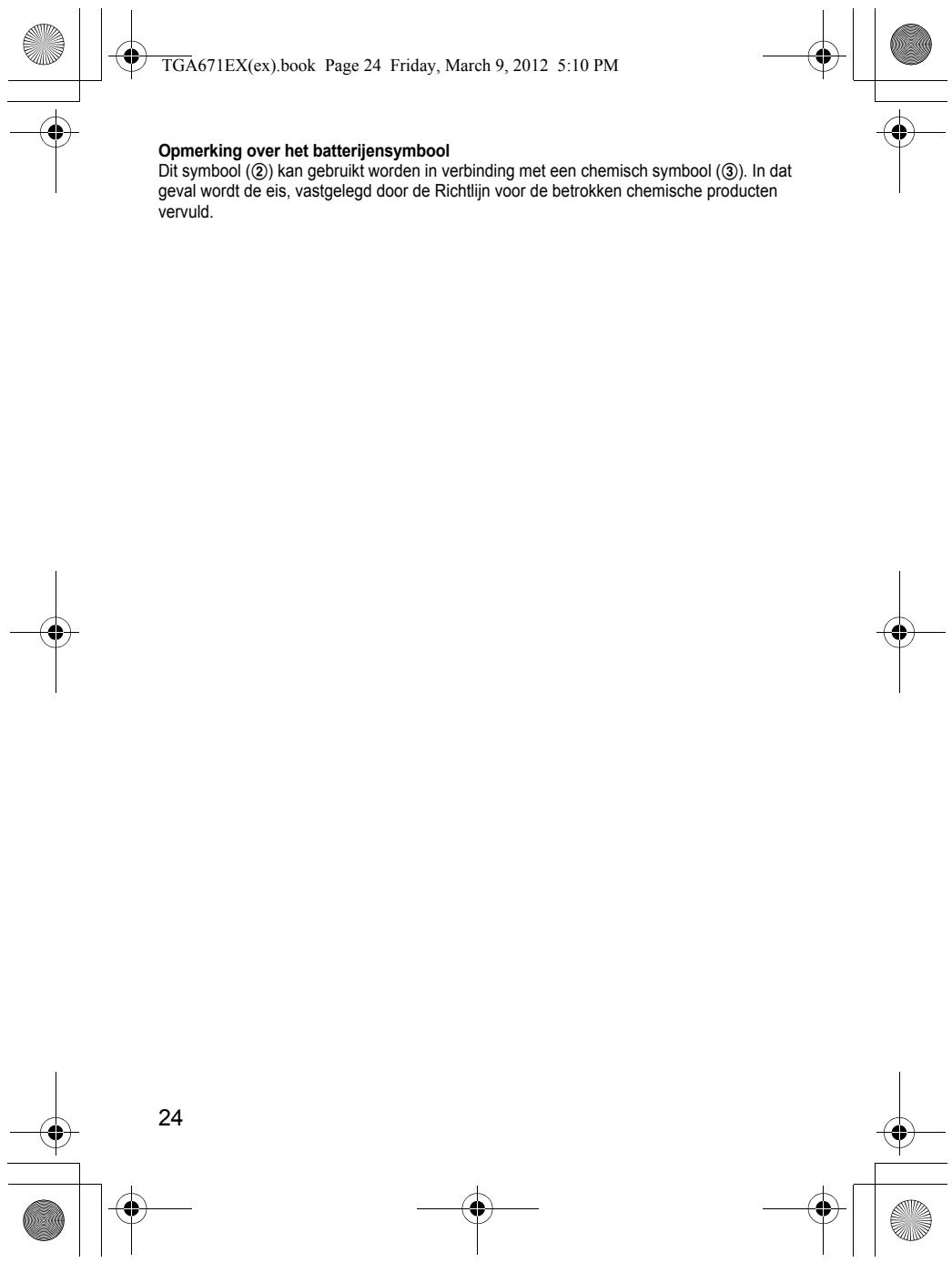

Overige informatie

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 25 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Svenska

LÄS INFORMATIONEN INNAN ENHETEN ANVÄNDS OCH SPARA DEN FÖR FRAMTIDA BRUK

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

25

TGA671EX(ex).book Page 26 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Installera/Batteriladdning (sid 2: 2)

Pure geometric diagram with intersecting lines and a circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 27 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Handenhet:

Placera handenheten på basenheten eller laddaren.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 28 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

TGA671EX(ex).book Page 29 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

29

TGA671EX(ex).book Page 30 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Norsk

LES F∅R BRUK OG TA VARE PÅ

Denne enheten er et ekstra håndsett som er kompatibelt med følgende serie av Panasonic digitale, trådløse telefoner:

- KX-TG6711/KX-TG6721(KX-TGA671)

- KX-TG8151/KX-TG8161(KX-TGA815)

- KX-TG8551/KX-TG8561(KX-TGA855)

(De tilsvarende modellene kan endres uten varsel.)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

30

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Installere/Batteri lader (side 2: 2)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

31

TGA671EX(ex).book Page 32 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 33 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

33

TGA671EX(ex).book Page 34 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 35 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Suomi

LUE OHJEET ENNEN KÄYTTÖÄ JA SÄILYTÄ NE

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

35

TGA671EX(ex).book Page 36 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 37 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Turvaohjeita

Pure geometric diagram with intersecting lines and circles, no text or symbols present

37

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 38 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 39 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

39

TGA671EX(ex).book Page 40 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Português

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

40

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 41 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded square (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 42 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 Terminal móvel:

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 43 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

CUIDADO

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Ελληνικά

Pure geometric diagram with concentric circles and crosshairs, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA671EX(ex).book Page 46 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

46

Pure geometric diagram with intersecting lines and circles, no text or symbols present

1 Ακουστικό:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 48 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Άλλες πληροφορίες

TGA671EX(ex).book Page 51 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Dansk

LÆSES F∅R BRUG OG OPBEVARES DEREFTER

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 53 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

53

TGA671EX(ex).book Page 54 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 56 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Español

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 57 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

57

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 59 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

PRECAUCIÓN

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 60 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

TGA671EX(ex).book Page 61 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Italiano

LEGGERE PRIMA DELL'USO E CONSERVARE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 62 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

62

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Abstract geometric pattern with concentric circles and intersecting lines (no text or symbols)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

63

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 64 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

ATTENZIONE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 65 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

65

TGA671EX(ex).book Page 66 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Türkçe

LÜTFEN KULLANMADAN ÖNCE OKUYUNUZ VE SAKLAYINIZ

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Tel: [phone], Faks: [phone]

Web: http://www.panasonic-tc.de

66

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 67 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

67

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 68 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines, circles, and a shaded circle (no text or symbols)

Ekran dili

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 69 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 70 Friday, March 9, 2012 5:10 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

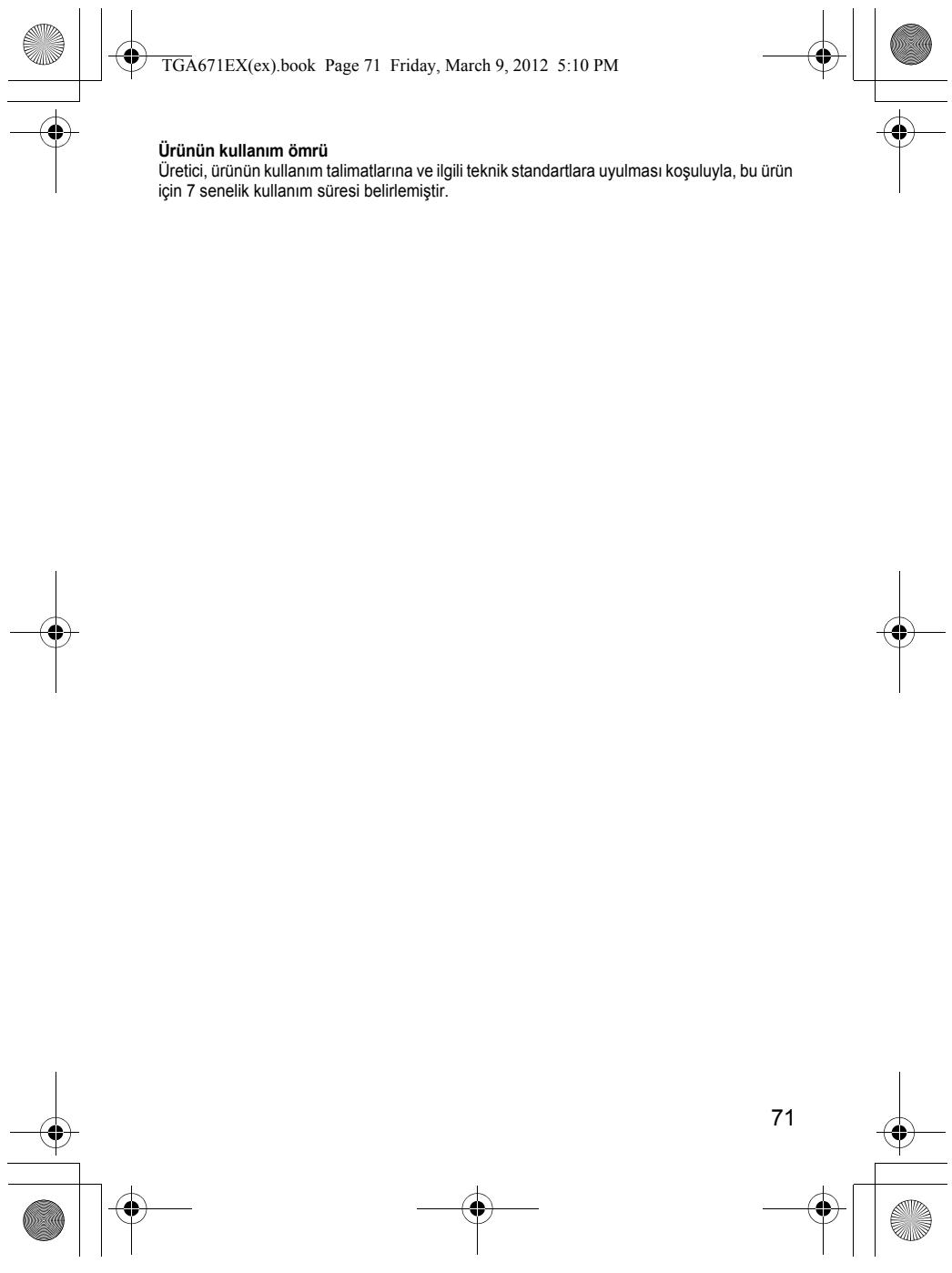

Diğer bilgiler

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Declaration of Conformity

Document No. PCTP-110102-02

018819

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic

(Model Nr.) Base unit -KX-TG6711AR,KX-TG6721AR,KX-TG6722AR,KX-TG6711BL, KX-TG6712BL,KX-TG6713BL,KX-TG6721BL,KX-TG6711E,KX-TG6712E,KX-TG6713E, KX-TG6721E,KX-TG6722E,KX-TG6723E,KX-TG6724E,KX-TG6711FR,KX-TG6712FR, KX-TG6721FR,KX-TG6722FR,KX-TG6723FR,KX-TG6711FK,KX-TG6712FK,XK-TG6721FX, KX-TG6711Q,KX-TG6712Q,KX-TG6721Q,KX-TG6722Q,KX-TG6723Q,KX-TG6724Q, KX-TG6711GR,KX-TG6712GR,KX-TG6721GR,KX-TG6711JT,KX-TG6712JT,KX-TG6721JT, KX-TG6711NE,KX-TG6712NE,KX-TG6713NE,KX-TG6721NE,KX-TG6722NE,KX-TG6711NL, KX-TG6712NL,KX-TG6713NL,KX-TG6721NL,KX-TG6722NL,KX-TG6723NL,KX-TG6711PD, KX-TG6712PD,KX-TG6721PD,KX-TG6711SL,KX-TG6712SL,KX-TG6721SL,KX-TG6711SP, KX-TG6712SP,KX-TG6721SP,KX-TG6711TR,KX-TG6712TR,KX-TG6721TR,KX-TG6732NL, KX-TG6711TU

Handset - KX-TGA671E, KX-TGA671EX, KX-TGA671FX, KX-TGA672E, KX-TGA672EX,

KX-TGA672FX

AC Adaptor - PNLV226E, PNLV226CE

Charger Unit - PNLC1030,PNLC1034

(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC < B >

(Council recommendation) : 1999/519/EC

(Harmonized Standards) : EN 60950-1:2006+A11:2009/A1:2010/A12:2011, < C >

EN 301 406 V2.1.1, EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1,

EN62209-1:2006, EN 50385:2002, EN 50360:2001

(Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 12

Signed for and on behalf of

H. Matano

Printed Name : Hiroshi Matsuo

Title : Senior Technical Regulation Manager

Date of issue : 9 February, 2012

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

(Signature)

(Printed name)

(Date)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 74 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No. PCTP-110103-01

018641

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic

(Model Nr.) Base unit - KX-TG8151BL, KX-TG8151E, KX-TG8161E, KX-TG8162E, KX-TG8163E, KX-TG8151FR, KX-TG8152FR, KX-TG8161FR, KX-TG8162FR, KX-TG8151FX, KX-TG8161FX, KX-TG8151G, KX-TG8152G, KX-TG8161G, KX-TG8162G, KX-TG8151GR, KX-TG8161GR, KX-TG8151JT, KX-TG8161JT, KX-TG8151NE, KX-TG8152NE, KX-TG8151NL, KX-TG8152NL, KX-TG8161NL, KX-TG8162NL, KX-TG8151PD, KX-TG8161PD, KX-TG8151SL, KX-TG8161SLK, KX-TG8151SP,KX-TG8152SP,KX-TG8151TR, KX-TG8161TR, handset - KX-TGA815E, KX-TGA815EX,KX-TGA815FX,KX-TGA816E,KX-TGA816EX, X-XTGA816FX AC Adaptor - PNLV226E, PNLV226CE Charger Unit - PNLC1030,PNLC1034 Headset unit - KX-TCA89, KX-TCA94EX, RP-TCA430, RP-TCA400

(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC (Council recommendation) : 1999/519/EC (Harmonized Standards) : EN 60950-1:2006+A11:2009/A1:2010/A12:2011, EN 301 406 V2.1.1, EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1, EN 50385:2002, EN 50360 :2001 (Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 12

Signed for and on behalf of

H. Matsuo

Printed Name : Hiroshi Matsuo

Title : Senior Technical Regulation Manager

Date of issue : 16 December, 2011

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

74

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 75 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

(Ticari Adi) : Panasonic (Model Nr.) Ana birim - KX-TG8151BL, KX-TG8151E, KX-TG8161E, KX-TG8162E, KX-TG8163E, KX-TG8151FR, KX-TG8152FR, KX-TG8161FR, KX-TG8162FR, KX-TG8151FX, KX-TG8161FX, KX-TG8151G, KX-TG8152G, KX-TG8161G, KX-TG8162G, KX-TG8151GR, KX-TG8161GR, KX-TG8151JT, KX-TG8161JT, KX-TG8151NE, KX-TG8152NE, KX-TG8151NL, KX-TG8152NL, KX-TG8161NL, KX-TG8162NL, KX-TG8151PD, KX-TG8161PD, KX-TG8151SL, KX-TG8161SL, KX-TG8151SP, KX-TG8152SP, KX-TG8151TR, KX-TG8161TR Mobil cihaz - KX-TGA815E, KX-TGA815EX, KX-TGA815FX, KX-TGA816E, KX-TGA816EX, KX-TGA816FX AC adaptörü - PNLV226E, PNLV226CE Şarj Ünitesi - PNLC1030, PNLC1034 Kulaklık - KX-TCA89, KX-TCA94EX, RP-TCA430, RP-TCA400

(Mensei) : Cin

Pure geometric diagram with intersecting lines and circles, no text or symbols present

75

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 76 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Declaration of Conformity

Document No. PCTP-110104-01

018924

(Issuer's name & address)

Panasonic System Networks Co., Ltd.

Hakata-ku, Fukuoka, Japan

(Object of the declaration)

(Product) : Digital Enhanced Cordless Telephone

(Trade Name) : Panasonic
(Model Nr.) Base unit - KX-TG8561, KX-TG8562, KX-TG8563, KX-TG8564,
KX-TG8551, KX-TG8552
Handset - KX-TGA855, KX-TGA856
AC Adaptor - PNLV226E.PNLV226CE
Charger Unit - PNLC1035
Headset unit - KX-TCA89, KX-TCA94EX, RP-TCA430, RP-TCA400
(Country of Origin): China

The object of the declaration described above is in conformity with the requirements of the

following EU legislations and harmonized standards:

(Council Directive) : 1999/5/EC
(Council recommendation) : 1999/519/EC
(Harmonized Standards) : EN 60950-1:2006+A11:2009/A1:2010/A12:2011, < C >
EN 301 406 V2.1.1, EN 301 489-1 V1.8.1, EN 301 489-6 V1.3.1,
EN62209-1 :2006, EN 50385:2002, EN 50360 :2001
(Council directive) : 2009/125/EC

(Implementing Measure for ErP Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CE marking was affixed the first time: 12

Signed for and on behalf of

H. Matsuo

Printed Name : Hiroshi Matsuo

Title : Senior Technical Regulation Manager

Date of issue : 24 February, 2012

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

(Signature)

(Printed name)

(Date)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 77 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Panasonic

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531 Japan

Hakata-ku, Fukuoka, Japan

(Beyannamenin Konusu)

(Model Nr.) Ana birim - KX-TG8561, KX-TG8562, KX-TG8563, KX-TG8564,

KX-TG8551, KX-TG8552

Mobil cihaz - KX-TGA855,KX-TGA856

AC adaptörü - PNLV226E, PNLV226CE

Kulaklık - KX-TCA89, KX-TCA94EX, RP-TCA430, RP-TCA400

(Menşei) : Çin

Pure geometric diagram with intersecting lines and circles, no text or symbols present

77

TGA671EX(ex).book Page 78 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Sales department/Vertrieb/Organisation Commerciale/Klantenservice/Försäljning/Importør/Maahantuonti/Departamento Comercial/Tμήμα Πωλήσεων/Salgskontor/Departamento de ventas/Ufficio Vendite/Satış bölümü

■ Österreich

Panasonic Marketing

Europe GmbH

Panasonic Denmark, filial

af Panasonic Marketing

Europe GmbH, Tyskland

Produktionsvej 26

DK-2600 Glostrup

http://www.panasonic.dk

■ Suomi

Panasonic Marketing

Europe GmbH, filial i

Finland AND Panasonic

Marketing Europe GmbH,

branch in Finland

Sinimäentie 8 B

02630 Espoo

http://www.panasonic.fi

■ Belgique

België

Panasonic Benelux a branch of

Panasonic Marketing Europe GmbH

Europalaan 30

5232 BC 's-Hertogenbosch

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 79 Friday, March 9, 2012 5:10 PM

■ Deutschland

Panafax: 210.9648.588

e-mail: [e-mail]

Υποκατάστημα

Βόρειας Ελλάδας

Panafax: 2310.968.083

e-mail: [e-mail]

www.panasonic.gr

■ Italiana

Panasonic Italia - branch

office of Panasonic

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 80 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

■ Portugal

Panasonic Portugal, sucursal de Panasonic Marketing Europe GmbH

Alameda dos Santos, Lote 1.07.1Y 1.5 1990-208 Lisboa

www.panasonic.pt

Service Centre & Support

Littauerboden 1

CH - 6014 Luzern

Support - Hotline

Service Centre & Support

Littauerboden 1

CH - 6014 Lucerne

Support - Hotline

0900 809 809 (CHF 2.15/min.

Service Centre & Support

Littauerboden 1

CH - 6014 Lucerna

Support - Hotline

0900 809 809 (CHF 2.15/min.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA671EX(ex).book Page 81 Friday, March 9, 2012 5:10 PM

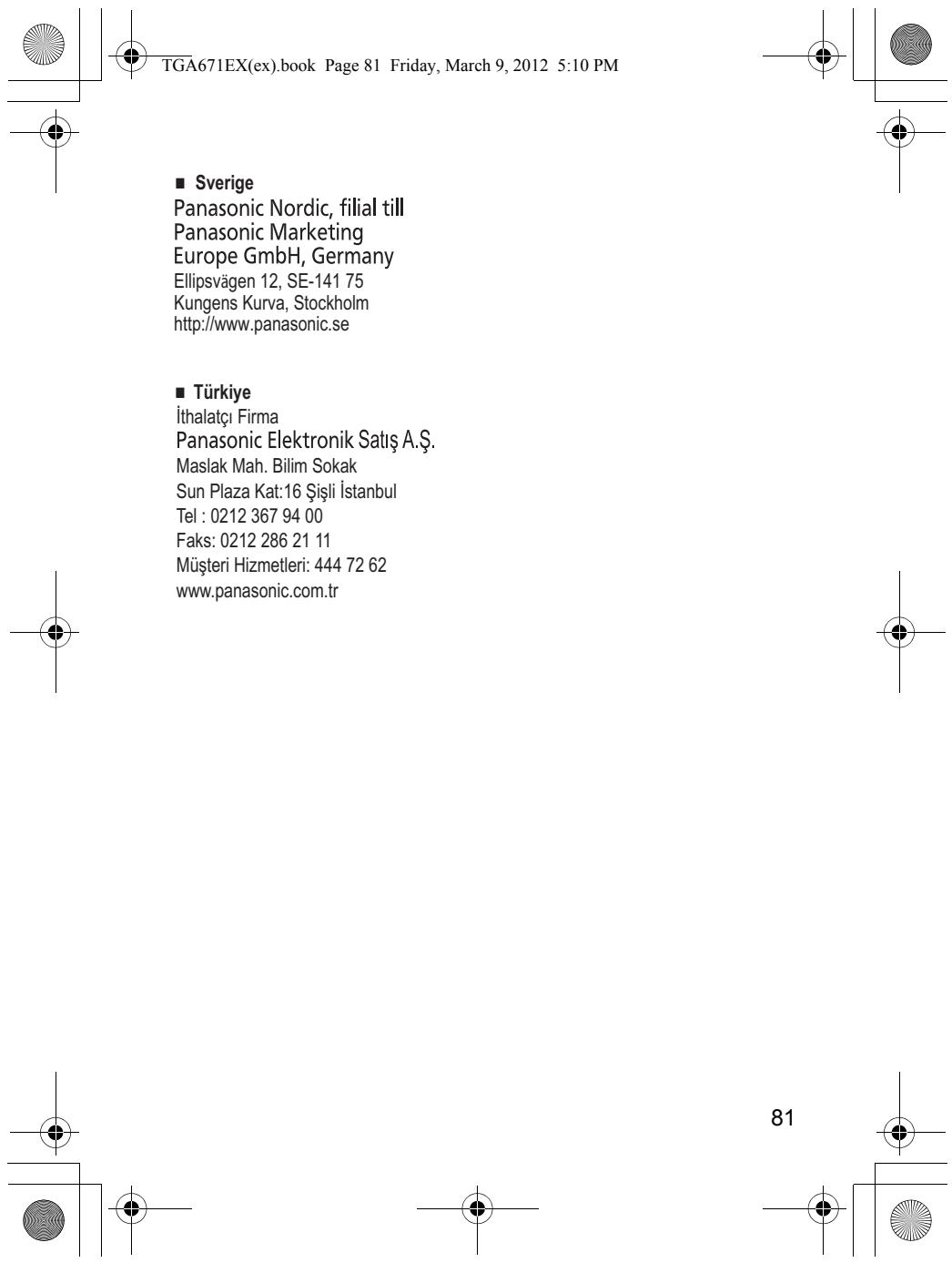

■ Sverige

Panasonic Nordic, filial till

Panasonic Marketing

Europe GmbH, Germany

TGA671EX(ex).book Page 84 Friday, March 9, 2012 5:10 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

C€0470

Manufacturer Firm/Herstellerfirma/Société du fabricant/Fabrikant/Tillverkare/Produsent/Valmistaja/Empresa fabricante/Kataσκευαστική εταιρεία/Fremstillende virksomhed/Fabricante/Azienda produttrice/Üretici Firma

Panasonic System Networks Co., Ltd. 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© Panasonic System Networks Co., Ltd. 2011

PNQX5158YA TT1211MU1022 (A)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols
