Product type	Internet/DAB+/FM radio adapter with Bluetooth
Brand	Monacor
Model	DR463
Dimensions (W x D x H)	190 mm x 75 mm x 40 mm
Weight	260 g
Power supply	5 V / 850 mA (power supply unit included)
Standby consumption	< 1 W
Display	2.4" TFT color 320 x 240 pixels
Wireless network	WiFi IEEE 802.11 b/g/n, encryption WEP/WPA/WPA2 (PSK), WPS
Bluetooth	Version not specified, receiver (Rx) and transmitter (Tx) modes
Supported audio formats	MP3, AAC, AAC+, WMA, FLAC (32-320 kbps)
Connectivity	DC input, stereo line output (RCA), antenna jack 3.5 mm, TOSLINK optical output
Main functions	Internet radio, DAB/DAB+, FM, Spotify Connect, Media Center (UPnP/DLNA), Bluetooth, AirMusic Control app, alarm (3 alarms), timer, equalizer (7 presets)
Control	Infrared remote control (AAA batteries included), AirMusic Control mobile app
WiFi range	Up to 20 m (depending on obstacles)
Operating temperature	0 °C to 35 °C
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products or solvents.
Safety	Do not expose to moisture, heat sources or shocks. Disconnect during thunderstorms. Comply with WEEE regulations for disposal.
Spare parts and repairability	For Germany: technical service by phone at [phone] or by email [e-mail]. 2-year warranty.
Package contents	DR 463+ adapter, power supply unit, remote control, user manual, RCA audio cable, antenna, IEC antenna adapter

Frequently Asked Questions - DR463 Monacor

How to connect the DR463 to my WiFi network?

When first powering on, select your language, then the desired WiFi network. Enter the security key using the remote control (up/down arrows to select characters, right arrow to confirm). Press OK to confirm. You can also use the WPS function if your router supports it.

Can I listen to Internet radio without a wired connection?

Yes, the DR463 connects only via WiFi (IEEE 802.11 b/g/n). No Ethernet connection is available.

How to save a favorite station?

While listening to a station, hold down the ★ button on the remote control until a confirmation message appears. You can also add a station from the list by pressing the right arrow (➡) to access the submenu and select 'Add to Favorite'.

Can the DR463 stream music from my smartphone via Bluetooth?

Yes, in receiver (Rx) mode: activate Bluetooth on the DR463, then on your smartphone search for devices and connect to 'ALBRECHT DR 463+' (or a custom name). The music will then be played through the radio.

How to set the alarm?

Press the Alarm button on the remote control. You can configure up to 3 alarms: two absolute alarms (Alarm 1 and 2) and one relative alarm (NAP). Set the time, frequency (once, daily, etc.), sound source (beep, melody, radio) and volume. Confirm with OK. The clock icon appears at the top of the screen when alarms are active.

What to do if the radio does not find any DAB station?

Check that the antenna is properly connected and extended. Launch a new search by pressing the left arrow (◀) twice. You can also orient the antenna to improve reception. If nothing works, check DAB coverage in your area.

How to use Spotify Connect on the DR463?

Make sure the DR463 and your smartphone/tablet/PC are connected to the same WiFi network. Launch the Spotify app on your device, select a song, then choose 'ALBRECHT DR 463+' as the playback device. The music will play wirelessly on the radio.

The sound is hissing on FM, what to do?

Check the connection and orientation of the FM antenna. Move the radio away from sources of interference (screens, transformers). You can also try switching to Mono mode in the FM Configuration menu to reduce noise.

How to update the software of the DR463?

The DR463 automatically checks for updates on startup. For a manual check, go to Configuration > Software update. If a new version is available, follow the on-screen instructions. Ensure a stable Internet connection during the update.

Can I use the DR463 as a Bluetooth transmitter for my headphones?

Yes, in the Bluetooth menu, select the transmission mode (Tx). The DR463 will search for visible Bluetooth devices. Put your headphones in pairing mode. Once connected, the audio from the selected source (e.g. DAB) will be sent to the headphones. You can also enable/disable the built-in speaker audio output in the 'Tx Speaker' menu.

USER MANUAL DR463 Monacor

Instruction Manual English

Table of Contents

1.Product contents 31
2. Controls and connections 31

2.1. Frontside 31
2.2.Backside 32
2.3. Remote control 32

3.1. Network requirements 33
3.2.Preparing the network 33

3.4. Connecting to an audio system 34
3.5. Getting started 34
3.6.AirMusic Control App 35

1. Main menu 36
2. Internetradio 36

5.1.My Favorite 36
5.2.Station/music 37

5.3.Lokal Station 37
5.4.Sleep radio 37
5.5. History 37
5.6. Service 37

1. My mediaU 38
2. DAB/DAB+ radio 39

7.1. Scanning for stations 39
7.2. Searching for and selecting stations 39
7.3. Station information and slideshow 39
7.4.Savefavourites 39
7.5. Viewing favourites 39

8.1. UPnP 40
8.2.DLNA 41

1. Bluetooth 41

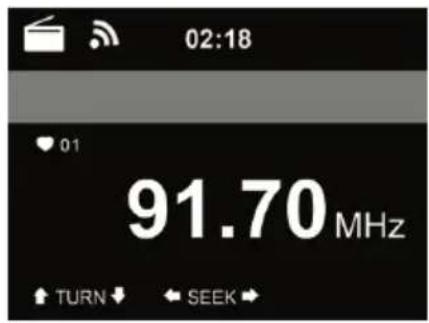

2. FM radio 42

10.1.Setting the station 42
10.2.Favourites 42

11.1.How to use Spotify Connect 42

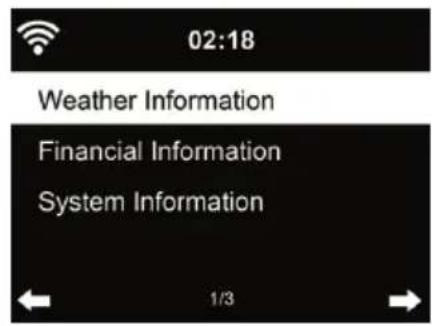

Information centre 43

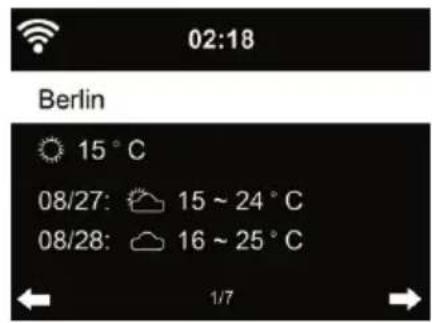

12.1. Weather Information 43

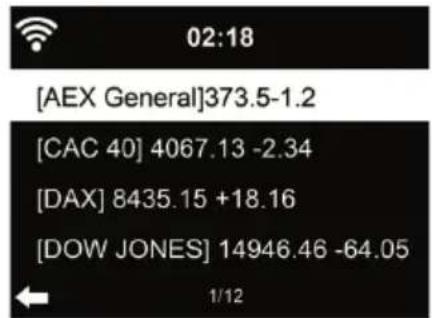

12.2. Financial Information 43

1. First steps 33
   3.3.Navigation through menus 33
2. Media centre 40
3. Spotify Connect 42
   12.3. System Information 43

4. Settings 44
   13.1.Time Display 44
   13.2.Manage my mediaU 44

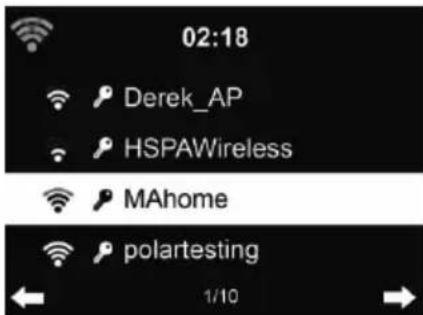

   13.3. Network 45

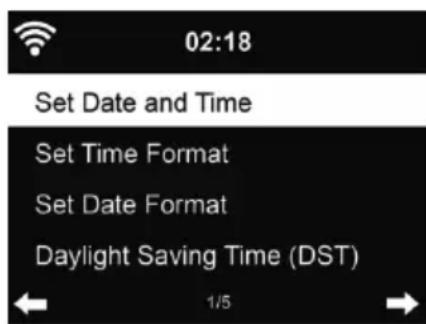

   13.4.Date & Time 46
   13.5.Alarm 47
   13.6. Timer 48
   13.7.Scheduled Playing 48

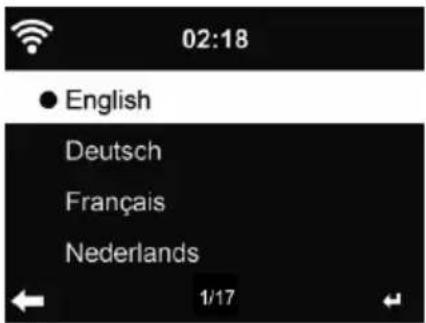

   13.8.Language 48
   13.9.Dimmer 49
   13.10. Display 49
   13.11.Power Management 49

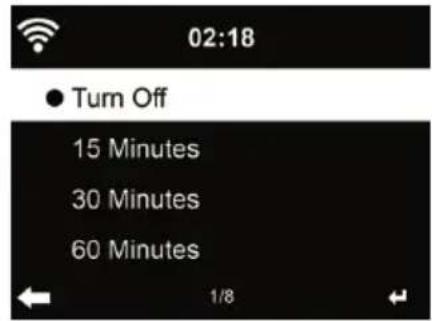

   13.12.Sleep timer 50

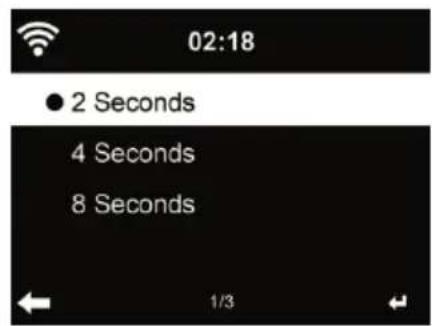

   13.13. Buffer memory 50

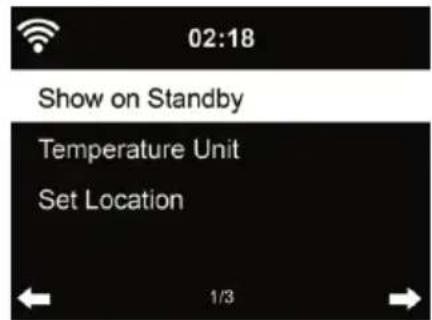

   13.14. Weather 50
   13.15.DAB/FM Setup 50
   13.16. Local Radio Setup 51
   13.17.Playback Setup 51
   13.18.DLNA-Setup 51
   13.19. Equalizer 51
   13.20. Bluetooth 52
   13.21Resume When Power On 52
   13.22.Software-Update 52
   13.23. Factory Reset 52

5. Troubleshooting 53

6. Specifications 54
7. Important Safety Notes 55
8. Warranty and Recycling Information 56

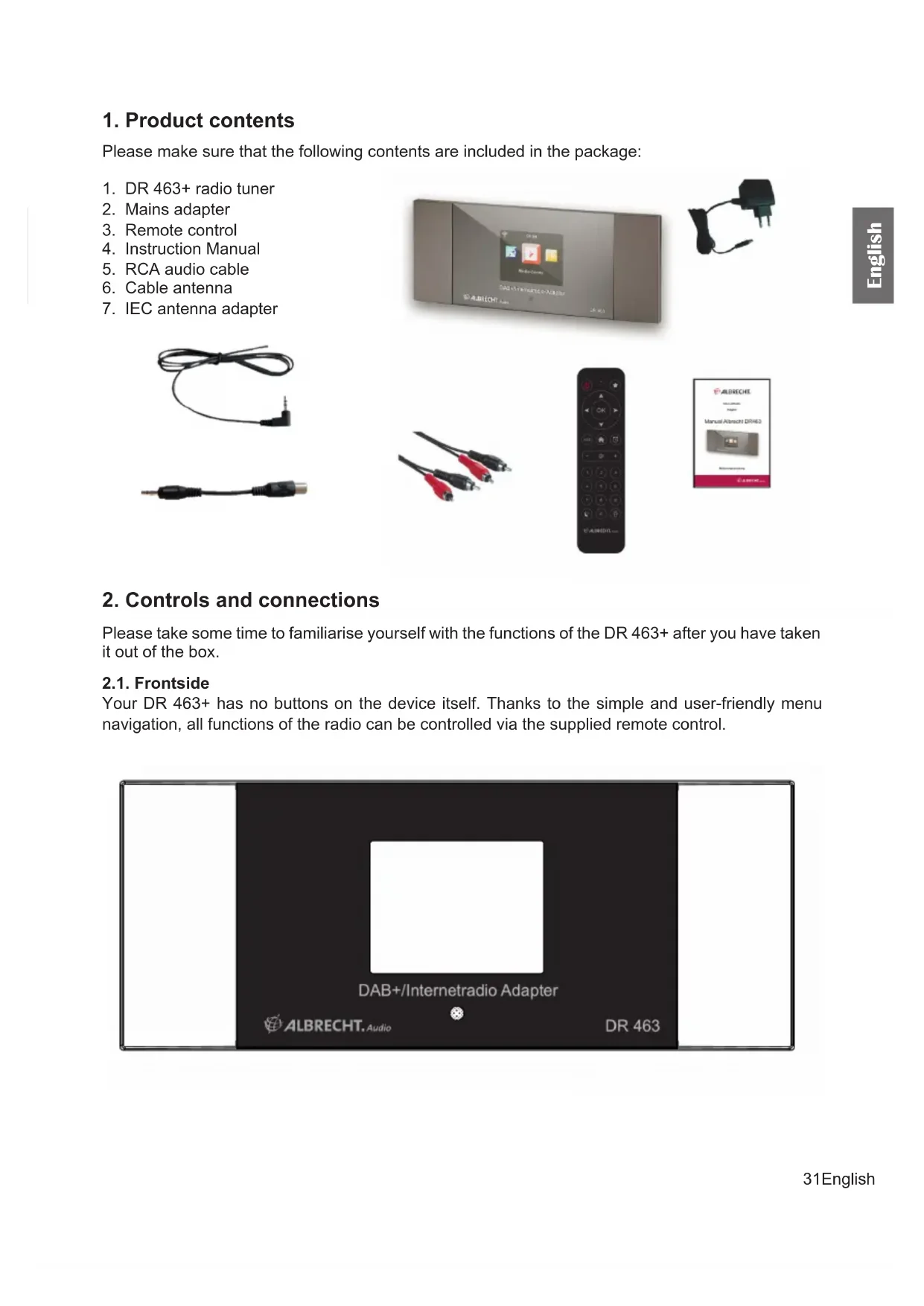

1. Product contents

Please make sure that the following contents are included in the package:

1. DR 463+ radio tuner
2. Mains adapter
3. Remote control
4. Instruction Manual
5. RCA audio cable
6. Cable antenna
7. IEC antenna adapter

2. Controls and connections

Please take some time to familiarise yourself with the functions of the DR 463+ after you have taken it out of the box.

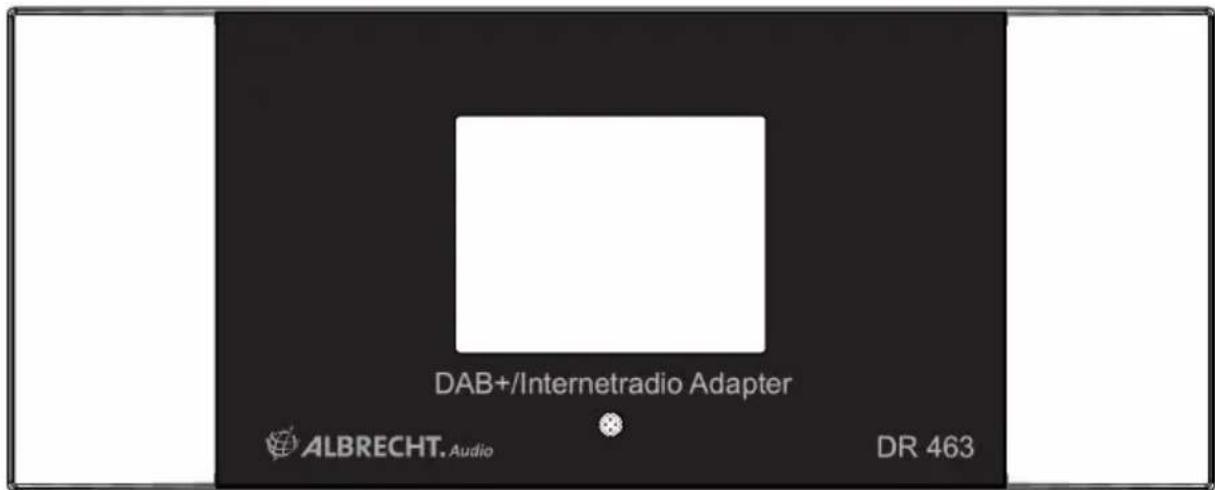

2.1. Frontside

Your DR 463+ has no buttons on the device itself. Thanks to the simple and user-friendly menu navigation, all functions of the radio can be controlled via the supplied remote control.

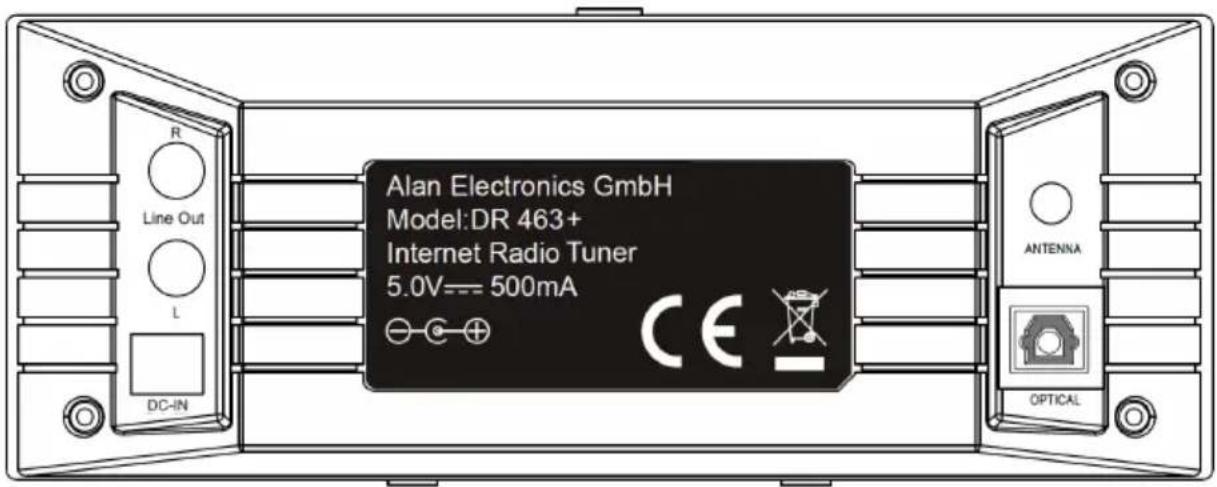

2.2.Backside

The connections of this model are:v

Line-Out: 2 x RCA (stereo)
- DC input: for mains adapter
- Antenna connection: 3.5 mm jack plug
Optical: optical TOSLINK output

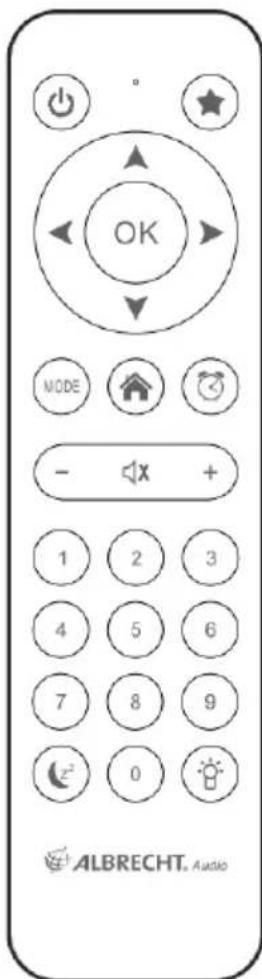

2.3. Remote control

	On/Off Switch device	on and off (standby)
★	Favourites	Show favourites list Long press: Save favourites
▲	Navigation up	Scroll up through menu Enter text
▲	Navigation left Return	to the previous menu
OK	Enter Confirm select	on of a menu option
▲	Navigation right	Confirm selection of option and view submenu
▼	Navigation down	Scroll down through menu Enter text
MODE	MODE	Switch between the modes. Function changeable in the “Button” menu
	HOME View the main	menu
	Alarm View the alarm	menu
-	Volume + Decrease	the volume
	Mute Mute the sound
+	Volume + Increase the volume
0-9	Station memory 0-9	Recall saved stations

	Sleep timer	Select automatic switch-off time Long press: Sleep radio menu
	Dimmer Dim the backlight

To open the battery compartment of the remote control, push the battery compartment open with your thumb. Insert AAA batteries, the polarity is indicated in the battery compartment.

Please dispose of used batteries in an environmentally friendly way.

3. First steps

3.1. Network requirements

Before using the DR 463+ , the following requirements must be met:

• Broadband connection with a wireless access point, router or similar network device.
  The network device must support WLAN (802.11b/g/n) wireless connection.
  If you want to remotely control the DR 463+ via DLNA, you will need a PC or smartphone connected to the same network as the DR 463+.

3.2.Preparing the network

• Establish a WLAN connection as follows:
• Make sure that the WLAN indicator on the wireless access point or router is lit.

Please refer to the corresponding user manual for further information.

Please note: WLAN allows data transmission over short distances up to 20m without cables. Walls or ceilings reduce the range of the WLAN connection. Therefore, place the DR 463+ and/or the access point within this distance as much as possible and avoid obstacles between the devices.

3.3. Navigation through menus

With the button, you can access the main menu of the DR 463+ at any time.

Use the arrow buttons to move through the individual menus. Always confirm a selection with the OK button. Use the button to go to the next menu and use the button to return to the previous menu. The possible buttons are shown at the bottom right and left of the display.

3.3.1. Text entry

When you add the address of an online radio station or your wirless network key, you need to enter text. It is the same procedure to set the time, date or the alarm.

To enter upper/ lower case letters, symbols, or numbers:

1. Press the up/down navigation button to select a character from the following:

$$ \begin{array}{l} A a B b \dots Z z \% & # _ ^ {\wedge} \sim^ {\prime \prime}, \therefore ?! ^ {*} - + @ < = > {\mid } [ \backslash ] (/ \ 0 1 \dots 9 _ {L E} ^ {D} \ \end{array} $$

1. Press the right navigation button to proceed to the next. Press the enter button when done.

NOTE: When entering numbers the numeric keys on the remote control can also be used.

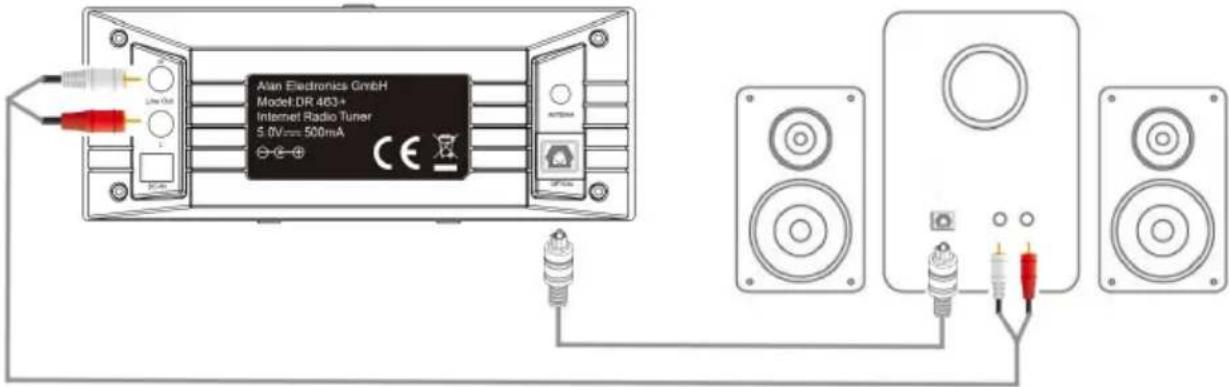

3.4. Connecting to an audio system

Connect the DR 463+ to your existing audio system (e.g. stereo, external speaker, etc.) with the supplied RCA audio cable.

For a digital connection, use an optical TOSLINK cable. You can use both connections in parallel. You can also connect speakers and headphones wirelessly (see „13.20. Bluetooth" on page 52).

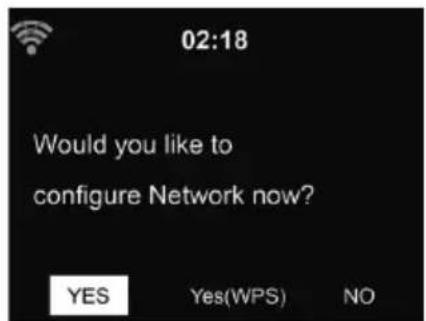

3.5. Getting started

Connect the mains adapter to the back of the DR 463+ and connect the mains plug to an electrical outlet. Connect the supplied antenna to the antenna input on the back. Alternatively, connect your antenna system/indoor antenna with the supplied antenna adapter.

When using the device for the first time, please select a language and a wireless network.

See Section 13.3 Network for detailed network configurations.

You can set the network connection at the first start or later.

Alternatively you can set the network configurations also through the „AirMusic Control" app.

• Press (On/Off) to enter standby mode. The time, date and active alarms are shown on the display.

• If you have set up the network connection and use the DR 463+ again within the network, the connection will be established automatically. If you would like to change the network, call up Settings to change the corresponding connection.
• Enter the network password using the keypad on the remote control or via and . If the desired character is displayed, press to navigate to the next entry. At the end of the input, press OK to confirm. Alternatively, press to navigate to the previous entry.

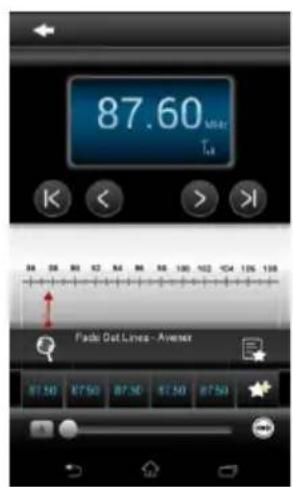

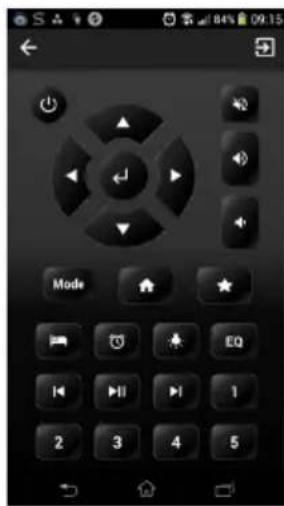

3.6. AirMusic Control App

The DR 463+ can be controlled with your smartphone via WiFi. It is recommended to use the AirMusic Control App. Additionally to controlling the radio, the app is able to play the smartphone's music files on the DR 463+. Due to frequent updates of the app the manual is only available online. Please visit www.alan-electronics.de and enter the article number 27463 into the search. You will find the

DR 463+ product page. On the tab Downloads you will find the AirMusic Control Manual. The app itself is available for Android and iOS. It can be downloaded from here:

Apple iOS

Android

4. Main menu

In the main menu you can select the following modes: Internet Radio, Media Center, Spotify Connect, FM (Wi-Fi), DAB+ (Wi-Fi), Configuration and My mediaU (if activated, see chapter 6 My mediaU).

5. Internetradio

The DAB radio mode receives DAB/DAB+ digital radio and displays information about the station.

To switch to Internetradio-mode, press H , select Internet Radio and confirm with OK. After connecting any station, the bit rate and the format of the station are displayed on the playing screen. In the station list each radio station is displayed with their logo.

5.1. My Favorite

Create a list of your favorite preset stations. It supports 250 favorite entries including stations and folders.

To store a station, press and hold and select the required memory with / and confirm with OK. You may replace a previous saved station with a new one.

You can also save the station to your favorites while scrolling through the station list. When the station is highlighted you can press to enter this menu where you can add the station to your favorites.

If the selected station has been saved, you cannot save it again.

In the preset station list, move to your station, press OK to listen. You may also press to enter its submenu to Delete, Shift Up/Down (move station to a different memory slot), Rename or Play.

5.2. Station/music

Stations are categorized into Global Top 20, Genre and Country/Location. Enter to continue the subcategories and choose a station to listen.

For each station, press OK to play directly. You may press to enter its submenu - you can Add to Favorite, Auto Scan or Play.

When you choose Auto Scan, the radio introduces every station in the list by playing it for 30 seconds. This is stopped when every station is played or you press the OK button.

5.3. Lokal Station

In this menu all stations of your local area will be displayed. You can set the local radio setup as described in chapter 12.15. In the default setting the radio recognizes your location automatically.

5.4. Sleep radio

Select this option if you want to hear relaxing background sounds to fall asleep. You have a choice between:

Birds
Piano
- Spa (relaxation)
- Universe
Wave (sea noise)

By pressing and holding the sleep timer button (only possible in Internet radio mode!), you can go directly to the menu. If the device switches off automatically, the sleep timer must also be activated, see Chapter 13.12 Sleep timer.

5.5. History

Shows you a list of last listened stations. It can save up to 10 history stations.

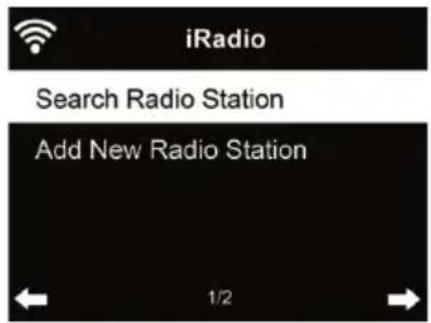

5.6. Service

Search radio station - Enter your keyword to search radio station from the list. Add new radio station - The added stations will be stored in My Favorite.

Tips: Loading the data from the server can take several seconds, especially if the WLAN connection is poor, as long as blank appears on the display.

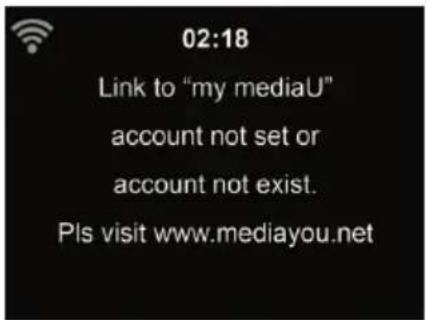

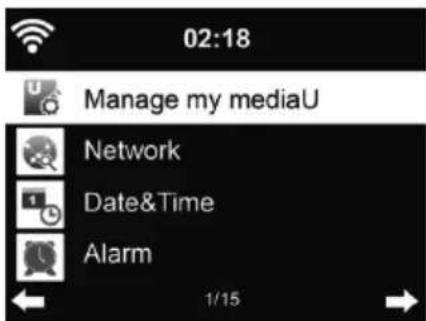

6. My mediaU

Display and playback your own mediaU station list on the mediaU server. Set your account first.

To activate your own station list, follow the steps below:

1. Access http://www.mediayou.net/
2. Join my mediaU membership
3. Login to the website
4. Enter the wireless MAC addresses of DR 463+ to the mediaU website. This information can be obtained in Information Center > System Information > Wireless Info
5. After successfully configuring, you are able to save and view your own mediaU station playlist(s).Username and password are not required to enter to DR 463+
6. If there are different accounts stored in DR 463+, you can choose the one you currently use under Configuration menu.

After registration please turn off the radio and log in again.

Each time you have made any updates on the playlist from the website, go to Configuration

If enabled, My mediaU is displayed in the main menu.

If there are several mediaU accounts for the DR 463+, select the default account with which you want to log in. See Chapter 13.2 Manage my mediaU for more information about mediaU account setup.

7. DAB/DAB+ radio

The DAB radio mode receives DAB/DAB+ digital radio and displays information about the stations. To switch to DAB mode, press select DAB radio and confirm with OK.

For the best playback quality, the antenna must be aligned in such a way that the highest signal strength and thus the best sound quality are achieved on the display. The icon at the top left of the display shows the strength of the received transmission signal.

7.1. Scanning for stations

The first time you select DAB radio mode the DR 463+ automatically performs a full scan to see what stations are available.

Once the scan is complete, the radio shows a list of available stations. If you want to perform another DAB station search later, press the button twice. If you want to overwrite the old station list, select Yes. Select No to add new stations to the old station list or ESC to not perform a search.

7.2. Searching for and selecting stations

To switch to the next/previous station, press / on the remote control during music playback. Alternatively, you can go to the complete station list with . Here you can see an overview of all available stations and select a desired station.

7.3. Station information and slideshow

Use the button to switch between the station information and the slideshow.

• Station name
  Radio text (DLS)
  Genre
• Sampling rate and bit rate
• Signal strength
• Channel/frequency
• Multiplex name

7.4. Save favourites

To store a station, press and hold and select the required memory with / and confirm with OK.

7.5. Viewing favourites

To view a favourite, press , select the desired station with / and confirm with OK. Or just use the numeric keypad.

In the favourites list, press the button to go to a menu to delete or move the saved station. Saved stations cannot be saved again.

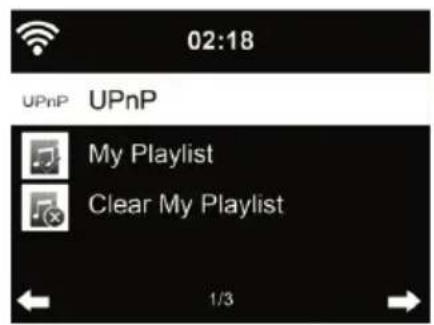

8. Media centre

With the DR 463+, you can play music tracks using UPnP or DLNA. The difference between the two technologies lies in the direction of access.

The UPnP server can be accessed from the DR 463+ and its music will be played back. Control and navigation are done by the DR 463+.

With DLNA, playback can be started on a PC, for example, and the DR 463+ is only selected as a playback device.

8.1. UPnP

To enjoy music streaming from your PC, the following steps are to be done on the PC:

• Connect the PC to the network.
• Ensure the DR 463+ is powered on and connected to the same network.
• Open the UPnP platform Windows Media Player (11 or later). Alternatively, other platforms or server such as Windows Media Connection may be used

• Allow to share your media to ALBRECHT DR 463+ zu.

Add the audio files and folders you want to share with DR 463+ to the media library.

You may also enjoy the streaming music from other music server, such as smart phone (Android platform):

• Connect the mobile to the network
• Search and install media sharing apps from Google Play.
• Add the audio files from your mobile you want to share.

After setup the shared server, choose the music and control playback on the DR 463+.

If you have set up shared media, you should see the shared media from UPnP. If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.

In the main menu, select Media Center and choose UPnP. It may take a few seconds for the radio to complete the scan for available UPnP servers, especially when the WiFi connection is bad. If no UPnP servers are found, it will show Empty. After a successful scan is done, select your UPnP server.

The radio will show the media categories available from the UPnP server, e.g. 'Music', 'Playlists' etc. Choose the media files that you wish to play.

Press / / / on the remote control and OK to play or stop. to stop or play. Press to view the display information of the playing track.

Tips: The radio can only read the track of file names with less than 40 characters. And the characters should be in European language. If you encounter failure of reading the track under UPnP mode, you may try to rename the file.

However, if the track is still unable to play, you can try converting the file to a different format.

8.1.1. My Playlist

You can create a playlist of favorite music from UPnP. When you play the music, press and hold OK to save it into My Playlist.

8.1.2. Clear My Playlist

You can delete all tracks from the playlist

8.2.DLNA

The default device name for DLNA is "ALBRECHT DR 463+". Alternatively, you can customise the name individually (see Section 13.18 DLNA-Setup).

See Chapter 8.1 UPnP for information on how to set up media streaming from your PC or other media servers. Also take a look at the instructions of your software or app.

The music files must be in MP3/AAC/AAC+/WMA/FLAC 32kbps->320kbps format for streaming via the DR 463+.

9. Bluetooth

To switch to Bluetooth mode, press and select Bluetooth.

Then enable Bluetooth on your mobile device (e.g. smartphone, tablet, etc.), search for active devices and connect the DR 463+.

If the radio is successfully connected, music can now be streamed to the DR 463+.

Press and hold the OK button for 3 seconds to open a list with all paired Bluetooth devices. You can easily switch between the devices by selecting one with OK.

During Bluetooth playback additional information like the album cover, singer, song, etc. are displayed. You can also view a list with all connected Bluetooth devices (up to 8).

10. FM radio

The FM radio mode receives analogue radio in the FM band and displays information from the station if it is sent via RDS. For the best playback quality, the antenna must be aligned in such a way that the highest signal strength and thus the best sound quality are achieved on the display. The icon at the top left of the display shows the strength of the transmission signal received from the device.

10.1. Setting the station

To switch to FM mode, press and select FM.

Press / to search for FM stations. The search is interrupted as soon as a station is received.

Press / to set a station manually. Each search step is 0.05MHz .

The radio can also perform a complete station search and save all found stations in the favourites. Simply press OK in FM mode to start the complete station search.

10.2. Favourites

Press and hold to save the station until you enter the memory mode. Use / to navigate to the memory location where you want to save the station and confirm with OK. Alternatively, you can also press and hold a number on the numeric keypad of the remote control to save the station directly.

Up to 20 stations can be saved. To view a favourite, press select the desired station from the list with / and confirm with OK. Alternatively a saved station can be recalled directly via the numeric keypad.

11. Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify. Go to Spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/ third-party-licenses

With Spotify, you have millions of songs at your disposal: your favourite artists, pre-made playlists for every mood, the latest hits, and music recommendations tailored to you.

The Spotify Connect feature lets you play and control music wirelessly on your radio. Select the music you like on your smartphone, tablet or PC and play it over the radio.

11.1. How to use Spotify Connect

In the Albrecht DR 463+ adapter the Spotify Connect function is already integrated. This allows you to control the music you play on the radio via the Spotify app on your smartphone, tablet or PC.

While connected, you can answer phone calls in parallel, watch videos, or simply turn off your smartphone without interrupting the music. This makes listening to music even more fun.

42 English

12. Information centre

12.1. Weather Information

There are weather information and forecasts for over 5000 cities. Select the country and then the city for the weather details.

Press / to see the weather forecasts.

It is able to display the weather information on the standby mode. On the weather information page, press OK to set the city to displaying on the standby mode. Then turn on the weather display as mentioned in 12.13..

12.2. Financial Information

View the stock index from around the world.

12.3. System Information

Check out the version of the system, and the details of connected network. The information includes MAC address which you are required to fill in when registration of my mediaU membership.

12.3.1. SW version

The software version of the device is displayed here.

12.3.2. Radio network info

It displays the following information:

• Status (WLAN)
• MAC address
• SSID (router)
• IP address
• Subnet
• Gateway
  DNS1
  DNS2

13. Settings

13.1. Time Display

Choose the style of clock during standby mode: Analog or Digital.

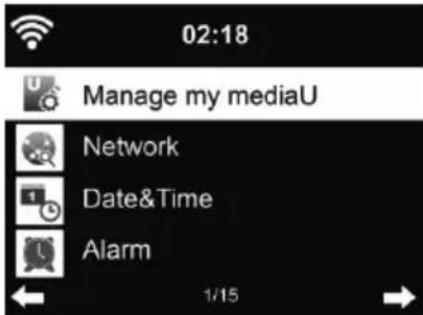

13.2. Manage my mediaU

When it is enabled, My mediaU will be shown in the main menu.

If various mediaU accounts exist in the DR 463+, Select the default login account in here. Refer to chapter 11 for more information of mediaU account setup.

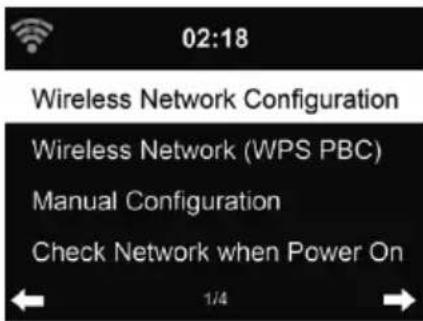

13.3. Network

13.3.1. Wireless Network Configuration

Enable / disable WiFi network. When you enable the WiFi network, the system will automatically connect to the network

Select your required AP.

Enter WEP or WPA code to connect the WiFi.

If you would like to change/correct an entry, press to correct.

13.3.2. Wireless Network (WPS)

If you are using a router with WPS/QSS button, you may set up the network connection simple via WPS function. Enter it and go to press the WPS/QSS button on your router within 120 seconds. The connection between the router and the DR 463+ will then be configured automatically.

13.3.3. Manual Configuration

You can choose DHPC (which IP assigned automatically) or manually input IP address for wireless network connection.

When you select manual setting for wired connection, the followings have to be entered:

1. SSID (the name of Access Point);
2. IP Address;
3. Subnet Mask;
4. Default Gateway;
5. Preferred DNS Server;
6. Alternate DNS Server.

You may choose (Manage) specific network if you have setup more than one network connection within an area.

13.3.4. Check Network when Power On

"Enable / disable WiFi network":

When you enable the WiFi network, the system will automatically search the available AP. Select your required AP.

Enter WEP or WPA code to connect the WiFi.

If the wireless network connection is not existed or failed, the icon at the top left corner will have a cross on it.

13.3.5. Configuration by AirMusic Control app

Please follow the instruction in the app for further details.

13.4. Date & Time

• Press Set Date and Time between Manual Setup and Auto Detect. When Auto Detect is chosen, the time is determined automatically, therefore deleted point 4 (DST)
• Setup the date and time
• Set time format display as 12 Hour or 24 Hour (default). Only for manual setup required.
• Set date format in the positions of YY (year), MM (month) and DD (day) - YY/MM/DD, (default) or MM/DD/YY.
• Turn on/off (default) the Daylight Saving Time (DST).Available only on manual setup
• Select the color of the displayed time (Blue/Green/Orange/Red/White)

With a wireless network connected, GMT (+00:00) time is a time reference of time setting. Add or deduce the hour according to your time zone when you set the time.

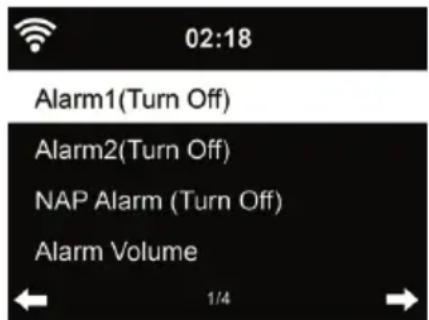

13.5. Alarm

You can choose between 2 regular alarms (Alarm 1 and Alarm 2) or the NAP Alarm in this menu. Press on the remote control to enter the menu directly.

To set Alarm 1 or Alarm 2, press and turn it on. Now choose the frequency (daily, once or on specific days of the week, e.g. Monday to Friday). Next choose the desired alarm source: Beep tone, Melody, Internet Radio, FM Radio or DAB/DAB+ Radio. Afterwards you can leave the settings by pressing

At the time of the alarm the radio connects to the Internet if the set network is available. Therefore there may be some delay before the radio starts playing your station. If no network connection is established within one minute, the alarm will change automatically to Melody.

If the NAP alarm is activated, it alarms once after 5/10/20/30/60/90/120 minutes depending on which one you have set.

You may choose Alarm Volume to configure the volume of the alarms. During the alarm the volume will increase automatically up the set value (Crescendo function).

When the alarm(s) is/are set, there will be a clock icon at the top of the display. The clock icon with alarm time will also be displayed on the standby screen.

During alarm, press any key to enter snooze mode. It will alarm again in 5 minutes. Press the key to stop the alarm.

13.6. Timer

Press / to set the timer, press OK to start. The timer will count down and beep sound when it reaches 00:00. To cancel the timer, enter the timer screen and press OK again. When the timer is running, you can change the mode, the remaining time is then displayed in the top right of the display.

13.7. Scheduled Playing

This function allows to automatically play the radio at a scheduled time.

Turn on the function and select how often you want to repeat it (daily, once or only on specific week days). Then select the scheduled start and stop time and decide which mode (Internet, DAB or FM radio) should be played.

13.8. Language

Select the OSD language: English / Deutsch / Espanol / Français / Portugues / Nederlands / Italiano / P核酸检测 / Svenska / Norsk / Dansk / Magyar / Cesky / Slovenský / Polski / Türkei / Suomi, Greek.

13.9. Dimmer

Configure the brightness of backlight on the display.

If you select Power Saving you can select the level to which the display is dimmed down when the radio enters the Standby mode or when the radio gets no key input for 15 seconds.

The Turn On options keeps the display illumination always on. If you select it you can choose how bright the display shall be.

See below table how the Dimmer settings will affect the screen illumination:

Choice Brightness level On Playing On		Standby
Power Saving As you set		After 15s, the screen brightness switches to Power saving brightness level you set	After 15s, the screen brightness switches to Power saving brightness level you set
Turn On As you set		The screen stays always on the set brightness level	After 15s, the screen brightness switches to Power saving brightness level you set

13.10. Display

Choose the style of display: Color or Monochrome

13.11. Power Management

Choose the power management timer (5/15/30mins) to set the duration of the radio to switch to the standby mode automatically when no network connection is available.

Choose "Turn off" to ignore the power management function.

13.12. Sleep timer

Turn off or set the sleep time to 15/30/60/90/120/150/180 minutes. Once the time is set, there will be a bed icon with remaining minutes at the top right corner. The DR 463+ will shut down once the time runs out. Press Sleep on the remote control for the shortcut of this function. Pressing and holding the button calls up the sleep radio, see Chapter 5.4 Sleep radio

13.13. Buffer memory

Configure the buffer time of the music playback, 2/4/8 seconds.

13.14. Weather

DR 463+ is able to display current weather information under standby mode. Turn on Show on Standby and set Temperature Unit (^ or ^ F) to get the weather displayed at the standby mode. When it is turned on, the display will switch between time and weather while being in standby mode.

13.15. DAB/FM Setup

Choose Mono/Stereo and enable/disable threshold.

13.16. Local Radio Setup

There is a shortcut Local Radio under Internet Radio (see section 8.2 DLNA) so that you can easily go to the station list of your location.

You may Manual Setup your location, or let the system Auto Detect your current location. The system detects the location according to the IP address of your connected network.

13.17.Playback Setup

Select the playback mode of media center - Off (no repeat or shuffle), Repeat all, Repeat one, or Shuffle.

13.18. DLNA-Setup

The default device name for DLNA is ALBRECHT DR 463+. You may rename it for DLNA setup on the PC or mobile.

13.19. Equalizer

Default equalizer is Rock, you may change to Normal, Jazz, Flat, Soundtracks, Classical, Pop, or News.

13.20. Bluetooth

Here you can configure the Bluetooth mode. In receiver mode (Rx), the DR 463+ can receive and play back audio from other devices (e.g. smartphone).

In transmit mode (Tx), audio can be transmitted from the DR 463+ (e.g. DAB+ radio) to a Bluetooth speaker or headphone. After selecting this mode, the DR 463+ automatically searches for visible Bluetooth devices. Consult the instructions for your device to set it to pairing mode beforehand.

If a Bluetooth loudspeaker is connected to the DR 463+ , its audio output can be deactivated/activated in the new menu point „Tx Speaker".

13.21. Resume When Power On

The system is default set to resume internet radio playback if you were listening to internet radio or media center before switch off the unit. If you turn this setting off, the system will start in the main menu when switching on the unit.

13.22. Software-Update

Update software. If there is an updated software version on the server, the system will notify you when you return to the main menu.

13.23. Factory Reset

Restore the default settings.

After DR 463+ is reset, the system will move to Language setting menu. And it will automatically turn to Network setting menu once the OSD language is selected

14. Troubleshooting

Error Remedy
The device does not switch on. 1.	Check if the power adaptor is connected properly. 2. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
No sound 1. Turn on the sound as	it may be muted 2. Increase the volume.
No network connection can be established.	1. Check the WIFI function. 2. Try to set an IP address at the device. 3. Activate the DHCP function on the router and make the connection again at the device. 4. A firewall is activated on the network - set the respective program in such a way that access is possible. 5. Reboot the unit to try.
WIFI connection cannot be established.	1. Check the availability of WIFInetwork on the access point. 2. Place the device closer to the router. 3. Make sure the WEP/WPA password is correct.
No station is found. 1. Check the	network as well as the access point and firewall. 2. The station may not be available currently, try it again later or select another station. 3. The link of the station is changed or the station no longer transmits - ask the provider for information. 4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in DAB/FM mode. 1. Check	move the DAB/FM antenna. 2. Move the radio to a different location. 3. Please check if the radio is close to other electrical sources and therefore under influence of interferences
Alarm does not work. 1. Switch on	the alarm. 2. Due to the volume setting, refer to the solutions of "No sound". 3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
Unable to do DLNA streaming. 1.	Check the connection of the network. DR 463+ and your device need to be in the same network; and test if the network in good condition. 2. Make sure the settings on your device are correct.
System freezes suddenly. 1. The	radio is overloaded, reboot the unit. 2. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

15. Specifications

Model number DR 463+
Description Radioadapter with Internetradio	io/DAB+/Bluetooth
Display 2,4“/320 x 240 TFT-color display
Network supported IEEE802.11b/g/n (WIFI)
WIFI key WEP, WPA, WPA2 (PSK) and WPS
Frequency band / Transmission power 24	12 - 2472 MHz, 100 mW 2402 - 2480 MHz, 10 mW
Streaming UPnP, DLNA
Supported playback formats MP3/AAC/AA	AC+/WMA/FLAC 32kbps => 320kbps
Power Adapter	5V/500mA
Standby mode power consumption	< 1 W
Operating temperature	0 °C - 35 °C
Connectors	DC IN power supply socket LINE OUT (RCA) Antenna socket (3.5 mm) Optical TOSLINK port
Dimensions	190 mm (W) x 75 mm (H) x 40 mm (L)
Weight	260 g

16. Important Safety Notes

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

• Read and keep these instructions.
  Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
  Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments / accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus.
• Do not overload wall outlet. Use only power source as indicated.
• Use replacement parts as specified by the manufacturer.
• The product may be mounted to a wall only if recommended by the manufacturer.
• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

17. Warranty and Recycling Information

We are legally obliged to include disposal and warranty information as well as EU declaration of conformity with the use instructions in different countries for every unit. Please find this information on the following pages.

2-Year Warranty from Date of Purchase

The manufacturer/retailer guarantees this product for two years from date of purchase. This warranty includes all malfunctions caused by defective components or incorrect functions within the warranty period excluding wear and tear, such as exhausted batteries, scratches on the display, defective casing, broken antenna and defects due to external effects such as corrosion, over voltage through improper external power supply or the use of unsuitable accessories. Defects due to unintended use are also excluded from the warranty.

Please contact your local dealer for warranty claims. The dealer will repair or exchange the product or forward it to an authorized service center. You can also contact our service partner directly. Please include your proof of purchase with the product and describe the malfunction as clearly as possible.

WEEE and Recycling

The European laws do not allow any more the disposal of old or defective electric or electronic devices with the household waste. Return your product to a municipal collection point for recycling to dispose of it. This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials.

Service Address And Technical Hotline (for units sold in Germany)

Contact our service hotline by phone [phone] (regular costs for German fixed network) or e-mail at [e-mail]

Declaration of Conformity

Hereby, Alan Electronics GmbH declares that the radio equipment type DR 463+ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.alan-electronics.de

Printing errors reserved.

Information in this user manual are subject to change without prior notice.

ALBRECHT

ALBRECHT DR 463+

$$ A a B b...Z z \% \& # _ ^{\wedge} \sim {}^{\prime \prime}, \therefore ?!^{\star} - + @ < = > {} [ \backslash ] (/ ) 0 1...9 $$
