33477 - Slow cooker HAMILTON BEACH - Free user manual and instructions

Brand	Hamilton Beach
Model	33477
Product Type	Slow Cooker with Food Warmer
Power	120 V ~ 60 Hz
Main Functions	Slow cooking (Low, High), Warm mode, timer (2, 4, 6, 8, 10 hours), automatic switch to Warm mode, separate food warmer (on select models)
Pot Capacity	Fill up to 1 inch (2.5 cm) from rim for best results
Temperature Settings	Warm (keep warm) - Do not use for cooking; Low and High
Timer	Selection in 2-hour increments (2, 4, 6, 8, 10)
Maximum Cooking Time	14 hours (cooking + Warm)
Care and Cleaning	Pot and lid dishwasher safe (top rack, no SANI cycle); exterior wiped with a damp cloth
Safety	Do not immerse base; hot surfaces; do not use outdoors; Lid Latch for transport only
Replacement Parts	Available by phone (Canada: 1.800.267.2826)
Warranty	5 years in Canada, 1 year in the United States (defects in materials and workmanship)
Intended Use	Household use only, for preparing and serving food
Warm Mode Temperature	Do not use to cook or reheat; keeps food warm
Pot Precautions	Avoid thermal shock; do not use if chipped or cracked; microwave and oven safe (except lid)

Frequently Asked Questions - 33477 HAMILTON BEACH

How to use the food warmer?

The food warmer is designed only to reheat already cooked food. Do not use it to cook raw food. Plug in the appliance, place hot food in the pot, cover, and unplug after use.

Can I put the slow cooker pot in the microwave or traditional oven?

Yes, the removable pot can go in the microwave and regular oven. However, avoid heating it empty. Never place the glass lid in the oven or microwave.

What if my food is not fully cooked at the end of the cooking time?

Check that you are using the correct temperature setting (Low or High, not Warm). Make sure the lid is properly positioned. Voltage variations or altitude may extend cooking time. Cook longer if needed.

How to clean the slow cooker?

Unplug and allow to cool. Wash the pot and lid in the dishwasher (top rack, normal cycle, not SANI) or by hand with hot soapy water. Wipe the exterior of the base with a damp cloth. Never immerse the base.

Can I use the Lid Latch during cooking?

No, the Lid Latch is designed only to secure the lid during transport or storage. Never use it during cooking.

What is the maximum fill capacity of the pot?

For best results, fill the pot up to 1 inch (2.5 cm) from the rim maximum. If the pot is half full, check cooking 1 to 2 hours before the end of the set time.

Can I leave the slow cooker on all day?

Yes, the timer can be set up to 10 hours, then the appliance automatically switches to Warm mode. The total duration (cooking + Warm) cannot exceed 14 hours, after which the appliance automatically turns off for safety.

How to set the timer and temperature?

Press ON/OFF to turn on. Select the temperature with the TEMP button (Low, High, or Warm). Set the cooking time with the HOURS button (2, 4, 6, 8, or 10 hours). The countdown starts automatically.

What if the appliance does not turn on?

Check that the plug is properly inserted and the outlet works (test with a lamp). If the problem persists, contact customer service at 1.800.267.2826 (Canada) or 1.800.851.8900 (United States).

Can I cook frozen meat in the slow cooker?

No, never use uncooked frozen meat in the slow cooker. Thaw all meat or poultry before slow cooking for food safety reasons.

USER MANUAL 33477 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Hamilton Beach electric cooktop with digital display and side handles (no visible text or symbols on the device itself)

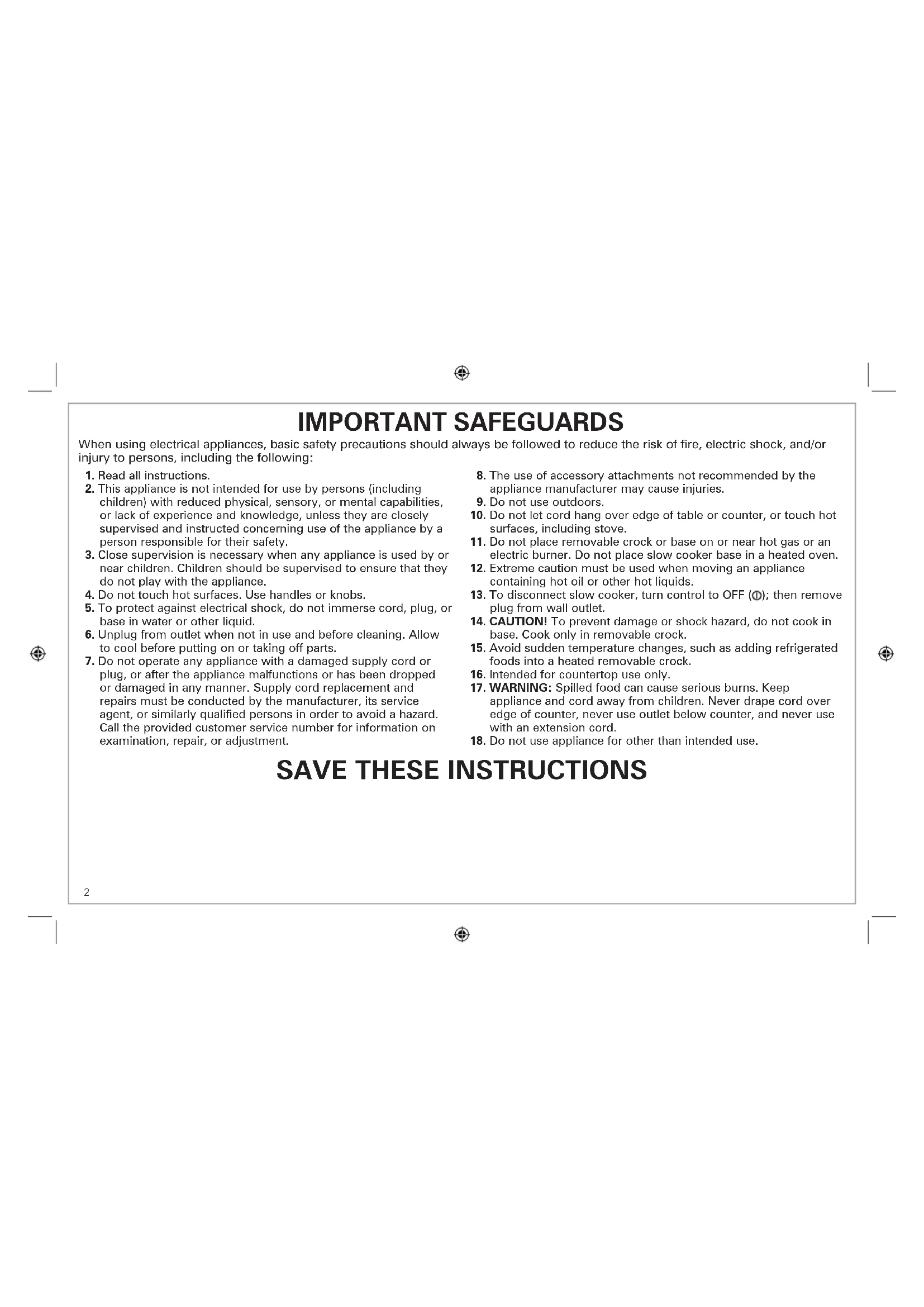

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electrical shock, do not immerse cord, plug, or base in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces, including stove.
11. Do not place removable crock or base on or near hot gas or an electric burner. Do not place slow cooker base in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. To disconnect slow cooker, turn control to OFF (①); then remove plug from wall outlet.
14. CAUTION! To prevent damage or shock hazard, do not cook in base. Cook only in removable crock.
15. Avoid sudden temperature changes, such as adding refrigerated foods into a heated removable crock.
16. Intended for countertop use only.
17. WARNING: Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter, never use outlet below counter, and never use with an extension cord.
18. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

This appliance is only intended for the preparation, cooking, and serving of foods. This appliance is not intended for use with any nonfood materials or products.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

A short power-supply cord is used to reduce the risk resulting from it being grabbed by children, becoming entangled in, or tripping over a longer cord.

CROCK AND LID: PRECAUTIONS AND INFORMATION

• Please handle crock and lid carefully to ensure long life.
• Avoid sudden, extreme temperature changes. For example, do not place a hot lid or crock into cold water, or onto a wet surface.
• Avoid hitting crock or lid against faucet or other hard surfaces.
• Do not use crock or lid if chipped, cracked, or severely scratched.
• Do not use abrasive cleansers or metal scouring pads.

• The bottom of the crock is very rough and can damage the countertop. Use caution.

• The crock and lid can become very hot. Use caution. Do not place directly on any unprotected surface or countertop.

• The crock is microwave-safe and oven-proof, but never heat crock when empty. Never place crock on a burner or stove top.
• Do not place lid in a microwave oven, conventional oven, or on stove top.

REMOVING LID AND CROCK

When removing lid, tilt so that opening faces away from you to avoid being burned by steam.

The sides of the slow cooker's base get very warm because the heating elements are located here. Use handles on base if necessary. Use oven mitts to remove crock.

Parts and Features

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Lid Holder*

Line drawing of a rice cooker with lid and side handles (no text or symbols)

Lid Holder With Cord Wrap

Line drawing of a rice cooker with lid and side panel (no text or symbols)

Lid Latch™*
(on select models)

Glass Lid*

(Lids may vary in appearance

depending on model.)

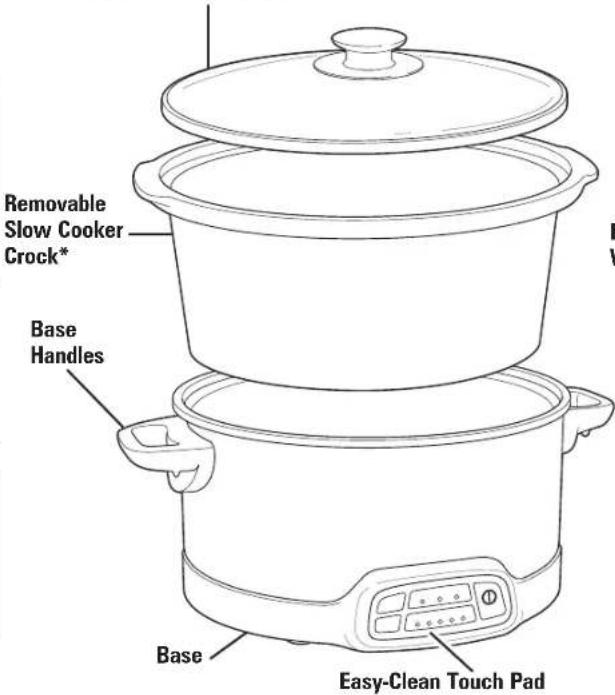

Removable Slow Cooker Crock* Base Handles Base Easy-Clean Touch Pad

Crock Capacity: For best results, fill crock at least half full but no more than 1 inch (2.5 cm) from rim. If only half-filled, check for doneness 1 to 2 hours earlier than recipe time.

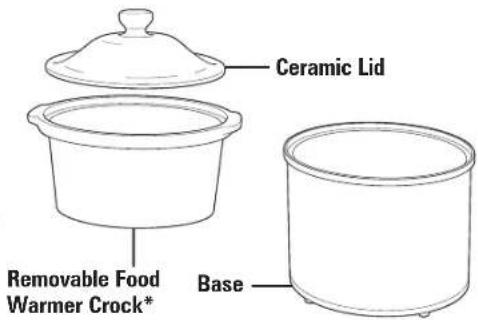

Food Warmer (on select models)

Ceramic Lid Removable Food Warmer Crock* Base

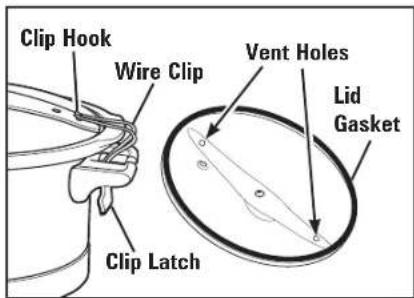

Clip Hook Wire Clip Vent Holes Lid Gasket Clip Latch

Chrome-Plated Wire Clips (for latching lid)
a select models) Handles shown with wire clips
ed in place for transporting only. Do not cook or
store with lid clamped down.

4

©

How to Use Slow Cooker

BEFORE FIRST USE: Wash glass lid and removable crock in hot, soapy water. Rinse and dry.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

1. Plug into outlet.

TEMP HOURS 2 1, 6 8 10 OFF

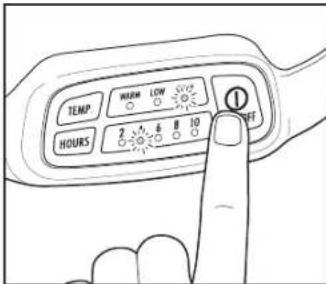

1. Turn unit on by pressing ON/OFF (① button. The unit will automatically default to a cooking time of 4 hours on HIGH.

TEMP WALM HIGH HOLD 2 4 6 8 10 ON/OFF

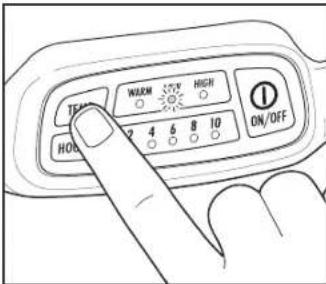

1. Select desired cooking temperature by pressing TEMP button. NOTE: Do not use WARM setting to cook or reheat food.

TEMP. WARM LOW HIGH ON/OFF 2 4 6 10

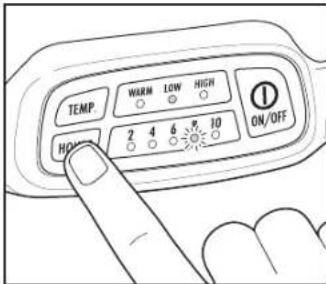

1. Adjust cooking time by pressing HOURS button. 2, 4, 6, 8, or 10 hours can be selected. Cooking time will then count down in 2-hour increments. Visit www.foodsafety.gov for more information on safe internal cooking temperatures.

NOTES:

• Cooking temperature and selected cooking hours function independently of one another and either may be changed at any time. When a new cooking time is selected, unit will reset to count down from new number of hours chosen.
• As a safety precaution, unit will not stay on for more than 14 hours of continuous cooking and warming time and will also shut off automatically.

Selected cooking time will glow for 2 hours. When 2 hours are finished, next 2-hour light will glow and continue countdown until cooking time is complete.

At end of cooking time, slow cooker will automatically switch to WARM setting. NOTE: Cook time plus warm time cannot exceed 14 hours. When unit switches to WARM, light glows to show how much time is remaining of 14 hours.

How to Use Food Warmer

BEFORE FIRST USE: Wash lid and crock in hot, soapy water. Rinse and dry.

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the insertion direction (no text or symbols present)

1. Plug into outlet.

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

1. Add hot food to food warmer crock.

Simple line drawing of a lid pouring liquid into a pot (no text or symbols)

1. Place crock into base and cover.

⚠ WARNING Food Safety Hazard. Food must be hot enough to prevent bacterial growth. This is a food warmer and is NOT a slow cooker. Food warmer must NOT be used to warm uncooked or undercooked foods. Food warmer should only be used to warm recipes involving thoroughly cooked ingredients. Visit foodsafety.gov for more information.

Diagram showing a cable being inserted into an electrical outlet, with no text or symbols present.

1. When finished using, unplug.

Care and Cleaning

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

1. Unplug.
2. Remove crock with oven mitts. Let cool.
3. Crocks and lids are top-rack dishwasher-safe. DO NOT use "SANI" setting when washing in dishwasher. "SANI" cycle temperatures could damage your product.
4. Wipe outside of appliance with a soft, damp cloth.

How to Use Lid Latch™

Lid Latch ^™ helps secure lid while moving, transporting, or storing slow cooker. Do not use Lid Latch ^™ while cooking.

Line drawing of a rice cooker with control panel and digital display (no text or symbols)

1. Place latch under one handle. Stretch to other side and secure under other handle.

Line drawing of a rice cooker with control panel and side handles (no text or symbols)

1. Once attached, latch can also be crossed over knob to further secure lid.

Tips for Slow Cooking

• Removable crock should be at least half-filled for best results. If only half-filled, check for doneness 1 to 2 hours earlier than recipe.
• Stirring is not necessary when slow cooking and removing glass lid results in major heat loss and cooking time may need to be extended. However, if cooking on High, you may want to stir occasionally.
• If cooking soups or stews, leave a 2-inch (5-cm) space between top of removable crock and food so recipe can come to a simmer.

• Many recipes call for cooking all day. If your morning schedule doesn't allow time to prepare a recipe, prepare it the night before. Place all ingredients in removable crock, cover with lid, and refrigerate overnight. In the morning, simply place removable crock in slow cooker.

• Some foods are not suited for extended cooking in a slow cooker. Pasta, seafood, milk, cream, or sour cream should be added 2 hours before serving. Evaporated milk or condensed soups are perfect for slow cooking.

• Higher fat content of meat, less liquid is needed. If cooking meat with a high fat content, place thick onion slices underneath so meat will not sit on (and cook in) fat.
• Slow cookers allow for very little evaporation. If making your favorite soup, stew, or sauce, reduce liquid called for in original recipe. If too thick, liquid can be added later.
• If cooking a vegetable-type casserole, there will need to be liquid in recipe to prevent scorching on sides of removable crock.

Food Safety Tips

• Do not use frozen, uncooked meat in slow cooker. Thaw any meat or poultry before slow cooking.
• Visit www.foodsafety.gov for more information on safe internal cooking temperatures.
• To store leftovers after cooking, do NOT place entire removable crock in refrigerator since contents will take too long to cool. Instead, divide leftovers into smaller containers and place into refrigerator.

- Never allow undercooked or raw meat to sit at room temperature in slow cooker. Once meat is placed into removable crock, it should be cooked immediately (unless prepping slow cooker the night before, where crock should be placed into refrigerator).

Troubleshooting

Cannot select TEMP and/or HOURS settings.

• Is unit plugged in?
• Test that the electrical outlet is working with a lamp in known working order.

Food is undercooked.

• Was food cooked on Warm setting? Do not cook on Warm setting; always cook on Low or High heat settings.
• Did you select Low heat setting, but used a cooking time based on High heat setting?
• Did you have the glass lid placed correctly on slow cooker?
• Was food cooked in the food warmer? Do not use food warmer to cook food.

Food isn't done after cooking amount of time recommended in my recipe.

- This can be due to voltage variations (which are commonplace everywhere) or altitude. Slight fluctuations in power do not have a noticeable effect on most appliances. However, they can alter cooking times in slow cooker by extending cooking times. Allow sufficient time and select appropriate heat setting. You will learn through experience if a shorter or longer time is needed.

My meal was overcooked. Why?

• Was removable crock at least half full? The slow cooker has been designed to thoroughly cook food in a filled removable crock. If removable crock is only half-filled, check for doneness 1 to 2 hours earlier than recipe time.
  • Did you select hours based on a Low heat recipe?
• Foods will continue to increase in temperature after desired temperature has been reached.

Notes

10

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
