USER MANUAL MultiGrill 25600 HAMILTON BEACH

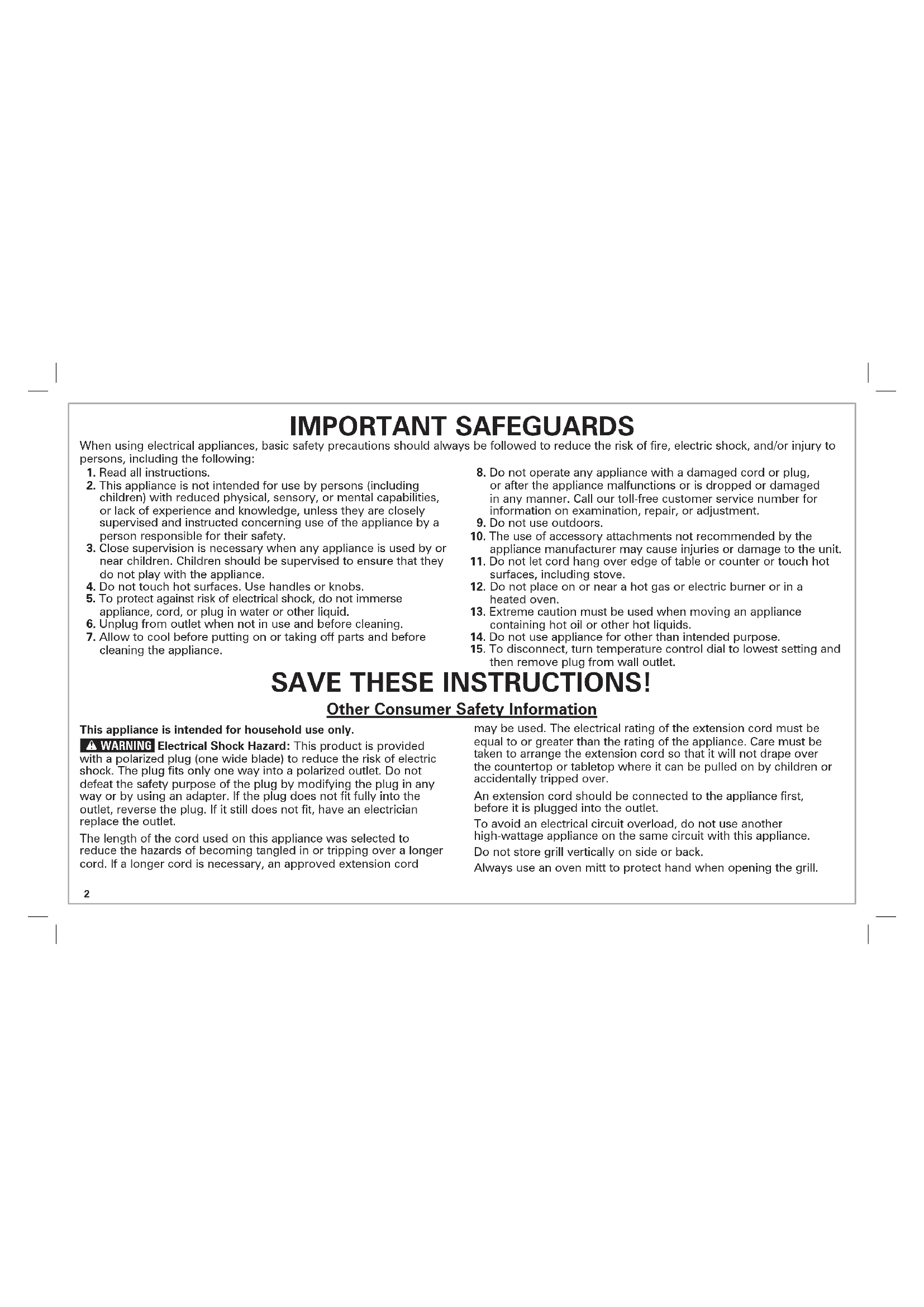

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or

near children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs.

5. To protect against risk of electrical shock, do not immerse

appliance, cord, or plug in water or other liquid.

6. Unplug from outlet when not in use and before cleaning.

7. Allow to cool before putting on or taking off parts and before

cleaning the appliance.

8. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

9. Do not use outdoors.

10. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries or damage to the unit.

11. Do not let cord hang over edge of table or counter or touch hot

surfaces, including stove.

12. Do not place on or near a hot gas or electric burner or in a

13. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

14. Do not use appliance for other than intended purpose.

15. To disconnect, turn temperature control dial to lowest setting and

then remove plug from wall outlet. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This product is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. An extension cord should be connected to the appliance first, before it is plugged into the outlet. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance. Do not store grill vertically on side or back. Always use an oven mitt to protect hand when opening the grill.3 Kickstand Parts and Features Handle Lid Top Plate Release Button Drain Spout *To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico:

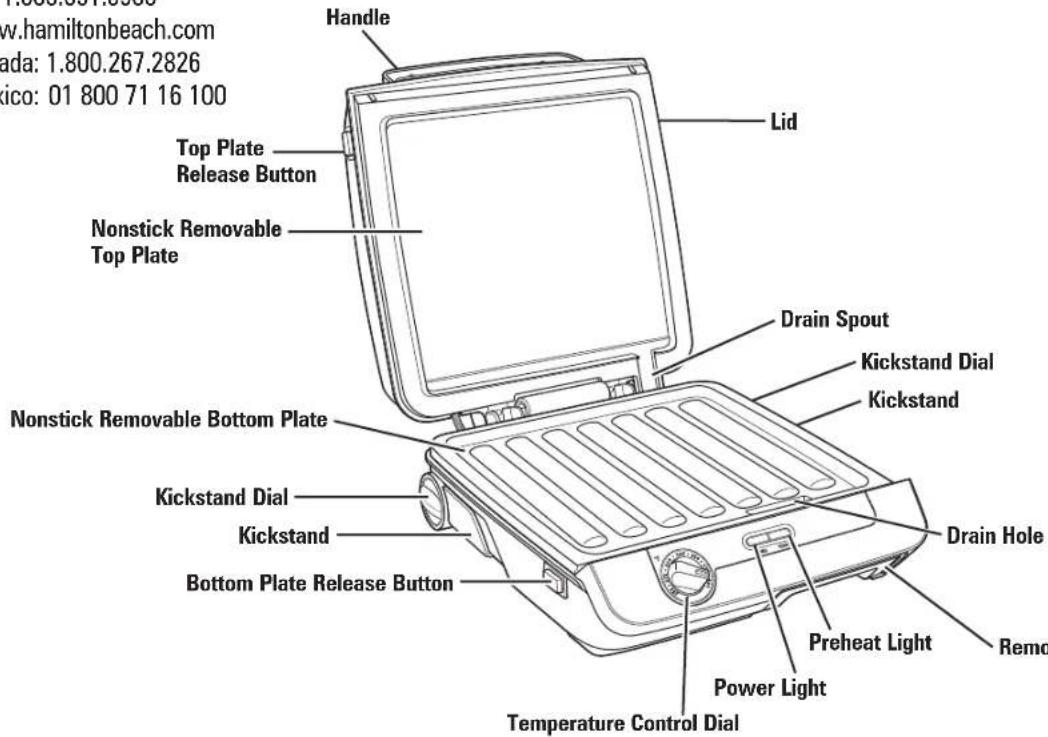

Nonstick Removable Top Plate Nonstick Removable Bottom Plate Kickstand Dial Bottom Plate Release Button Preheat Light Power Light Removable Drip Tray Temperature Control Dial Kickstand Dial Drain Hole Before First Use: See the “Cleaning” section to clean cooking surfaces. NOTE: Do not use metal utensils when placing or removing food from grill. Drain Spout Kickstand Use to drain grease away from grill to cook foods faster.4 w WARNING Burn Hazard. Always use an oven mitt to protect hand from contact with hot surfaces and steam during grilling. How to Grill This will cook the food on both sides at the same time and is the quickest method. Ensure drip tray is in place before grilling.

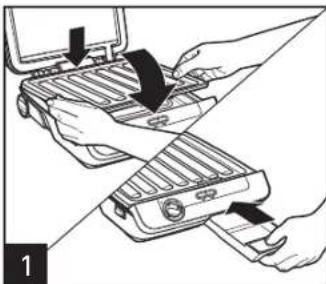

Align tabs on the back of plates with openings and press to click into place. Slide in drip tray. Kickstand may be used if desired.

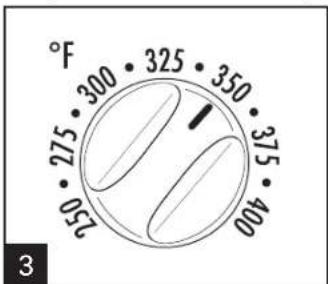

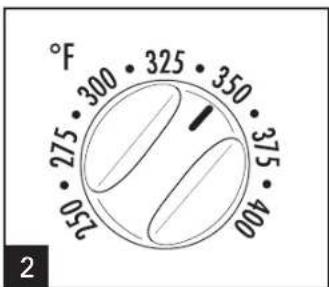

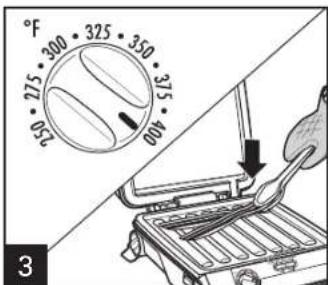

Preheat grill by turning the temperature control dial to desired temperature with the lid closed. Green Preheat light will come on when preheated. Place food to be cooked onto grill plate with plastic utensil.

Lift lid to check food. When done, carefully remove food from grill with plastic utensil.

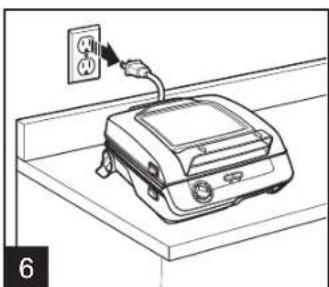

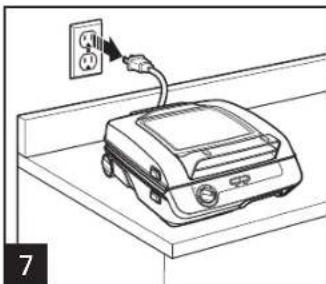

Unplug unit and allow to cool before cleaning. Do not attempt to remove drip tray until cool. Red Power light will illuminate when plugged in.5

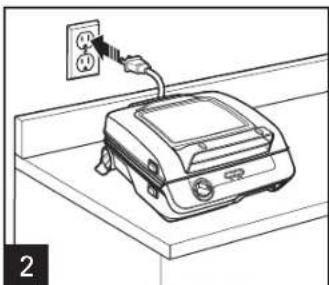

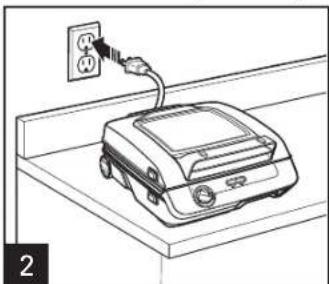

Plug in. Slide drip tray into place. Open unit for more grilling surface (this requires turning the food and a longer cooking time). Place food to be cooked onto grill/griddle plates. Turn food halfway through cooking. Carefully remove food from grill/griddle with plastic utensil. How to Use Griddle

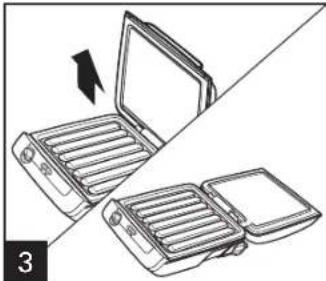

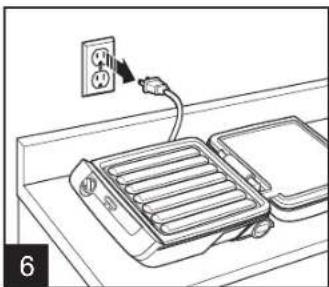

Unplug unit and allow to cool before cleaning. Do not attempt to remove drip tray until cool. w WARNING Burn Hazard. Always use an oven mitt to protect hand from contact with hot surfaces and steam during grilling. Green Preheat light will come on when preheated. Lift lid straight up to disengage locked hinge. Lower lid as far as it will go to rest on the countertop.

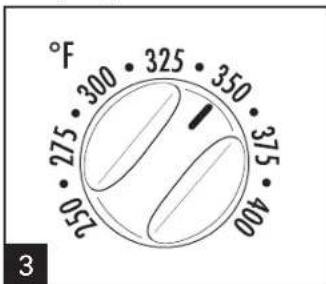

Preheat grill by turning the temperature control dial to desired temperature with the lid closed.6 How to Cook Bacon w WARNING Burn Hazard. Always use an oven mitt to protect hand from contact with hot surfaces and steam during grilling.

Lift up the back of the MultiGrill™ to rotate the bacon kickstand dials into position to better drain grease. Lower lid and cook bacon to desired doneness. Regular sliced bacon is crisp in 7 to 10 minutes. NOTE: Cooking bacon with the cover down helps eliminate grease splatters.

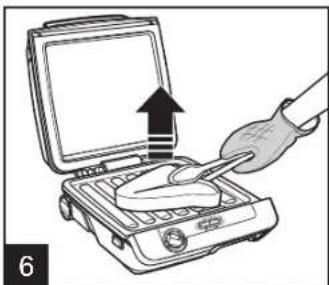

When bacon is done, lift cover and remove bacon with plastic utensil.

Unplug unit and allow to cool before cleaning. Do not attempt to remove drip tray until cool. Preheat to 400ºF (204ºC) with lid closed. Green Preheat light will come on when preheated. Open lid and place slices of bacon on bottom plate.

Benefits of cooking bacon on the 3-in-1 MultiGrill™:

• Splatter-free cooking with enclosed cooking surface.

• No need to turn bacon.

• Kickstand drains grease away for crispy bacon. Plug in.7 Cleaning w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid. w WARNING Burn Hazard. Allow grill to cool completely before removing plates and/or drip tray. DISHWASHER-SAFE Parts may also be washed in hot, soapy water. Rinse; then dry. Do not use steel wool or any type of abrasive cleaner to clean the grill. This will damage the nonstick grilling surface.

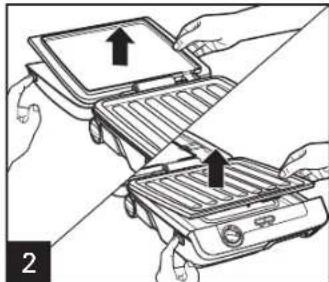

Push release button to release and remove top plate. Repeat with bottom plate. Slide out drip tray to empty. Use a clean, damp cloth to wipe clean the outside of grill.

If grease gets under the top or bottom plates, use a soapy, damp cloth and carefully wipe entire surface to remove all grease. Wipe dry. NOTE: Do not use metal utensils or abrasive cleansers when cleaning the grill.

Unplug unit and allow to cool before cleaning. Do not attempt to remove drip tray until cool.8 Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Grill won’t turn on. • Is grill plugged in? ON indicator light will come on.

• Make sure electrical outlet is working. Test with a lamp known to be working.

• Power surge or outage. Check your electrical breaker box. Food is undercooked. • Plates are not locked in place. Check top and bottom plates and press into place.

• Food not cooked long enough. When grilling meats, use a meat thermometer to measure internal temperature. Visit www.foodsafety.gov for more information on safe internal cooking temperatures and temperatures for doneness of specific foods.

• Not set at the correct cooking temperature. Check the temperature control dial.

• Cook with cover closed.

• Allow grill to fully preheat. Food is overcooked. • Food cooked too long. When grilling meats, use a meat thermometer to measure internal temperature. Grease is not draining. • Kickstand is not in place.

• Drain hole is blocked/clogged. Cool grill completely and clean around the drain hole.9 Limited Warranty This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.10 CONSERVER CES INSTRUCTIONS !
