USER MANUAL 31612MX HAMILTON BEACH

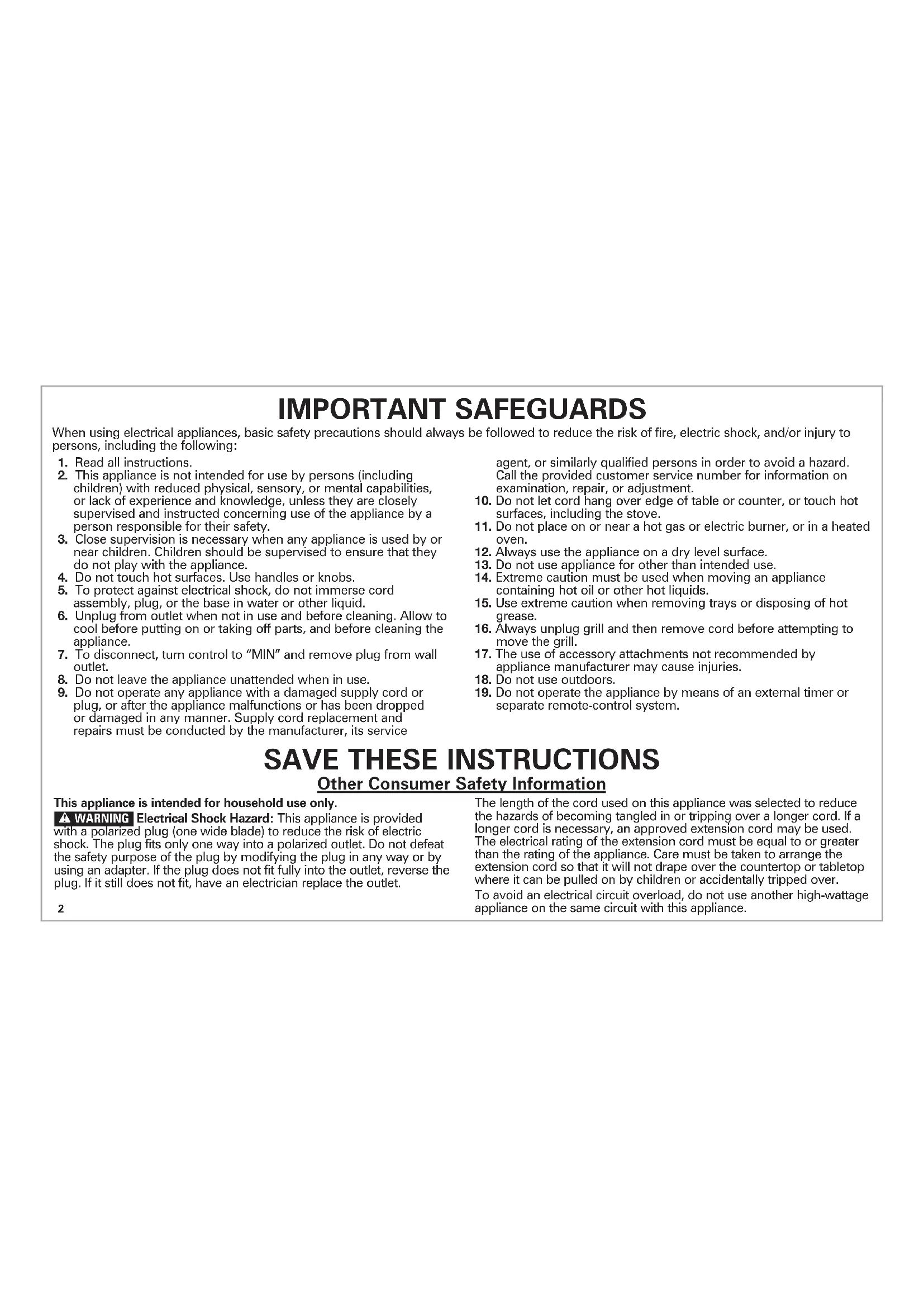

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or

near children. Children should be supervised to ensure that they do not play with the appliance.

4. Do not touch hot surfaces. Use handles or knobs.

5. To protect against electrical shock, do not immerse cord

assembly, plug, or the base in water or other liquid.

6. Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts, and before cleaning the appliance.

7. To disconnect, turn control to “MIN” and remove plug from wall

8. Do not leave the appliance unattended when in use.

9. Do not operate any appliance with a damaged supply cord or

plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

10. Do not let cord hang over edge of table or counter, or touch hot

surfaces, including the stove.

11. Do not place on or near a hot gas or electric burner, or in a heated

12. Always use the appliance on a dry level surface.

13. Do not use appliance for other than intended use.

14. Extreme caution must be used when moving an appliance

containing hot oil or other hot liquids.

16. Always unplug grill and then remove cord before attempting to

17. The use of accessory attachments not recommended by

appliance manufacturer may cause injuries.

18. Do not use outdoors.

19. Do not operate the appliance by means of an external timer or

separate remote-control system. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information This appliance is intended for household use only. w WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.3 Parts and Features To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico:

Nonstick Grill Grid Before First Use: Wash the nonstick grill grid and personal cooking trays in hot, soapy water. Rinse and dry thoroughly. Personal Cooking Tray Slot Base Personal Cooking Trays (8) Power On Light Temperature Control Dial ON (I)/OFF ( ) Button Grill Grid Supports Heat-Resistant Spatula Placement of Grill Grid Supports Personal Cooking Trays (8) CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating.4 What Is Raclette? Raclette (pronounced rah-kleht) is a centuries-old Swiss meal, named after the cheese that’s used to make it. With a raclette meal, there’s no running back and forth to the kitchen—everything that’s needed for the meal is put on the table in advance, within easy reach, much like sitting around a fire together. Another benefit of raclette is that everyone can “make it their way” in their own dish with any combination of ingredients. Care and Cleaning How to Grill w WARNING Burn Hazard. Exterior becomes hot and escaping steam may cause burns. Use an oven mitt when cooking.

1. Place base on countertop.

2. Place nonstick grill grid on top of grill grid supports. Make sure the

nonstick grill grid is seated correctly.

3. Plug into outlet. The power light will turn on.

4. Set temperature control dial to highest setting. Preheat about

10 minutes before grilling. Once heated, turn temperature to desired setting.

5. Add food to heated grill grid. Follow recipe directions for grilling.

Place cooked food on personal cooking trays to keep warm.

6. When finished cooking, turn temperature dial to MIN. Unplug grill

and cool completely. NOTE: To melt cheese, lower the temperature setting and melt the cheese slowly. When the cheese is melted too quickly, the oil will separate from the cheese. w WARNING Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse cord, plug, or base in water or any liquid.

1. Unplug grill and cool completely.

2. Wash grill grid and personal cooking trays in dishwasher or in hot,

soapy water. Rinse and dry.

3. Wipe base with a soft, damp cloth.

NOTE: Never immerse base in water or dishwasher.5 Hosting a Raclette Party Typical Ingredients Cheese The classic recipe for raclette consists of melted raclette cheese spread on boiled new potatoes or bread, then served with pickled vegetables (e.g., gherkins). However, many other delicious cheeses can also be used:

• Cheddar, camembert, emmenthaler, feta, fontina, gouda, and roquefort. Vegetables Raw vegetables do well on the raclette grill, as long as they are cut into small pieces. For faster cooking, whole vegetables can be blanched until al dente, rinsed with cold water, and then cut into piec- es before grilling. Fruit Any type of fruit may be used. Fruits that taste best with cheese are slightly tart fruits such as apples, pears, plums, apricots, figs, mangos, and papaya. Meat Meat such as chicken, pork, or beef should be precooked or cut into very small pieces before grilling so it cooks faster. Consider marinating meat beforehand—it tenderizes meat and adds flavor. Fish Because it cooks quickly, fish and seafood are ideal for raclette grilling. Fattier types of fish such as mackerel, salmon, catfish, or fillets with the skin on tend to be better for grilling. Potatoes The traditional vegetable for raclette is new potatoes (preboiled in their skins). After boiling, wrap the potatoes in a damp cloth and place them in a bowl. Seasonings Remember to place salt, a pepper grinder, and other flavorings such as paprika or sauces on the table, because grilled foods should be seasoned after cooking, not before. Preparation and Planning Tips Timing When it’s planned and prepared in advance, a raclette meal lets the host participate in the meal and relax. Cheese and vegetables can be presliced, and meat can be marinated, precooked, and cut up. Marinating Tips Chicken or beef can be marinated overnight; however, fish should not be marinated for more than a half hour. Never use marinade as a finishing sauce on food. Always marinate food in plastic bags or nonmetal bowls made of ceramic or glass. Meat Safety Tips Meat should be thawed in the refrigerator, never at room temperature. Also, meat can be sliced, marinated, and put into serving bowls in advance and stored in the refrigerator until you’re ready to grill.6 Recipes S'mores Ingredients: 4 graham-cracker sheets 16 mini marshmallows 4 ounces (113 g) milk chocolate Directions: Break graham cracker sheets in half. Place one half graham cracker sheet in a personal cooking tray and top with four mini marshmal- lows. Insert personal cooking tray in personal cooking tray slot. Cook until marshmallow is brown. Remove from grill. Top with 1 ounce (28 g) milk chocolate and another half of a graham cracker sheet. Makes 4 servings Spicy Grilled Shrimp Ingredients: 1/2 cup (118 ml) soy sauce 1 tablespoon (15 ml) olive oil 1 tablespoon (15 ml) sesame oil 5 tablespoons (40 g) cajun seasoning mix 2 tablespoons (30 ml) fresh lemon juice 1/4 teaspoon (5 g) fresh grated ginger root 1/4 teaspoon (1 g) dill weed 1 pound (454 g) peeled and deveined shrimp Directions: Combine all ingredients except for shrimp; then add shrimp. Marinate 1 to 4 hours. Drain marinade and discard. Place shrimp on grill and cook 2 minutes. Turn and cook 2 minutes longer or until done. Makes 4 servings Grilled Cheese Ingredients: 8 French baguette slices, 1/3-inch (0.8-cm) thick 4 Swiss cheese slices Directions: Place two slices French baguette in a personal cooking tray. Top with one slice Swiss cheese. Insert personal cooking tray in personal cooking tray slot. Cook until cheese browns. Remove from grill. Makes 4 servings7 Limited Warranty This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120 V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.8
