31411 - Oven HAMILTON BEACH - Free user manual and instructions

Product Type	Toaster Oven
Brand	Hamilton Beach
Model	31411
Toasting Capacity	Up to 6 slices of bread
Functions	Toast, Bake, Broil
Temperature Control	Rotary, up to 450°F (230°C)
Timer	Mechanical with auto shut-off and Stay On setting
Power	120 V~, 60 Hz
Door	Safety tempered glass
Rack Positions	Upper, center, lower
Crumb Tray	Removable
Interior Cleaning	Damp soapy cloth, plastic scouring pad for stubborn stains
Exterior Cleaning	Damp cloth, no abrasive cleaners
Safety	Unplug after use; do not immerse; do not use metal scouring pad
Warranty (Canada)	5 years
Warranty (United States)	1 year

Frequently Asked Questions - 31411 HAMILTON BEACH

How to use the Broil function?

Place the rack in the upper position (fast roasting), center (gratin) or lower (long cooking). Slide the baking dish under the rack. Turn the temperature selector to TOAST/BROIL and the dial control to BROIL. Set the timer past 10 then back to desired time, or use STAY ON by holding down the buttons. Flip foods halfway through.

What if the oven does not heat up?

Check that the wall outlet works and the oven is plugged in. Set the temperature selector to 350°F (177°C), turn the dial to BAKE and the timer to STAY ON. If the problem persists, contact customer service.

Why is there condensation on the door during toasting?

This is normal. Moisture escapes more slowly from a toaster oven than from a standard toaster. The amount varies depending on the freshness of bread, bagels, or frozen pastries.

How to clean the interior of the oven?

Unplug the oven and let it cool. Wipe interior walls and door with a cloth soaked in soapy water, then with a clean damp cloth. For stubborn stains, use a plastic scouring pad. Never use a metal scouring pad.

Can I use aluminum foil in the oven?

Do not cover the crumb tray or any part with aluminum foil, as this may cause overheating. You can use aluminum foil to wrap foods, but do not wrap them tightly because foil insulates and slows heating.

How many slices can I toast at once?

Up to 6 slices. For even browning with 2 slices, place them in the center with the rack in the lower position.

The oven emits odor and smoke on first use, is this normal?

Yes, this is normal for most heating appliances. Plug in the oven, set to 450°F (230°C) and heat for 10 minutes. The smell should not recur.

What is the warranty period for this model?

In Canada, the warranty is 5 years from the date of purchase. In the United States, it is 1 year. It covers defects in materials and workmanship. Keep your receipt as proof of purchase.

Can I use oven cooking bags?

No, it is prohibited to use oven cooking bags in this toaster. Do not use them.

How to reheat leftover meat?

Reheat leftover meats and stews at 350°F (177°C) for 20 to 30 minutes, until fully hot. Use the center or lower rack position depending on the food.

USER MANUAL 31411 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Questions Please call us - our friendly associates are ready to help. USA:1.800.851.8900

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
• Do not heat taco shells in toaster oven. Always use full-size conventional oven.
• Always allow at least 1 inch (2.5 cm) between food and heating element.
  Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electrical shock, do not immerse cord, plug, or toaster oven in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.

7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. To disconnect, turn all controls to OFF (0) then remove plug from wall outlet.
14. Use extreme caution when removing pan or disposing of hot grease.
15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
16. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.

17. The bread may burn. A fire may occur if toaster is covered or touching flammable material, including curtains, drapes, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.

18. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.

19. Do not store any materials, other than manufacturer- recommended accessories, in this oven when not in use.
20. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
21. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

22. To turn oven off, turn Timer to OFF (O position. See any of the "How To" sections for specifics.

23. Do not place eyes or face in close proximity with tempered safety glass door, in the event that the safety glass breaks.

24. Always use appliance with crumb tray securely in place.
25. Do not use appliance for other than intended use.
26. Clean oven interior carefully. Do not scratch or damage heating element tube.
27. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break; however, it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

Always unplug your toaster oven from the outlet when not in use.

Before First Use

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450^ (230^) . Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan and oven rack before using.

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

CAUTION: HOT SURFACE. The

temperature of accessible surfaces may be high when the appliance is operating.

Broiling/Baking pan slides under oven rack for broiling.

HIGH RACK POSITION: broiling

MIDDLE RACK POSITION:
toasting, baking, and broiling

LOW RACK POSITION: baking

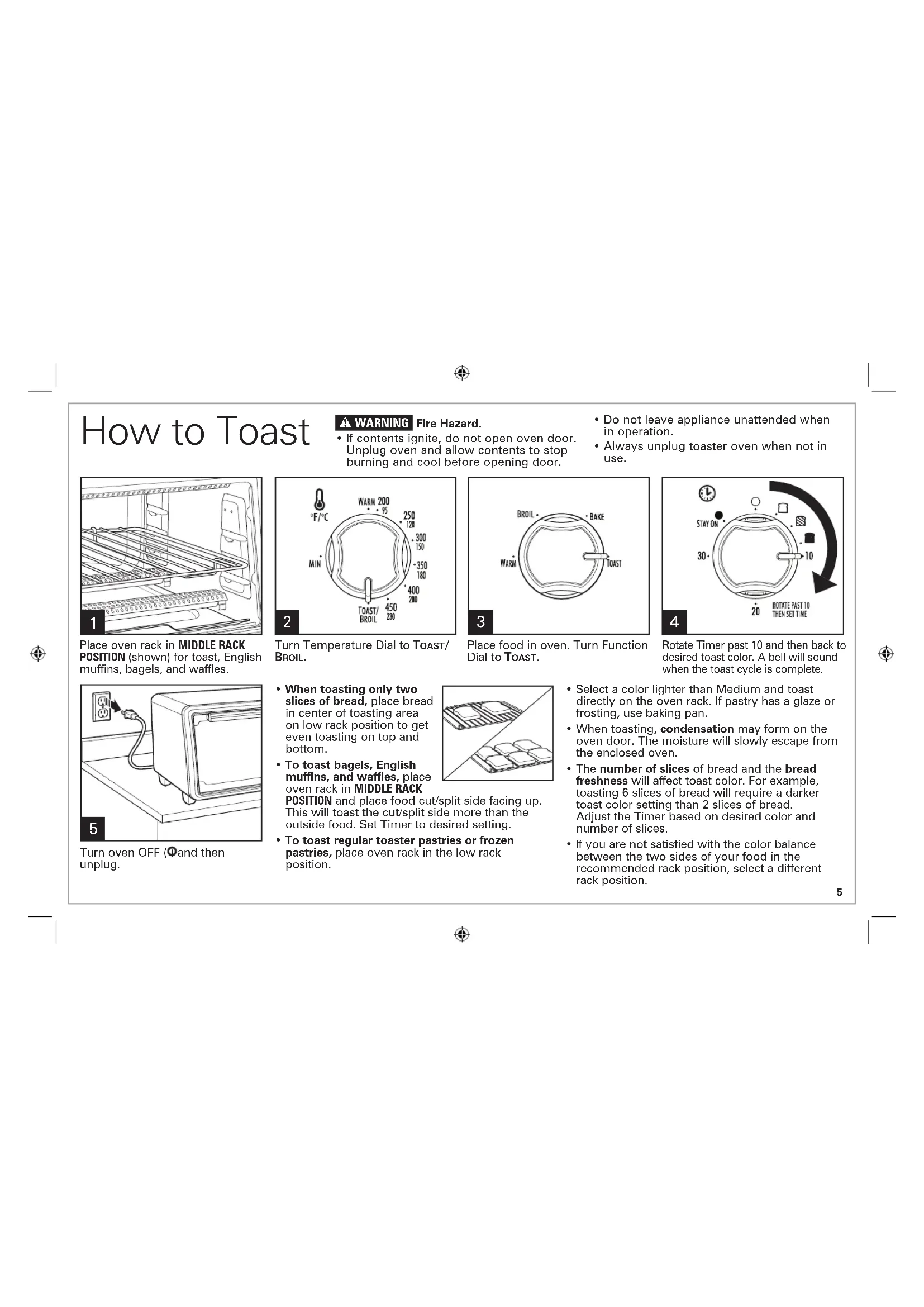

How to Toast

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not leave appliance unattended when in operation.
  Always unplug toaster oven when not in use.

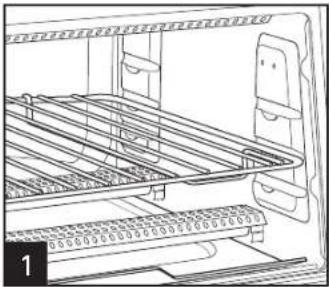

Place oven rack in MIDDLE RACK POSITION (shown) for toast, English muffins, bagels, and waffles.

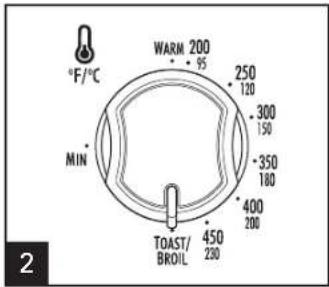

Turn Temperature Dial to TOAST/ BROIL.

Place food in oven. Turn Function Dial to ToAST.

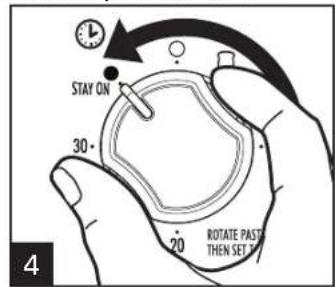

Rotate Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete.

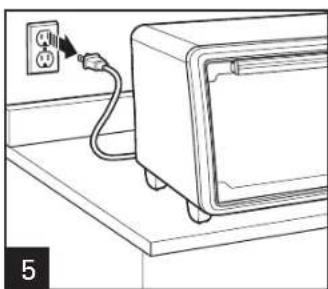

Turn oven OFF (and then unplug.

• When toasting only two slices of bread, place bread in center of toasting area on low rack position to get even toasting on top and bottom.
  To toast bagels,English muffins,and waffles,place oven rack in MIDDLE RACK POSITION and place food cut This will toast the cut/split s outside food. Set Timer to o
• To toast regular toaster pastries or frozen pastries, place oven rack in the low rack position.

• Select a color lighter than Medium and toast directly on the oven rack. If pastry has a glaze or frosting, use baking pan.
• When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.
• The number of slices of bread and the bread freshness will affect toast color. For example, toasting 6 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Timer based on desired color and number of slices.
  If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position.

How to Bake

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not use oven cooking bags.

• Always allow at least 1 inch (2.5 cm) between food and heating element.
  Always unplug toaster oven when not in use.

Place oven rack on MIDDLE RACK POSITION, or LOW RACK POSITION (depending on food to be cooked). LOW RACK POSITION shown.

Turn Temperature Dial to desired temperature.

Turn Function Dial to BAKE Rotate Timer past 10 and then back to "dark toast" preheat oven for 5 minutes before beginning to bake. After oven is preheated, set Timer to desired time by rotating Timer past 10 and then to desired baking time, or rotate Timer to STAY ON while pressing in and holding the buttons on the side of the dial.

Turn oven OFF and then unplug. 6

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
  To reheat rolls or biscuits, place on baking pan and heat at 300^ (149^) for 10 minutes.
• Reheat leftover roasts or casseroles at 350^ (177^) for 20 to 30 minutes or until heated through.

• Bake foods, such as pizza, on the MIDDLE RACK POSITION. Place food directly on oven rack or in baking pan.

• Bake foods, such as appetizers, cookies, and hors d'oeuvres, on baking pan in the MIDDLE RACK POSITION. Potatoes can be placed directly on the rack for baked potatoes. Cakes and casseroles should be baked in the baking pan called for in the recipe.

• Bake foods, such as a whole chicken, on the LOW RACK POSITION. Place food in baking pan.
• Turn foods halfway through cooking time. Visit food safety.gov for more safe cooking temperature information.

How to Broil

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Follow food manufacturer's instructions.

• Do not leave oven unattended during operation.

• Keep 1 inch (2.5 cm) between food and heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.

Place oven rack in oven. HIGH RACK POSITION is for faster broiling times. MIDDLE RACK POSITION is for browning the top of a casserole, toasted cheese sandwiches, or melting cheese on French or Italian bread.

LOW RACK POSITION is for foods needing longer broiling times, like chicken breasts and thicker cuts of meat. Slide the broiling/baking pan under the oven rack. Place in oven. DO NOT PREHEAT OVEN.

Turn Temperature Dial to TOAST/ BROIL.

Turn oven OFF (and then unplug.

Turn Function Dial to BROIL. Rotate Timer past 10 and then to the desired broiling time or rotate Timer to STAY ON while pressing in and holding the buttons on the side of the dial. Turn foods when browned or halfway through cooking time.

NOTE: Turn foods halfway through cooking time.

Visit foodsafety.gov for more safe cooking temperature information.

Cleaning

WARNING Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

Your toaster oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

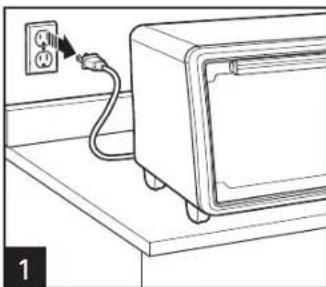

Turn oven OFF (O) and then unplug. Allow to cool before cleaning.

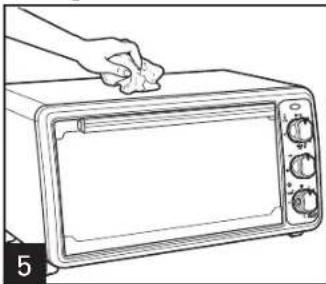

Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth. For stubborn stains, use a plastic scouring pad.

Wash in warm, soapy water with a sponge or plastic scouring pad. Rinse and dry.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Oven will not heat.	Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350°F (177°C). Turn Function Dial to BAKE; then turn Timer to STAY ON
Moisture forms on inside of oven door when toasting.	This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
An odor and smoke come from oven.	Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period.
Oven will not toast.	Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to TOAST/BROIL Turn Function Dial to TOAST; then rotate Timer past 10 and then back to desired toast color.
Some foods burn and some are not done.	Adjust oven rack position to center food in oven. Adjust oven temperature or cooking time for best results with your recipes.

Notes

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
