USER MANUAL 31330D HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions

Line drawing of a standard 3D toaster oven with front and back panels (no text or symbols)

English....2

Français.... 16

Español.... 30

WARNING

Silhouette of a flame with multiple sharp edges (no text or symbols)

Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
• Do not heat taco shells in toaster oven. Always use full-size conventional oven.
  • Always allow at least one inch between food and heating element.
  • Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against electrical shock, do not immerse cord, plug, or toaster oven in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.
7. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service

2

agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

1. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
2. Do not use outdoors.
3. Do not let cord hang over edge of table or counter or touch hot surfaces.
4. Do not place on or near a hot gas or electric burner or in a heated oven.
5. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
6. To disconnect, turn all controls to OFF (● then remove plug from wall outlet.
7. Use extreme caution when removing pan or disposing of hot grease.
8. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.

1. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
2. The bread may burn. A fire may occur if toaster is covered or touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.
3. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
4. Do not store any materials, other than manufacturer- recommended accessories, in this oven when not in use.
5. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

6. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

7. To turn oven off, turn Toast/Timer and OFF to OFF (○) position. See "Parts and Features" section.

8. Do not place eyes or face in close proximity with tempered safety glass door, in the event that the safety glass breaks.
9. Always use appliance with crumb tray securely in place.
10. Do not use appliance for other than intended use.
11. Clean oven interior carefully. Do not scratch or damage heating element tube.
12. Check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF (● then remove plug from wall outlet.
13. Do not operate the appliance by means of an external timer or separate remote-control system.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break; however, it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

Always unplug your toaster oven from the outlet when not in use.

Before First Use

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450°F (230°C). Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan, broil rack, and oven rack before using.

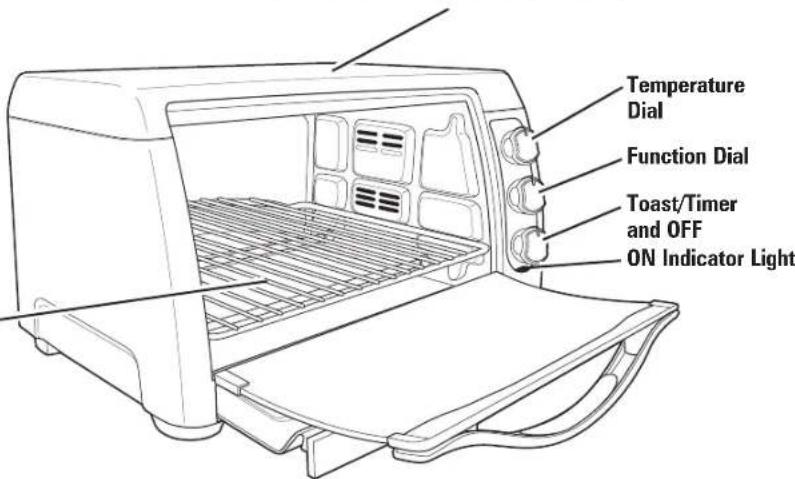

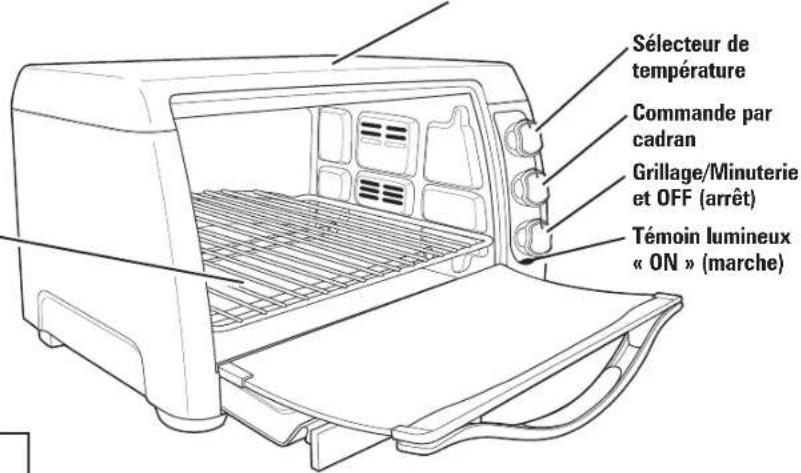

Parts and Features

Convection Baking Function (on select models)

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

Slide-Out Crumb Tray

Diagram of a mechanical device with a lever and directional arrow (no text or symbols)

CAUTION: HOT SURFACE. The temperature of accessible surfaces may be high when the appliance is operating.

Temperature Dial Function Dial Toast/Timer and OFF ON Indicator Light

MIDDLE RACK POSITION: baking, broiling, and toasting

Line drawing of a car interior showing front and rear compartments with no text or symbols

LOW RACK POSITION: baking

Line drawing of a car interior showing the rear air vent and grille (no text or symbols)

How to Toast

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not leave appliance unattended when in operation.
  • Always unplug toaster oven when not in use.

Line drawing of a car interior showing the roof rack and door handle (no text or symbols)

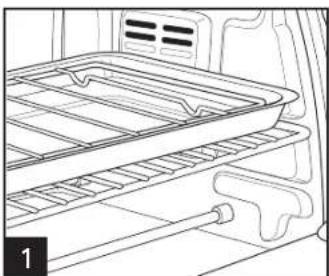

Plug into outlet. Place oven rack in MIDDLE RACK POSITION (shown) for toast, English muffins, bagels, and waffles.

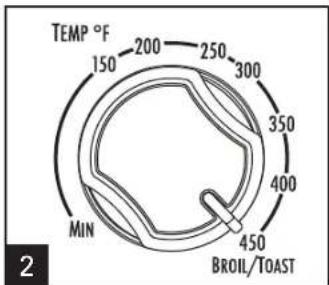

TEMP °F 150 200 250 300 MIN 350 400 450 BROIL/TOAST 2

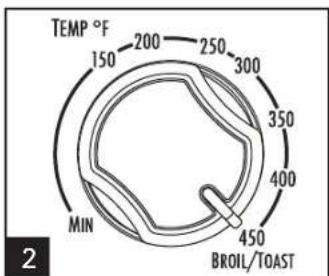

Turn Temperature Dial to BROIL/TOAST.

FUNCTION BROIL BAKE TOAST CONVECTION 3

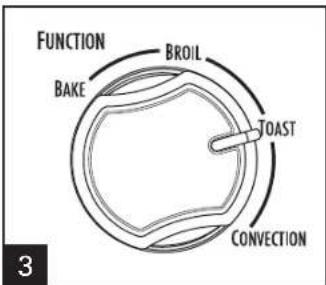

Place food in oven. Turn Function Dial to TOAST.

TOAST/TIMER 10 15 20 ROTATE PAST 10 THEN SET TIME OFF 25 STAY ON 10 15 ROTATE PAST THEN SET IT OFF 25 STAY ON 4

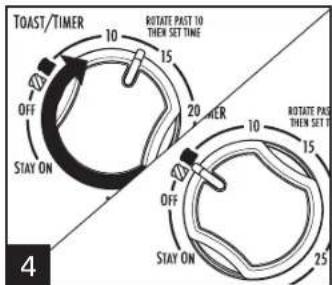

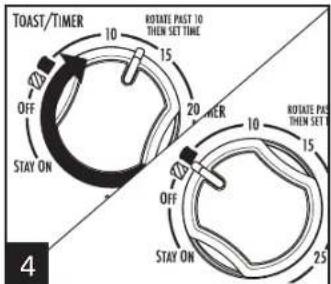

Rotate Toast/Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete. Rotate Toast/Timer to OFF (to end cycle at any time.

Line drawing of a computer monitor with an electrical outlet connected to the top panel (no text or symbols)

How to Toast (cont.)

• When toasting only two slices of bread, place bread in center of toasting area on middle rack position to get even toasting on top and bottom.
• For best results, always position bread, bagels, etc., within toasting area.
  • To toast bagels, English muffins, and waffles, place oven rack in MIDDLE RACK

POSITION and place food cut/split side facing up. This will toast the cut/split side more than the outside food. Set Toast/Timer and OFF to desired setting.
- To toast regular toaster pastries or frozen pastries, place oven rack in the MIDDLE RACK POSITION. Select a color lighter than Medium and toast directly on the oven rack. If pastry has a glaze or frosting, use baking pan.

• When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.
• The number of slices of bread and the bread freshness will affect toast color. For example, toasting 4 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Toast/Timer and OFF based on desired color and number of slices.
• If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position.

How to Bake

Line drawing of a vehicle rearrest with ventilation grilles and air filters (no text or symbols)

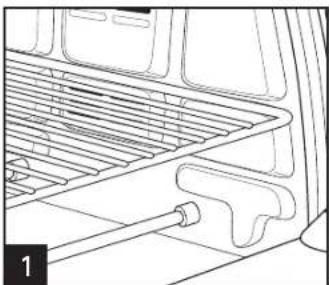

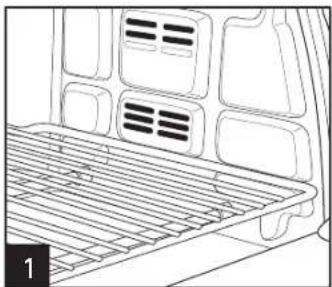

Plug into outlet. Place oven rack on MIDDLE RACK POSITION or LOW RACK POSITION (depending on food to be cooked). LOW RACK POSITION shown.

TEMP °F 150 200 250 300 MIN 350 400 450 BROIL/TOAST

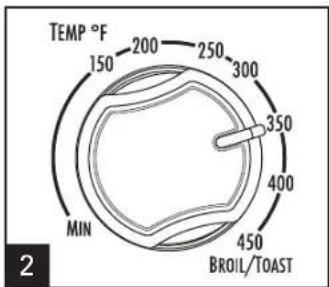

Turn Temperature Dial to desired temperature.

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

FUNCTION BROIL BAKE TOAST CONVECTION 3

Turn Function Dial to BAKE.

• Do not use oven cooking bags.
  • Always allow at least 1 inch (2.5 cm) between food and heating element.
  • Always unplug toaster oven when not in use.

TOAST/TIMER 10 15 20 RIVATE PAST 10 THEN SET TIME OFF MER 10 15 4 STAY ON OFF STAY ON 25

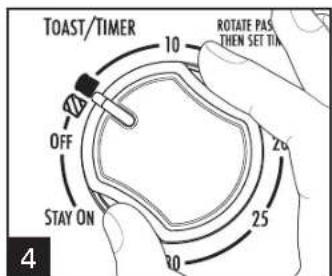

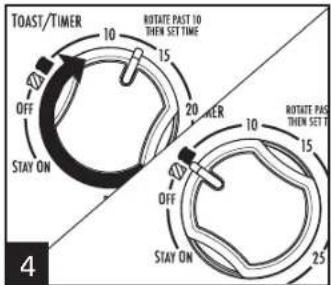

Rotate Timer past 10 and then back to "dark toast" to preheat oven for 5 minutes before beginning to bake.

TOAST/TIMER 10 25 20 OFF STAY ON ROTATE PAS. THEN SET TIM 80 5

After oven is preheated, set Timer to desired time by rotating past 10 and then to desired baking time or rotate to STAY ON while pressing in and holding the buttons on the side of the dial. Rotate Timer to OFF (to end cycle at any time.

Line drawing of a computer monitor with an electrical outlet connected to the screen (no text or symbols)

How to Bake (cont.)

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
• To reheat rolls or biscuits, place on baking pan and heat at 300°F (149°C) for 10 minutes.

• Reheat leftover roasts or casseroles at 350^ (177°C) for 20 to 30 minutes or until heated through.

• Bake foods such as pizza on the MIDDLE RACK POSITION. Place food directly on oven rack or in baking pan.

• Bake foods such as a whole chicken on the LOW RACK POSITION. Place food in baking pan.

		INTERNAL TEMPERATURES
FOOD APPROX.	BAKE TIMES F C
Fresh Chicken Breast 30	minutes 170° 77°
Fish Fillet 15 minu	tes 145° 63°

Turn foods halfway through cooking time. Visit foodsafety.gov for more safe cooking temperature information.

Convection Bake

(on select models)

Line drawing of a vehicle rearrest with ventilation grilles and vented seats (no text or symbols)

Plug into outlet. Place oven rack on MIDDLE RACK POSITION or LOW RACK POSITION (depending on food to be cooked). LOW RACK POSITION shown.

TEMP °F 150 200 250 300 350 400 MIN 450 BROIL/TOAST 2

Turn Temperature Dial to desired temperature.

TOAST/TIMER 10 20 OFF STAY ON 25 20 ROTATE PAS THEN SET TIME 5

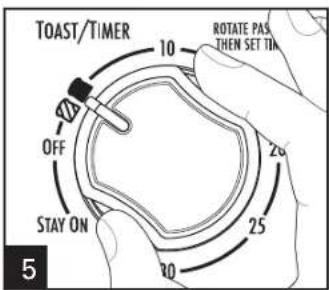

After oven is preheated, set Timer to desired time by rotating past 10 and then to desired baking time or rotate Timer to STAY ON while pressing in and holding the buttons on the side of the dial. Rotate Timer to OFF (O) to end cycle at any time.

WARNING Fire Hazard.

- If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

FUNCTION BAKE BROIL TOAST CONVECTION 3

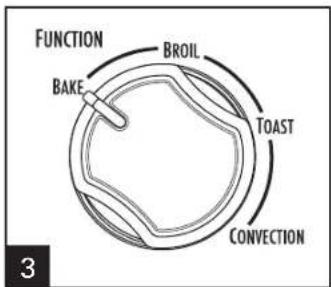

Turn Function Dial to CONVECTION.

• Do not use oven cooking bags.
  • Always allow at least 1 inch (2.5 cm) between food and heating element.
  • Always unplug toaster oven when not in use.

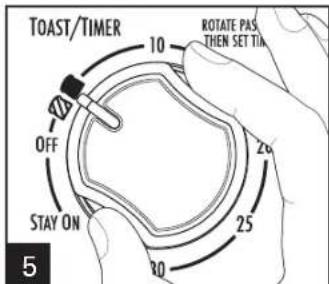

TOAST/TIMER 10 15 20 OFF STAY ON ROTATE PAST 10 THEN SET TIME 10 15 20 OFF STAY ON ROTATE PAST THEN SET T 4

Rotate Timer past 10 and then back to "dark toast" to preheat oven for 5 minutes before beginning to bake.

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Convection Bake (cont.)

• The convection bake function provides superior browning and crisping of food items. It is ideal for cookies, pizza, and meats.
• The convection method cooks up to one-third faster than traditional baking. When first using, check to determine if time or temperature should be adjusted.

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.

• Bake foods such as pizza on the MIDDLE RACK POSITION. Place food directly on oven rack or in baking pan.

• Bake foods such as a whole chicken on the LOW RACK POSITION. Place food in baking pan.
• Ovens with convection mode: When baking pizza, use convection setting and reduce cooking time by 25%.

How to Broil

WARNING Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not leave oven unattended during operation.

- Keep 1 inch (2.5 cm) between food and heating element.

- Do not use oven cooking bags. - Do not heat foods in plastic containers. - Follow food manufacturer's instructions.

Line drawing of a refrigerator interior showing tray, vent, and door (no text or symbols)

Plug into outlet. Place oven rack in oven. MIDDLE RACK POSITION is for faster broiling times. LOW RACK POSITION is for foods needing longer broiling times, like chicken breasts. Place food on broil rack or directly onto baking pan. Place in oven. DO NOT PREHEAT OVEN.

TEMP °F 150 200 250 300 350 400 450 BROIL/TOAST MIN 2

Turn Temperature Dial to BROIL/TOAST.

FUNCTION BROIL BAKE TOAST CONVECTION 3

Turn Function Dial to BROIL. Rotate Timer past 10 and then to the desired broiling time or rotate Timer to STAY ON while pressing in and holding the buttons on the side of the dial. Turn foods when browned or halfway through cooking time.

TOAST/TIMER 10 25 20 OFF STAY ON ROTATE PAS. THEN SET TIME 4

How to Broil (cont.)

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

FOOD APPROX. BROIL TIME
Hamburgers 20 minutes
Hot Dogs 15 minutes
Sausage Links or Patties (pierce casings before cooking)	15 to 20 minutes
Fish 15 minutes

These cooking times are an average and should be adjusted to individual preferences. Turn foods halfway through cooking time.

Cook beef and pork to at least 160°F (71°C).

Cook chicken to at least 165°F (73°C).

Cook fish until at least 145^ F ( 63^ C) or until opaque or flakes with a fork.

Visit foodsafety.gov for more safe cooking temperature information.

Cleaning

WARNING Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

Your toaster oven should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

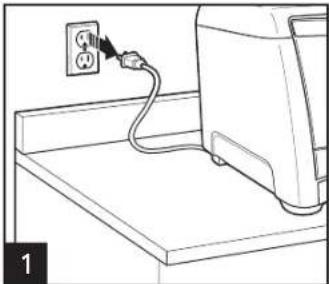

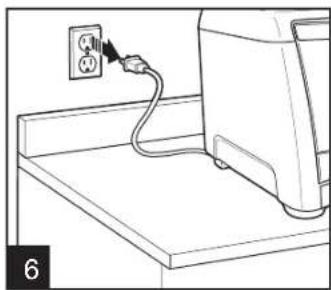

Unplug and allow to cool.

Line drawing of a kitchen oven with a hand cleaning a tray (no text or symbols)

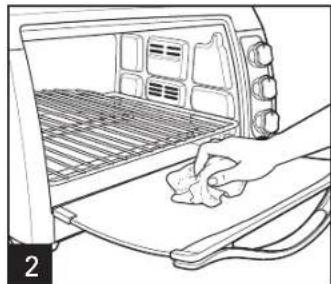

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth.

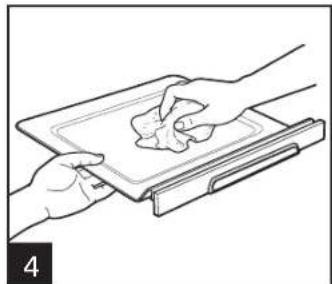

For stubborn stains, use a plastic scouring pad.

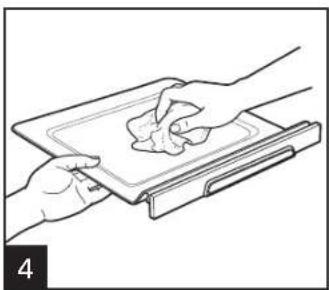

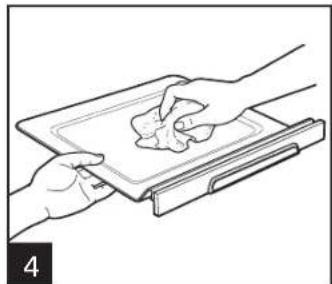

Line drawing of a toaster front panel with a slide and handle, no text or symbols present

Line drawing of two hands exchanging a tray with a small object, no text or symbols present

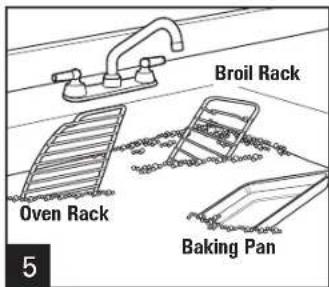

Broil Rack Oven Rack Baking Pan 5

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)

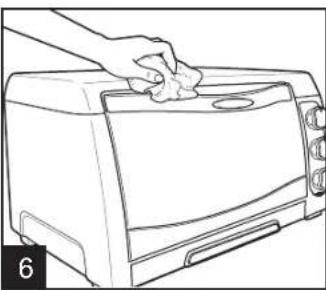

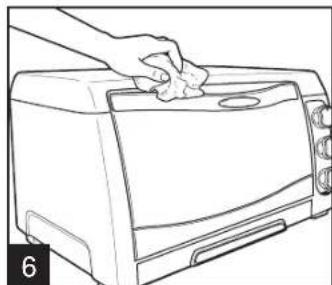

Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Oven will not heat.	Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350°F (177°C). Turn Function Dial to BAKE; then turn Toast/Timer and OFF to STAY ON while pressing in and holding the buttons on the side of the dial.
Moisture forms on inside of oven door when toasting.	This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
An odor and smoke come from oven.	Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period.
Oven will not toast.	Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to TOAST/BROIL Turn Function Dial to TOAST; then rotate Toast/Timer and OFF past 10 and then back to desired toast color.
Some foods burn and some are not done.	Adjust oven rack position to center food in oven.Adjust oven temperature or cooking time for best results with your recipes.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

⚠AVERTISSEMENT

Silhouette of a flame with multiple sharp peaks (no text or symbols)

Danger d'incendie.

Simple line drawing of a mechanical device with a lever and directional arrow (no text or symbols)

Line drawing of a car interior showing the front grille and side door (no text or symbols)

POSITION INFÉRIEURE

Line drawing of a car interior showing the rear vent and side grating (no text or symbols)

Line drawing of a car interior showing the roof rack and door panel (no text or symbols)

Line drawing of a computer monitor with an electrical outlet connected to the top panel (no text or symbols)

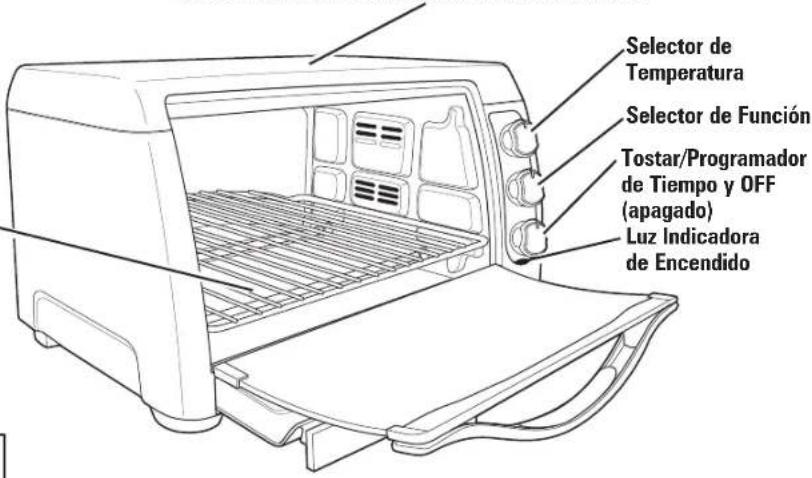

Le grillage (suite)

Line drawing of a vehicle rear vent with grating and ventilation grilles (no text or symbols)

Line drawing of a computer monitor with an outlet cable, no text or symbols present

Line drawing of a vehicle rearrest with ventilation grilles and ventilation grilles (no text or symbols)

Line drawing of a computer monitor with an attached power outlet cable (no text or symbols)

Line drawing of a refrigerator interior showing the tray and side arm (no text or symbols)

Line drawing of a computer monitor with an attached power outlet cable (no text or symbols)

ALIMENT	TEMPS DE CUISSON AU GRIL APPROX.
Hamburgers 20 minutes
Hot-dogs 15 minutes
Saucisses longues ou galettes (percer les boyaux avant de cuire)	15 to 20 minutes
Poisson 15 minutes

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Line drawing of a kitchen oven with a hand cleaning a tray (no text or symbols)

Line drawing of a kitchen grater with a slide and handle, showing a black arrow indicating direction (no text or symbols)

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)

Line drawing of two hands exchanging a tray with food, no text or symbols present

PROBLÈME CAUSE POSSIBLE/SOLUTION

Silhouette of a flame with sharp edges, resembling a stylized fire or smoke plume (no text or symbols)

Diagram of a mechanical device with a lever and directional arrow (no text or symbols)

Line drawing of a car interior showing front and rear compartments with ventilation grilles (no text or symbols)

Line drawing of a vehicle rear vent with grating and ventilation grilles (no text or symbols)

Line drawing of a car interior showing the roof rack and door panel (no text or symbols)

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Intermedio Oscuro

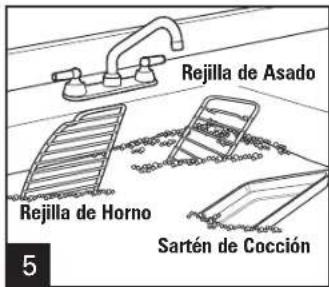

Como Tostar (cont.)

Line drawing of a vehicle rearrest with ventilation grilles and vented seats (no text or symbols)

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Line drawing of a vehicle rear vent with grating and ventilation grilles (no text or symbols)

Line drawing of a computer monitor with an attached power outlet cable (no text or symbols)

Line drawing of an oven interior showing tray, vent, and door (no text or symbols)

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Line drawing of a computer monitor with an attached power outlet (no text or symbols)

Line drawing of a kitchen oven with a hand placing food into a tray (no text or symbols)

Line drawing of a toaster front panel with a slide and tray, no text or symbols present

Line drawing of two hands exchanging a tray with a small object, no text or symbols present

Line drawing of a hand cleaning a toaster oven with a cloth (no text or symbols)
