USER MANUAL K 5 Premium Power Control Kärcher

Two KARCHER industrial vacuum cleaner units with black and white branding, shown from different angles (no visible text or symbols on the devices themselves)

Deutsch 6

English 11

Français 17

Italiano 23

Nederlands 28

Español 34

Português 40

Dansk 46

Norsk 51

Svenska 56

Suomi 62

Ελληνικά 67

Türkçe 73

Русский 78

Magyar 85

Čeština 91

Slovenščina 96

Polski 101

Românește 107

Slovenčina 113

Hrvatski 118

Srpski 124

Български 129

Eesti 136

Latviešu 141

Lietuviškai 147

Українська 152

Қазақша 158

A
K 5 Premium Power Control

K 5 Premium Power Control HARD 2 MEDIUM 1 SOFT 0 MIX 13 16 15 14 17 18 19 3 HARD 21 22 5 23 24 25 26 27 28 29 30 31 32 33 33

B
K 5 Power Control

K 5 Power Control HARD 2 MEDIUM 1 SOFT 0 MIX 13 16 15 14 17 18 3 HARD 3 HARD 19 20 5 23 24 25 26 27 28 29 30 31 32 33

C ① ② ③ ④

D a a b

E a b c

F a b

G a a KERCHER KERCHER b

H a b ✓ X

Medical illustration showing a surgical procedure on a skull with mesh and grid patterns (no text or symbols)

Close-up of a car tire assembly with a tool inserted, showing mechanical components and a magnified inset (no text or symbols)

K KARCHEE a b

"click"

M KÜRKCHER a b c

N b a

Close-up of a mechanical component with a water pump and a close-up inset showing internal components (no text or symbols visible)

P a b c

Electric vehicle charging plug with attached cable, showing internal components and a close-up of lock icons (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a component, including a magnified view of the wheel and water droplets (no text or symbols present)

Inhalt

Download on the App Store

Warenzeichen

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contents

General notes.... 11

KÄRCHER Home & Garden app.... 11

Environmental protection 12

Intended use 12

Accessories and spare parts.... 12

Scope of delivery.... 12

Description of the device 12

Safety devices.... 13

Symbols on the device 13

Assembly.... 13

Initial startup.... 13

Operation 14

Transport.... 15

Storage.... 15

Care and service.... 15

Troubleshooting guide.... 15

Warranty.... 16

Technical data 16

EU Declaration of Conformity.... 16

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

KÄRCHER Home & Garden app

The KÄRCHER Home & Garden app contains:

● Installation and initial startup information
● Information about the areas of application
- Tips & Tricks
● FAQ with detailed troubleshooting
● Connection to the KÄRCHER Service Centre

The app can be downloaded here:

Trademarks

• Google Play™ and Android™ are trademarks or registered trademarks of Google Inc.
• Apple® and App store® are trademarks or registered trademarks of Apple Inc.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.
Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.
Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

Illustration A

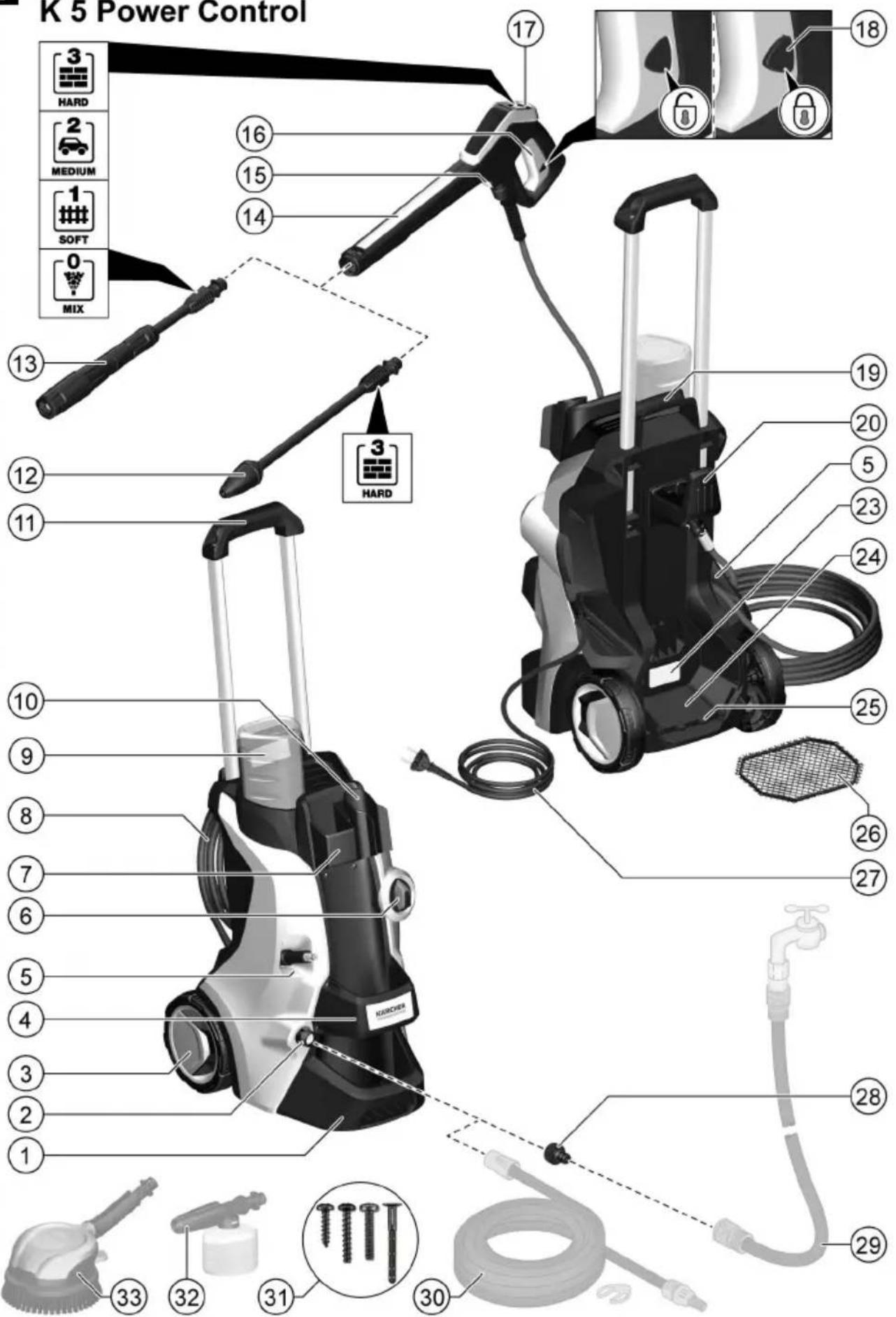

Illustration B

① Stand with carrying handle
③ Transport wheel
4 Visor
⑤ Hose guide
⑥ Trigger "0/OFF" / "I/ON"

② Water connection with integrated sieve

⑦ Storage for spray lance

⑧ High-pressure hose

⑨*Plug 'n' Clean detergent bottle

⑩ Storage / parking position for high-pressure gun

⑪ Transport handle, telescoping

⑫Power Control spray lance dirt grinder for stubborn dirt, pressure level: HARD

⑬ Vario Power Power Control spray lance for the most common cleaning tasks, pressure levels: HARD / MEDIUM / SOFT / MIX

⑭Power Control high-pressure gun

⑮Button for separating the high-pressure hose from the high-pressure gun

⑯High-pressure gun lever

⑰Pressure indicator (0-MIX / 1-SOFT / 2-MEDIUM / 3-HARD)

⑱ High-pressure gun lock

⑲Carrying handle

20 Hose holder

21 High pressure hose reel

22 Crank handle for hose reel

23Type plate

⑳Accessory compartment

25 Hook for net attachment

26 Accessory compartment net

27 Mains connection with mains plug

28 Water connection coupling

29**Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)

30**KÄRCHER suction hose for water supply from open containers (order no. 2.643-100.0)

③1 Supplied screws and dowels

③2*Foam nozzle with detergent container: The detergent is sucked out of the container to produce a strong detergent foam.

33*Rotating washing brush (e.g. for washing cars)

* optional, ** additionally required

Supplied screws and dowels

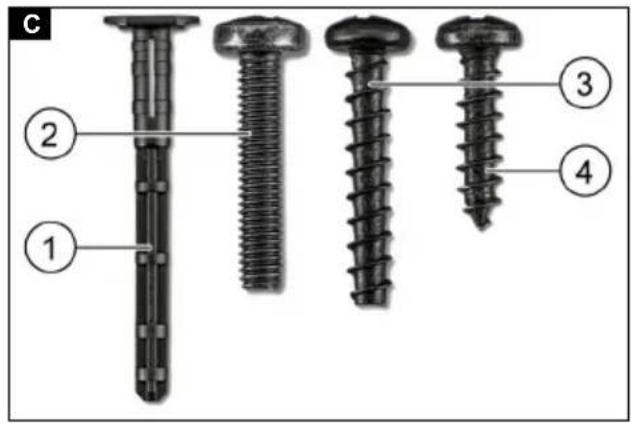

Illustration C

① Stand dowels (2 pieces)
② Screw M 4x20 (2 pieces)
③ Screw M 4x22 (2 pieces)
④ Screw M 4x16 (8 pieces)

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection.

Never modify or bypass safety devices.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Assembly

For the illustrations, refer to the graphics page.

Place the screws provided and matching screwdriver at the ready.

Fit the supplied loose parts onto the device before starting up the device.

Fitting the wheels

1. Insert the wheels.

Note

Pay attention to the alignment of the hole.

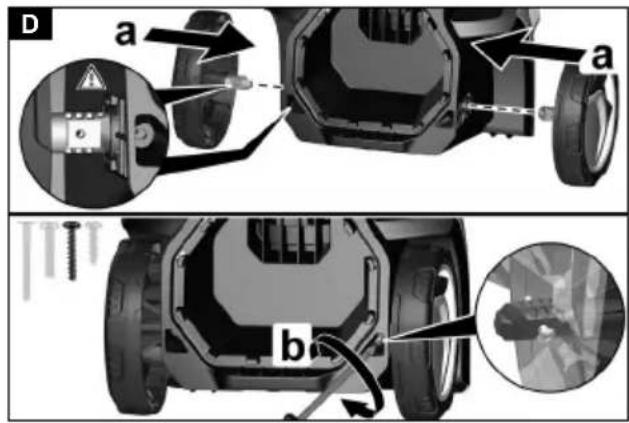

Illustration D

1. Secure the wheels with 1 screw each.

Mounting the stand

1. Insert the stand.

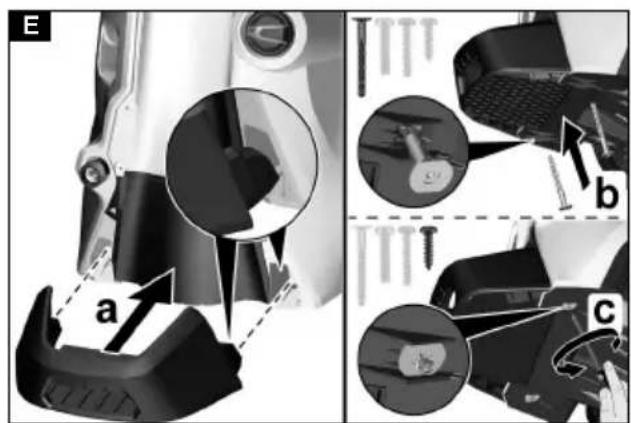

Illustration E

1. Insert the 2 dowels into the holes as far as they will go.

2. Secure the base with 2 screws.

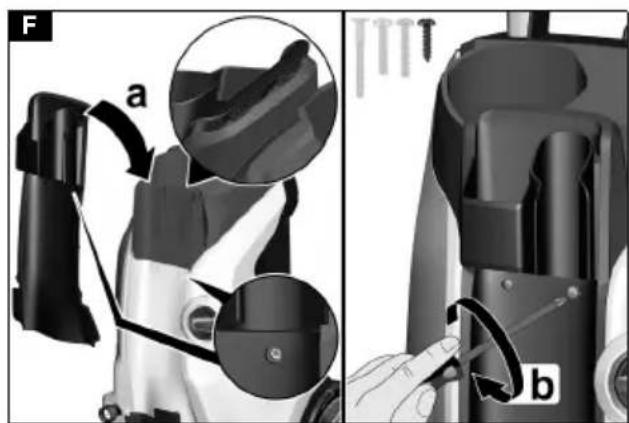

Installing the spray lance storage

1. Hang the spray lance storage in position.

2. Secure the storage with 2 screws.

Illustration F

1. Secure the cover with 4 screws.

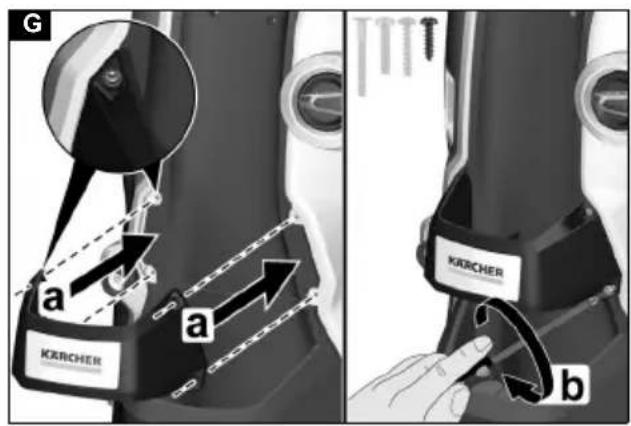

Illustration G

Mounting the transport handle

1. Attach the transport handle.

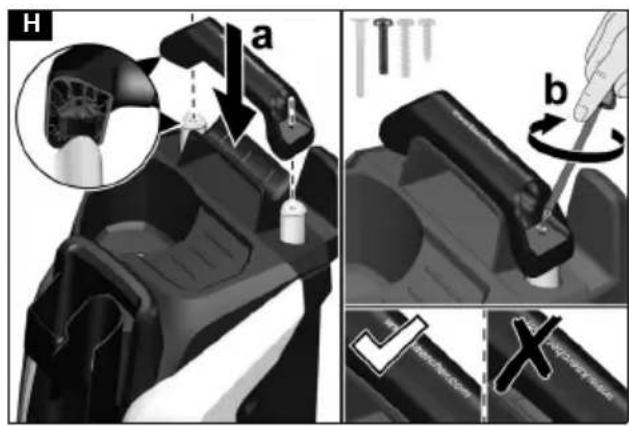

Illustration H

1. Secure the transport handle with 2 screws.

Mounting the accessory net

1. Hang the accessory net on the hooks.

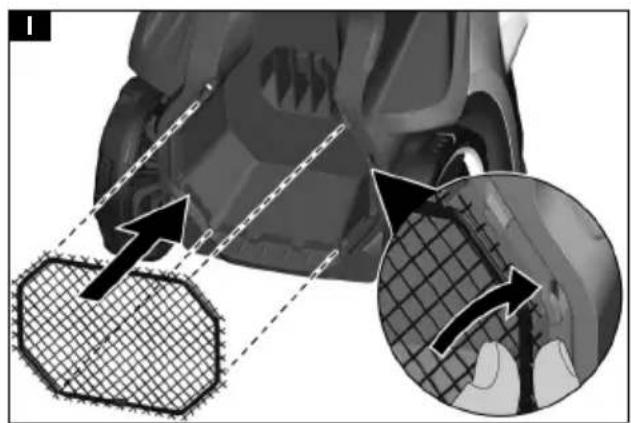

Illustration I

Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose guide from the rear.

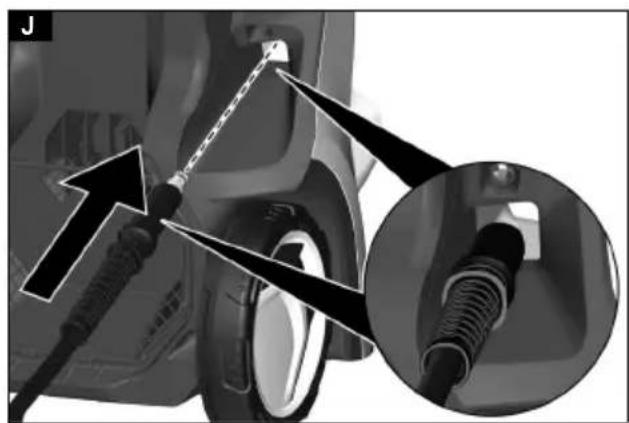

Illustration J

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device.

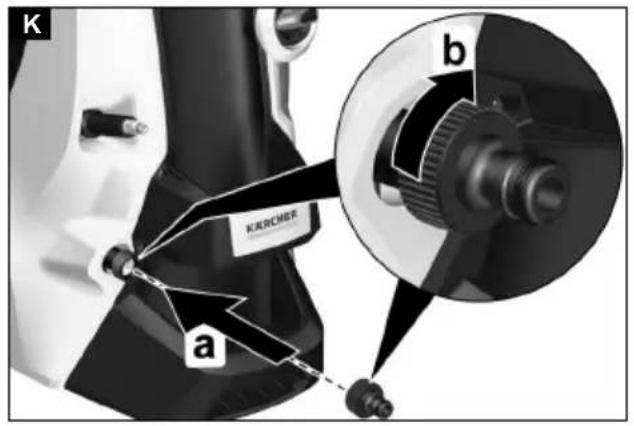

Illustration K

Initial startup

1. Place the device on a flat and level surface.
2. For devices with a hose reel: Completely unwind the high-pressure hose from the hose reel.
3. For devices without a hose reel: Unwind the high-pressure hose completely and eliminate any loops and twists.
4. Pull the high-pressure hose all the way forwards through the hose guide.
5. Insert the high-pressure hose into the high-pressure gun until it audibly latches into place.

Note

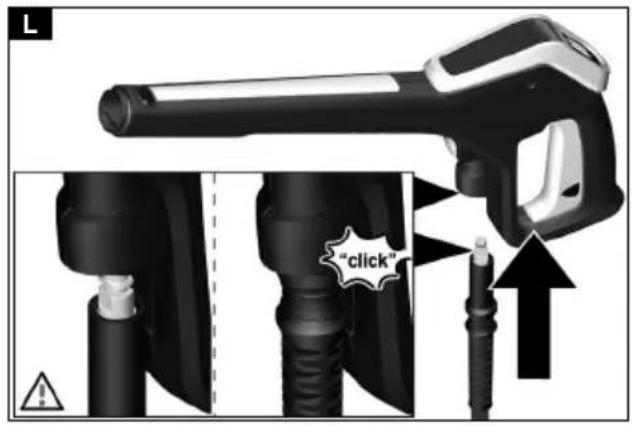

Take care to ensure the correct alignment of the nipple. Illustration L

1. Check for a secure connection by pulling on the high-pressure hose.
2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number

4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection coupling.
2. Connect the garden hose to the water line.
3. Open the water tap fully.

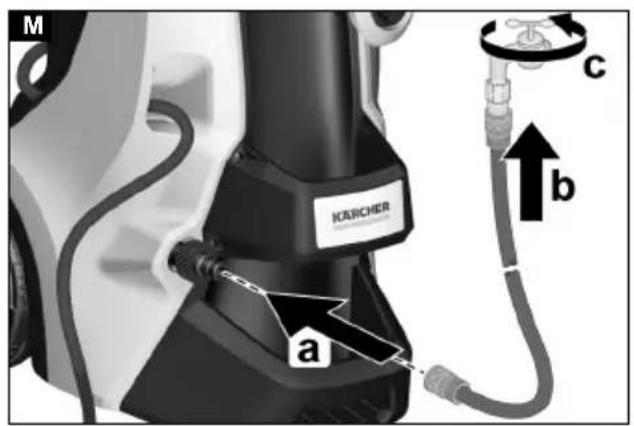

Illustration M

Sucking water from open containers

When used with the KÄRCHER suction hose with check valve (special accessory, order number 2.643-100) this high-pressure cleaner is suitable for sucking up surface water, e.g. from rain barrels or ponds (for the maximum suction height see chapter Technical data).

The water connection coupling is not required for vacuuming operation.

1. Fill the suction hose with water.
2. Screw the suction hose onto the device water connection and hang it in a water source (e.g. water butt).

Vent the device

1. Switch the device on "I/ON".

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun. The device switches on.

4. Allow the device for run a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.
5. Release the lever of the high-pressure gun.
6. Lock the lever of the high-pressure gun.

Operation

ATTENTION

Pump running dry

Damage to the device

If pressure does not build up in the device after 2 minutes then switch the device off and proceed according to the instructions in chapter Troubleshooting guide.

Power Control System

The pressure indicator on the high-pressure gun shows the currently set pressure level when operating with a Power Control spray lance.

Note

The sensitivity of materials can vary greatly depending on age and condition. The recommendations are therefore not binding.

Note

When operating with surface cleaner and other accessories, the pressure indicator is not accurate.

Display Pressure level		Recommended for e.g.
	HARD Stone	terraces made of pav-ing stones or washed con-crete, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
	MEDIUM Cars / motorcycles, brick surfaces, plastered walls, plastic furniture
	SOFT Wooden surfaces, bicycle, sandstone surfaces, rattan furniture
	MIX Operation with detergent

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt grinder.

1. Insert a spray lance into the high-pressure gun and lock it by turning it 90°.

Illustration N

1. Switch the device on ("I/ON").
2. Unlock the lever of the high-pressure gun.
3. Press the lever of the high-pressure gun. The device switches on.
4. Turn the Vario Power Power Control spray lance until the required pressure level is shown on the pressure indicator.

Operation with a washing brush

ATTENTION

Paint damage

Damage to surfaces through a dirty brush Ensure that the washing brush is free from dirt or other particles before using it.

Note

The device operates at low pressure when using washing brushes. This means that detergent can be mixed with the water.

1. Insert the washing brush into the high-pressure gun and turn by 90° to fasten it.

Operation with detergent

DANGER

Failure to adhere to the safety data sheet

Incorrect handling of the detergent can seriously damage your health

Observe the safety data sheet of the detergent manufacturer, in particular the instructions on personal protective equipment.

Note

Detergent can only be mixed into the jet at low pressure.

Note

A Plug 'n' Clean detergent bottle is required for operating with detergent. KÄRCHER detergent can be purchased ready to use in a Plug 'n' Clean detergent bottle.
1. Remove the cover from the Plug 'n' Clean detergent bottle.

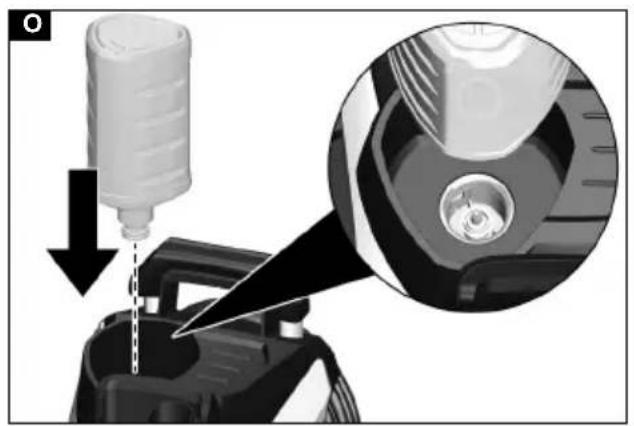

2. Plug the detergent bottle into the Plug 'n' Clean detergent connection with the opening facing down. Illustration O
3. Use the Vario Power spray lance.
4. Turn the spray lance towards "MIX" until "MIX" is displayed on the high-pressure gun. The detergent solution is mixed with the water jet during operation.

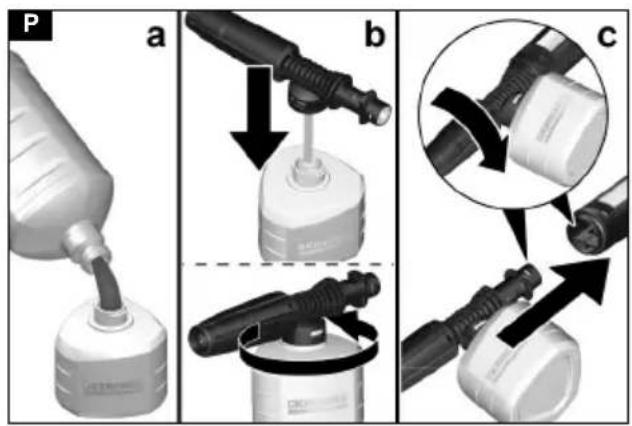

5. You can optionally use the foam nozzle.

a Fill the detergent solution into the detergent tank. Adhere to the dosage specifications on the detergent container.
b Connect the foam nozzle to the detergent container.
c Insert the foam nozzle into the high-pressure gun and turn by 90° to fasten it.

Illustration P

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap before transporting the device lying down.
2. Store the detergent bottle in the holder with the lid facing up.
3. Flush the device with clear water for approx. 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.
2. Lock the lever of the high-pressure gun.

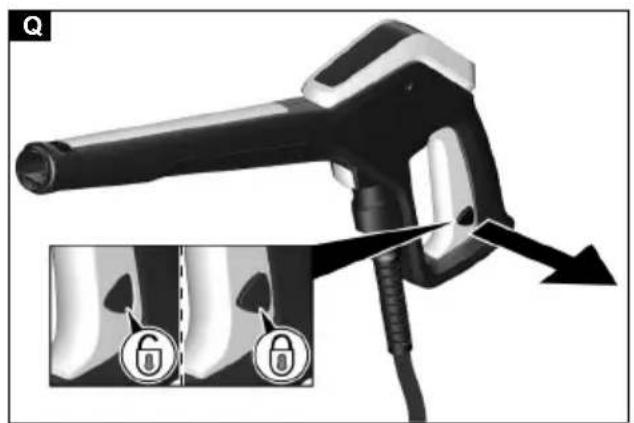

Illustration Q

1. Place the high-pressure gun with the spray lance in the parking position.

2. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

△CAUTION

Pressure in the system

Injuries from high-pressure water escaping uncontrollably

Only disconnect the high-pressure hose from the high-pressure gun or the device when the system is fully depressurised.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds.
   The pressure remaining in the system is discharged.
4. Release the lever of the high-pressure gun.
5. Lock the lever of the high-pressure gun.
6. Disconnect the device from the water supply.
7. Switch off the device "0/OFF".
8. Pull the mains plug out of the socket.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Carrying the device

1. Lift and carry the device by the carrying handles.

Pulling the device

1. Pull the transport handle out until it audibly latches into place.

2. Pull the device via the transport handle.

Transporting the device in a vehicle

1. Before transporting lying down, pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap.

2. Secure the device against slipping and tipping over.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.

ATTENTION

Damage to the high-pressure hose

Damage to the high-pressure hose through incorrect direction of rotation

Observe the correct direction of rotation of the hose reel when winding on the hose.

1. For devices with a hose reel: Use the crank handle to turn the hose reel anticlockwise and coil up the high-pressure hose.

2. For devices without a hose reel: Store the high-pressure hose on the device.

3. Store the mains connection cable and accessories on the device.

Observe the additional instructions before storing the device for a longer period of time, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following requirements must be satisfied:

- The device is disconnected from the water supply. - The high-pressure gun is disconnected from the high-pressure hose.

1. Switch the device on "I/ON".
2. Wait for a maximum of 1 minute until no more water escapes from the high-pressure hose.
3. Switch off the device.
4. Store the device in a frost-protected room, together with all accessories.

Care and service

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Damaged sieve in the water connection

Damage to the device through contaminated water Check the sieve for damage before inserting it in the water connection.

If necessary, clean the sieve in the water connection.

1. Remove the water connection coupling.
2. Pull the sieve out using flat pliers.
3. Clean the sieve under running water.

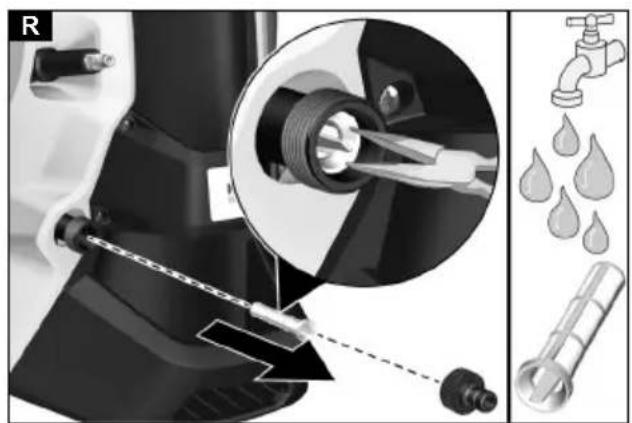

Illustration R

1. Insert the sieve into the water connection.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

⚠️DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.

3. Check the mains connection cable for damage.

4. If the motor is overloaded and the motor circuit breaker has triggered:

a Switch off the device "0/OFF".
b Allow the device to cool down for 1 hour.
c Switch the device on "I/ON" and resume operation.

Have the device checked by Customer Service if this fault occurs repeatedly.

The device does not start up, the motor buzzes

Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Device does not reach required pressure

The water supply is too low

1. Open the water tap fully.

2. Check the water inlet for an adequate flow rate.

The sieve in the water connection is dirty.

1. Pull the sieve in the water connection out using flat pliers.

2. Clean the sieve under running water.

Air is in the device.

1. Vent the device:

a Switch on the device without a connected spray lance for a maximum of 2 minutes.
b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
c Connect the spray lance.
d Observe the maximum suction height during suction operation (see chapter Technical data).

Strong pressure fluctuations

1. Clean the high-pressure nozzle:

a Use a needle to remove dirt from the nozzle drill.
b Rinse the high-pressure nozzle from the front with water.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Use the Vario Power spray lance and turn it to "MIX".

2. Check that the Plug 'n' Clean detergent bottle is sitting correctly with the opening facing down in the detergent connection.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

	K 5 Premium Power Control		Power Control
Electrical connection
Voltage	V		230
Phase ~ 1 1
Frequency Hz 50 50
Power rating	kW	2,1	2,1
Degree of protection		IPX5 IPX5
Protection class		I	I
Power protection (slow-blowing)	A	10	10

K 5 Premium Power Control

Power Control

Water connection

Feed pressure (max.) MPa	1,2	1,2
Input temperature (max.)	°C	40 40
Input amount (min.)	l/min	10 10
Suction height (max.)	m	0,5	0,5

Device performance data

Operating pressure	MPa	12,5	12,5
Max. permissible pressure	MPa	14,5	14,5
Water flow rate	l/min	7,5	7,5
Maximum flow rate l/min	8,3	8,3
Detergent flow rate l/min	0,3	0,3
High-pressure gun recoil force	N	20	20

Dimensions and weights

Typical operating weight	kg	15,8	14,8
Length	mm	414 402
Width	mm	306 306
Height	mm	588 588

Determined values in acc. with EN 60335-2-79

Hand-arm vibration value	m/s2	<2,5	<2,5
Uncertainty K	m/s2	0,6	0,6
Sound pressure level LpA	dB(A)	76 76
Uncertainty KpA	dB(A)	3 3
Sound power level LWA + K uncertaintyWA	dB(A)	92 92

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.324-xxx

Currently applicable EU Directives

2000/14/EC

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonised standards used

EN 50581

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Conformity evaluation procedure used

2000/14/EC: Annex V

Sound power level dB(A)

Measured: 89

Guaranteed: 92

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contenu

c Raccorder la lance.

2006/42/CE (+2009/127/CE)

2011/65/EU _230

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Download on the App Store

Marchi

0 H. Jenner Chairman of the Board of Management

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Inhoud

⑥ Apparaatschakelaar "0/OFF" / "I/ON"

De watertoevoer is te klein

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Download on the
App Store

Marcas registradas

2006/42/CE(30009/127/CE)

2011/65/UE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Índice

GET IT ON Google Play Download on the App Store

Marca registada

2006/42/CE (+2009/127/CE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 01/08/2020

Indhold

Download on the App Store

Varemærke

2006/42/EF (+2009/127/EF)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Indhold

Generelle merknader.... 51

KÄRCHER Home & Garden-app.... 51

Miljøvern....51

Download on the
App Store

Varemerke

2006/42/EF (+2009/127/EF)

2011/65/EU

Anvendte harmoniserte standarder

EN 50581

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 89

Garantert: 92

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2020/08/01

Innehåll

Allmän information 56

KÄRCHER Home & Garden-app 56

Miljöskydd 57

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2020-08-01

Sisältö

GET IT ON Google Play Download on the App Store

Tavaramerkit

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2020/08/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Содержание

Общие указания 78

KÄRCHER Home & Garden App 78

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Obsah

Download on the App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Kazalo

Splošna navodila 96

Aplikacija KÄRCHER Home & Garden.... 96

Zaščita okolja 96

Namenska uporaba 97

Pribor in nadomestni deli.... 97

Obseg dobave....97

Opis naprave 97

Varnostne naprave 97

Simboli na napravi.... 97

Montaža....97

Zagon 98

Obratovanje....98

Transport 99

Skladiščenje 99

Download on the
App Store

Blagovni znamki

- Google Play™ in Android™ sta blagovni znamki ali registrirani blagovni znamke družbe Google Inc.

- Apple® in App Store® sta blagovni znamki ali registrirani blagovni znamki družbe Apple Inc.

Zaščita okolja

Pakirni material je mogoče reciklirati. Embalažo odstranite na okolju varen način.

⑥ Stikalo naprave "0/OFF" / "I/ON"

2006/42/ES (+2009/127/ES)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 1. 8. 2020

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2000/14/UE

2014/30/UE

2006/42/U230(+2009/127/UE)

2011/65/UE

Norme armonizate aplicate

EN 50581

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Obsah

Všeobecné upozornenia.... 113

KÄRCHER Home & Garden App.... 113

GET IT ON Google Play Download on the App Store

Ochranná známka

2006/42/ES (+2009/127/ES)

2011/65/EÚ

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.08.2020

Sadržaj

Opće napomene	118
Aplikacija KÄRCHER Home & Garden	119
Zaštita okoliša	119
Namjenska uporaba	119
Pribor i zamjenski dijelovi	119
Sadržaj isporuke	119
Opis uređaja	119
Sigurnosni uređaji	120
Simboli na uređaju	120
Montaža	120
Puštanje u pogon	120
Rad	121
Transport	122
Skladištenje	122
Njega i održavanje	122
Pomoć u slučaju smetnji	122
Jamstvo	123
Tehnički podaci	123
EU izjava o sukladnosti	123

Opće napomene

Prije prve uporabe Vašeg uređaja pročitajte ove originalne upute za rad i priložene Sigurnosne naputke. Postupajte u

skladu s njima.

GET IT ON Google Play Download on the App Store

Zaštitni znak

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primijenjene uskladene norme

EN 50581

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 1.8.2020.

Sadržaj

Opšte napomene.... 124

KÄRCHER Home & Garden aplikacija 124

Download on the
App Store

Robna marka

• Google Play™ i Android™ su brendovi ili registrovane robne marke kompanije Google Inc.
• Apple® i App Store® su brendovi ili registrovane robne marke kompanije Apple Inc.

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primenjene harmonizovane norme

EN 50581

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1 230

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2020/08/01

Съдържание

Общи указания 129

Приложение KÄRCHER Home & Garden ..... 130

GET IT ON Google Play Download on the App Store

Търговска марка

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2020/08/01

Sisukord

Üldised juhised 136

KÄRCHER Home & Garden App.... 136

Keskkonnakaitse 136

Toode: Körgsurvepesur

Tüüp: 1.324-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2020/08/01

Saturs

Download on the
App Store

Preču zīme

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Download on the App Store

Prekės ženklas

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Black silhouette of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/service

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

QR code image containing encoded data, no visible human-readable text
