USER MANUAL Gen Koelstra

Over 80 years ago Koelstra was founded, a traditional Dutch brand where safety, quality and comfort were our prime concern.

Throughout the years our assortments widened and innovations caused the products to be adapted to contemporary designs.

We want to offer every child the chance to discover the world with our products: outside with our buggy's, diaper bags and strollers; inside with our travel cots and bouncers. Each product is developed and designed with our companies' core values in mind.

Enjoy your Koelstra product, your little one; your originals.

Want to know more about Koelstra or one of our products? Have a look at our website www.koelstra.com.

Koelstra 2.0 BV

7951 SJ Staphorst, the Netherlands.

Product design by

Introducing KOELSTRA GEN 8

Configurations, sizes and weights 8

How to use and fold 9-15

General safety tips 16

Warnings + Warranty 17-38

Guarantee card 40

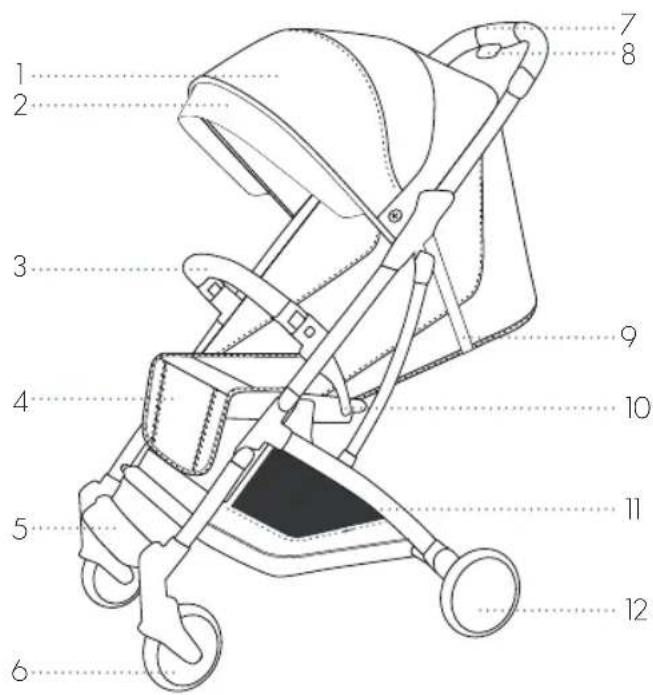

Introducing KOELSTRA GEN

1. hood
2. foldable sun hood
   3.bumperbar
3. leg rest
4. foot rest
5. front wheels
6. push bar
7. button for folding
8. back adjustment strap
9. lock for fold
10. shopping basket
11. rear wheels

Configurations, sizes and weights

sizes

unfolded

folded

weights

Koelstra GEN

weight capacity

102 × 82.5 × 48CM

basket

5 kg max.

60 × 48 × 26.5 CM

Koelstra GEN

15 kg max.

6,7 kg

HOW TO USE AND FOLD

How to unfold. 10
How to install bumperbar 10
Folding canopy in/out 11
How to fold and travel 11
How to use harness 12
Adjust seat 13
Brake instructions 14
Adjust footrest 15
Dissassemble wheels 15

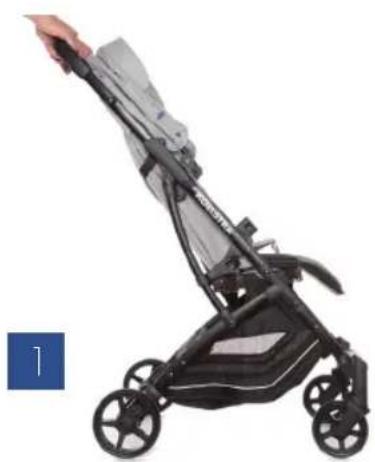

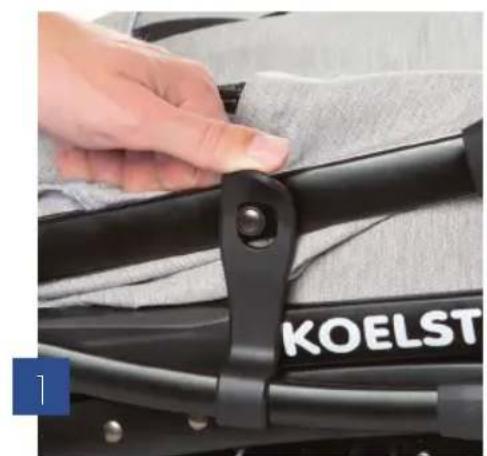

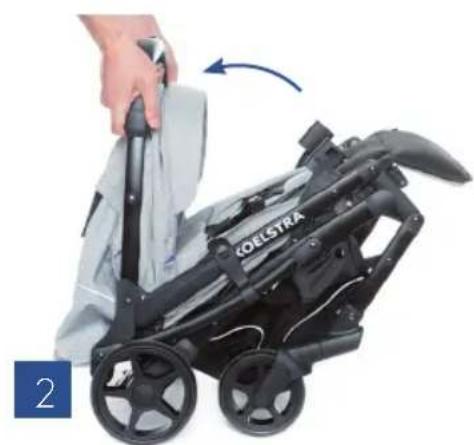

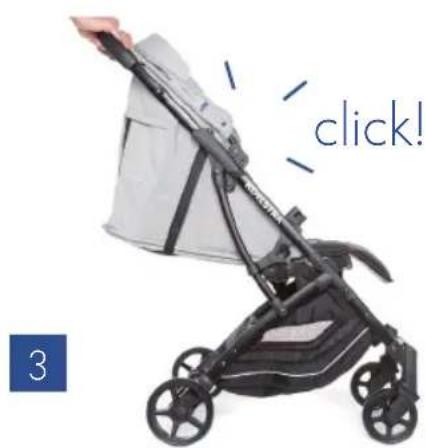

How to unfold

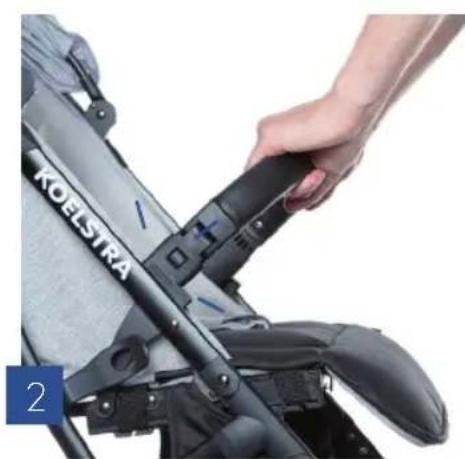

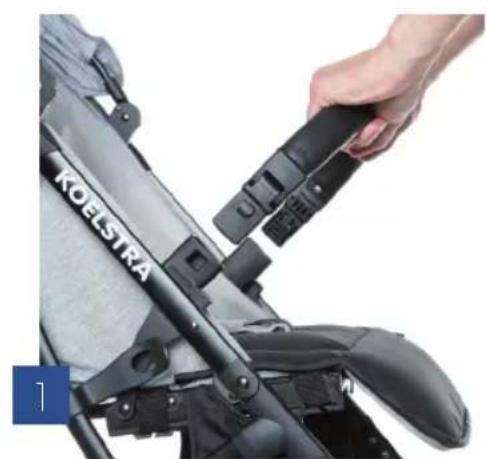

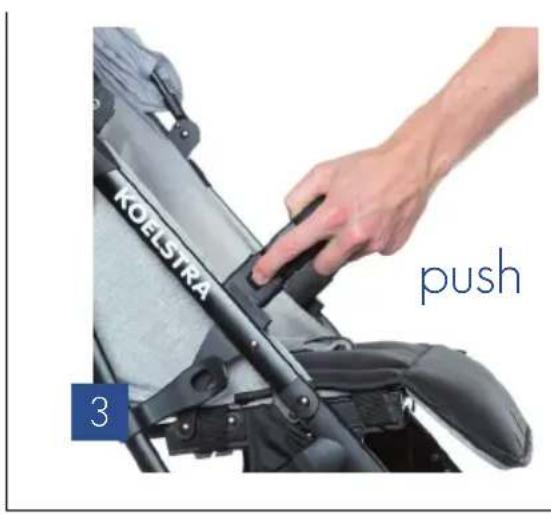

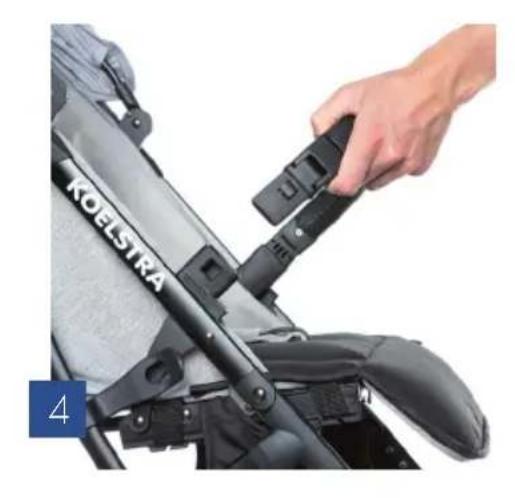

How to install bumperbar

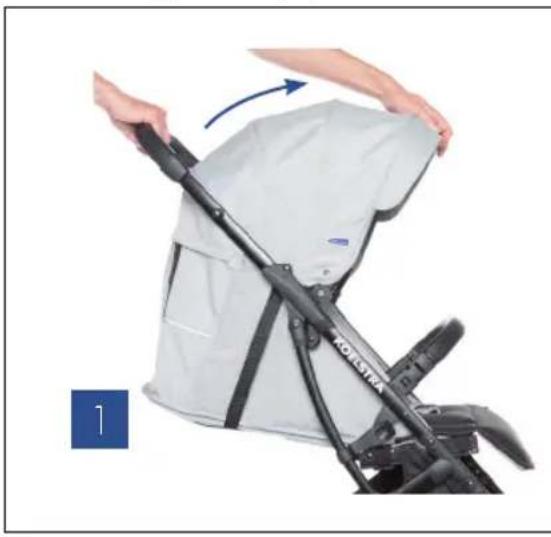

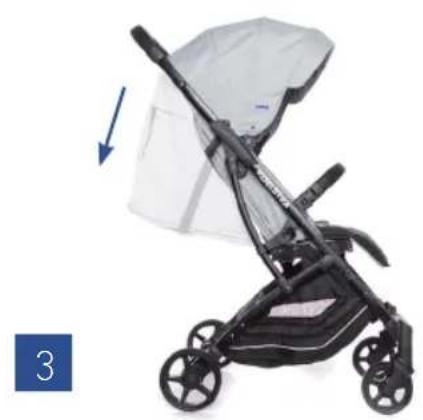

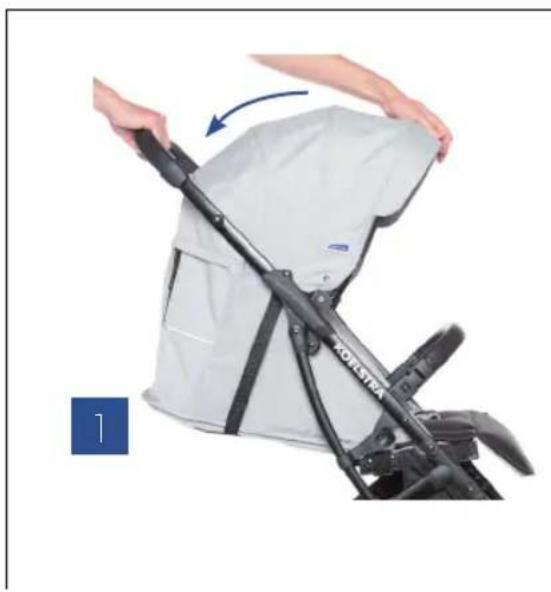

Unfolding canopy

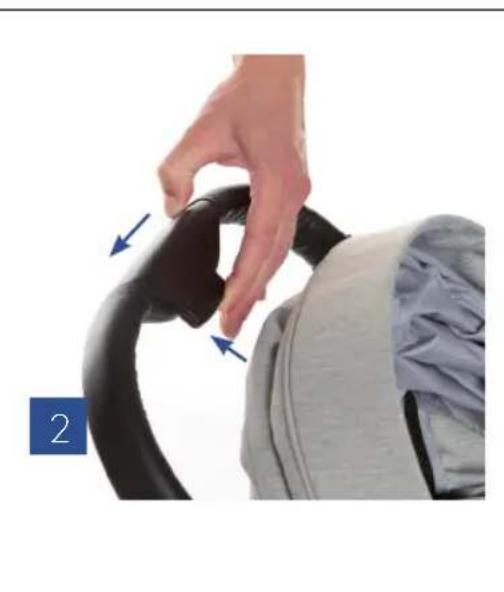

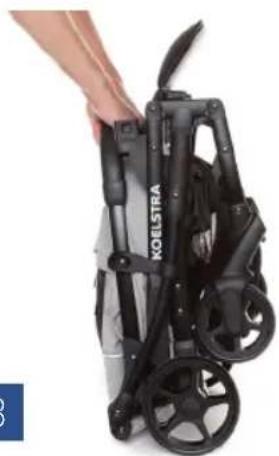

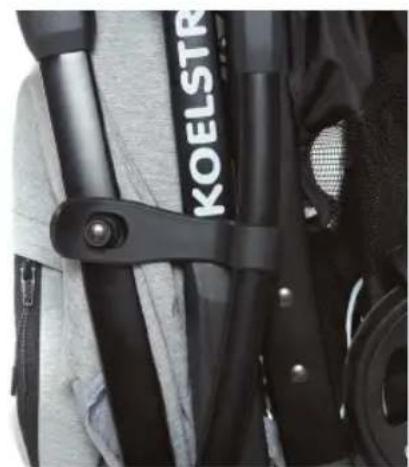

How to fold and travel

2

3

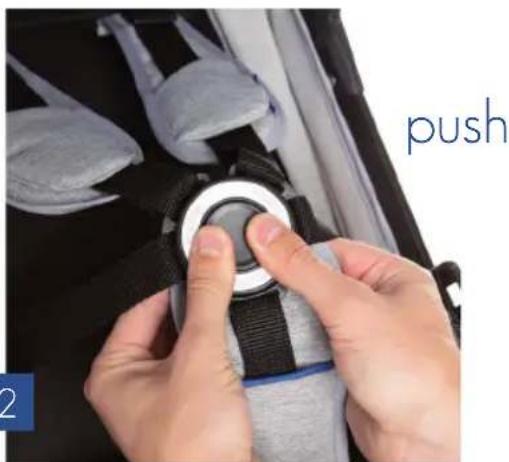

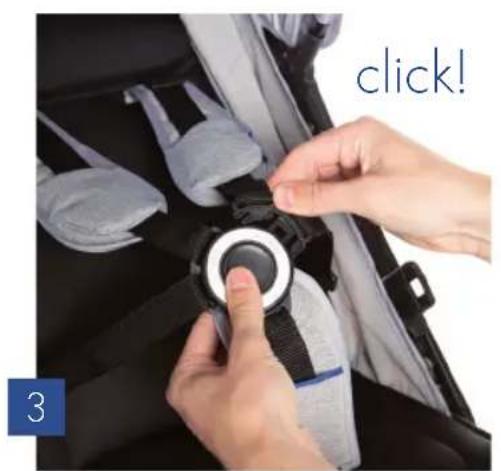

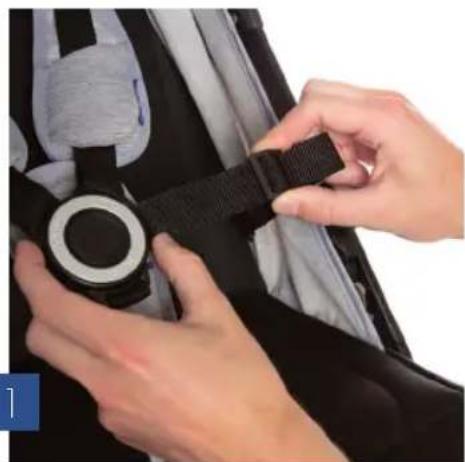

How to use the harness

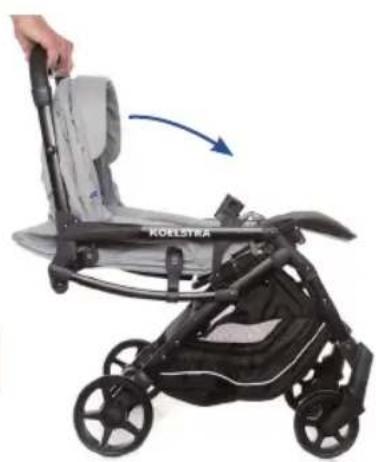

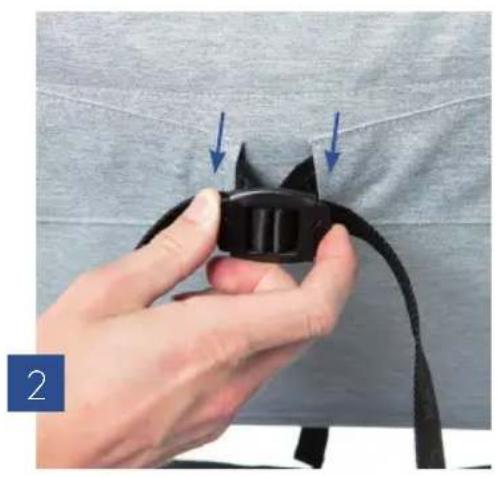

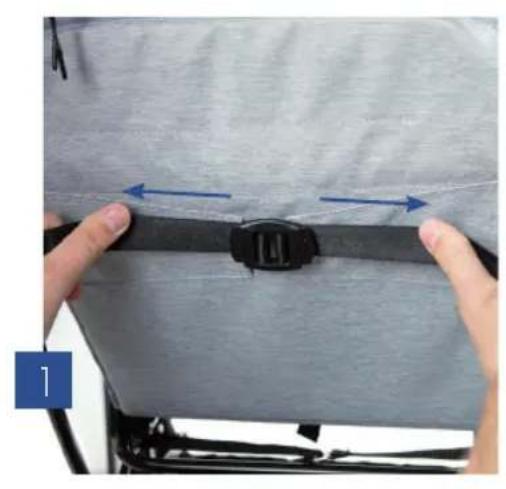

Adjust seat

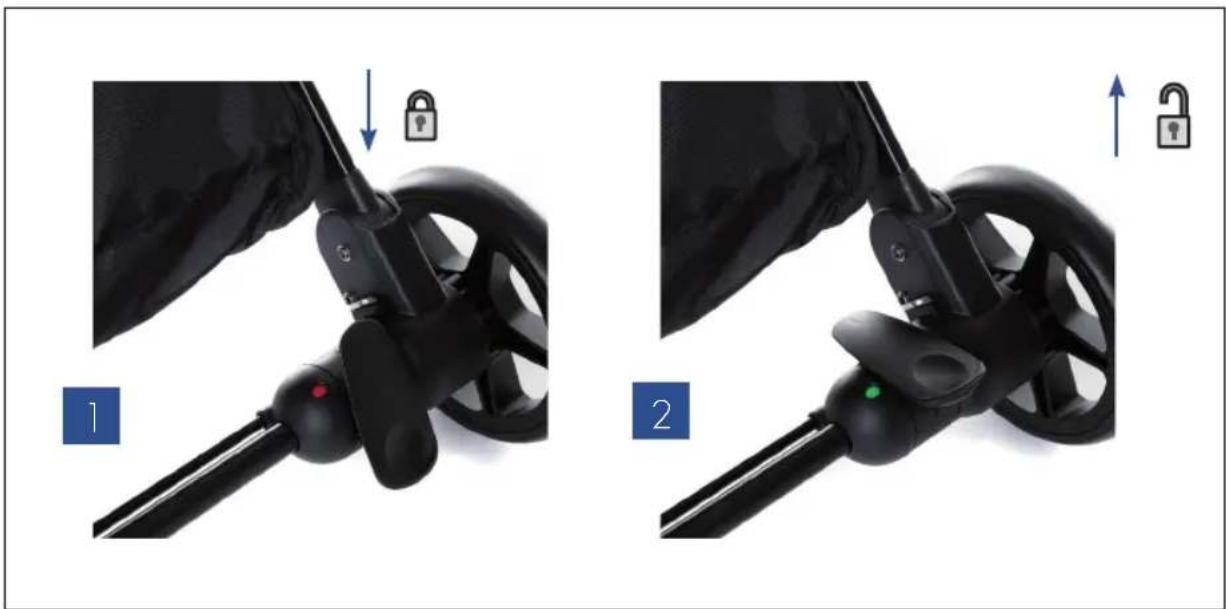

Brake instructions

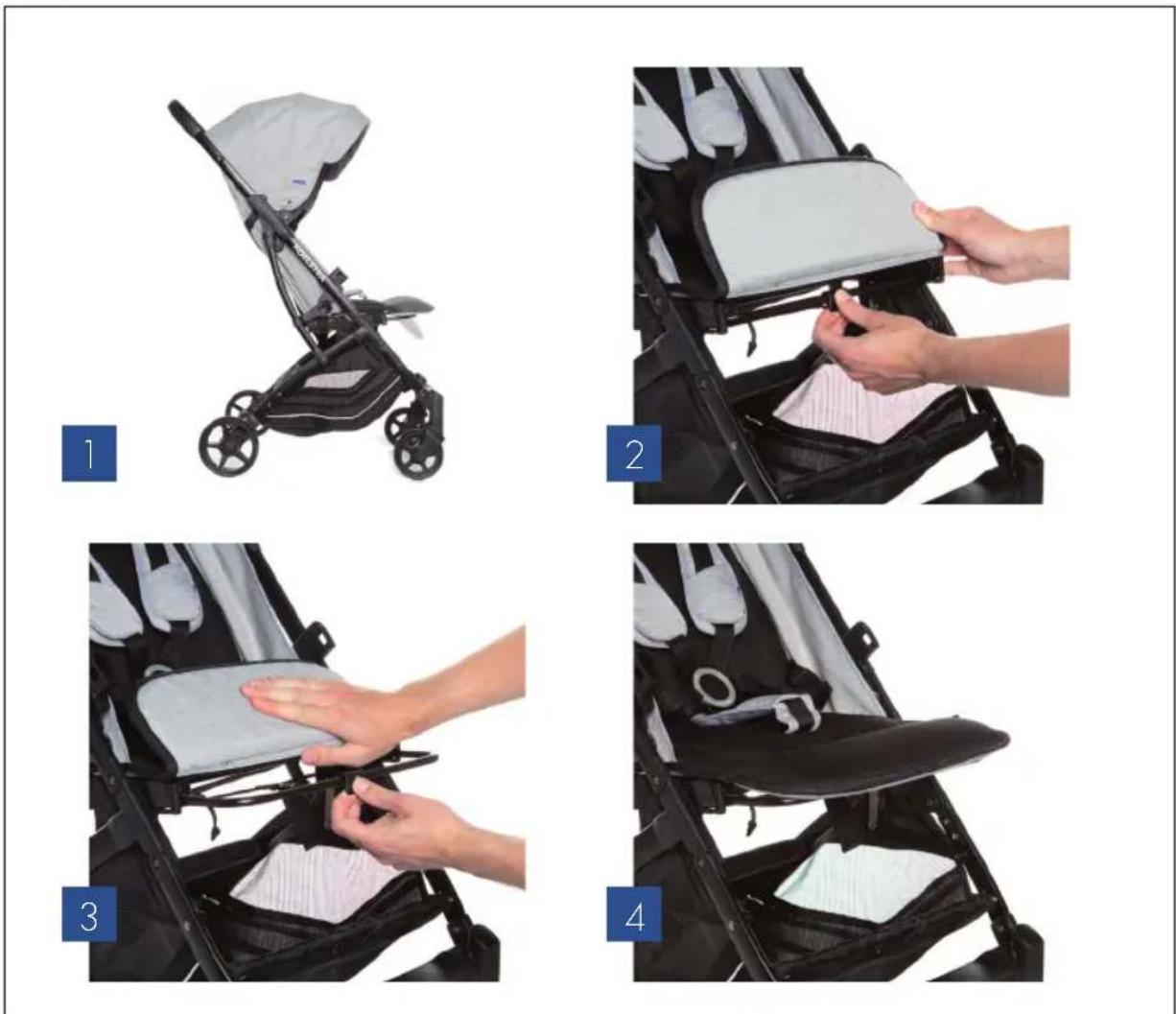

Adjust footrest

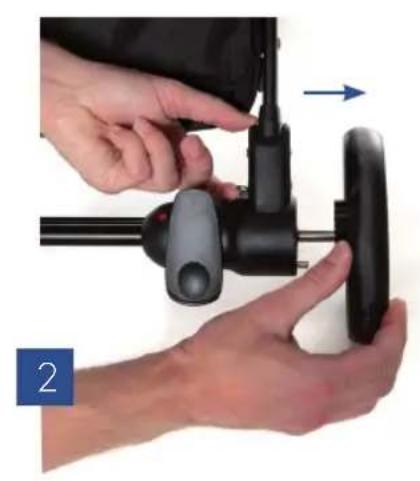

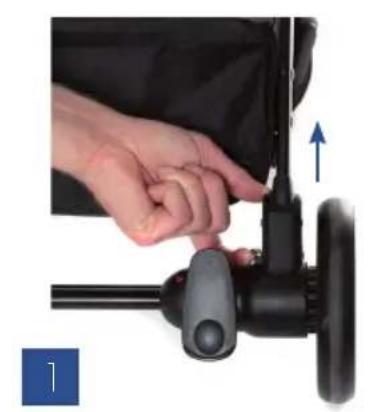

Dissassemble rear wheels

General safety tips:

It is your responsibility to keep an eye on your children.

Read the user manual and/or instructions carefully and store them in a safe place.

Use items solely for their intended purpose.

Please do take safety guidelines and warnings seriously.

Check items for damages regularly.

Make sure that the Koelstra GEN pram is not exposed to high temperatures for too long (for instance in the trunk of a car or in the sun).

Use the product for the transportation of children from the intended age group.

• Keep an eye on your children at all times and do not leave them alone with the product.

Never leave the child unattended

Ensure that all the locking devices are

MAX 15kg

WARNING

+

WARRANTY

EN 18
NL 20
DE 22
FR 24
ES 26
PT 28
IT 30
GR 32
DK 34
F 36
NO 38

EN

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Your child may be hurt if you do not follow the instructions.

WARNING

Never leave the child unattended. Ensure that all the locking devices are engaged before use. To avoid injury ensure that the child is kept away when unfolding and folding this product. Do not let the child play with this product. Use a harness as soon as the child can sit unaided. This seat unit is not suitable for children under 6 months. Always use the restraint system. This product is not suitable for running or skating. Do not use any additional mattresses or pillows, since they can create a suffocation hazard. Any load attached to the handlebar of the Koelstra GEN pushchair may affect its stability. This buggy is designed for only one child. Make sure to only use spare parts and accessories that have been approved by Koelstra. Do not use this product when it is damaged or broken, or when parts are missing.

ATTENTION

Ensure that the person using the Koelstra GEN is an adult who knows how to use it safely. • ALWAYS be careful when crossing kerbs or going up a staircase and never use the Koelstra GEN for purposes other than transporting your child. Push the Koelstra GEN ahead at a normal walking pace; Walking faster can cause losing control and injury to the child. • NEVER leave the Koelstra GEN pram on a hill, slope or Koelstra GEN to a staircase, not even when the brakes have been applied. The pushchair can tip over and cause injury to the child. • To avoid unintended and undesired movement of the pushchair, make sure to ALWAYS apply the brakes when it is not used. • Be careful with small parts, as your child can swallow these with the subsequent risk of suffocation. • To avoid suffocation risk, keep plastic wrapping material out of the children's reach. • To avoid damage, do not remove logos or stickers. Some logos and stickers are required by law. • Be careful with the scissor hinges when unfolding, folding or adjusting the Koelstra GEN. Be careful to not get your own or your child's fingers or hand caught. • To avoid risk of falling objects, strangling or suffocation, do not place the Koelstra GEN close to loose wires, cables or cords. • Make sure to reassemble the safety belt correctly by using the anchor points after taking it apart to, for instance, clean it. The safety belt must be set up correctly again. Pull the belt firmly toward, so that it is adjusted to your child and provides optimal safety. • The grocery basket can take a maximum load of 2 kgs. • Lock the front swivel wheels when folding the pushchair. If this instruction is not followed, the wheels can jam and deform, especially in warm circumstances. • Any load attached to the handle and/or on the backrest and/or on the sides of the vehicle will affect the stability of the vehicle. The safety of your child remains your own responsibility.

Manufacturer warranty Koelstra GEN:

As the manufacturer, Koelstra 2.0 BV, based in Staphorst (hereinafter referred to as "Koelstra"), supplies the Koelstra GEN (hereinafter referred to as "product") including warranty.

1. The manufacturer warranty period is 24 months and commences on the day of purchase, as indicated on the proof of purchase. The warranty period is not extended upon repairs nor in the event of replacing components and/or products. The remaining warranty period of the original product prevails.
2. The manufacturer warranty provides the right of repair of a manufacturing defect and does not apply to exchanging or returning the product.
3. Koelstra reserves the right to cease fabrication of special models, colours, upholstery or accessories and thus replaces the components by similar products, colours or upholstery during the manufacturer warranty.
4. The manufacturer warranty applies only to a product that is purchased for private use and is non-transferable. Therefore, only the initial owner has the right to make a claim under the warranty.
5. In order to make a claim under the manufacturer warranty, one is ought to supply the following items to the point that the product has been purchased at:

The defect product and/or pictures of the defect product or component,
(A copy of) the proof of purchase including date of purchase,
A clear description of the defect,
A complete and correctly filled out warranty form.

The manufacturer warranty is invalid under the following circumstances:

• The product is returned without the original proof of purchase.
• Defects and/or damages resulting from improper use and/or alterations to the product by the customer.
• In case you have carried out alterations or repairs yourself or outsourced it to any third party without the written consent from Koelstra.
• In case the defects have been caused by negligence or an accident and/or use or maintenance other than has been prescribed in the user manual.
• Damage to the product proportionate to regular wear and tear.
• In case the serial number has been damaged or removed.
• Unintentional or unintended damage, improper use or insufficient care.
• Damage case by incorrect use or non-compliance with the instructions in the user manual.
• Incorrect storage/care of the product.
• When discolouration/stains result from cleaning, exposure to rain or sun.
• Transportation damage (during air transport or any other form of transportation): make sure to carefully inspect the Koelstra product in case the product was transported through the air (or any other form of transportation), and report potential damage to the relevant transportation provider immediately.
  Overload (the maximum weight can be found in the package leaflet).
• Damage to push bars or upholstery caused by normal daily use of the product.
• Punctures or tears in the wheels.
• Corrosion.
• A defect resulting from use of components other than they have been supplied by Koelstra 2.0.
• In case of impact damage of the fabric, undercarriage and leatherette

Koelstra reserves the right to alter the terms of this manufacturer warranty. You can find the terms of the latest manufacturer warranty on our website, or please contact the purchase point. For additional questions or remarks you can also consult facebook.com/Koelstra and the website: www.koelstra.com.

Tips for maintenance:

You can use these tips to properly maintain and clean your Koelstra GEN. A thorough maintenance and cleaning instruction can be found on our website www.koelstra.com. Store your Koelstra GEN and related accessories in a dry space. In case the products are wet, leave them in an unfolded position to dry and to protect against mould. Treat the wheels and metals with Teflon or silicone spray regularly (approximately once per month), so the hinges of the pram remain smooth. The aluminium components of the Koelstra GEN pram have been anodised and thus protected against external influences such as corrosion. Anodised aluminium components are poorly resistant to acidic cleaning agents or grease, increasing the risk of stains and discolouration. We therefore recommend to clean the aluminium components of the pram with warm water and a soft cloth. Use a soft brush to remove sand and filth from the mechanism and the extendible tubes. Make sure to brush away from the hinges.

Cleaning the upholstery:

Important! Make sure to always read the label carefully before washing. Clean the fabric with lukewarm water and soap. Rinse with water and leave to dry. Do not use bleach or other chemical cleaning agents.

Grocery basket: It is not possible to wash the grocery basket or rain cover, but you can clean these components with a moist cloth if so desired.

General safety tips:

It is your responsibility to keep an eye on your children.
Read the user manual and/or instructions carefully and store them in a safe place.
Use items solely for their intended purpose.
Please do take safety guidelines and warnings seriously.
Check items for damages regularly.
Make sure that the Koelstra GEN pram is not exposed to high temperatures for too long (for instance in the trunk of a car or in the sun).
Use the product for the transportation of children from the intended age group.
Keep an eye on your children at all times and do not leave them alone with the product.

NL

Don't forget to bring the purchase receipt with you

Name / Naam / Name / Nom / Nome / Nombre / Nome

Address / Adres / Adresse / Adresse / Indirizzo / Dirección / Morada

Place / Woonplaats / Ort / Ville / Posto / Lugar / Lugar

Country / Land / Land / Pays / Paese / Pais / Pais

Product / Product / Produkt / Produkt / Produktto / Produkto / Produkt

Date of purchase / Aankoopdatum / Ankaufdatum / Date d'achat / Data di acquisto / Fecha de compra / Data da compra

Shopname / Winkelnaam / Geschäftsname / Debitant / Nome del lavoro / Nombre de la tienda / Nome da loja

Place / Vestigingsplaat / Ort / Ville / Posto / Lugar / Lugar

PDS code / PDS-code / code PDS / Codice PDS / Codigo PDS / Codigo PDS

Koelstra 2.0 BV

7951 SJ Staphorst, the Netherlands.

Product design by

Atelier 49 Nederland bv.

EN1888-1:2018
