USER MANUAL 70510 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Hamilton Beach blender with visible control buttons and kitchen handle (no text or symbols on the device itself)

Hamilton Beach®

Compact Stack & Snap™ Food Processor Robot culinaire compact Stack & Snap ^MC

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not immerse base, motor, cord, or plug in water or other liquid.
6. Turn the appliance OFF(☐) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Keep fingers out of feed chute.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
10. Do not use your food processor if any part is broken.
11. Do not use appliance outdoors.

12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.

13. Keep hands and utensils away from moving blade and disc while processing food to reduce the risk of severe personal injury and/or damage to the food processor. A rubber scraper may be used but ONLY when the food processor is not running.

14. Blades are sharp. Handle cutting blades carefully when inserting or removing, emptying the bowl, and during cleaning. Store out of reach of children.
15. To reduce the risk of injury, never place cutting blade or disc on base without first putting bowl properly in place.
16. Be certain lid is securely locked in place before operating appliance.
17. Never feed food into food chute by hand. Always use the food pushers.
18. Do not attempt to defeat the lid interlock mechanism.
19. Make sure the blade or disc has come to a full stop before removing lid.
20. To reduce the risk of injury, be sure to insert or remove blade and disc using hubs provided for this purpose. Use caution when removing blade and disc from the bowl, when emptying the bowl, and when cleaning.
21. Check that the appliance is OFF (○) before plugging cord into wall outlet. To disconnect, turn the control to OFF (○) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
22. Be sure to turn switch to OFF (○) position after each use. Always use the pushers to clear the food chute. When this method is not possible, unplug cord from outlet and disassemble unit to remove the remaining food.

23. The appliance is not intended for commercial, professional, or industrial use. It is designed and built exclusively for household use only.

24. Never use appliance for a longer period or with a larger amount of ingredients other than that recommended by appliance manufacturer.

25. The maximum rating of this unit is based on using the chopping/mixing blade. Using the slicing/shredding disc may draw significantly less power.
26. Do not place on or near a hot gas or electric burner or in a heated oven.

27. Do not use appliance for other than intended purpose.

28. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

29. Be careful if hot liquid is poured into the food processor bowl as it can be ejected out of the appliance due to a sudden steaming.
30. Do not fill the bowl above the marked maximum fill line (or rated capacity) to avoid risk of injury due to damage to the cover or bowl.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

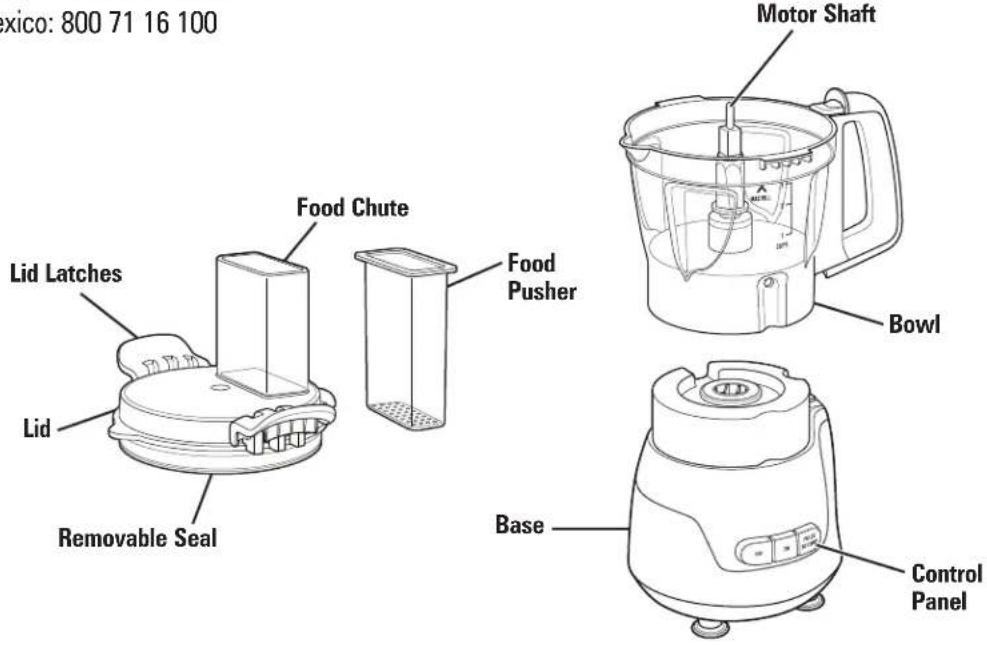

Parts and Features

To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 800 71 16 100

BEFORE FIRST USE: Unpack processor. Handle blade and disc(s) carefully; they are very sharp. Wash all parts except base in hot, soapy water. Rinse; then dry.

Mexico: 800 71 16 100 Lid Latches Food Chute Food Pusher Removable Seal Motor Shaft Bowl Base Control Panel

Chopping/Mixing BladeUse to coarsely chop, grate, mince, mix, or puree food.

Finger Holes

Use to grip disc when adding or removing.

Reversible Slicing/Shredding Disc

Use to shred or to slice a variety of foods (such as cheese, carrots, onions, tomatoes, peppers, and cucumbers).

Control Panel

How to Use Chopping/Mixing Blade

WARNING Laceration Hazard.

Handle blade carefully; it is very sharp. Make sure unit is turned OFF ( and is unplugged.

NOTE: Operate using only one blade or disc at a time.

Diagram showing a mechanical assembly with a cylindrical component being inserted into a base, indicated by a downward arrow (no text or symbols present)

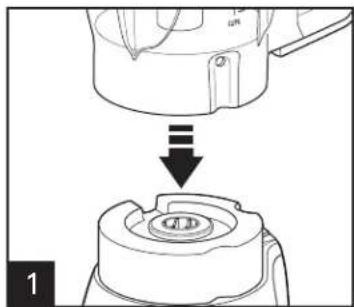

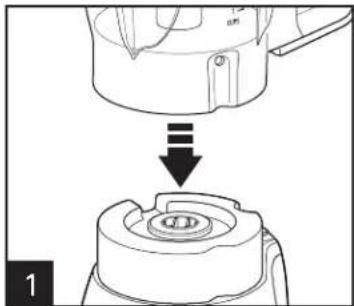

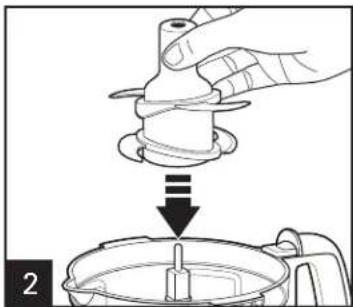

Place bowl on base. Carefully slide

Illustration of a hand pouring liquid into a container with a tool, no text or symbols present

blade straight down onto the motor shaft.

Line drawing of a hand pouring liquid into a kitchen blender with visible contents (no text or symbols)

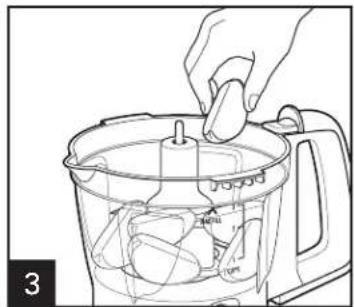

Cut food into pieces and place in bowl.

Diagram illustrating a food cleaning or packaging process with labeled steps and directional arrows

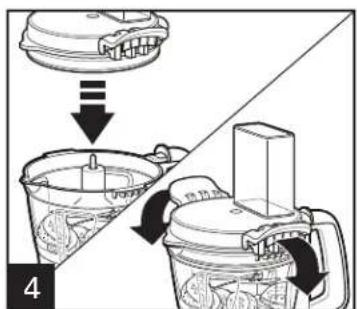

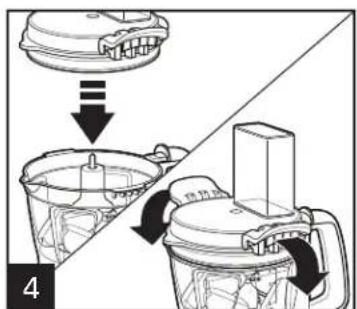

Place lid on bowl. Press lid down and snap lid latches to lock. NOTE: Unit will not work unless latches on bowl are locked.

Illustration of a hand pouring liquid into a cube using a ruler (no text or symbols)

Place food pusher in food chute to process food.

WARNING

Laceration Hazard.

Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

6

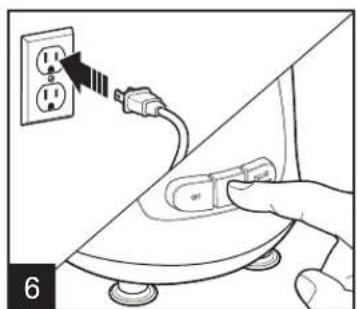

Press ON (I) or PULSE.

How to Use Chopping/Mixing Blade (cont.)

Diagram showing a hand pressing a switch next to an electrical outlet with a plug, no text or symbols present

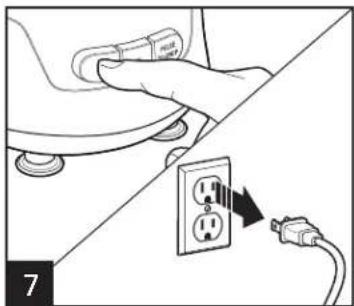

When finished, press OFF ( and unplug.
WARNING Laceration Hazard.
Always unplug unit before removing lid.

Line drawing of a blender with directional arrows indicating rotation (no text or symbols)

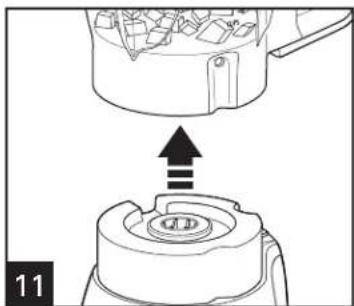

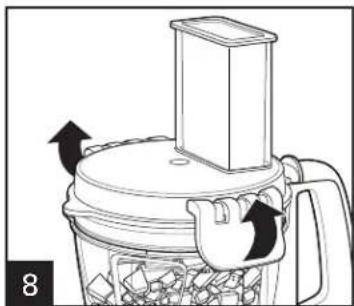

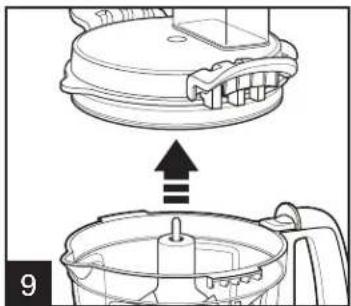

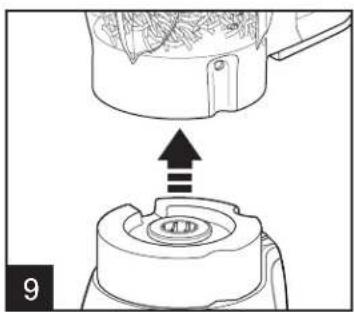

Move lid latches up to unsnap. Always remove lid before removing bowl to avoid possible damage to the appliance.

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

ys remove lid before removing bowl to avoid possible damage to the appliance.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Carefully remove blade from motor shaft.
WARNING Laceration Hazard.

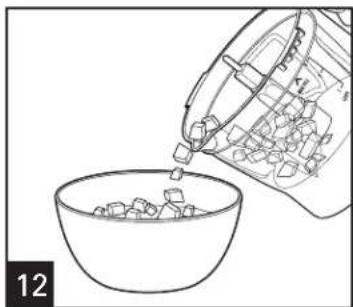

Always remove chopping/mixing blade before pouring.

Diagram showing a mechanical press or stamping process with an upward arrow indicating motion (no text or symbols present)

6

Line drawing of a bowl pouring liquid into a container (no text or symbols)

How to Use Reversible Slicing/Shredding Disc

WARNING Laceration Hazard.

Handle disc carefully; it is very sharp. Make sure unit is turned OFF ( and is unplugged.

NOTE: Operate using only one blade or disc at a time.

Mechanical assembly diagram showing a component being processed into a circular base (no text or symbols)

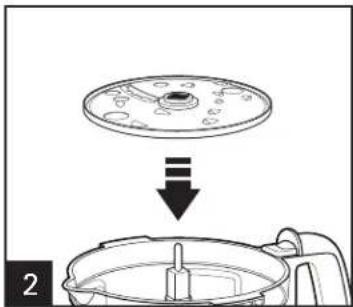

Place bowl on base. Carefully place

2

disc onto motor shaft with desired side facing UP. ("SLICE" or "SHRED" is stamped on each side of the blade.)

Diagram illustrating a kitchen cleaning process with labeled steps and directional arrows indicating material changes.

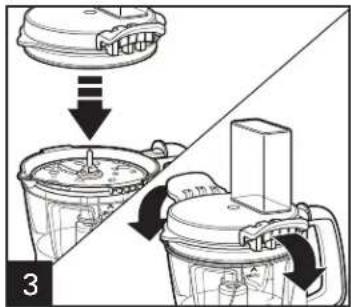

Place lid on bowl. Press lid down and snap lid latches to lock.
NOTE: Unit will not work unless latches on bowl are locked.

Illustration of a hand using a power outlet to switch a wall socket (no text or symbols present)

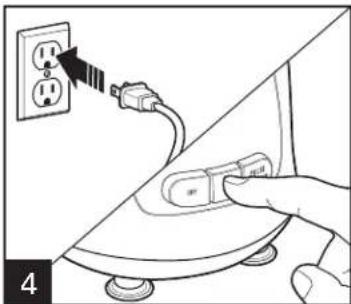

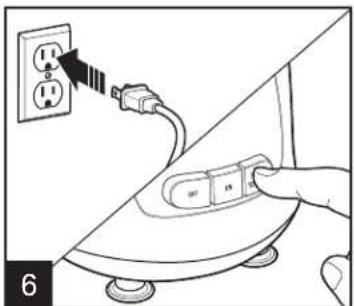

Plug in. Press ON (I).
NOTE: Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Illustration of a hand using a tool to press or install a block, with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand using a tool to press or install a block, with a downward arrow indicating compression (no text or symbols present)

Cut food to fit food chute if needed. Place food and food pusher in chute to process food.

WARNING

Laceration Hazard.

Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

How to Use Reversible Slicing/Shredding Disc (cont.)

6

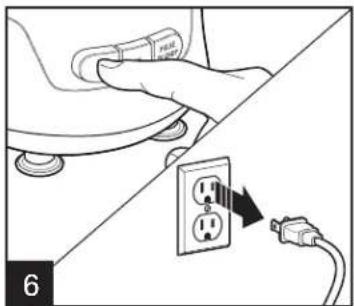

When finished, press OFF (⊕ and unplug.

WARNING Laceration Hazard.

Always unplug unit before removing lid.

Diagram showing a kitchen interior with a lid and sink, separated by a diagonal line (no text or symbols)

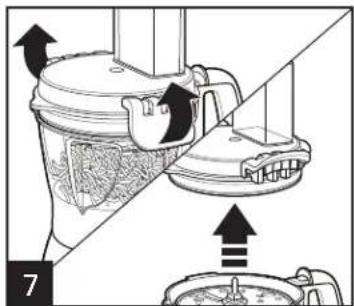

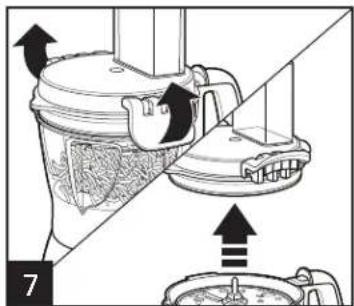

Move lid latches up to unsnap. Always remove lid before removing bowl to avoid possible damage to the appliance.

Illustration showing a hand placing a circular component into a plate, with an arrow indicating upward motion (no text or symbols)

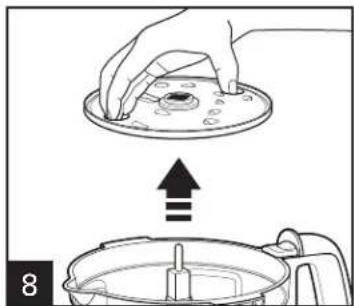

Carefully remove disc from motor shaft using finger holes.

Diagram showing a mechanical press or stamping device with an upward arrow indicating motion, no text or symbols present.

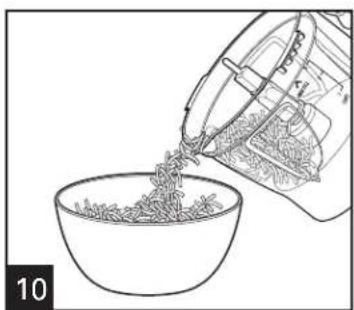

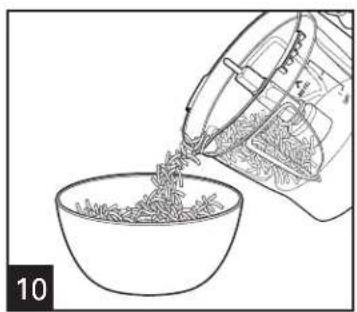

Line drawing of a bowl pouring granular material from a container into a bowl (no text or symbols)

How to Make Smoothies

WARNING Laceration Hazard.

Handle blade carefully; it is very sharp. Make sure unit is turned OFF ( and is unplugged.

NOTE: Operate using only one blade or disc at a time.

Technical diagram showing a mechanical assembly with a downward arrow indicating process or transformation, labeled '1' in the corner.

Place bowl on base. Carefully slide

Illustration of a hand pouring liquid into a container with a valve, showing mechanical components (no text or symbols)

chopping/mixing blade straight down onto the motor shaft.

Line drawing of a kitchen blender with a spoon lifting a bowl (no text or symbols)

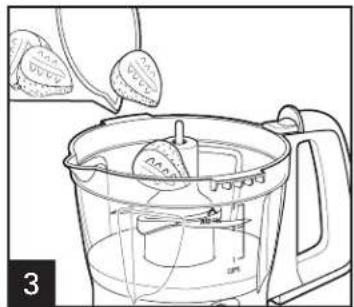

Add liquid to bowl before adding other ingredients.

Diagram illustrating a food preservation or cleaning process with labeled steps and directional arrows

Place lid on bowl. Press lid down and snap lid latches to lock. NOTE: Unit will not work unless latches on bowl are locked.

Illustration of a hand pouring liquid into a container with a downward arrow, no text or symbols present

Place food pusher in food chute to process food.

WARNING

Laceration Hazard.

Always use food pusher to feed food into the chute. Never push food through chute with hands or other objects.

1 6

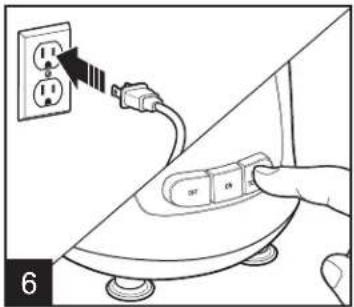

Press PULSE a few times to chop ingredients; then press ON (I) and blend until smooth.

How to Make Smoothies (cont.)

Diagram showing a plug inserted into an electrical socket with a magnified view of the socket (no text or symbols)

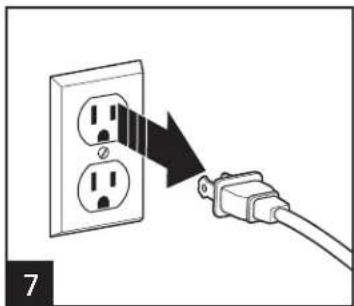

When finished, unplug. ⚠ WARNING Laceration Hazard. Always unplug unit before removing lid.

Line drawing of a kitchen blender with directional arrows indicating rotation (no text or symbols)

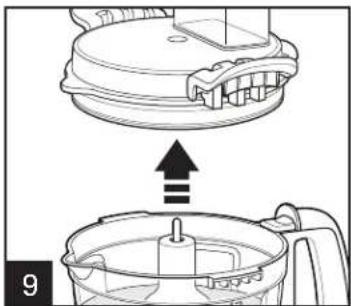

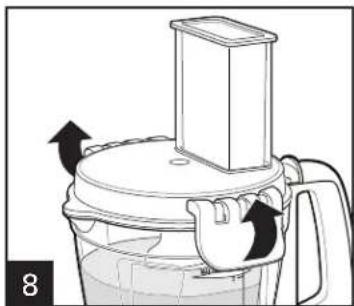

Move lid latches up to unsnap. Always remove lid before removing bowl to avoid possible damage to the appliance.

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

ays remove lid before removing bowl to avoid possible damage to the appliance.

Illustration of a hand using a tool to press down a component, with an arrow indicating upward motion (no text or symbols)

Carefully remove blade from motor shaft. ⚠ WARNING Laceration Hazard. Always remove chopping/mixing blade before pouring.

Diagram of a blender being inserted into a base, showing mechanical components and an upward arrow (no text or symbols)

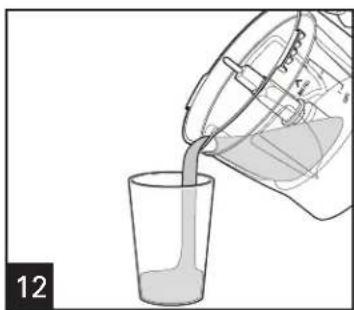

Illustration of a glass pouring liquid into a cup (no text or symbols)

Tips and Techniques

• For a more uniform consistency, start with pieces of food that are similar in size. Cut food into 1-inch (2.5-cm) pieces before processing with double chopping/mixing blade and leave room in bowl for the food to be tossed around.
• This food processor is excellent to chop, mix, slice, or shred most foods. However, to maintain peak performance, do not use your food processor for the following: grinding grain, coffee beans, or spices; slicing frozen meats; kneading dough; or crushing ice.
• When chopping foods, pulsing on and off will produce the best results.

• Operating time will depend on quantity of food being processed. Most foods can be sliced, chopped, or shredded in seconds. If unit is operated continuously for an extended period of time, let the processor rest about 4 minutes before continuing.

• Do not puree or mash starchy vegetables like potatoes as they are easily overprocessed and will become gummy.

• To slice or shred cheese, use only firm cheese like Cheddar or Swiss that has been chilled for at least 30 minutes. Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.
• For best smoothie results, add at least 1/2 cup (118 ml) liquid to bowl before adding other ingredients.
• To julienne vegetables, slice and then remove from bowl. Restack the vegetables. Pack into food chute with slices vertical. Slice again to make matchstick-cut vegetables.

Processing Chart

Disc attachments are reversible and labeled. The label should face up for the desired function.

ATTACHMENT FOODS

Chopping/Mixing Blade Chop: nuts, meat, garlic, onions, peppers, celery, herbs, bread (for crumbs), crackersMince/Puree: vegetables, fruitMix: salad dressingsPuree: soups, saucesGrate: cheese, such as Parmesan (chilled)Blend: Smoothies
Slicing Disc(slicing side facing UP)	Cucumbers, apples, mushrooms, carrots, potatoes, cabbage, tomatoes, pepperoni, peppers, radishes, firm cheeses (chilled)
Shredding Disc(shredding side facing UP)	Cabbage, potatoes, carrots, cheese (chilled)

Care and Cleaning

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

Line drawing of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

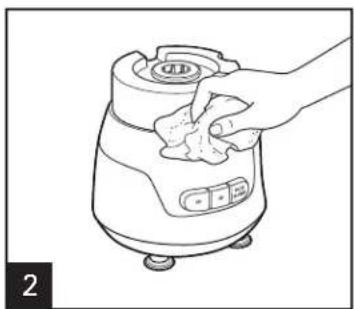

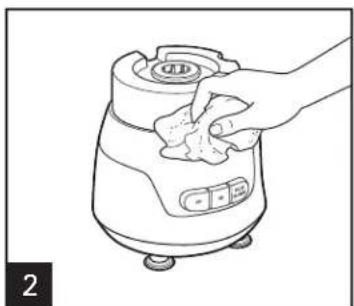

Wipe base, control panel, and cord with a damp cloth or sponge and dry. If necessary, use a mild nonabrasive cleanser.

WARNING Electrical Shock Hazard.

Disconnect power before cleaning. Do not immerse cord, plug, or base in any liquid.

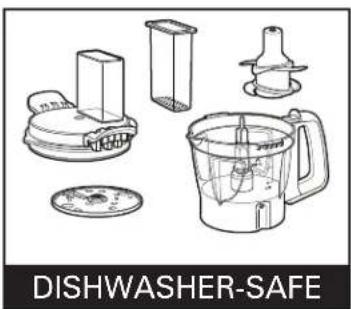

DISHWASHER-SAFE

DO NOT use the "SANI" setting when washing in the dishwasher. "SANI" cycle temperatures could damage your product. All removable parts may also be cleaned in the sink with hot, soapy water. Use caution when washing double chopping/mixing blade and slicing/shredding disc.

NOTE: Check lid to make sure seal is on bottom of lid. Seal must be in place to prevent leaking.

If food is trapped under seal, remove and wash in warm, soapy water. Rinse and dry. Place seal below groove of lid.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Troubleshooting

PROBLEM PROBABLE CAUSE/SOLUTION

Unit does not operate on any speed or Pulse.	• Is the unit plugged in? Does the outlet work? • Is the lid locked in place? See “How to Use” sections.
Food is not sliced or shredded uniformly.	• Packing too much food in the food chute or pushing too hard on the food pusher may cause the processed food to be irregular.
Unit stops and will not come back on.	• Is the lid locked in place? See “How to Use” sections. • Is the outlet still working? Check it by plugging in a working lamp or other appliance. You may have overloaded the circuit and blown a fuse or tripped the circuit breaker. • If none of these suggestions correct the problem, DO NOT attempt to repair the unit. Call the Customer Service number.
Unit has a burning smell.	• There may be a residue left on the motor from the manufacturing process, causing a slight odor during initial use. This will go away. If a strong odor or any visible smoke appears, unplug unit IMMEDIATELY and call the Customer Service number.
Motor seems weak.	• Are you using the recommended food size and quantity to be processed? Refer to the Food Processing Chart for recommended food sizes and speeds.
Cheese is not shredding well.	• Cheese should be processed immediately after being removed from the refrigerator. Soft cheese like mozzarella should be placed in the freezer for 30 minutes prior to processing to ensure it is firm enough for shredding.

Troubleshooting (cont.)

PROBLEM PROBABLE CAUSE/SOLUTION

Chopping/mixing blade stopped working.	·Cheese pieces are too large. Cut cheese into 1-inch (2.5 cm) pieces or smaller. Soft cheeses need to be placed in freezer 30 minutes prior to processing and firm cheeses need to be cold from refrigerator.
Vegetables are not shredding or slicing.	·Store vegetables with high water content in the refrigerator prior to processing. Room-temperature vegetables are less firm and do not perform as well.
Lid leaks. ·Seal has come off	or been removed. Place seal below groove on lid.·Food is trapped under seal. Remove seal and wash in warm, soapy water. Rinse and dry. Place seal below groove on lid.
Mixture stops blending when using chopping/mixing blade.	·There may be ingredients stuck to the side of the bowl or not enough liquid. Press OFF (○). Remove lid and use a rubber spatula to push mixture towards the chopping/mixing blade.

Recipes

Sun-Dried Tomato Hummus

Ingredients:

1 clove garlic
1 green onion, cut in pieces
3/4 cup (177 ml) drained garbanzo beans (chickpeas)
1/4 cup (59 ml) water
2 tablespoons (30 ml) tahini (sesame paste), stirred

1 tablespoon (15 ml) lemon juice

Dash ground cumin

Dash cayenne pepper

Salt and pepper to taste

Vegetables or pita chips

Directions:

1. Using chopping/mixing blade, add all ingredients, except pita chips and cut vegetables to bowl.
2. Press ON (I) and process until desired consistency. Stop and scrape bowl as needed. Remove blade and insert slicing disc. Slice vegetables.
3. Serve with vegetables or pita chips. Refrigerate.

Makes: 1 cup

Blue Cheese Dressing

Ingredients:

1 clove garlic
2 ounces (57 g) blue cheese
1 cup (237 ml) mayonnaise

1/4 cup (59 ml) sour cream
2 tablespoons (30 ml) lemon juice
1 tablespoon (15 ml) sugar

Directions:

1. Using chopping/mixing blade and with processor running, drop garlic cloves into the food chute and mince.
2. Add blue cheese and process for 10 seconds.
3. Add remaining ingredients. Process until smooth. Refrigerate

Makes: 1 1/2 cups

Fresh and Spicy Salsa

Ingredients:

1/2 small onion, cut in pieces
1/2 clove garlic
1/2 hot pepper (jalapeno or finger hot), cored, seeded, and quartered
1 tomato, cut in eighths

Small handful cilantro
1/4 teaspoon (1.3 ml) cumin
1/2 teaspoon (2.5 ml) lime juice
Salt and pepper to taste
Hot sauce, optional

Directions:

1. Using chopping/mixing blade and with processor running, drop onion, garlic clove and hot pepper through the food chute and chop until finely minced. Scrape bowl as needed.
2. Add tomato, cilantro, cumin, lime juice, salt and pepper. Pulse until desired texture, scraping bowl as needed. Add hot sauce if desired.

Serves: 6–8

Cilantro Butter

Ingredients:

1 bunch cilantro leaves
1 cup (237 ml) unsalted butter, softened

Juice from one lemon

Salt and pepper to taste

Directions:

1. Using chopping/mixing blade, combine butter and cilantro leaves in food processor. Blend until light and fluffy.
2. Add lemon juice, salt and pepper to taste. Process to blend.
3. Delicious with grilled fish. Refrigerate.

Serves: 4–6

Recipes (cont.)

Peanut Butter and Banana Smoothie

Ingredients:

1 cup milk
1 tablespoon (15 ml) honey
3 tablespoons (44 ml) creamy peanut butter
1 small frozen banana, broken into chunks
1/2 cup (118 ml) ice cubes (5 crescent shape)

Directions:

1. Using chopping/mixing blade, add ingredients in order listed.
2. Pulse 5 times; then run for 1 minute or until mixture is smooth.

Serves: 1–2

Fresh Strawberry and Banana Smoothie

Ingredients:

1/4 cup (59 ml) apple juice
1/2 cup (5.3-oz. package) Greek peach yogurt
1 medium banana
1 cup (237 ml) strawberry halves
1/2 cup (118 ml) ice cubes (5 crescent shape)

Directions:

1. Using chopping/mixing blade, add ingredients in order listed.
2. Pulse 5 times; then run for 1 minute or until mixture is smooth.

Serves: 1–2

Strawberry, Pineapple and Banana Smoothie

Ingredients:

1/2 cup (118 ml) orange juice
1/2 cup (5.3-oz. package) Greek pineapple yogurt
1/2 medium banana
1/2 cup (118 ml) frozen strawberries
1/2 cup (118 ml) frozen pineapple chunks

Directions:

1. Using chopping/mixing blade, add ingredients in order listed.
2. Pulse 5 times; then run for 1 minute or until mixture is smooth.

Serves: 1–2

Spinach, Pineapple and Banana Smoothie

Ingredients:

1/2 cup (118 ml) apple juice
1/2 cup (118 ml) baby spinach leaves
1/2 medium banana
1 cup (237 ml) fresh pineapple chunks
1/2 cup (118 ml) ice (5 crescent shape)

Directions:

1. Using chopping/mixing blade, add ingredients in order listed.
2. Pulse 10 times; then run for 1 to 1 1/2 minutes or until mixture is smooth.

Serves: 1–2

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Diagram showing a mechanical device with a downward arrow indicating process (no text or symbols present)

Illustration of a hand pouring liquid into a container with a valve, showing mechanical components (no text or symbols)

Line drawing of a kitchen blender with a hand placing a lid (no text or symbols)

Diagram illustrating a food preservation or cleaning process with labeled steps and directional arrows

Illustration of a hand holding a container being inserted into a cube, with a downward arrow indicating the process (no text or symbols present)

Diagram showing a hand holding a switch connected to an electrical outlet with a cable (no text or symbols present)

Line drawing of a food blender with arrows indicating rotation (no text or symbols)

Diagram showing a mechanical press or stamping device pressing into a circular component, with no visible text or symbols.

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

Line drawing of a bowl pouring liquid into a container with granular material (no text or symbols)

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram showing a mechanical device being processed into a circular component, with no visible text or symbols.

Diagram showing a device being processed into a fan or socket, with a magnified view of the lid and internal components.

Diagram illustrating a kitchen cleaning process with labeled steps and directional arrows indicating material movement.

Illustration of a hand using a power outlet to switch a wall socket (no text or symbols present)

Illustration of a hand using a tool to press or press a small object, with a downward arrow indicating compression (no text or symbols present)

Diagram showing hand holding switch connected to electrical socket with power outlet, no text or symbols present

Diagram showing a mechanical assembly with an upward arrow indicating motion or force, no text or symbols present.

Line drawing of a bowl pouring granular material from a container into a bowl (no text or symbols)

Diagram showing a kitchen interior with a lid and sink, separated by a diagonal line (no text or symbols)

Illustration showing a hand placing a circular object onto a plate, with an arrow indicating upward motion (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component being inserted into a base (no text or symbols present)

Illustration of a hand pouring liquid into a container with a stand, showing mechanical components (no text or symbols)

Line drawing of a kitchen appliance with a spoon lifting a strawberry (no text or symbols)

Diagram illustrating a food preparation process with labeled steps and directional arrows indicating processing steps.

Illustration of a hand using a tool to press down a cube, with a downward arrow indicating compression (no text or symbols)

6

Diagram showing a plug inserted into an electrical outlet with two socket terminals, no text or symbols present

Line drawing of a food blender with directional arrows indicating rotation (no text or symbols)

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

Illustration of a hand using a tool to press down a mechanical component, with an arrow indicating upward motion (no text or symbols)

Diagram of a blender being placed on top of a base, showing mechanical components and an upward arrow (no text or symbols)

Illustration of a hand pouring liquid from a glass into a cup (no text or symbols)

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

Line drawing of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)

PROBLÈME CAUSE POSSIBLE/SOLUTION

PROBLÈME CAUSE POSSIBLE/SOLUTION

Diagram showing a mechanical component being processed into a circular component, with no visible text or symbols.

Illustration of a hand using a tool to press down a small component, with no visible text or symbols.

Line drawing of a hand pouring liquid into a kitchen blender (no text or symbols)

Diagram illustrating a food cleaning or packaging process with labeled steps and directional arrows

Illustration of a hand using a tool to press or press a block, with a downward arrow indicating compression (no text or symbols present)

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Diagram showing a hand pressing a switch next to an electrical socket connected to a cable (no text or symbols present)

Cuando termine, apague (OFF/φ y desconecte.

ADVERTENCIA

Line drawing of a kitchen mixer with directional arrows indicating rotation (no text or symbols)

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

Illustration of a hand using a tool to press down a mechanical component, with an arrow indicating upward motion (no text or symbols)

Diagram showing a mechanical assembly with an upward arrow indicating motion or force, no text or symbols present.

Line drawing of a bowl pouring liquid from a container into a bowl (no text or symbols)

Mechanical assembly diagram showing a component being processed into a circular housing (no text or symbols)

Diagram showing a device with a disc and a component being lowered into a fan or pot, labeled with number 2.

Diagram illustrating a kitchen cleaning process with labeled steps and directional arrows indicating material movement.

Illustration of a hand using a power outlet to switch a wall socket (no text or symbols present)

Illustration of a hand using a tool to press or lift a small object, with no visible text or symbols.

Diagram showing hand holding switch connected to power socket with plug, plus cable (no text or symbols)

Cuando termine, apague (OFF/φ y desconecte.

ADVERTENCIA

Diagram of a kitchen mixer with directional arrows indicating process flow (no text or symbols)

Illustration showing a hand placing a circular component into a plate, with an arrow indicating upward motion (no text or symbols)

Diagram showing a mechanical device pressing down on a circular component with an upward arrow, labeled '9' in corner (no text or symbols on diagram itself)

Line drawing of a bowl pouring granular material from a container into a bowl (no text or symbols)

Cómo Preparar Smoothies

ADVERTENCIA

Technical diagram showing a mechanical assembly with a downward arrow indicating process or transformation, labeled with number 1.

Illustration of a hand pouring liquid into a container with a valve, showing mechanical components (no text or symbols)

Line drawing of a kitchen mixer with a spoon lifting an apple (no text or symbols)

Diagram illustrating a food preservation or cleaning process with labeled steps and directional arrows

Illustration of a hand using a tool to press down a cylindrical object, with a downward arrow indicating compression (no text or symbols present)

6

Diagram showing a plug inserted into an electrical socket with a magnified view of the socket (no text or symbols present)

Line drawing of a blender with directional arrows indicating process flow (no text or symbols)

Diagram showing a kitchen appliance with a lid and a side view of its interior (no text or symbols)

Illustration of a hand using a tool to press down a component, with an arrow indicating upward motion (no text or symbols)

Diagram of a blender being inserted into a base, showing mechanical components and an upward arrow (no text or symbols)

Illustration of a hand pouring liquid from a container into a glass (no text or symbols)

Consejos y Técnicas

Diagram showing a plug inserted into an electrical socket, with no text or symbols present.

Line drawing of a hand cleaning a small kitchen appliance with a cloth (no text or symbols)
