RE117331 - Refrigerator Emerio - Free user manual and instructions

Product type	Portable thermoelectric mini cooler
Brand	Emerio
Model	RE117331
Power supply	220-240 V ~ 50 Hz (AC) or 12 V DC (vehicle)
Rated power	54 W (AC) / 42 W (DC)
Cooling capacity	Up to 20 °C below ambient temperature
Recommended use	Home, camping, vehicle (trunk, center aisle, passenger seat)
Door lock	Built-in unlock/lock button
Shelf	Removable shelf
Indicator light	Green (on when in COLD mode)
Included cables	AC power cable and DC power cable
Interior cleaning	Damp cloth, mild soap; bleach or baking soda if odors
Fan maintenance	Clean the fan blades and ventilation openings regularly with a soft brush
Safety	Do not immerse, do not expose to rain, unplug before cleaning
Warranty	2 years (subject to the conditions in the manual)
Environmental compliance	WEEE Directive 2012/19/EU – do not dispose with household waste

Frequently Asked Questions - RE117331 Emerio

How can I power the device?

The device can be powered via a household outlet (220-240 V ~ 50 Hz) with the supplied AC cable, or via a 12 V cigarette lighter socket of a vehicle with the supplied DC cable. Make sure the vehicle's engine is running when using DC.

Can I use the device in a car?

Yes, the device is designed for use in a car. Connect the DC cable to the cigarette lighter socket and start the engine to avoid draining the battery. Place the device in the trunk or on the passenger seat.

What cooling temperature is achieved?

The device can cool down to about 20 °C below ambient temperature. For example, if the room is at 25 °C, the interior can reach about 5 °C.

How to clean the interior of the device?

Use a damp cloth or sponge with mild soap. Avoid aggressive or abrasive cleaners. In case of odors, add a little bleach or baking soda. Leave the door open for several hours after cleaning for complete drying.

Can I store perishable food like milk?

It is not recommended to store perishable items (medications, milk) as the temperature may not be low enough. Opt for non-perishable drinks like sodas.

What to do if the device does not cool?

First check the power supply and connections. Make sure the switch is in the COLD position and the green indicator is on. Clean the fan and openings if obstructed. If the problem persists, contact after-sales service.

Can I leave the door open for a long time?

No, prolonged opening of the door leads to a significant increase in temperature inside, which reduces cooling efficiency and may affect food.

How to prevent mold formation?

After cleaning, leave the door open for several hours to thoroughly dry the interior. For prolonged empty storage, place a small container of baking soda or activated charcoal to absorb odors.

Can the device heat?

No, the device is designed only for cooling. The switch only has 'OFF' and 'COLD' positions. It does not have a heating function.

What is the warranty period?

The device comes with a 2-year warranty from the date of purchase. The warranty does not cover damages due to improper use, third-party intervention, or normal wear. Keep your receipt.

USER MANUAL RE117331 Emerio

Mini thermoelectric cooler and warmer (EN)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments; catering and similar non-retail applications.
5. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
6. The appliance is suitable for camping use.
7. The appliance may be connected to more than one source of energy.
8. The appliance shall not be exposed to rain.

9. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

10. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

11. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
12. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
13. Clean regularly surfaces that can come in contact with food.
14. If the refrigerating appliance is left empty for long periods, switch off, clean, dry, and leave the door open to prevent mould developing within the appliance.
15. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
16. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
17. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
18. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
19. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
20. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
21. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
22. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
23. This appliance is not designed for commercial use.
24. Do not use the appliance for other than intended use.
25. Do not wind the cord around the appliance and do not bend it.

26. When using in the car, there will be a drain on the car battery if the engine is off.

27. Ensure the fan is able to rotate at all times.

28. Anything (such as medications and milk) that can spoil is not recommended to be kept in the appliance in case the temperature is too high. Drinks that do no spoil easily, such as Coke, are preferred.
29. If the appliance is used in a closed room or small space, there must be adequate ventilation to allow the heat from the unit to escape and fresh air to enter.
30. It is recommended to be used in the station wagon's luggage compartment or middle row, or on the seat beside driver or rear row of a general car.
31. Keep 100mm clearance on all sides of unit to ensure air circulation to and from the fan.

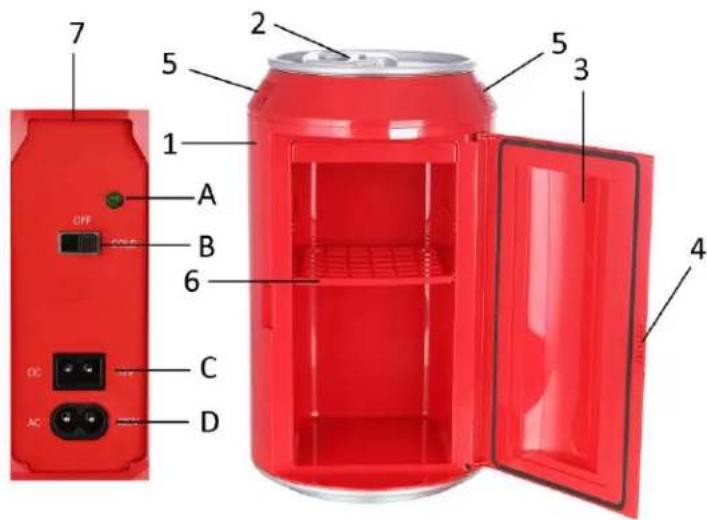

PARTS DESCRIPTION

1. Housing
2. Handle
3. Door
4. Door release / luck button
5. Fan inlet / outlet
6. Removable shelf
7. Control panel

Control panel

A. Indicator light
B. On/off sliding switch
C. Socket for DC power cord
D. Socket for AC power cord

FEATURES

This thermoelectric unit is designed to be a portable storage container for cold drinks and food. It can cool till approximately 36^ F/ 20^ C below ambient temperature. It can be powered by a 12 Volt DC system such as a vehicle, or can be powered from a household AC system.

USE

Make sure the on/off sliding switch is at position "OFF" before connecting to power. It is recommended to use AC power to refrigerate drinks first before use DC power in a vehicle. It would be helpful to make drinks cool.

When household power is used:

Connect one end of the AC power cord to the AC input of the appliance, and plug the other end of the cord to the AC socket. Slide the switch to postion "COLD", the indicator light will illuminate green and the appliance will be on.

When car power is used:

The car engine is required.

The plug of DC power cord is the cord that should be inserted into the socket of the cigarette lighter in the car.

Connect one end of the DC power cord to the DC input of the appliance, and plug the other end of the cord to the cigarette lighter socket of the car. Slide the switch to postion “COLD”, the indicator light will illuminate green and the appliance will be on.

CLEANING AND MAINTENANCE

1. Keep cords and cigarette lighter sockets clean at all times. Small tobacco or dirt particles in the socket or the plug may affect performance.
2. The fan and vents should be cleaned periodically. While the unit is unplugged, clean the fan blades and vents using a paint brush or other soft bristled brushes. Remove all hair, dirt, or dust that may have accumulated.

3. To clean, wipe the inside of the appliance with a warm damp cloth or sponge. Do not use harsh or abrasive cleaners. A mild soap should be sufficient, but if stains or odors remain, household bleach or baking soda may be added to the washing solution. Keep the door open for several hours after cleaning to allow the interior to thoroughly dry and to prevent odors from forming in the cooler.

4. For long periods of storage, a small container of baking soda or charcoal, placed inside, will eliminate objectionable odors.

TECHNICAL DATA

RATED VOLTAGE	POWER
220-240V ~ 50Hz	54W
DC 12V	42W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed.

Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product

for environmental safe recycling.
