Type of product	Portable PA speaker with rechargeable battery
Brand	Pyle
Model	PPHP844B
Output power	400 Watt MAX
Speaker configuration	8-inch woofer + 1 tweeter
Impedance	4 Ohms
Frequency response	55 Hz - 20 kHz
Signal-to-noise ratio	60 dB +/- 3 dB
Sound pressure level (SPL)	94 dB (1W/M)
Total harmonic distortion (THD)	< 1%
Bluetooth	Version 4.0, range up to 32 feet (approx. 10 meters)
Inputs	AUX 3.5mm, USB, 1/4" microphone, line input
FM radio	Yes, with digital LCD display
USB player	Yes, MP3 compatible, up to 16GB
Rechargeable battery	7.4V lead-acid, 1800mAh, 13.32Wh
Battery life	Up to 2 hours
Charging time	Approximately 4 hours
Remote control	Yes, with CR-2025 button cell battery included
LED lights	Multi-color auto-flashing
Dimensions (W x D x H)	29.46 x 23.62 x 40.89 cm (11.6 x 9.3 x 16.1 inches)
Weight	About 12 kg
Power supply	110/220V, switchable
Included accessories	Speaker, remote control, power adapter
Usage	Indoor/outdoor, public gatherings, karaoke

Frequently Asked Questions - PPHP844B Pyle

How to connect my phone via Bluetooth?

Press the MODE button to select BT channel. Enable Bluetooth on your phone and search for the PYLEUSA network. Connection is confirmed by a 'tick' tone. If connection fails, restart the speaker or your phone.

What is the battery life and how long does it take to charge?

Battery life is about 2 hours and charging time is about 4 hours. The battery is lead-acid type 7.4V / 1800mAh.

Can I use the speaker continuously on mains power?

Yes, the speaker can be powered via the included adapter (110/220V switchable). The battery recharges automatically when the speaker is plugged in.

What should I do if there is no sound?

First check that the audio source is properly connected and the volume is adequate. Make sure the input mode (Line/FM/BT/USB) is selected correctly. If the problem persists, test with another source.

How to use the microphone for karaoke?

Plug a wired microphone (not included) into the 1/4 inch jack on the front. Make sure the mic switch is on and adjust the mic volume. The mic sound mixes with the music.

Why is the sound distorted?

Distortion may be caused by too high volume. Lower the volume. If the problem persists, the speaker may be damaged; contact a certified technician for repair or replacement.

How to play music from a USB flash drive?

Insert the USB drive (FAT32 format, up to 16GB) into the USB port on the front. Press MODE to select USB. Playback starts automatically. Use the control buttons to navigate.

What if the USB drive is not recognized?

Make sure the files are in MP3 format. If the drive is not recognized, try restarting the speaker or reformatting the drive to FAT32. If the problem persists, test another USB drive.

How to clean the speaker?

Unplug the device. Clean the exterior with a soft, dry cloth. Do not use chemical or abrasive products. Avoid water entering the openings.

The speaker has LED lights, can they be turned off?

The manual does not mention a function to turn off the LEDs. They flash automatically in rhythm with the music. If you wish to disable them, you can cover the LEDs with adhesive tape (not recommended as it may obstruct ventilation).

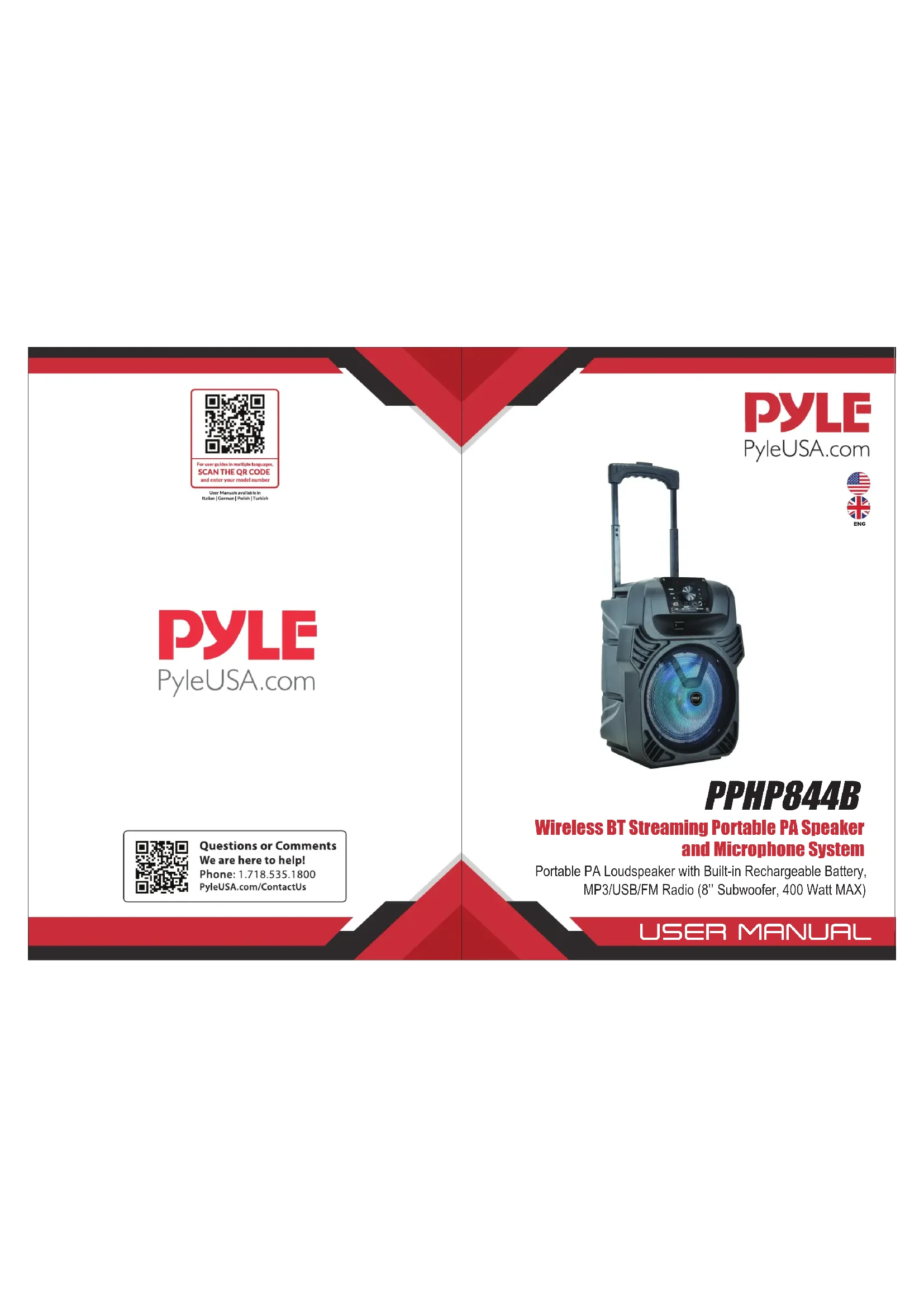

USER MANUAL PPHP844B Pyle

Questions or Comments

We are here to help!

Phone:[phone]

PyleUSA.com/ContactUs

PYLE

PyleUSA.com

PPHP844B

Wireless BT Streaming Portable PA Speaker and Microphone System

Portable PA Loudspeaker with Built-in Rechargeable Battery,

MP3/USB/FM Radio (8" Subwoofer, 400 Watt MAX)

USER MANUAL

WARNING

1. DO NOT place objects on top of the device, as objects may scratch the device.

1. DO NOT expose the device to dirty or dusty environments.

1. DO NOT insert any foreign objects into the device.

1. DO NOT expose the device to strong magnetic or electrical field.

1. DO NOT use the device in the rain

1. Please check with your Local Authority or retailer for proper disposal of electronic products.

1. DO NOT disassemble the device. Only a certified service technician should perform repair.

1. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

FEATURES OF THE MACHINE

• This system can be used with personal computers, mobile phone, DVD, VCD, CD, LD, TV, MP3, radio, electronic piano and any devices which have audio output.
• Amplifier circuit are using high-performance, high-fidelity design, coupled with high-quality professional speaker, in order to make the sound field to get positioned so clear, distinct levels effect.
• The sound system is outstanding, with deep and powerful bass and the treble effect is strong, with clear and bright pitch.
• The professional electronic frequency division circuit enhances the machine's crossover point effect.
• Using professional design and manufacture of high-capacity batteries, and dedicated audio power capacitors, to make the speaker's power reserve margin larger, more stable, better dynamics, higher signal to noise ratio.

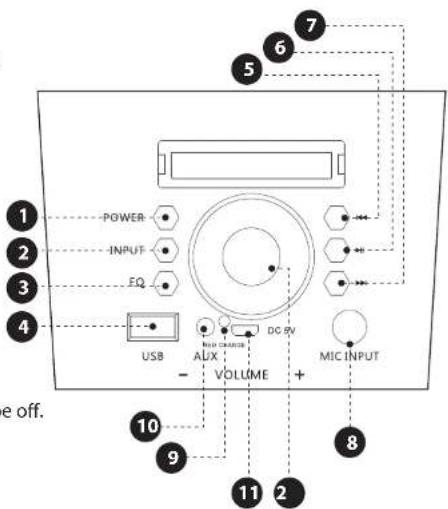

FRONT PANEL FUNCTIONS

1. Power ON/OFF
2. Input Select Line/FM/BT/USB
3. Choose the music style
4. USB slot
5. Last song for USB mode, last channel for FM mode
6. PLAY/PAUSE on USB mode, scan song on FM mode
7. Nest song for USB mode, next channel for FM mode
   8.6.5MM wired microphone input jack
8. Battery indicator, red light for charging, full charge will be off.
   10.3.5MM AUX input jack
9. DC 5V charge
10. Volume control

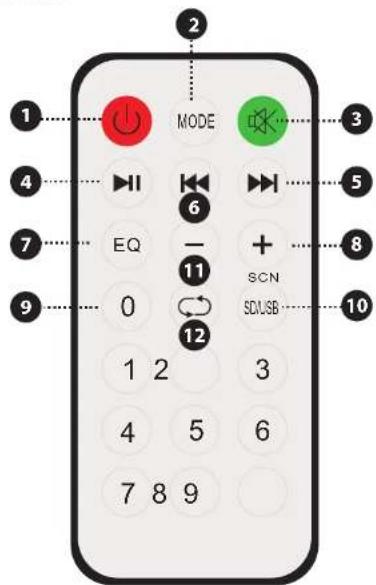

REMOTE CONTROL FUNCTIONS

1. Standby button
2. Select input signal
3. Mute button
4. Play/Stop button
5. Next song of USB/SD
6. Previous song of USB/SD
7. EQ solution
8. Increase speaker volume
9. Choose song number directly
10. Choose USB/SD signal directly
11. Decrease music volume
12. Repeat song

TROUBLESHOOTING

Fault	Possible Cause	Solution
No sound	1. No input sound source. 2. Volume is too low.	1. Use a better music signal. 2. Adjust volume.
Distortion of sound	1. Volume too high. 2. Speaker may be damaged	1. Turn down the volume. 2. If speaker is damaged, repair or replace it.
Karaoke does not work	1. Microphone plug is not fully inserted. 2. Microphone switch is not on. 3. Microphone volume knob is at the lowest position.	1. Plug microphone properly into the socket. 2. Turn on microphone switch. 3. Adjust microphone volume properly.
MP3 does not play	1. The audio format in the U disc is incorrect. 2. Improper operation has caused a process disorder. 3. USB disc is disconnected.	1. Convert audio format into Mp3 format. 2. Reboot the machine. 3. Insert USB disc properly.

BUILT-IN WIRELESS BT STREAMING FUNCTION

• Press "MODE" button to choose the input signal source as BT channel when starting the machine.
• Please ensure the BT devices you want to connect is open. Then scan and connect the speaker with the device. When the connection is successful, "tick" tone will prompt. If the speaker can't be connected, please restart the speaker or the device and try again.
• After the mobile phone and the BT are successfully connected, you can play music. To ensure continuous stability of the music signal, try to keep the BT and the mobile phone facing one another.
• This unit supports iPad, iPhone, Samsung, HTC, MOTOROLA, Nokia and other BT mobile devices wirelessly transmitting audio. It supports stereo playing of A2DP.
• The BT of the unit can be used up to 10 meters if there are no barriers.

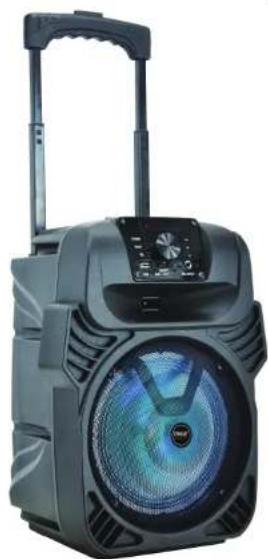

PPHP844B

Portable PA Speaker & Microphone System

Portable PA Loudspeaker with Built-in Rechargeable Battery, MP3/USB/FM Radio (8" Subwoofer, 400 Watt MAX)

Features:

Portable Speaker System
High-Powered PA Loud Speaker Style
- Bluetooth Wireless Music Streaming Ability
- Multi-Color Automatic Flashing LED Party Lights
Built-in Rechargeable Battery
FM Radio with Digital LCD Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
1/4" Microphone input
- Battery Level LED Indicator Lights
Rugged & Durable Molded Cabinet Design
- Convenient Rolling Wheels & Extendable Carry Handle
Used for Public Gatherings, Crowd Control, Karaoke
For Indoor/ Outdoor Use

Bluetooth Wireless Streaming:

Built-in Bluetooth for Wireless Music Streaming
Simple & Hassle-Free Pairing
- Works with All of Today's Latest Devices Smartphones, Tablets, Laptops, Computers, etc.
Bluetooth Version:4.0
Bluetooth Network Name: 'PYLEUSA'
- Wireless Range: Up to 32^ ft.

What's in the Box:

• PA Speaker System
  Remote Control
  Power Adapter

Technical Specs:

Power Output: 400 Watt MAX
Sound System: 8^ -inch Subwoofer
Impedance: 4 Ohm
Frequency Response: 55-20kHz
S/N Ratio:60dB+/-3dB
SPL: 94dB (1W/M)
T.H.D.:<1%
- USB Interface Type: 2.0
Digital Audio File Support: MP3
Maximum USB Flash Support: 16GB
Battery Life: Up to 2 Hours (Charge Time: Approx. 4 Hours)
Remote Control Battery: (1) x 'CR-2025' Button Cell, Included
Rechargeable Battery: 7.4V Lead Acid, 1800mAh - 13.32 Wh
Power Supply: 110/220V, Switchable
- Dimensions (L x W x H): 29.46 x 23.62 x 40.89 cm/11.6" x 9.3" x 16.1" -inches

This product can expose you to a chemical or group of chemicals, which may include "Lead and lead compounds" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.

Uer Manuts available in Italian German Polish Turkah
