USER MANUAL OLED55G2PUA LG

Safety and Reference

Please read this manual carefully before operating your set and retain it for future reference.

OLED55G2PUA

OLED65G2PUA

OLED77G2PUA

OLED77Z2PUA

OLED83G2PUA

OLED97G2PUA

The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service.

Model

Serial No.

www/lg.com

Printed in Korea

Copyright © 2022 LG Electronics Inc.

All Rights Reserved.

Supplier's Declaration of Conformity

Trade Name LG

Responsible LG Electronics USA,

Party Inc.

Address 111 Sylvan Avenue,

North Building,

Englewood Cliffs,

NJ07632

E-mail lg.environmental@

lge.com

LG Customer Information Center

For inquires or comments, visit www. lg.com or call;

1-888-542-2623 CANADA

1-800-243-0000

USA, Consumer

User

1-888-865-3026

USA,Commercial

User

Register your product Online!

www/lg.com

Important Safety Instruction

Read these instructions.
- Keep these instructions.
Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
Clean only with dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.
  Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

By using this product, you agree that all disputes between you and LG arising out of or relating in any way to this product (including but not limited to warranty disputes) shall be resolved exclusively through binding arbitration on an individual basis. The terms of the arbitration agreement (including details on the procedure for resolving disputes) is available at www.lg.com/us/arbitration (USA) or www.lg.com/ca_en/arbitration (Canada).

Before reading this manual

• Read this manual thoroughly before operating your TV, and keep it for future reference.
• On the website you can download the manual including installation, using, troubleshooting, specifications, license etc and view its contents on your PC or mobile device.

• User Guide : For more information about this TV, read the USER GUIDE embedded in the product. (Depending upon model)

• To open the USER GUIDE [Support] [User Guide]

Optional Extras

• Optional extras can be changed or modified for quality improvement without any notification. Contact your dealer for buying these items. These devices work only with certain models. The model name or design may be changed due to the manufacturer's circumstances or policies.
• A cable to connect antennas and external devices must be purchased separately.

Note

• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• The items supplied with your product may vary depending upon the model.

Image shown may differ from your TV.

Warning! Safety instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature to accompany the device.

WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

• Do not place the TV and/or remote control in the following environments:

• Keep the product away from direct sunlight.

• An area with high humidity such as a bathroom.
• Near any heat source such as stoves and other devices that produce heat.
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil.
• An area exposed to rain or wind.
• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit).

• Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

• Do not install in excessively dusty places.

Otherwise, this may result in fire, electric shock, combustion/explosion, malfunction or product deformation.

- Ventilation

• Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase.
• Do not install the product on a carpet or cushion.

• Do not block or cover the product with cloth or other materials while unit is plugged in.

• Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.

• Do not move the TV whilst the Power cord is plugged in.

• Do not use a damaged or loosely fitting power cord.

• Be sure to grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

• Do not connect too many devices to the same AC power outlet as this could result in fire or electric shock.

- Disconnecting the Device from the Main Power

• The power plug is the disconnecting device. In case of an emergency, the power plug must remain readily accessible.

• Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

• Outdoor Antenna Grounding (Can differ by country):

• If an outdoor antenna is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National Electrical Code, ANSI/ NFPA 70

• Never touch this apparatus or antenna during a lightning storm. You may be electrocuted.
• Make sure the power cord is connected securely to the TV and wall socket if not secured damage to the Plug and socket may occur and in extreme cases a fire may break out.
• Do not insert metallic or inflammable objects into the product. If a foreign object is dropped into the product, unplug the power cord and contact the customer service.
• Do not touch the end of the power cord while it is plugged in. You may be electrocuted.

- If any of the following occur, unplug the product immediately and contact your local customer service.

• The product has been damaged.

• If water or another substance enters the product (like an AC adapter, power cord, or TV).

• If you smell smoke or other odors coming from the TV
• When lightning storms or when unused for long periods of time.

Even the TV is turned off by remote control or button, AC power source is connected to the unit if not unplugged in.

• Do not use high voltage electrical equipment near the TV (e.g., a bug zapper). This may result in product malfunction.

• Do not attempt to modify this product in any way without written authorization from LG Electronics. Accidental fire or electric shock can occur. Contact your local customer service for service or repair. Unauthorized modification could void the user's authority to operate this product.
  Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage.

• Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
• Handle the adapter carefully to avoid dropping or striking it. An impact could damage the adapter.
• To reduce the risk of fire or electrical shock, do not touch the TV with wet hands. If the power cord prongs are wet or covered with dust, dry the power plug completely or wipe dust off.

Batteries

• Store the accessories (battery, etc.) in a safe location out of the reach of children.
• Do not short circuit, disassemble, or allow the batteries to overheat. Do not dispose of batteries in a fire. Batteries should not be exposed to excessive heat.
• Caution: Risk of fire or explosion if the battery is replaced by an incorrect type.

- Moving

• When moving, make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV. Otherwise, this may result in product damage, fire hazard or injury.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

• Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen.
• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it. It may cause damage to screen.

- Cleaning

• When cleaning, unplug the power cord and wipe gently with a soft/ dry cloth. Do not spray water or other liquids directly on the TV. Do not clean your TV with chemicals including glass cleaner, any type of air freshener, insecticide, lubricants, wax (car, industrial), abrasive, thinner, benzene, alcohol etc., which can damage the product and/or its panel. Otherwise, this may result in electric shock or product damage.

Installation

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area.
  Use at least two people to move a large TV.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.
• When handling the TV, be careful not to damage the protruding buttons.

#

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen.
• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Mounting on the Table

1 Lift and tilt the TV into its upright position on a table.

• Leave a minimum of 10cm (4 inches) space from the wall for proper ventilation, (Depending upon model).

2 Connect the power cord to a wall outlet.

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
• Do not use any unapproved items to ensure the safety and lifespan of the product.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward after being installed.)
• When installing on a cabinet or a shelf using a stand, make sure its width is greater than that of the TV.
• Do not fasten the screws with excessive force otherwise they may strip and become loose.
• If the TV is placed on the stand, its screen may be tilted back slightly. If the stand is not level because an object is placed under the stand or it is not on a flat surface, the product may fall and cause injury or product damage, (Depending upon model).

Securing TV to the Wall

1 Insert and tighten the eye-bolts or TV brackets and bolts on the back of the TV.
If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface.

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts, and ropes are optional. You can obtain additional accessories from your local dealer.

Stand (Optional Extras)

Depending upon model)

Stand Model
SQ-G2ST55 OLED55G2*
SQ-G2ST65 OLED65G2*
SQ-G2ST8377 OLED77/83G2*
SQ-G2DT97 OLED97G2*

Mounting to the Wall

An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG's wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall. Attach the cables to the TV first, then attach the TV to the mount.

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
• For more information of screws and wall mount bracket, refer to the Separate purchase.
• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.
• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
• When installing the Full Contact Wall Mount, the TV may not be contacted firmly against the wall due to some wall conditions.

Precautions for Safety

(Except for OLW480B, LSW440B, LSW640B)

• Professional installers should read this manual carefully to ensure proper installation.
• Professional installers should forward this manual to customers after installation and encourage them to read and store it in a convenient place for future reference.

After reading the installation manual, keep it in a convenient place for future reference.

• Ask a professional installer appointed by the store for installation of the product.

Installation by someone other than a professional installer is extremely dangerous and may result in personal injury.

• Do not install the product in an unstable site that cannot withstand its weight.

If the installation site lacks sufficient rigidity, the product may fall and cause personal injury.

• Contact a professional installer appointed by the store prior to moving or replacing the product after installation.

Installation is a technical task and safety issues may arise if an individual attempts to install or move the product personally.

• Do not hang on the product or subject it to severe impact after installation.

Doing so may cause the product to fall and cause personal injury.

• When installing the product on a wall, do not hang the power line or signal cables from the back of the TV.

This can damage the cords, resulting in a fire, electrical shock or malfunction of the product.

• Be sure to wear work gloves when installing the product.

• Installing with unprotected hands may result in injury.

• Install the product according to the instructions in the installation manual.

Failure to install the product according to the instructions in the installation manual can result in serious personal injury or product damage.

• Be sure to have at least two people when installing the product or adjusting the product's height.

Attempting to perform installation or adjustments personally may result in personal injury or damage to the product.

• Make sure a wall is available prior to proceeding with installation. Make use of the anchors and screws provided with the product.

Use of any unauthorized anchors or screws may not support the product's weight, which poses safety risks.

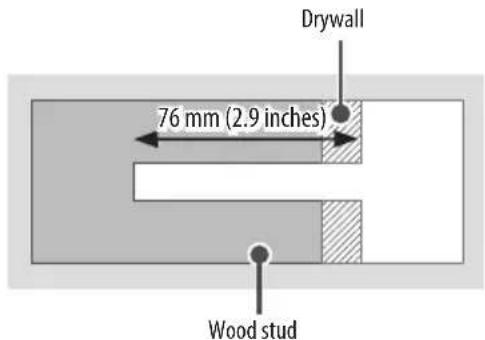

• When drilling in the wall for installation, be sure to use drill bits and drills of the specified diameter. Follow the instructions for the hole depth.
  Drilling and installing the product in ways other than specified in the installation manual may result in an unstable installation and potential safety issues.
• Do not wipe the product with a wet towel or use any heating equipment or humidifier under the place where the product is installed.
  Liquid water or vapor may enter the product and excessive heat may cause fire, electric shock, or malfunction.
• Do not install the product near a fire sprinkler or detector, a place where vibration or shock may occur or near a high-voltage wire or power source.
• Unplug the product's power cord from the wall outlet before installing. Installing the product while the power cord is plugged in may result in electric shock or fire.
• Do not install the product with bare hands. Be sure to wear work gloves. Attempting installation without work gloves may cause personal injury.
• Connect the product with the supplied cable. Use of an unauthorized cable may result in damage by friction with the wall. Make sure to use the supplied cable gender. (This may vary by model.)

Before Installation

(Except for OLW480B, LSW440B, LSW640B)

• Do not use the product for any purpose other than installing the TV on a wall.
• Avoid product damage and safety accidents caused by careless installing or use of improper or unauthorized wall mount.
• Follow the instructions in the installation manual for a convenient installation of the wall mount.
• Immediately discontinue installation and contact the service center if you cannot fully understand the installation process.

Use a professional installer if any installation issues remain after the inquiry.

• Installation of this product on a concrete wall or wood stud is recommended. Installation of this product on other surfaces (Dry wall, plywood, bricks, etc.) is not recommended. Improper installation may result in the product falling.
  Install the product only on a vertical wall.

Do not install on a tilted wall that exceeds building standards or on the heavily titled wall or ceiling.

LG is not responsible for problems caused by improper installation of the product, e.g., heavily tilted walls and ceilings.

• Check the enclosed accessories before installation. We are not responsible for any lost or damaged accessories after the inner packaging is opened.

• When an infant or small child swallows the enclosed accessories, various safety accidents such as choking may occur. Keep the enclosed accessories out of the reach of infants and children.

• When tightening screws, tighten until fully snug.

Avoid using excessive force when tightening the screws. Doing so may damage the wall and product or reduce the rigidity or performance of the product.

• Avoid installing a TV that exceeds the specified tensile load, and do not allow any external force to be applied to the product.

• Avoid accidents by using work tools with care during installation.

Tools for Installation

• " + " shaped screwdriver (manual or electric) / level / drill / 0.8 mm drill bit for concrete or 0.4 mm drill bit for steel

Securing TV to the Wall

(Except for OLW480B, LSW440B, LSW640B)

• Please use the TV close to the wall after installation.

How to fix anchors and screws

(Except for OLW480B, LSW440B, LSW640B)

Please make sure that:

• Check that the material and thickness of the wall and finishing material comply with the installation manual. Before beginning the mounting process, you must be sure the wall is able to support the weight of the TV.
• Should use the enclosed anchors and screws on crack-free concrete walls.
• Never install the product on a plasterboard or wall made of paper or medium-density fiberboard (MDF). When it is necessary to install the product on such wall, anchor screws must be fastened to retaining walls (concrete) or wood Stud inside the finishing material.
• The wall mount should be attached to a stud. This usually will not be a problem, but depending upon individual circumstances, there may be cases when the ability to mount into a stud is not possible. In this case, there are a variety of drywall anchors, such as toggle bolts, which may provide a solution. If using drywall anchors, please be sure the anchors and the wall have the ability to support the weight of your TV. Please note that the supplied anchors may not be the correct ones for your individual situation, so you should check with a local professional.
• Other unspecified walls must be capable of supporting pullout loads of over 70 kgf (154 lbf) (686 N) and shear loads of over 100 kgf (220 lbf) (980 N) per fastener.
• Use an 0.8mm drill bit for concrete and a hammer (impact) drill or 0.4mm drill bit for wood stud to drill holes.

For installation on concrete wall

1

2

3

4

Wall mounting screw

1 Drill holes in anchor locations with a drill bit of 8 mm to a depth of 80 mm (3.14 inches) to 100 mm (3.93 inches).
2 Clean the drilled holes.
3 Insert the enclosed anchors for fixing the wall mount into the holes. (Use a hammer when inserting anchors.)
4 Push the wall mount support closely toward the wall to match the hole locations.
5 Tighten screws for fixing the wall mount to the holes. At this time, tighten the screws to a torque of between 45kgf/cm (39.06 lbf/in) to 60kgf/cm (52.08 lbf/in).

For installation on wood stud

Use the 0.4mm drill bit for wood to drill holes with the depth of 76~mm (2.9 Inches). (Clean the drilled hole.)

Without using the wall mounting anchor, fasten the wall mounting screw directly to the wood stud.

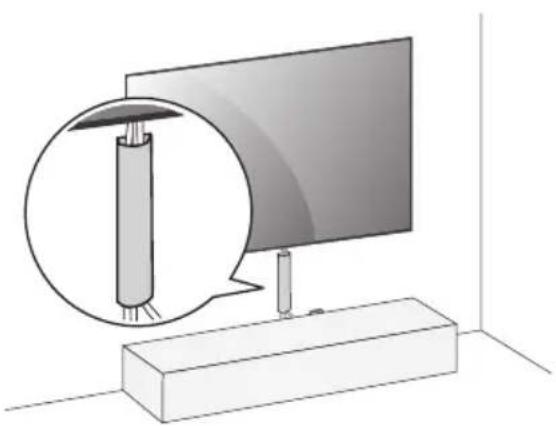

After Installation

• When connecting additional cables from the sides, we recommend holding the center of the TV horizontally or vertically and pulling the product to make sure there is sufficient distance from the wall before connecting.
• When connecting additional cables from the bottom, we recommend releasing the TV from the wall mount before connecting.

(For example)

• Use cable management systems to arrange the cables at the bottom of the TV as shown below. Cable managements are not provided with the product, so purchase them separately.

• After installing the product, be sure to use it adhered to the wall.

• Using the product while it is not adhered to the wall may damage or shake the product.

Antenna/Cable

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and an RF cable is optional.

Make sure not to bend the copper wire of the RF cable.
- Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV.
Use a signal splitter to use 2 TVs or more.
- DTV Audio Supported Codec: MPEG, Dolby Digital

• This TV cannot receive Ultra HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed (Depending upon country).

Starting TV

Turning on the TV

You can simply operate the TV functions, using the button.

Power On (Press)

Power Off' (Press and Hold)

Menu Control (Press2)

Menu Selection (Press and Hold)

1) All running apps will close.
2) You can access and adjust the menu by pressing the button when TV is on.
3) You can use the function when you access menu control.

Note

• When the TV is turned on for the first time after being shipped from the factory, initialization of the TV may take approximately one minute.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The device must be easily accessed to a location outlet near the access. Some devices are not made by turning on / off button, turning off the device and unplugging the power cord.

You can connect various external devices to the TV. For more information on external device's connection, refer to the manual provided with each device.

HDMI

• When connecting the HDMI cable, the product and external devices should be turned off and unplugged.
  Supported HDMI Audio format (Depending upon model): True HD (48 kHz), Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz) PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)

Note

• If the device connected to Input Port also supports HDMI Deep Color, your picture may be clearer. However, if the device doesn't support it, it may not work properly. In that case, change the TV's [HDMI Deep Color] setting to off.
• [General] → [Devices] → [HDMI Settings] → [HDMI Deep Color]

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
  Recommended HDMI cable types (3 m (9.84 feet) or less)

• Ultra High Speed HDMI™ cable

USB

Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

Note

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm (0.39 inches) thick, 18mm (0.7 inches) width and 8mm (0.31 inches) a wire diameter. (Depending upon model)
• Use an extension cable that supports USB 2.0 if the USB cable or USB flash drive does not fit into your TV's USB port.

IR Blaster

Control the set-top box (cable/satellite/IP/OTT), Blu-ray/DVD player, soundbar, game consoles, etc., using the IR Blaster. (Depending upon country)

• Connect the IR Blaster cable to the TV's IR Blaster port.
  Use universal control settings to control the device.
• Secure the IR Blaster with the 3M tape provided.

External Devices

Supported external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

Note

• The external device connections shown may differ slightly from illustrations in a manual.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the [Picture] menu until the picture is clear. Depending upon the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.
• When connecting to a wired LAN, use a CAT7 cable with high-speed Internet transmission.
• The TV may be capable of operating without a set-top-box from a multichannel video programming distributor (MVPD).

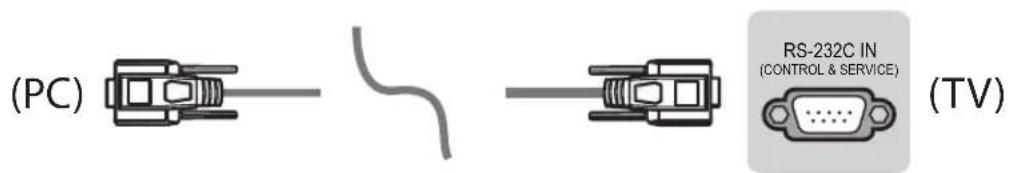

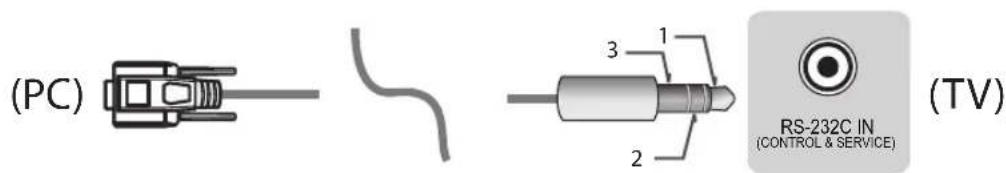

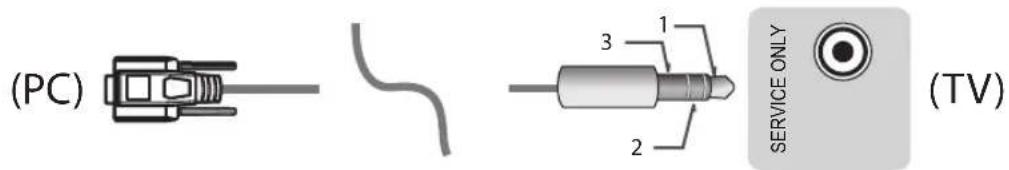

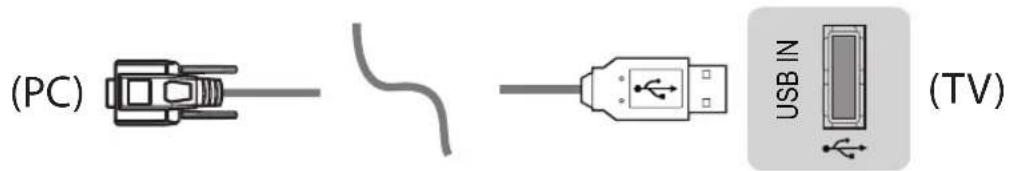

Remote RS-232C setup

To obtain the RS-232C external control setup information, please visit www. lg.com. Download and read the manual, (Depending upon model).

• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Specifications

Product specifications may be changed without prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).

• For information of the power supply and power consumption, refer to the label attached to the product.
• The typical power consumption is measured in accordance with IEC 62087 or each country's energy regulations.
• On some models, the label is inside the external device connection terminal cover.
• Depending upon the model or country, the typical power consumption may not be on label.

Depending upon country

Broadcasting Specifications
Television system ATSC, ATSC3.0 (Only USA), NTSC-M, 64 & 256 QAM
Channel coverage (Band)	VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135
External antenna impedance 75 Ω

• Certain 8K input/decoding standards may not be supported. An additional device may be necessary to support certain 8K standards. Upscaled and enhanced 8K images will vary depending upon the source content, (Depending upon model).

Environment Condition

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Less than 80 %

Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)

Storage Humidity Less than 85 %

Wireless module(LGSBWAX12)Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac/ax)

Frequency range Output Power (Max.)

2,400 to 2,483.5 MHz 17 dBm

5,150 to 5,725 MHz 15 dBm

5,725 to 5,850 MHz 15 dBm

Bluetooth

Frequency range Output Power (Max.)

2,400 to 2,483.5 MHz 9 dBm

As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

For consideration of the user, this device should be installed and operated with a minimum distance of 20cm (7.8 inches) between the device and the body.

FCC ID: BEJLGSBWAX12 / IC: 2703H-LGSBWAX12

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Licenses

HOMI

HIGH-DEFINITION MULTIMEDIA INTERFACE

QUICKSET

(Magic Remote supported models only)

HE Advance ™ Covered by patents at patentlist.accessadvance.com

Troubleshooting

Cannot control the TV with the remote control.	·Check if anything such as tape has been placed over the receiver. ·Check if there is any obstacle between the product and the remote control. ·Replace the batteries with new fresh ones.
No image display and no sound is produced.	·Check if the product is turned on. ·Check if the power cord is connected to a wall outlet. ·Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	·Check the power control settings. The power supply may be interrupted. ·Check if the auto-off function is activated in the settings menu. ·If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
Abnormal Display	·If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV's performance. Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. ·This panel is an advanced product that contains millions of pixels. In a very few cases, you could see fine dots on the screen while you're viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.
Generated Sound	·Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. ·Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending upon the product. This generated sound does not affect the performance and reliability of the product.
The TV does not turn on continuously due to Always Ready mode operation or does not automatically turn on by sensor.	·The motion sensor is located on the bottom center of the TV. ·The motion sensor is only supported by some models. ·If there is a foreign substance on the motion sensor, it may not work properly. ·If the environment around the TV is too bright or too dark, the motion sensor may not work properly. ·Obstacles in front of the TV may affect the detection function of the motion sensor. ·It can operate by recognizing changes in lighting around the TV or movement of objects (pets/robot vacuum cleaners, etc.). ·To stop using the Always Ready mode in [General] → [All Settings] → [General] → [Always Ready] → [Enable the function], or to use only the General Always Ready mode function, you can select Enable Always Ready mode, turn off the screen, and then stop using the motion sensor in [Always Ready Settings]. The screen-on function with the motion sensor can be set by adjusting the performance of the sensor through the [Always Ready Settings] → [Motion Sensor Sensitivity] setting.

Make sure to wring any excess water or cleaner from the cloth.
- Do not spray water or cleaner directly onto the TV screen.
- Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.

Precautions for Protecting the OLED TV Screen

Unlike regular LED/LCDs, OLED TVs produce images that emit light for each pixel, achieving a perfect black color and delivering clear images without blurring.

Due to the nature of the organic materials used to achieve high-resolution image quality, OLED displays generally experience image retention on the screen, which can be a persistent phenomenon. This phenomenon is observed in all OLED panels, and although recommended picture modes can minimize image retention, current technology cannot completely prevent this from occurring.

Displaying the same image for a long time or repeatedly displaying the same image can cause image retention on the screen, which is a common phenomenon in OLED panel products due to the nature of the product. This product has a built-in screen protection feature. Avoid displaying images that are likely to cause image retention, and follow the recommendations.

Images that are likely to cause image retention

• Images with black areas on the top and bottom and/or the left and right sides of the screen.
  Images whose aspect ratio is 4:3 or 21:9.
• Images that are fixed for a long time, such as channel number, station logo, game console icon, set-top box menu, etc.
  Other fixed screen images or repeatedly displayed images.

Running [Pixel Cleaning] to Protect the OLED TV Screen

The OLED TV is equipped with a pixel cleaning feature to check the status of the screen by itself and prevent image retention that leaves an image on a screen. This feature automatically calculates the optimal execution time based on the accumulated viewing time and is automatically executed when the TV is turned off. While this feature is running, horizontal lines may appear at the top and bottom of the screen. The pixel cleaning feature works when the product is connected to the power cord and main power.

• To run this function manually, press the button on the remote control, go to [General] → [OLED Care] → [OLED Panel Care] and press [Pixel Cleaning].

Recommendations for Minimizing Image Retention

When watching the TV for a long time, press the button on the remote control, go to [Picture] [Select Mode] and set the mode to [APS], go to [Advanced Settings] [Brightness] and set [OLED Pixel Brightness] to a lower level. In addition, press the button on the remote control, go to [General] [OLED Care] [OLED Panel Care] and set the [Adjust Logo Brightness] value to [High].

When showing images with black bars at the top/bottom/left/right side of the screen, press the button on the remote control, press and go to [Picture] [Aspect Ratio] [User Selection] [Vertical Zoom] or [4-Way Zoom] to remove the black bars.

Turn off the menus for setting up devices such as set-top boxes so that they are not displayed on the screen for a long time.

Note

• When the screen is showing one fixed image for a long time, the screen brightness will be automatically reduced and then restored once the screen content changes. This is a normal function to minimize image retention.

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment and For indoor use only, use outdoors or in other modes not covered by this manual may violate the FCC regulation and violate the user authority to use the product.

FCC Radio Frequency Interference Requirements (for UNII devices)

(For USA)

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter.

FCC RF Radiation Exposure Statement

(For USA)

(For having wireless function (WLAN, Bluetooth,...))

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

(For Canada)

(For having wireless function (WLAN, Bluetooth,...))

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

(For Canada)

(For having wireless function (WLAN, Bluetooth,...))

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna & your body.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

RSS-247 Requirement

(For Canada)

(For product having the wireless function using 5 GHz frequency bands)

(1) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(2) For devices with detachable antenna(s), the maximum antennagain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
(3) For devices with detachable antenna(s), the maximum antennagain permitted for devices in the band S725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; and
(4) (For devices operating in the band S250-5350 MHz having an e.i.r.p. greater than 200 mW) Antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 of RSS-247 shall be clearly indicated.

Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

WARNING! (STABILITY HAZARD)

A telesion set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

• NEVER place a television set in an unstable location.

• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Symbols

~	Refers to alternating current (AC). Refers to stand-by.	∅
= =	Refers to direct current (DC). Refers to “ON” (power).	1
□	Refers to class II equipment.	∅	Refers to dangerous voltage.

LG OLED TV

MANUEL

D'UTILISATION

Copyright © 2022 LG Electronics Inc.

Adresse 111, Sylvan Avenue,

North Building,

Englewood Cliffs,

NJ07632

Courriel lg.environment@

lge.com

HE Advance ™ Covered by patents at patentlist.accessadvance.com

Dépannage

Please read this manual carefully before operating the set and retain it for future reference.

KEY CODES

This feature is not available for all models.

Code (Hexa)	Function Note		Code (Hexa)	Function Note
00 CH +, PR + R/C Button 53 List	R/C Button
01 CH -, PR - R/C Button 5B Exit	R/C Button
02 Volume + R/C Button 60 PIP(AD) R/C Button
03 Volume - R/C Button 61 Blue R/C Button
06 > (Arrow Key / Right Key) R/C	Button 63 Yellow		R/C Button
07 < (Arrow Key / Left Key) R/C	R/C Button 71 Green		R/C Button
08 Power R/C Button 72 Red			R/C Button
09 Mute	R/C Button	79	Ratio / Aspect Ratio	R/C Button
0B Input R/C Button 91 AD (Audio Description) R/C Button
0E SLEEP R/C Button 9E LIVE MENU			R/C Button
0F TV, TV/RAD	R/C Button	7A	User Guide	R/C Button
10 - 19 * Number Key 0 - 9	R/C Button	7C	Smart / Home	R/C Button
1A Q.View / Flashback R/C Button 7E SIMPLINK			R/C Button
1E FAV (Favorite Channel)	R/C Button	8E	▶ (Forward)	R/C Button
20 Text (Teletext)	R/C Button	8F	▲ (Rewind)	R/C Button
21 T. Opt (Teletext Option)	R/C Button	AA	Info	R/C Button
28 Return (BACK)	R/C Button	AB	Program Guide	R/C Button
30 AV (Audio / Video) Mode	R/C Button	B0	▶ (Play)	R/C Button
39 Caption/Subtitle	R/C Button	B1	■ (Stop / File List)	R/C Button
40 ∧ (Arrow Key / Cursor Up)	R/C Button B5 RECENT		R/C Button
41 V (Arrow Key / Cursor Down)	R/C Button	BA	■ (Freeze / Slow Play / Pause)	R/C Button
42 My Apps	R/C Button	BB	Soccer	R/C Button
43 Menu / Settings	R/C Button	BD	● (REC)	R/C Button
44 OK / Enter	R/C Button	DC	3D	R/C Button
45 Q.Menu R/C Button 99 AutoConfig			R/C Button
4C List, - R/C Button 9F App / *			R/C Button
4D PICTURE R/C Button 9B TV / PC			R/C Button
52 SOUND R/C Button

• Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan, North America, Latin America except Colombia models)

EXTERNAL CONTROL DEVICE SETUP

Image shown may differ from your TV.

Connect the USB to Serial(RS-232C) converter/RS-232C(Seril) input jack to an external control device (such as a computer or an A/V control system) to control the product's functions externally.

Note: The type of control port on the TV can be different between model series.

• Please be advised that not all models support this type of connectivity.
• Cable is not provided.

USB to Serial(RS-232C) converter with USB Cable

USB Type

• LGTV supports PL2303 chip-based (Vendor ID: 0x0557, Product ID: 0x2008) USB to serial(RS-232C) converter which is not made nor provided by LG.
  It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C(Serial) With RS-232C(Serial) Cable

DE9 (D-Sub 9pin) Type
- You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C(Serial) cable required for the connection between the PC and the TV, which is specified in the manual.

The connection interface may differ from your TV.

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the TV, which is specified in the manual.
• For other models, connect to the USB port.
• The connection interface may differ from your TV.

- or

Customer Computer RS-232C configurations

RS-232C
(Serial port)

3-Wire Configurations(Not standard)

OR

D-Sub 9 Phone

Set ID

For Set ID number, see "Real Data Mapping" on p.6

1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
6. (Depending on model)

Communication Parameters

Baud rate : 9600 bps (UART)
Data length: 8 bits
- Parity: None

• Stop bit: 1 bit
• Communication code : ASCII code
  Use a crossed (reverse) cable.

Command reference list

Depending on model)

	COMMAND1	COMMAND2	DATA (Hexadecimal)		COMMAND1	COMMAND2	DATA (Hexadecimal)
01. Power* k a 00 to 01 15.	Balance k t 00 to 64
02. Aspect Ratio	k c (p.7)			16. Color (Colour) Temperature	x u 00 to 64
03. Screen Mute	k d (p.7)			17. ISM Method (Only Plasma TV)	j p (p.8)
04. Volume Mute	k e 00 to 01 18. Equalizer	v (p.9)
05. Volume Control	k f 00 to 64			19. Energy Saving	j q 00 to 05
06. Contrast k g 00 to 64				20. Tune Command	m a (p.9)
07. Brightness	k h 00 to 64			21. Channel (Programme) Add/Del(Skip)	m b 00 to 01
08. Color/ Colour	k i 00 to 64 22. Key	m c Key Codes
09. Tint	k j 00 to 64			23. Control Backlight, Control Panel Light	m g 00 to 64
10. Sharpness	k k 00 to 32			24. Input select (Main)	x b (p.11)
11. OSD Select	k l 00 to 01			25. 3D (Only 3D models)	x t (p.11)
12. Remote Control Lock Mode	k m 00 to 01			26. Extended 3D (Only 3D models)	x v (p.12)
13. Treble	k r	00 to 64		27. Auto Configure	j u (p.12)
14. Bass	k s 00 to 64

• Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not executed and treated as NG.
  With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with USB-to-Serial converter cable, the command works only if TV is on.

Transmission / Receiving Protocol

Transmission

[Command1][Command2][][Set ID][][Data][Cr]

[Command 1]: First command to control the TV. (j, k, m or x)

[Command 2]: Second command to control the TV.

[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.

Adjustment range in TV is 1 to 99. If [Set ID] value is selected to '0', every connected set can be controlled.

• [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on transmission/receiving protocol.

[DATA] : To transmit command data (hexadecimal). Transmit 'FF' data to read status of command.

[Cr] : Carriage Return - ASCII code '0x0D'

[ ] : Space - ASCII code '0x20'

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][Data][x]

• The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable functions or communication errors.

Data 00: Illegal Code

Real data mapping (Hexadecimal b Decimal)

• When you enter the [data] in hexadecimal, refer to following conversion table.
• Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.

00:Step 0 32:Step 50(Set ID 50) FE:Step 254

01:Step 1(Set ID 1)33:Step 51(Set ID 51) FF:Step 255

…

0A:Step10(SetID10) 63:Step99(SetID99)0100:Step256

中

0F:Step15(SetID15) C7:Step199 270E:Step9998

10:Step 16(Set ID 16)C8:Step 200 27 OF:Step 9999

…

• Commands may work differently depending on model and signal.

01. Power (Command: k a)

To control Power *On or Off of the set.

Transmission[k][a][[Set ID][][Data][Cr]

Data 00 : Power Off 01 : *Power On

Ack [a][ ][Set ID][ ][OK/NG][Data][x]

To Show TV is Power On or *Off

Transmission [k][a][[Set ID][][FF][Cr]

Ack [a][[Set ID][][OK][Data][x]

• Similarly, if other functions transmit 'FF' data based on this format, Acknowledgement feedback presents status about each function.

02. Aspect Ratio (Command: k c) (Main Picture Size)

To adjust the screen format. (Main picture format) You can also adjust the screen format using the Aspect Ratio in the Q.MENU. or PICTURE menu.

Transmission [k][c][][[Set ID][][Data][Cr]

Data 01: Normal screen 07:14:9 (4:3) (Europe, C

02:Wide screen Asia except South Korea and (16:9) Japan

04:Zoom 09:*Just Scan

05:Zoom2 0B:FullWide

(LatinAmerica (Europe, Colombia, Mid- except Colombia East, Asia except South Only) Korea and Japan

06: Set by Program/ 10 to 1F: Cinema Zoom 1 to 16 Original 0c:21:9 (Depending on model)

Ack [c][ ][Set ID][ ][OK/NG][Data][x]

• Using the PC input, you select either 16:9 or 4:3 screen aspect ratio.
• In DTV/HDMI/Component mode (high-definition), Just Scan is available.
• Full wide mode may work differently based on model and is supported for DTV fully, and ATV, AV partially.

03. Screen Mute (Command: k d)

To select screen mute on/off.

Transmission [k][d][][[Set ID][][Data][Cr]

Data 00: Screen mute off (Picture on) Video mute off

01:Screen mute on (Picture off)
10: Video mute on

Ack [d][ ][Set ID][ ][OK/NG][Data][x]

• In case of video mute on only, TV will display On Screen Display(OSD). But, in case of Screen mute on, TV will not display OSD.

04. Volume Mute (Command: k e)

To control volume mute on/off. You can also adjust mute using the MUTE button on remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00 : Volume mute on (Volume off)

01 : Volume mute off (Volume on)

Ack [e][[Set ID][[OK/NG][Data][x]

05. Volume Control (Command: k f)

To adjust volume.

You can also adjust volume with the volume buttons on remote control.

Transmission [k][f][[Set ID][][Data][Cr]

Data Min:00 to Max:64

Ack [f][ ][Set ID][ ][OK/NG][Data][x]

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][[Set ID][[Data][Cr]

Data Min : 00 to Max : 64

Ack [g][][[Set ID][][OK/NG][Data][x]

07. Brightness (Command: k h)

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min:00 to Max:64

Ack [h][][[Set ID][][OK/NG][Data][x]

1. Color/Colour (Command: k i)

To adjust the screen Color Colour).

You can also adjust colour in the PICTURE menu.

Transmission [k][i][[Set ID][ ][Data][Cr]

Data Min : 00 to Max : 64

Ack [i][][Set ID][][OK/NG][Data][x]

1. Tint (Command: k j)

To adjust the screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][[Set ID][[Data][Cr]

Data Red : 00 to Green : 64

Ack [j][[Set ID][[OK/NG][Data][x]

1. Sharpness (Command: k k)

To adjust the screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][[Set ID][][Data][Cr]

Data Min : 00 to Max : 32

Ack [k][ ][Set ID][ ][OK/NG][Data][x]

11.OSD Select (Command: k l)

To select OSD (On Screen Display) on/off when controlling remotely.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00 : OSD off 01 : OSD on

Ack [I][[Set ID][[OK/NG][Data][x]

1. Remote control lock mode (Command: km)

To lock the front panel controls on the monitor and remote control.

Transmission [k][m][[Set ID][[Data][Cr]

Data 00: Lock off 01: Lock on

Ack [m][ ][Set ID][ ][OK/NG][Data][x]

• If you are not using the remote control, use this mode.

When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock is released.

• In the standby mode (DC off by off timer or 'ka', 'mc' command), and if key lock is on, TV will not turn on by power on key of IR & Local Key.

• Treble (Command: kr)

To adjust treble.

You can also adjust in the AUDIO menu.

Transmission [k][r][[Set ID][[Data][Cr]

Data Min : 00 to Max : 64

Ack [r][ ][Set ID][ ][OK/NG][Data][x]

• (Depending on model)

• Bass (Command: k s)

To adjust Bass.

You can also adjust in the AUDIO menu.

Transmission [k][s][[Set ID][[Data][Cr]

Data Min : 00 to Max : 64

Ack [s][ ][Set ID][ ][OK/NG][Data][x]

• (Depending on model)

• Balance (Command: k t)

To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][[Set ID][][Data][Cr]

Data Min : 00 to Max : 64

Ack [t][ ][Set ID][ ][OK/NG][Data][x]

1. Color(Colour) Temperature (Command: x u)

To adjust colour temperature. You can also adjust Color(Colour) Temperature in the PICTURE menu.

Transmission [x][u][ ][Set ID][ ][Data][Cr]

Data Min:00 to Max:64

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

17.ISM Method (Command: j p) (Only Plasma TV)

To control the ISM method. You can also adjust ISM Method in OPTION menu.

Transmission [j][p][[Set ID][ ][Data][Cr]

Data Min:02:Orbiter

08: Normal

20: Color Colour Wash

Ack [p][ ][Set ID][ ][OK/NG][Data][x]

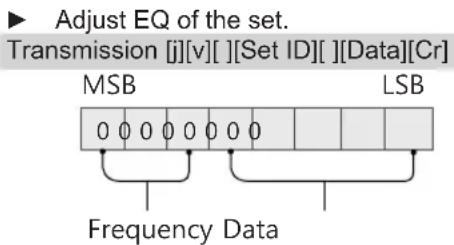

1. Equalizer (Command : j v)

7 6 5		Frequency	4 3 2 1 0 Step
0 0 0		1st Band	0 0 0 0			0 (decimal)
0 0 1		2nd Band	0 0 0 0 1			1 (decimal)
0 1 0		3rd Band	...... ... ... ...			...
0 1 1		4th Band	1 0 0 1 1			19 (decimal)
1 0 0		5th Band	1 0 1 0 1			20 (decimal)

Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]

• It depends on model, and can adjust when sound mode is EQ adjustable value.

• Energy Saving (Command: j q)

To reduce the power consumption of the TV. You can also adjust Energy Saving in PICTURE menu.

Transmission [j][q][[Set ID][][Data][Cr]

Data

00:Off

01: Minimum

02:Medium

03:Maximum

04: Auto (For LCD TV / LED TV) / Intelligent sensor (For PDP TV)

05:Screen off

• (Depending on model)

Ack[q][ ][SetID][ ][OK/NG][Data][x]

1. Tune Command (Command: m a)

2. This command may work differently depending on model and signal.

For Europe, Mid-East, Colombia, Asia except South Korea and Japan Model

Select channel to following physical number.

Transmission [m][a][[Set ID][][Data 00][]

[Data 01][ ][Data 02][Cr]

• Analog Antenna/Cable

[Data 00][Data 01] Channel Data

Data 00 : High byte channel data

Data 01 : Low byte channel data

-00 00 ~ 00 C7 (Decimal : 0 ~ 199)

Data 02 : Input Source (Analog)

• 00: Antenna TV (ATV)

• 80 : Cable TV (CATV)

• Digital Antenna/Cable/Satellite

[Data 00][Data 01]: Channel Data

Data 00 : High Channel data

Data 01: Low Channel data

-00 00 ~ 27 OF (Decimal: 0 ~ 9999)

Data 02: Input Source (Digital)

• 10: Antenna TV (DTV)

• 20: Antenna Radio (Radio)

-40:Satellite TV (SDTV)

• 50 :Satellite Radio (S-Radio)

-90:Cable TV (CADTV)

• a0 : Cable Radio (CA-Radio)

• Tune Command Examples:

• Tune to the Analog antenna (PAL) Channel 10.

Set ID = All = 00

Data 00 & 01 = Channel Data is 10 = 00 0a

Data 02 = Analog Antenna TV = 00

Result = ma 00 00 0a 00

1. Tune to the digital antenna (DVB-T) Channel 01.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1 = 00 01

Data 02 = Digital Antenna TV = 10

Result = ma 00 00 01 10

1. Tune to the satellite (DVB-S) Channel 1000.

Set ID = All = 00

Data 00 & 01 = Channel Data is 1000 = 03 E8

Data 02 = Digital Satellite TV = 40

Result = ma 00 03 E8 40

Ack [a][[Set ID][][OK][Data 00][Data 01]

[Data 02][x][a][Set ID][NG][Data 00][x]

• For South Korea, North/Latin America except Colombia Model

To tune channel to following physical/major/minor number.

Transmission [m][a][[0][[Data00][[Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel number. The Physical number is the actual digital channel number, the Major is the number that the channel should be mapped to, and the Minor is the sub-channel. Since the ATSC tuner automatically maps the channel from the Major / Minor number, the Physical number is not required when sending a command in Digital.

* Analog Antenna/Cable

Data 00 : Physical Channel Number

• Antenna (ATV): 02~45 (Decimal: 2 ~ 69)
• Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)

[Data 01 ~ 04]: Major/Minor Channel Number

Data 01 & 02: xx (Don't care)

Data 03 & 04: xx (Don't care)

Data 05: Input Source (Analog)

-00:Antenna TV (ATV)
-01:Cable TV (CATV)

• Digital Antenna/Cable

Data 00:xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01 : High byte Channel Data

Data 02:Low byte Channel Data

-00 01 ~ 27 OF (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor Channel Number

Data 03 : High byte Channel Data

Data 04: Low byte Channel Data

Data 05 : Input Source (Digital)

-02: Antenna TV (DTV) - Use Physical Channel Number
-06: Cable TV (CADTV) - Use Physical Channel Number
-22: Antenna TV (DTV) - Don't Use Physical Channel Number
-26:Cable TV (CADTV)-Don't Use Physical Channel Number
-46:Cable TV (CADTV)-Use Physical/Major Channel Number Only (One Part Channel)
-66:Cable TV (CADTV)-Use Major Channel Number Only (One Part Channel)
- 0b : Cable DTV Plus - Use Physical Channel Number
- 2b : Cable DTV Plus – Don't Use Physical Channel Number
- 4b: Cable DTV Plus - Use Physical/Major Channel Number Only (One Part Channel)
- 6b : Cable DTV Plus - Use Major Channel Number Only (One Part Channel)

Two bytes are available for each major and minor channel data, but usually the low byte is used alone (high byte is 0).

• Tune Command Examples:

• Tune to the Analog cable (NTSC) channel 35.

Set ID = All = 00

Data 00 = Channel Data is 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = Analog Cable TV = 01

Total = ma 00 23 00 00 00 00 01

1. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = Digital Antenna TV = 22

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][Set ID][ ][NG][Data 00][x]

For Japan Model

To tune channel to following physical/major/minor number.

Transmission [m][a][0][[Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

• Digital Antenna/Satellite

Data 00: xx (Don't care)

[Data 01][Data 02]: Major Channel Number

Data 01: High byte Channel Data

Data 02: Low byte Channel Data

-00 01 ~ 27 OF (Decimal: 1 ~ 9999)

[Data 03][Data 04]: Minor/Branch Channel Number (Don't care in Satellite)

Data 03: High byte Channel Data

Data 04: Low byte Channel Data

Data 05: Input Source (Digital/Satellite for Japan)

-02:Antenna TV (DTV)
-42: Antenna TV (DTV) - Use Physical/Major Channel Number Only (One Part Channel)
-62: Antenna TV (DTV) - Use Major Channel Number Only (One Part Channel)
-07:BS(BroadcastingSatellite)
-08:CS1(CommunicationSatellite1)
-09:CS2(CommunicationSatellite2)

• Tune Command Examples:

1 Tune to the digital antenna (ISDB-T) channel 17-1.

Set ID = All = 00

Data 00 = Don't know Physical = 00

Data 01 & 02 = Major is 17 = 00 11

Data 03 & 04 = Minor/Branch is 1 = 00 01

Data 05 = Digital Antenna TV = 02

Total = ma 00 00 00 11 00 01 02

2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00
Data 00 = Don't know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don't Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07

* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]

21. Channel(Programme) Add/Del(Skip)
Command: m b)
To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00:Del(ATSC,ISDB)/Skip(DVB)01:Add Ack[b][[SetID][OK/NG][Data][x]

* Set the saved channel status to del(ATSC, ISDB)/ skip(DVB) or add.

22.Key (Command:m c) To send IR remote key code. Transmission [m][c][[Set ID][][Data][Cr]

Data Key code - p.2. Ack [c][ ][Set ID][ ][OK/NG][Data][x]

23. Control Backlight (Command: m g)

For LCD TV/LED TV To control the backlight. Transmission[m][g][][SetID][][Data][Cr]

Data Min:00 to Max:64 Ack[g][[Set ID][OK/NG][Data][x] Control Panel Light (Command:mg)

For Plasma TV To control the panel light. Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 to Max:64 Ack[g][[SetID][OK/NG][Data][x]

24. Input select (Command: x b)
(Main Picture Input)
To select input source for main picture. Transmission [x][b][ ][[Set ID][ ][Data][Cr]

Data
00: DTV 01: CADTV
02: Satellite DTV 10: ATV
ISDB-BS (Japan)
03: ISDB-CS1 (Japan)
04: ISDB-CS2 (Japan)
11: CATV
20: AV or AV1 21: AV2
40: Component1 41: Component2
60: RGB
90: HDMI1 91: HDMI2
92: HDMI3 93: HDMI4
Ack [b][ ][[Set ID][ ][[OK/NG]][Data][x]

* This function depends on model and signal.

25. 3D(Command: x t) (only 3D models)
Depending on model)
To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]

\* (Depending on model)
Data Structure
[Data 00] 00:3D On 01:3D Off 02:3D to 2D 03:2D to 3D

[Data 01] 00:Top and Bottom 01:Side by Side 02:Check Board 03:Frame Sequential 04:Column interleaving 05:Row interleaving
[Data 02] 00:Right to Left 01:Left to Right
[Data 03] 3D Effect(3D Depth):Min:00-Max:14 (*transmit by Hexadecimal code)

• [Data 02], [Data 03] functions depend on model and signal.
• If [Data 00] is 00 (3D On), [Data 03] has no meaning.
• If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data 01], [Data 02] and [Data 03] have no meaning.
• If [Data 00] is 03 (2D to 3D), [Data 01] and [Data 02] have no meaning.
• If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data 03] works when 3D Mode (Genre) is manual only.
• All 3D pattern options ([Data 01]) may not be available according to broadcasting/video signal.

[Data 00] [Data 01] [Data 02] [Data 03]
00	0
01	X	X
02	X	X
03	X	O

X:don't care

Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]

1. Extended 3D(Command: x v) (only 3D models) (Depending on model)

To change 3D option for TV. Transmission [x][v][ ][Set ID][ ][Data 00][ ] [Data 01][Cr]

[Data 00] 3D option

00:3D Picture Correction
01:3D Depth (3D Mode is Manual Only)
02:3D Viewpoint
06:3D Color Correction
07:3D Sound Zooming
08 : Normal Image View
09:3D Mode (Genre)

[Data 01] It has own range for each 3D option determined by [Data 00].

1) When [Data 00] is 00

00:Right to Left
01:Left to Right

2) When [Data 00] is 01, 02

Data Min: 0 - Max: 14 (*transmit by Hexadecimal code)

Data value range(0 - 20) converts Viewpoint range (-10 - +10) automatically (Depending on model)

• This option works when 3D Mode (Genre) is manual only.

3) When [Data 00] is 06, 07

00:Off

01:On

4) When [Data 00] is 08

00:Revert to 3D video from 3D-to-2D converted 2D video

01: Change 3D video to 2D video, except 2D-to-3D video

• If conversion condition doesn't meet, command is treated as NG.

5) When [Data 00] is 09

00:Standard 01:Sport
02 : Cinema 03 : Extreme
04:Manual 05:Auto

Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]

1. Auto Configure (Command: j u) (Depending on model)

To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode.

Transmission [j][u][[Set ID][[Data][Cr]

Data 01 : To set Auto Configure

Ack [u][ ][Set ID][ ][OK/NG][Data][x]

LG

Life's Good

MANUEL D'UTILISATION

CONFIGURATION DE L'APPAREIL DE COMMANDE EXTERNE

Total = ma 00 23 00 00 00 00 01

Total = ma 00 00 00 1E 00 03 22

Total = ma 00 00 00 11 00 01 02

Total = ma 00 00 00 1E 00 00 07
