Product Type	Additional Digital Cordless Handset
Brand	PANASONIC
Model	KX-TWA50EX
Category	Cordless Phone
Compatibility	Panasonic KX-TW500 Base Unit
Power Supply	AC Adapter PQLV209CE (included)
Batteries	2 rechargeable Ni-MH AAA (R03) batteries supplied (ref. HHR-55AAAB)
Initial Charging Time	Approximately 7 hours
Display	Screen with language selection (menu)
Functions	Base registration, language selection, GSM network indicator
Included Accessories	Charger, AC adapter, handset cover
Maintenance	Clean with a soft damp cloth; do not use benzene or thinner
Safety	Use only specified adapter and batteries; do not expose to moisture; unplug if smoke appears
Disposal	Follow WEEE and used battery directives (crossed-out wheelie bin symbol)
Countries of Use	Germany, France, Greece, Spain, Italy, Turkey, Poland
SAR Value	Complies with limits (see base manual)
Spare Parts	Rechargeable batteries (ref. HHR-55AAAB or equivalent Ni-MH AAA)
Repairability	Contact supplier or authorized service center

Frequently Asked Questions - KX-TWA50EX PANASONIC

How to register the handset to the base?

Make sure the handset is powered on. Press the [✗①] key for a few seconds if necessary. Press [目/OK], then navigate the menu: [▼]/[▲] to select "SETTINGS" and press [▶]. Select "Registration" or follow the manual instructions. Then, on the base, press and hold the [•••] key for about 5 seconds until the indicator flashes. The handset will emit a long beep once registered.

Which batteries to use and how to install them?

Use only the supplied rechargeable Ni-MH AAA (R03) batteries, preferably Panasonic (ref. HHR-55AAAB). Do not use alkaline, manganese, or Ni-Cd batteries. Place the handset on the charger for about 7 hours before first use. Clean the contacts with a dry cloth if necessary.

How to change the display language?

Press [目/OK], then [▼]/[▲] to select "Settings" (or "SETTINGS"), press [▶]. Select "Display Settings" ("PROG. AFFICHAGE"), then "Select Language" ("CHOIX LANGUAGE"). Choose the desired language with [▼]/[▲] and confirm with [▶] then [✗①].

What to do if the handset does not ring or has no dial tone?

Check that the handset is registered to the base. If the GSM network indicator flashes or is off, proceed with registration. Make sure the batteries are charged and correctly installed. If the problem persists, contact your supplier.

Can I use this handset with other Panasonic bases?

This handset is designed for use only with the Panasonic KX-TW500 base (GSM cordless phone). It is not compatible with other base models without prior registration, but the manual states it is intended for Panasonic GSM cordless phones.

How to clean the handset and charger?

Clean the outer surface with a slightly damp soft cloth. Do not use benzene, thinner, or abrasive powder. For charging contacts, use a dry cloth.

What safety precautions should be followed?

Use only the supplied AC adapter (PQLV209CE). Unplug if smoke or abnormal odor occurs. Do not expose to rain or moisture. Do not place near automatic devices (doors, alarms). Use only recommended batteries.

How to replace the batteries?

Use only replacement rechargeable Ni-MH AAA (R03) batteries. Open the battery compartment, remove old batteries, and insert new ones observing polarity. Close and place the handset on the charger for about 7 hours for a full charge.

What to do if battery life decreases?

Clean the battery terminals and charging contacts with a dry cloth. Fully recharge the batteries. If the problem persists, replace the batteries with new ones of the same type (Ni-MH AAA).

Is this device compliant with European standards?

Yes, Panasonic Communications Co., Ltd. declares that this equipment complies with the essential requirements of Directive 1999/5/EC (R&TTE). The declaration of conformity is available at http://www.doc.panasonic.de.

USER MANUAL KX-TWA50EX PANASONIC

TWA50EX(ex).book Page 1 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Panasonic

KX-TWA50EX

Installation Manual

Bedienungsanleitung

Manuel installateur

Line drawing of a mobile phone with keypad and base (no text or symbols)

Additional Digital Cordless Handset

(for GSM Fixed Wireless Phone)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 3 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Contents/Inhalt/Table des matières/Περιεχόμενα/Contenido/Indice/İçindekiler/Spis treści

English 4

Deutsch 9

Français.... 15

Ελληνικά.... 20

Español 26

Italiano....31

Türkçe.... 36

Polski....41

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TWA50EX(ex).book Page 4 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset only for use with Panasonic GSM Fixed Wireless Phone: KX-TW500

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1 AC adaptor (PQLV209CE)....1

Rechargeable batteries ^1 .... 2 Handset cover ^2 .... 1

*1 Please read the base unit's operating instructions for replacement battery information.
*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
• This equipment is designed for use in Germany, France, Greece, Spain, Italy, Turkey, and Poland.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

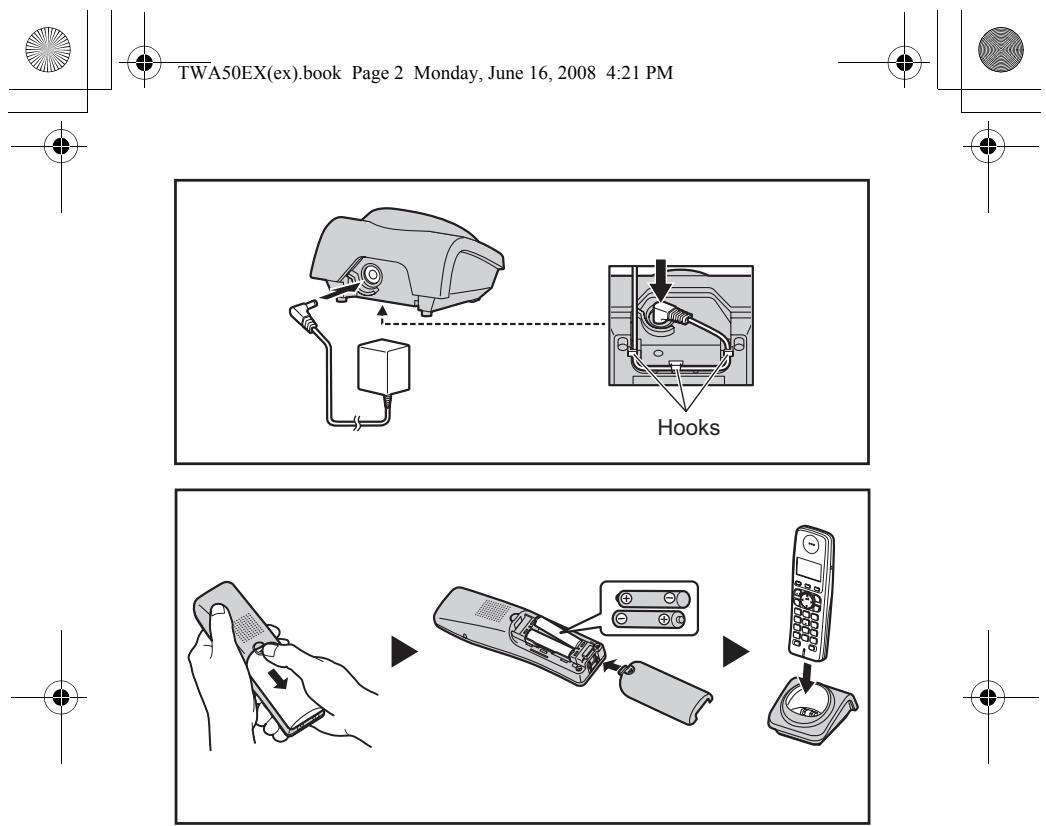

Connection

• Use only the supplied Panasonic AC adaptor PQLV209CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)

Battery installation/Battery charge

Important:

• Use the supplied rechargeable batteries (Part No. HHR-55AAAB).
• When installing the batteries:
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖).

4

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 5 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

- When replacing the batteries:

- USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

- Do NOT use Alkaline/Manganese/Ni-Cd batteries.

- We recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions for replacement battery information.

Place the handset on the charger for about 7 hours before initial use.

Note:

- If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (, ) and the charge contacts with a dry cloth and charge again.

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [✗①] for few seconds to turn the handset on.

1 Handset:

【目/OK】

2 [▼]/[▲]: "Settings" → [▶]

3 [▼]/[▲]: "Registration" → [▶]

4 [▼]/[▲]: "Register H.set" → [▶]

5 Base unit:

Press and hold [•••] for about 5 seconds. (No registration tone)

- The GSM network indicator on the base unit starts flashing green.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

6 Handset:

When the handset has been registered successfully, you hear a confirmation tone (long beep) and stops flashing.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

- Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.

- Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

5

TWA50EX(ex).book Page 6 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

- Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

SAR

- The product is under the SAR limit. Please read the base unit's operating instructions for SAR information.

CAUTION

Installation and relocation

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery

- We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.

• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible charger to charge the batteries. Do not tamper with the charger. Failure to follow these instructions may cause the batteries to swell or explode.

6

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 7 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

- Wipe the outer surface of the product with a soft moist cloth.

- Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase the information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and

recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

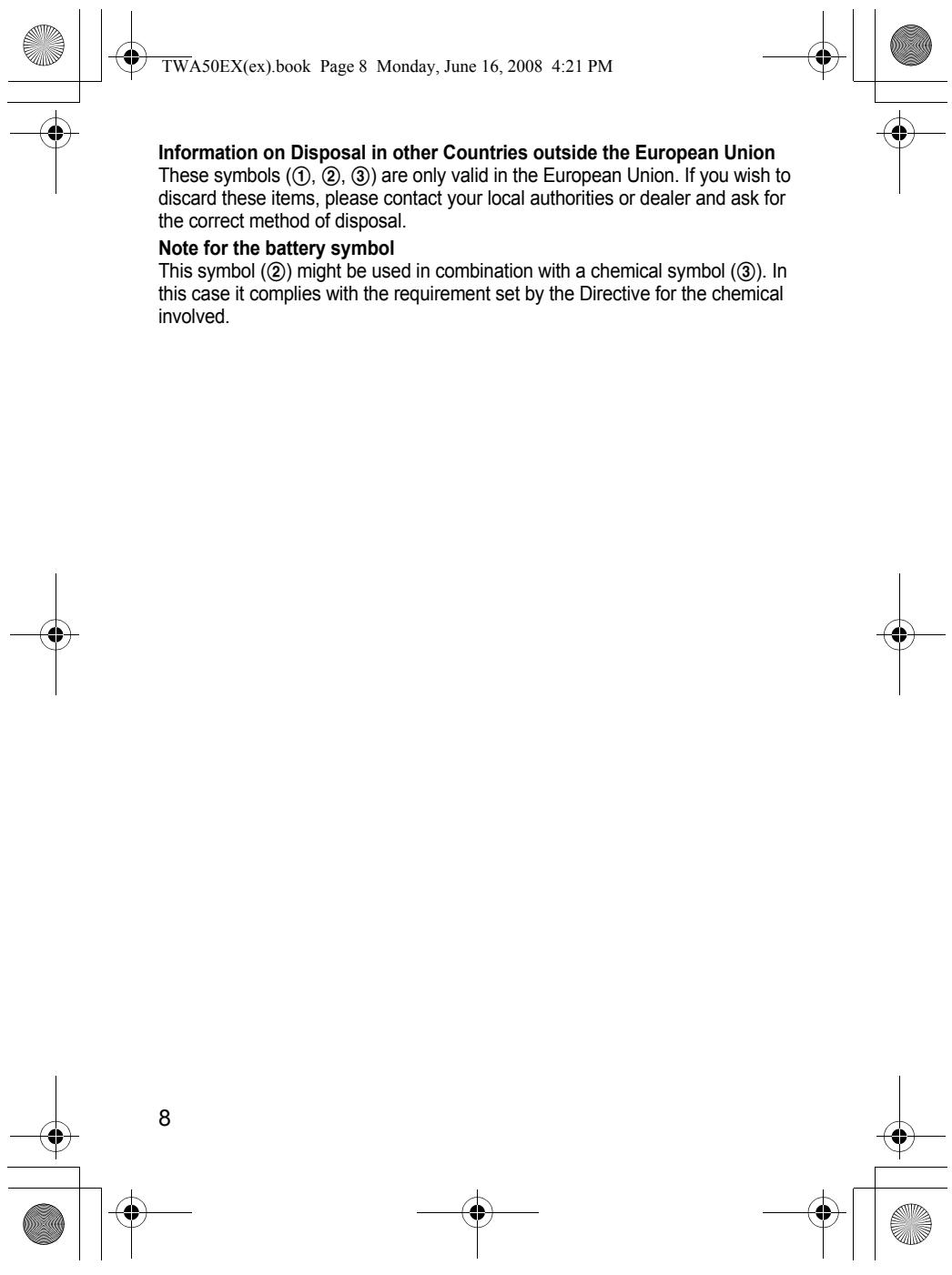

Information on Disposal in other Countries outside the European Union. These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

TWA50EX(ex).book Page 9 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Deutsch

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

9

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 11 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

5 Basisstation:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 12 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

SICHERHEITSHINWEIS

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

12

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 13 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

13

TWA50EX(ex).book Page 14 Monday, June 16, 2008 4:21 PM

TWA50EX(ex).book Page 15 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Français

VEUILLEZ LIRE CE DOCUMENT AVANT TOUTE UTILISATION ET LE CONSERVER

Piles rechargeables ^*1 2

Abstract geometric pattern with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 [▼]/[▲]: "INSCRIPTION" → [▶]

4 [▼]/[▲]: "INSCRIP.COMBINE" → [▶]

5 Base :

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 17 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

6 Combiné :

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

17

TWA50EX(ex).book Page 18 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Piles

Pure geometric diagram with intersecting lines and a central circular pattern, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and a circular pattern, no text or symbols present

TWA50EX(ex).book Page 20 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Ελληνικά

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 21 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TWA50EX(ex).book Page 22 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 23 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

25

TWA50EX(ex).book Page 26 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Español

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 28 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

6 Unidad portátil:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

28

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 29 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TWA50EX(ex).book Page 30 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 31 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Italiano

LEGGERE PRIMA DELL'USO E CONSERVARE

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

31

TWA50EX(ex).book Page 32 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Abstract geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 33 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

33

TWA50EX(ex).book Page 34 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 35 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 36 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Türkçe

LÜTFEN KULLANMADAN ÖNCE OKUYUNUZ VE SAKLAYINIZ

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 38 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Güvenliğiniz için

Abstract geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 39 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

39

TWA50EX(ex).book Page 40 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 41 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Polski

PRZECZYTAJ PRZED ROZPOCZĘCIEM UŻYTKOWANIA I ZACHOWAJ NA PRŻYSZŁOŚĆ

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

41

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 43 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3 [▼]/[▲]: "REJESTRACJA" → [▶]
4 [▼]/[▲]: "REJESTRUJ SLUCH." → [▶]
5 Baza:

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 44 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and a shaded circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 45 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

45

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 46 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

46

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TWA50EX(ex).book Page 47 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles, no text or symbols present

Declaration of Conformity:

• Panasonic Communications Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.
  Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

47

TWA50EX(ex).book Page 48 Monday, June 16, 2008 4:21 PM

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

48

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TWA50EX(ex).book Page 49 Monday, June 16, 2008 4:21 PM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Sales department/Vertrieb/Service des ventes/Tμήμα Πωλήσεων/ Departamento de ventas/Ufficio Vendite/Satis bölümü/Dział sprzedaży

■ Ελλάδας

INTERTECH S.A.

Panafax: 210.9648.588

e-mail: [e-mail]

Panafax: 2310.968.083

e-mail: [e-mail]

www.panasonic.gr

■ Polska

Pure geometric diagram with intersecting lines and circles, no text or symbols present

49

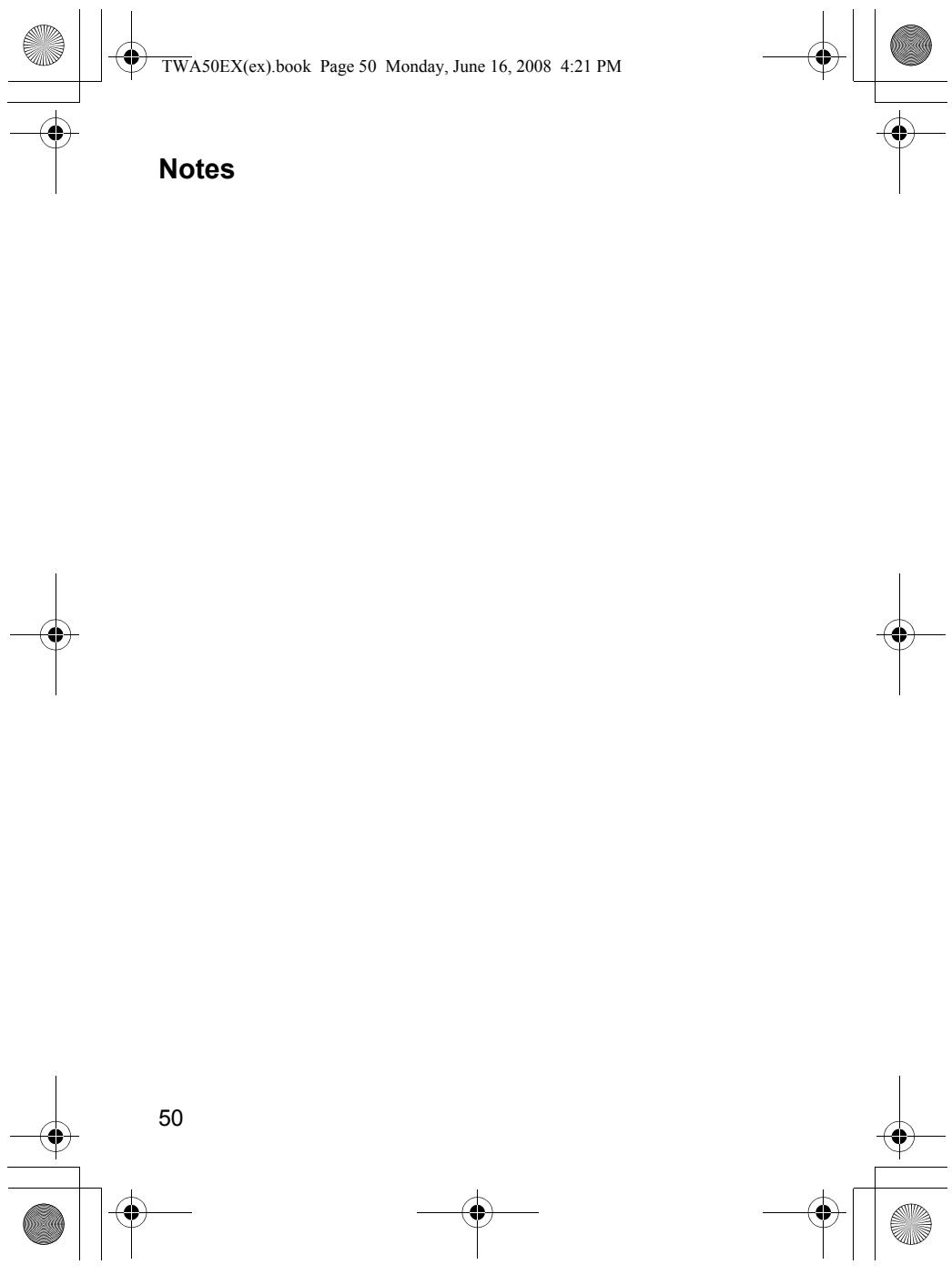

TWA50EX(ex).book Page 50 Monday, June 16, 2008 4:21 PM

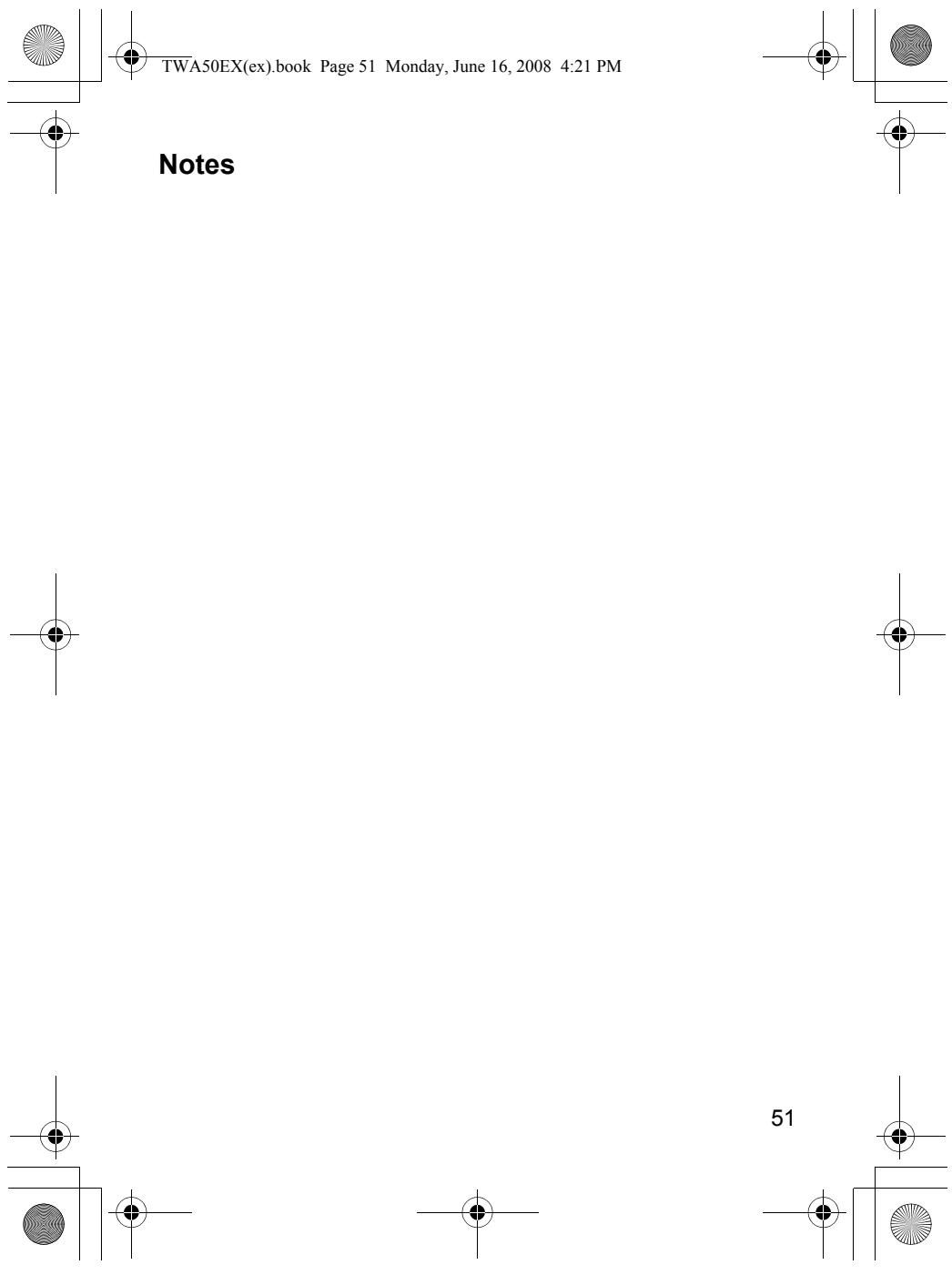

TWA50EX(ex).book Page 51 Monday, June 16, 2008 4:21 PM

C€0470

Pure geometric lines and crosshair symbols without any text, numbers, or labels

Panasonic Communications Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© 2008 Panasonic Communications Co., Ltd. All Rights Reserved.

PNQX1310ZA DM0608DA0

Pure geometric diagram with crosshair and concentric circle patterns (no text or symbols)
