Flex Plus 65 - Phone Trevi - Free user manual and instructions

Brand	Trevi
Model	Flex Plus 65
Product type	Clamshell mobile phone
Standard	GSM - GPRS
Frequencies	Quad Band 850/900/1800/1900 MHz
Display	Main screen 2.8 inches, external screen 7.11 inches
Battery	Rechargeable lithium, 3.7V - 1000mAh, removable
Weight	113 g (with battery)
Dimensions (closed)	57 x 109 x 20 mm
Camera	Built-in, photo and video recording
FM Radio	Yes, with automatic search and channel memory
Audio player	MP3, audio file support
Video player	Yes
Bluetooth	Version 3.0
External memory	Micro SD (T-Flash card), FAT format
Phonebook	Up to 250 contacts
Security functions	Phone and SIM PIN lock, PUK code, phone password (4-8 digits)
User profiles	General, Silent, Meeting, Outdoor
Connectivity	3.5mm headphone jack, micro USB port (charging and data)
Flashlight	Built-in LED, activatable by dedicated button
SOS	Emergency function: sending SMS and calls to 5 preset numbers
SAR value	0.467 W/kg (body), 0.126 W/kg (head)
Maintenance	Clean with soft dry cloth, avoid solvents, moisture and extreme temperatures
Included accessories	Battery, mains charger, micro USB cable, charging dock
Repairability	Removable battery; other repairs by authorized TREVI service

Frequently Asked Questions - Flex Plus 65 Trevi

How to turn the phone on or off?

To turn on, press and hold the Power key until the animation appears. To turn off, press and hold the End key for a few seconds.

How to insert the SIM card and battery?

Turn off the phone. Remove the back cover. Insert the SIM card into the slot with the metal contacts facing down, then place the battery aligning the contacts. Close the cover. Caution: do not use a nano SIM adapter, it may damage the device.

How to charge the battery?

Use the provided micro USB cable: connect it to the phone or place the phone on the charging dock. Plug the charger into a power outlet. The animated battery icon indicates charging. Unplug once the battery is full. Avoid charging for more than 24 hours.

How to use the SOS function?

Activate the function in SOS settings. Set up to 5 emergency numbers. If needed, press the SOS key: the phone sends an SMS to the numbers and calls the first on the list; if no answer, it goes to the next.

What to do if the phone does not turn on?

Check that the battery is correctly installed and sufficiently charged. If the problem persists, try replacing the battery. Also ensure the SIM card is properly inserted.

How to change the phone language?

On the standby screen, press MENU, then go to IMPOSTAZIONI (Settings) > TELEFONO > LINGUA (Language). Select your language from the list.

How to listen to FM radio?

Open the FM Radio application. Use the left/right directional keys for automatic station search. Press OK to play/stop. The * and # keys or the side button adjust the volume.

How to transfer files via Bluetooth or memory card?

For Bluetooth: enable Bluetooth in settings, make the device visible, then search and pair another device. For memory card: insert a Micro SD card into the dedicated slot, then use the File Manager to copy/move files.

What if the PIN code is blocked?

If you enter the wrong PIN three times, the SIM card is blocked. You must then enter the PUK code provided by your operator. Contact your operator to obtain the PUK. Enter it correctly to unlock the SIM card.

How to restore factory settings?

Go to Settings > Restore settings. Enter the default password 1122 to confirm. This action erases all your personal data and restores the original settings.

USER MANUAL Flex Plus 65 Trevi

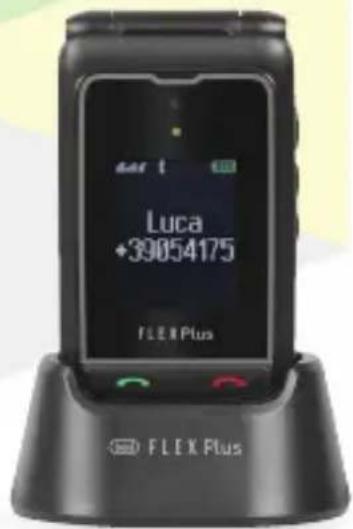

Luca [phone] FLEX Plus FLEX Plus

F L E X Plus 65

TO SET YOUR LANGUAGE DEVICE

• Select "MENU"
• Select the "IMPOSTAZIONI" icon
• Select the number 1 function "TELEFONO"
• Select the number 2 "LINGUA" and find their own language from those available.
  * For information and updates of this product: www.trevi.it

POUR CONFIGURER LANGUE DE VOTRE APPAREIL:

Line drawing of a smartphone with a circular button labeled '105' and an arrow indicating rotation (no text or symbols beyond the label)

Line drawing of a mobile phone case with an open door and a circular button labeled 'BOS' (no text or symbols beyond the label)

Line drawing of a smartphone with a stack of documents and a clip (no text or symbols)

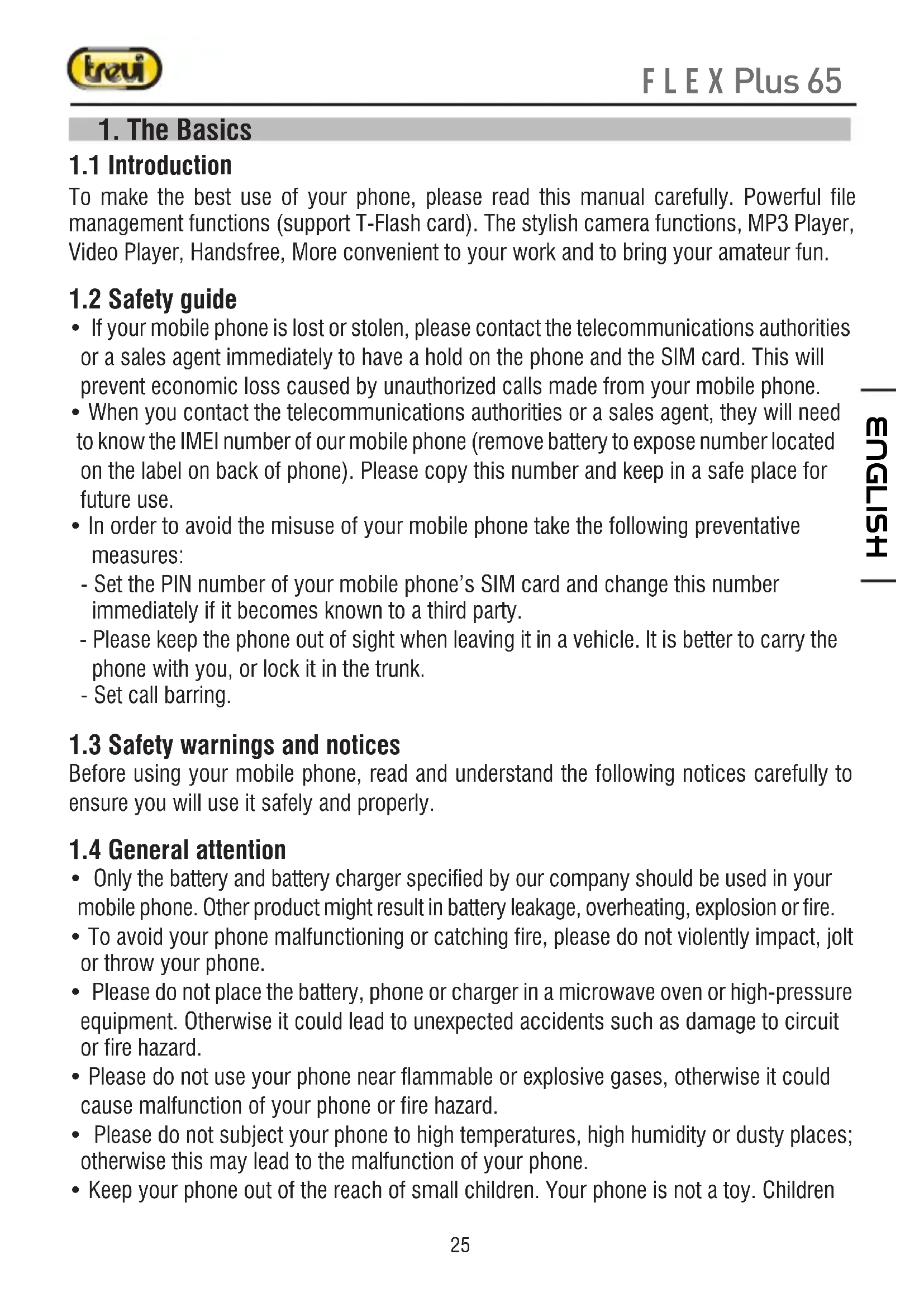

To make the best use of your phone, please read this manual carefully. Powerful file management functions (support T-Flash card). The stylish camera functions, MP3 Player, Video Player, Handsfree, More convenient to your work and to bring your amateur fun.

1.2 Safety guide

• If your mobile phone is lost or stolen, please contact the telecommunications authorities or a sales agent immediately to have a hold on the phone and the SIM card. This will prevent economic loss caused by unauthorized calls made from your mobile phone.
• When you contact the telecommunications authorities or a sales agent, they will need to know the IMEI number of our mobile phone (remove battery to expose number located on the label on back of phone). Please copy this number and keep in a safe place for future use.
• In order to avoid the misuse of your mobile phone take the following preventative measures:

- Set the PIN number of your mobile phone's SIM card and change this number immediately if it becomes known to a third party.

- Please keep the phone out of sight when leaving it in a vehicle. It is better to carry the phone with you, or lock it in the trunk.

- Set call barring.

1.3 Safety warnings and notices

Before using your mobile phone, read and understand the following notices carefully to ensure you will use it safely and properly.

1.4 General attention

• Only the battery and battery charger specified by our company should be used in your mobile phone. Other product might result in battery leakage, overheating, explosion or fire.
• To avoid your phone malfunctioning or catching fire, please do not violently impact, jolt or throw your phone.
• Please do not place the battery, phone or charger in a microwave oven or high-pressure equipment. Otherwise it could lead to unexpected accidents such as damage to circuit or fire hazard.
• Please do not use your phone near flammable or explosive gases, otherwise it could cause malfunction of your phone or fire hazard.
• Please do not subject your phone to high temperatures, high humidity or dusty places; otherwise this may lead to the malfunction of your phone.
• Keep your phone out of the reach of small children. Your phone is not a toy. Children

could hurt themselves.

- To avoid your phone falling and malfunctioning or being damaged, please do not place it on uneven or unstable surfaces.

1.5 Notices when using your phone

• Turn off your mobile phone where the phone is not allowed, such as on the airport or in hospitals. Using the mobile phone in those places may impact the normal operation of electronic devices and medical instruments. Follow relevant regulations when using your mobile phone in those places. Your mobile phone has the auto turn-on feature. Check your alarm clock settings to confirm that your mobile phone will not be turned on automatically during flight.
• Please do not use your mobile phone near the weak signal or high precision electronic devices. RF interference might cause malfunctioning of such electronic devices and other problems. Special tips must be paid near the following equipment: hearing aids, pace makers and other medical electronic devices, fire detectors, automatic doors and other automatic control installations. To find out the effect of mobile phones on a pacemaker or other pieces of electronic medical equipment please contact the manufactures or local sales agents of the equipment.
• Please do not subject the LCD to impact or use the screen to strike things, as this will damage the LCD board and cause leakage of the liquid crystal. There is a risk of blindness if the liquid crystal substance gets into the eyes. If this occurs rinse eyes immediately with clear water (under no circumstances rub your eyes) and go immediately to a hospital for treatment.
• Do not dissemble or modify your mobile phone, as it will lead to damage to the phone such as battery leakage or circuitry failure.
• Under very rare circumstances using the mobile phone in certain model cars may negatively affect the internal electronic equipment. In order to assure your safety under such circumstances please do not use the mobile phone.
• In the event of antenna malfunction, do not use your phone as it could be harmful to human body.
• Avoid letting the phone come into close contact with magnetic objects such as magnetic cards as the radiation waves of the mobile phone may erase the information stored on floppy disks, pay cards and credit cards.
• Please keep small metal objects, such as thumbtacks far away from the receiver. When the receiver is in use it becomes magnetic and may attract these small metal objects and thus these may cause injury or damage the mobile phone.
• Avoid having the mobile phone come into contact with water or other liquids. If liquids enter the phone, this could cause a short circuit, battery leakage or other malfunction.
• Keep the manual.

With earphone or headphones use:

To prevent possible hearing damage, limit the amount of time listening at high volumes.

1.6 Notices when using battery

• The battery has a limited service life. The remaining life gets shorter as the times of charging increase. If the battery becomes feeble even after the charging, this indicates the service life is over and you have to use a new specified battery.
• Do not dispose of old batteries with everything domestic garbage. Please dispose of old batteries at the directed places with specific rules for their disposal.
• Please do not throw batteries into a fire, as this will cause the battery to catch fire and explode.
• When installing the battery, do not use force or pressure, as this will cause the battery to leak, overheat, crack and catch fire.
• Please do not use wires, needles or other metal objects to short-circuit the battery. Also, do not put the battery near necklaces or other metal objects as this will cause the battery to leak, overheat, crack and catch fire.
• Please do not solder the contact points of the battery, as this will cause the battery to leak, overheat, crack and catch fire.
• If the liquid in the batteries goes into the eyes, there is a risk of blindness. It this occurs do not rub the eyes, but immediately rinse eyes with clear water and go to the hospital for treatment.
• Please do not disassemble or modify the battery, as this will cause the battery to leak, overheat, crack and catch fire.
• Please do not use or place the batteries near high temperature places such as near a fire or heating vessel as this will cause the battery to leak, overheat, crack and catch fire.
• If the battery overheats, changes color or becomes distorted during use, charging or storage, please stop using and replace it with a new battery.
• If the liquid from the battery comes in contact with skin or clothing this could cause burning of the skin. Immediately use clear water to rinse and seek medical tips if necessary.
• If the battery leaks or gives off a strange odor, please remove the battery from the vicinity of the open fire to avoid a fire or explosion.
• Please do not let the battery become wet as this will cause the battery to overheat, smoke and corrode.
• Please do not use or place batteries in places of high temperature such as in direct sunlight, as this will cause the battery to leak and overheat, lower performance and shorten the battery's life.
• Please do not continuously charge for more than 24 hours.

1.7 Cleaning and maintenance

• The mobile phone, battery and charger are not water resistant. Please do not use them in the bedroom or other excessively moist areas and likewise avoid allowing them to get wet in the rain.
• Use a soft, dry cloth to clean the mobile phone, battery and charger.
• Please do not use alcohol, thinner, benzene or other solvents to wipe the mobile phone.
• A dirty outlet will cause poor electrical contact, lose of power and even inability to recharge. Please clean regularly.

2. Installing the SIM card and battery

An SIM card carries useful information, including your mobile phone number, PIN (Personal Identification Number), PUK (PIN Unlocking Key), IMSI (International Mobile Subscriber Identity), network information, contacts data and short messages data.

Note: After powering off your mobile phone, wait for a few seconds before removing or inserting an SIM card.

- Exercise caution when operating an SIM card, as friction or bending will damage the SIM card. Properly keep the mobile phone and its fittings such as the SIM cards beyond children's reach.

Installation

1. Hold the End key for a while to power off the mobile phone;
2. Carefully remove the back cover;
3. Pull the left battery buckle outward and then lift the battery away;

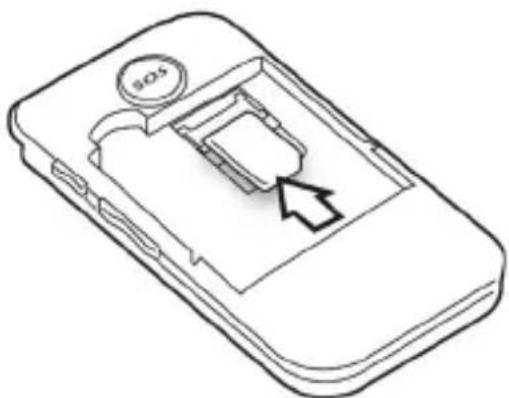

4. Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further pushed in.

Line drawing of a mobile phone casing with an attached device and a circular dial labeled 'BOS' (no text or symbols beyond the label)

1. With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery down until it locks into place.

Note regard the use of micro-SIM adapter on TREVI products

The slots for SIM cards are designed to accommodate only the consideration SIM format. The use of SIM (micro or nano) with its adapter and 'not recommended as it can cause

damage to the device and the micro/nano SIM itself.

Warning:

• TREVI not liable for damages caused by the use of adapters for micro/nano-SIM.
• TREVI reserves the right to refuse free assistance in warranty on defective products that have ‘caused by the use of the SIM adapters for micro/nano-SIM.
• Do not insert memory card into the SIM card slot.

Two identical geometric shapes with diagonal cross lines, no text or symbols present

Nano SIM card with adapter

3. Inserting the micro SD card

To store photos, videos, and music should insert a micro SD external memory.

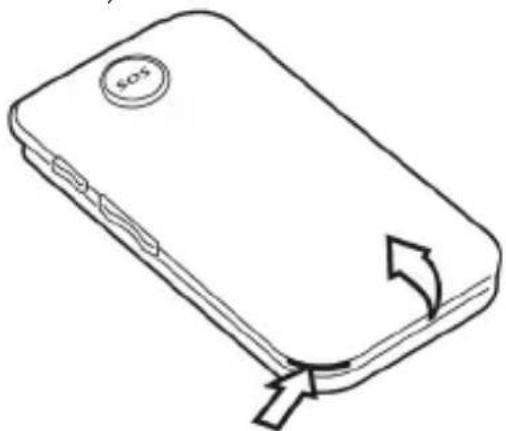

1. Carefully remove the back cover;

Line drawing of a closed book with a circular button labeled 'SOS' and an arrow indicating rotation (no text or symbols beyond the label)

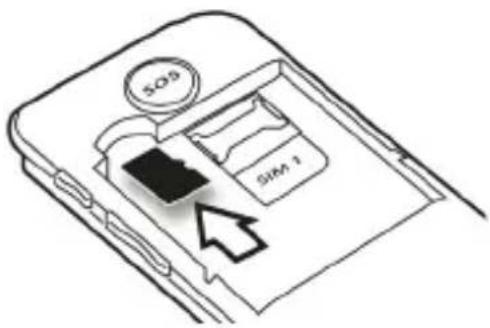

1. Insert the microSD card keeping the surface with the electrical contacts facing down (display side);

SOS SIM 1

1. Replace the back cover.

Notes:

• Some card brands may not be compatible with the phone. The use an incompatible memory may be damaged or the card memory itself.
• The appliance only supports memory formatted in FAT. If you enter formatted cards differently the phone will ask you to reformat the memory card.

4. Charging battery

CHARGING THROUGH POWER SUPPLY

1. A device turned off, connect the Micro USB plug of the supplied cable to the Micro USB phone (to use the supplied cable only).
2. Connect the USB outlet on the same power supply cable and plug the latter to a standard wall outlet.
3. The device will turn on for a few seconds to show the battery icon with it is charging.
4. When the battery is fully charged (the icon is no longer moving), disconnect the power supply from the wall outlet and then disconnect the plug from the Micro USB phone.

CHARGING THROUGH COMPUTER

You can also charge your phone by plugging it into a USB port of a computer using, simply, the supplied USB cable.

Notes:

• Use only the Micro USB cable supplied.
- Use only the mains adapter supplied, different power supplies may damage the battery.
- You can use the device even when it is charging, but, for longer life battery, not recommended for use; Furthermore, using the apparatus, the timing of Charging may take longer.
- While charging the device can increase in temperature, this does not affect performance and machine life.

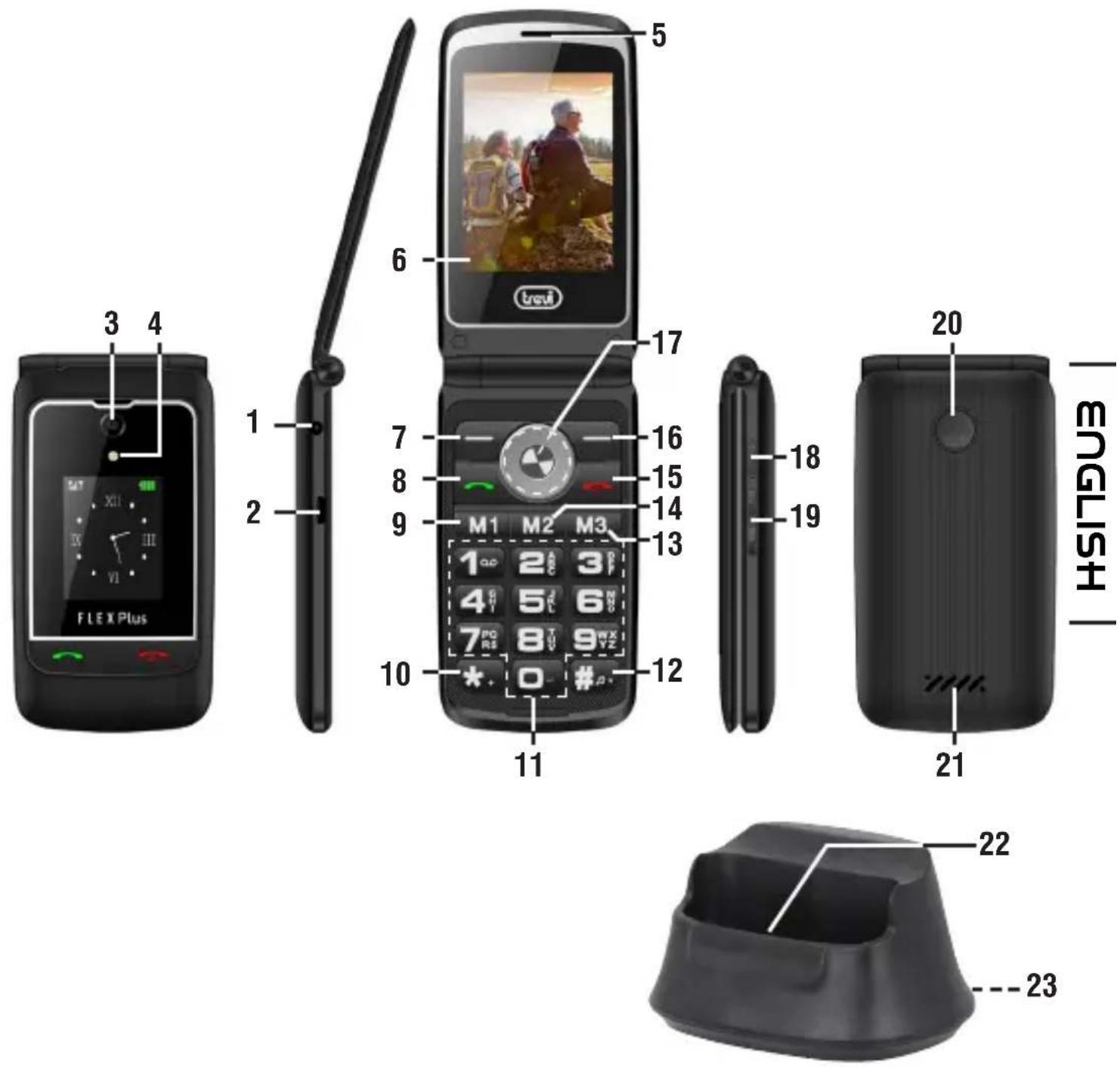

5. Keys Function

1. Earphone jack (3.5mm)
2. Micro USB socket.
3. Camera.
4. LED Flash camera.
5. Speaker Phone.
6. Display.
7. Multifunction button, the display shows each time its function.
8. Dial key.
9. M1, Family number 1.
10. Key * (asterisk).
11. Numeric/letters keys.
12. Key #.

13. M3, Family number 3.

14. M2, Family number 2.

15. End call and power On/Off function (when long press).
16. Multifunction button, the display shows each time its function.
17. Left, Right, Up, Down navigation keys + confirms button.
18. On/off touch function (when long press).
19. Volume control.
20. SOS dialing.
21. Speaker.
22. Metal pins for phone connection.
23. Micro USB socket.

6. Basic Functions

Powering On/Off the Mobile Phone

Hold the On/Off button for a while to power On the mobile phone. A power-on animation appears on the display screen.

Input the PIN and press the ok key if the mobile phone prompts you to input the PIN. The PIN is provided by the network operator for new opening SIM card. Enter the standby interface.

To power off the mobile phone, hold the End key for a while.

Dialing Calls

In the standby interface, press number keys to input the area code and the telephone number,

and then press the Dial key to dial a call. To end the call, press the End key.

• Dialing an international call

Press the * key twice can input “+”. Then input the country code, the area code and the telephone number. Finally, press the Dial key.

• Dialing a call to a number in the phonebook

Enter the phonebook and use the up or down direction keys to find the telephone number you want to call.

Press the Dial key. The mobile phone automatically dials the chosen telephone number.

• Redialing the last number

In the standby interface, press the dial key to show the dialed calls.

Press the up or down direction keys to select a number you want to dial and then press the Dial key.

• Answering incoming calls

Press the Dial key or the Ok key to answer an incoming call.

Press the End key to end the current conversation.

To reject an incoming call, press the End key or the Right soft key.

Note: If the caller can be identified, the mobile phone will present the calling number. If the calling number exists in the phonebook, the mobile phone will present the name of the caller. If the caller cannot be identified, the mobile phone will present the calling number only. You can answer an incoming call when using a function list or browsing the phonebook.

7. Menu Features

7.1 Phonebook

The phone number can be stored for 250 phonebook entries.

7.2 Messages

Message Services is a network feature that allows you to send, receive and edit information. For more details, please contact your network operator companies.

7.3 Call history

In the call history screen, you can view detail records of missed calls, received calls, dialed call. Press Options to view, call, send a message, delete, and save it to the phone book, you can also make a call setup.

7.4 Multimedia

7.4.1 Camera

The phone is provided with a camera, which supports the photographing functions. Roll the phone to align the camera to the picture and then press OK key to capture photos. Pictures will be saved in the file system of the memory card (not included).

7.4.2 Image viewer

You can view the pictures or images through this function.

7.4.3 Video Recorder

This function enables you to record dynamic pictures. In the capture interface, press the left key to switch to video recorder, OK key to capture videos clip.

7.4.4 Video player

Use this function to play video files. By pressing the direction key you can control the playing process of video player: play/pause(OK key), fast forward (press and hold right direction key) and rewind (press and hold left direction key).

7.4.5 Audio player

Use this function to play audio files. By pressing the direction key can you control the playing process of audio player: play/stop (OK key), switch to last song/next song (press left or right direction key).

7.4.6 Sound recorder

After accessing the sound recorder, you can press left soft key to perform the following operations:

• New: select this function to record a new file.
• List: recorded files are listed in this menu.

7.4.7 FM Radio

You can use the application as a traditional FM radio with automatic tuning and saved channels.

7.5 Settings

7.5.1 Phone settings

• Time and date: set the date format, the time format, and detail time of the location.
• Languages: Select the display language for the mobile phone.
• Pref. input method: Select preferred input method as needed.
• Display: Users can access this item to set wallpaper, screen saver, power on off display, etc.
• Flight mode: when this function is engaged, it will suspend many of the device's signal transmitting functions – thereby disabling the device's capacity to place or receive calls or text messages—while still permitting use of other functions that do not require signal transmission (e.g. games, built-in camera, MP3 player).
• External display clock style: Select the display style from Analog or Digital.

7.5.2 Call settings

• Callwaiting.
• Call divert.
• Call barring.

- Advanced settings.

• Black list: to activate or deactivate the black list and to insert numbers in the black list
• Auto redial: After open this function, the phone will dial the number again automatically every time when the out call fails or be rejected.

- Call time display: You can set the call time on display.

• Call time reminder: You can set the call time reminder mode as Single or periodic; select Off to cancel this function.
• Answer mode: Set the answer mode, Cover answer, Any key or Auto answer when headset mode, as On or Off.

Attention: Parts of the functions need network operator's support.

7.5.3 Profiles

The mobile phone provides multiple user profiles, so that you can customize some settings to adapt to the specific events and environments.

Customize the user profiles according to your preference and then activate the user profiles. The user profiles fall into four scenarios: General, Silent, Meeting, Outdoor. When you insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode.

7.5.4 Speed Dial

From this menu, you can select eight numbers from your phone book + plus three for the M1, M2 and M3 keys. After this, you can make call to these numbers simply by press number keys correspondingly in the idle screen.

7.5.5 Navigation keys

Customize the shortcut functions of the Up, Down, Left, and Right direction keys. In the standby interface, you can press a direction key to directly enter the function menu corresponding to that direction key.

7.5.6 Network Settings

Network selection by Automatic or Manual

7.5.7 Security Settings

This function provides you with related settings about safety use.

SIM security

1 PIN lock: To activate PIN lock, you need to input the correct PIN code. If you set PIN lock to On, you need to input the PIN each time you power On the mobile phone. In the case you input a wrong PIN for three consecutive times, you need to input the PIN Unblocking Key (PUK). The PUK is used to unlock and change the locked PIN. To obtain the PUK, contact the network operator.

2 Change PIN: To change PIN code of SIM card.

Phone security

1 Phone lock: The function enables you to lock/unlock the phone. Entering password to switch on or off the phone. Password is required when the phone is locked. The password is 4 to 8 digits.

2 Change password: to change phone password.

7.5.8 Restore factory Settings

Use this function to restore factory settings. The default password is 1122.

7.6 File Manager

The phone provides a certain space for users to manage files and supports the Memory card. The capacity of the Memory card is selectable. You can use the file manager to conveniently manage various directories and files on the phone and the Memory card.

- Choose File manager to enter the root directory of the memory. The root directory will list the default folders, new folders and user files. When the mobile phone is powered on for the first time or when you have not changed the directory, the root directory contains the default folders only.

7.7 Organizer

7.7.1 Calendar

Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc. Days with events entered will be marked.

7.7.2 Calculator

The calculator can add, subtract, multiply and divide. To use the calculator.

7.7.3 Alarm

Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them as needed. For each alarm clock, the ringing date and the ringing time can be set.

7.7.4 Bluetooth

Power: Open or close the function of Bluetooth.

Visibility: Open or close the function of visibility.

My device: Following this, you can search new Bluetooth devices. The difference between My device and Inquiry audio device is: the hands-free of Bluetooth devices can only receive data, such as Bluetooth earphone; My device can receive and send data, such as Bluetooth cell phone.

Search audio device: when it is on, it will search audio device.

My name: View the name of the Bluetooth in this phone.

7.7.5 Voice settings

Use this function to set Human voice incoming call and Human voice phone book.

8. Special features

SOS Setting

This function allows you to ask for help in certain circumstances by calling an emergency number or the number of a family member.

Once enabled, it will send a message (SMS) to all 5 of the phone numbers on the list and begin to call the first number on the list; where it fails to respond or refuses the call the device will call the second number of the list and so on until you have an answer.

• Status: Select On/Off then the SOS function will be able or disable.
• SOS numbers: you can set up to 5 numbers for SOS calls. The telephone will automatically call these 5 numbers when SOS function activated.
• SOS SMS ON/OFF: to set this function on or off.
• SOS SMS: you can edit the massage by default for SOS to sent to some one.
• Warning tone status: Select On/Off then the SOS alarm sound will be able or disable.

Caution:

• If the answering machine is activated during an emergency call at the called number telephone, the device will detect it as an answer so it will not call the next one numbers and will not send SMS help.
• Help texts will only be received from devices compatible with the reception of SMS messages.

9. Information on disposal of battery

Whatever type of battery used up, it should never be placed in household waste, fire or water. Each type of battery should be collected, recycled or disposed of at an appropriate dedicated collection points.

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product. Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

TREVI pursues a policy of continuous research and development, the products may have different features from those described.

10. FAQs and solutions

If you have any questions about the phone, please find the solutions from the table below.

FAQs Causes Solutions
Poor reception When you use your phone at poor reception areas, like near high rise buildings or base rooms, the radio wave cannot be transmitted.		Avoid this as far as you can.
Echoes or noises The trunk line of network is in bad condition. It is a regional problem.		Hang off the call and dial again.Choose another better line.
Shorter standby time The standby time is relevant to network settings.		In poor reception areas, turn off your phone temporarily.
Failed to turn on your phone	The battery power is used up. Check the battery power level or charge the battery.
SIM card error The SIM card is damaged. Contact your network service provider.
Failed to connect to the network	The SIM card is invalid. Contact your network service provider.
	Beyond the GSM coverage. Consult the network service provider for service areas.
	The signal is feeble. Retry at a stronger signal area.
Failed to make a call The call barring feature is used. Cancel the call barring settings.
PIN code error Enter incorrect	rect PIN codes for three times in succession.	Contact your network service provider.
Failed to charge the battery	The battery or the charger is damaged.	Change a new battery or charger.
	Charge the battery when ambient temperature is lower than -10°C or above 55°C.	Change the environment.
	Poor connection. Check whether the plug is properly connected.
Failed to add contacts to phonebook	The storage space of phonebook is used up.	Delete some contacts from the phonebook.
Failed to set up some features	Your network not provider the services.	Contact your network service provider.

11. Technical specification

Standard: GSM - GPRS

GSM frequencies: .... Quad Band 850/900/1800/1900MHz

Display: 2,8 Inch + 1,77 Inch

Battery: 3,7V-1000mAh Lithium rechargeable

GSM900 max power: 28,73 dBm

GSM1800 max power: 23,86 dBm

Max Bluetooth power: 0,88dBm

Bluetooth transmission band: 2,4GHz

Bluetooth: V 3.0

SAR value: 0,467 W/kg Body

0,126 W/kg Head

Closed unit dimensions: 57x109x20mm

Weight: 113gr (with battery)

1. Les Bases

Vue d'ensemble

Line drawing of a smartphone interior showing the door and control panel (no text or symbols)

Line drawing of a smartphone with a circular button labeled 'SOS' and an arrow indicating rotation (no text or symbols beyond the label)

PAR RECHARGE "CHARGEMENT DE BASE" (FOURNI)

Line drawing of a mobile phone casing with a GPS button and an arrow pointing to the internal component (no text or symbols)

Two identical geometric shapes with diagonal cross lines, no text or symbols present

Nano-SIM-Adapter

Line drawing of a closed notebook with a circular button labeled 'SOS' and an arrow indicating fold (no text or symbols beyond the label)

GO-9 SUM 1

Line drawing of a mobile phone casing with an SO2 sensor and internal component (no text or symbols)

Two identical geometric diagrams with intersecting lines, no text or symbols present

Adaptador Nano SIM

Line drawing of a smartphone case with a circular button labeled '3.05' and an arrow indicating rotation (no text or symbols beyond the label)

https://www.trevi.it/dms/zidi/TREVI/DOCFLEXPLUS65.pdf

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI S.p.a. declares that phone FLEX PLUS 65 is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address

https://www.trevi.it/dms/zidi/TREVI/DOCFLEXPLUS65.pdf

AVVISO SMALTIMENTO CORRETTO/ CORRECT DISPOSAL WARNING

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

Comtel 10:05 14.12.2021 (Mar) Menu Nomi treui M1 M2 M3 1 QD 2 A C 3 D 4 G H I 5 J L 6 M G 7 PQ R S 8 T U V 9 W X Y Z * + 0 # #

Luca [phone] FLEX Plus FLEX Plus
