XR 8A25 - Speaker Trevi - Free user manual and instructions

Product type	Portable Bluetooth speaker
Brand	Trevi
Model	XR 8A25
Power supply	5V 1A (via USB Type-C)
Battery	Lithium 3.7V, 1200mAh rechargeable
Recommended charging time	Maximum 4 hours
Wireless connectivity	Bluetooth 2.4 GHz, typical range 10 m
Max Bluetooth transmission power	0.8 mW
Audio inputs	USB, micro SD, AUX (3.5 mm jack)
TWS function	Yes (pairing two speakers for stereo sound)
Controls	On/Off, Play/Pause, Volume +/-, Mode, Answer/End call
Charging indicator	Red while charging, turns off when charged
Maintenance and cleaning	Soft slightly damp cloth, avoid solvents and abrasives
Safety instructions	Do not use charger >5V, do not expose to water, heat, dust, vibrations
Hearing protection	Avoid prolonged listening at high volume
Dimensions (approx.)	180 x 70 x 75 mm
Weight (approx.)	350 g
Included accessories	USB Type-C cable, user manual

Frequently Asked Questions - XR 8A25 Trevi

How to turn on the Trevi XR 8A25 speaker?

Press and hold the On/Off (⏻) button for about 3 seconds. The indicator light flashes and the speaker emits a startup sound.

How to pair the speaker via Bluetooth?

Turn on the speaker and press the M button until you hear the message 'Bluetooth mode'. On your device, search for the device named 'XR 8A25' and enter the PIN 0000 if needed. A confirmation sound is heard.

How to charge the speaker's battery?

Turn off the speaker. Connect the provided USB Type-C cable to the TYPE-C (10) port and the other end to a PC USB port or a USB charger (5V 1A not included). The red light turns on and turns off when charging is complete. Do not charge for more than 4 hours.

How to use the TWS function for two speakers?

Disable Bluetooth on your phone. Turn on both speakers and select Bluetooth mode. On one of them, press and hold the M button until a confirmation sound. After a few seconds, the speakers connect. Search for 'XR 8A25' on your device and enter PIN 0000.

How to play a micro SD card?

Turn on the speaker. Insert a micro SD card into the slot (9) with the contacts facing up. The speaker emits the message 'Play by TF Card' and playback starts automatically. Use the + and - buttons to change tracks.

How to play a USB flash drive?

Turn on the speaker. Insert a USB flash drive into the USB (7) port. The speaker emits the message 'Play by USB Drive' and playback starts automatically. Use the + and - buttons to navigate.

How to adjust the volume?

Press and hold the + (volume +) or - (volume -) buttons to increase or decrease volume. A short press skips to the next or previous track.

What to do if Bluetooth pairing fails?

Delete the speaker from the Bluetooth list on your device, restart the speaker, and search again. Ensure no other device is already connected.

How to clean the speaker?

Use a soft slightly damp cloth. Avoid solvents, abrasive products, and standing water. Do not immerse the speaker in water.

How to replace the internal battery?

This operation is reserved for technical personnel. Remove the protective grille, unscrew the screws, separate the two parts of the housing, identify the battery (Li-ion 3.7V 1200mAh) and replace it with a battery of the same specifications.

USER MANUAL XR 8A25 Trevi

SPEAKER POWERED WITH BLUETOOTH CONNECTION

User Manual

BLUETOOTH CONNECTION

MP3 PLAYER

USB/MICRO SD CARD READER

AUX IN

TWS

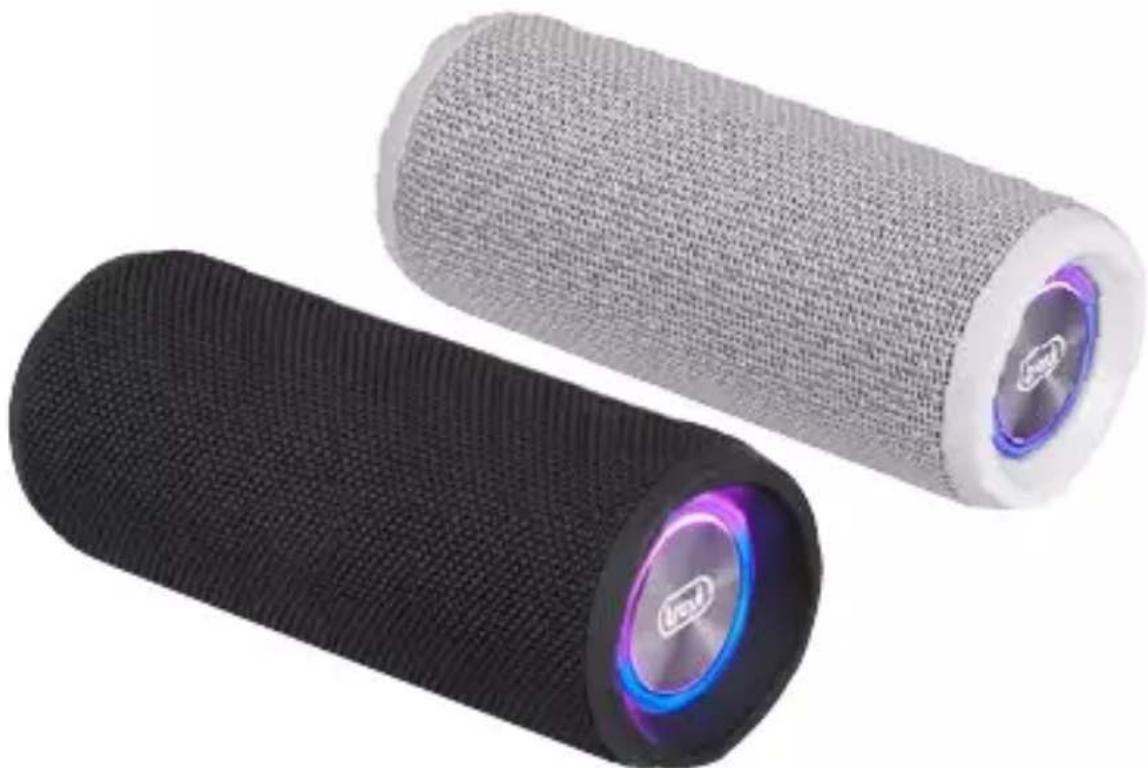

Two cylindrical electronic devices with textured surfaces and a glowing blue-lit speaker (no visible text or symbols)

FUNZIONE TWS (TRUE WIRELESS STEREO)

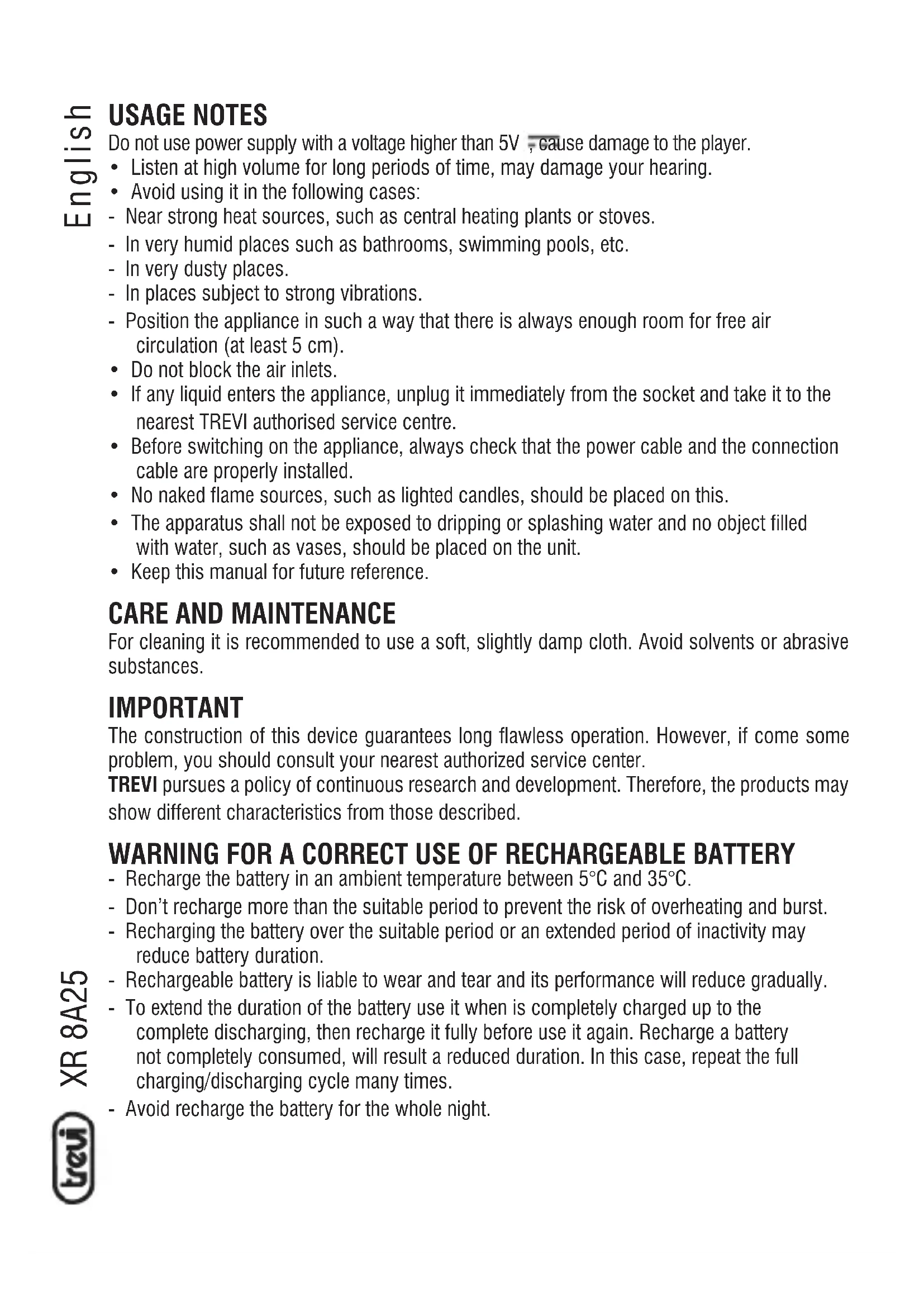

Do not use power supply with a voltage higher than 5V, cause damage to the player.

• Listen at high volume for long periods of time, may damage your hearing.
• Avoid using it in the following cases:
• Near strong heat sources, such as central heating plants or stoves.
• In very humid places such as bathrooms, swimming pools, etc.
• In very dusty places.
• In places subject to strong vibrations.
• Position the appliance in such a way that there is always enough room for free air circulation (at least 5 cm).
• Do not block the air inlets.
• If any liquid enters the appliance, unplug it immediately from the socket and take it to the nearest TREVI authorised service centre.
• Before switching on the appliance, always check that the power cable and the connection cable are properly installed.
• No naked flame sources, such as lighted candles, should be placed on this.
• The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.
• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning it is recommended to use a soft, slightly damp cloth. Avoid solvents or abrasive substances.

IMPORTANT

The construction of this device guarantees long flawless operation. However, if come some problem, you should consult your nearest authorized service center.

TREVI pursues a policy of continuous research and development. Therefore, the products may show different characteristics from those described.

WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY

• Recharge the battery in an ambient temperature between 5°C and 35°C.
• Don't recharge more than the suitable period to prevent the risk of overheating and burst.
• Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration.
• Rechargeable battery is liable to wear and tear and its performance will reduce gradually.
• To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result in reduced duration. In this case, repeat the full charging/discharging cycle many times.
• Avoid recharge the battery for the whole night.

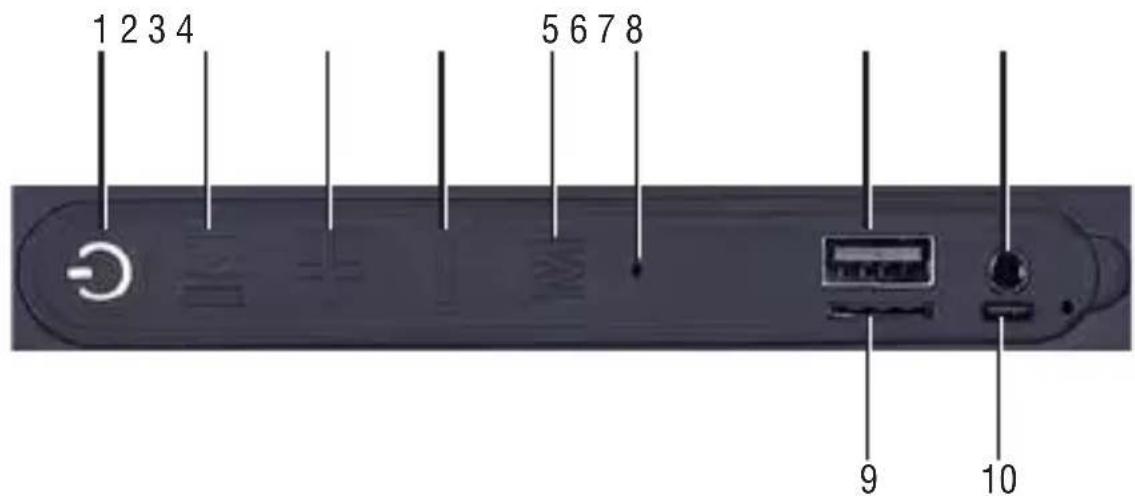

CONTROLS

1 2 3 4 5 6 7 8 9 10

1. button, Power On/Off, Light indicator
2. button, Play/Pausa
3. • button, Volume+/ Next track button
4. • button, Volume -/ Previous Track button

5. M button, MODE

6. Microphone

7. USB input
8. AUX IN input
9. MicroSD memory input
10. TYPE-C socket for charging.

CHARGING

The speaker must be recharged when switched off.

1. Using the supplied USB cable, connect the side with the USB TYPE-C jack to the TYPE-C socket (10) and the other end to the USB port of a PC or USB charger (5V -1A not included);
2. The indicator light (1) will begin to flash, when charging is complete it will turn off.

Note: When the battery is in the process of exhaustion, the device will emit a warning sound for a few times before it shuts down automatically.

BASIC OPERATION

To switch on the speaker, press and hold button (1) for 3 seconds.

Press the M button (5) to choose from:

• Bluetooth mode.
• Micro SD mode, if present a micro SD type memory in the slot (9) it will start playback of the music automatically.
• USB Mode, if present a USB-type memory in the slot (7), the device will start playing songs automatically.

VOLUME ADJUSTMENT

Press and hold the -/ Volume - (4) button or +/ Volume + (3) button to adjust the volume.

BLUETOOTH OPERATION PAIRING DEVICES

1. Place the speaker near the Bluetooth device to be paired;
2. Turn on the speaker and press the M key (5) until the guide voice plays the message "Bluetooth Mode", the button ⏻) will start blinking;
3. Follow the instructions of your device to search for the speaker;
4. Search and pair the speaker named "XR 8A25" and enter the PIN "0000" if requested;
5. After pairing (you will hear a confirmation sound and the button Ⓑ) will stay on steady) it will be possible to play the music.

Notes:

• The Bluetooth speaker only works with a connection at a time, the connection can not be interrupted during normal operation.
• When the Bluetooth pairing with external devices fails, delete another Bluetooth device in the list of connections, restart the Bluetooth speaker and search for the signal again.

COMMANDS IN BLUETOOTH MODE

• To start music playback, press button (2) or start it from your device;
• Press once the + button (3) to skip to the next track, press once the - button (4) to skip to the previous track;
• Press button (2) to pause, press it again to resume music playback;
  In case of connection with a telephone, when a call is received, a sound warning will be heard.
• When you receive a call, click once on button (2) to open the call and activate the speaker phone feature, press again to end a call.
• Long press button (2) to reject a call.

This function allows you to pair 2 speakers (to be purchased separately) for stereo music playback; This feature is only available in Bluetooth mode with compatible devices.

1. Turn off the Bluetooth function on your phone or other Bluetooth device;
2. Turn on the two XR 8A25 units and choose the Bluetooth mode;
3. Press and hold the M button (5) of either speaker (a sound is heard confirming the TWS function opened) and, after few seconds two bluetooth speakers make a tone, it shows two speakers bluetooth connected;
4. Using your device to search the pairing name "XR 8A25" and enter the PIN "0000" if required, music is ready to play for the two units together after paired.

Note: In case of non-pairing between the 2 speakers, switch off both devices and repeat steps 1, 2 and 3.

1. Turn on the speaker;
2. Insert a micro SD card into the slot (9) holding the contacts facing upwards (the guide entry will reproduce the message "Play by TF Card") or insert a USB memory (the guide entry will reproduce the message "Play by USB Drive");

3. Playback will start automatically;

4. Press once the + button (3) to skip to the next track, press once the - button (4) to skip to the previous track;

5. Press ▶ button (2) to pause, to resume playback press again.

OPERATION AUX IN

1. Turn on the speaker;
2. Connect the Jack/Jack audio cable (not supplied) to the AUX jack (8) and the other end to the external device. The guide entry will reproduce the message "AUX MODE";
3. Start from the external device playback.

TECHNICAL FEATURES

Rechargeable Battery:....InternalLithiumto3.7V,1200mAh

Power: 5V --- 1A

Bluetooth max power transmission: .....0,8mW

Bluetooth transmission frequency: .....2.4GHz

Dimensions: 1576 x 70 x 70mm

Weight: 490g

INFORMATION ON THE REMOVAL AND DISPOSAL OF BATTERIES

Warning: the operation of removal and disposal is reserved to technical personnel!

Whatever type of battery used up, it should never be placed in household waste, fire or water. Each type of used battery must be recycled or disposed of at an appropriate dedicated collection points.

To remove the battery:

1. Remove the cover grille above the speakers.
2. Unscrew all the screws present and separate the front part of the cabinet from the rear one;
3. Identify the battery, remove it and replace it with one of the same characteristics and capacity.

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

NOTES D'EMPLOI

FONCTIONNEMENT BLUETOOTH DISPOSITIFS D'ACCOUPLEMENT

Dimensions: 176 x 70 x 70mm

Poids: 490g

RENSEIGNEMENTS SUR LE RETRAIT ET L'ÉLIMINATION DES PILES

Grid of nine grayscale flag icons with speech bubbles, no text or symbols present

EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it

https://www.trevi.it/dms/zidi/TREV/DOCXR8A25.pdf

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type XR 8A25 is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address : https://www.trevi.it/dms/zidi/TREVI/DOCXR8A25.pdf
