USER MANUAL CELED32HD22B2 CONTINENTAL EDISON

Specifications techniques :

• FR (version originale)

• EN (translated from the original)

Confirmer la selection.

22 ▲/▼/▲/

EXCLUSIONS DE GARANTIE

IMPORTANT WARNINGS AND SAFETY ADVICE

We encourage you to read this user guide carefully and completely before installing and using your device.

It is important that this user guide is kept with the device for any new consultation. If this unit is to be transferred to another person, make sure that the user guide follows the unit so that the new user can be informed of the operation of the unit. In this user guide, the following symbols are used:

	Important information about your personal safety and how to avoid damage to the device
	General information and advice
	Environmental information
	Fire hazard
	Risk of electric shock

Important safety instructions - please read carefully and keep for future reference

To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.

CAUTION!

Dangerous tension inside the product! Do not open. Risk of electric shock! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller).

Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

• Place the product on a straight, rigid and stable place. Do not place the product on a carpet.
• Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).
• Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

• Place the product in a sufficiently-aerated place to avoid overheating. Allow at least

10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.

• Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

• The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

• Please unplug the product in case of prolonged non-use.

• If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.

• This appliance is to be used on temperate climate. Don't use the apparatus in tropical climates
• This product must be connected to an electrical supply 100 - 240 ~V 50 / 60 ~Hz .
• The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
• In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Information about the meaning of the conformity marking

The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (Restriction of the use of certain hazardous substances in electronic equipment), 2014/53/EU (Radio equipment).

Technical Specification:

Name: Television Product

Net Weight: 3.54Kg

Operation Temperature: 0^ 35^

TV Reception System: DVB-T/C/T2

——	This symbol indicates DC Voltage (for USB only).
~	This symbol indicates AC Voltage.
	This symbol indicates “Indoor use only”.
	This symbol indicates “Class II”.
cd	Cadmium free; concentration values of Cadmium (Cd) by weight in any homogeneous material part of the display do not exceed 0,01 % as defined in Directive 2011/65/EU

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! You have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

SUMMARY

Important warnings and safety advice. 1

Control Panel. 9

Connecting Cables. 10

Remote Control. 13

Base Installation. 16

Wall Mounting Instructions. 17

First Time Installation 18

1. Channel 19

2. Picture 21

3. Sound 22

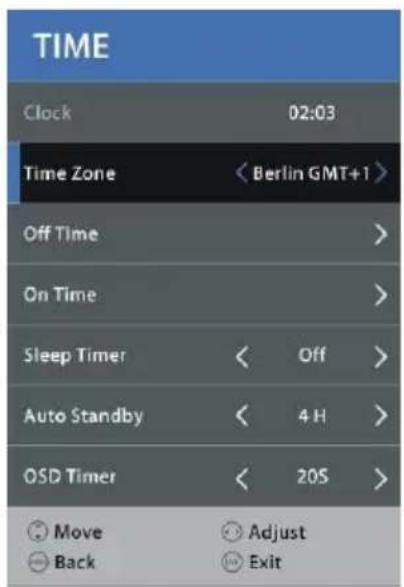

4.Time 23

1. Lock 24

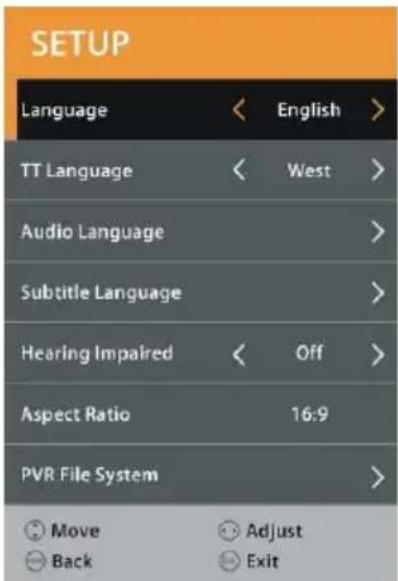

2. Setup. 25

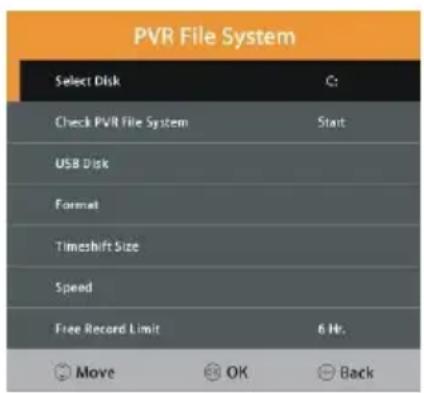

3. Recording 28

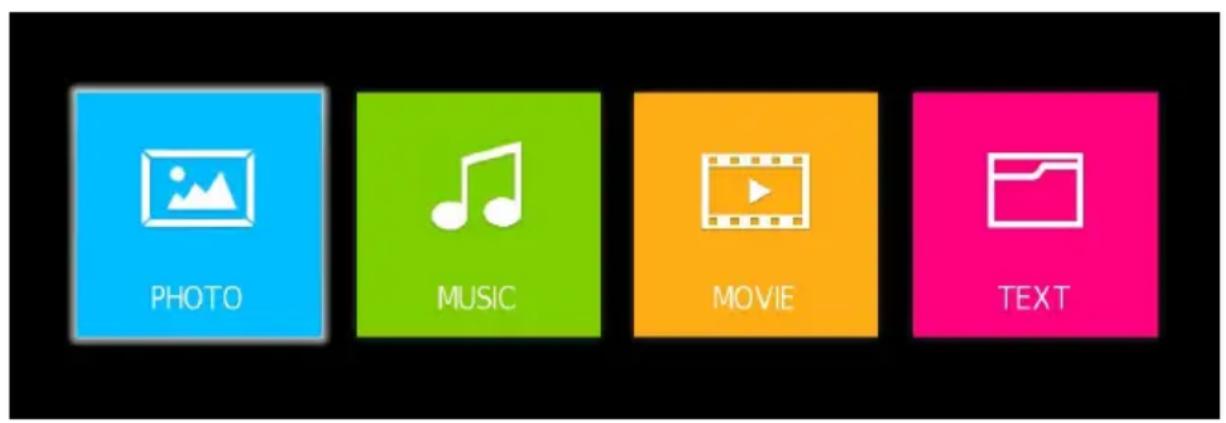

4. Media Player 32

Troubleshooting 33

Cleaning instruction 35

Technical data sheet. 36

Disposal of the device. 41

Warranty. 42

This user guide is available in the following languages:

• FR (original version)

• EN (translated from the original)

Any other translation would be a translation of the original version.

This user guide, any modifications or any new version, is available on our website.

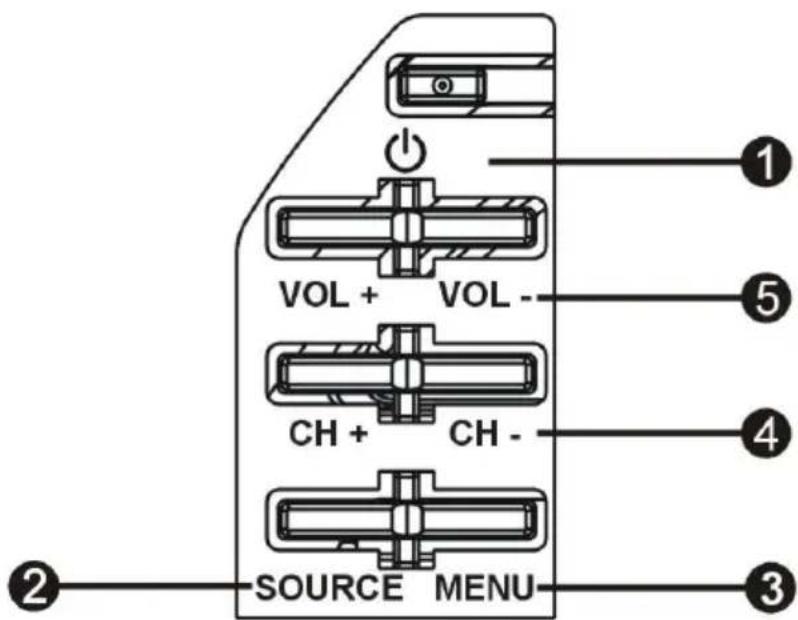

CONTROL PANEL

1. Standby button: To turn the TV ON/OFF.
2. Source button : To select the input source.
3. Menu button: To enter menu setting page.
4. CH + / - button: To select next/previous channel or move up/down.
5. VOL +/- button : To increase/decrease the volume level or move left/right.

CONNECTING CABLES

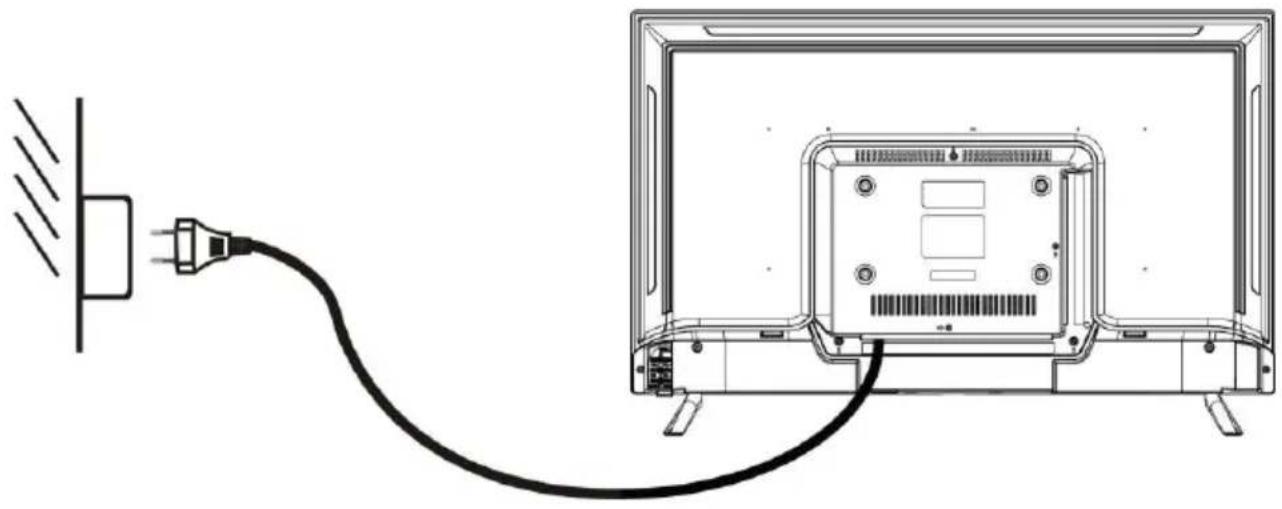

Connecting to power source

1. The television is in standby state when no images arise and the red indicating lamp shines.
2. Press the standby button again on the remote control for the television the indicating lamp becomes green.

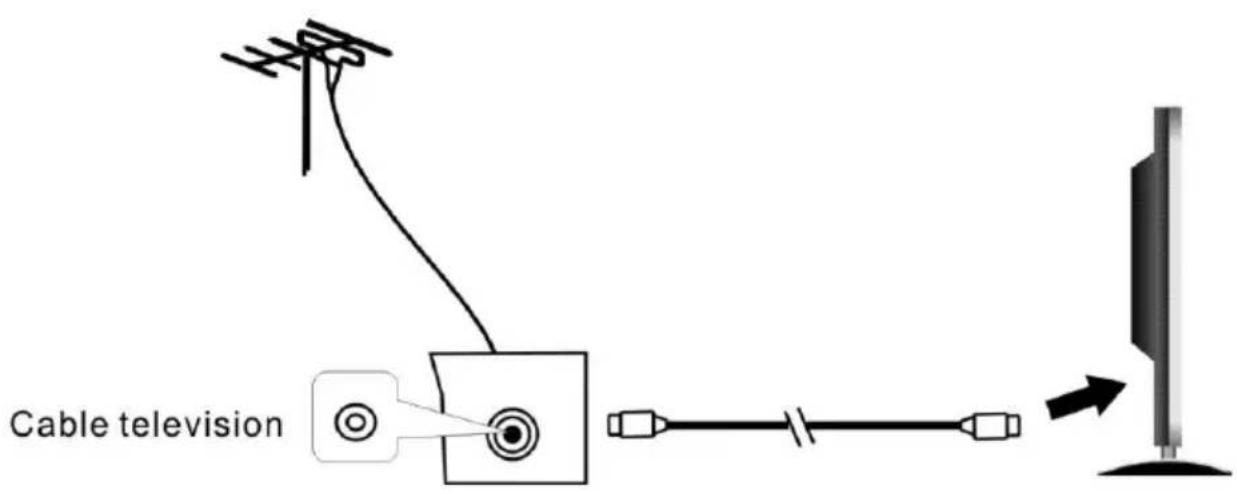

Connecting external antenna to the unit

We recommend you use a 75 antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75 antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

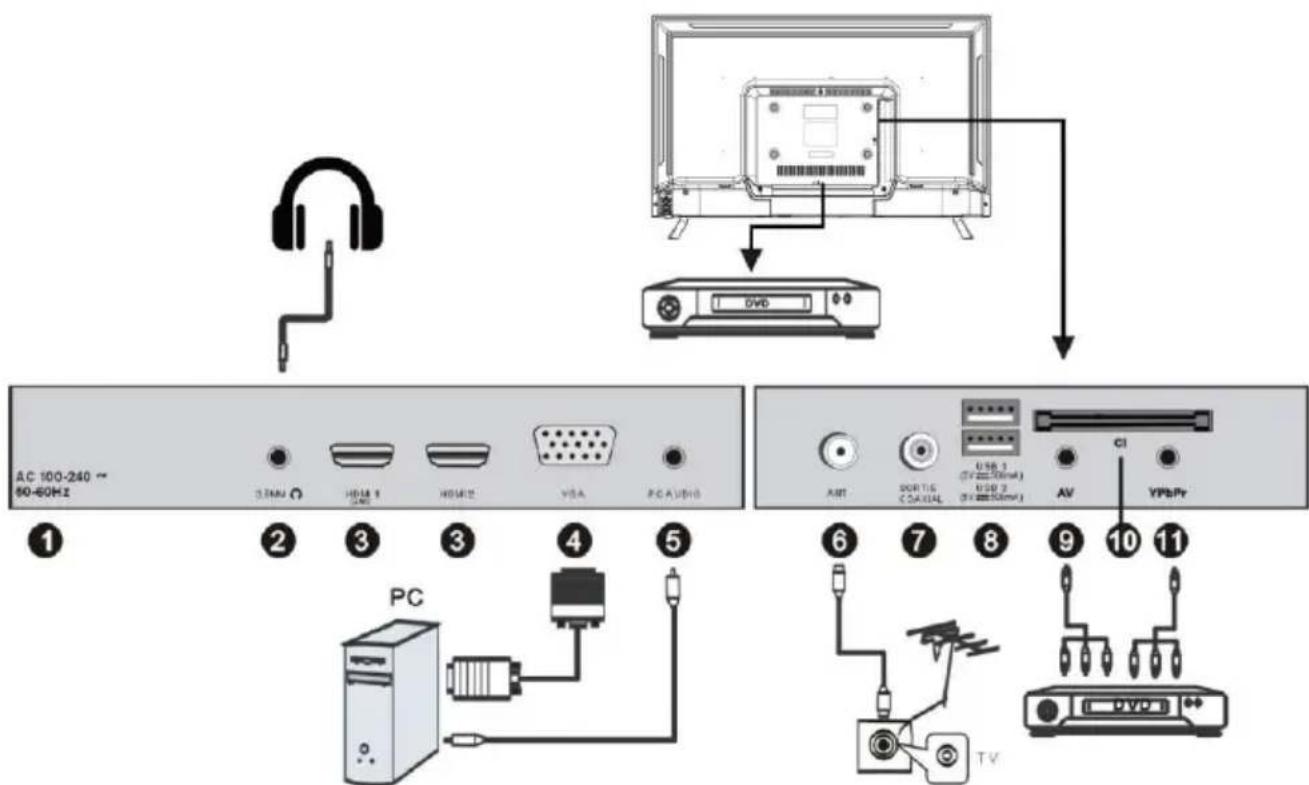

Connecting Cables

This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio.

1. AC IN
2. EARPHONE OUTPUT
3. HDMI IN

High-definition multimedia interface (Note: compatible video signal 480P/576P/720P/1080i/1080P). ARC is in HDMI 1 only.

4. VGA IN

Connect with the D-sub 15 pin signal cable to your computer.

1. PC AUDIO IN : PC audio input.

2. ANT IN : Connect to external aerial.

3. COAXIAL output : Digital TV sound output.

8. USB IN

Access multi-media files stored in the USB device.

(Note: compatible format includes: .dat, .vob, .ts, .mpg, .avi, .mkv, and .mp4 for video, .jpg for photo, *.mp3 for music.)

9. AV INPUT

Connect to the left/right RCA video out connection of any video resource.

1. CI SLOT : Insert a CI (common interface) card.
2. YPbPr IN : Component input terminal.

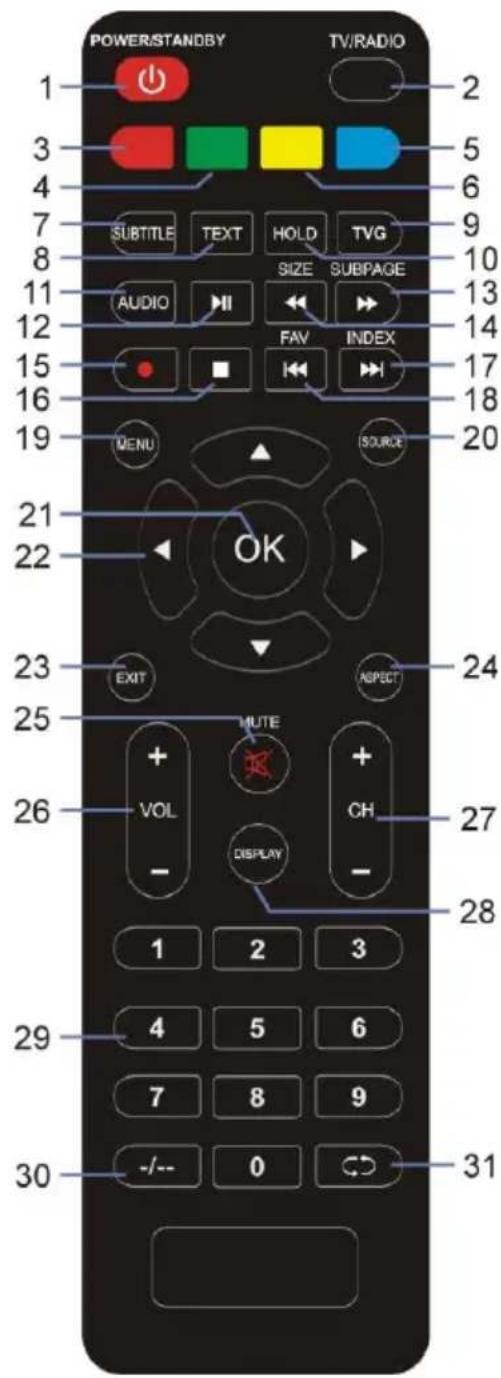

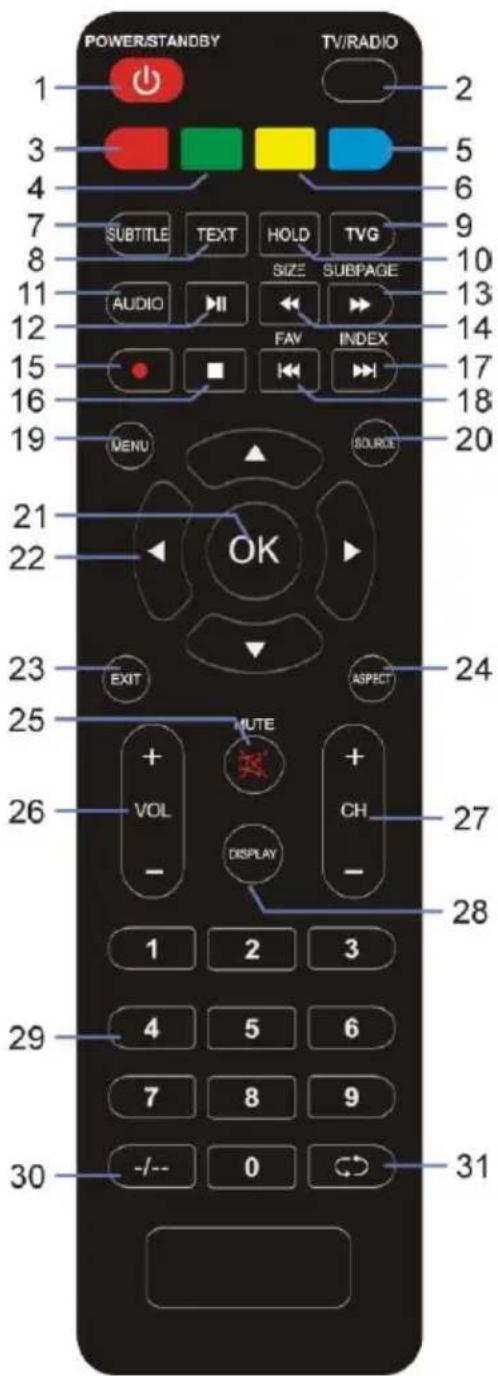

REMOTE CONTROL

32 STANDBY

Set the unit in standby mode; press it again to switch it on.

33 TV/RADIO

Switch the unit between TV and Radio.

34 RED button

35 GREEN button

36 BLUE button

37 YELLOW button

38 SUBTITLE

Enable/disable subtitles.

39 TEXT

Display the available Teletext.

40 TVG

Display electronic program guide.

41 HOLD

Hold the Teletext.

42 AUDIO

Switch the available sound-track.

43

Start/pause playing.

44 SUBPAGE

Enter Teletext sub-page.

Move fast forward.

45 SIZE

Switch Teletext size.

Move fast backward.

46 (DTV)

Start RECORDING when watching available digital programs.

47 Stop playing.

48

Play the next file.

INDEX

Display the record list or Teletext index.

49

Play the previous file.

FAV

Display the favorite channels list.

50 MENU

Call out the main menu or return to previous menu.

51 SOURCE

Select desired input source.

52 OK

Confirm selection.

53

Navigation buttons

54 EXIT

Exit the menu page.

55 ASPECT

Press it repeatedly to select desired screen size.

56 MUTE

Mute the sound.

57 VOL + / -

Increase/decrease the volume level.

58 CH+/-

Play the next/previous program.

59 DISPLAY

Display the available program information.

60 Number buttons (0-9)

Input the number information, such as channel number and so on.

61--

Switch the digit when watching TV programs.

62

Return to previous channel.

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight. Be careful to use the remote control. avoid falling off or being trampled or splashed with liquids.

Battery replacement

1

Open the battery cover on the remote control.

2

Insert two AAA size batteries making sure to match the positive and negative icons of battery and battery compartment.

3

Then close the battery cover.

Notes:

• Please take out the batteries and place in a shady, cool and dry place if you will not use the remote control for long time.
• Please tread damaged or leaking batteries with care. Please wash your hands with soap after contact with battery chemicals.
• Do not randomly dispose of used batteries. Please refer to local authorities for recycling or waste treatment systems.

Note: The batteries are not included.

BASE INSTALLATION

- Mounting of the stand

1. Align the screw holes on stand and TV bottom (Figure 1)
2. Fix the stand and the screen with 4pcs provided screws. (Figure 2)

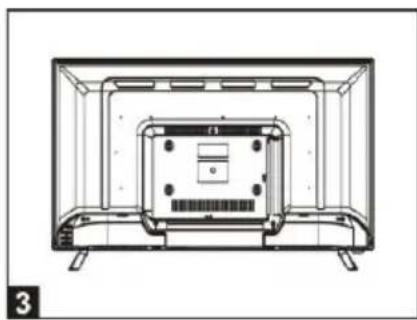

3. The rendering after installed. (Figure 3)

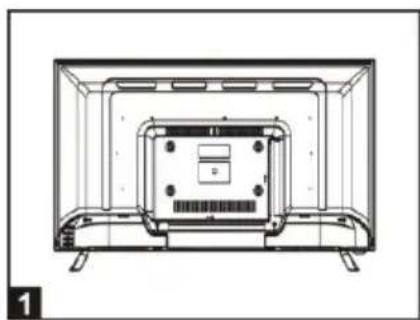

Disassembly of the stand

1. Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.)
2. Loose the screws between the machine and stand (Figure 2).
3. Remove the 2 stands from the machine (Figure 3).

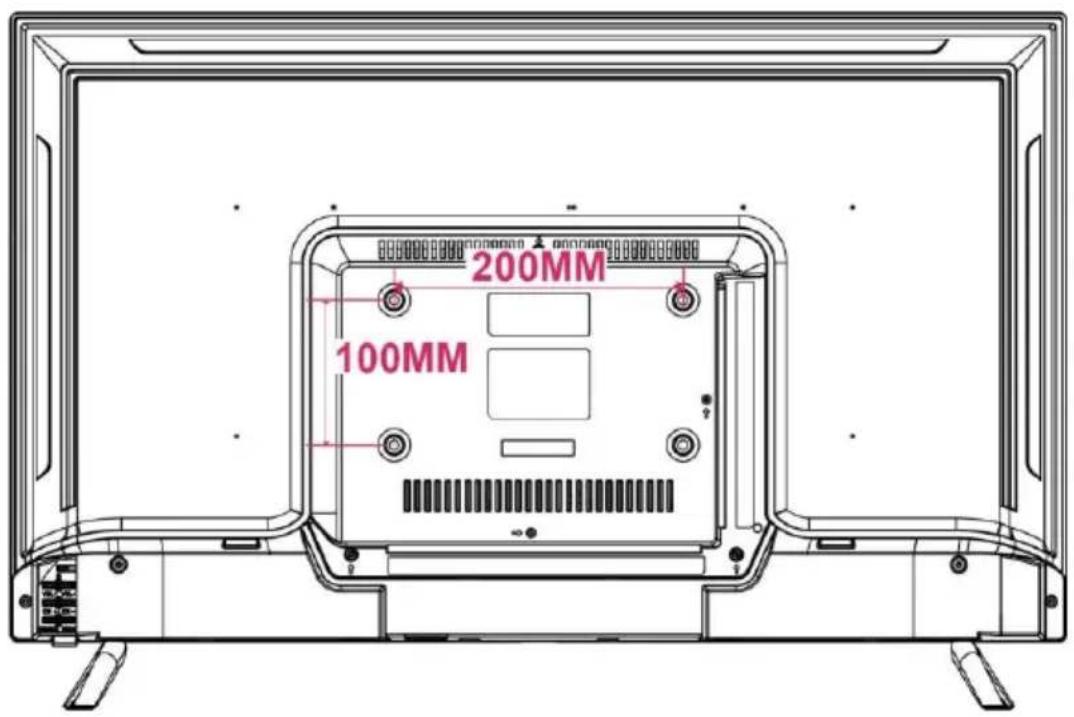

WALL MOUNTING INSTRUCTIONS

• Use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.
• Contact a professional technician for assistance when wall mounting your TV.
• Do not wall mount the TV while TV is turned on.
  Refer to the instruction of your wall mounting bracket.

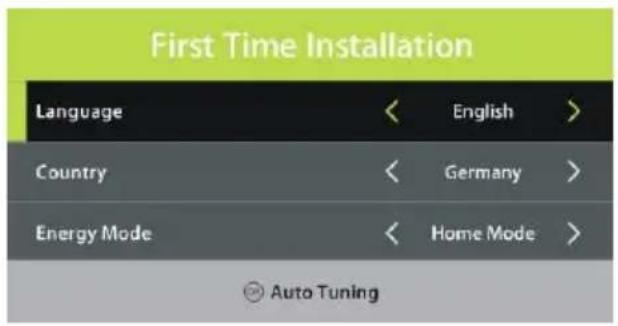

FIRST TIME INSTALLATION

• Connect to power source and turn on this TV, welcome page will display on the screen.
• Press LEFT/RIGHT/UP/DOWN navigation buttons on remote control to select an option.
• Press OK button on remote control to confirm selection.

Language: select the on-screen menu language.

Country: select your country.

Energy Mode: select Home or Store mode.

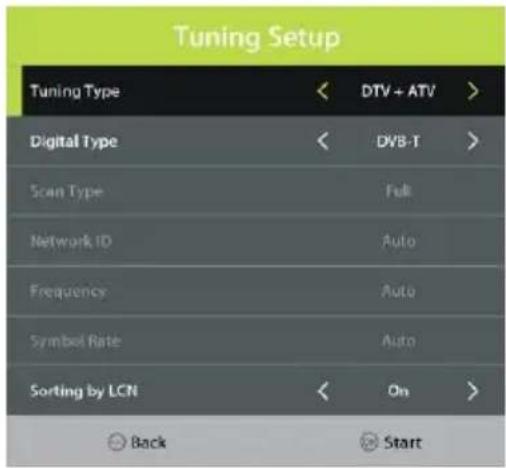

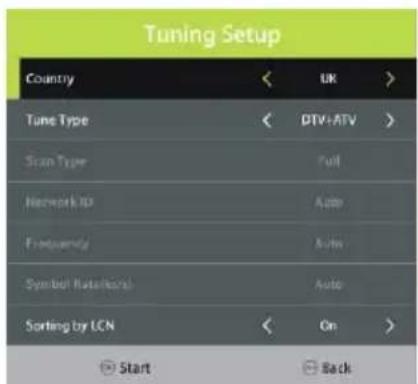

Tuning Setup

• If above selections are finished, press OK button to call out Tuning Setup.
• Select preferred Tune Type and Digital Type using navigation buttons and press OK button to start auto tuning.

Note: Items following Digital Type are adjustable only when Digital Type is DVB-C / Satellite and these items vary for different digital type.

DTV MODE

• Press SOURCE button on the remote control to select DTV input source.

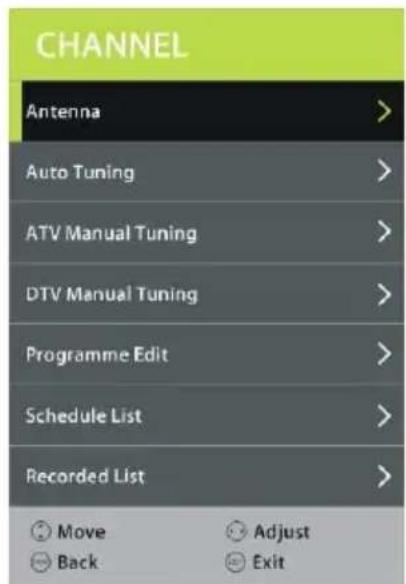

1.CHANNEL

1.1 Antenna

• Press OK or RIGHT navigation button to enter it.
• Use navigation buttons to select DVB-T or DVB-C.

1.2 Auto Tuning

• Press the OK or RIGHT navigation button.
• Use the navigation buttons to set the Country, Tune Type and LCN.

Note: Scan type and following items are adjustable only when "Antenna" is DVB-C.

• Then press OK to start program tuning.

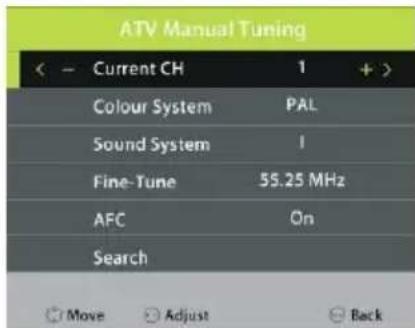

1.3 ATV Manual Tuning

• Press the OK or RIGHT navigation button.

Current CH: select current channel.

Color System: select available color system.

Sound System: select available sound system.

Fine Tune: fine tune the frequency.

AFC: turn on/off Automatic Frequency Control.

Search: search available programs.

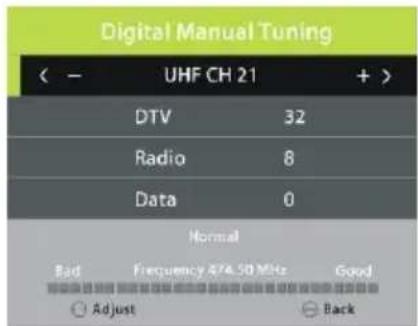

1.4 DTV Manual Tuning

• Press the OK or RIGHT navigation button.
• Use the LEFT/RIGHT navigation button to select the channel. Then press the OK button to start searching.

Note: Menu and operations here will vary for DVB-T and DVB-C.

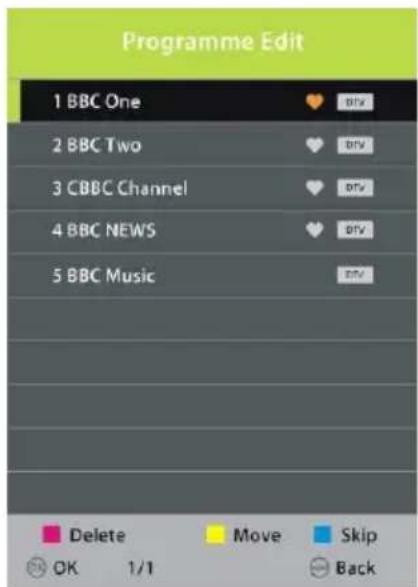

1.5 Programme Edit

• Press the OK or RIGHT navigation button.
• Press the UP/DOWN navigation button to highlight a desired channel.
• Press the RED button on the remote control to delete a highlighted channel.
• Press the YELLOW button on the remote control to enter MOVE mode. Then use the UP/DOWN navigation button to select a preferred position and press the YELLOW button again to move it.
• Press the BLUE button on the remote control to skip a highlighted channel.

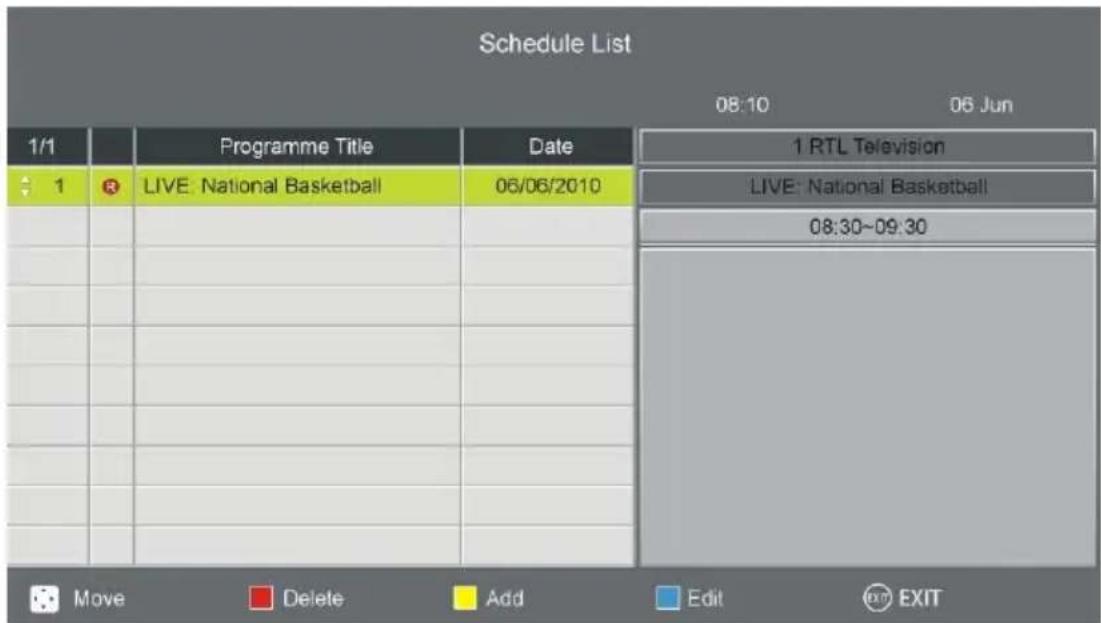

1.6 Schedule List

• Press the UP or DOWN navigation button to select this item, and press the OK or RIGHT button to enter it. If any programs were scheduled through the Add menu (press the YELLOW button on the remote control). The below menu will appear.

• Press the LEFT/RIGHT navigation button to switch between Schedule List and Recorded List.
• Press the RED button to delete the highlighted option.
• Press the YELLOW button to enter the Add menu page.
• Press the BLUE button to enter the Edit menu page.

1.7 Recorded List

Previously recorded programs should appear on this list.

• Use the navigation buttons to select a program.
• Press the OK button to play the highlighted program.
• Press the button to stop playing.

1.8 Signal information (works under available TV signals)

This item is used to display signal details, for example: channel number and strength.

1.9 CI information (works under available TV signals)

When an available CAM (Conditional Access Module) card is connected to the CI slot, users can view related information or manage the CAM card.

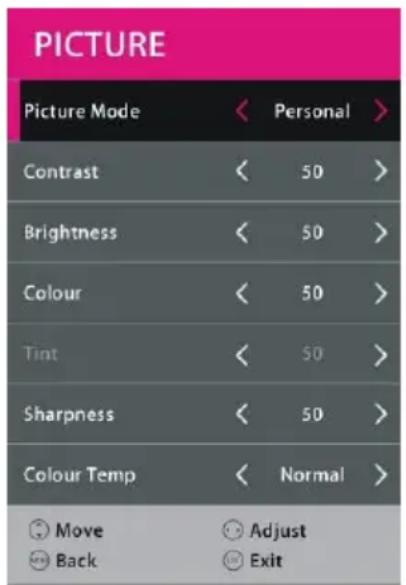

2. PICTURE

2.1 Picture Mode

• Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option. Picture Mode: available options: Standard, Mild, Personal, Dynamic. Contrast / Brightness / Colour / Tint / Sharpness: adjustable value: 0-100.

NOTE: Contrast, Brightness, Colour and Sharpness are adjustable only when Picture Mode is "Personal". Tint is adjustable only for NTSC system.

2.2 Colour Temp

This item is used to adjust the optimum color temperature for suitable viewing. Available options: Normal, Warm, Cold.

2.3 Noise Reduction

Available options: Off, Low, Medium, High

2.4 SCREEN (for PC/VGA mode only)

2.5 Dynamic CR

Turn on/off dynamic contrast ratio.

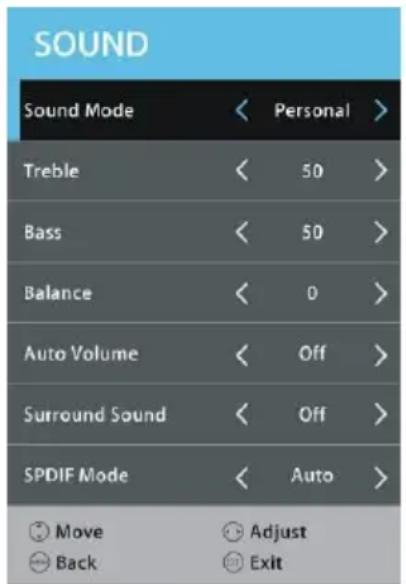

3. SOUND

3.1 Sound Mode

• Press the UP/DOWN/LEFT/RIGHT navigation buttons to select an option.

Sound Mode: available options: Standard, Music, Movie, Sports, Personal.

Treble / Bass: adjustable value: 0-100.

NOTE: Treble and Bass are adjustable only when Sound Mode is "Personal".

3.2 Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

3.3 Auto Volume

This item is used to set Auto Volume ON or OFF.

3.4 Surround Sound

This item is used to select desired mode of Surround sound.

3.5 SPDIF Mode

Available options: Auto, PCM, Off.

3.6 AD Switch

This item is used to set AD Switch ON or OFF. For Visually Impaired users, this function enables a user to know a certain scene or action through the narration, instead of seeing it.

NOTE: AD Switch function works only when you are viewing programs that contain related narration information.

4. TIME

4.1 Clock

It displays the current system time when an available channel was saved.

4.2 Time Zone

This item is used to select a desired time zone.

4.3 Off Time

Off Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.

Hour / Minute: use navigation buttons to adjust the Hour / Minute when the Off Time is not "Off".

4.4 On Time

On Time: available options: Off / Once / Every Day / Mon~Fri / Mon~Sat / Sat~Sun / Sun.

Hour / Minute / Source / Channel / Volume: use navigation buttons to adjust these items when the Off Time is not "Off".

4.5 Sleep Timer

This item is used to set the automatic sleep time.

This item is used to select a desired Auto Sleep (standby) duration when no operations are done through the remote control.

Available options: Off, 3/4/5 hours.

4.7 OSD Timer

This item is used to select a desired OSD menu duration.

Available options: Off, 5/10/15/20/25/30/35 seconds.

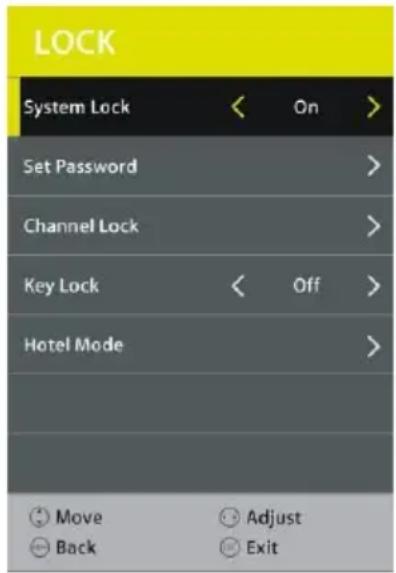

5. LOCK

• Press RIGHT navigation button and input the factory default password "0000" using number buttons on remote control.

• Press UP/DOWN navigation button to select preferred item.

NOTE: If you forget the password, please use the universal password "8899".

5.1 System Lock

This item is used to turn on/off Lock System.

5.2 Set Password

• Input the old password using number buttons on remote control and then input your private password twice to finish it.

5.3 Channel Lock

• Press OK or RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to select the channel which you want to lock.
• Press GREEN button repeatedly to lock/unlock the highlighted channel.

5.4 Key Lock

This item is used to lock/unlock TV buttons.

Available options: On, Off.

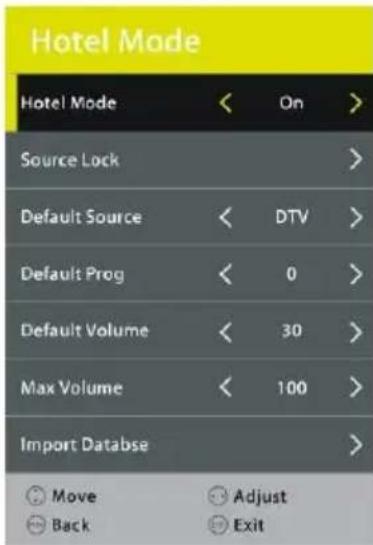

5.5 Hotel Model

• Press RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to move the cursor.
• Press LEFT/RIGHT navigation button to select an option.

Hotel Mode: turn on/off Hotel Mode.

Source Lock: turn on/off the lock of available sources.

Default Source: set the default source.

Default Prog: set the default digital program.

Default Volume: set the default volume level.

Max Volume: set the maximum volume level.

Export DataBase: export database to USB device.

Import DataBas: import database from USB device.

Clear Lock: Clear above settings.

6. SETUP

6.1 Language

This item is used to select the default on-screen display language.

6.2 TT Language

This item is used to select the default teletext language.

6.3 Audio Language

• Press the RIGHT navigation button.
• Then you can select the desired primary audio language and secondary audio language.

6.4 Subtitle Language

• Press the RIGHT navigation button.
• Then you can select the preferred primary subtitle language and secondary subtitle language.

6.5 Hearing Impaired

This item is used to turn on/off the Hearing Impaired function. For Hearing Impaired users, this function providescaptions to supplement the audio.

NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.

6.6 Aspect Ratio

This item is used to adjust the video size.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input sources.

6.7 PVR File System

• Press the RIGHT navigation button.
• Press the UP/DOWN navigation button to select a desired option, and then press the LEFT/RIGHT navigation button to adjust the selected option.
• Press the OK button to enter the submenu or confirm the setting.

In this part, you can select a desired disk, check the

PVR File System, format your USB memory device and set a desired Free Record Limit time.

6.8 Blue Screen

This item is used to turn on/off Blue Screen. The screen background will turn blue at very weak or no signal condition if Blue Screen is ON.

6.9 First Time Installation

This item is used to recall the First Time installation menu.

6.10 Energy Mode

This item is used to select Home or Store mode.

6.11 Reset

This item is used to recall factory default settings.

6.12 Software Update (USB)

This item is used to update software through the USB memory device.

6.13 HDMI CEC

• Press the RIGHT navigation button.

To use the HDMI CEC function:

• Make sure the HDMI device (Amplifier, etc.) is connected correctly.
• Press the SOURCE button on the unit or remote control to select the HDMI input source.

HDMI CEC: turn on/off HDMI CEC.

HDMI ARC: turn on/off ARC function.

Auto Power: turn on/off Auto Power function.

Device Menu: display the setup menu of other device connected.

ATV AND OTHER MODES

• Press SOURCE button on the remote control to select desired input source.
• For other menus, please refer to the operations of DTV mode.

7. Recording

With this product, you can easily record your favorite DVB-T programs on your USB stick. This unit has 2 recording modes: immediate recording and scheduled recording (for use in case of absence).

Recording a program by using a USB

This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices.

Notes: Do not remove your USB stick while playback is in progress, otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and them remove your USB stick.

Preparation for the first recording

When using a USB stick with this unit for the first time, you should first format it using this unit. Formatting your USB stick directly on the receiver improves compatibility of the device with the unit. More particularly, FAT file system will be converted into FAT 32. This helps improve recording quality and fluidity. Caution: formatting will deletes all the files on the USB device! You should create a backup of all the files you want to keep beforehand.

How to access "Format Disk"?

Press the "MENU" button on the remote control to enter the OSD menu, then press navigation button to select the "Setup >> PVR File System >> Format". Then press OK button on the remote control to format your USB stick.

Immediate recording

Insert a compatible USB device which has been previously formatted. Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording. Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded.

Timer (Scheduled recording)

Simply press TIMER button on the remote control to enter.

View recorded programs

You can simply press REC.LIST button on the remote control to view the recorded programs.

Notes on recording and USB functions

• If you want to record a film or a long program, use a memory stick of larger capacity (eg. 16GB). If you want to save several films, opt for external hard drives of large capacity.

• The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and, above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple subdirectories in your USB disk. Avoid such multiple-subdirectories like "Directory/Subdirectory/Sub-subdirectory/...." and store files in a single simple directory.

USB Device Recognition Problems

4) After connecting your USB device to the unit, you may need to turn the device on before it can be detected by the receiver.

5) This unit does not support direct USB connection with computer. It is necessary for you to transfer your data/files on a USB stick or MP3 player. If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit.

6) If you are using a portable video player with hard drive, you must make sure that the internal battery is fully charged. Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit. The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem.

- Recording Quality

If your recording is shaky or choppy – The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved.

Time Shift Function

This TV presents a function called "Time Shift" which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the "Time Shift" function, which records the TV program during your phone call or your coffee break. With "Time Shift", you will not miss anything anymore! Notes: This function is only available in DVB-T mode.

How to use the service Timeshift

1. Insert a USB key into USB port before you activate Timeshift function.
2. Press the button Timeshift once to start recording. The broadcasting TV program is stop and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.
3. Press the button to exit recording.

Note on use of the Timeshift function:

1. Please make sure the Timeshift mode is set ON in record setting menu.

2. The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as choppy or blocked image, you may also try to format your USB device.

8. Media Player

Before operating MEDIA menu, plug in USB device. Press the SOURCE button on remote control to open SOURCE list. Then press UP navigation button to select USB (or Media) and press OK button to enter it.

Press / button to highlight your preferred submenu: Photo, Music, Movie and Text, press OK button to confirm.

Remote operations when playing multimedia files:

• Press button on remote control to start or pause the playback.
• Press button on remote control to stop playing.
• Press button on remote control to move fast backward.
• Press button on remote control to move fast forward.
• Press button on remote control to play previous file.
• Press button on remote control to play next file.

TROUBLESHOOTING

No image and voice

Possible causes:

• Power cord, antenna or input devices are not connected;
  The TV set is not powered on.

Solutions:

• Check Power cord, antenna and input devices;
• Press Power key on the remote control;
• Press Power key on the set to power it off for 5 seconds and then re-power it on.

No voice

Possible causes:

The volume is too low; Muted or cancelled;
- Incorrect sound system.

Solutions:

• Press Volume key to turn up the volume;
• Press Mute key to cancel Mute mode.
• Well connect connection to the background sound;
• Change the sound system in the menu.

Snows and noises

Possible causes:

• The cable is damaged or gets loose;
  Incorrect channel preset;
• Improper antenna positioning.

Solutions:

• Check whether the connection of the antenna cable, DVD and the cables is correct;
• Reset channels or fine tune the channel;
• Adjust the direction of the antenna.

Achromatic colour

Possible causes:

• Incorrect Colour system settings; Low chroma level setting;
• Improper antenna positioning.

Solutions:

• Change the colour system into the local system in the menu;
• Increase chroma level;
• Adjust the direction of the antenna.

Remote control has no response

Possible causes:

• Battery runs up;
  Incorrect battery loading;

Solutions:

• Check the battery electricity or replace the battery;
• Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Important Notice

The display of this television is made up of a large number of colour Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

CLEANING INSTRUCTION

• Before cleaning this product, press STANDBY button to turn it to the standby mode and wait for a few minutes to disconnect the power plug.
• Wipe this product with a dry, soft cloth. Do not spray water directly onto the TV, but apply a small amount of water on the corner of the cloth and wipe as gently as possible. Never use cleaning fluids, wax, or chemicals.
• Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.
• If the surface is extremely dirty, wipe it with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
• Before you plug in the TV back, let the screen dry completely.

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
32	1366x768	5	2	0

Product sheet relating to energy

Information for Electronic Displays for Commission Regulation 2019/2013/EU

	Value	Unit
Model identification	CELED32HD22B2
Manufacturer's name or trademark	Continental Edison
Energy efficiency class for standard Dynamic Range (SDR)	F	A-G
On mode power demand for Standard Dynamic Range (SDR)	31kWh/1000h	W
Energy efficiency class (HDR)	N/A	A-G
On mode power demand in High Dynamic Range (HDR) mode	N/A	W
Off mode, power demand	0W	W
Standby mode power demand	Max. 0.5W	W
Networked standby mode power demand	N/A	W
Electronic display category	television	television/monitor/si gnage/other
Size ratio	16:9	Integer
Screen resolution (pixels)	1366x768	Pixels
Screen diagonal	81.3cm	cm
Screen diagonal	32"	Inches
Visible screen area	2801.92 cm2	cm2
Panel technology used	LED	E.g. LCD/LED LCD/QLED LCD/OLED/MicroLE D/QDLED/SED/FED /EPD, etc.
Automatic Brightness Control(ABC) available	No	Yes/No
Voice recognition sensor available	No	Yes/No
Room presence sensor available	No	Yes/No
Image refresh frequency rate	60Hz	Hz
Power supply type:	Internal	Internal/External/Sta ndardised external

Note:

1. Energy efficiency class: A (most efficient) to G (lease efficient)
2. Annual energy consumption in kWh per 1000 hr, based on the power consumption of the television operating 1000 hours. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode...etc.

Product Information sheet according to EU Regulation No. 2019/2013 Energy labelling for Electronic Display & Television can be found below URL or QR code indicated on Energy label URL: https://eprel.ec.europa.eu/qr/1002554

Technical data sheet

Sheet of household television according to EU directive 1062/2010

Trade Mark	CONTINENTAL EDISON
Reference	CELED32HD22B2
Model	DVB-PM1320212HCA
Viewing angle	Typical: 176(H) \ 176(V)
Resolution	1366*768
Display Colour	16.7M
Contrast	2000:1 (typical)
Ratio	16:9
Lift time	30,000 hours
Tuner	DVB-T/C/T2
TV power supply	AC 100-240V, 50/60Hz
Consumption	Max.60W
Dimensions	732(W)×191(D)×481(H)
Weight	3.54kg
Socle	2pcs, removable
Operating temperature	0°C et 35°C
Remote control power supply	AAA*2pcs
USB port power supply	5V,500mA
Hotel mode	yes
Loud speaker	2*8W
Input	RF, HDMI*2, mini CVBS/YPbPr, VGA, PC audio, CI, USB*2
Output	Earphone out, Coaxial out
Wireless connectivity	N/A
USB function	*.dat, *.vob, *.ts, *.mpg, *.avi, *.mkv, and *.mp4 for video, *.jpg for photo,*.mp3 for music
Reading formats	Vidente : . mp4
Multimedia via USB	Musique: .mp3
	Photos: .jpg
	Texte: .txt
Processor:	N/A
RAM:	N/A
Operating system (for smart TV only):	N/A
Internal memory	N/A

DISPOSAL OF THE DEVICE

• This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4, 2012 concerning the waste on

electrical and electronic equipment (WEEE).

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.
• As the end user, your role is of prime importance in the cycles re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.
• You have the obligation to use the selective waste collection systems put in place by your local authorities.

WARRANTY

WARRANTY EXCLUSIONS:

The warranty does not cover the worn-out parts of the product, or the problems or damages resulting from:

(1) Surface deterioration due to normal wear and tear of the product;
(2) Defects or deterioration due to contact with food or liquids and corrosion caused by rust or the presence of insects;
(3) Any incident relating to abuse, misuse, alteration, or unauthorized disassembly or repair;
(4) Improper maintenance, improper use of the product, or incorrect voltage connection;
(5) Any use of accessories that are not supplied or approved by the manufacturer.

The warranty will be void if the nameplate and/or serial number of the product is removed.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Continental Edison, declares that the radio equipment type

CELED32HD22B2 is in compliance with Directive 2014/53 / EU.

The full text of the EU declaration of conformity is available at the

following internet address:

https://notice.continentaledison.fr/

Continental Edison - 120-126, Quai de Bacalan -

CS 11584 - 33067 Bordeaux CEDEX

Imported by SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

Continental Edison

www.continentaledison.fr
