IAN 326133 - Christmas Decoration MELINERA - Free user manual and instructions
Find the device manual for free IAN 326133 MELINERA in PDF.
| Brand | Melinera |
| Model | IAN 326133 |
| Product type | Artificial Christmas tree with LED |
| Dimensions (diameter x height) | approx. 30 x 60 cm |
| Power supply | 2 AA 1.5 V batteries (included) |
| LED type | 15 warm white LEDs (non-replaceable) |
| Power per LED | 0.06 W |
| Functions | On/Off, Timer 6h/18h with automatic repetition |
| Switch | ON / TIMER / OFF |
| Area of use | Indoor only, dry and enclosed rooms |
| Branch material | Metal wire (may scratch surfaces) |
| Cleaning | Duster, no water or liquid |
| Storage | Dry place, in original packaging |
| Safety | Danger of suffocation for children, do not expose to heat or moisture, do not connect to other lights |
| Warranty | 36 months from date of purchase |
| After-sales service | Uni-Elektra GmbH, phone 00800 888 11 333, email: uni-service-FR@teknihall.com |
| Delivery contents | Tree, 2 batteries, instruction manual |
Frequently Asked Questions - IAN 326133 MELINERA
User questions about IAN 326133 MELINERA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Christmas Decoration in PDF format for free! Find your manual IAN 326133 - MELINERA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 326133 by MELINERA.
USER MANUAL IAN 326133 MELINERA
GB IE NI
LED LIGHT-UP ARTIFICIAL CHRISTMAS TREE
Operation and safety notes
NL BE
NAMAAK-KERSTBOOM MET LED
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE/NI Operation and safety notes
Page 5


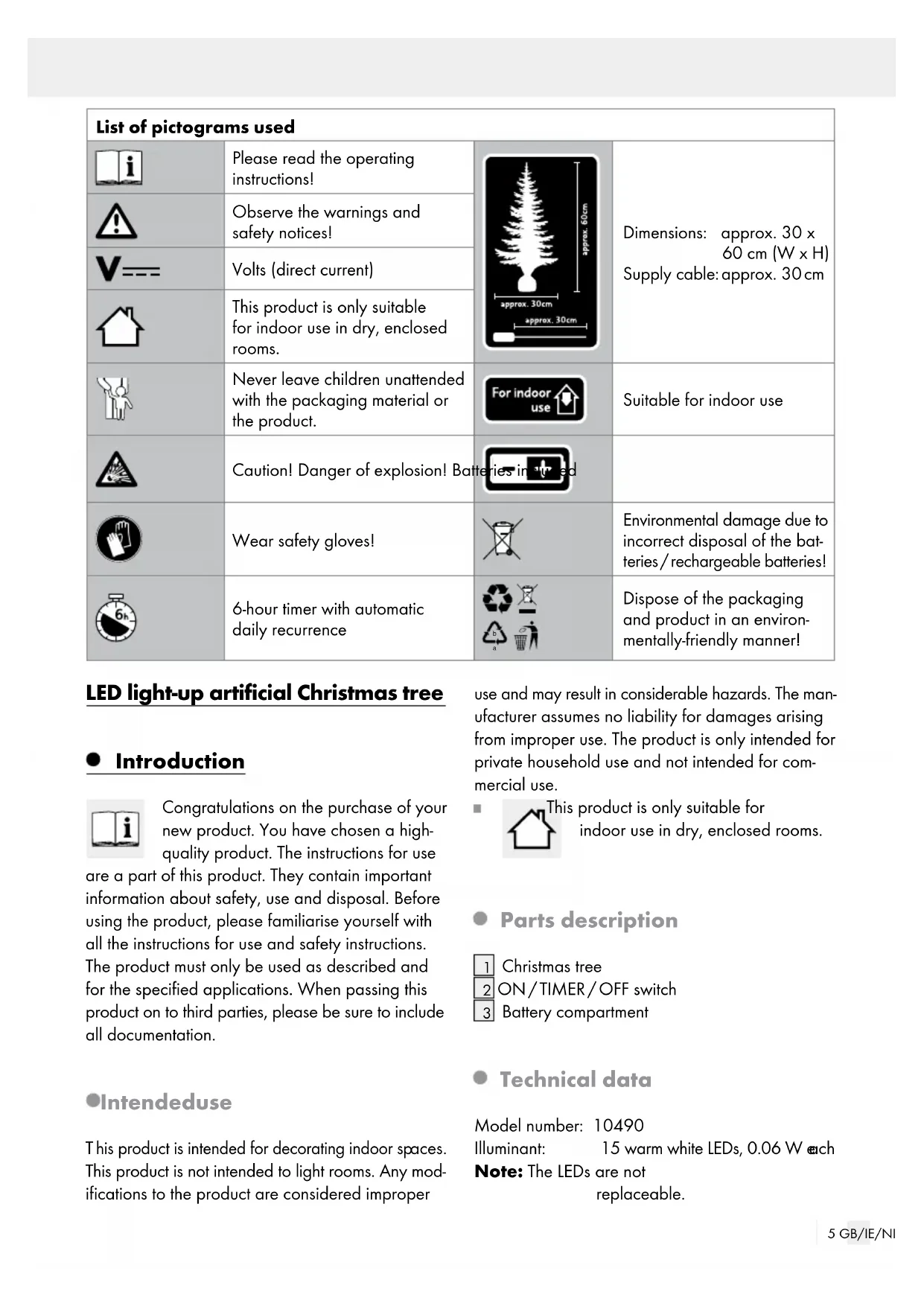

| List of pictograms used | |||
![]() | Please read the operating instructions! | ![]() | Dimensions: approx. 30 x 60 cm (W x H) Supply cable: approx. 30 cm |
![]() | Observe the warnings and safety notices! | ||
![]() | Volts (direct current) | ||
![]() | This product is only suitable for indoor use in dry, enclosed rooms. | ||
![]() | Never leave children unattended with the packaging material or the product. | For indoor use | Suitable for indoor use |
![]() | Caution! Danger of explosion! Batteries in tired | ||
![]() | Wear safety gloves! | Environmental damage due to incorrect disposal of the batteries/rechargeable batteries! | |
![]() | 6-hour timer with automatic daily recurrence | Dispose of the packaging and product in an environmentally-friendly manner! | |
LED light-up artificial Christmas tree
- Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. The instructions for use
are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the instructions for use and safety instructions. The product must only be used as described and for the specified applications. When passing this product on to third parties, please be sure to include all documentation.
Intendeduse
This product is intended for decorating indoor spaces. This product is not intended to light rooms. Any modifications to the product are considered improper
use and may result in considerable hazards. The manufacturer assumes no liability for damages arising from improper use. The product is only intended for private household use and not intended for commercial use.

This product is only suitable for indoor use in dry, enclosed rooms.

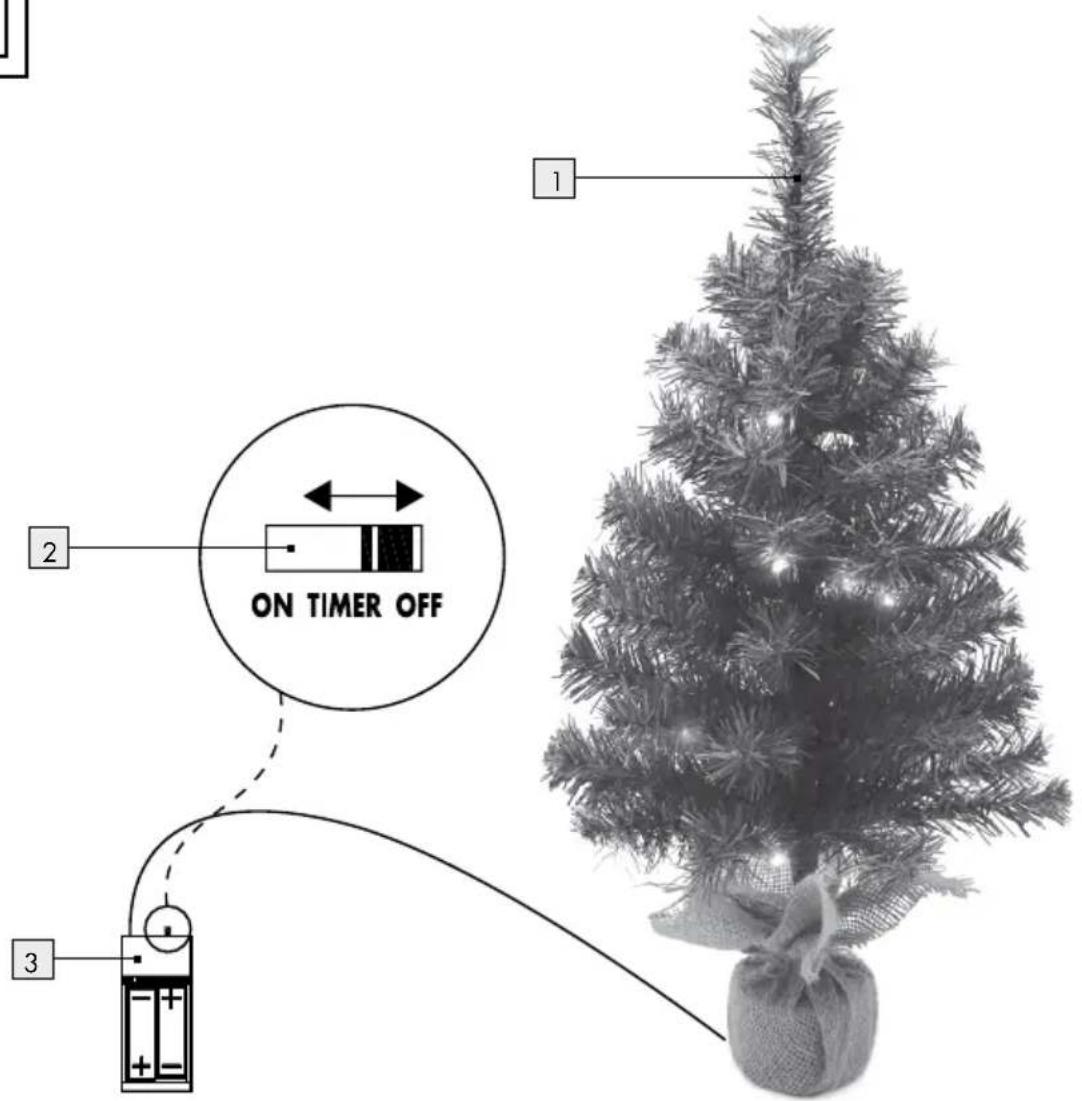

- Parts description

Christmas tree

ON/TIMER/OFF switch

Battery compartment
- Technical data
Model number: 10490
Illuminant: 15 warm white LEDs, 0.06 W each
Note: The LEDs are not replaceable.
Battery type: 2 x 1.5 V AA batteries
Dimensions: approx. 30 x 60 cm (∅ x H)
- Delivery contents
1 LED light-up artificial Christmas tree
2 Batteries
1 Set of operating instructions

Safety information
READ THESE INSTRUCTIONS BEFORE USING THE PRODUCT! KEEP ALL SAFETY INFORMATION AND INSTRUCTIONS FOR FUTURE REFERENCE!
DANG RONING!
LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!
Never leave children unsupervised with the packaging material. There is a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the product.
This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
- Do not use the product if you notice any signs of damage.
■ Never expose the product to high temperatures or moisture as this could damage the product.
- Do not exert mechanical strain on the product!
In the event of damage, repairs or other problems with the product, please contact an electrician.
CAUTION! RISK OF OVERHEATING!
Do not operate the product whilst it is still in the packaging.
■ Store the product inside the packaging after use to prevent damage.
This product contains no parts which can be serviced by the user. The LEDs cannot be replaced.
If the LEDs fail at the end of their life, the entire product must be replaced.
■ Never electrically connect the product to other string lights.
- Never connect the product directly to a 230 V\~ (alternating current) supply.
- Keep the product away from fire and open flames!
The branches consist of metal wire and can scratch or discolour delicate surfaces.

Safetyinstructions for batteries/rechargeable batteries
■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Cleaning, maintenance and storage
Do not clean the product with water or other liquids.
☐ Use a feather duster to clean the product.
Store the product in a dry location while it is not in use.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries accord-The packaging is made entirely of recyclable materialing to polarity marks (+) and (-) on the battery / recharges, which you may dispose of at local recycling facilities.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.
-The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
●Disposal

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.
- Initial use
- Setting up the product
■ Only place the product on an even, level surface.
□ Carefully extend the individual branches. - Inserting / replacing batteries
□ See Fig. A. - Switching the product on / off
□ See Fig. B. - Setting the timer
☐ Set the ON/TIMER/OFF switch ☐ to the Timer position (see Fig. B).
☐ The product will stay on for 6 hours and will then automatically switch off for 18 hours. This pattern will automatically repeat.
☐ Set the ON/TIMER/OFF switch ☐ to the OFF position to turn the timer function off.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
● Warranty and service
Note: This product includes a 36 month warranty from the date of purchase. The product has been manufactured with care and thoroughly inspected prior to delivery. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.
The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.
Please contact the Uni-Elektra GmbH service address before returning products. The product may only be returned to us after contacting us. Shipments that are sent carriage forward will not be accepted. The performance of services under the warranty does not extend or restart the warranty period of 36 months.
• Service address
Uni-Elektra GmbH
Kirchstrasse 48
72145 Hirrlingen
GERMANY
Tel.: 00800 888 11 333
GB uni-service-GB@teknihall.com
IE uni-service-IE@teknihall.com
NI uni-service-NI@teknihall.com
IAN 326133_1901
Please have your receipt and the item number (e.g. IAN 123456_7890) ready as your proof of purchase when contacting us.
Manufacturer
Uni-Elektra GmbH
Kirchstrasse 48
72145 Hirrlingen
GERMANY

CE
