CECP1000B - Griddle CONTINENTAL EDISON - Free user manual and instructions

Product type	Crepe maker
Brand	Continental Edison
Model	CECP1000B
Reference	KY-550
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Control type	Rotary thermostat
Temperature adjustment	Progressive thermostat from Off to Max
Plate material	Non-stick
Cleaning	Damp cloth, do not immerse
Safety	Unplug before cleaning, hot surface, do not use near water
Usage	Household only
Included accessories	Specific accessory for spreading the batter
Operating temperature	Adjustable via thermostat
First use instructions	Clean the plate, add a little fat

Frequently Asked Questions - CECP1000B CONTINENTAL EDISON

How to clean the crepe maker after use?

Unplug the appliance and let it cool completely. Wipe the housing and plate with a damp cloth and a non-abrasive soap. Never immerse the appliance in water.

How much oil to use to prevent pancakes from sticking?

Pour a small amount of oil on the plate before first use and between each pancake if necessary. This makes it easier to remove the pancakes.

Can I use the crepe maker with an external timer?

No, this appliance is not intended to be operated by means of an external timer or separate remote control system.

What to do if the plate does not heat up?

Check that the appliance is plugged in and the thermostat is turned to a position other than 'Off'. If the problem persists, contact after-sales service.

Can children use the appliance?

Children aged 8 and older may use the appliance under adult supervision. Children must not play with the appliance, and cleaning should not be performed by children under 8 years old.

Can I immerse the crepe maker in water?

No, never immerse the appliance, cord, or plug in water or any other liquid to avoid risk of electric shock.

How to know if the pancake is cooked?

When the surface of the pancake is no longer liquid, you can flip it with a spatula. Cooking is complete when both sides are golden.

What is the power of the appliance?

The power is 1000 W at a voltage of 220-240 V ~ 50/60 Hz.

Where to find the user manual?

The manual is available for free on notice-facile.com in PDF format. You can download it or request a translation.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard.

USER MANUAL CECP1000B CONTINENTAL EDISON

Two abstract gray semicircles of different shapes on white background (no text or symbols)

Continental Edison

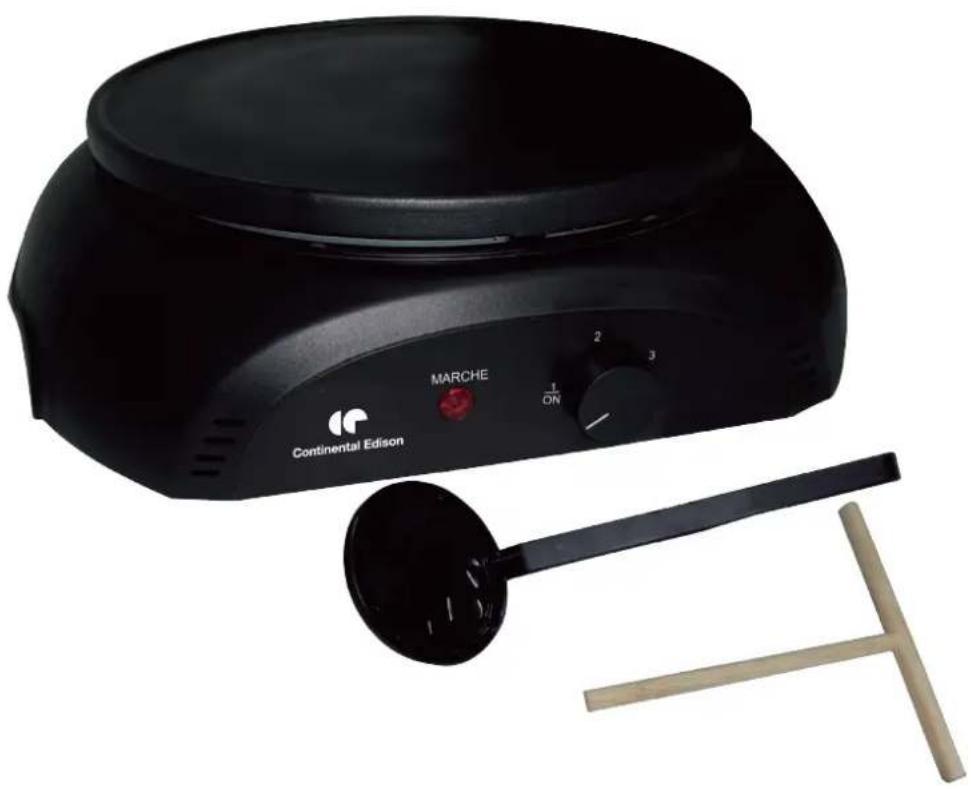

Black Continental Edison portable electric stove with a wooden stick and control panel (no visible text or symbols on the device itself)

CECP1000B

CRÊPIÈRE ÉLECTRIQUE- CREPES MAKER

1. Plaque de cuisson
2. Corps principal
3. Thermostat
4. Témoins lumineux
   5-6.Accessoires

AVANT LA PREMIÈRE UTILISATION

ÉLIMINATION CORRECTE DE CE PRODUIT

When using an electrical appliance, always follow the following basic safety precautions:

Please read all the instructions and keep them for future use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
6. Surfaces are likely to become hot during use.
7. The heating element surface is subject to residual heat after use.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. To avoid the risk of electric shock, do not immerse the electrical cord and plugs in water or any other liquid. The appliance must not be immersed.
10. The appliance is for household use only. Do not use outdoors.
11. Cooking appliances should be placed in a stable position with the handles (if any) positioned to avoid spillage of hot liquids.
12. WARNING: Misuse can lead to injury.
13. Regarding detailed information on how to clean surfaces that come into contact with food or oil, refer to the "CLEANING AND MAINTENANCE" section.
    WARNING : Hot surface.
14. This appliance is intended to be used in household and similar applications such as:
    – staff kitchen areas in shops, offices and other working environments;
15. farm houses;
    – by clients in hotels, motels and other residential type environments;
    – bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY PRECAUTIONS

• Before connecting the appliance to the mains supply, please check if the voltage indicated on the appliance corresponds with the main voltage in your home.
• Do not place the appliance on a hot surface.
• Place the appliance on a stable flat surface.
• Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to the customer service department for repair.
• Do not allow the main cord to come into contact with the hot surface.
• Ensure that the mains lead does not overhang the worktop surface.
• Use the appliance out of children reach. Prevent them from pulling the main cord or knocking the appliance over.
• Close supervision is necessary when the appliance is near children.
  ● Make sure that the power switch is off before plug in.
• Care must be taken not to touch any hot surfaces, do not store or cover the appliance until it has fully cooled down.
• Before cleaning the appliance disconnect it from the power supply and wait until it was cooled down.
• Never immerse the appliance or power cord into water or any other liquid. Do not allow liquid to penetrate the electrical parts of the appliance.
• Never use accessories that are not recommended by the manufacturer. They can be dangerous for the user and may damage the device.
  ● Never move the unit by pulling the power cord.
  ● Unplug the unit when it is not in use.
  ● DO NOT USE this appliance near water or flammable liquids.
• DO NOT USE this appliance on or near from a hot surface (Hotplate, electric stove, etc.).
• Do NOT clean the device if it is still hot.

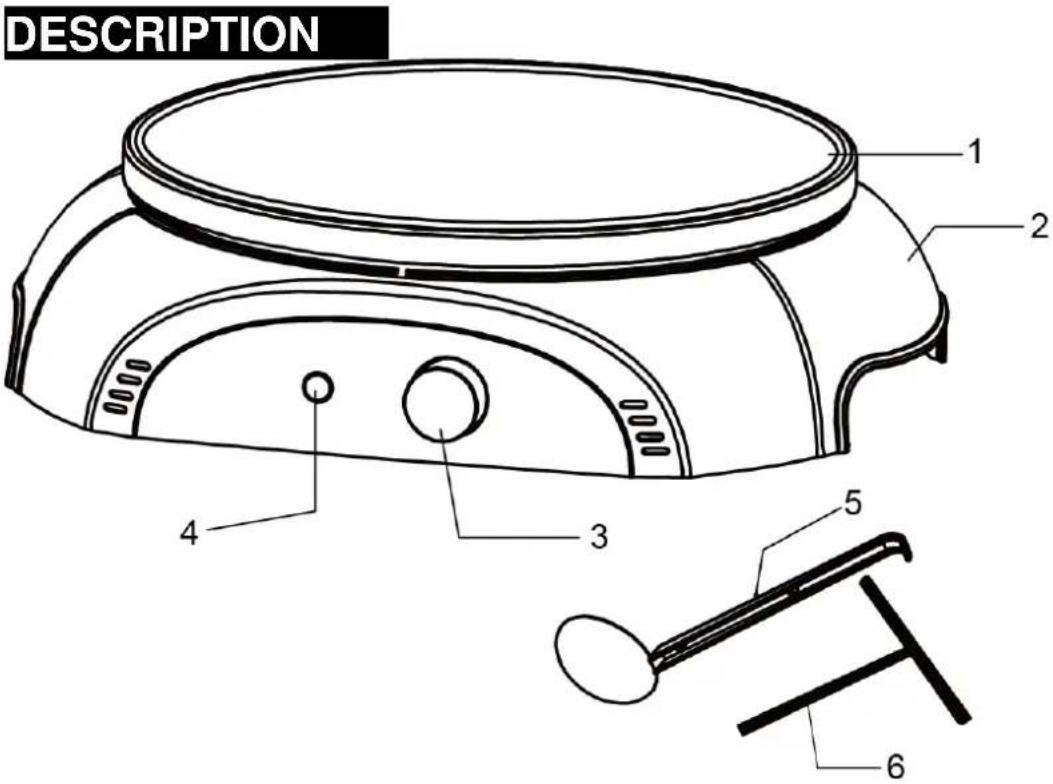

1. Cooking Plate
2. Main House
3. Temperature Levels
4. Power indicator
   5-6.Accessories

BEFORE FIRST USE

Before the first use, please carefully check if all parts of the device are in good condition. If this is not the case, please contact the supplier or manufacturer. Remove all packaging materials.

1. Clean the grill plate before using the appliance for the first time (See Cleaning and Maintenance).
2. Wipe the outside of the appliance with a damp cloth.

OPERATION

1. Remove all packing material and any stickers.
2. Wipe the plate with a damp cloth or sponge to remove any dust. Wipe the dust with a soft cloth or paper towels.
3. Select a suitable location where the unit is to be used, leaving enough space between back of unit and wall to allow heat to flow without damage to cabinets and walls.
4. Plug the unit into a suitable electrical outlet, Turn the thermostat clockwise. The light lights up, the unit is heating up. If the thermostat is on position Off, the plate will no longer heat up. Before the first use, it is recommended to apply a little oil or grease on the plate.
5. Important: The cooking plate will be very hot. Caution should be taken to prevent the hands from contacting with the plate.
6. After use, unplug the unit from the electrical outlet and allow it to cool to room temperature before cleaning.
7. Caution: Do not immerse the appliance into any liquid.
8. Before using the appliance, prepare the dough separately and pour it into a suitable container. Pour the pre-prepared dough onto the heating plate and, using the specific accessory, spread it perfectly to cover the entire surface. Take care not to put too much dough in order to avoid any smudge off the plate.

Note: For the best result, pour a small amount of oil on the heating plate so that the pancakes can be easily removed from the plate.

When the surface of the pancake is no longer liquid, turn the pancake completely using a spatula.

When cooking is finished, remove the pancake. It is then possible to re-cook by repeating the operations described above. Otherwise, turn off the unit by turning the thermostat to "0" and unplug the plug from the area.

CLEANING AND MAINTENANCE

Important: Unplug and allow it to cool before cleaning. Never immerse the machine in water or any other liquid.

1. Wipe the body, base, and cooking plates with a damp cloth and a non-abrasive soap or dishwasher detergent. Wipe with a clean, soft, damp cloth and towel dry.
2. Storage: Store the cleaned machine in a clean, dry place.
3. Important: Never store while it is still hot or still plugged in.
4. Important: Never wrap the power cord tightly around the appliance. Do not put any stress on the power cord where it enters the unit, as this could cause it to fray and break.

SPECIFICATION

Item reference: CECP1000B

Model: KY-550

Voltage/Frequency: 220-240V\~50-60Hz

Wattage: 1000W

Instruction manual version: V1

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health

from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Continental Edison

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORTE BY :

AMC

123, QUAI JULES GUESDE

94400 VITRY SUR SEINE

France

Continental Edison
