Product type	Dollhouse
Brand	Playtive
Model	IAN 321239
Dimensions (assembled)	approx. 61 × 80 × 31 cm (L × H × D)
Power supply	4 CR1632 batteries (3 V) included
Number of floors	3 (ground floor, first, second)
Main functions	Sound doorbell, 3 automatic lighting lamps (turn off after 1 min), awning, mechanical elevator
Included accessories	27 accessories, stickers, name tag, screws, Allen key
Suitable for children	3 to 8 years
Assembly	Adult assembly required
Cleaning	With a dry cloth, without harsh cleaners
Safety	Not suitable for children under 36 months; do not climb; adult supervision required
Batteries	Do not recharge; observe polarity; keep out of reach of children; remove if not used for extended period
Warranty	3 years from date of purchase
Customer service (France)	Tel.: [phone] (toll-free); Email: [e-mail]
Spare parts	Available during the warranty period
Number of parts in the kit	More than 30 (including 5 walls, 3 floors, staircase, column, etc.)
Doorbell	With integrated battery, activated by pressing
Lamps	3 lamps, automatic lighting for about 1 minute
Awning	Included, removable
Material	Not specified (likely plastic and wood)

Frequently Asked Questions - IAN 321239 Playtive

How to assemble the Playtive IAN 321239 dollhouse?

Follow the steps in figures B to H of the manual. A screwdriver and Allen key (included) are required. It is recommended to fix the house to the wall with appropriate hardware.

How to replace the batteries of the doorbell or lamps?

Gently remove the component, unscrew the cover (25a/27a) with a screwdriver, remove the used battery from the compartment (25c/27c) and insert a new CR1632 battery respecting polarity (+/-). Screw the cover back on and put it back in place.

The doorbell does not work, what should I do?

Check that the battery is correctly inserted and not worn. Press firmly on the doorbell. If the problem persists, replace the battery with a new CR1632 type. Ensure the contacts are clean.

Do the lamps turn off automatically?

Yes, the light turns off automatically after about 1 minute to save batteries. To turn on again, press the button (27d).

From what age is the dollhouse suitable?

This toy is suitable for children aged 3 to 8 years. Not suitable for children under 36 months due to small parts posing a choking hazard.

Can I fix the dollhouse to the wall?

Yes, it is recommended to fix it to the wall with appropriate mounting hardware to prevent tipping. See the instructions for more details.

How to clean the dollhouse?

Wipe with a dry cleaning cloth. Never use harsh cleaning products. Remove batteries before cleaning.

What to do if a battery is swallowed by a child?

Consult a doctor immediately. Ingestion of batteries can be fatal. Always keep batteries out of reach of young children.

Where can I get spare parts?

Essential spare parts for use are available during the warranty period. Contact customer service at 0800 919270 (France) or by email at [e-mail].

What is the warranty period?

The warranty is three years from the date of purchase. It covers defects in materials and workmanship. Keep the receipt.

USER MANUAL IAN 321239 Playtive

DELTA SPORT HANDELSKONTOR OMBH

Wicropier 6 • 0522397 Hamburg

CZENWALY

□

2

2.105049 N: 1916654

(1) 12 (2)

Cutaway illustration of a single-story house showing interior layout and furniture (no text or symbols)

PUPPENHAUS DOLL'S HOUSE MAISON DE POUPÉES

DE AT CH

PUPPENHAUS

Gebrauchsanweisung

FR BE

MAISON DE POUPÉES

Instructions for use

NL DI

POPPENHUIS

Gebruiksaanwijzing

(c)

DOMEČEK PRO PANENKY XXL

Návod k použití

IAN 321239_1901

IAN 321239_1901

DE AT CH GB E IR

NL 32 CZ 15 PT

③ ④ ⑤

Before reading, told out the illustration page and get to know all of the functions of your unit.

(图)(图)

GB/IE Usage and safety information Page 09

Technical diagram showing various electrical or mechanical component configurations with labeled parts and dimensions

B 10 7 x=7 x=10 C 10 12 18 x=1 x=16 x=12 x=14

D 18 19 18 16 5 3 6 2 4 9 4 10 18 18 18 18

F 1000 1500 1000 1500

Technical line drawing of a mechanical lifting or mounting bracket (no text or symbols)

G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

1x23 1x24

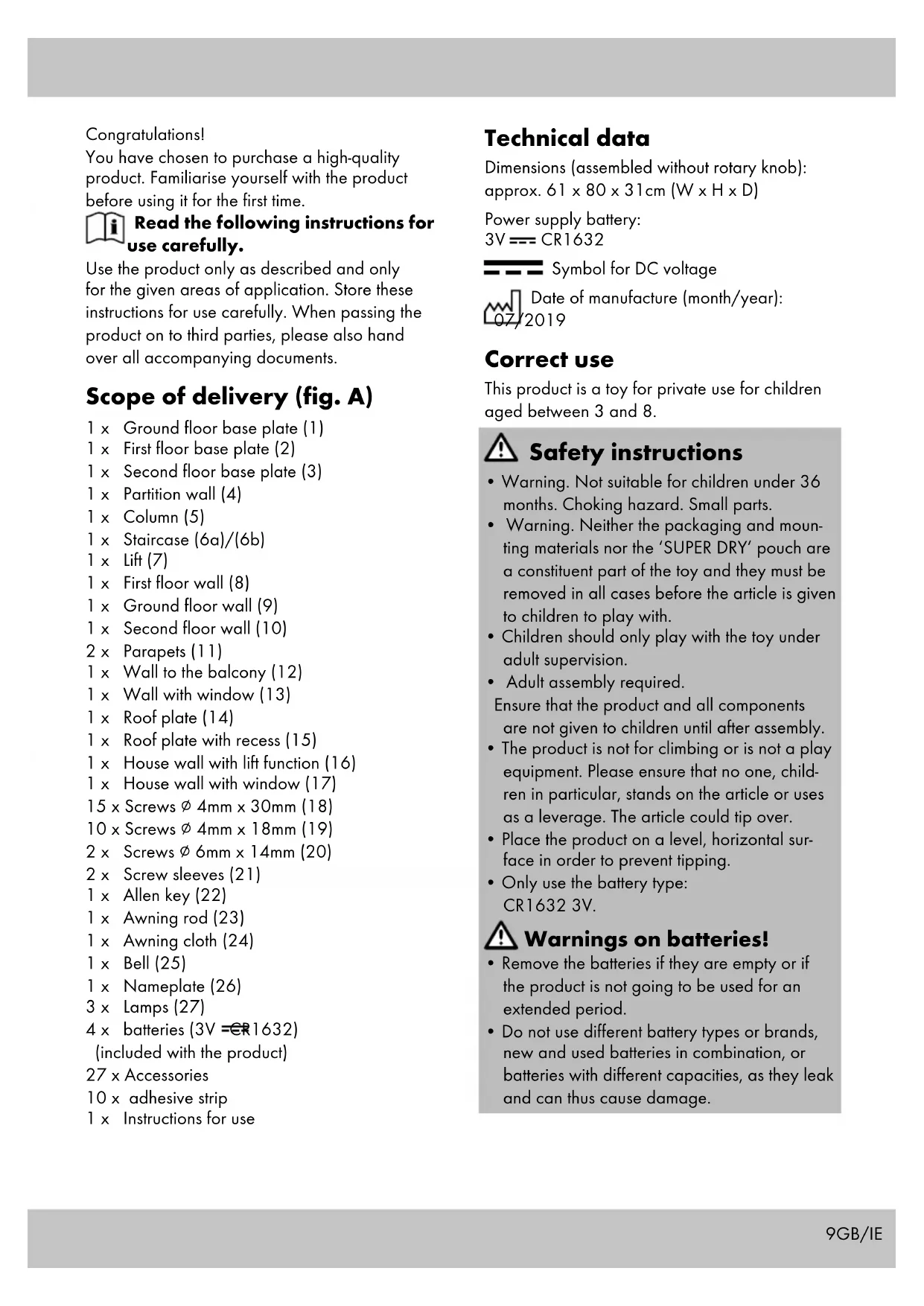

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x Ground floor base plate (1)
1 x First floor base plate (2)
1 x Second floor base plate (3)
1 x Partition wall (4)
1 x Column (5)
1 x Staircase (6a)/(6b)
1 x Lift (7)
1 x First floor wall (8)
1 x Ground floor wall (9)
1 x Second floor wall (10)
2 x Parapets (11)
1 x Wall to the balcony (12)
1 x Wall with window (13)
1 x Roof plate (14)
1 x Roof plate with recess (15)
1 x House wall with lift function (16)
1 x House wall with window (17)
15 x Screws ∅ 4mm x 30mm (18)
10 x Screws ∅ 4mm x 18mm (19)
2 x Screws ∅ 6mm × 14mm (20)
2 x Screw sleeves (21)
1 x Allen key (22)
1 x Awning rod (23)
1 x Awning cloth (24)
1 x Bell (25)
1 x Nameplate (26)
3 x Lamps (27)
4 x batteries (3V =€1632) (included with the product)
27 x Accessories
10 x adhesive strip
1 x Instructions for use

Technical data

Dimensions (assembled without rotary knob): approx. 61 x 80 x 31 cm (W x H x D)

Power supply battery:

3V=CR1632

Symbol for DC voltage

Date of manufacture (month/year): 2019

Correct use

This product is a toy for private use for children aged between 3 and 8.

Safety instructions

• Warning. Not suitable for children under 36 months. Choking hazard. Small parts.
• Warning. Neither the packaging and mounting materials nor the 'SUPER DRY' pouch are a constituent part of the toy and they must be removed in all cases before the article is given to children to play with.
• Children should only play with the toy under adult supervision.
• Adult assembly required. Ensure that the product and all components are not given to children until after assembly.
• The product is not for climbing or is not a play equipment. Please ensure that no one, children in particular, stands on the article or uses as a leverage. The article could tip over.
• Place the product on a level, horizontal surface in order to prevent tipping.
• Only use the battery type: CR1632 3V.

Warnings on batteries!

• Remove the batteries if they are empty or if the product is not going to be used for an extended period.

• Do not use different battery types or brands, new and used batteries in combination, or batteries with different capacities, as they leak and can thus cause damage.

• Observe the polarity (+/-) when inserting batteries.

• Change all batteries at the same time and dispose of the old batteries properly.
• Warning! Batteries may not be charged or reactivated in any way. They may not be dismantled, thrown into fire, or short-circuited.
  • Always keep batteries out of the reach of children.
• Do not use rechargeable batteries!
• The cleaning and user-maintenance may not be carried out by children without supervision.
• Clean the batteries and the device contacts as necessary and before inserting the batteries.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leaks.
• Batteries can endanger life if swallowed. Keep batteries out of the reach of small children for this reason. Seek medical help immediately if a battery is swallowed.

Danger!

• Handle a damaged or leaking battery with extreme care and dispose of it properly and immediately. Wear gloves to handle the battery.
• If you come into contact with battery acid then wash the affected area with soap and water. If battery acid gets in your eye rinse it out with water and seek medical help immediately!
• Do not short-circuit the terminals.

Assembly

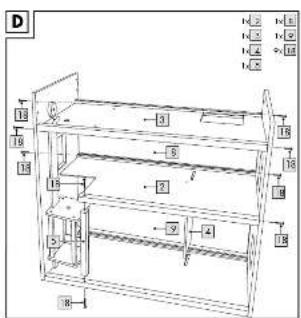

• In order to assemble the product please follow the individual steps as shown in figures B - H.
• You will also need a screwdriver and a second Allen key to assemble the product.

Note: We recommend attaching the product to a wall using suitable mounting materials.

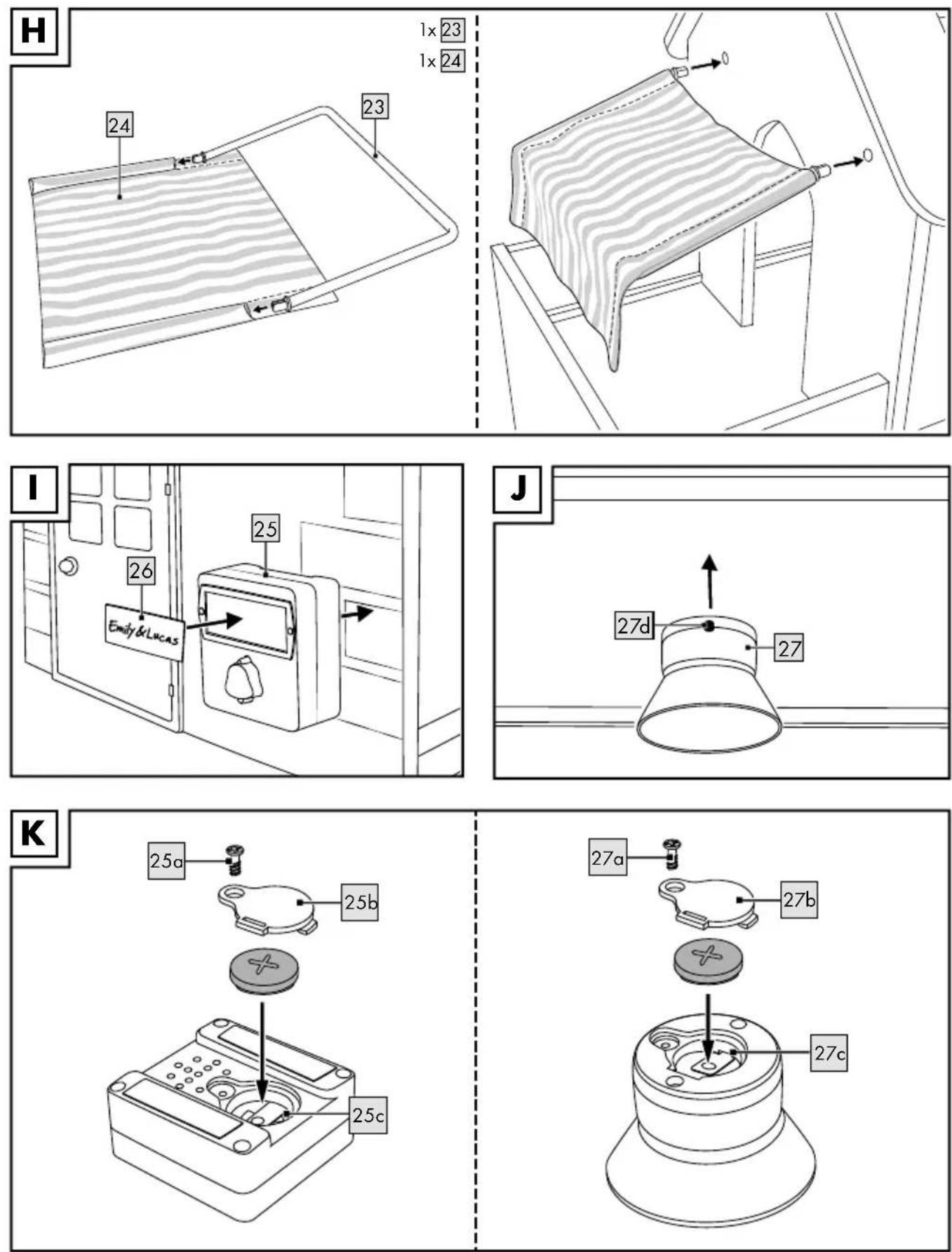

Attaching and activating the bell (fig. 1)

1. Write on the nameplate (26) and glue the nameplate to the bell (25).

2. Stick the adhesive strips to the back of the bell (25).

3. Remove the protective paper and stick the bell to the desired location on the doll's house.

4. Press on the bell to activate the sound.

Attaching and activating the lamps (fig. J)

1. Stick the adhesive strips to the back of the lamps (27).
2. Remove the protective paper and stick the lamps (27) to the desired location on the doll's house.
3. Press the button (27d) on the lamp in order to activate the light.

Note: The light switches off automatically after approx. 1 minute.

Changing the battery (fig. K)

WARNING! Follow these instructions in order to avoid mechanical and electrical damage.

There are batteries in the bell (25) and in the lamps (27).

You can change the batteries if they stop working.

1. Carefully remove the bell or the lamp from the doll's house and release the relevant screw (25a)/(27a) using a screwdriver.
2. Remove the cover (25b)/(27b).
3. Carefully remove the empty battery from the battery compartment (25c)/(27c) and exchange it for a new battery.

Note: Pay attention to the plus and minus poles on the batteries and that they are inserted correctly.

The batteries must be located entirely inside the battery compartment.

1. Tighten the screws on the covers of the bell (25) or the lamp (27) and attach the bell or lamp back on the doll's house.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature. Wipe clean with a dry cloth only.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle - and a number which identifies the material.

Devices that are marked with the symbol shown here may not be disposed of with domestic waste. You are obliged to dispose of these kinds of used electrical and electronic devices separately. Ask your local authority about possible methods for regulated disposal. Remove the batteries from the article before disposing of it.

Dispose of batteries carefully

Please note: Batteries are hazardous waste and may not be disposed of with domestic waste by law. You can hand over used batteries free of charge at local collection points or at retail outlets. Special containers are provided here for this purpose.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 321239_1901

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]
