USER MANUAL KE11SX Canarm

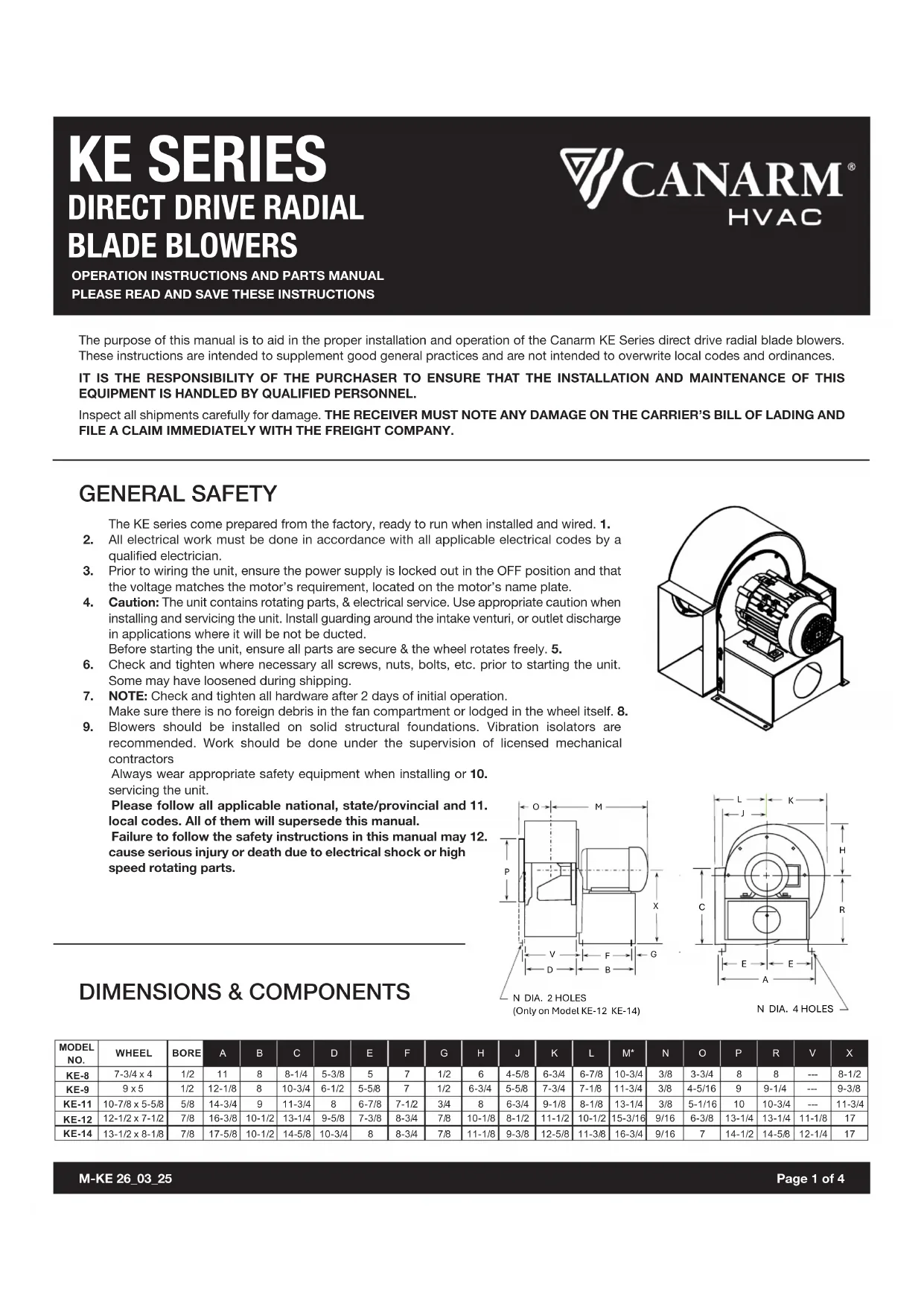

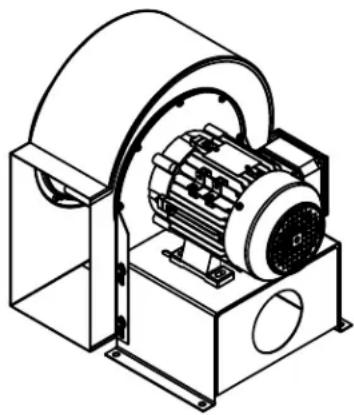

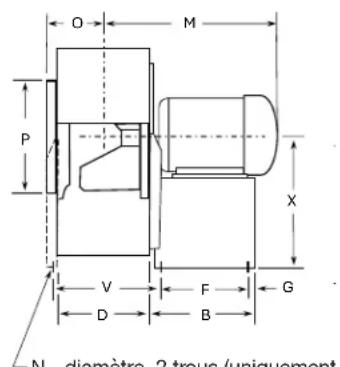

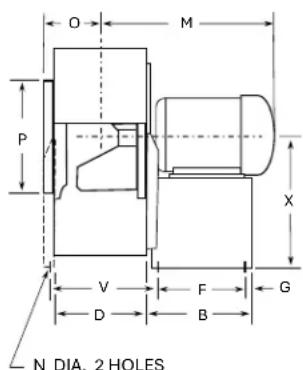

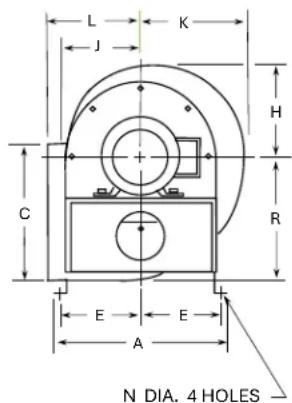

Page 1 of 4M-KE 26_03_25 GENERAL SAFETY DIMENSIONS & COMPONENTS The purpose of this manual is to aid in the proper installation and operation of the Canarm KE Series direct drive radial blade blowers. These instructions are intended to supplement good general practices and are not intended to overwrite local codes and ordinances. IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL. Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER’S BILL OF LADING AND FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.The KE series come prepared from the factory, ready to run when installed and wired. 1. All electrical work must be done in accordance with all applicable electrical codes by a 2. qualified electrician. Prior to wiring the unit, ensure the power supply is locked out in the OFF position and that 3. the voltage matches the motor’s requirement, located on the motor’s name plate. Caution: The unit contains rotating parts, & electrical service. Use appropriate caution when 4. installing and servicing the unit. Install guarding around the intake venturi, or outlet discharge in applications where it will be not be ducted. Before starting the unit, ensure all parts are secure & the wheel rotates freely. 5. Check and tighten where necessary all screws, nuts, bolts, etc. prior to starting the unit. 6. Some may have loosened during shipping. NOTE: Check and tighten all hardware after 2 days of initial operation. 7. Make sure there is no foreign debris in the fan compartment or lodged in the wheel itself. 8. Blowers should be installed on solid structural foundations. Vibration isolators are 9. recommended. Work should be done under the supervision of licensed mechanical contractors Always wear appropriate safety equipment when installing or 10.servicing the unit. Please follow all applicable national, state/provincial and 11.local codes. All of them will supersede this manual. Failure to follow the safety instructions in this manual may 12.cause serious injury or death due to electrical shock or high speed rotating parts. !"#$%&'&% ($) (( * *"($% +"#$* + ! ($) , %"+$* ,"#$% ,"!$* (-"#$% #$* #"#$% * * """ *"($) .&'&+ ($) ()"($* * (-"#$% ,"($) +"+$* ! ($) ,"#$% +"+$* !"#$% !"($* (("#$% #$* %"+$(, . ."($% """ ."#$* (-"!$*&'&+"+$* +$* (%"#$% . (("#$% * ,"!$* !"($) #$% * ,"#$% ."($* *"($* (#"($% #$* +"($(, (- (-"#$% """ (("#$% ()"($)&'&!"($) !$* (,"#$* (-"($) (#"($% ."+$* !"#$* *"#$% !$* (-"($* *"($) (("($) (-"($) (+"#$(, .$(, ,"#$* (#"($% (#"($% (("($* (! (#"($)&'&*"($* !$* (!"+$* (-"($) (%"+$* (-"#$% * *"#$% !$* (("($* ."#$* ()"+$* (("#$* (,"#$% .$(, ! (%"($) (%"+$* ()"($% (! /01234 5 6 789:;<=

PLEASE READ AND SAVE THESE INSTRUCTIONS

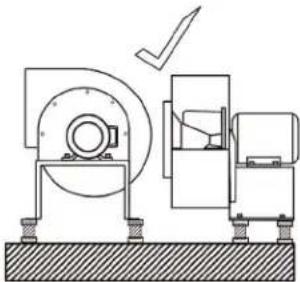

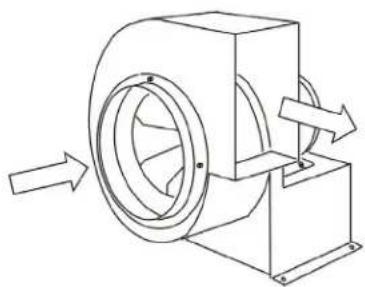

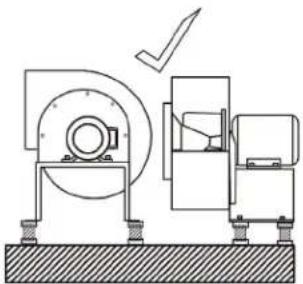

M-KE 26_03_25 INSTALLATION Carefully remove the KE and any associated parts from its crate. The skid can be used to help lift it to its installation site. 1. Inspect the unit and make sure the fan wheel rotates freely. Inspect all hardware and fasteners, some may have loosened during 2. shipping. Make sure the unit is free of all foreign debris. Use caution when lifting the unit, some models may be very heavy. The blower should be installed on a properly designed foundation. It can be secured using the multiple 3/8” - 9/16” diameter holes 3. provided. If you need to modify the unit for any reason to install it, do so under the supervision of a licensed mechanical contractor or contact 4. Canarm before making any alterations. Once secured, complete all required duct connections. Any un-ducted orifice should be guarded to avoid contact with rotating 5. parts. Make sure the motor compartment is free and clear and can be accessed in case of service. Rotate the wheel, it should spin freely 6. and not make any sound that would indicate the wheel is rubbing against any debris or the venturi itself. All wiring must be completed by qualified personnel only and done in accordance with local codes. Refer to the motor’s name plate 7. for details. Ensure branch power supply matches the motor requirement. Phases, voltages and amperage available on the circuit. Caution: Always ensure the power is locked out in the off position prior to performing any electrical work. 8. When complete, have qualified personnel inspect the unit prior to energizing. 9. Briefly energize the unit and ensure the wheel rotation matches the sticker indicating proper rotation direction. If it does not, check 10. your electrical connections. Check that the amperage drawn matches the motor’s FLA as indicated. If you notice any irregular vibration, shut the unit off, lock out power supply, and inspect it. Listen for any irregular sounds. Refer to 11. the trouble shooting section of this manual, or contact Canarm if you need assistance.Page 3 of 4 KE SERIES

DIRECT DRIVE RADIAL BLADE BLOWER

M-KE 26_03_25 Set the main power breaker switch to “OFF” & lockout the power supply. 1. Check all fasteners on the unit and those that may mount the unit to its foundation. Some may have vibrated loose during shipping 2. or handling during set up. Rotate the wheel to ensure that it rotates freely and nothing comes in contact with the housing. If it does see Fig. 4. 3. Verify branch power, and that your motor is wired and suitable for its supply. Failure to do so may cause damage or lead to premature 4. motor failure (Fig. 2). Check to ensure that all guards and accessories are securely mounted (Fig 3). 5. Once the unit’s hardware and power supply are verified, you may proceed to test the unit. Remove any power lockouts and proceed 6. with unit activation. ELECTRICAL WARNING A GROUND WIRE MUST BE CONNECTED FROM THE UNIT CHASSIS TO A SUITABLE ELECTRICAL GROUND. WARNING ENSURE POWER SUPPLY IS DISCONNECTED AND LOCKED OUT PRIOR TO MAKING ELECTRICAL CONNECTIONS. Before connecting the motor to the electrical supply, check the electrical characteristics and wiring instructions as indicated on the motor nameplate or as shown below. Complete electrical connection as indicated WARNING A GROUND WIRE MUST BE CONNECTED FROM THE MOTOR HOUSING TO A SUITABLE ELECTRICAL GROUND. PRE-START INSPECTION All maintenance and wiring should be completed by qualified personnel in accordance with National & Local Codes. 1. It is recommended to establish a regular maintenance procedure that works within your organization. The ventilator should be 2. inspected at least once a year. More regular inspections are recommended in critical applications. The unit should be shut off and its electrical supply locked out prior to engaging in any maintenance activities. 3. It is recommended to inspect all fasteners periodically. Vibration over time may loosen them. 4. If any new or unknown symptoms are found, refer to the troubleshooting section of this manual or contact Canarm. 5. NOTE: The fan should operate within its design and duty point in the HVAC system. Use outside of its specification could cause 6. damage to the fan, or the larger system its connected to. Check static pressure and any accessories like dampers. Check the amperage draw of the motor. These things can be early indicators 7. of issues within the fan or system its connected to. MAINTENANCE START UP Turn the fan on and inspect for the following immediately:

1. Any unusual sound or vibration.

2. Direction of wheel rotation

3. Improper motor amperage

If a problem is encountered, shut off the fan and refer to the section on troubleshooting to discover the cause of the problem. The fan should then be inspected after 30 minutes, 8 hours & 24 hours of operation to ensure all fasteners are tight and the unit is operating correctly.Page 4 of 4 KE SERIES

DIRECT DRIVE RADIAL BLADE BLOWER

M-KE 26_03_25 WARRANTY CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year from the date of purchase CANARM Ltd. shall either repair or replace at CANARM’s option, any unit or part thereof, returned freight prepaid and found to be defective. This warranty does not include any labour or transportation costs incidental to the removal and reinstallation of the unit at the user’s premises. NOTICE: No warranty claims will be honored by CANARM Ltd. unless prior authorization is obtained. Please contact Canarm ltd. for any maintenance related questions. One of our technicians will be able to help you with specific questions. Canarm Ltd. - Corporate Head Office 2157 Parkedale Avenue, PO Box 367 Brockville, Ontario Canada K6V 5V6 Tel: [phone] Fax: [phone] www.canarm.com [e-mail] FAN TROUBLESHOOTING WARNING MAKE SURE THE UNIT IS NOT CAPABLE OF OPERATION DURING INSPECTION & REPAIR. WARNING THE UNIT CONTAINS HIGH SPEED ROTATING PARTS AND ELECTRICAL SERVICE. WARNING A GROUND WIRE MUST BE CONNECTED FROM THE MOTOR HOUSING TO A SUITABLE ELECTRICAL GROUND. WARNING A GROUND WIRE MUST BE CONNECTED FROM THE UNIT CHASSIS TO A SUITABLE ELECTRICAL GROUND.

PROBLEM POSSIBLE ISSUE SOLUTION

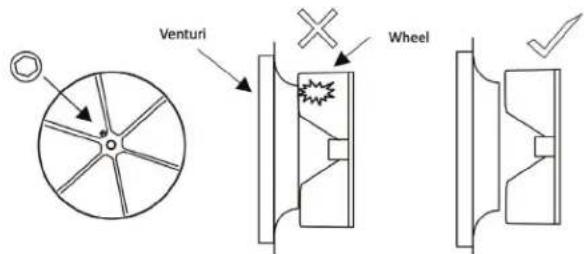

Scraping sound Wheel rubbing the inlet Inspect wheel alignment to the inlet, it may have shifted during shipping. Loosen bolts xing inlet to the housing and adjust until the wheel moves freely. Wheel slipped on motor shaft Inspect bushing connecting motor shaft to the wheel. Tighten set screws if necessary. Reduced airow Wrong wheel rotation Check and reverse shaft rotation direction of the motor. Debris in unit Clean out wheel and housing with pressurized air. Debris in ductwork Inspect the duct system for obstructions. Unit does not run Power supply issue Ensure proper power supply for the motor, breakers and fusing. Motor needs replacement Check motor wiring and other potential causes. Excessive vibration Wheel out of balance Clean and buildup of dust, dirt or debris on the wheel. Loose hardware Check all hardware that may have loosened.Page 1 de 4M-KE 26_03_25
