USER MANUAL FMWDR300030BLK Forno

Read these instructions carefully before using your microwave, and keep it carefully. If you follow the instructions, your microwave will provide you with many years of good service.

TABLE OF CONTENTS

Customer Care 4
Warning 5
Important Safety 6
Name Of Parts 7
Ground Instruction 7
Radio Interference 8
Kitchen Utensils:	8
· Materials You Can Use In Microwave	9
· Materials To Avoided In Microwave	9
Clearance And Dimensions:	10
· Anti-Tip Block Installation Instructions	11
Drawer Installation 12
Packing List 13
Operation:	14
· Clock Setting	14
· Kitchen Timer	14
· Time Cook	14
· Add 30sec	14
· Weight Defrost Function	15
· Time Defrost Function	15
· Popcorn	15
· Sensor Reheat	15
· Sensor Cook	15
· Beverage	16
· Melt	16
· Soften	16
· Multiple Cook	17
· Buzzer On/Off	17
· Lock Function For Children	17
· Eco Mode	17
· Inquiring Function	17
Troubleshooting	18
Warranty	19

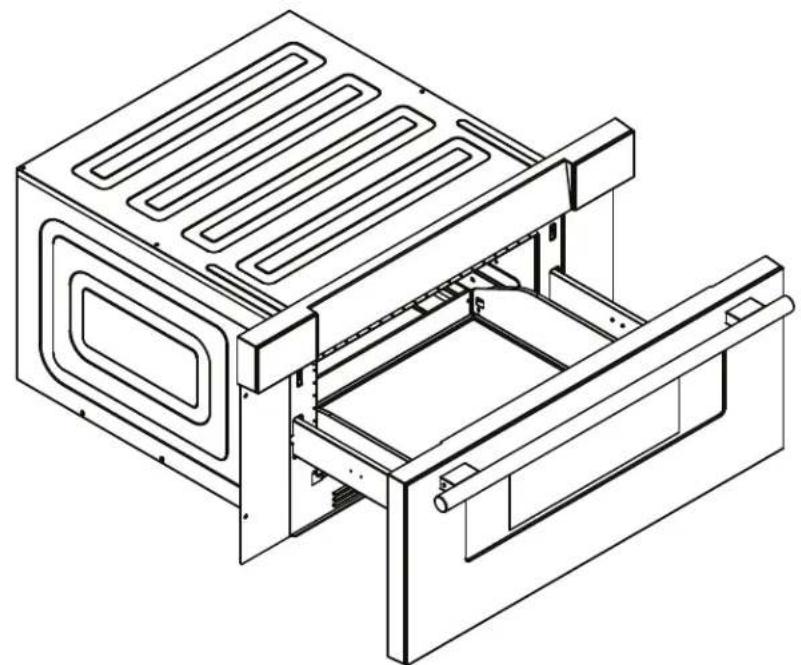

MICROWAVE DRAWER

MODEL NUMBER SERIES
FMWDR3000-30 | FMWDR3000-30BLK | FMWDR3000-30WHT

Thank you for purchasing a Frono product. Please read the entire instruction manual before operating your new appliance for the first time. Whether you are an occasional user or an expert, it will be beneficial to familiarize yourself with the safety practices, features, operation and care recommendations of your appliance.

Both the model and serial number are listed inside the product. For warranty purposes, you will also need the date of purchase .

Product Information Service Information

Model Number :

Serial Number :

Date of Purchase :

Purchase Address And Phone :

Use these numbers in any correspondence or services calls concerning your product.

If you received a damaged product, immediately contact Forno.

To save time and money, before you call for serviced, check the troubleshooting guide. It listed the causes of minor operation problems that you can correct yourself.

"Need some quick help? Simply scan the qr code and get access to our fast support form. We're always here to assist you with any questions or concerns you may have. So, don't hesitate to reach out!"

Services in Canada and Untied States

Keep the instruction manual handy to answer your questions. If you don't understand something or need more assistance, please visit our website for fast support. Please provide us your name, number, address, serial number of the product that troubleshooting, proof of purchase, and a short description of the issue. A customer service representative will contact you as soon as possible. All warranty work needs to be authorized by FORNO customer service. All our authorized service providers are carefully selected and rigorously trained by us.

WARNING

FOR YOUR SAFETY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) DO NOT attempt to operate this microwave with the door open since operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) DO NOT place any object between the microwave front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces.
(c) DO NOT operate the microwave if it is damaged. It is particular important that the microwave door close properly and that there is no damage to the:

(1)DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE

(d) The microwave should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS
Model FMWDR3000	-30 | FMWDR3000-30BLK | FMWDR3000-30WHT
Rated Voltage 120 VAC, 60 Hz
Microwave Input 150 W
Microwave Output 1000 W

WARNING : This product can expose you to chemicals including [Lead, lead and lead compound, which is [are] known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warning.ca.gov.

When using electrical appliances basic safety precautions should be followed, to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy.

1. Read all instructions before using the appliance.
2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 4.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 6.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass jars - are able to explode and should not be heated in this microwave.
6. Use this appliance only for its intended use as described in the manual. DO NOT use corrosive chemicals or vapors in this appliance. This type of microwave is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
8. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment.
10. 1. DO NOT cover or block any openings on the appliance.
11. DO NOT store this appliance outdoors. DO NOT use this product near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surface.
14. DO NOT let cord hang over edge of table or counter.
15. When cleaning surfaces of door and microwave that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
16. To reduce the risk of fire in the microwave cavity 1).DO NOT overcook food. Carefully attend

appliance when paper, plastic, or other combustible materials are placed inside the microwave to facilitate cooking.

2). Remove wire twist-ties from paper or plastic bag before placing bag in microwave.
3). If material inside of the microwave ignite, keep microwave door closed, turn microwave off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4). DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils, or food in the cavity when not in use.

1. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

1) DO NOT overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) DO NOT use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave for a short time before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.

1. DO NOT operate any heating or cooking appliance beneath the appliance.
2. DO NOT mount unit over or near any portion of heating or cooking appliance.
3. DO NOT mount over sink.
4. DO NOT store anything directly on top of the appliance surface when the appliance is in operation.

SAVE THESE INSTRUCTIONS

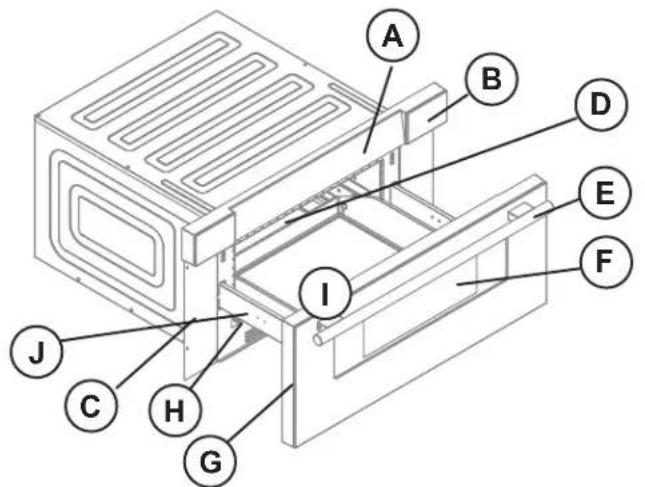

Remove the microwave and all materials from the carton and microwave cavity. Your microwave comes with the following accessories:

A. Control patch
B. Control Box
C. Mounting Plate
D. Cavity
E. Handle
F. Windows
G. Door Frame
H. Automatic putter
I. Drawer
J. Hinge Joint Board

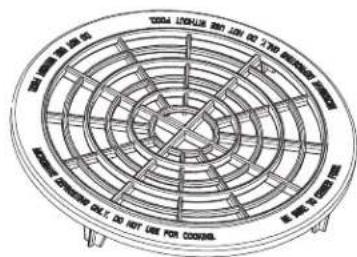

Defrosting Rack

(Can only be used in defrosting function. DO NOT use for cooking. Do not use without food)

Ground Instructions

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper use of the grounding can result in a risk of electric shock.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

DANGER - Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING - Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

THIS DEVICE COMPLIES WITH PART 18 OF THE FCC RULES.

(ONLY FOR USA)

Radio Interference

1. Operation of the microwave may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

1) Clean door and sealing surface of the microwave
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave with respect to the receiver.
4) Move the microwave away from the receiver.
5) Plug the microwave into a different outlet so that microwave and receiver are on different branch circuits.

Kitchen Utensils

CAUTION - Personal Injury Hazard

Tightly-closed containers could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on "Materials you can use in microwave and materials to avoided in microwave."

There may be certain non-metallic kitchen utensils that are not safe to use for microwaving. If in doubt, you can test the kitchen utensil in question following the procedure below.

Kitchen Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE

Material Instructions
Browning dish	Follow manufacturer* instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Cooking bags	Follow manufacturer* instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short*erm cooking/warming only. Do not leave microwave unattended while cooking.
Paper towels	Use for short*erm cooking/warming only. Do not leave microwave unattended while cooking.
Parchment paper	Use for short*erm cooking/warming only. Do not leave microwave unattended while cooking.
Plastic	Microwave-safe only. Follow the manufacturer* instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

MATERIALS TO AVOIDED IN MICROWAVE

Material Instructions
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal- trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the microwave.
Paper bags May cause a fire in the microwave.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out	when used in the microwave and may split or crack.

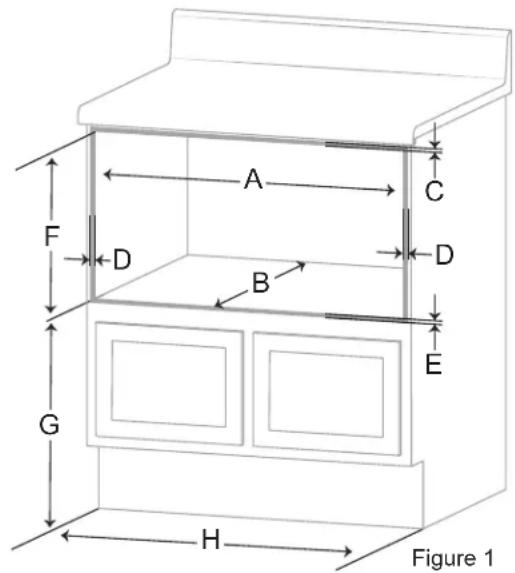

A. Dimensions that are shown in Figure 1 must be used. Given dimensions provide minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand corner of the cutout. See Figure 3
B. Contact surface must be solid and level. Pay special attention to the floor on which the microwave drawer will sit. The floor of the opening should be constructed of plywood strong enough to support the weight of the microwave (about 100 pounds).
C. Check location where the microwave drawer will be installed for proper electrical supply
D. Your microwave can be built into a cabinet or wall by itself or under a gas or electric wall microwave.
E. Be sure that the clearance of the floor between the wall microwave and the microwave drawer is a minimum of 2-inches.
F. The microwave interior will easily accommodate a 9'' × 13'' oblong dish or a bag of microwave popcorn.

Figure 2

Figure 1

ABC	DEFGH
Max: 28 %" Min: 22 %"	Min: 23 %" Alow %" Overlap	Allow %" Overlap	Allow %" Overlap	Allow %" Overlap	14 %" Opening	19" From The Floor	30"

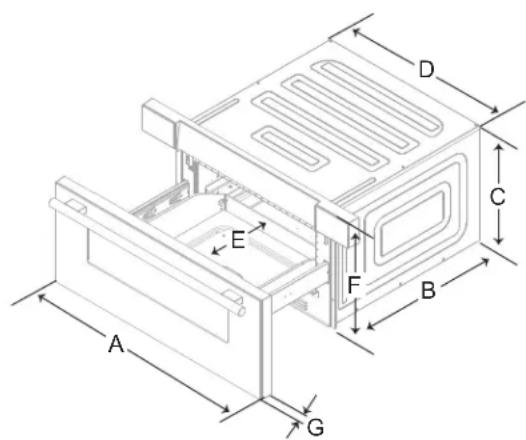

Figure 2

ABC	DEFG
Min: 30" Min:	22 1/2" 14 19/32" 2	1 9/18" 15" Drawert		Opening	16" 1 11/16"

Figures 1 and 2 contain many Microwave Printer measurements for reference when planning the printer's location. This Microwave Printer can be installed below any electric or gas wall microwave.

*Can also be installed using an electrical outlet in an adjacent cabinet within the area where tire provided electrical cord can reach. Power cord access hole in cabinet should be a minimum I 1/2" diameter hole and debarred of all sharp edges.

Note: Always allow sufficient power cord length to the electrical outlet to prevent tension. Always check electrical codes for requirements.

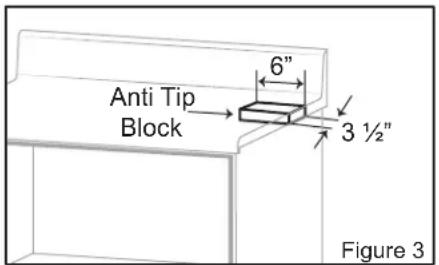

ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS

ANTI-TIP BLOCK

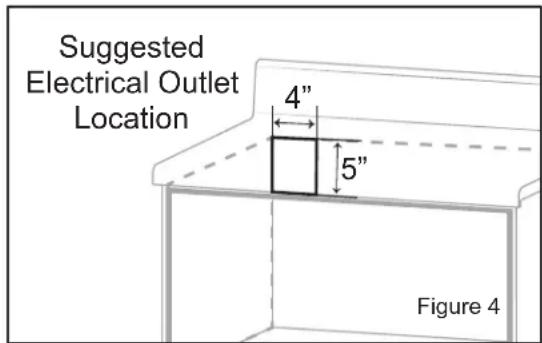

ELECTRICAL OUTLET

To reduce the risk of tipping of the drawer, the Anti-Tip block must be properly installed located 14-13/16" inches above the floor on which the Microwave Printer will sit. The 6-inch Anti-Tip block must be provided by the installer. See Figures 1 and 3.

The Anti-Tip block prevents serious injury that might result from spilled hot liquids. If the Microwave.
Drawer is ever moved to a different location, the Anti-Tip block must also be moved and installed.

When installed to the wall make sure that the screws completely penetrate the dry wall and are secured in wood or metal so that the block is totally stable. When fastening, be sure that the screws do not penetrate electrical wiring or plumbing. The electrical requirements are a 120 volt 60Hz , AC only, I5 amp. Or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided.

The drawer is equipped with a 3-prong grounding plug, It must be plugged into a wall receptacle that is properly installed and grounded. Should you only have 2-prong outlet, have a qualified electrician install a correct wall receptacle.

Note: If you have any questions about the grounding or electrical Instructions, consult a qualified electrician or service person.

*Can also be installed using an electrical outlet in an adjacent cabinet within the area where the provided electrical cord can reach. Always check electrical codes, for requirements.

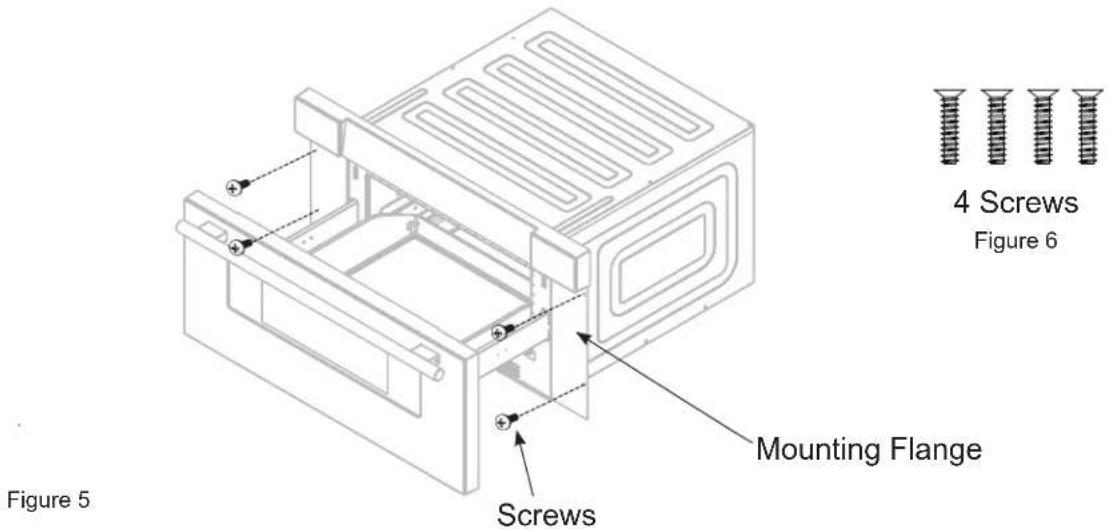

1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the microwave and the wall.
3. Slide the drawer all the way until the mounting flange is flush with the face of the cabinet. See Figure 5.
4. Open the drawer. Using the 4 holes on the drawer as a template, pre drill the cabinet using a 1/16" bit. See Figure 5.
5. Secure the drawer with the 4 screws supplied. See Figure 6.

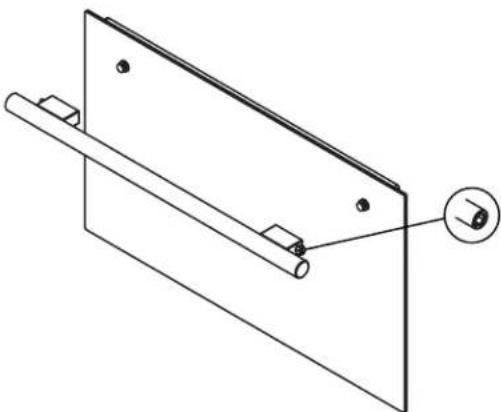

HANDLE INSTALLATION

1. Locate the holes on the underside of each handle base.
2. Using a Allen/hex key, turn counter-clockwise to loosen both the left and right set screws.
3. Carefully remove the handle. If installing an handle, carefully place the new handle on the mounting studs. Then, using the Allen/hex key, tighten the left and right set screws in a clockwise motion until the handle is firmly in place.

PEEL OFF ALL PROTECTION FILM AND TAPES BEFORE USE.

S/N List Quantity
1	Instruction Manual	1
2	Antique Brass Handle	1
3	Stainless Steel Handle	1
4	Screws (Handle)	2
5	Screw	4
6	Allen/ hex key	1
7	Defrosting Rack	1

Antique brass Handle/Screws(handle) only for the White And Black Units

1. Open

2. Close

3. Time Cook

4. Setup

5. Timer/Clock

6. Start/+30sec.

3.Auto Menu

1. Defrost Time

2. Power Level

3. Defrost Weight

4. Number Keys

5. Stop/Cancel

1. Clock Setting:

(1) Press "TIMER/CLOCK" button twice. "12:00" will flash.
(2) Press number keys to set the clock, it should be within 1:00~12:59.
(3) Press "START+30SEC." Or "TIMER/CLOCK" to finish the setting.

Note: In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the microwave will go back to former setting automatically.

2. Kitchen Timer:

(1) Press "TIMER/CLOCK" button once. "00:00" will display.
(2) Press number keys to set the clock, it should be within 00:01-99:99.
(3) Press "START+30SEC." To start counting down.

3. Time Cook:

10 power levels are available

Level 10	98765	4321
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%
Display	L10	L09	L08	L07	L06	L05	L04	L03	L02	L01

(1) Press "TIME COOK" button once. "00:00" will display.
(2) Press number keys to set the cook time, it should be within 00:01-99:99.
(3) Press "POWER LEVEL" once, and then to confirm and then press "POWER LEVEL" repeatedly or press number key to set the power level.
(4) Press "START+30SEC." To start cooking.

4.Add 30Sec:

(1) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can be started by pressing "START/+30SEC". Each press on the same button will increase cooking time by 30 seconds.
(2) During microwave and defrost by time, "START/+30SEC." Can be pressed to increase cooking time. Each press will increase 30 seconds.

5. Weight Defrost Function:

(1) Press "DEFROST WEIGHT" button. Screen displays the defrost icon. And "0.0 lbs" will light.
(2) Press number buttons to input the weight to be defrosted. The input weight should be between 0.1-6.0 lbs.
(3) Press "START/+30SEC." To start defrosting. Buzzer sounds once.

Note: The buzzer will sound twice to remind you of turning over the food during defrosting.

6. Time Defrost Function:

(1) Press "DEFROST TIME" button. Screen displays defrost icon. And "00:00" will light.
(2) Press number buttons to enter the defrosting time between 00:01-99:99.
(3) Press "START/+30SEC." To start defrosting.

Note: The defrosting power level is PL03.It cannot be changed. The buzzer will sound twice to remind you of turning over the food during defrosting.

7.Popcorn:

(1) Press "POPCORN" to start cooking directly.

8.Sensor Reheat:

(1) In waiting state, press "Sensor Reheat" once," Sr-1" will display.
(2) Press "Sensor Reheat" repeatedly or press "1-4" to choose the menu.
(3) Press "START+ 30SEC." To start cooking.

PASTA Sr-1

PIZZA Sr-2

PLATE Sr-3

SOUP Sr-4

9. Sensor Cook

(1) In waiting state, press "Sensor Cook" once,"Sc-1" will display.
(2) Press "Sensor Cook" repeatedly or press "1-7" to choose the menu.
(3) Press "START+30SEC." To start cooking.

Potato Sc-1
Chicken Sc-2
Fish Sc-3
Ground Meat Sc-4
Fresh Veggies Sc-5
Frozen Veggies Sc-6
Canned Veggies $c-7

10. Beverage:

(1) In waiting state, press "Beverage" once,"1","01:30" will display.
(2) Press "Beverage" repeatedly or press "1" or "2" to choose the menu.
(3) Press "START+30SEC." To start cooking.

11.Melt:

(1) In waiting state, press "MELT" once, "1 buTT" will display.
(2) Press "MELT" repeatedly to choose the menu.
(3) Press "1" or "2" to choose the correspond weight.
(4) Press "START+30SEC." To start cooking.

Menu Display Weight
Butter / Margarine	1 buTT 2 buTT 3 buTT
Chocolate	4 OZ 8 OZ
Cheese	8 OZ 16 OZ

12. Soften:

(1) In waiting state, press "SOFTEN" once,"1 buTT" will display.
(2) Press "SOFTEN" repeatedly to choose the menu.
(3) Press "1" or "2" to choose the correspond weight.
(4) Press "START+30SEC." to start cooking.

Menu Display Weight
Butter	1 buTT	1(STICK)
	2 buTT	2(STICK)
	3 buTT	3(STICK)
Ice cream/ Frozen juice	8 oz ICE 8 oz
	16 oz ICE 16 oz
	32 oz ICE 32 oz
Cream Cheese	3 oz CHEE 3 oz
	8 oz CHEE 8 oz

13.Multiple Cook:

(1) In waiting state, press "DEFROST WEIGHT" once,"0.0 lbs" will display.
(2) Press number buttons to input the weight to be defrosted. The input weight should be between 0.1-6.0 lbs.
(3) Press "TIME COOK" button once. "00:00" will display.
(4) Press number keys to set the cook time, it should be within 00:01-99:99.

(5) Press "POWER LEVEL" once, and then to confirm and then press "POWER LEVEL" repeatedly or press number key to set the power level.
(6) Press "START+30SEC." to start cooking.

Note: The defrost function only could be one stage of the multiple cook. Two stage cook can be set at most.

1. Buzzer On/Off:
   To enter silent mode Press "MUTE" button. Screen displays silent icon. To cancel silent mode In silent mode,press "MUTE" button. The Buzzer will sound twice.
2. Lock function for children:

Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, the microwave will enter into the children-lock state. Screen will display "Loc".

Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds to release the lock. Screen will display "UnLo".

1. Open/Close the oven door:

To open the oven door: In the oven door closed state, press "OPEN" once to open the oven door.
- To close the oven door: In the oven door opened state, press "CLOSE" once to close the oven door.

Note: During the oven door automatically opens by pressing "OPEN", pressing "OPEN" or "CLOSE" will automatically stop opening the door, and then pressing the "OPEN" or "CLOSE" button again will open or close the oven door.

1. Eco mode:

To enter Eco mode when the microwave door is closed, in waiting state, if there is not any operations in 1 minute. To cancel Eco mode In Eco mode, open the door or press any key to cancel it.
18. Inquiring Function:

If the clock has been set, the current time will display for three seconds by pressing "TIMER/CLOCK" in the cooking state.

Check your problem by using the chart below and try the solutions for each problem. If the microwave still does not work properly, contact the nearest authorized service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
It wont not start »Electrical cord for microwave is not plugged in. »Door is open. »Wrong operation is set.		»Plug into the outlet. »Close the door and try again. »Check instructions.
Arcing or sparking »Materials to be avoided in microwave were used. »The microwave is operated when empty. »Spilled food remains in the cavity.		»Use microwave-safe cookware only. »Do not operate with microwave empty. »Clean cavity with wet towel.
Unevenly cooked foods	»Materials to be avoided in microwave were used. »Food is not defrosted completely. »Cooking time, power level is not suitable. »Food is not turned or stirred.		»Use microwave-safe cookware only. »Completely defrost food. »Use correct cooking time, power level. »Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable. Use correct cooking time, power level.
Undercooked foods	»Materials to be avoided in microwave were used. »Food is not defrosted completely. »Ventilation ports are restricted. »Cooking time, power level is not suitable.		»Use microwave-safe cookware only. »Completely defrost food. »Check to see that microwave ventilation ports are not restricted. »Use correct cooking time, power level.
Improper defrosting	»Materials to be avoided in microwave were used. »Cooking time, power level is not suitable. »Food is not turned or stirred.		»Use microwave-safe cookware only. »Use correct cooking time, power level. »Turn or stir food.

What this limited warranty covers:

The Warranty coverage provided by Forno Appliances in this statement applies exclusively to the original Forno appliance ("Product") sold to the consumer ("Purchaser") by an authorized Forno dealer/distributor/retailer, purchased and installed in the United States or Canada, and which has always remained within the original country of purchase (the United States or Canada). Warranty coverage is activated on the date of the Product's original retail purchase and has a duration of two (2) years.

Warranty coverage is non-transferrable. In the event of replacement of parts or of the entire product, the replacement Product (or parts) shall assume the remaining original Warranty activated with the original retail purchase document. This Warranty shall not be extended with respect to such replacement. Forno Appliances will repair or replace any component/part which fails or proves defective due to materials and/or workmanship within 2 years of the date of the original retail purchase and under conditions of ordinary residential, non-commercial use. Repair or replacement will be free of charge, including labor at standard rates and shipping expenses. Purchaser is responsible for making the Product reasonably accessible for service. Repair service must be performed by a Forno Authorized Service company during normal working hours.

Important

Retain proof of original purchase to establish warranty period. Forno's liability on any claim of any kind, with respect to the goods and/or services provided, shall in no event exceed the value of the goods or service or part there of which has given rise to the claim.

30-Day Cosmetic Warranty

The Purchaser must inspect the product at the time of delivery. Forno warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of the original retail purchase of the Product.

This coverage includes:
- Paint blemishes
- Chips
- Macroscopic finish defects

Cosmetic warranty does NOT cover:

• Issues resulting from incorrect transport, handling and/or installation (e.g.: dents, broken, warped or deformed structures or components, cracked or otherwise damaged glass components);
• Slight color variations on painted/enamed components;
• Differences caused by natural or artificial lighting, location or other analogous factors; > stains/ corrosion/discoloration caused by external substances and/or environmental factors; > labor costs, display, floor, B-stock, out-of-box, "as is" appliances and demo units.

How to receive service

To receive warranty services, the Purchaser must contact the Forno Support department in order to determine the problem and the required service procedures. Troubleshooting with a customer service representative will be necessary before moving forward with the service. Model number, serial number and date of original retail purchase will be requested.

Warranty Exclusions: What Is Not Covered.

• Use of the Product in any non-residential, commercial application.
• Use of the Product for anything other than its intended purpose.
  Repair services provided by anyone other than a Forno Authorized Service agency.
• Damages or repair services to correct services provided by unauthorized parties or the use of unauthorized parts.
• Installation not in accordance with local/state/ city/county fire codes, electrical codes, gas codes, plumbing codes, building codes, laws or regulations.
• Defects or damage due to improper storage of the Product.
• Defects, damage or missing parts on products sold out of the original factory packaging or from displays. > Service calls or repairs to correct an incorrect installation of the Product and/or related accessories.
• Replacement of parts/service calls to connect, convert or otherwise repair the electrical wiring and/or gas line in order to properly use the product.
• Replacement of parts/service calls to provide instructions and information on the use of the Product.
• Replacement of parts/service calls to correct issues arising from the product being used in a manner other than what is normal and customary for residential use.

• Replacement of parts/service calls due to wear and tear of components such as seals, knobs, pan supports, shelving, cutlery baskets, buttons, touch displays, scratched or broken ceramic-glass tops.

• Replacement of parts/service calls for lack of/improper maintenance, including but not limited to: build up of residues, stains, scratches, discoloration, corrosion.

• Defects and damages arising from accidents, alteration, misuse, abuse or improper installation.
• Defects and damages arising from Product transport, logistics and handling. Inspection of the product must be made at time of delivery. Following receipt and inspection, the selling dealer/delivery company must be notified of any issues arising from handling, transport and logistics.
• Defects and damages arising from external forces beyond the control of Forno Appliances, including but not limited to wind, rain, sand, fires, floods, mudslides, freezing temperatures, excessive moisture or extended exposure to humidity, power surges, lightning, structural failures surrounding the appliance and other acts of God.
• Products whose serial number has been altered/damaged/tampered with. In no case shall Forno be held liable or responsible for damage to surrounding property, including furniture, cabinetry, flooring, panels, and other structures surrounding the Product. Forno is neither liable nor responsible for the Product if it is located in a remote area or an area where certified trained technicians are not reasonably available. Purchaser must bear any transportation and delivery costs of the Product to the nearest Authorized Service Center or the additional travel expenses of a certified trained technician

THERE ARE NO EXPRESS WARRANTY OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTYES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE THAT SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON FORNO. FORNO SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, TIME AWAY FROM WORK, MEALS, LOSS OF FOOD OR BEVERAGES, TRAVELING OR HOTEL EXPENSES, EXPENSES TO RENT OR PURCHASE APPLIANCES, REMODELING/CONSTRUCTION EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE UNDENIABLY CAUSED EXCLUSIVELY BY FORNO OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF FORNO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST FORNO BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY FORNO AND CAUSING THE ALLEGED DAMAGE.WHOUT PREJUDICE TO THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT SOLD BY FORNO THAT IS NOT A DIRECT RESULT OF NEGLIGENCE ON THE PART OF FORNO THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NON-TRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY.

FORNO

MANUEL D'INSTRUCTIONS
