USER MANUAL CBEW3613BE LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

CBEW3013BE, CBEW3613BE

2

TABLE OF CONTENTS

3 IMPORTANT SAFETY INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE
3 WARNING STATEMENTS
6 CAUTION STATEMENTS

8 PRODUCT OVERVIEW

8 Product Features

9 INSTALLATION

9 Before Installing

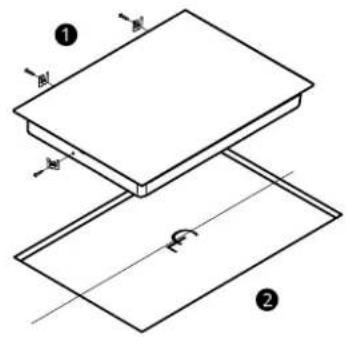

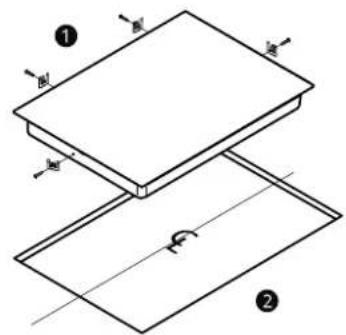

14 Installing the Cooktop

18 OPERATION

18 Cookware

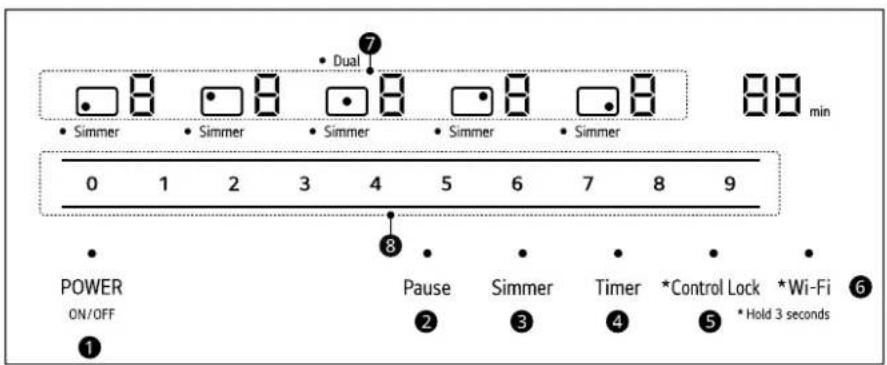

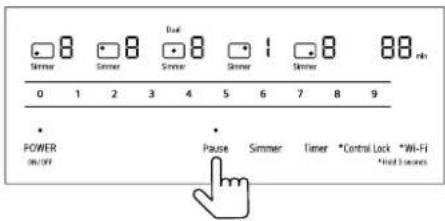

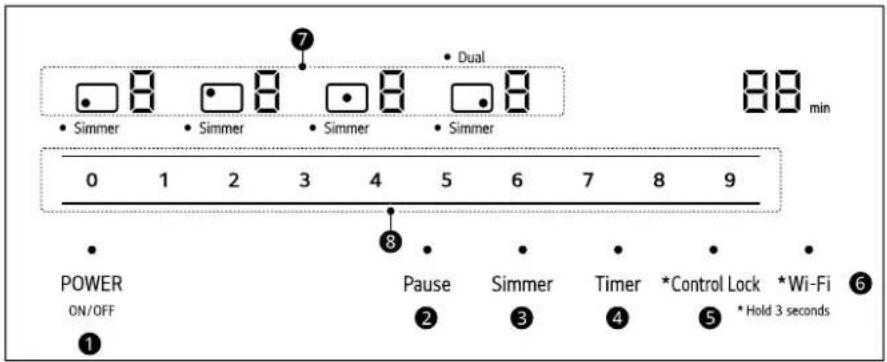

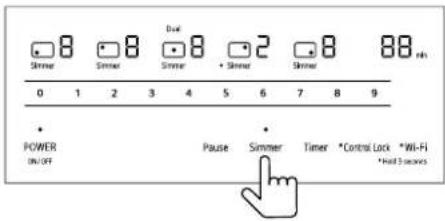

20 Control Panel

26 SMART FUNCTIONS

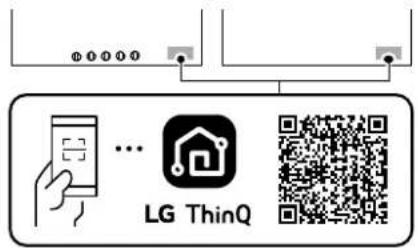

26 LG ThinQ Application

29 MAINTENANCE

29 Care and Cleaning

31 TROUBLESHOOTING

31 Before Calling for Service

33 LIMITED WARRANTY

33 USA
37 CANADA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

Download this owner's manual at http://www.lg.com

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following:

Installation

• Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States, and all local code requirements. Install only per installation instructions.
• The safety aspects of this appliance comply with accepted technical standards.
• Never modify or alter the construction of an appliance such as removal of panels, wire covers or any other permanent part of the product.
• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow children to play with packaging material.
• The installation and connection of the new appliance must only be carried out by qualified personnel.

Operation

• Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency. Mark the breaker or fuse for ease of identification and swift action if necessary.
• Never use your appliance for warming or heating a room.
• DO NOT touch cooking zones or areas near these surfaces. Cooking zones may be hot from residual heat even though they are dark in color. Areas near the cooking zones may become hot enough to cause

4 IMPORTANT SAFETY INSTRUCTIONS

burns. During and after use, do not touch, or let clothing or other flammable materials touch, these areas until they have had sufficient time to cool.

- Never wear loose fitting or hanging garments while using this appliance.

• Always turn off all controls when cooking is completed.

- Do not use water or flour on grease fires. Smother the fire with a pan lid, or use baking soda or a dry chemical or foam-type extinguisher.

- Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units. Do not use a towel or other bulky cloth instead of a pot holder.

- Do not heat unopened food containers. A buildup of pressure may cause the container to burst and result in injury.

- Flammable materials should not be stored near or on the cooking surface. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- Never place combustible items on the cooktop.

- Never keep any combustible items or aerosol cans in a drawer located under the cooktop.

- When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.

• Overheated fats and oils catch fire quickly. You should supervise cooking when preparing foods in fat or oil.

- Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.

- If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Do not reuse your cooktop until the glass surface has been replaced.

- When using the cooktop, never use aluminum foil, products wrapped in aluminum foil, or deep-frozen food in aluminum cookware.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.

- Young children should be supervised to ensure that they do not play with the appliance.

- Accessible parts may become hot during use. Young children should be kept away.

- Items of interest to children should not be stored in cabinets above a cooktop or on the backsplash of a cooktop – children climbing on the cooktop to reach items could be seriously injured.

- Children should not be left alone or unattended in the area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• Take care when plugging in electric appliances near the cooktop. Cords must not come into contact with the hot surface. Doing so could cause damage to the cooktop and cable insulation.

• After use, switch off the cooktop element by its control and do not rely on the pan detector.

- Avoid placing metal objects such as knives, forks, spoons and lids on the cooking surface areas. Metal objects can become hot and cause burns.

- Do not place any object on or near the display area in order to prevent accidental activation of the cooktop controls.

- Cookware handles should be turned inward and not extend over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handles of cookware should be positioned so that they are turned inward, and do not extend over adjacent surface units.

- Never leave prepared food on the cooking zones. Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt or become damaged.

• Do not use aluminum foil to line any part of the cooktop. Only use aluminum foil as recommended after the cooking process, if used as a cover to be placed over the food. Any other use of aluminum foil may result in the risk of electric shock, fire or short circuit.
• Do not clean or operate a broken cooktop. If the cooktop breaks, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.
• Never leave surface units unattended at high heat settings. Boilover causes smoking and greasy spillovers that may ignite.
  • Always turn off all controls when cooking is completed.
• Keep pets away from the product to avoid risk of fire or burns. Do not allow pets to climb on the product even when it is not in operation.

• Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling, due to surface tension of the liquid. Visible bubbling or boiling is not always present when the container is removed from the cooktop. This could result in very hot liquids suddenly boiling over when the container is disturbed or a spoon or other utensil is inserted into the liquid. To reduce the risk of injury to persons:

• Do not overheat the liquid.

• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand on the cooktop for a short time before moving the container.

• Use extreme care when inserting a spoon or other utensil into the container after heating.

• Do not use the cooktop as a work surface or storage space.

• Do not operate the cooking zones with empty pots or pans.
• Do not turn on the cooking zones with no pots or pans on the element.
• The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• The appliance must not be installed behind a decorative door in order to avoid overheating.

Maintenance

• Do not repair or replace any part of the appliance. All servicing should be done only by a qualified technician to avoid the risk of personal injury and damage to the appliance.
  • Take care to avoid steam burns if using a wet sponge or cloth to wipe spills on a hot cooking area.
• Wait for the cooktop to cool before using cooktop cleaners. Some cleaners can produce NOXIOUS FUMES if applied to a hot surface.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If your appliance malfunctions or fractures, switch off all cooking zones, and contact an LG Customer Information Center for service.
  • Always keep the control panel clean and dry. Do not let liquids or grease remain on the cooktop display area. Spilled or burnt-on foods can activate or deactivate the appliance. Clean the display area thoroughly to resume normal operation of the appliance.
• Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease to accumulate on the hood or filters. Greasy deposits in the fan could catch fire. Refer to the hood manufacturer's instructions for cleaning.

6 IMPORTANT SAFETY INSTRUCTIONS

CAUTION STATEMENTS

CAUTION

- To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Operation

• This appliance may only be used for normal cooking and frying in the home. It is not designed for commercial or industrial purposes.
• Use proper pan sizes. This appliance is equipped with one or more surface units of different sizes.
• Select cookware having flat bottoms large enough to cover the cooking zones.
• Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware are suitable for rangetop service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cooktop use.
• Do not place hot cookware on cold cooktop glass. This could cause the glass to break.

- Do not slide pans across the cooktop surface. They may scratch the cooktop surface.

- Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not covered by your warranty.)

- Cook meat and poultry thoroughly, meat to at least an INTERNAL temperature of 160 °F and poultry to at least an INTERNAL temperature of 180 °F. Cooking to these temperatures usually protects against foodborne illnesses.

- Prior to using the cooktop for the first time, apply the recommended cooktop cleaning cream to the ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when the cooktop gets soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

- Please be careful of the cooktop edges when moving pots and pans.

- Ceramic glass is very tough, and impervious to sharp temperature changes, but is not unbreakable. It can be damaged if hard or sharp objects fall on it.

- Be very cautious if using pots made of cast iron, or other pots with rough edges or burrs. Moving these can cause scratches on the glass.

- Do not slide metal or glass across the cooktop surface.

- Do not use cookware with any dirt buildup on the bottom.

- Do not use cookware with rough or uneven bottoms. This cookware can mark and scratch the cooktop surface.

- Do not use the glass cooktop surface as a cutting board.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Maintenance

• Always switch off the appliance before cleaning.
- For safety reasons, do not clean the appliance with a steam jet or high-pressure cleaner.
- Clean the cooktop in accordance with the maintenance and cleaning instructions in this manual.
- Do not use harsh abrasive cleaners or rough metal scrapers to clean the cooktop glass since they can scratch the surface, which may result in shattering of the glass.
- Clean the cooktop cautiously. Do not use sponges or cloth to wipe spills on a hot cooking area. Use a proper metal scraper.

• If sugar or a mixture containing sugar falls onto a hot cooking zone and melts, remove it with a metal scraper immediately, while still hot. If left to cool down, it may damage the surface when removed. Use caution and wear an oven mitt to avoid burns.
• Keep meltable objects or materials away from the ceramic glass surface, for example, plastic utensils, aluminum foil, or cooking wraps. If any materials or foodstuffs melt on the ceramic-glass surface, these should be cleaned up immediately.
• Use oven mitts to avoid burns when using a metal scraper on a hot cooking zone.
• Refer to the Maintenance section for proper cleaning and maintenance of the cooktop.

Disposal of Old Appliances

To protect the environment, it is important that worn-out appliances are disposed of in the correct manner.

• The appliance must not be disposed of with household rubbish.
- You can obtain information about collection dates or public refuse disposal sites from your local government or waste collection service.
- Before disposing of old appliances make them inoperable so they cannot be a source of danger. To do this, have a qualified person disconnect the appliance from the house circuitry.

SAVE THESE INSTRUCTIONS

8 PRODUCT OVERVIEW

PRODUCT OVERVIEW

Product Features

Parts and Features

Throughout this manual, features and appearance may vary from your model.

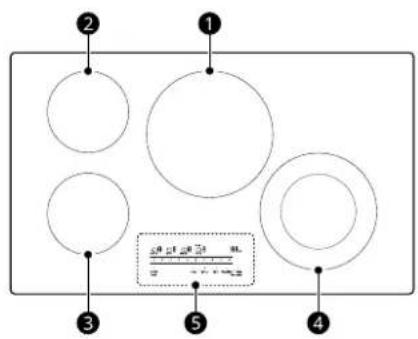

30" (CBEW3013BE)

① ② ③ ④ ⑤

	Parts and Features
1	Single Cooking Zone9 15/16" (253 mm)
2	Single Cooking Zone6 7/16" (163 mm)
3	Single Cooking Zone6 7/16" (163 mm)
4	Dual Cooking Zone9 3/16" / 5 15/16" (234 mm / 150.6 mm)
5	Control Panel

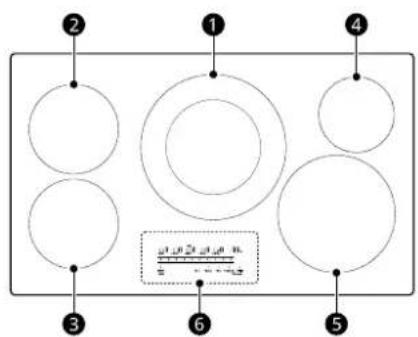

36" (CBEW3613BE)

② ① ④ ③ ⑥ ⑤

	Parts and Features
1	Dual Cooking Zone12 5/16" / 8 1/16" (313 mm / 204.6 mm)
2	Single Cooking Zone7 5/8" (193 mm)
3	Single Cooking Zone7 5/8" (193 mm)
4	Single Cooking Zone6 7/16" (163 mm)
5	Single Cooking Zone9 5/16" (253 mm)
6	Control Panel

Accessories

Cleaner ① ② ③ ④ ⑤

①Cooktop Cleaner (1 ea)
② Non-scratch Scouring Pad (1 ea)

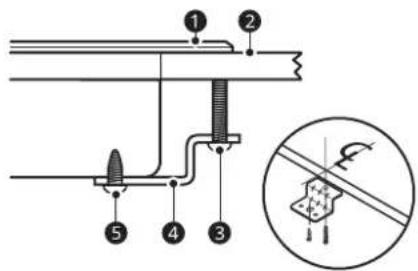

③Retainer Brackets (2 ea)
④Bolts (2 ea)
⑤Type A Screws (2 ea)

INSTALLATION

Before Installing

Before You Begin

Installation and service must be performed by a qualified installer.

Important: Save these instructions for the local electrical inspector's use. Read and save these instructions for future reference.

Read these instructions completely and carefully.

CAUTION

- If storage is located under the cooktop, do not use it to store flammable or heat-sensitive items such as detergents, aerosols, cleaners, water, food, or plastics.

NOTE

Installer:

• Read all installation instructions before installing the cooktop.
• Remove all packing material before connecting the electrical supply to the cooktop.
• Observe all governing codes and ordinances.
• Only certain cooktop models may be installed over certain built-in electric oven models.
• Be sure to leave these instructions with the consumer.

NOTE

Consumer:

- Keep the owner's manual and installation instructions for future reference.

NOTE

• This appliance must be properly grounded.
- Damage caused by failure to follow these instructions is not covered by the cooktop warranty.

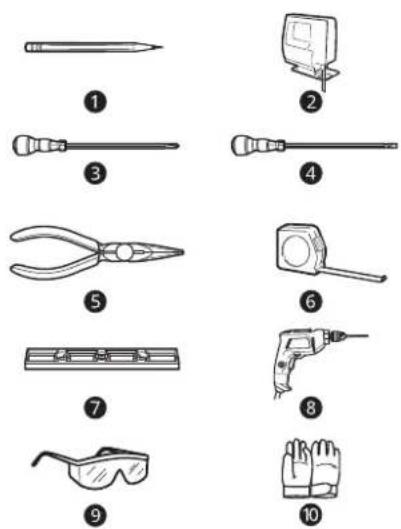

Tools Needed

Illustration showing ten different types of electrical tools with numbered labels from pencil to gloves

①Pencil
②Saber Saw
③Phillips Screwdriver
④ Flat-Blade Screwdriver
⑤Pliers
⑥Tape Measure
⑦Level
8Drill
⑨ Safety Glasses
10Gloves

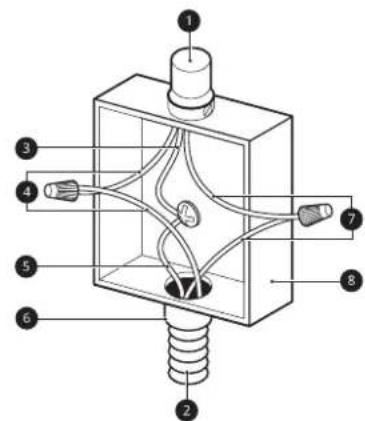

Parts not Provided

Four technical illustrations of mechanical components labeled 1 to 3, including a box, flutes, and a device (no text or symbols present)

①Junction Box
②Wire Nuts
③Strain Relief (Conduit Connector)

10 INSTALLATION

Unpacking the Cooktop

1 Unpack and visually inspect the cooktop for any damage or missing components.

2 Be sure the bottle of cleaner and conditioner packed in the literature bag is left where the user can find it easily. It is important that the

ceramic-glass cooktop be pretreated before use. See Care and Cleaning.

Model and Serial Number Location

The model and serial numbers are located on a plate on the bottom of the cooktop. Please record them in this guide; you will need them for warranty registration.

Technical Specifications

30" Technical Specifications

Models CBEW3013BE
Description Radiant Cooktop
Electrical Specifications	Connection voltage	240/208 VAC 60 Hz., 29.6 A / 25.5 A
	Maximum connected power load	7100 W / 5300 W
Cooktop Dimensions		30 11/16" (781 mm) (W) × 4 5/16" (109 mm) (H) × 21 1/16" (534 mm) (D)
Countertop Cutout Dimensions		Standard Installation28 1/2" (724 mm) (W) × 5 7/8" (149 mm) (H) × 19 5/8" (498 mm) (D)
Cooking Zones		Position Size Power	(Level 9)
		Front Left 6 7/16" (163 mm)		900 W (208 V)1200 W (240 V)
		Front Right	9 3/16" / 5 15/16"(234 mm/ 150.6 mm)	1650/750 W (208 V)2200/1000 W (240 V)
		Rear Left 6 7/16" (163 mm)	900 W (208 V)	1200 W (240 V)
		Center 9 15/16" (253 mm)		1850 W (208 V)2500 W (240 V)

36" Technical Specifications

Models CBEW3613BE
Description Radiant Cooktop
Electrical Specifications	Connection voltage	240/208 VAC 60 Hz., 40.0 A/ 32.7 A
	Maximum connected power load	9600 W / 7200 W
Cooktop Dimensions		36 5/8" (930 mm) (W) × 4 3/16" (106 mm) (H) × 21 1/16" (534 mm) (D)

Models CBEW3613BE
Countertop Cutout Dimensions	Standard Installation33 7/8" (860 mm) (W) × 5 3/4"(146 mm) (H) × 19 1/8" (486 mm) (D)
Cooking Zones	Position Size Power (Level 9)
	Front Left 7 5/8" (193 mm)		1100 W (208 V)1450 W (240 V)
	Front Right 9 15/16" (253 mm)		1850 W (208 V)2500 W (240 V)
	Rear Right 6 7/16" (163 mm)		900 W (208 V)1200 W (240 V)
	Rear Left 7 5/8" (193 mm) 1100 W (208 V)		1450 W (240 V)
	Center	12 5/16" / 8 1/16"(313 mm / 204.6 mm)	2250/1400 W (208 V)3000/1900 W (240 V)

ENGLISH

NOTE

- The maximum power of each cooking zone depends on the size and material of the cookware used.

12 INSTALLATION

Preparing the Installation Location

Important Installation Information

• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC-only electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (762 mm) for a 30" cooktop and 36" (914 mm) for a 36" cooktop.
• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 93 °C [200 °F]) generated by the cooktop.

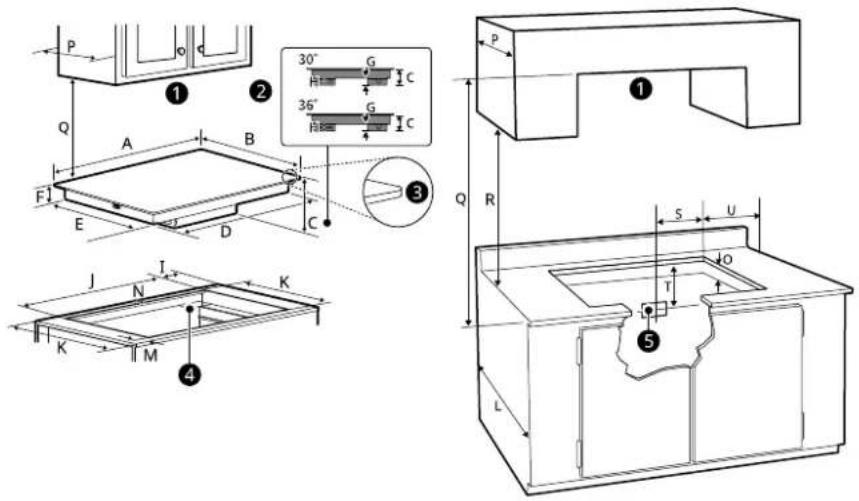

Dimensions and Clearances

Technical drawing of a mechanical component with labeled dimensions and cross-sections

① Do not obstruct these areas.
②Right side
③Radius: 3/8" (10 mm)
4" X 8" (102 mm x 203 mm) opening to route armored cable if panel is present.

⑤ Approximate location of junction box

All dimensions are stated in inches and millimeters (mm).
Allow 2" (50 mm) below the armored cable opening to clear the electric cable and allow space for installation of the junction box on the wall at the back of the cooktop.
Thickness of glass: 3/16" (4 mm)
Throughout this manual, features and appearance may vary from your model.

-	Dimension/Clearance	30" Cooktop	36" Cooktop
A Width of upper plate		30 11/16"(781 mm)	36 5/8"(930 mm)
B Depth of upper plate 21 1/16" (534 mm)
C	Distance from bottom of upper plate to bottom of conduit and terminal block enclosure	3 15/16"(101 mm)	3 7/8"(98 mm)
D Width of cooktop base		27 15/16"(710 mm)	33 1/2"(851 mm)
E Depth of cooktop base 18 13/16" (477 mm)
F	Distance from bottom of upper plate to bottom of cooktop base	2 1/2"(64 mm)	2 7/16"(61 mm)
G Height of conduit and terminal block enclosure		1 7/16"(37 mm)
H Height of base cover 1 5/8" (41 mm)
I Distance from side edge of cutout to side of counter		≥ 1 1/8" (28 mm)
J Width of cutout		≥ 28 1/2" (724 mm)≤ 28 5/8" (727 mm)	≥ 33 7/8" (860 mm)≤ 33 15/16" (863 mm)
K Depth of cutout		≥ 19 5/8" (498 mm)≤ 19 11/16" (501 mm)	≥ 19 1/8" (486 mm)≤ 19 3/16" (488 mm)
L Depth of bottom cabinets 23 13/16" (605 mm) 23 3/8" (593 mm)
M Distance from front of counter to front edge of cutout		≥ 2 3/16" (55 mm)
N	Distance from rear edge of cutout to nearest combustible surface	≥ 2 1/16" (52 mm)
O	Height below cutout (Empty space is needed underneath the cooktop for optimum performance.)	≥ 5 1/4"(134 mm)	≥ 5 3/16"(131 mm)
P Depth of overhead cabinets		≤ 13" (330 mm)
Q	Clearance from top of cooking surface to bottom of overhead cabinets	≥ 30"(762 mm)	≥ 36"(914 mm)
R	Clearance from countertop to bottom of adjacent cabinets	≥ 18" (457 mm)
S Junction box (approximate location) 12" (305 mm)
T Junction box (approximate location) 10" (254 mm)
U	Distance from edge of cooktop to nearest combustible wall (either side of unit)	≥ 2" (50 mm)

CAUTION

- To eliminate the risk of burns or fire by reaching over heated surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (127 mm) beyond the face of the cabinets.

14 INSTALLATION

CAUTION

- It is very important to keep 2 3/4" (70 mm) distance between the cooktop and an oven installed below it.

2 3/4" (70 mm)

Installing the Cooktop

Electrical Connections

Important Safety Instructions

• Be sure the cooktop is installed and grounded properly by a qualified installer or service technician.
  • This cooktop must be electrically grounded in accordance with local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition in the United States.

WARNING

• The electrical power to the cooktop must be shut off while line connections are being made. Failure to do so could result in serious injury or death.

Providing the Electrical Connection

• Install the junction box under the cabinet and run 120/240 or 120/208 Volt, AC wire from the main circuit panel.

NOTE

- DO NOT connect the wire to the circuit panel at this time.

Electrical Requirements

Observe all governing codes and local ordinances

1

A 3-wire or 4-wire single-phase 120/240 or 120/208 Volt, 60 Hz AC-only electrical supply is required on a separate circuit fused on both sides of the line (time-delay fuse or circuit

breaker is recommended). DO NOT fuse neutral. The fuse size must not exceed the circuit rating of the appliance specified on the nameplate.

• 30" radiant cooktop can consume up to 7100 W at 240 VAC. A circuit breaker rated with #8 AWG for 30 Amp continuous load must be used.
• 36" radiant cooktop can consume up to 9600W at 240 VAC. A circuit breaker rated with #8 AWG for 40 Amp continuous load must be used.

WARNING

- Do not use an extension cord with this appliance. Doing so may result in a fire, electrical shock, or other personal injury.

NOTE

- Wire sizes and connections must conform to the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70, latest edition, and local codes and ordinances.

2

The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. The junction box should be located as shown in Dimensions and Clearances with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.

3 A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

Electrical Connection

Connect the flexible armored cable that extends from the surface unit to the junction box using a suitable strain relief at the point the armored cable enters the junction box. Then make the electrical connection as follows.

Electrical ground is required on this appliance.

This appliance is manufactured with a supply wire and a frame-connected green or bare copper grounding wire.

NOTE

TO ELECTRICIAN:

• The armored cable leads supplied with the appliance are UL-listed for connection to larger gauge household wiring. The insulation of the leads is rated at temperatures much higher than the temperature rating of household wiring. The current-carrying capacity of the conductor wire is governed by the temperature rating of the insulation around the wire, rather than the wire gauge alone.

WARNING

- DO NOT ground to a gas supply pipe. DO NOT connect to electrical power supply until appliance is permanently grounded. Connect the ground wire before turning on the power.

- This appliance is equipped with a copper conductor flexible cable. If connection is made to aluminum house wiring, use only special connectors which are approved for joining copper and aluminum wires in accordance with the National Electrical Code and local codes and ordinances. Improper connection of aluminum house wiring to copper leads can result in a short circuit or fire. Follow the connector manufacturer's recommended procedure closely.

Where Local Codes Permit Connecting the Appliance-Grounding Conductor to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1

Disconnect the power supply.

2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

- You may not ground the cooktop through the neutral (white) wire if the cooktop is used in a new branch circuit installation (1996 NEC), mobile home, recreational vehicle, or where local codes do not permit grounding to the neutral (white) wire. When grounding to the neutral (white) wire is prohibited, you must use a 4-wire power supply cable. Failure to heed this warning may result in electrocution or other serious personal injury.

3-Wire Grounded Junction Box

Technical diagram of a mechanical device with numbered components for identification

① Cable from Power Supply
②Cable from Cooktop
③ White Wire (Neutral)
4 Red Wires
⑤Green Wire (Ground)
⑥UL-listed Conduit Connector
⑦ Black Wires
⑧Junction Box

If Cooktop is Used in a New Branch Circuit Installation (1996 NEC), Mobile Home, Recreational Vehicle, or where Local Codes Do Not Permit Grounding to the Neutral (White) Wire

Observe all governing codes and local ordinances.

1

Disconnect the power supply.

16 INSTALLATION

2 At the circuit breaker box, fuse box or junction box, connect appliance and power supply cable wires as shown.

WARNING

- If connecting to a 4-wire power supply cable electrical system, the appliance frame connected ground wire MUST NOT be connected to the neutral wire of the 4-wire electrical system.

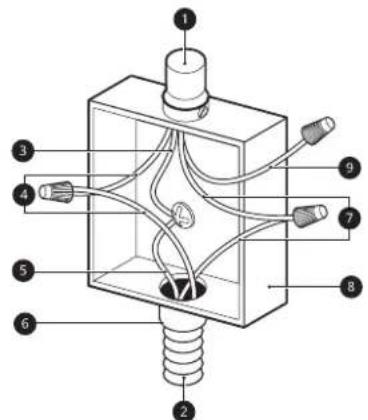

4-Wire Grounded Junction Box

Labeled diagram of a mechanical or electrical component with numbered parts for identification.

① Cable from Power Supply
②Cable from Cooktop
③ Ground Wire
4 Red Wires
⑤Green Wire (Ground)
⑥UL-listed Conduit Connector
⑦ Black Wires
⑧Junction Box
⑨ White Wire (No Connection)

Installing the Cooktop Unit

1 Visually inspect the cooktop for damage. Make sure all cooktop screws ① are tight (see below for locations).

Simple line drawing of a rectangular frame with two vertical supports and a base, labeled with number 1 (no text or symbols on the diagram itself)

2 Check and prepare the installation location.

• See Dimensions and Clearances.

3 Carefully lower the cooktop into the countertop cutout, making sure not to trap any wires.

- 30" cooktop

Technical diagram showing two stacked rectangular panels with labeled dimensions and directional arrows, likely illustrating a mechanical or architectural design.

- 36" cooktop

Technical diagram showing two stacked rectangular components with labeled parts and directional arrows indicating movement or force.

①Back

②Front

NOTE

- Do not use caulking compound. The cooktop must be removable, should service be required.

4 Attach the retainer brackets ① to the bottom of the cooktop; then snug the bolts against the bottom of the countertop as shown.

Pure geometric diagram with intersecting lines and a central circular pattern (no text or symbols)

Isometric diagram of two stacked rectangular panels with a small inset showing a grid structure (no text or symbols)

NOTE

- The retainer brackets MUST be installed to meet local codes or, in their absence, with the National Electrical Code ANSI/NFPA No. 70, latest edition.

Technical diagram showing a mechanical assembly with numbered components and an inset close-up of a disassembled component.

①Cooktop
②Countertop
③Bolt
④Retainer Brackets
⑤Type A Screw

Final Check

Perform a final operational check of the cooktop, making sure the cooktop powers on properly and that each cooking zone operates correctly. Refer to the Operating Instructions in this guide for details.

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

18 OPERATION

OPERATION

Cookware

Selecting Cookware

Pots and Pans

The better the pot, the better the cooking results.

- You can recognize good pots and pans by their bases. The base should be as thick and flat as possible.

Three identical cooking pots with no symbols, placed on a heating scale (no text or labels)

• Pots with aluminum or copper bases can cause metallic discoloring on the ceramic glass surface which is very difficult or impossible to remove.
• Be very careful when using cast iron pots or pots with damaged bases which are rough and or have burrs on them. Scratches can occur if they are slid across the surface.
• When cold, pot bases are normally bowed slightly inwards (concave). They should never be bowed outwards (convex).
• When using specialty cookware such as pressure cookers, simmering pans, or woks, follow the manufacturer's instructions and do not use a very thin pan.

Use Flat-Bottomed Cookware

Cookware must fully contact the surface of the cooking element. Use flat-bottomed pans sized to fit the cooking element and amount of food being prepared. Check for flatness by rotating a ruler across the bottom of the cookware.

Avoiding Scratches

Use heavier gauge stainless steel cookware on your ceramic cooktop surface. This will help reduce the possibility of developing scratches on the ceramic surface.

Low-quality cookware can scratch the cooktop surface.

Cookware should always be lifted over the ceramic cooktop surface to prevent scratching. Over time, sliding ANY type of cookware over the ceramic cooktop may alter the overall appearance of the cooktop. Eventually, the buildup of scratches can make cleaning the surface difficult and degrade the overall appearance of the cooktop.

Scratches can also result from grains of sand (for example, after washing vegetables) which are dragged with the pot across the cooking surface.

Using Cookware

Always follow the recommendations for proper cookware type and size. In addition:

• Do not use dirty pans with grease buildup. Always use pans that are easy to clean after cooking, and make sure that the bottoms of the pans are clean and dry.
• When cooking with large amounts of liquid, use large pots so that nothing can boil over.
• Do not let pans boil dry. This may cause permanent damage in the form of breakage, fusion, or marring that can affect the ceramic cooktop. (This type of damage is not covered by your warranty.)
• Match the pan size and element to the amount of food being prepared.

Tips for Saving Energy

• Always position pots and pans before you switch on the element.
- Dirty elements and cookware use more electricity.
- Whenever possible, always have the lid firmly placed on the pots and pans so that they are completely covered.

Three identical cooking pots on stovels with steam rising from each other (no text or symbols)

- Switch off the elements before the end of the cooking time to use the residual heat for keeping food warm or for melting.

en-us_main.book.book Page 19 Thursday, April 24, 2025 4:26 PM 19OPERATION

- The base of the pot should be the same size as the element.

• Using a pressure cooker shortens cooking times by up to 50%.

ENGLISH

20 OPERATION

Control Panel

Control Panel Features

Locations of Surface Elements and Controls

The position of the cooking zone being controlled is shown in each cooking zone icon on the control panel. The diagram below shows the 36" and 30" cooktop. The 30" cooktop does not include a right rear element, so there are only 4 buttons on the control panel.

Throughout this manual, features and appearance may vary from your model.

36" cooktop

• Dual • Simmer • Simmer • Simmer • Simmer • Simmer 0 1 2 3 4 5 6 7 8 9 POWER ON/OFF Pause Simmer Timer *Control Lock *Wi-Fi *Hold 3 seconds ① ② ③ ④ ⑤

30" cooktop

7 • Dual • Simmer • Simmer • Simmer • Simmer 0 1 2 3 4 5 6 7 8 9 POWER ON/OFF Pause Simmer Timer *Control Lock *Wi-Fi *Hold 3 seconds 1 8 ⑧ ② ③ ④ ⑤

		Surface elements and controls	Surface elements		and controls
1	POWER	Press and hold for 1 second to turn the entire cooktop ON. When it is ON, the cooktop is in standby mode until a cooking zone is activated.	6	Wi-Fi	Connect the appliance to a home Wi-Fi network.
2	Pause	Sets the active cooking zone to minimum output. Press to activate or deactivate.	7	Cooking Zone	Check the status of a cooking zone and adjust the cooking zone. For details, see "Operating Instructions".

		Surface elements and controls	Surface elements		and controls
3	Simmer	Press the Simmer key with the cooking zone selected to simmer sauces or stews.The Simmer indicator below each cooking zone remains off until activated.	8	Power Level	Select the power level for the cooking zone.
4	Timer	Press to set a timer. For details, see "Operating Instructions".	Control Panel Light On/Off		The LEDs on the control panel turn off after a few minutes to save energy. Press the POWER button to activate the control panel. If the controls are idle for a few minutes, the LEDs will turn off again automatically.
5	Control Lock	Press and hold for 3 seconds to lock the control panel.

ENGLISH

Hot Surface Indicator

Hot surface indicator

• If this icon is displayed on the screen, be careful because the ceramic glass surface is hot.
• Failure to take care may result in burns or injuries.
  • After you turn off the cooking zone, the icon is displayed continuously until the ceramic glass surface cools down.
• If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.
  • Even after the indicator light has turned off, be careful because the surface may still be hot.

Changing Cooktop Settings

Control Lock

The Control Lock feature automatically prevents cooktop controls from being turned on. It does not disable the timer.

- If Control Lock is turned on, all cooktop functions are disabled except the POWER and Control Lock buttons.

Lock

1 Press and hold Control Lock for 3 seconds. The Control Lock button lights up.

Pause Simmer Timer * Control Lock * Wi-Fi * Hold 3 seconds

2 All buttons are disabled except for the POWER and Control Lock buttons.

NOTE

• When Control Lock is in operation, if you press another key, the Control Lock button blinks for 5 seconds. This occurs even if the product is turned off.
  • Even if you turn the product off and on again, Control Lock is maintained.

Unlock

Press and hold Control Lock for 3 seconds to turn off the lock and unlock all buttons.

Wi-Fi

The Wi-Fi button, when used with the LG ThinQ app, allows the cooktop to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the app.

Setting Up Wi-Fi

The Wi-Fi button shows the status of the cooktop's network connection. The button illuminates when the cooktop is connected to the Wi-Fi network. Press and hold the Wi-Fi button for 3 seconds to connect to the network. The button blinks while

22 OPERATION

the connection is being made and then turns on once the connection is successfully made.

To turn off the Wi-Fi, press and hold the Wi-Fi button again for 3 seconds.

Before Using the Cooktop

Before using the cooktop for the first time, clean it thoroughly with the included cleaner or ceramic cooktop cleaner according to the Care and Cleaning instructions in this guide. This will help protect the ceramic surface and make future cleanup easier.

CAUTION

- Never use abrasive scrubbing pads or cleaners. They can cause permanent damage to the cooktop surface.

Using the Cooktop

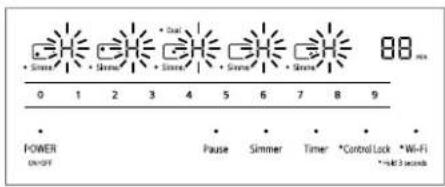

First Operation

When you first connect the electrical supply to the cooktop, the "H" indicator will blink for 60 seconds. This is normal and does not indicate a malfunction.

0 1 2 3 4 5 6 7 8 9 POWER OFF Pause Simmer Timer *Control Lock *Wi-Fi *ink 3 seconds

CAUTION

- Use caution, if the "H" indicator is displayed, the ceramic-glass surface is hot. Failure to take care may result in burns or injuries. Refer to the Hot Surface Indicator section.

Activating the Cooktop

To turn on the cooktop, press the POWER button for approximately 1 second. The power indicator LED for each surface element shows "0". To turn off the cooktop, press the POWER button.

NOTE

• After turning on the cooktop with the POWER button, you must select one of the cooking zones within 60 seconds. If no selection is made, the cooktop will turn off for safety.

Selecting the Cooking Zone

Place a pan on top of the desired cooking zone.

Press the button for the desired cooking zone to set the power level. Burner display '0' will flash.

NOTE

• Once the cooking zone has been selected the power level must be selected within 5 seconds with the element power settings. Otherwise, the power settings will turn off for safety.
• If a power level is not selected, the power settings will turn off after 5 seconds.

Readjusting the Power Level

1 Select the desired cooking zone.
2 Press the desired Power Level. The Power level will be changed after 5 seconds. (If power level 0 is selected, burner will turn off.)

0 1 2 3 4 5 6 7 8 9 POWER ON/OFF Pause Simmer Timer *Con Wi-Fi Minutes

NOTE

- Once the power level is changed, the cooking zone operation is temporarily stopped and then restarted at the changed power level.

Turning Off the Cooking Zone

1 After cooking is complete, select the desired cooking zone and change the power level to

'0' to turn off the cooking zone after 5 seconds.

2 To turn off all cooking zones, press the POWER button.

WARNING

- Your cooktop has a residual heat indicator for each cooking zone. This indicator will warn that this area has been used and is still giving off enough heat to cause burns. Avoid touching the cooking zone.

Setting Function Used for
9 Fast heating	Bringing liquids to a boil.
7-9 Heating,	browning, deep fat frying	Browning meats, heating oil for deep-fat frying, sautéing, maintaining a fast boil for large amounts of liquids.
6-7 Roasting,	frying Frying meats, chops, pancakes, sausages, eggs.
4-5 Boiling,	general cooking	Cooking larger quantities, soups and stews, steaming potatoes, cooking meat stock or bouillon.
2-4 Steaming	Steaming vegetables, braising meats.
Simmer 2-3	Simmering	Simmering rice or milk-based dishes, steaming smaller quantities of potatoes and vegetables, heating ready-to-serve meals.
Simmer 1		Simmering tomato sauce and cheese sauce.
1	M e l	Fluffy omelettes, keeping dishes warm, melting butter or chocolate.

NOTE

• These settings are recommended guidelines for cooking. You may need to adjust the power level for the type of food and pan.

Slimmer 0 1 2 3 4 5 6 7 8 9 Power ON/OFF Dual Slimmer * Slimmer * Slimmer Pause Slimmer Timer *Control Lock *Wii-Fi *Hold 3 seconds

Using the Simmer Mode

Simmer

Use Simmer to simmer sauces or stews.

The Simmer function gives you detailed control with 3 sub-levels between power levels 1 and 2.

1 Place the cookware on any cooking zone. Activate the corresponding cooking zone.

2 Press Simmer. The burner display will change. At first, there is no sign under the cooking area, but when you select Simmer, the Simmer indicator appears under the cooking area.

3 To set and adjust the Simmer Level, touch the corresponding Power Level.

• Power level 2 will activate.
- Only power levels 1 to 3 can be selected.
- Selecting power level 4 or greater turns off the simmer function.

4 Press Simmer again to turn off the cooking zone. If the Power button is selected, all operations are turned off.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

24 OPERATION

Using the Dual Elements

The dual element, located in the right front position, offers two different sized elements to accommodate different pan sizes. Use one or two sections of the element to accommodate different pan sizes.

CBEW3013BE

Simple diagram of four circles arranged in a row with a small scale bar below (no text or symbols)

CBEW3613BE

Pure geometric diagram of five circles arranged in a grid, no text or symbols present

To Activate the Dual Element

1 Select the desired power level of the dual element. The entire dual element will activate. The indicator light below Dual turns on.

• Dual 0

2 Press the button for the dual cooking zone again to activate the inner element. The inner element will activate.

Dual

Other Functions

Pause

The Pause function reduces the power level of all active cooking zones to level 1 and maintains them at that level until deactivated. To use the pause function, press the Pause button. To turn off the pause function, press Pause again to return the cooking zone to the previous power level.

Simmer 0 1 2 3 4 5 6 7 8 9 Dual Simmer Simmer Simmer Power ON/OFF Pause Simmer Timer *Central Lock *Wii-Fi *Hold T sores

Timer

The Timer acts as a simple timer and does not turn off the cooking zone. It is not tied to any specific cooking zone. When the set time has passed, the timer sounds an alert. If the cooking zone is turned off during timer operation, the timer will continue to operate.

1 Press the Timer button and ☐ flashes in the display.

Pause Simmer Timer *Control Lock *Wi-Fi *Hold 3 seconds

2 Use the Power Level button to set the desired amount of time. After 3 seconds, the timer will start.

• Timer can be adjusted from 0 to 99 minutes.
• If no time is entered for 25 seconds, the timer will turn off.

0 1 2 3 4 5 6 7 8 9 POWER 0x/01 Pause Simmer Timer *Control Lock *Wi-Fi *Field Features

3 To cancel the timer setting, press the Timer button.

WARNING

- The Timer function does not automatically turn off the cooktop or cooking zones. Be sure to

en-us_main.book.book Page 25 Thursday, April 24, 2025 4:26 PM 25OPERATION

press the POWER button to turn the cooktop off after cooking.

Automatic Power Level Control

The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and arrow symbols, no text or labels present

26 SMART FUNCTIONS

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

• Monitoring

- This function helps you check the current status, remaining time and cook settings in one place.

• Product Notifications

- Turn on the Push Alerts to receive appliance status notifications. The notifications are triggered even if the LG ThinQ application is not open.

- Interworking Function

- The LG ThinQ application automatically turns on/off the vent fan when paired with the cooktop. Both products must be connected to the LG ThinQ application and have an interworking function.

- Firmware Update

- Keep the appliance updated.

NOTE

- In the following cases, you must update the network information for each appliance in the LG ThinQ application under Device Cards → Settings → Change Network.

- wireless router is changed - wireless router password is changed - Internet service provider is changed

• To disconnect the appliance from the Wi-Fi network, delete the cooktop from the list of connected products in the LG ThinQ application.

• The appliance is not intended to be operated by means of remote control system.

- This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ Application and Connecting an LG Appliance

Models with QR Code

Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone.

LG ThinQ

Models without QR Code

1 Search for and install the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with your existing account or create an LG account to sign in.
3 Touch the add (+) button on the LG ThinQ application to connect your LG appliance. Follow the instructions in the application to complete the process.

NOTE

• To verify the Wi-Fi connection, check that the 📞 icon on the control panel is lit.
  • The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
  • The surrounding wireless environment can make the wireless network service run slowly.
• If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.

• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
  • The network connection may not work properly depending on the Internet service provider.
• The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
• If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
  • The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.
• To reconnect the appliance or add another user, press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to connect the appliance.

LG ThinQ UP

Experience new features by upgrading the product through the LG ThinQ app.

If an upgradable feature is available, an upgrade notification appears on the product's control panel when the product is powered on and a cooking zone is selected.

For example, the lights on the display may light in sequence until UP appears.

1 Upgrade notifications are sent to your smartphone when upgradable features are available.
2 Press the upgrade notification on your smartphone to enter the Feature Updates in the LG ThinQ app.

3 In the Feature Updates, select a new function and press the Update button.

- Do not unplug the product during the upgrade, as doing so may interrupt the upgrade process.

4 After the upgrade is complete, check the guide in the LG ThinQ app for detailed feature settings.

NOTE

• This feature is only available on some models.
• After the upgrade is complete, the actual product features may differ from those described in the owner's manual.

Radio Equipment Specifications

Type	Operating Frequency Range	Output Power (Max.)
Wireless LAN	2400 MHz - 2472 MHz	< 1 W
Bluetooth ^	2400 MHz - 2483.5 MHz

† This feature is only available on some models.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules for transmitter module. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.

28 SMART FUNCTIONS

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device (transmitter module contained in this product) complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

NOTE

- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna and your body.

MAINTENANCE

Care and Cleaning

Make sure that the electrical power is off and all surfaces are cool before cleaning any part of the cooktop.

Cleaning the Cooktop

Normal Daily Use Cleaning

CAUTION

• If any sugar or food containing sugar spills, or plastic or foil melts on the cooktop, remove the material IMMEDIATELY with a metal razor scraper while the cooking surface is still hot to avoid the risk of damage to the glass-ceramic surface. When used correctly, the scraper will not damage the cooktop surface. For your safety, please use an oven mitt or pot holder while scraping the hot cooking surface.
• If water or food containing water spills, remove the spill IMMEDIATELY with a dry paper towel.
• Do not use scrub pads or abrasive cleaning pads. They may damage your cooktop surface.
• For your safety, wear an oven mitt or pot holder while cleaning the hot cooking surface.

Use ceramic cooktop cleaner on the glass cooktop. Other creams may not be as effective or may scratch, damage or stain the cooktop surface. To maintain and protect the surface of the glass cooktop, follow these steps:

1 Before using the cooktop for the first time, clean it with a ceramic cooktop cleaner. This helps protect the top and makes cleanup easier.
2 Use ceramic cooktop cleaner regularly to help keep the cooktop looking new. Always allow the cooktop to cool before using ceramic cooktop cleaner.
3 Shake the cleaning cream well. Apply a few drops of cleaner directly to the cooktop.
4 Use a paper towel to clean the entire cooktop surface.

5 Rinse with clear water and use a dry cloth or paper towel to remove all cleaning residue.

NOTE

• Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.
• Sugary spillovers (such as preserves, ketchup, tomato sauce, jellies, fudge, candy, syrups, or chocolate) or melted plastics can cause pitting on the surface of your cooktop.
• If food or water containing calcium (such as baking powder, wine, milk, spinach, or broccoli) is spilled on the cooktop, it can permanently stain or discolor the surface.

Burned-On Residue

1 While the cooktop is still warm, remove any burnt on deposits or spilled food from the glass-ceramic cooking surface with a suitable metal razor scraper. To prevent burns, wear an oven mitt or pot holder while using the metal scraper.

Hand holding a tool applying paint to a surface with scattered particles (no text or symbols visible)

NOTE

• Do not use a dull or nicked blade.
• Hold the scraper at approximately a 30^ angle to the cooktop.
  • The razor scraper will not damage the markings on the cooking surface.

2 When the cooking surface has completely cooled, apply a few fingertip-sized dabs of a glass-ceramic cooktop cleaner in each burner area. Work the cleaning cream over the cooktop surface with a damp paper towel. Leave the cleaner on for 10 minutes before rinsing it off.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

30 MAINTENANCE

Illustration of two hands using a tool to apply substances on a flat surface (no text or symbols)

3 Rinse with clean water and wipe the cooktop surface with a clean, dry cloth.

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Maintaining the Cooktop

CAUTION

• Do not use chlorine bleach, ammonia, or other cleaners not specifically recommended for use on glass-ceramic cooktops.
• Let your glass-ceramic cooking surface cool off before cleaning.

	Wipe off with a damp towel and mild detergent	Use a metal scraper	Apply cooktop cleaning cream. Rub with a towel.	Rinse with a damp towel, then wipe dry.
Regular (Recommended after each use)
Occasional (Recommended every week)
Thorough (Recommended for tough stains or burnt-on food)

NOTE

- For additional product information, visit our website at www.lg.com

Metal Marks and Scratches

CAUTION

• Cookware with rough or uneven bottoms can mark or scratch the cooktop surface.

Diagram showing a hand using a tool to interact with a bowl on a surface, with directional arrows indicating movement or force.

• Do not slide metal or glass across the cooktop surface.
• Do not use cookware with any dirt build-up on the bottom.

- Do not use cookware if there is foreign matter on the cooktop surface. Always clean the cooktop surface before cooking.

NOTE

- Any damage or failure of the product resulting from the items below may not be covered under the LIMITED WARRANTY.

• Be careful not to slide pots and pans across the cooktop. Doing so will leave metal markings on the cooktop surface. To help remove these marks, use a ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.
• If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave a black discoloration on the cooktop. This should be removed immediately before heating again or the discoloration may be permanent.

TROUBLESHOOTING

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

For detailed information or videos, visit www.lg.com for the troubleshooting page.

Parts and Features

Problem Possible Cause & Solution
Cooktop does not work	Cooktop controls are locked.· See Using Control Lock to turn off the Control Lock feature.
	Circuit breaker has tripped or fuse is blown.· Reset the circuit breaker.
	Power outage.· Check house lights to confirm power outage.
	Installation wiring not complete.· Contact the installer or dealer.
Cooktop does not heat	Incorrect element selected.· Make sure the correct control is ON for the cooking zone being used.
	No power to cooktop.· See “Cooktop does not work” above.
	Fan stuck.· Check the left fan and right fan.· Check the left fan and right fan Harness.
Elements turn off while cooking.	Cooktop inner temperature is too high.· Check that cooktop has been installed according to the installation instructions.
Elements do not get hot enough.	Control panel may not be set properly.· Check the power level.
	Cookware may not be the correct size or may have a flat bottom.· Use the recommended cookware. See Cookware section.
A fan sound can be heard.	Cooktop inner temperature is high.· This is normal.The cooling fan will run when any element is turned on. With heavy use the fan may continue to run after the controls are turned off until the cooktop has cooled.
Noises are heard during cooking.	Ticking sound· Caused by the mechanical switches.
Output power is different when the same group of cooking zone is used.	Cooktop is overheated.· The power level displayed may be different from the actual power level at the high end of the temperature range. To prevent the cooktop from overheating, the power level is controlled automatically.
The Control Panel does not work properly.	Hot cookware is placed on top of the control panel.· To prevent malfunction, do not place the hot cookware on top of the control panel.

32 TROUBLESHOOTING

Problem Possible Cause & Solution
The Control Panel does not work properly.	Error code E1, E2 appears on the display.Electronic control has detected a fault condition. Turn the power off and on again to turn off the error code.If the issue recurs, call for service.
	Error code does not appear on the display.Turn off the cooktop and restart it.If the problem continues, turn the circuit breaker off for 60 seconds and turn it back on. If the problem is not fixed, contact a local LG service center or Customer Information Center.
Control panel light is not working	The LEDs on the control panel turn off after a few minutes to save energy.Press any key to activate the control panel. If the controls are idle for a few minutes, the LEDs will turn off again automatically.
Timer does not turn off the cooking zone.	This is normal.The kitchen timer/cooking timer acts as a simple timer and does not turn off the cooking zone.
The hot surface indicator stays on after the cooking zones are turned off.	This is normal.After you turn off the cooking zones, the indicator remains on until the ceramic glass surface cools down.If the temperature near the product is high, it may take longer for the ceramic glass surface to cool down.

Wi-Fi

Problem Possible Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The password for the Wi-Fi network was entered incorrectly. · Delete your home Wi-Fi network and begin the connection process again.
	Mobile data for your smartphone is turned on. · Turn off the Mobile data on your smartphone before connecting the appliance.
	The wireless network name (SSID) is set incorrectly. · The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz. · Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The appliance and the router are too far apart. · If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.
	During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones). · Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name. - If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345. - If the network name looks like LGE_Appliance_XXXX, enter XXXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance.

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS ("LG") TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Radiant Cooktop ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

Warranty Period Scope of Warranty HOW SERVICE IS HANDLED
One (1) year from date of original retail purchase	Parts and Labor (internal / functional parts only)	LG will provide, free of charge, all labor and in-home service to replace defective part(s).

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of LG.
  • Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEALERS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.
• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of LG.

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

34 LIMITED WARRANTY

• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
  • Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by LG.
• Damage or missing items to any display or open box Product.
  • Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined.
  • Increases in utility costs and additional utility expenses.
  • Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-800-243-0000 and select the appropriate option from the menu.

Or visit our website at http://www.lg.com

Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support and clicking on "How do I find my model number?").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any

en-us_main.book.book Page 36 Thursday, April 24, 2025 4:26 PM

36 LIMITED WARRANTY

way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Pure geometric lines and shapes without any text, numbers, or symbols

CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Radiant Cooktop ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased from an authorized retailer and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin sixty (60) days from the date of manufacture).

Parts and Labor (internal/functional parts only)

One (1) year from the date of original retail purchase

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
  • Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this Limited Warranty.

DISCLAIMER:

IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO'S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY WARRANTIES PROVIDED THEREUNDER.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE, UNLESS SUCH LIMITATION IS PROHIBITED BY THE LAWS OF THE PROVINCE IN WHICH YOU RESIDE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, OR IF OTHERWISE PROHIBITED BY THE LAW OF THE PROVINCE IN WHICH YOU RESIDE, LGECI DOES NOT MAKE ANY OTHER WARRANTIES OR CONDITIONS RESPECTING THE PRODUCT, AND HEREBY DISCLAIMS, ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that

38 LIMITED WARRANTY

negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

- Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;

- Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service:

- Damage or failure caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air;

- Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual:

- Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer;

- Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual:

- Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product:

- Damage or failure caused by incorrect electrical current, voltage or plumbing codes;

- Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual:

- Damage or failure caused by the use of any accessories, components or cleaning products, including, without limitation, water filters, that are not approved/authorized by LGECI;

- Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to L GECT within one (1) week of delivery of the Products:

- Damage or missing items to any display, open box, refurbished or discounted Product;

• Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;

- Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGFCI:

- Increases in utility costs and additional utility expenses in any way associated with the Product;

• Any noises associated with normal operation of the Product;

- Replacement of any part that was not originally included with the Product;

- Replacement of light bulbs, filters, fuses or any other consumable parts;

• Costs associated with removal and/or reinstallation of the Product for repairs; and

- Shelves, door bins, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.

- Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

All costs and expenses associated with the above excluded circumstances, listed under the heading, This Limited Warranty Does Not Cover, shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION, PLEASE CALL OR VISIT OUR WEBSITE:

Call 1-888-542-2623 (8 am - 9 pm EST, 365 days) and select the appropriate option from the menu, or visit our website at http://www.lg.com

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with provincial legislation, the consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. For consumers in Ontario and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim,

40 LIMITED WARRANTY

action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out. The arbitration provision does not apply to consumers in Ontario and Québec.

For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out;" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/).

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUAL DEL PROPIETARIO

ESTUFA DE VIDRIO CERÁMICO RADIANTE

CBEW3013BE, CBEW3613BE

2

ÍNDICE

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

① ② ③ ④ ⑤

Cleaner ① ② ③ ④ ⑤

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

10 INSTALACIÓN

INSTALACIÓN

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Technical drawing of a mechanical component with labeled dimensions and cross-sections

2 3/4" (70 mm)

ESPAÑOL

Pure geometric diagram with intersecting lines and circles, no text or symbols present

16 INSTALACIÓN

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 8.

Technical diagram of a mechanical device with numbered components for identification

Simple line drawing of a rectangular frame with two vertical connectors and a numbered label (1) at the base, no text or symbols present.

Technical diagram showing two stacked rectangular plates with labeled dimensions and directional arrows indicating force or movement.

Pure geometric diagram with intersecting lines and a circular pattern (no text or symbols)

18 INSTALACIÓN

Technical diagram showing two stacked rectangular panels with labeled components and directional arrows indicating movement or force.

①Atrás
②Delante

NOTA

Isometric diagram of two stacked rectangular panels with a small inset box, no text or symbols present

NOTA

Technical diagram showing a mechanical assembly with numbered components and a magnified view of a disassembled part.

①Placa de cocción

Three identical cooking pots with no symbols, placed on a heating scale (no text or labels)

Three identical cooking pots on stovels with steam rising from each, no text or symbols present

es-us_main.book.book Page 20 Thursday, April 24, 2025 4:31 PM

20 FUNCIONAMIENTO

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

24 FUNCIONAMIENTO

Simple diagram of four circles arranged in a row, with a scale bar at the bottom (no text or symbols on the circles)

CBEW3613BE

Pure geometric diagram of five circles arranged in a grid, no text or symbols present

ESPAÑOL

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

26 FUNCIONAMIENTO

Temporizador

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Hand holding a tool applying paint to a surface with scattered particles (no text or symbols visible)

NOTA

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Illustration of two hands using a pipette to apply small objects on a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Diagram showing a hand using a tool to press a bowl on a surface with directional arrows, including a prohibition symbol.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

es-us_main.book.book Page 40 Thursday, April 24, 2025 4:31 PM 40 Memorándum

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

MANUEL D'UTILISATION

TABLE DE CUISSON VITROCÉRAMIQUE À ÉLÉMENTS RADIANTS

CBEW3013BE, CBEW3613BE

2

TABLE DES MATIÈRES

3 CONSIGNES DE SÉCURITÉ IMPORTANTES

3 LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION
3 MISES EN GARDE
7 MISES EN GARDE

9 APERÇU DU PRODUIT

Pure geometric diagram with intersecting lines and circles, no text or symbols present

CONSIGNES DE SÉCURITÉ IMPORTANTES

LISEZ TOUTES LES CONSIGNES AVANT L'UTILISATION

① ② ③ ④ ⑤

Cleaner ① ② ③ ④ ⑤

Illustration showing ten different types of tools and accessories, labeled 1 through 10.

Four technical illustrations of mechanical components labeled 1 to 3, including a box, flutes, and a device (no text or symbols beyond labels)

Technical drawing of a mechanical component with labeled dimensions and cross-sections

2 3/4" (70 mm)

FRANÇAIS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

16 INSTALLATION

Technical diagram of a mechanical or electrical component with numbered parts labeled 1 through 8.

Labeled diagram of a mechanical or electrical component with numbered parts for identification.

Simple line drawing of a rectangular frame with two marked points and a numbered label (1) at the base, no text or symbols present.

Technical diagram showing two stacked rectangular plates with labeled dimensions and directional arrows indicating force or movement.

18 INSTALLATION

Technical diagram showing two layered components with labeled parts and directional arrows indicating movement or force.

①Arrière
②Avant

②Comptoir
③Boulon
④ Plaques de retenue
⑤Vis de type A

Isometric diagram of two stacked rectangular panels with a small internal structure, no text or symbols present.

REMARQUE

Technical diagram showing a mechanical assembly with numbered components and a magnified view of a disassembled part.

①Surface de cuisson

FONCTIONNEMENT

Three identical cooking pots with no symbols, placed on a heating scale (no text or labels)

Three identical cooking pots on a stove, each with a prohibition symbol (no text or labels)

Two identical cooking pots with no visible text or symbols, placed on a stand (no text or labels)

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Déverrouiller

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

24 FONCTIONNEMENT

REMARQUE

Simple diagram of four circles arranged in a row with a scale bar at the bottom (no text or symbols)

CBEW3613BE

Pure geometric diagram of five circles arranged in a grid, with no text, numbers, or symbols present.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

26 FONCTIONNEMENT

Autres fonctions

Pause

Application LG ThinQ

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure geometric diagram with intersecting lines and circles, no text or symbols present

30 FONCTIONS INTELLIGENTES

Hand holding a tool applying paint to a surface with scattered particles (no text or symbols visible)

REMARQUE

Illustration of two hands using a tool to spread small objects on a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Diagram showing a hand using a spoon to interact with a bowl on a surface, with directional arrows indicating movement or force.

Pure geometric diagram with intersecting lines and circular shapes, no text or symbols present

38 GARANTIE LIMITÉE

CONTRACTUELLE, VIOLATION FONDAMENTALE, DÉLICTUELLE OU AUTRE, OU DE TOUT ACTE OU OMISSION. LA RESPONSABILITÉ TOTALE DE LGECI, LE CAS ÉCHÉANT, NE POURRA EN AUCUN CAS EXCÉDER LA SOMME QUE VOUS AVEZ PAYÉE POUR ACQUÉRIR LE PRODUIT.

fr-ca_main.book.book Page 42 Thursday, April 24, 2025 4:36 PM 42 AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular elements, no text or symbols present

fr-ca_main.book.book Page 43 Thursday, April 24, 2025 4:36 PM 43AIDE-MÉMOIRE

Pure geometric lines forming a crosshair symbol (no text or labels)

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

LG

LG Customer Information Center

For inquiries or comments, visit www.lg.com or call:

1-800-243-0000 U.S.A.

1-888-542-2623 CANADA

Register your product Online!

www.lg.com
