Type de produit	Electric Lint Remover
Marque	Tefal
Modèle	JB1011
Alimentation	2 AA (LR6) 1.5V batteries (non-rechargeable)
Poids net	170 g
Usage prévu	Removal of lint, fluff, loose threads and pills on sweaters, blouses, sweatshirts, curtains, sofas, cushions and carpets
Surfaces non adaptées	Skin, hair, animal fur, worn clothing
Matériaux principaux	Plastic, sharp metal blades
Protection de sécurité	Screw-on metal protective grid, blade guard
Entretien	Cleaning the blade with the provided brush, regular emptying of the collection bin
Accessoires inclus	Cleaning brush, AA batteries (depending on version)
Consignes de sécurité	Do not immerse in water, keep out of reach of children, use only indoors, do not use if damaged
Précautions piles	Remove batteries when not in use, do not mix old and new batteries, do not dispose of in fire
Garantie	In accordance with applicable legislation (not specified)
Réparabilité	Do not repair yourself, contact an authorized technician

Frequently Asked Questions - Lint Remover JB1011 TEFAL

How to use the Tefal JB1011 lint remover?

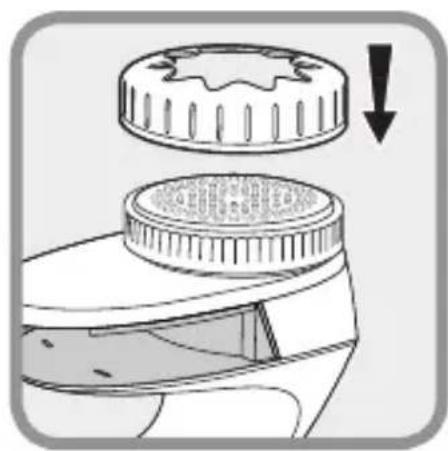

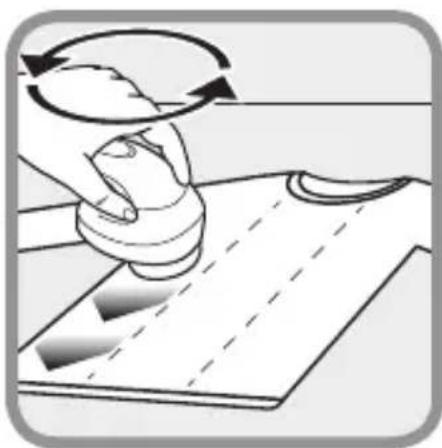

Place the fabric flat on a stable surface. Make sure the protective grid is properly screwed on. Insert 2 AA batteries into the compartment. Turn on the device and pass it gently over the fabric in regular motions. Never use on worn clothing to avoid injury.

What types of fabric can I treat?

The device is suitable for garments such as sweaters, blouses, sweatshirts, as well as home fabrics like curtains, sofas, cushions and carpets. Do not use on skin, hair or animal fur.

Can I use the device on clothing I am wearing?

No, it is strictly forbidden to use the device on worn clothing. This could cause serious injury and damage the device. Always lay the garment flat before use.

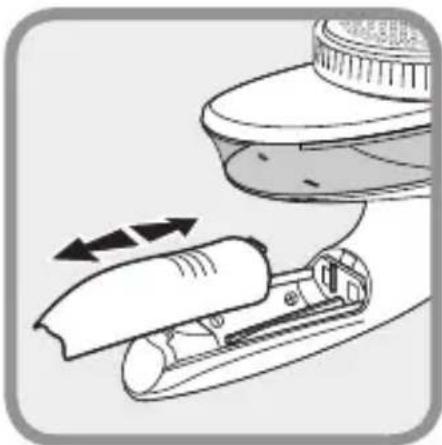

How to replace the batteries?

Open the battery compartment located under the device. Insert 2 AA (LR6) 1.5V batteries respecting the indicated polarities. Do not use rechargeable batteries. Close the compartment.

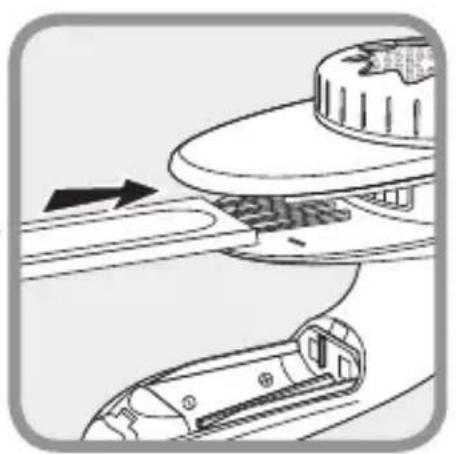

How to clean the device?

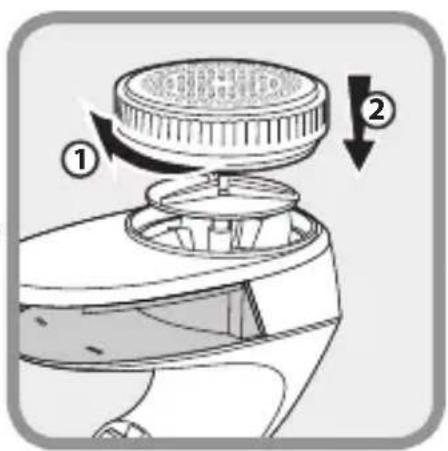

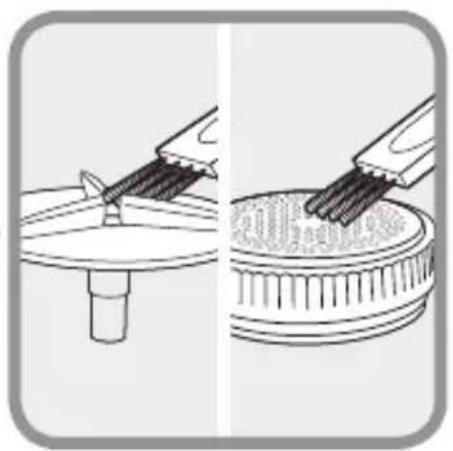

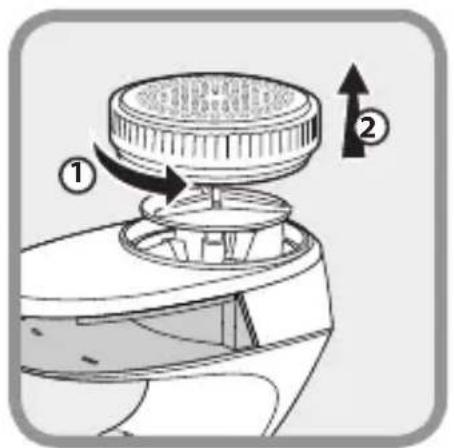

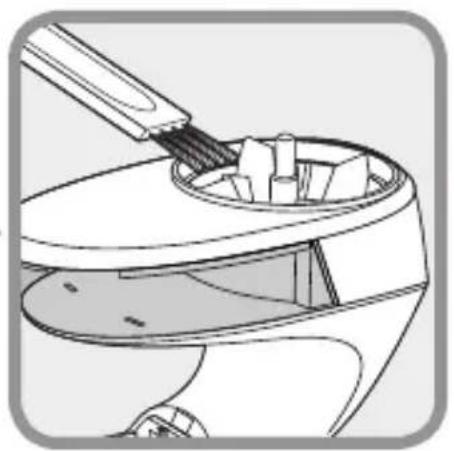

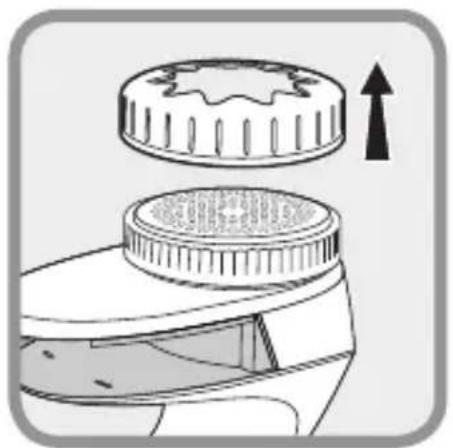

Unscrew the protective grid and remove the collection bin. Use the provided brush to clean the blades and the inside of the bin. Never immerse the device in water. Wipe the exterior with a dry cloth.

What if the blades do not rotate?

Check that the protective grid is fully screwed on. Make sure the batteries are correctly inserted and have charge. If the problem persists, clean the blades and support to remove stuck lint.

Why is the motor running slowly?

This may be due to weak batteries (replace them), a full collection bin (empty it), or lint blocking the blade support (clean it with the brush). Also ensure the grid is properly screwed on and not deformed.

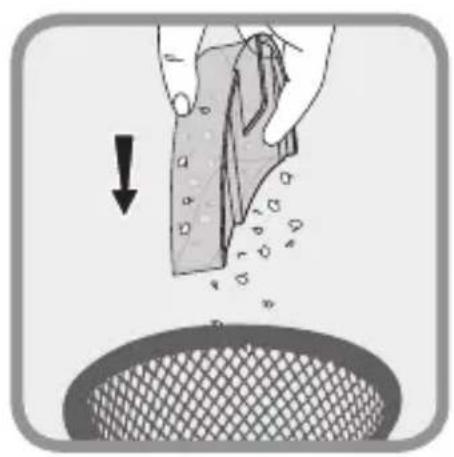

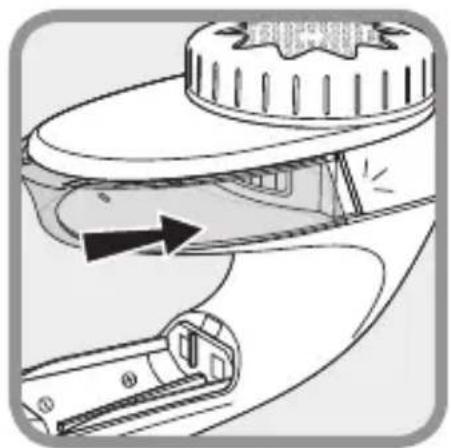

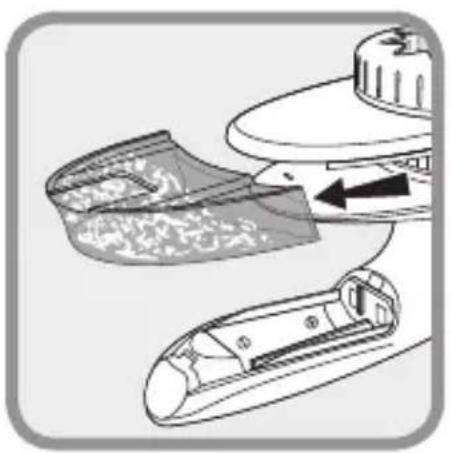

How to empty the lint collection bin?

Unscrew the protective grid and remove the transparent bin. Empty its contents into a trash can. Be careful not to damage the bin. Replace it and screw the grid back on.

Is the device safe for children?

This device should not be used by children without supervision. The blades are very sharp. Keep the device out of reach of children and animals. If used by a child, close supervision is necessary.

What if the protective grid is deformed?

If the grid is deformed, do not use the device as it may reduce efficiency and damage the blades. Contact an authorized technician for replacement. Do not attempt to repair it yourself.

USER MANUAL Lint Remover JB1011 TEFAL

EN: User's guide and safety instructions

Close-up of a handheld electronic device labeled JB10XX, showing its circular top and hexagonal grille (no readable text or symbols beyond label)

Illustration of a mechanical component with an upward arrow, no visible text or symbols

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical component with internal parts (no text or symbols)

Diagram of a mechanical device with a cylindrical component inserted, showing a directional arrow (no text or symbols present)

2.

Diagram showing directional arrows on a folded paper or sheet, no text or symbols present

ON ON

Illustration of a hand pressing down on a sheet with a circular motion arrow indicating rotation (no text or symbols)

OFF OFF

1 2 3

1 2 3

3.

NO

Simple line drawing of a folded paper or sheet with a curved edge and 'OK' label (no other text or symbols)

NO

Diagram showing a mechanical component with a textured pattern and a magnified view of its internal structure (no text or symbols)

Illustration of a textured fabric structure and a stack of coins with a cross symbol (no text or labels)

Illustration of a hand holding an ear with a zipper, no text or symbols present

Diagram showing a hand holding an ear with a vertical panel of circular buttons and an exclamation mark, likely indicating a warning or alert.

Illustration of a hand holding a small object with a dashed vertical line and an exclamation mark (no text or symbols on the object itself)

Illustration of a hand pressing down on a curved surface with motion lines, no text or symbols present

Illustration of a hand holding a computer mouse with a lace pattern and an exclamation mark (no text or symbols on the mouse itself)

Line drawing of a garment with a hand holding a small object, showing a curved line pattern (no text or symbols)

1.

Illustration of a brush applying paint to a surface with sparkles (no text or symbols)

80%

OFF

Illustration of a shoe being processed with a lid and cable, showing internal components (no text or symbols)

Illustration of a hand using a tool to remove or spread material from a mesh bowl (no text or symbols)

Diagram showing a car interior with a curved road and a vehicle, no text or symbols present

Illustration of a hand using a wrench to adjust a mechanical component, crossed out by a diagonal line (no text or symbols)

Diagram of a mechanical device with a gear and lever mechanism, showing no text or symbols

Illustration of a mechanical component with a circular top and a cylindrical base, showing an upward arrow (no text or symbols)

Diagram of a hairbrush with labeled parts and directional arrows indicating assembly or movement

Diagram of a kitchen appliance with a lid and upward arrow, no text or symbols present

Illustration showing two steps of cleaning a mechanical component: one using a tool to clean the part, the other applying material to a circular base (no text or symbols)

Line drawing of a kitchen utensil with a tool applying material to a bowl (no text or symbols)

Diagram showing a device with a downward arrow and warning symbol (no text or labels)

Diagram of a hairbrush with labeled parts and directional arrows indicating process flow

Diagram of a mechanical component with a circular top and arrow indicating downward motion (no text or symbols)

5.

Illustration of a mechanical component with a downward arrow, no text or symbols present

Diagram of a mechanical device with battery plates and a warning symbol (no text or labels)

Illustration of a hand holding a small object with a downward arrow, no text or symbols present

Illustration of a kitchen appliance with clothes hanging on racks and a water droplet above (no text or symbols)

Illustration of a hand reaching toward a window with icons for cleaning, ventilation, and warning symbols (no text or labels)

Illustration of a hand holding a 3D spiral object with motion lines, next to a rectangular panel (no text or symbols)

Illustration of a hand reaching toward falling objects with a warning symbol (no text or symbols present)

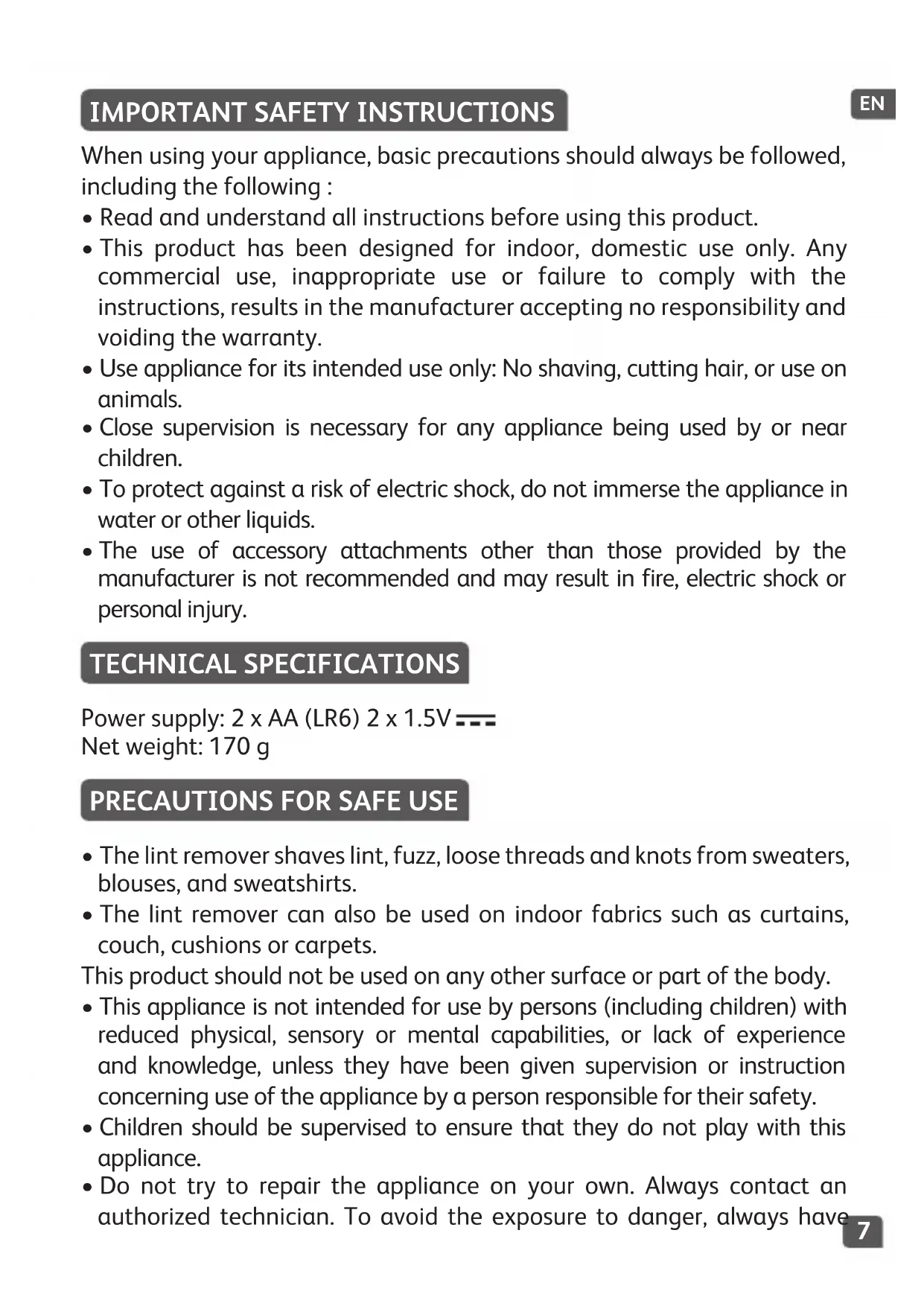

IMPORTANT SAFETY INSTRUCTIONS

When using your appliance, basic precautions should always be followed, including the following :

• Read and understand all instructions before using this product.
• This product has been designed for indoor, domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, results in the manufacturer accepting no responsibility and voiding the warranty.
• Use appliance for its intended use only: No shaving, cutting hair, or use on animals.
• Close supervision is necessary for any appliance being used by or near children.
• To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.
• The use of accessory attachments other than those provided by the manufacturer is not recommended and may result in fire, electric shock or personal injury.

TECHNICAL SPECIFICATIONS

Power supply: 2 x AA (LR6) 2 x 1.5V ---

Net weight: 170 g

PRECAUTIONS FOR SAFE USE

• The lint remover shaves lint, fuzz, loose threads and knots from sweaters, blouses, and sweatshirts.
• The lint remover can also be used on indoor fabrics such as curtains, couch, cushions or carpets.

This product should not be used on any other surface or part of the body.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with this appliance.

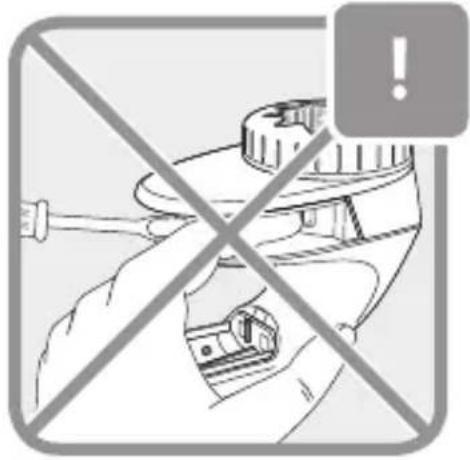

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have

damaged or faulty wires replaced only by the manufacturer, its customer service, or by qualified persons with an exact replacement.

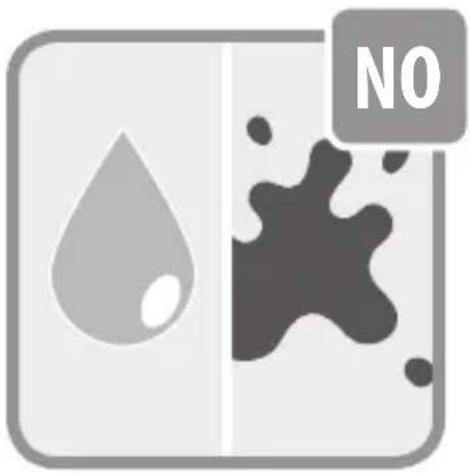

• Do not clean with any corrosive agents.
• Protect from exposure to water or other liquids

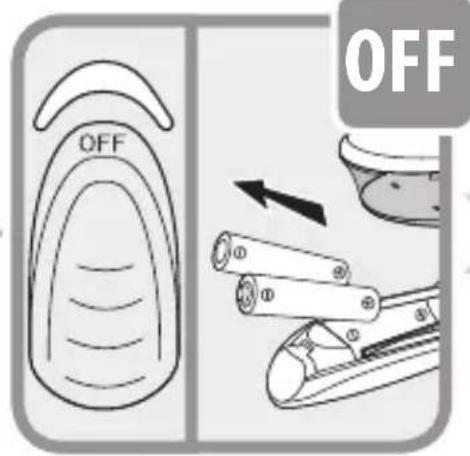

• Always remove the batteries when not using the appliance or before cleaning it.
• Be careful not to damage the shavings tray when opening it.
• Do not bend or otherwise deform the metal blade guard.

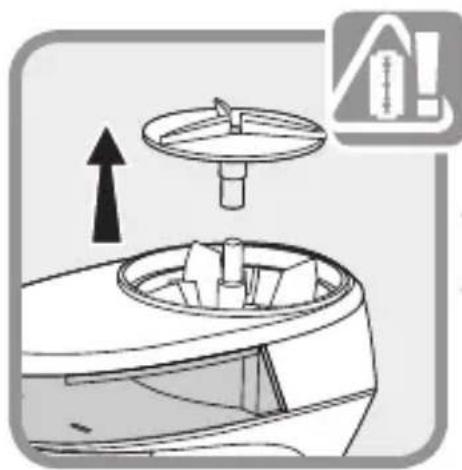

• Be extremely careful when removing the blades.
• CAUTION! The lint remover blades are very sharp.

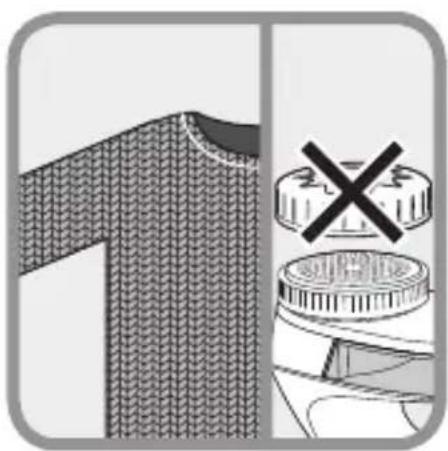

• CAUTION! Do not use the lint remover without the blade guard.

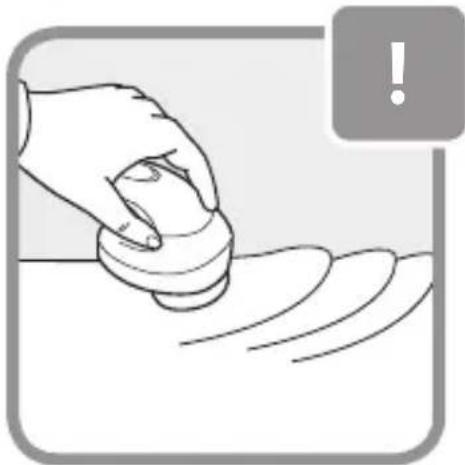

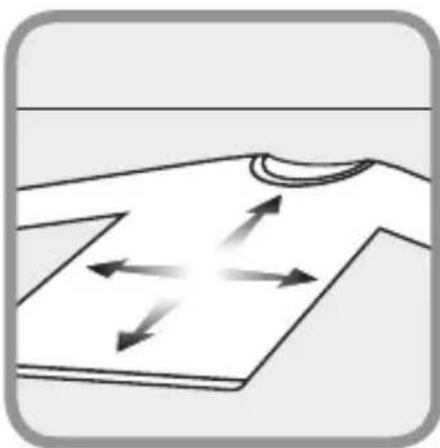

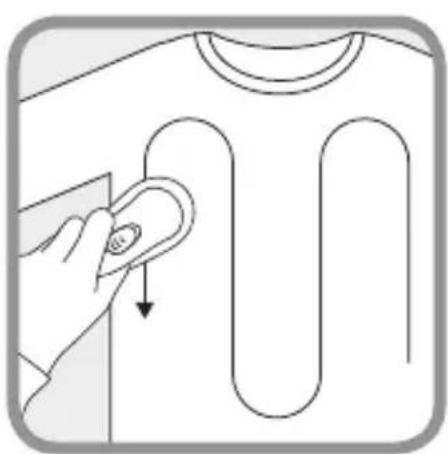

• Spread the fabric flat before shaving.

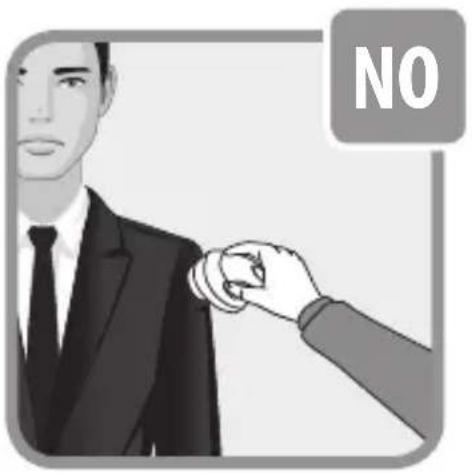

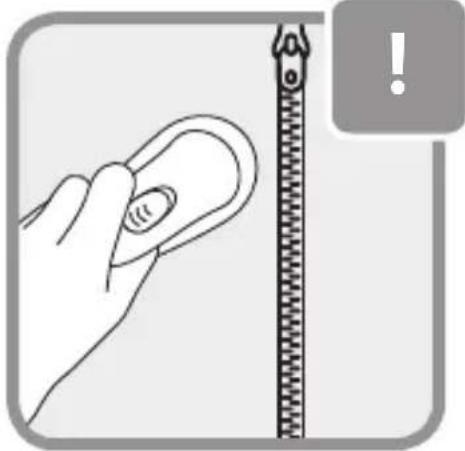

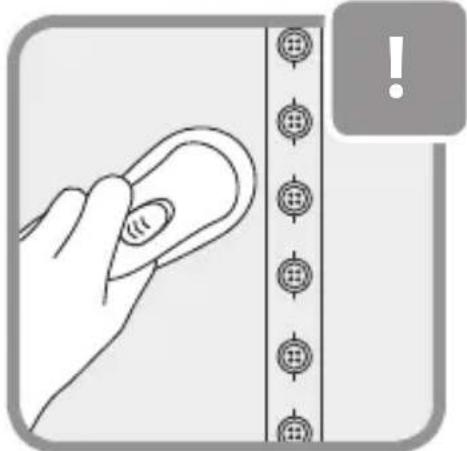

• Do not shave any clothes worn on the body. Otherwise bodily injury or damage to the lint remover may occur.

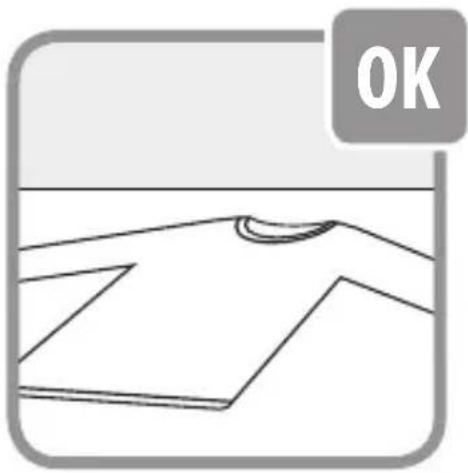

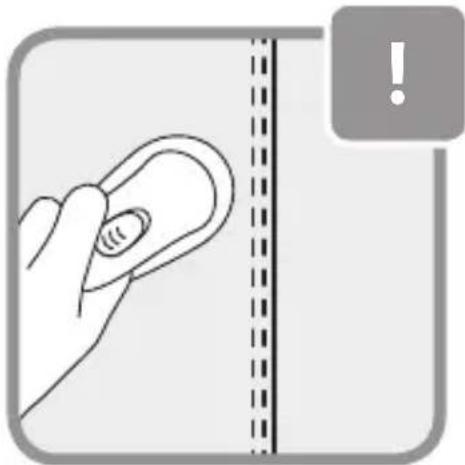

• To guarantee best results and safety, use only when garment is flat on a surface and not when worn. Operation best efficiency will be obtained on a flat surface. Using when garment is worn may, in case of abnormal use, cause injuries.

THINK OF THE ENVIRONMENT!

Your appliance contains many materials which can be recovered or recycled.
Leave it at a local civic collection point.

CAUTION!

This appliance is powered by 2 x AA (LR6) 1.5V ---

The batteries are included with the product.*

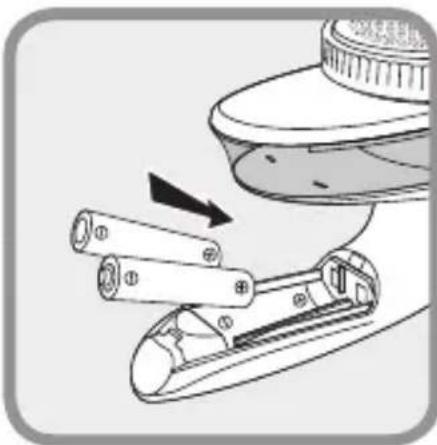

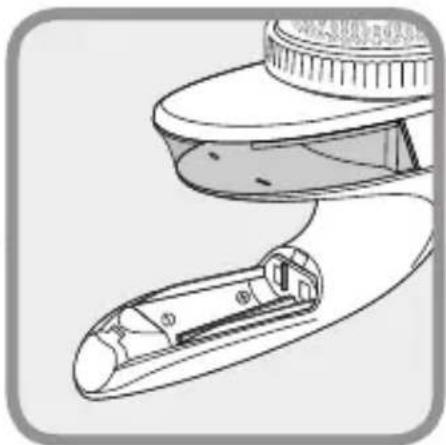

When installing new batteries, refer to the polarity symbols inside the battery compartment.

Use batteries of the type recommended for this appliance, i.e. 2 x AA (LR6) 1.5V ---. Never use rechargeable batteries

Do not discard spent batteries with household waste; discard to special battery collection containers.

Do not recharge non-rechargeable batteries.

Do not short cut the battery terminal.

Never expose the batteries to direct heat, e.g. direct sunlight, radiators, or fire.

Explosion hazard! Do not disassemble, short circuit or throw the batteries into fire.

Never mix discharged and new batteries.

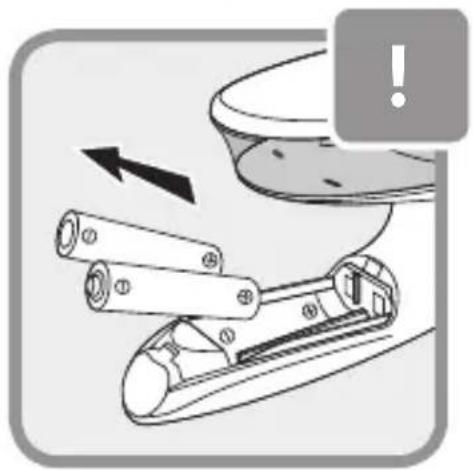

Always remove the batteries from the appliance when not in use. This will prevent damage to the appliance if the electrolyte leaks from the batteries.

Immediately remove the batteries from the appliance when spent.

Discharged batteries may leak and damage the appliance.

If you touch battery acid with your hands, rinse them under running water. In the event of eye contact with battery acid, seek medical attention. The battery acid may cause irritation or chemical burns.

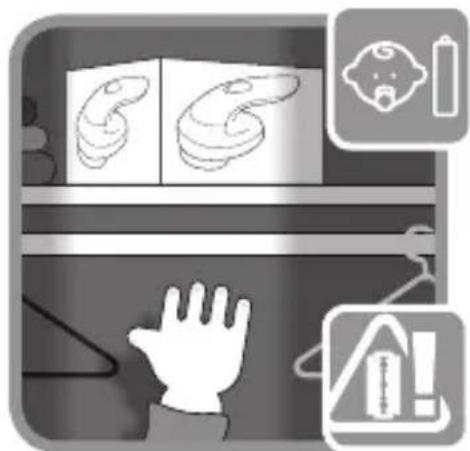

Swallowing a battery can be fatal! Keep the batteries away from children and pets. If you swallow a battery, immediately seek medical attention.

IS THERE A PROBLEM?

Problems Possible cause Solutions
Blades do not turn when switch on	Metal grid blades guard is not fully screwed.	Fully screw the metal grid blades guard.
	Battery low power or lose performance.	Replace battery
	Battery installed Upside-Down.	Correctly place the battery in the appropriate direction. Check the contacts are not deformed
	Battery is the wrong model.	Replace by AA (LR6) 1.5V——Check the contacts are not deformed.
Motor speed is slowed	Battery low power or decreased performance.	Replace battery.

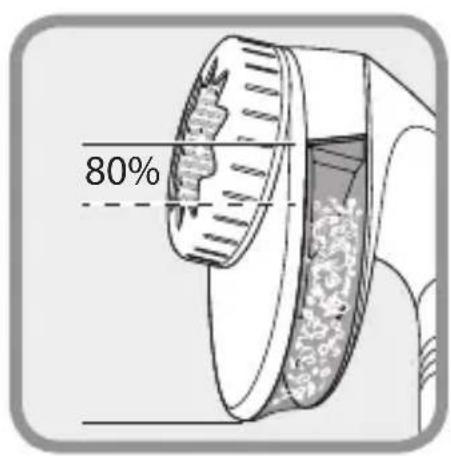

	Lint tank is full. Empty tank
	Blade support is stuck by lint.	Remove grid. Clean up blade support by brush use.
	Metal grid blades guard is not fully screwed.	Check the guard and fully screw it in if necessary
	Grid metal blade guard is deformed.	To check grid.

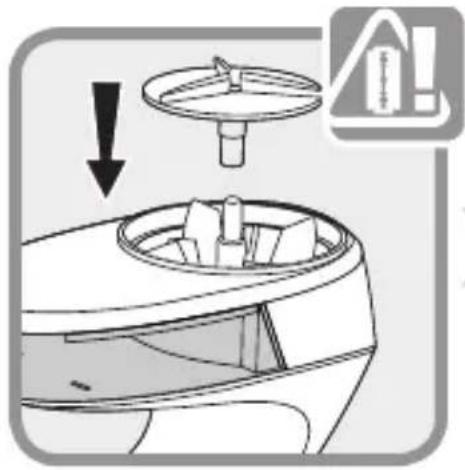

	Blade support is not well located.	Unscrew metal grid blades guard. Check that the blades support is fully inserted in its axis.

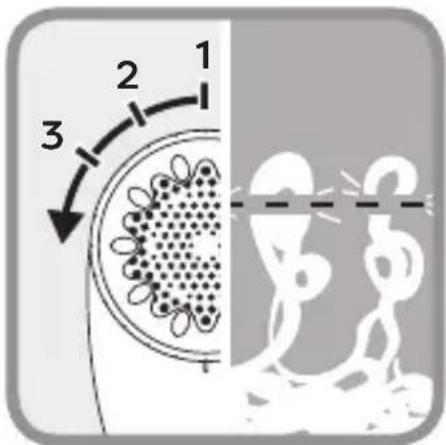

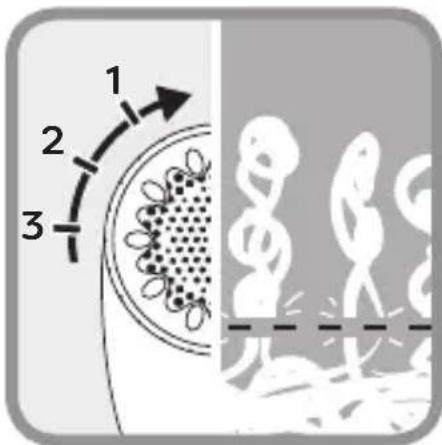

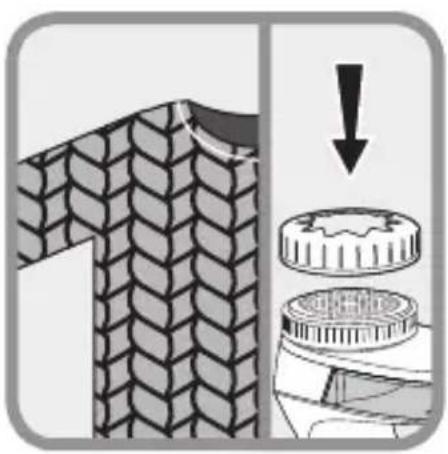

Decreased efficiency	Height is not adapted to the lint.	Adjust the shaving height by turning the height adaptor.
	Motor speed is low	Check batteries. Check Lint tank.
