P3278LVE - Surveillance Camera AXIS - Free user manual and instructions

Product Type	Surveillance Camera
Brand	Axis
Model	P3278LVE
Power Supply	PoE (Power over Ethernet), compliant with IEEE 802.3af/at
Network Cable Type	Shielded STP cable, category CAT5e or higher
Internal Battery	Lithium BR1632 3.0 V for real-time clock (RTC), minimum lifespan of 5 years
Dimensions (approximate)	Diameter 100 mm, height 80 mm
Weight (approximate)	0.5 kg
Dome/Window Cleaning	Soft damp cloth with lukewarm water, avoid chemicals, do not rub dry
Safety Instructions	Install out of reach of children, dry and ventilated environment, secure mounting, use recommended tools
Repairability	Do not repair yourself, contact Axis support or authorized reseller
Spare Parts	Battery replaceable only by Axis support
Operating Temperature	Not specified, indoor/outdoor use depending on range
Ingress Protection Rating	Not specified, typically IP66 or IP67 for outdoor use

Frequently Asked Questions - P3278LVE AXIS

How to clean the dome or front window of the camera?

Use a soft damp cloth with pure lukewarm water. Avoid chemicals such as glass cleaner or acetone. Do not clean in direct sunlight or at high temperatures, as this may leave streaks. Never rub a seemingly clean surface.

What battery does the camera use and how long does it last?

The camera uses a BR1632 3.0 V lithium battery for the real-time clock (RTC). Under normal conditions, its minimum lifespan is five years.

Can I replace the battery myself?

No, it is not recommended to replace the battery yourself. Contact Axis support or an authorized reseller if a log message indicates a low battery.

What type of network cable is recommended?

Axis recommends using a shielded network cable (STP) of category CAT5e or higher, properly grounded.

Where to install the camera to ensure proper operation?

Install the camera in a dry and ventilated environment, away from shocks and strong pressures. Use screws and anchors suitable for the mounting material. Avoid unstable surfaces.

What to do in case of a technical problem?

Do not attempt to repair the device yourself. Contact Axis technical support or your Axis reseller for any maintenance or repair issues.

Is the camera compliant with standards?

Yes, the device complies with CAN ICES-3 (Class A) and CAN NMB-3 (Class A) in Canada. In the United States, it meets FCC requirements.

Can I use an unshielded cable?

Axis recommends a shielded STP cable properly grounded to comply with electromagnetic compatibility standards. Using an unshielded cable could cause interference.

How to safely transport the camera?

Use the original packaging or equivalent to avoid damaging the product during transport.

What accessories are recommended?

Use only accessories that comply with the technical specifications, preferably supplied or recommended by Axis, including compatible power equipment.

USER MANUAL P3278LVE AXIS

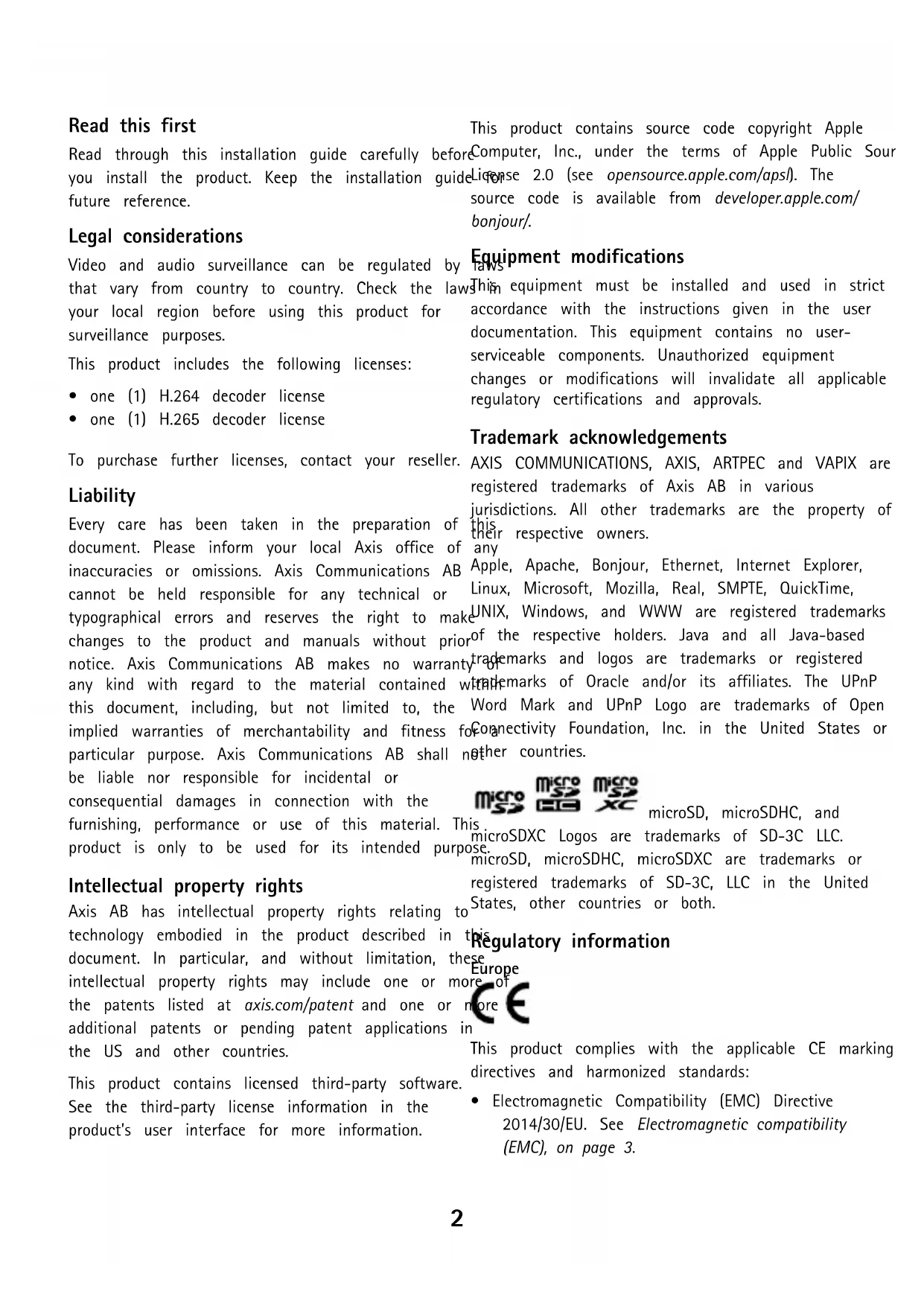

Read through this installation guide carefully before you install the product. Keep the installation guide future reference.

Legal considerations

Video and audio surveillance can be regulated by that vary from country to country. Check the law your local region before using this product for surveillance purposes.

This product includes the following licenses:

• one (1) H.264 decoder license
• one (1) H.265 decoder license

To purchase further licenses, contact your reseller.

Liability

Every care has been taken in the preparation of document. Please inform your local Axis office of inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Axis Communications AB makes no warranty any kind with regard to the material contained with this document, including, but not limited to, the implied warranties of merchantability and fitness for particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. The product is only to be used for its intended purpose.

Intellectual property rights

Axis AB has intellectual property rights relating to technology embodied in the product described in the document. In particular, and without limitation, the intellectual property rights may include one or more, the patents listed at axis.com/patent and one or more additional patents or pending patent applications in the US and other countries.

This product contains licensed third-party software. See the third-party license information in the product's user interface for more information.

This product contains source code copyright Apple Computer, Inc., under the terms of Apple Public Source License 2.0 (see opensource.apple.com/apsl). The source code is available from developer.apple.com/bonjour/.

Equipment modifications Taws

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Trademark acknowledgements

AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of this their respective owners. any Apple, Apache, Bonjour, Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, Real, SMPTE, QuickTime, UNIX, Windows, and WWW are registered trademarks of the respective holders. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. The UPnP Word Mark and UPnP Logo are trademarks of Open Connectivity Foundation, Inc. in the United States or other countries.

microSD, microSDHC, and is microSDXC Logos are trademarks of SD-3C LLC. ose. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

this Regulatory information

Europe

This product complies with the applicable CE marking directives and harmonized standards:

- Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic compatibility (EMC), on page 3.

• Low Voltage Directive (LVD) 2014/35/EU. See Safety, on page 4.
• Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU and 2015/863, including any amendments, updates or replacements. See Disposal and recycling, on page 4.

A copy of the original declaration of conformity be obtained from Axis Communications AB. See Contact information, on page 6.

Electromagnetic compatibility (EMC)

This equipment has been designed and tested to applicable standards for:

• Radio frequency emission when installed according to the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environm

USA

This device complies with part 15 of the FCC Ru Operation is subject to the following two conditions

1. This device may not cause harmful interference, and
2. this device must accept any interference receive including interference that may cause undesired operation.

This equipment has been tested using an unshielded network cable (UTP) and found to comply with the limits for a Class A digital device, pursuant to p of the FCC rules. This equipment has also been f using a shielded network cable (STP) and found t

comply with the limits for a Class A digital devi
pursuant to part 15 of the FCC rules. These limits designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to occur harmful interference in which case the user will

required to correct the interference at his own expense.

Contact information

Axis Communications Inc.

300 Apollo Drive

Chelmsford, MA 01824

United States of America

Tel: [phone]

Canada

This digital equipment fulfills the requirements for RI emission according to the Class A limit of EN 5503 The product shall be connected using a shielded

unrestwork cable (STP) that is properly grounded. Notice of this is a Class A product. In a domestic environment, this product may cause RF interference, in which can the user may be required to take adequate measures:

Australia/New Zealand

This digital equipment fulfills the requirements for RI emission according to the Class A limit of AS/NZS CISPR 32. The product shall be connected

using a shielded network cable (STP) that is properly grounded. Notice! This is a Class A product. In a domestic environment this product may cause RF interference, in which case the user may be required to take adequate measures.

ice, Japan

This product complies with IEC/EN/UL 62368-1 ed. safety of audio/video and IT equipment for outdoor use.

The product shall be grounded either through a shielded network cable (STP) or other appropriate method.

The product shall be grounded via an appropriate grounding cable.

When used with Power over Ethernet (PoE), the Sourcing Equipment (PSE) shall comply with IEEE 802.3af and Limited Power Source (LPS) according annex Q of IEC/EN/UL 62368-1.

We recommend the use of Axis midspans or Axis products. switches.

Photobiological safety

This product fulfills the requirements for photobiological safety according to IEC/EN 62471 (exempt).

Disposal and recycling

When this product has reached the end of its use, life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable incorrect disposal of this waste.

Europe

This symbol means that the product shall not be disposed of together with household or commercial waste. Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) is applicable in the European Union member states. To prevent potential hard to human health and the environment, the product must be disposed of in an approved and environmentally safe recycling process. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. Businesses should contact the product supplier for information about how to dispose of this product correctly.

This product complies with the requirements of Directive 2011/65/EU and 2015/863 on the restriction of the use of certain hazardous substances in electric and electronic equipment (RoHS).

China

This product complies with the requirements of S^10/T 11364-2024, Marking for the restriction of hazardous substances in electrical and electronic

有毒有害物质或元素
部件名称 电气实装部分
铅 (Pb) X
汞 (Hg)	○
镉 (Cd) ○
for六价铬 (Cr(VI)) ○
多溴联苯 (PBB) ○
多溴二苯醚 (PBDE)	○

Declaration of the Presence Condition of the Restrict Substances Marking.

限用物質含有情況標示

Axis Communications AB

Gränden 1

223 69 Lund

Sweden

Tel: [phone]

axis.com

Warranty information

For information about Axis' product warranty and thereto related information, go to axis.com/warranty.

Support

If you need technical assistance, contact your Axis reseller. If your questions can't be answered immediately, your reseller will forward your question through appropriate channels to ensure a quick response. At axis.com/support you can:

• download user documentation and software updates
  • find answers to your questions in the FAQ portal
• chat with and report problems to Axis support by logging in to your private support area

Cybersecurity

Axis security notification service

Axis provides a notification service with information about vulnerability and other security related matters for Axis devices. To receive notifications, you can subscribe at axis.com/security-notification-service.

Vulnerability management

To minimize customers' risk of exposure, Axis, as a Common Vulnerability and Exposures (CVE) numbering authority (CNA), follows industry standards to manage and respond to discovered vulnerabilities in our devices, software, and services. For more information about Axis vulnerability management policy, how to report vulnerabilities, already disclosed vulnerabilities, and corresponding security advisories, see axis.com/vulnerability-management.

Secure operation of Axis devices

Axis devices with factory default settings are pre-configured with secure default protection mechanisms. We recommend using more security configuration when installing the device. To learn more about Axis' approach to cybersecurity, including best practices, resources, and guidelines for securing your devices, go to axis.com/about-axis/cybersecurity.

Learn more!

Visit Axis learning center axis.com/learning for useful trainings, webinars, tutorials and guides.

English

Safety information

Other message levels

Important

Indicates significant information which is essential for the product to function correctly.

Note

Indicates useful information which helps in getting the most out of the product.

Safety instructions

NNOOTT

• The Axis product shall be used in compliance with local laws and regulations.
  • This product is for professional use.
• Install this product at a safe distance from children.
• Axis recommends using a network cable of category CAT5e or higher.
• Store the Axis product in a dry and ventilated environment.

- Avoid exposing the Axis product to shocks or heavy pressure.

- Install the product using screws and plugs appropriate for the material (e.g. wood, metal, sheet rock, stone).

- Do not install the product on unstable poles, brackets, surfaces or walls.

- Use only applicable tools when installing the Axis product. Using excessive force with pot tools could cause damage to the product.

- Use a soft cloth dampened with pure lukewa water to clean the device.

- Don't use chemicals such as window cleaner or acetone to clean your device.

- Use only accessories that comply with the technical specification of your product. These can be provided by Axis or a third party.

recommends using Axis power source equipment compatible with your product.

• Use only spare parts provided by or recommended by Axis.
• Do not attempt to repair the product yourself. Contact Axis support or your Axis reseller for service matters.
• Use a yellow/green colored grounding cable of at least 0.5 mm 20 AWG.

Transportation

NNOOTT

- When transporting the Axis product, use the original packaging or equivalent to prevent damage to the product.

Battery

The Axis product uses a 3.0 V BR1632 lithium bat as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

Low battery power affects the operation of the RTC causing it to reset at every power-up. When the battery voltage is low, a log message will appear in the product's server report.

CAUTION

Do not replace the battery yourself. Contact Axis support if the log message requests a battery change.

Lithium coin cell 3.0 V batteries contain 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), CAS no. 110-71-4.

Dome or front glass

NNOOTT

- Be careful not to scratch, damage or leave or fingerprints on the dome or front glass since this can decrease image quality. Keep the protective plastic on until the installation is complete.

Axis Don't clean a dome or front glass that looks

Technical line drawing of a mechanical component with a dome-shaped top and flange (no text or symbols)

1x

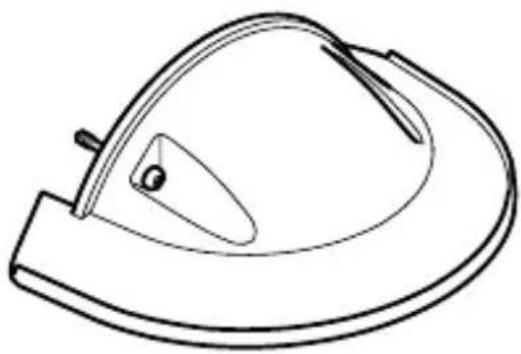

Line drawing of a curved mechanical component with a handle and central slot (no text or symbols)

1x

I/O | 1x

Diagram of a car interior with a battery pack and curved road (no text or symbols)

Simple line drawing of a mechanical component with a central shaft and concentric rings (no text or symbols)

1x

1x

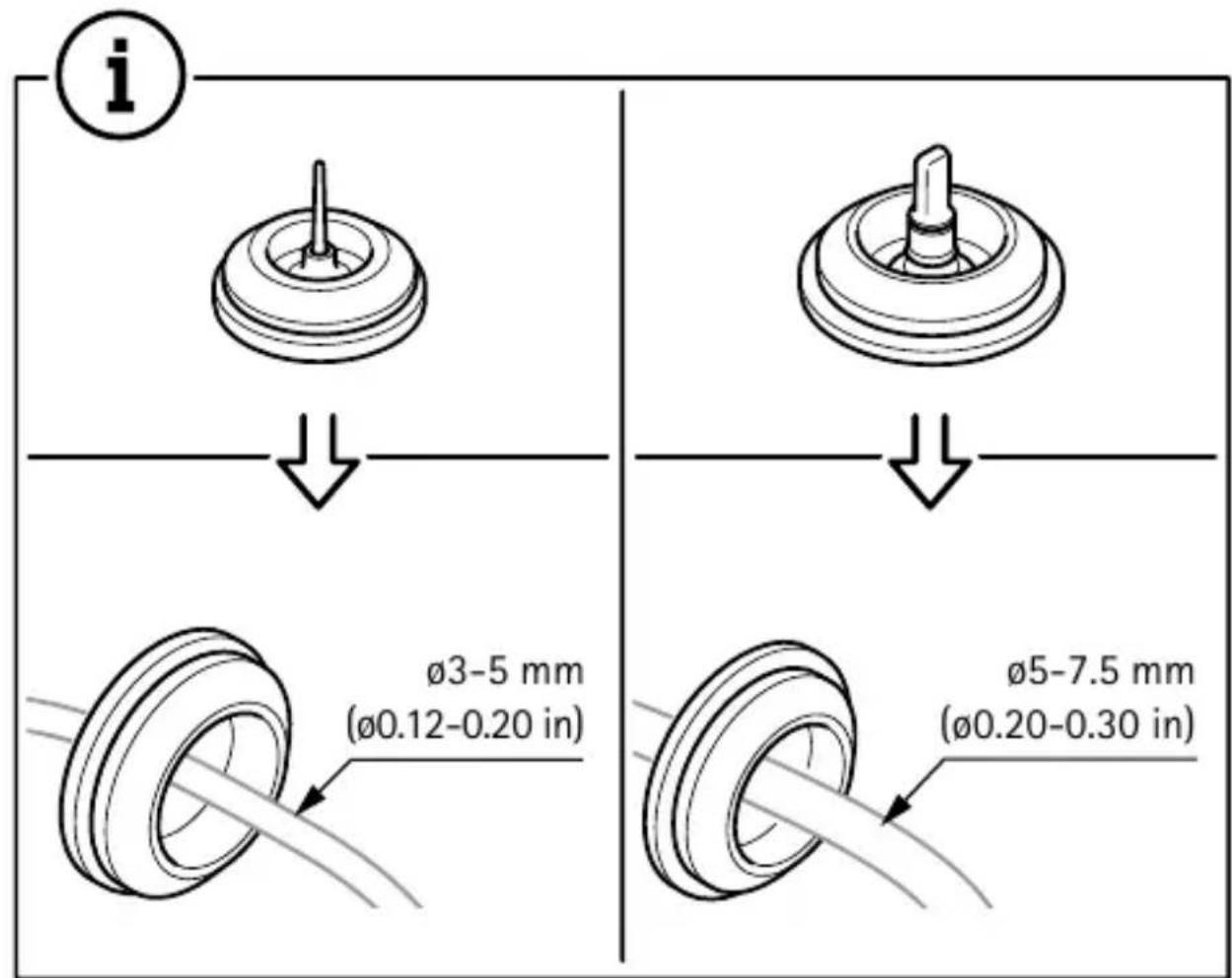

i ø3-5 mm (ø0.12-0.20 in) ø5-7.5 mm (ø0.20-0.30 in)

i

1.1

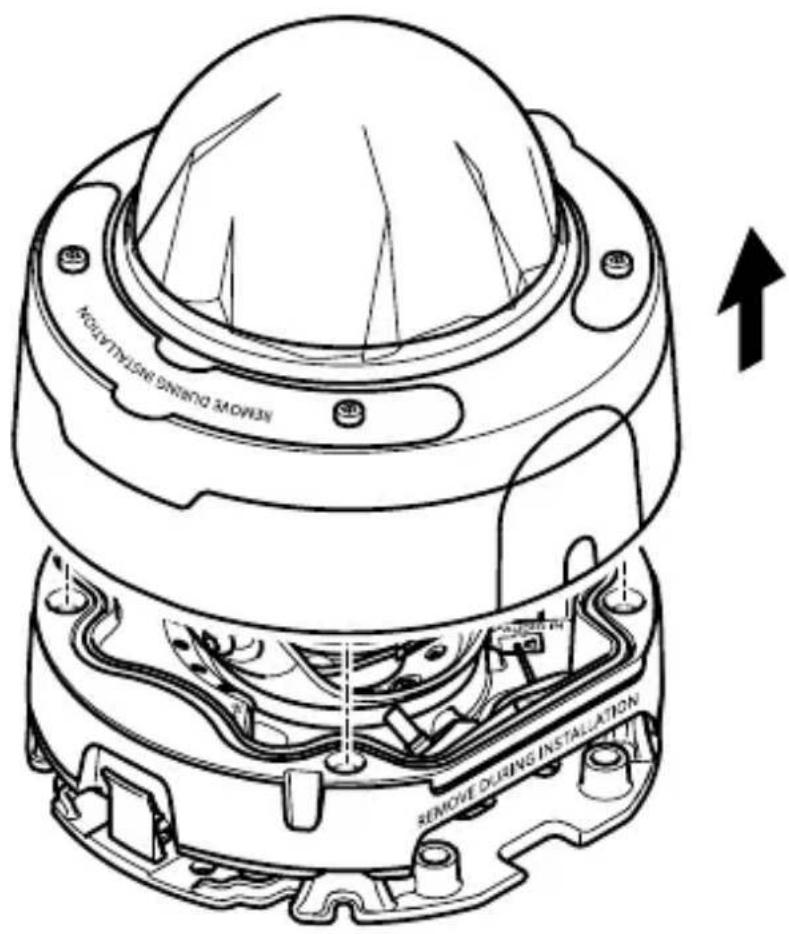

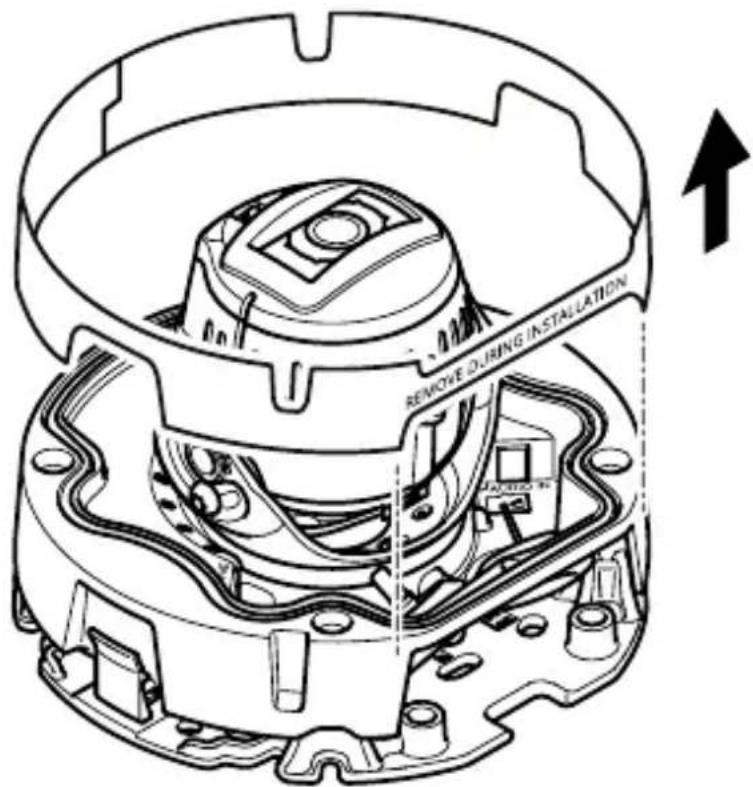

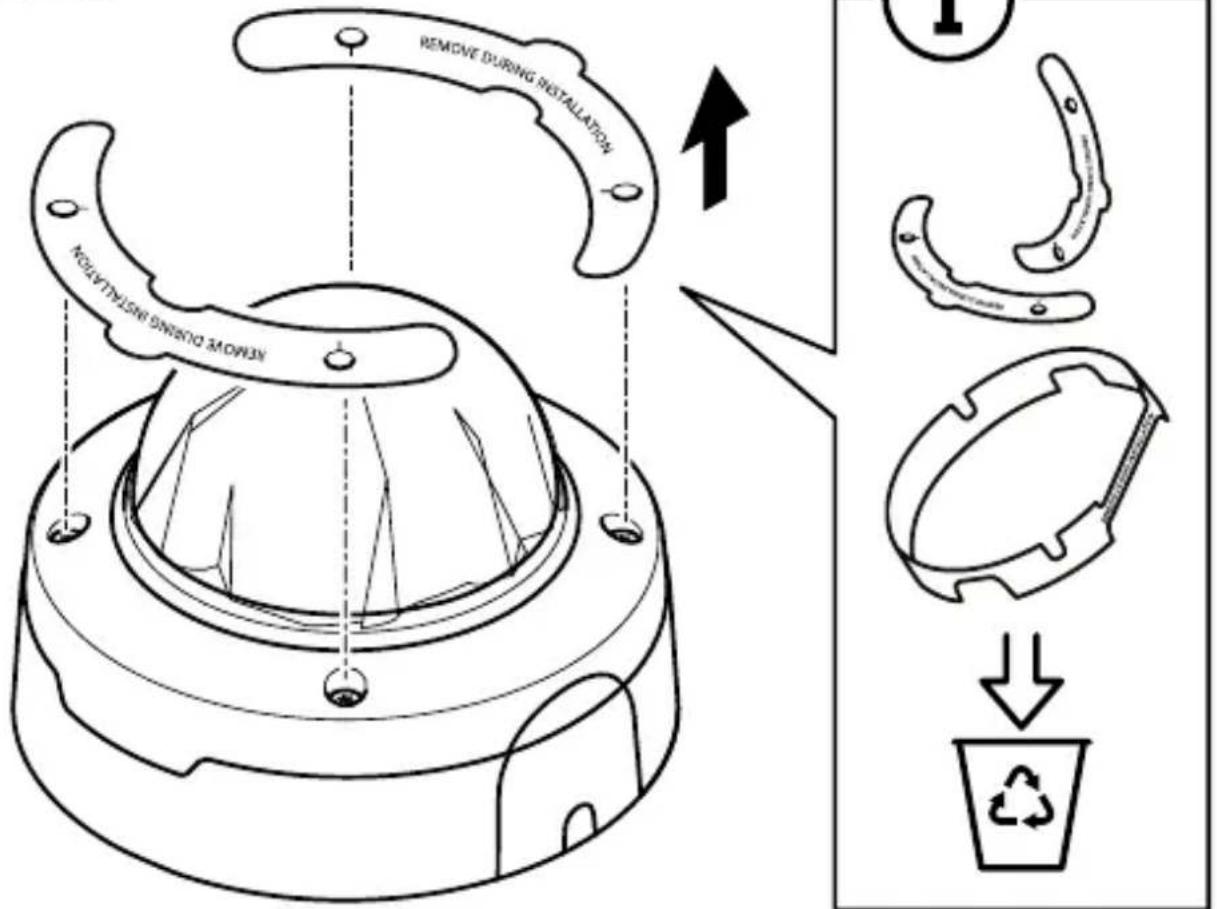

NEWLY SLIGING INSTALLATION REMOVE DURING INSTALLATION

1.2

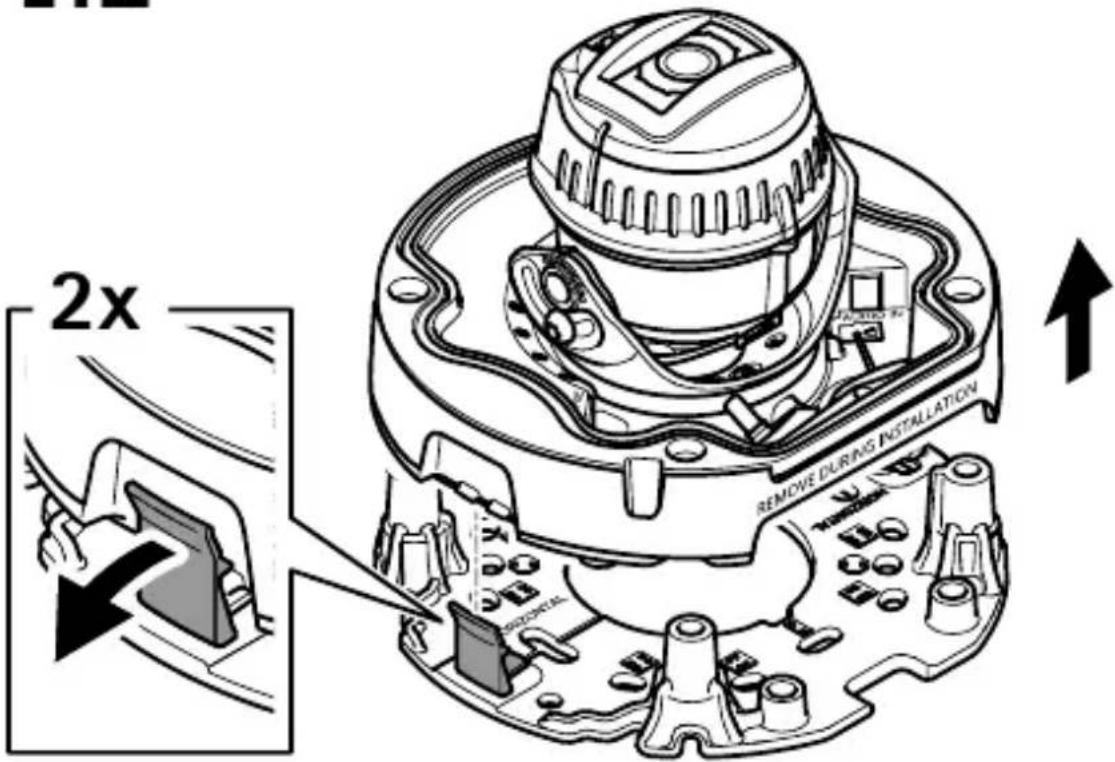

2x REMOVE DURING INSTALLATION

1.3

REMOVE DURING INSTALLATION REMOVE DUBS INSTALATION ↓ ① ↓ RECO

REMOVE DURING INSTALLATION

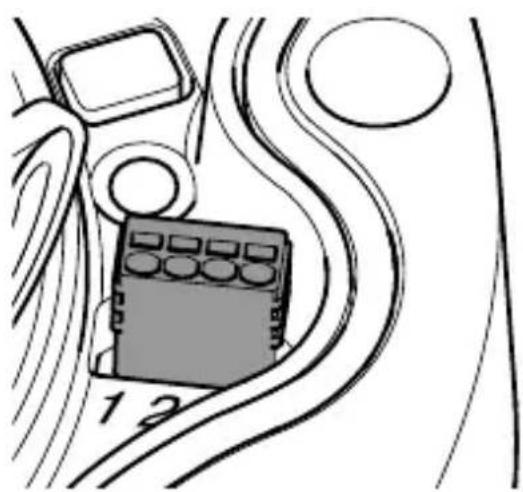

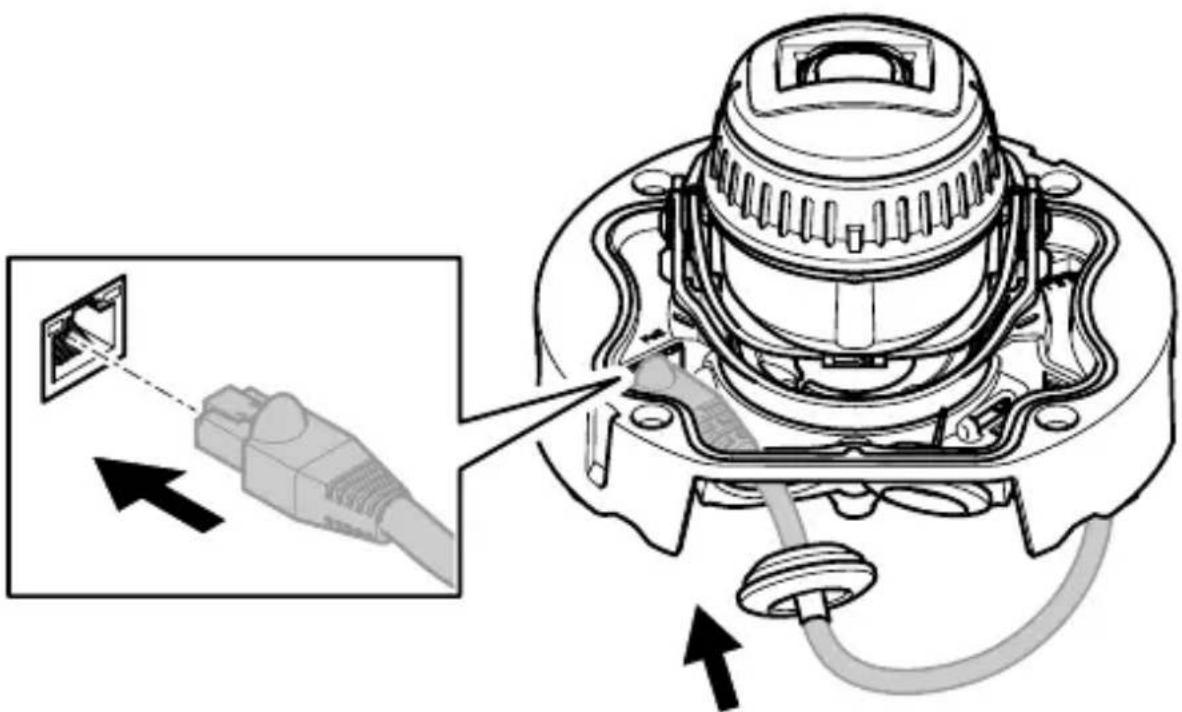

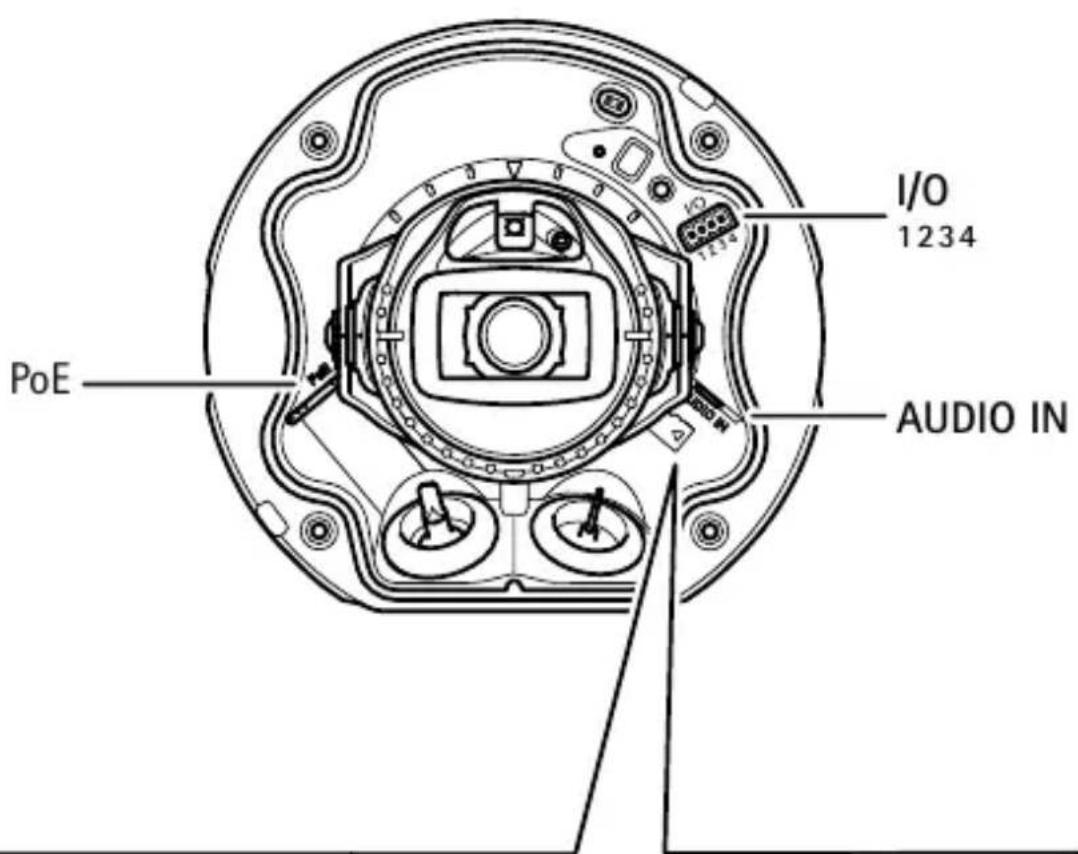

I/O 1234 PoE AUDIO IN

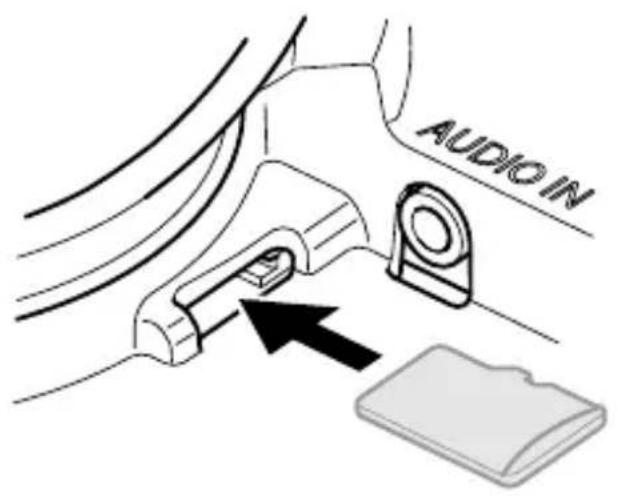

microSD microSDHC microSDXC

AUDIO IN

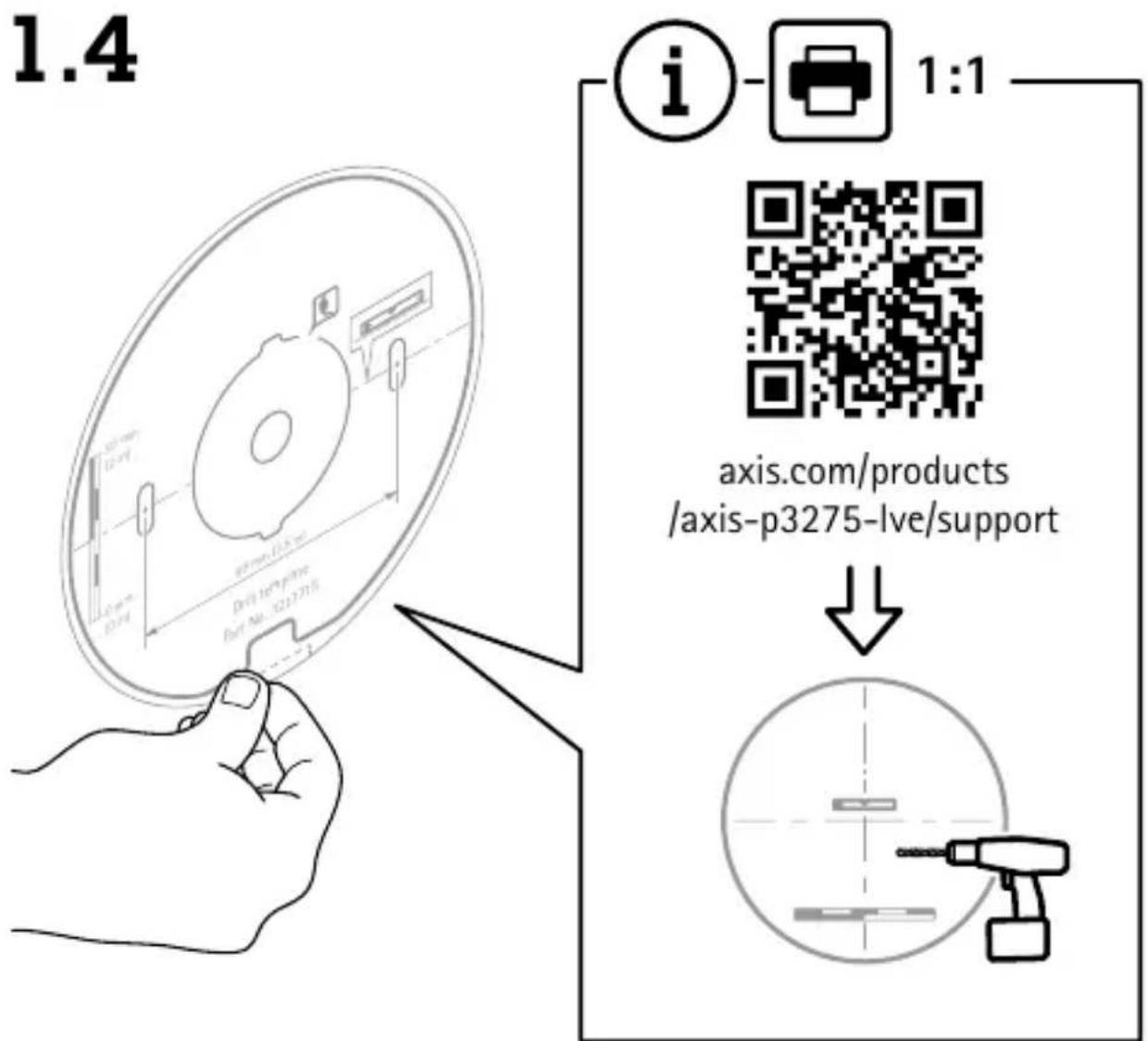


1.5

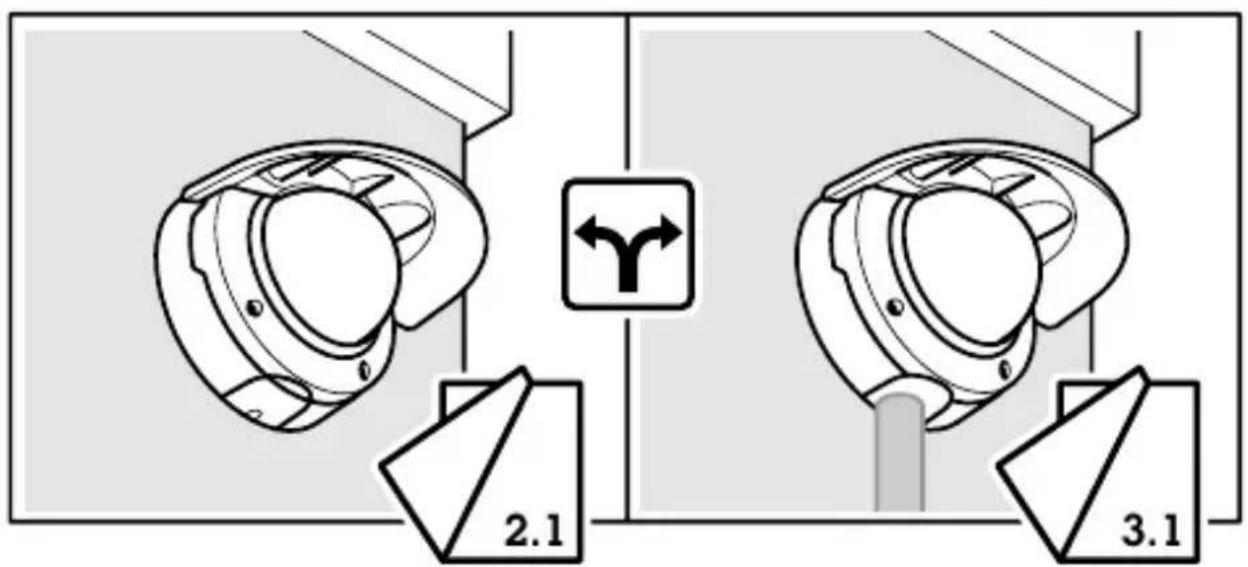

2.1 3.1

2.1

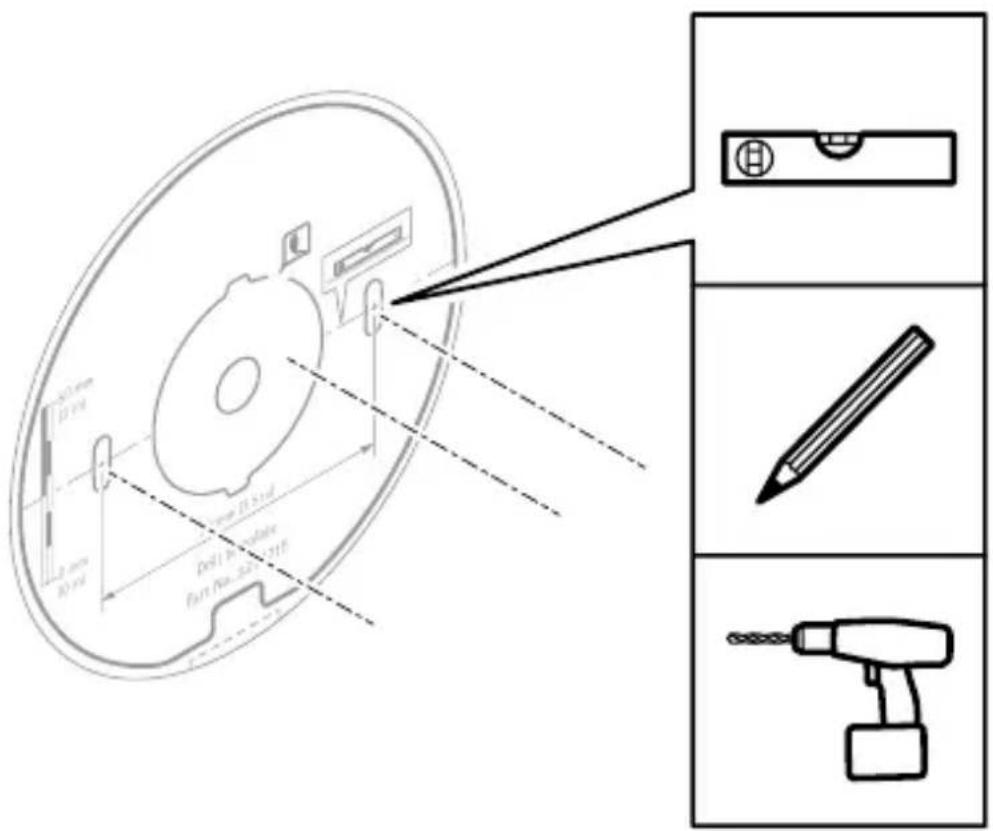

20.5 mm 12 inch 3.5 mm A1 end 20.5 mm 12 inch Drill in plate Part No. 22-27-28 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inch 12 inches

2.2

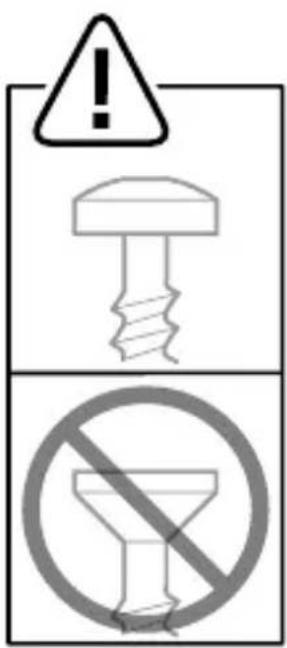

Warning sign with warning triangle and two symbols: a screw with exclamation mark and a crossed-out funnel without stop sign.

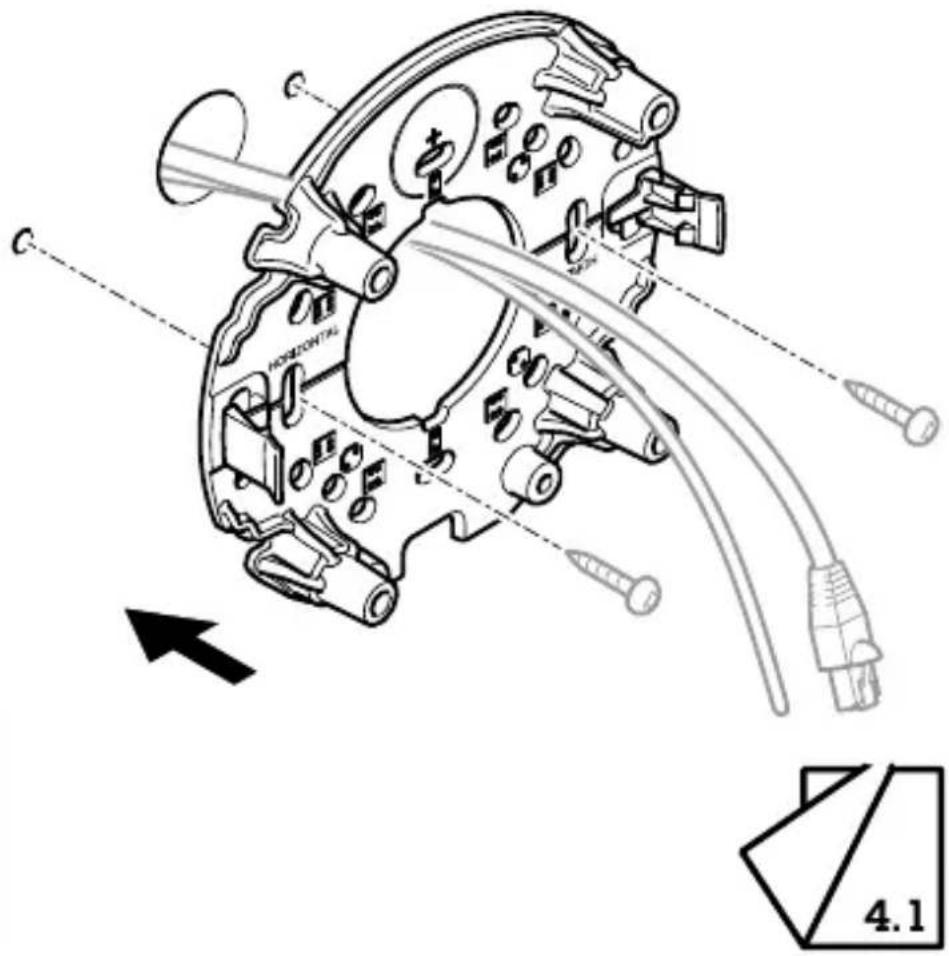

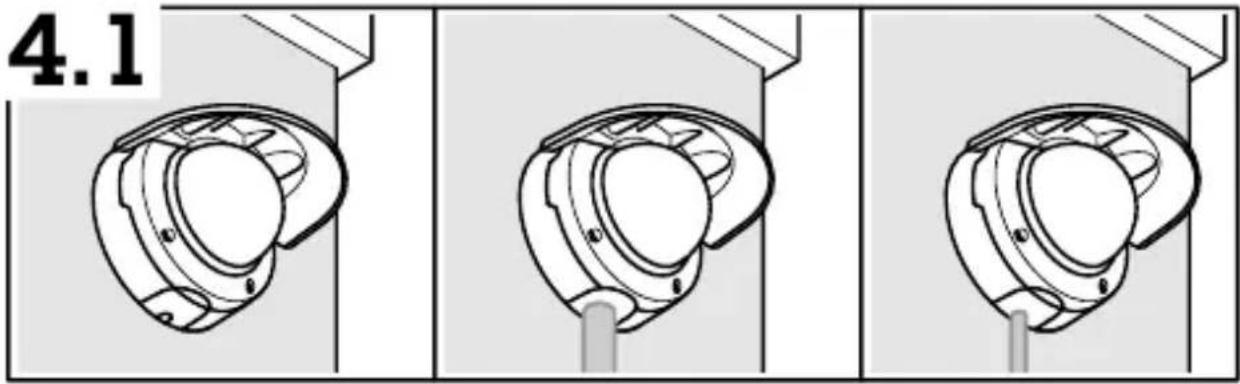

C HORIZONTAL 4.1

3.1

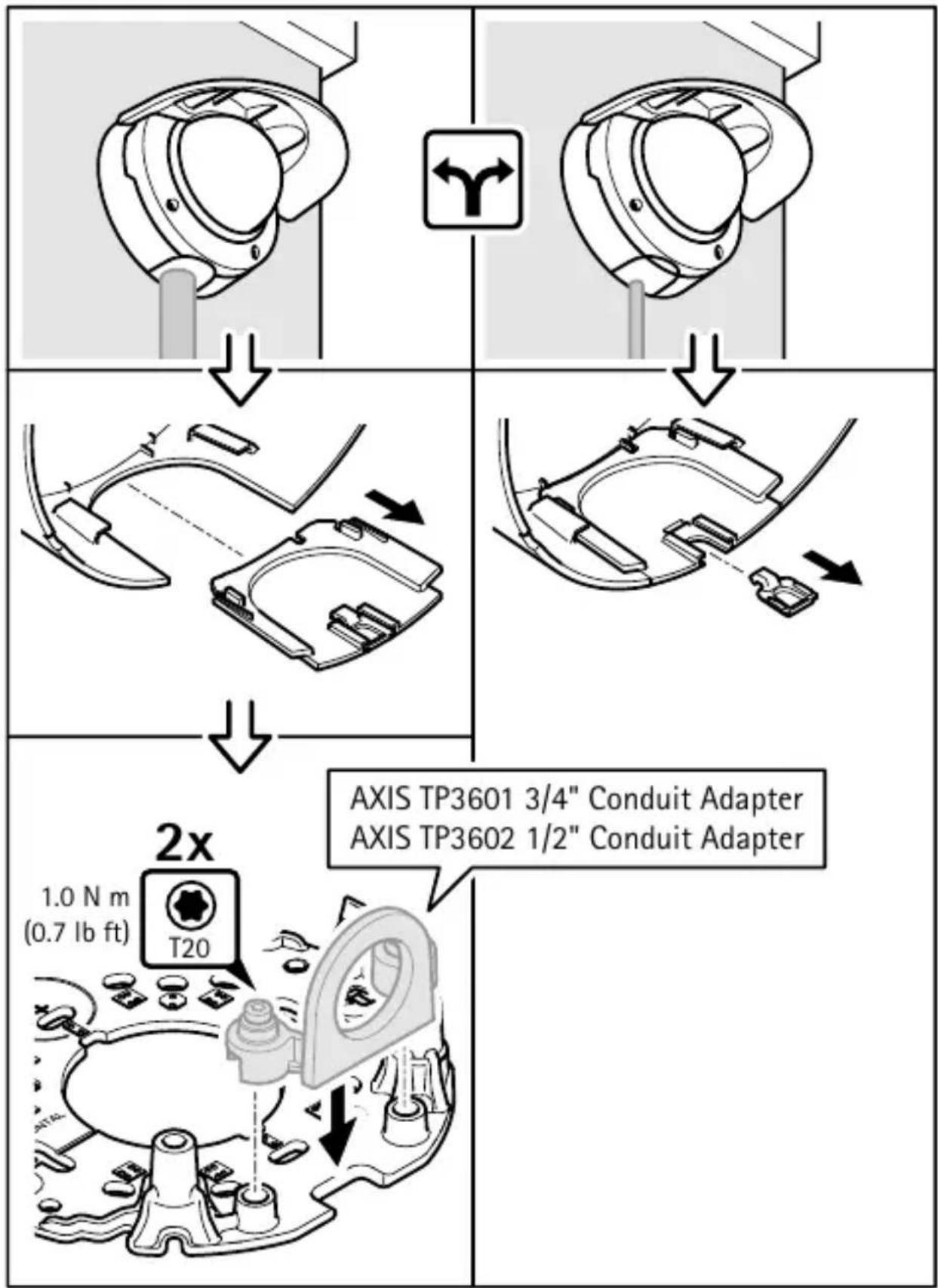

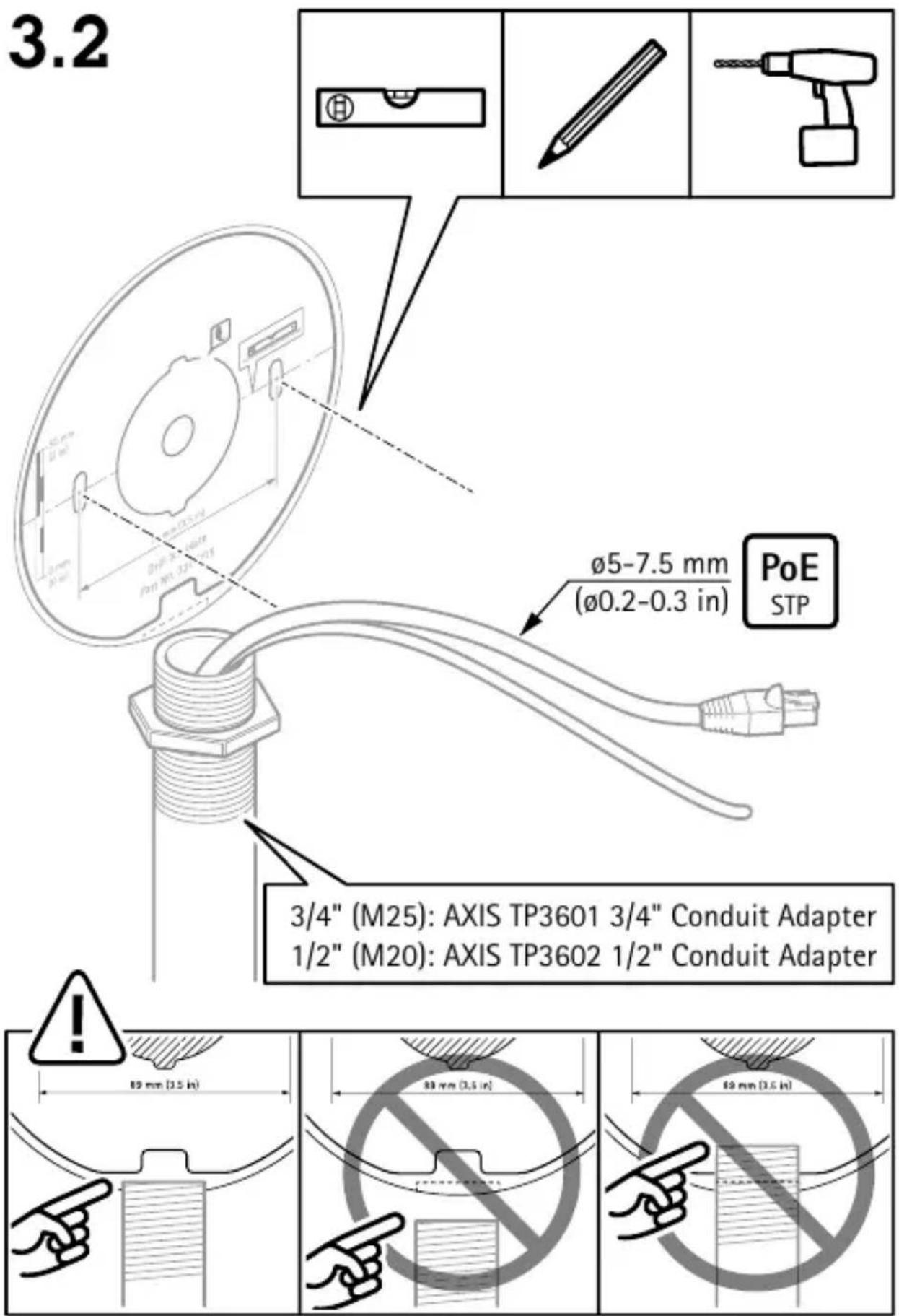

3.2 Ø5-7.5 mm (Ø0.2-0.3 in) PoE STP 3/4" (M25): AXIS TP3601 3/4" Conduit Adapter 1/2" (M20): AXIS TP3602 1/2" Conduit Adapter

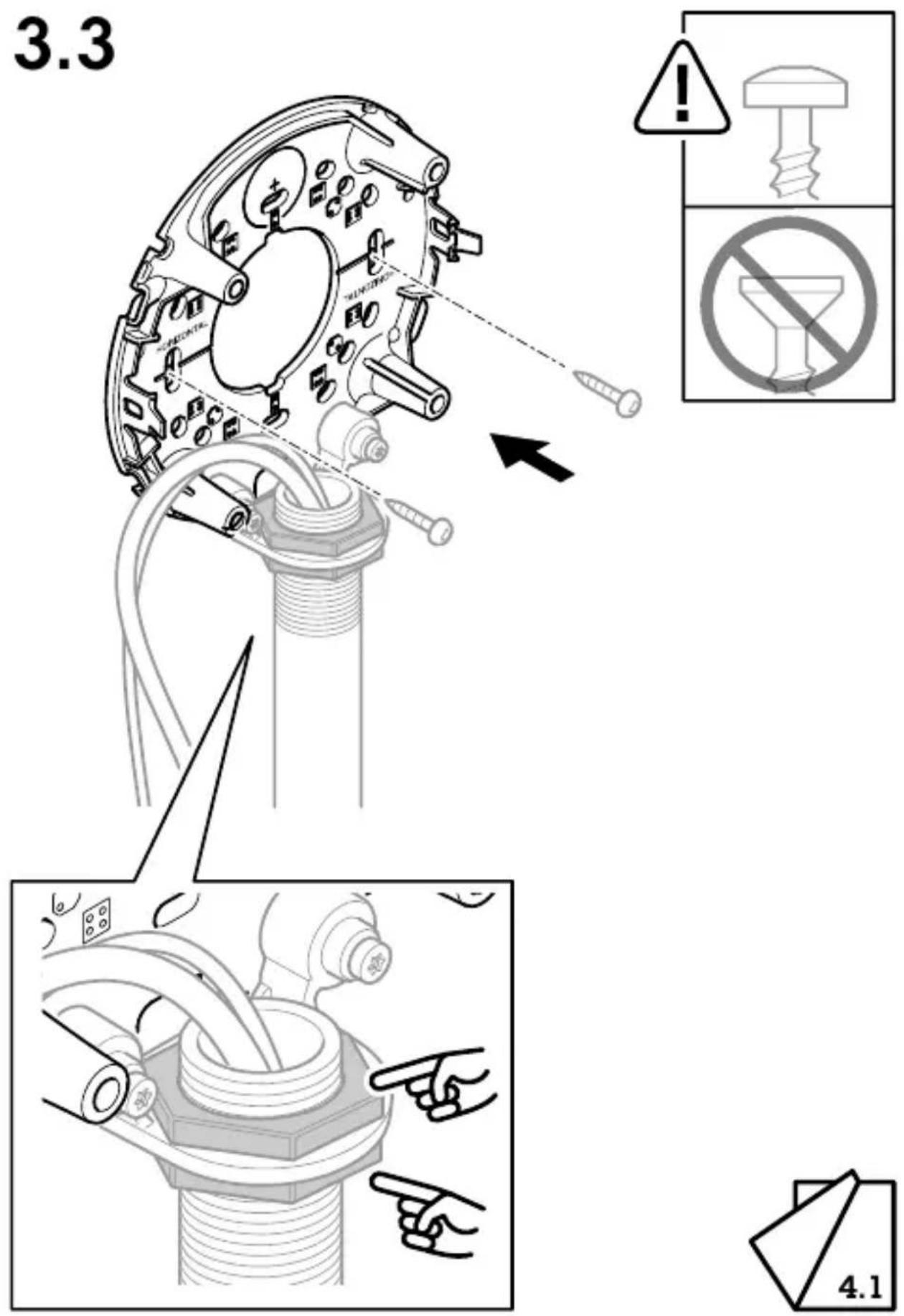

3.3 4.1

Three sequential technical diagrams showing a mechanical component with no visible text or symbols

Technical diagram showing installation of a mechanical component with labeled parts and directional arrows indicating connection to a cable or cable outlet.

Diagram illustrating the step-by-step installation of a mechanical component with labeled parts and warning symbols.

Simple 3D diagram showing a room with a door and a circular object, no text or symbols present

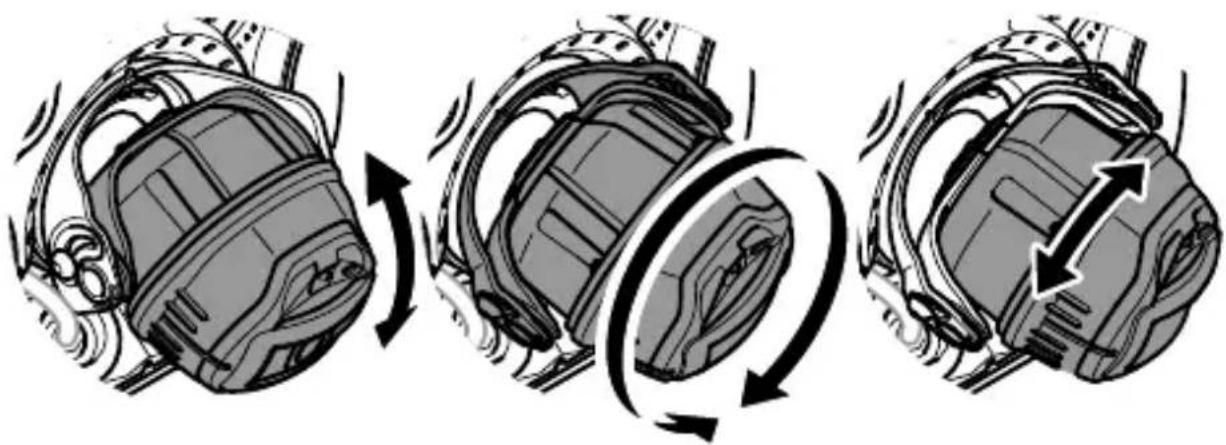

Three-step diagram showing a car head with motion arrows indicating rotational motion (no text or symbols)

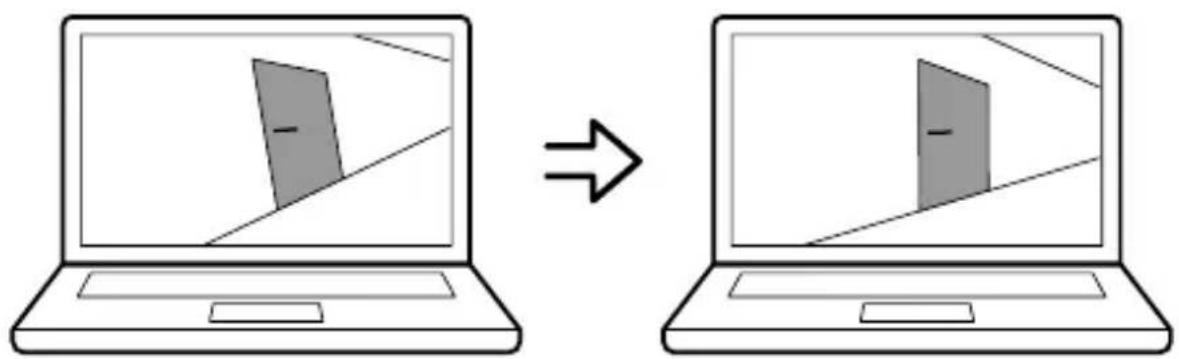

Diagram showing a laptop screen with a 3D object and its image before and after transformation, indicating change or transformation.

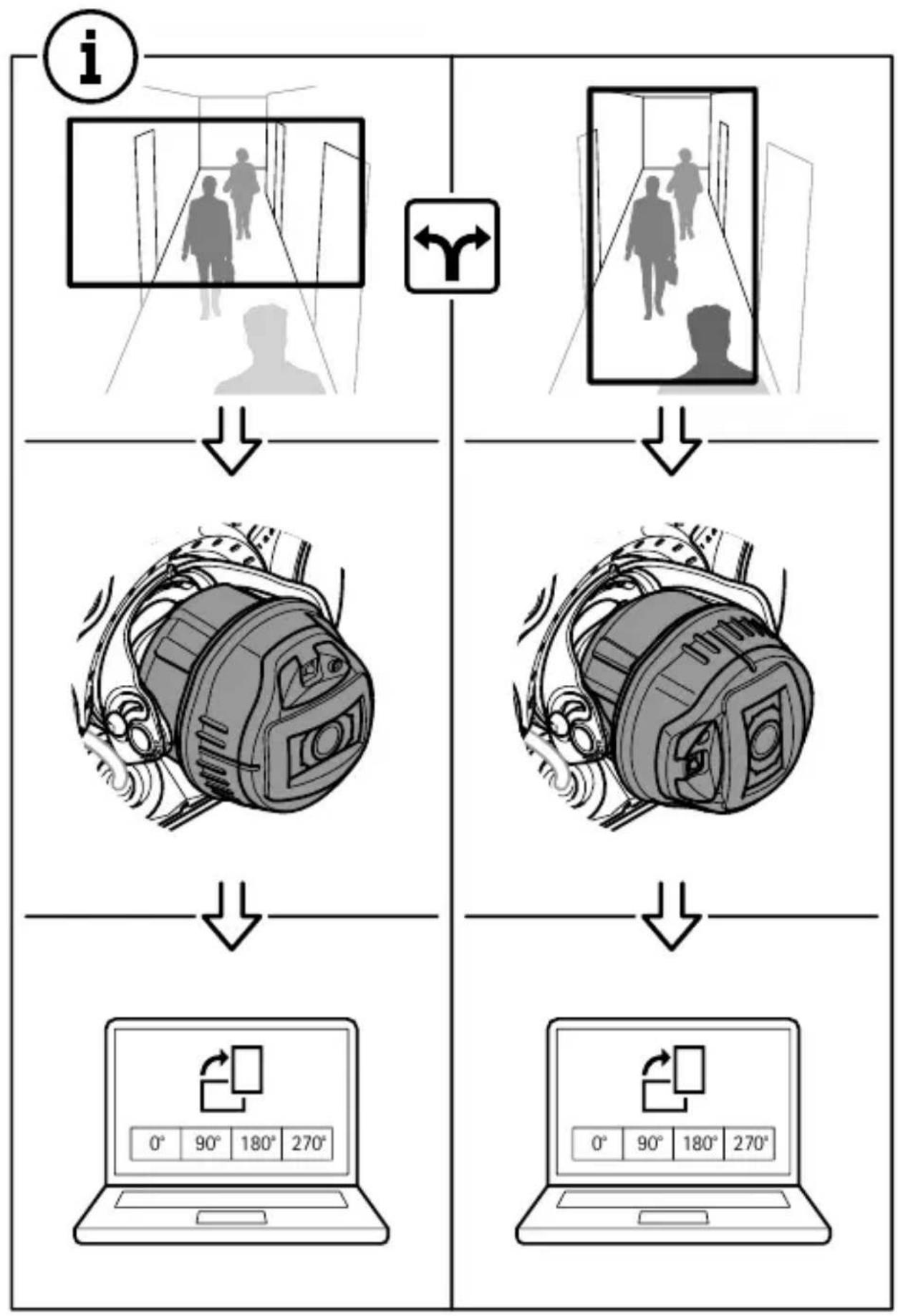

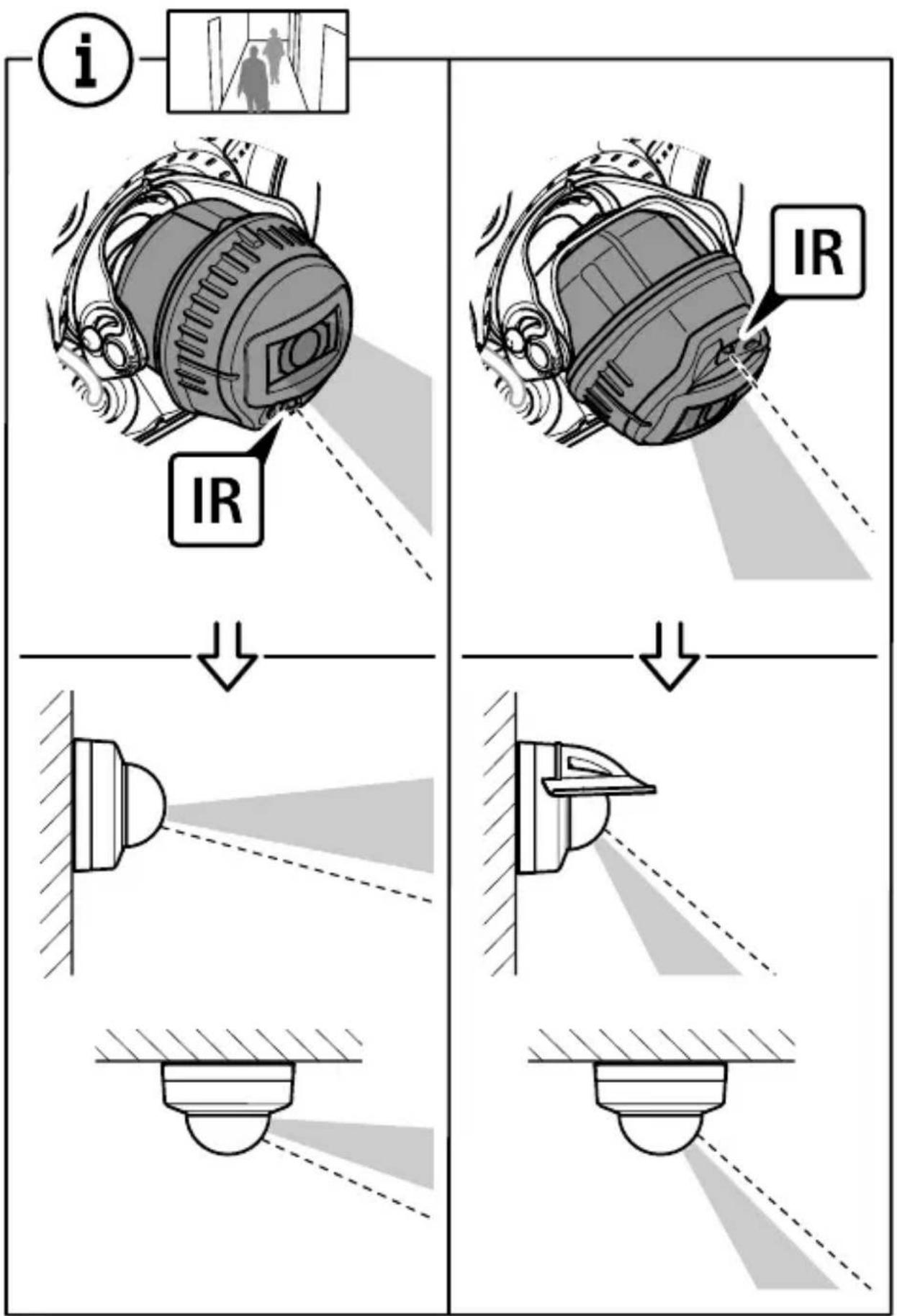

i IR IR

4.7

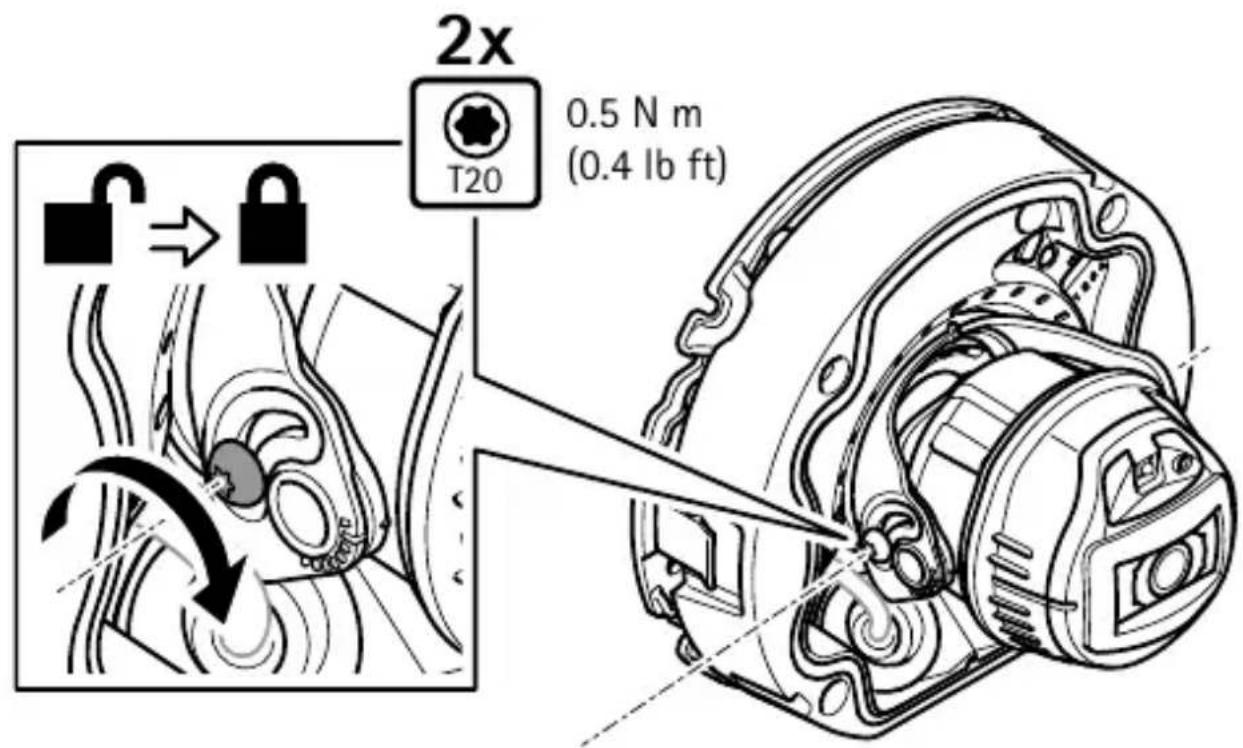

2x T20 0.5 N m (0.4 lb ft)

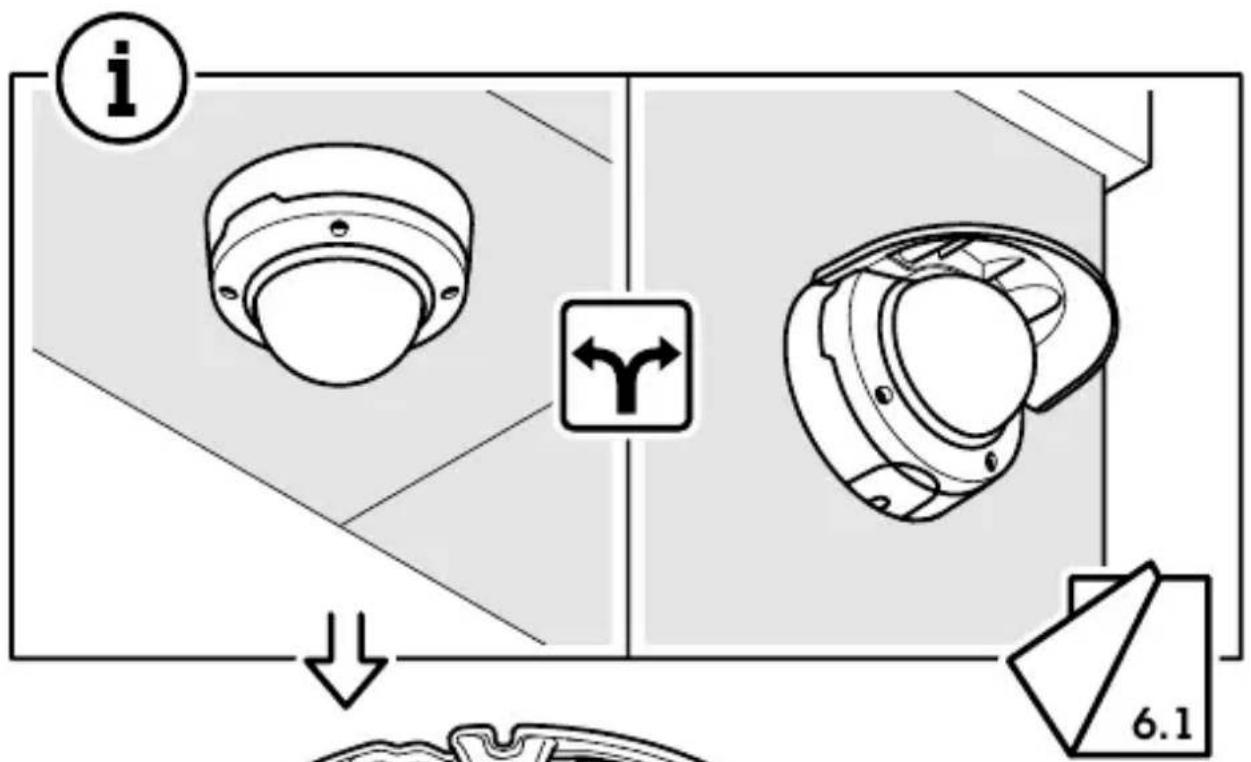

i 6.1

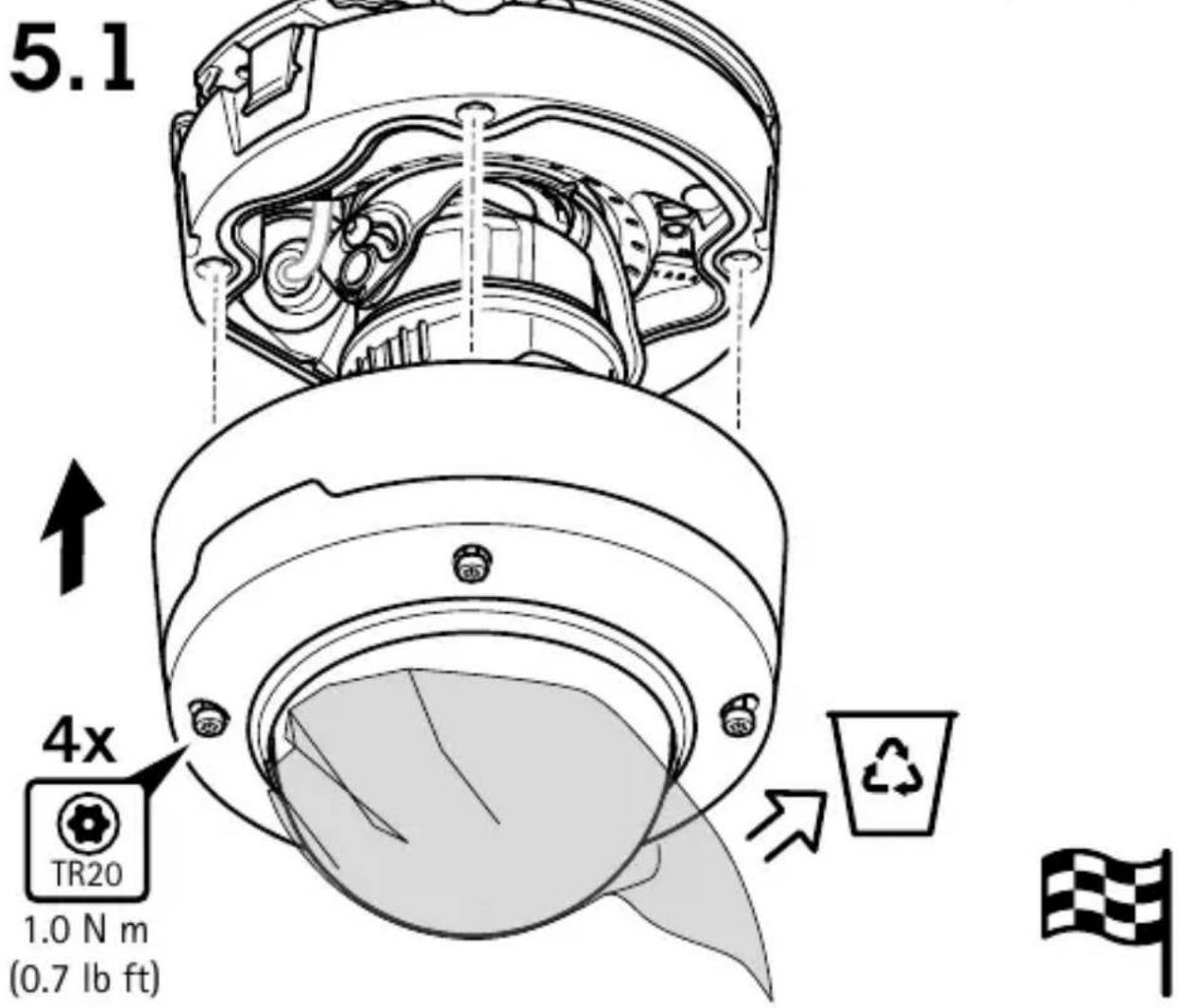

5.1 4x TR20 1.0 N m (0.7 lb ft)

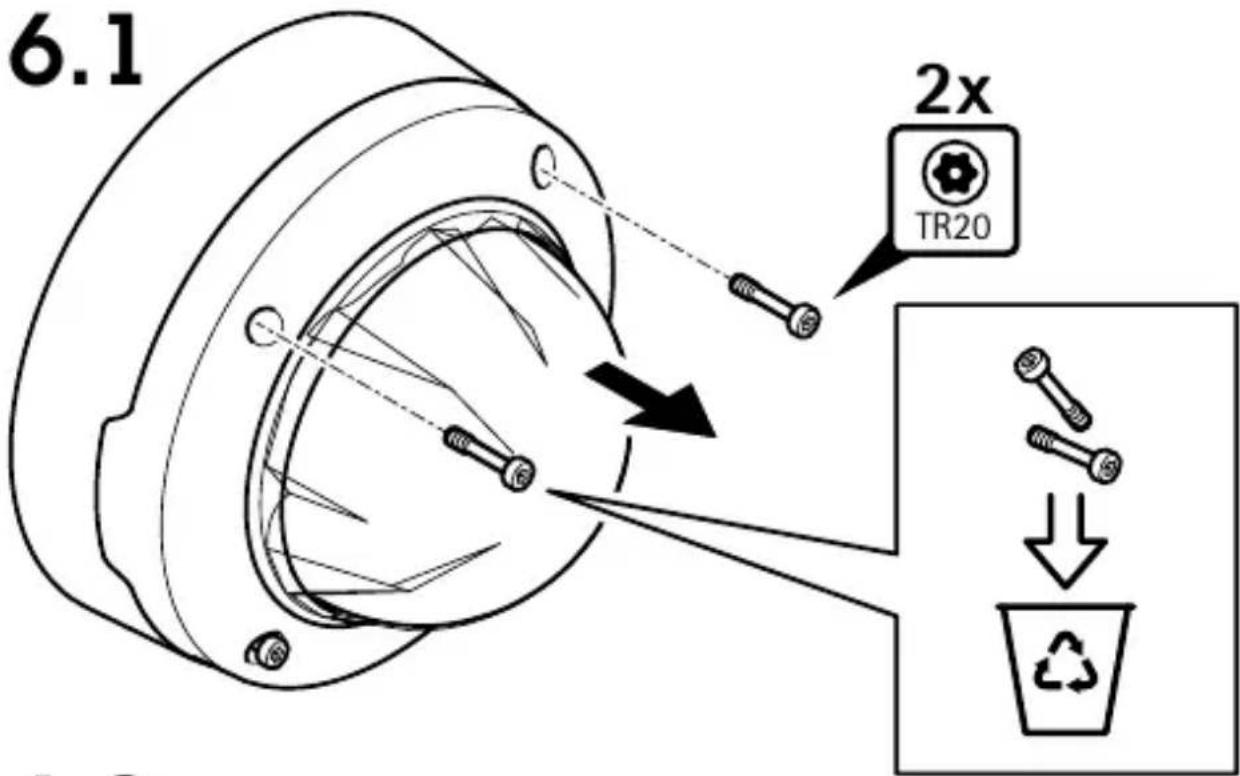

6.1 2x TR20

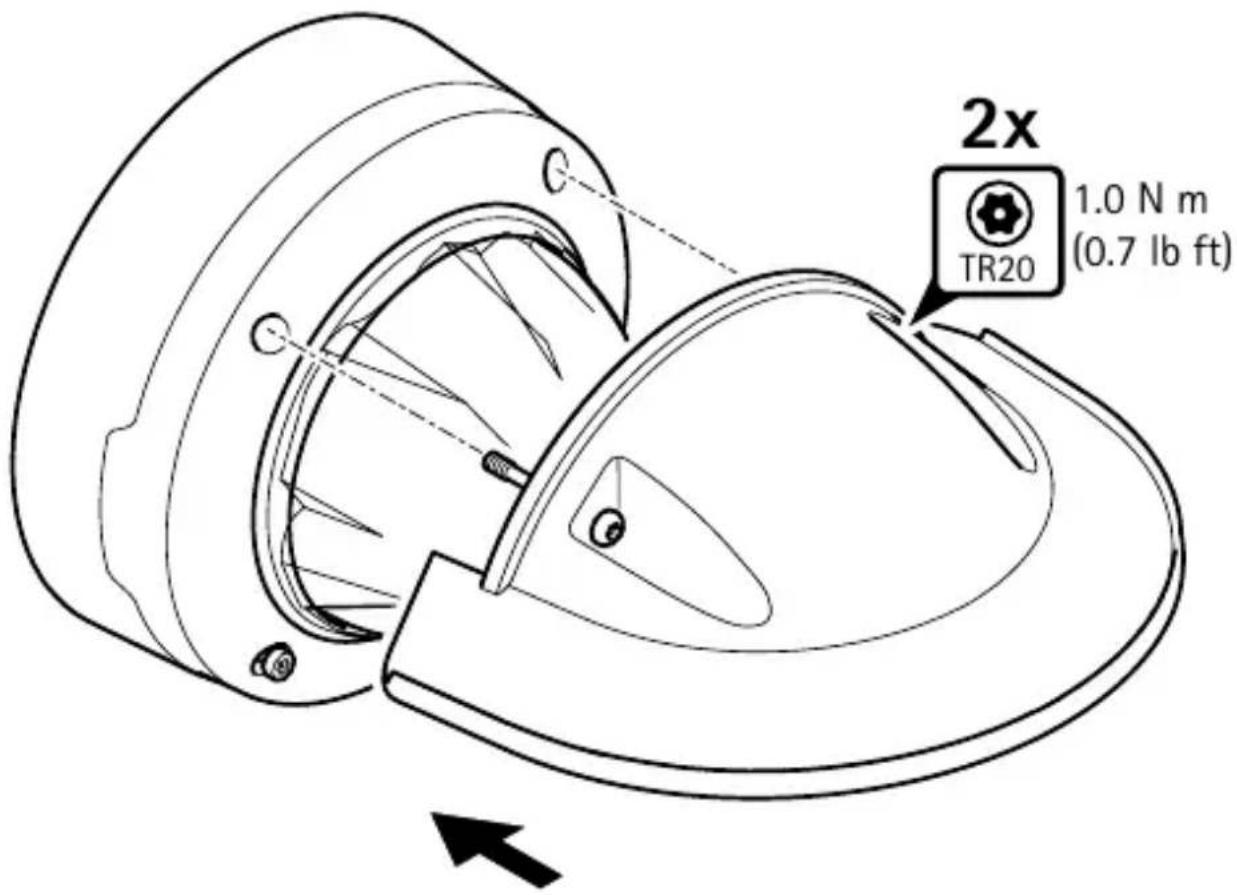

6.2

2x 1.0 N m (0.7 lb ft) TR20

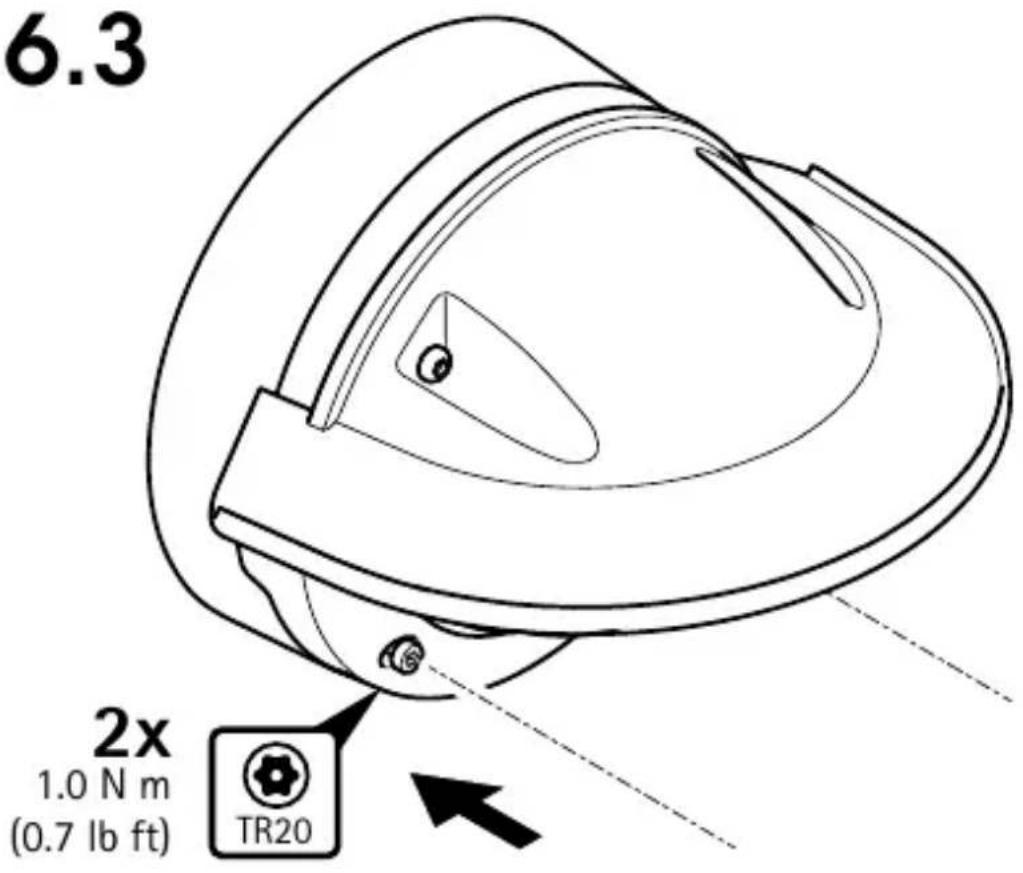

6.3 2x 1.0 N m (0.7 lb ft) TR20

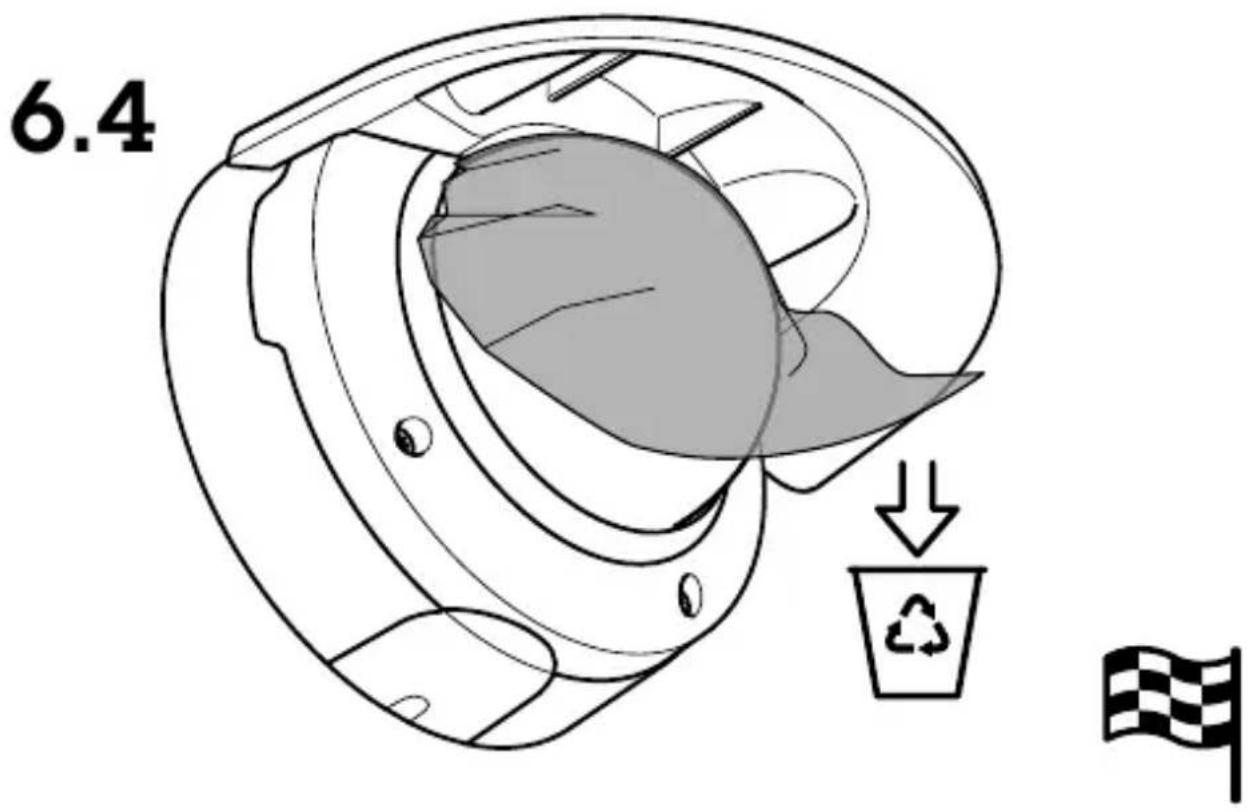

6.4

3360666

2025-12 (M2.4)
