USER MANUAL SCVC23201 SCHNEIDER
INSTRUCTIONS IMPORTANTES DE SÉCURITÉ LISEZ ATTENTIVEMENT ET CONSERVEZ CES INSTRUCTIONS POUR TOUTE FUTURE RÉFÉRENCE. IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. WICHTIGE SICHERHEITSANWEISUNGEN LESEN SIE SORGFÄLTIG DURCH UND SPEICHERN SIE DIESE ANWEISUNGEN FÜR ZUKÜNFTIGE VERWEISE. BELANGRIJKE VEILIGHEIDSINSTRUCTIES LEES DEZE INSTRUCTIES AANDACHTIG EN BEWAAR DEZE INSTRUCTIES VOOR TOEKOMSTIG GEBRUIK. INSTRUCCIONES DE SEGURIDAD IMPORTANTES LEA DETENIDAMENTE Y GUARDE ESTAS INSTRUCCIONES PARA FUTURAS CONSULTAS. IMPORTANTI ISTRUZIONI DI SICUREZZA LEGGERE ATTENTAMENTE E CONSERVARE QUESTE ISTRUZIONI PER RIFERIMENTI FUTURI.
MISES EN GARDE IMPORTANTES MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.


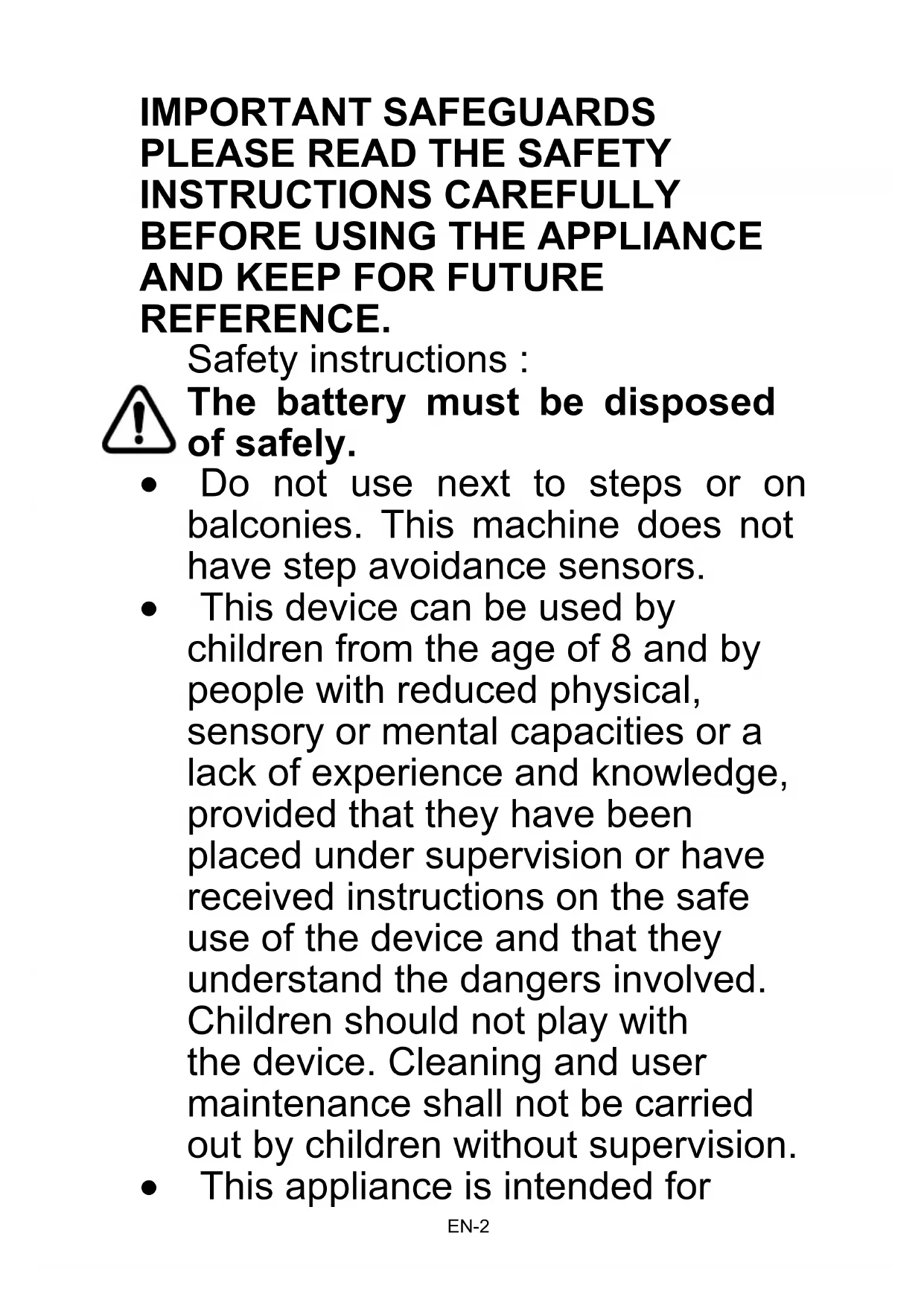

Symbol of a trash bin crossed with no text or labelsIMPORTANT SAFEGUARDS PLEASE READ THE SAFETY INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.
Safety instructions :
The battery must be disposed of safely.
- Do not use next to steps or on balconies. This machine does not have step avoidance sensors.
- This device can be used by children from the age of 8 and by people with reduced physical, sensory or mental capacities or a lack of experience and knowledge, provided that they have been placed under supervision or have received instructions on the safe use of the device and that they understand the dangers involved. Children should not play with the device. Cleaning and user maintenance shall not be carried out by children without supervision.
• This appliance is intended for
household use only.
- This unit is suitable for low to medium backed mats. It is not suitable for uneven floors or mixed carpets.
- If the adapter power cord is damaged, the adapter must be discarded.
- WARNING: For the purpose of recharging the battery, only use the detachable supply unit provided with this appliance.
- Use the device only with its battery(ies) specially created for this purpose. Use of any other battery(ies) may result in a fire or explosion hazard
- Please use an adapter to use this product only.
- Do not use on wet or greasy dust.
- Before use, keep fragile objects (glass, light, etc.) and other objects that may entangle the brushes (long hair, plastic bag, rope, iron wire, etc.) away.
- Do not sit on the machine or put heavy things on it.
- CAUTION: Make sure that the device can move freely in the room (that it is not blocked by an obstacle, that it cannot fall over) (such as a lighted candle or a vase filled with water).
- Clean the machine regularly.
- Empty the dust container.
- Charge the machine without using it for three months.
- Only charge it when low power alarm or power off. Use it after fully charged.
- The battery must be removed from the device before disposal; the device must be disconnected from the mains when removing the battery;
-
Do not dispose of used batteries with household waste. Eliminate them in accordance with local regulations.
-
Charge the battery/ robot only with the adapter supplied with the device.
- The external flexible cable of this adapter cannot be replaced; if the cord is damaged, the adapter should be discarded and replaced with an adapter of the same model.
- The device must be disconnected from the mains supply when removing the battery.
- This device contains batteries that cannot be replaced.
- CAUTION: To recharge the battery, use only the removable power supply unit supplied with the device.
Removable power unit
- WARNING: Entrapment Hazard. Hold loose clothing, hair, fingers, etc. away from motorized brushes and nozzles.
- WARNING: The plug must be removed from the outlet before cleaning or servicing the device.
IMPORTANT
It is forbidden to replace the cable supply by yourself. In case of damage.
If the device has been dropped, please have a qualified person check it before using it again. Internal damage could lead to accidents. For any type of problems or repairs, please contact the after-sales service of the local distributor, the manufacturer or a qualified person, in order to avoid any risk of danger.
Disposal and environmental responsibility
In order to be respectful of the environment, we encourage you to dispose of the device correctly. You can contact local authorities or recycling centers for more information.
Read the instruction manual carefully before first use.
This product complies with the applicable requirements of Directives 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC)
CE
DESCRIPTION
1, On/off switch
2, speed control knob
3, dust tank and filter
4, tube
5, floor brush
6, adaptor
7, wall mount
8, sofa brush
9, 2in1 nozzle
10, screw bag

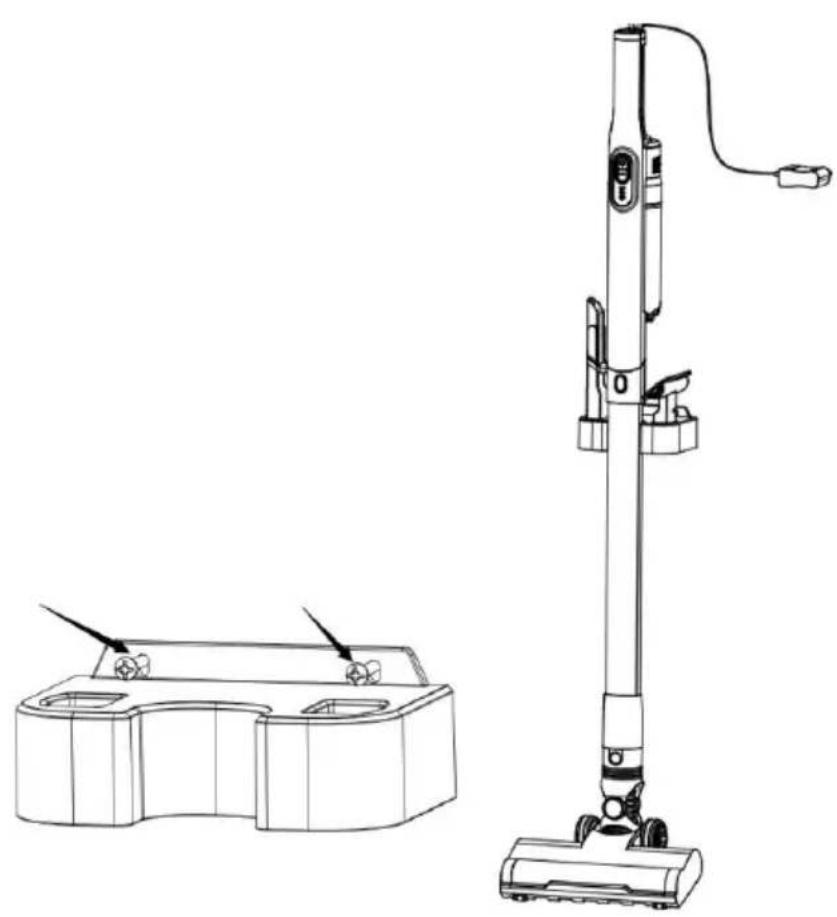

CHARGING
First insert the wall mount into the wall with screw bag.
Put the vacuum into the wall mount to fix, ensure the vacuum cleaner not drop down.
Insert the adaptor into the mains socket always make sure that the vacuum is turned off before connecting to the power adaptor.
The indicator light in white color will come on and keep flashing once the device has made contact with the adaptor.
In order to ensure that it is always ready for use, the device should be left on charge with adaptor when not being used.
The adaptor may become warm during charging-this is normal.


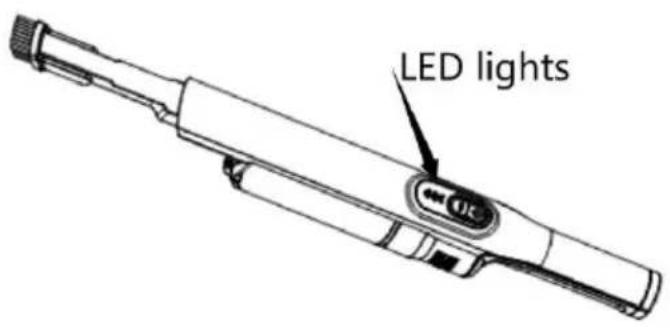

Line drawing of a vacuum cleaner with a side-view assembly (no text or symbols)INDICATION LIGHT
- When charging the appliance, The indication in white color will come on and keep flashing..
- When fully charged. The indication light will keep on in white color
3, When using the appliance. The indication light will be in white color. - When the battery is weak. The last indication light in white color will keep flashing.
Do not connect the adaptor when using the appliance You should regularly check that the nozzle is clean as any sharp object may scratching sensitive floors.
1, Inset the nozzle/sofa brush into main unit when cleaning table, car, corner sofa, carpet etc...
2, Start the device by pushing the on/off button upward.
3, you may also press the speed control know to adjust the power.
4, Pushing the on/off switch button downward to turn off the device.


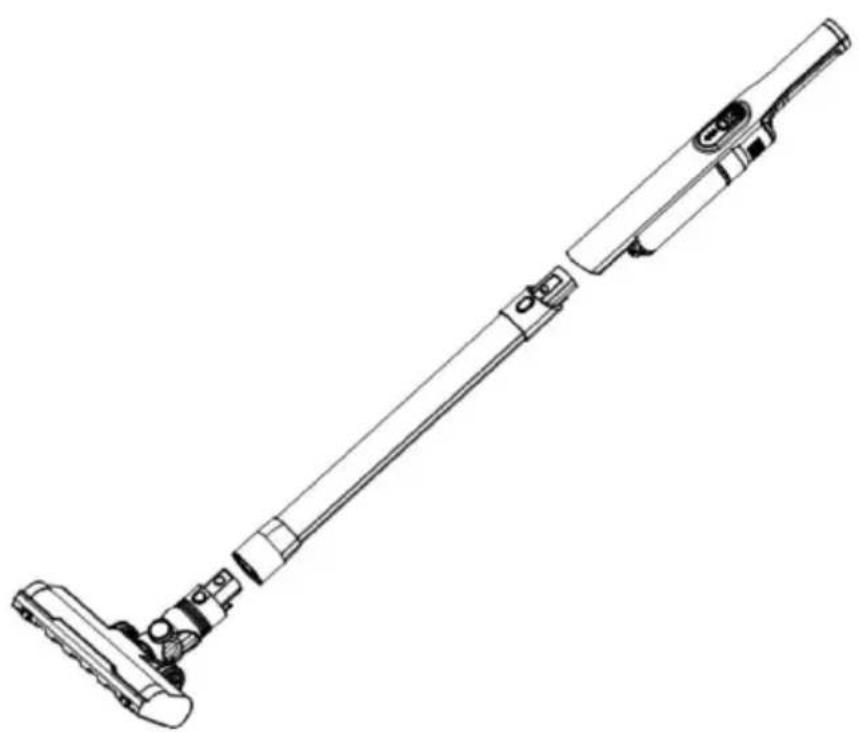

power control- When cleaning the floor/carpet, insert the tube and floor brush together into the body.


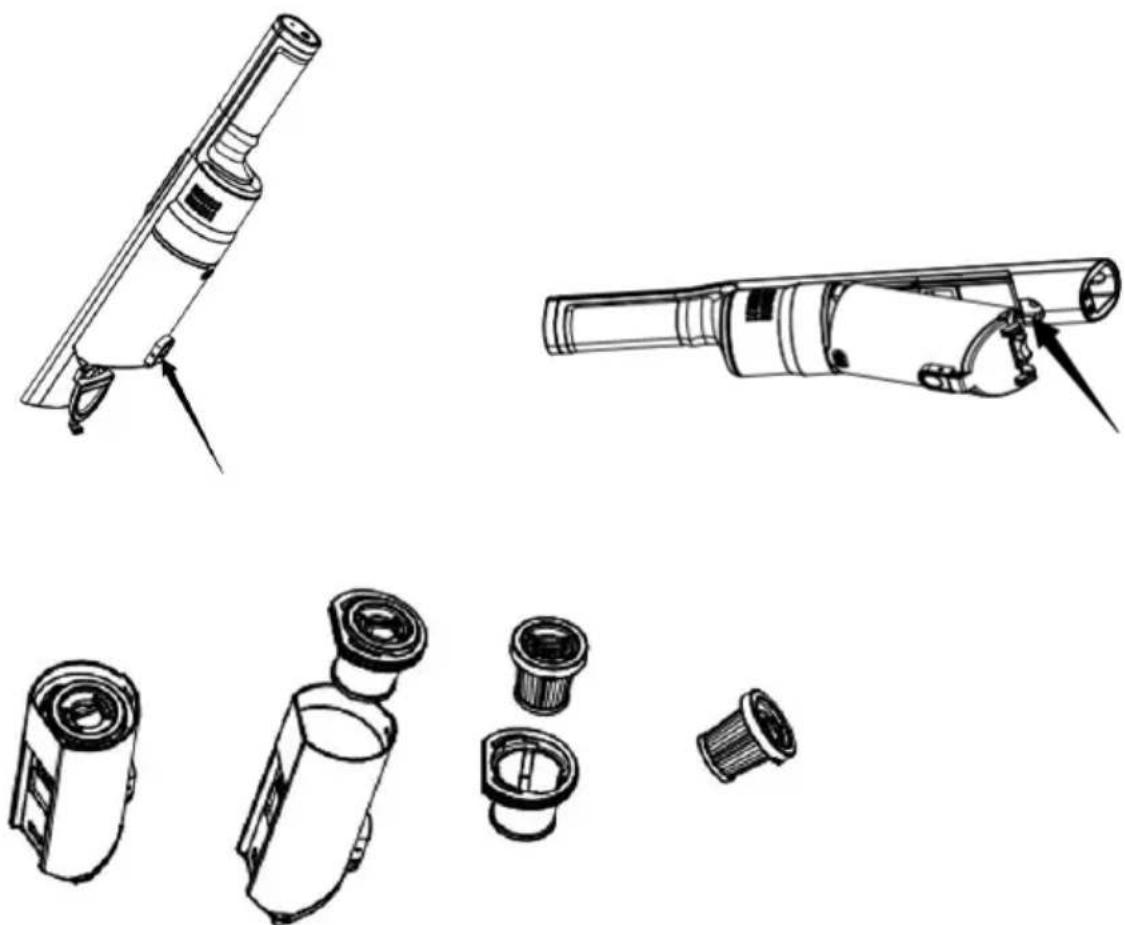

Line drawing of a vacuum cleaner with handle and lever assembly (no text or symbols)EMPTYING/CLEANING
Careful cleaning of the dust container and filters
- press the dust release button when clean the dust.
- When need clean filters, press the tank button.
- Pull out the filters to clean.
Important: Make sure that the parts are dry before they are re-installed.
Put the filter into dust container. Assemble the dust bin to the motor unit following up the opposite procedures for detaching the dust bin.
DISPOSAL
If the device is to be disposed, the battery should ideally be removed.
Used battery should be never disposed with household wastes; it should always be taken to a local authority recycling centre.
If you cannot disassemble the product yourself the local authority recycling centre will dispose of the product for you in an environmentally friendly manner
SERVICING OR REPAIRS
where the product malfunctions or is damaged all inspections and repairs must be carried out by a qualified electrician or technician.
Specifications:
Input: 100-240V\~50/60Hz
Output: DC 18V
Li-ion battery DC 14.8V 2200mAh
Motor power: 200W
Working time: 35mins
Charging time: 4h
Disposal:
Any hazardous substance contained in electrical or electronic equipment can have a potential impact on the environment and health during its recycling. Consequently, at the end of the appliance's useful life, it must not be thrown away with unsorted municipal waste.
Your role as the end consumer is essential in terms of reusing, recycling and obtaining other types of value creation from this product. You have the choice of different collection and exchange systems organized by local authorities (recycling centres) and distributors. It is your duty to make use of these possibilities.
2. At end of battery life:
Used batteries must be taken care of by a system of
selective collection in order to be recycled and thus reduce the impact on the environment.
When the battery reaches the end of its useful life, you must deposit it in an appropriate selective collection system which will take care of its destruction and/or recycling.
- If battery acid has leaked, avoid contact with skin, eyes and mucous membranes! Fluid leaking from the battery can cause skin rashes. If acid should nevertheless come into contact with the skin, rinse the affected areas immediately with plenty of clean water and consult a doctor without delay.
- Batteries must be installed in accordance with+/- polarity.
- Do not recharge non-rechargeable batteries due to the risk of explosion.
IMPORTANT:
Under no circumstances should you throw the device or the battery on the public highway.
The warranty does not cover wear parts of the product, or problems or damage resulting from:
(1) Superficial damage due tonormal wear and tear of the product;
(2) Defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
(3) Any incident, abuse, misuse, unauthorized modification, disassembly or repair;
(4) Any improper maintenance operation, use not in accordance with the product instructions or connection to an incorrect voltage;
(5) Any use of accessories not supplied or approved by the manufacturer.
The warranty will be void if the nameplate and/or serial number of the product is removed.
Data sheet of the external power sources of the directive European (EU) 2019/1782
| Value Unit | ||
| Input voltage 100-240 V | ||
| Input AC Frequency 50/60 Hz | ||
| Output voltage 18 V | ||
| Output current 0.5 A | ||
| Output power | 9 | W |
| Average performance in active mode | 83.08 | % |
| Efficiency at low load (10%) | 73.37 | % |
| Off-load power consumption | 0.07 | W |
