WSLK 65 LS X - Basket WHIRLPOOL - Free user manual and instructions

Product type	Extractor hood (convertible to recirculation mode)
Brand	Whirlpool
Model	WSLK 65 LS X
Dimensions (H x W x D)	13.3 x 49.9 x 51 cm
Exhaust duct diameter	12.5 cm
Electrical supply	220-240 V
Lighting	LED
Number of speeds	3 speeds
Grease filter type	Washable metal (dishwasher safe)
Charcoal filter	Yes, replaceable (every 4 months in recirculation mode)
Installation modes	Extraction (external exhaust) or recirculation (recycling)
Controls	Control panel with speed selector and lighting switch
Minimum distance from hob	60 cm (electric hob) / 75 cm (gas or mixed hob)
Grease filter maintenance	Cleaning at least once a month, by hand or dishwasher (short cycle, low temperature)
Lamp replacement	Integrated LED: contact after-sales service
Domestic use	Yes, suitable for family kitchens and similar (shops, offices, etc.)
Safety standards	Compiles with EN/IEC 60335-1, EN/IEC 60335-2-31
Recycling	Compiles with WEEE directive 2012/19/EU

Frequently Asked Questions - WSLK 65 LS X WHIRLPOOL

What is the difference between extraction and recirculation mode?

In extraction mode, vapors are exhausted outside via a duct. In recirculation mode, air is recycled after passing through a charcoal filter that absorbs odors; this mode requires the purchase of an accessory kit if not supplied.

How to clean the grease filters?

Metal filters should be cleaned once a month by hand with a non-aggressive detergent or in the dishwasher at low temperature on a short cycle. Dishwashing may cause discoloration without affecting efficiency.

When should the charcoal filter be replaced?

The charcoal filter must be replaced at least every 4 months, or more often if the hood is heavily used. It cannot be cleaned or regenerated.

What to do if the hood does not turn on?

First check that there is no power cut and that a speed has been selected. If the problem persists, unplug the hood for 5 seconds and plug it back in. Contact after-sales service if the fault continues.

What minimum distance to maintain between the hood and the hob?

The minimum distance is 60 cm for an electric hob and 75 cm for a gas or mixed hob. Always follow the hob manufacturer's instructions if they require a greater distance.

How to replace the LED lamps?

The LED lamps are integrated. To replace them, contact authorized Whirlpool after-sales service.

Can I use the hood without filters?

No, never use the hood without the correctly mounted grilles and filters. This may cause fire hazards and damage the appliance.

Can the hood be installed above a gas hob?

Yes, but maintain a minimum distance of 75 cm. Ensure the room is well-ventilated and that the hood is installed by a qualified professional.

How to reduce the environmental impact of the hood?

Use the minimum speed during cooking, leave the hood running for a few minutes after finishing. Clean the grease filters regularly and replace the charcoal filter when necessary. Use the largest recommended exhaust duct diameter.

Where to find the full manual?

You can download the PDF manual from docs.whirlpool.eu or scan the QR code on the appliance. For a paper version, contact after-sales service.

USER MANUAL WSLK 65 LS X WHIRLPOOL

EN Instructions for use

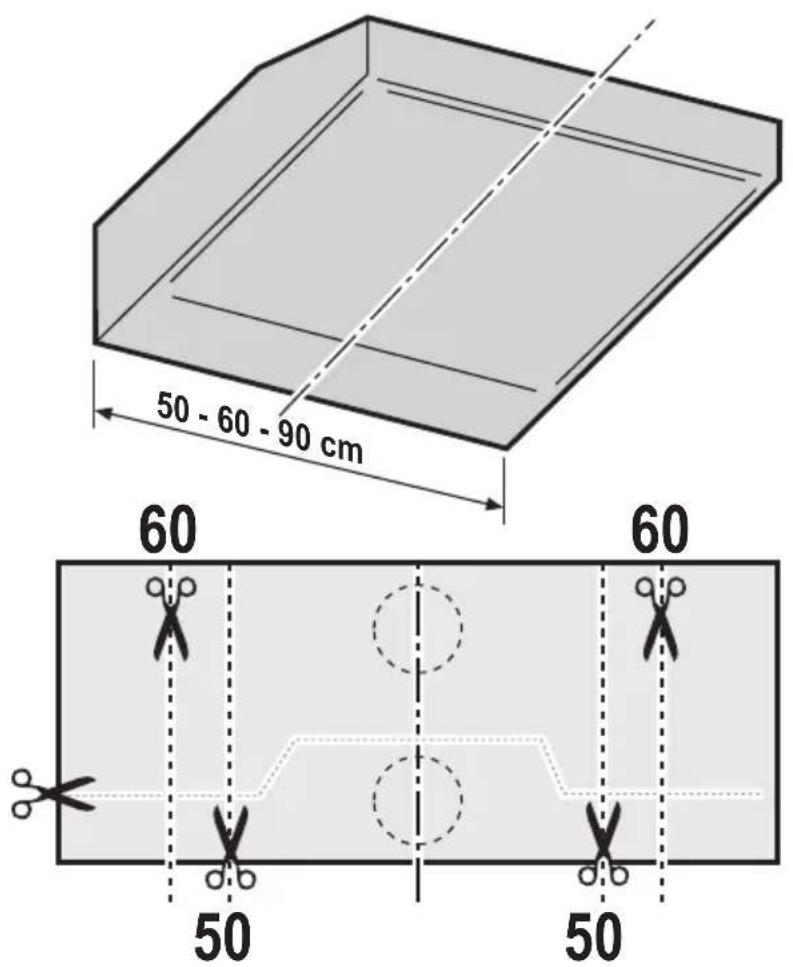

1.1

1.2a

Pure mechanical diagram showing a central component with two cross-shaped arms and two base plates, no text or symbols present.

Simple line drawing of a kitchen with a chimney, a coat, and a bowl on a table (no text or symbols)

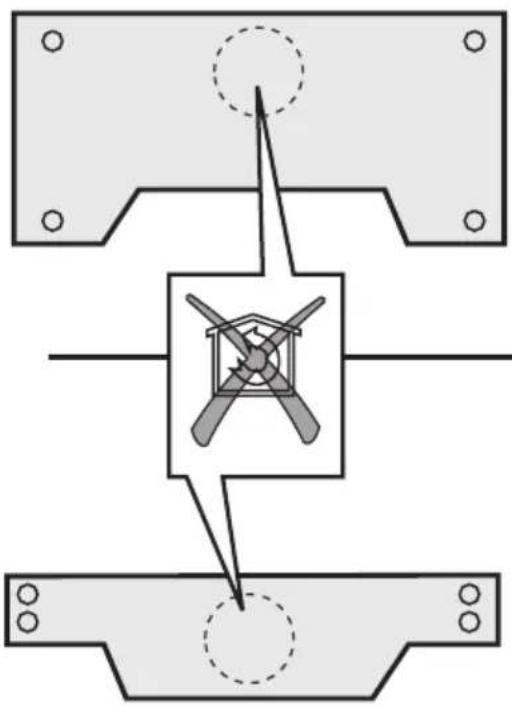

1.2b

Pure technical diagram of a mechanical part with a dashed circle and mounting holes (no text or symbols)

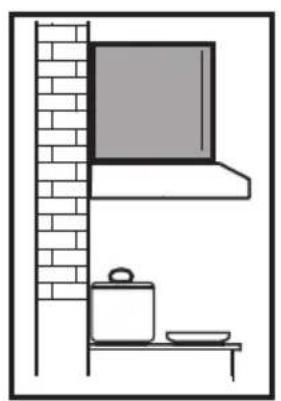

Simple line drawing of a kitchen interior with brick wall, shelf, and cooking pot (no text or symbols)

Diagram showing airflow around a window with a lid and kitchen appliance (no text or symbols)

2.1a

Diagram showing airflow from a kitchen chimney to a stove, with no text or symbols present.

2.1b

Simple line drawing of a kitchen interior with a TV and a pot (no text or symbols)

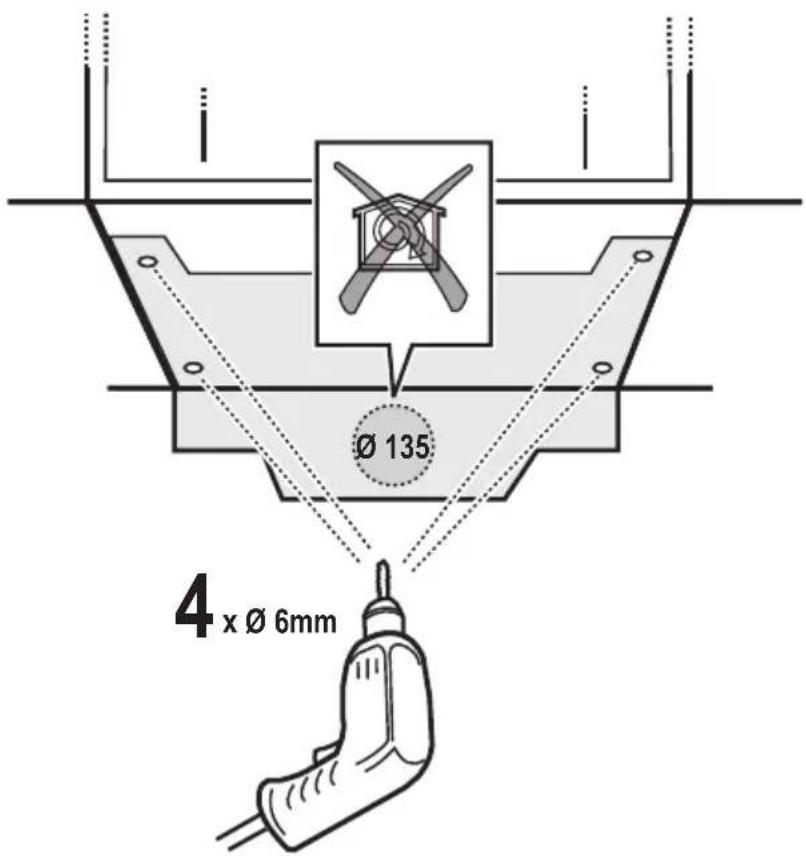

3

Diagram showing two kitchen ventilation systems with heat transfer from a chimney to a stove (no text or labels)

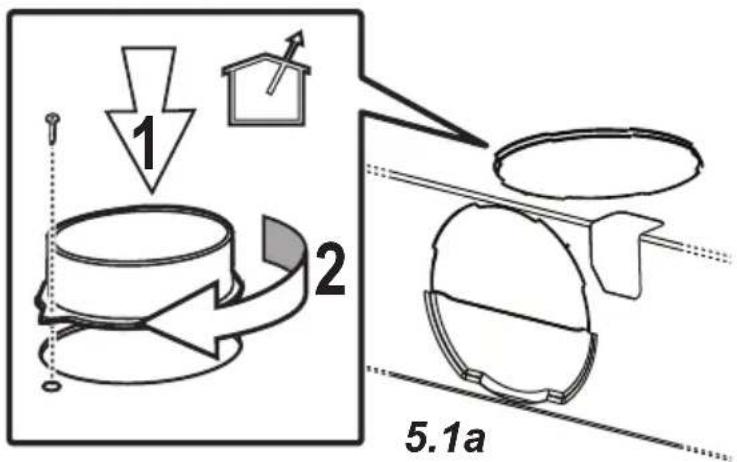

5.1b

Diagram showing airflow from a kitchen appliance through a chimney to a stove, with no text or symbols present.

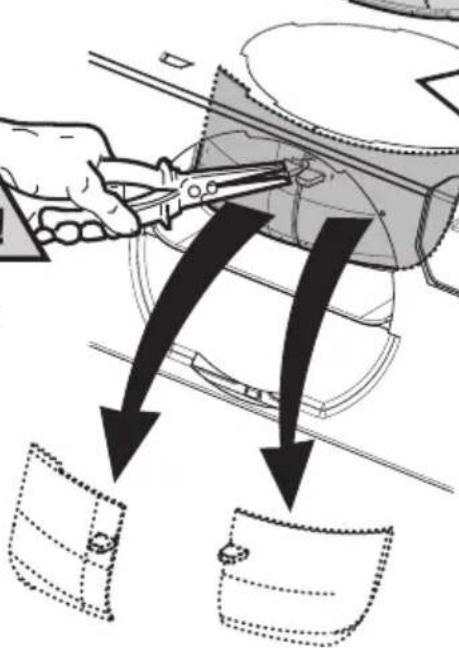

5.3b
5

Z

2

Technical line drawing of a mechanical assembly with a circular component and a flat plate (no text or symbols)

Diagram showing a kitchen interior with a chimney, brick wall, and outdoor appliances (no text or symbols)

Diagram showing a house with an upward arrow and a kitchen appliance emitting heat (no text or symbols)

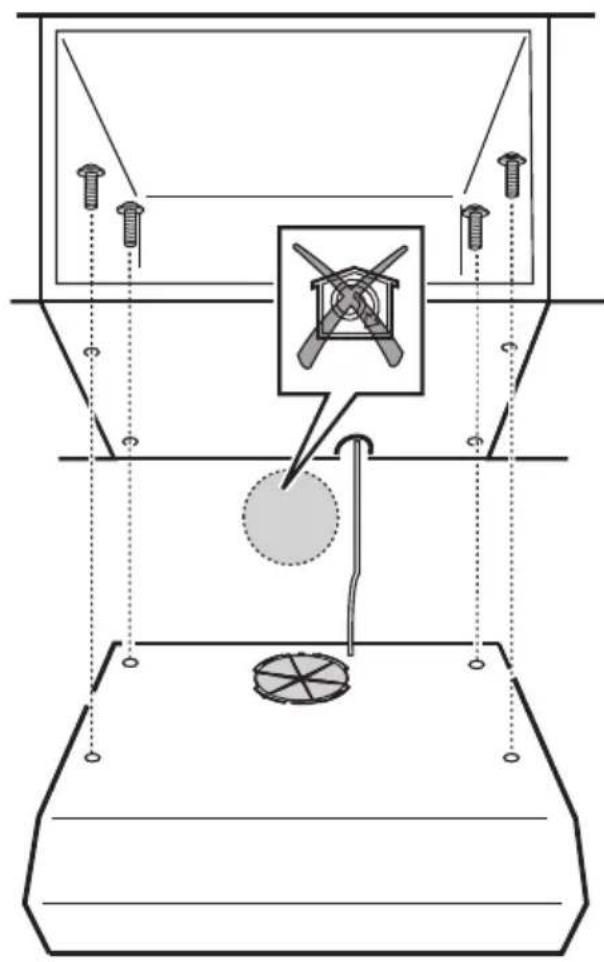

6a

Technical diagram of a mechanical assembly with bolts and a central component, no visible text or symbols

6b

10

11

EN

GENERAL SAFETY

- Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

• Always wear work gloves for all installation and maintenance operations.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

- Do not flambé under the range hood.

- Do not remove filters during cooking.

- For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.

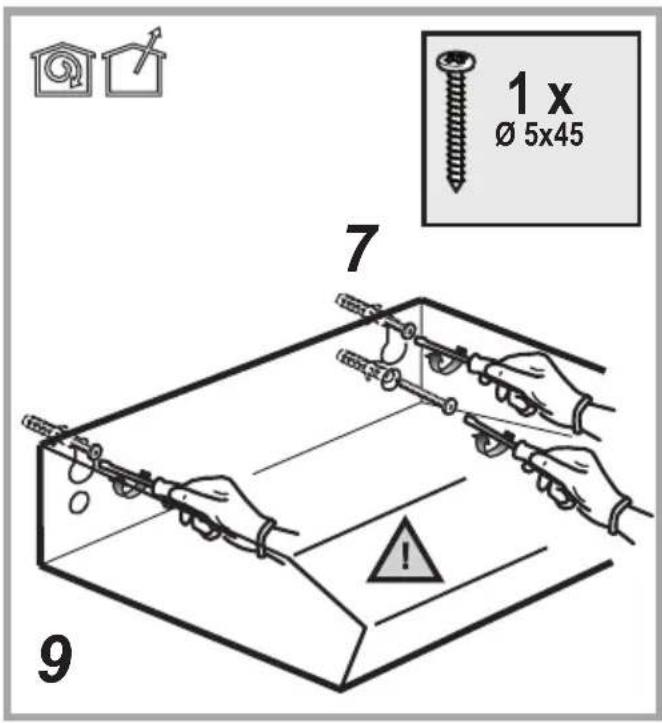

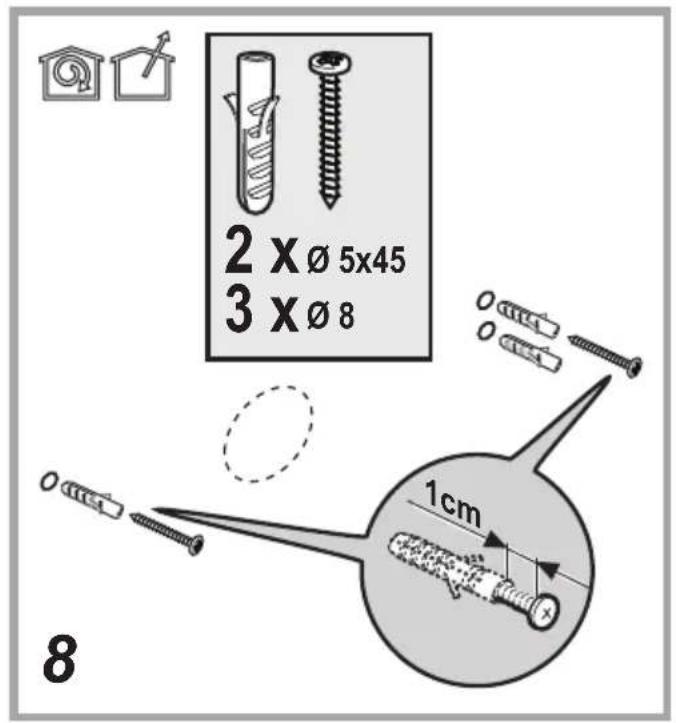

• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

• Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is not for professional use. Do not use the appliance outdoors.
The appliance must be handled and installed by two or more persons-risk of injury.
Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician.

Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

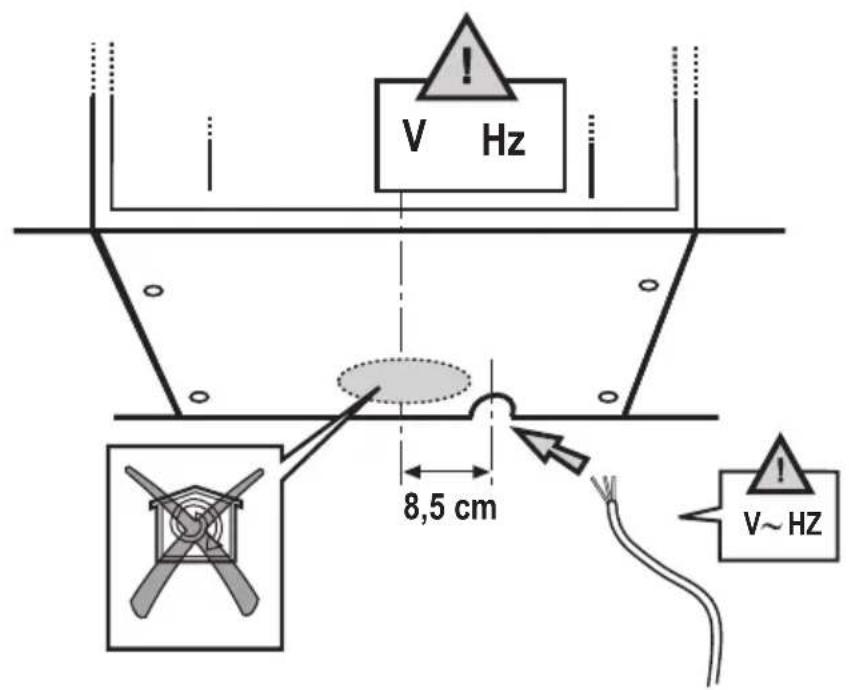

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

N : blue

L : brown

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

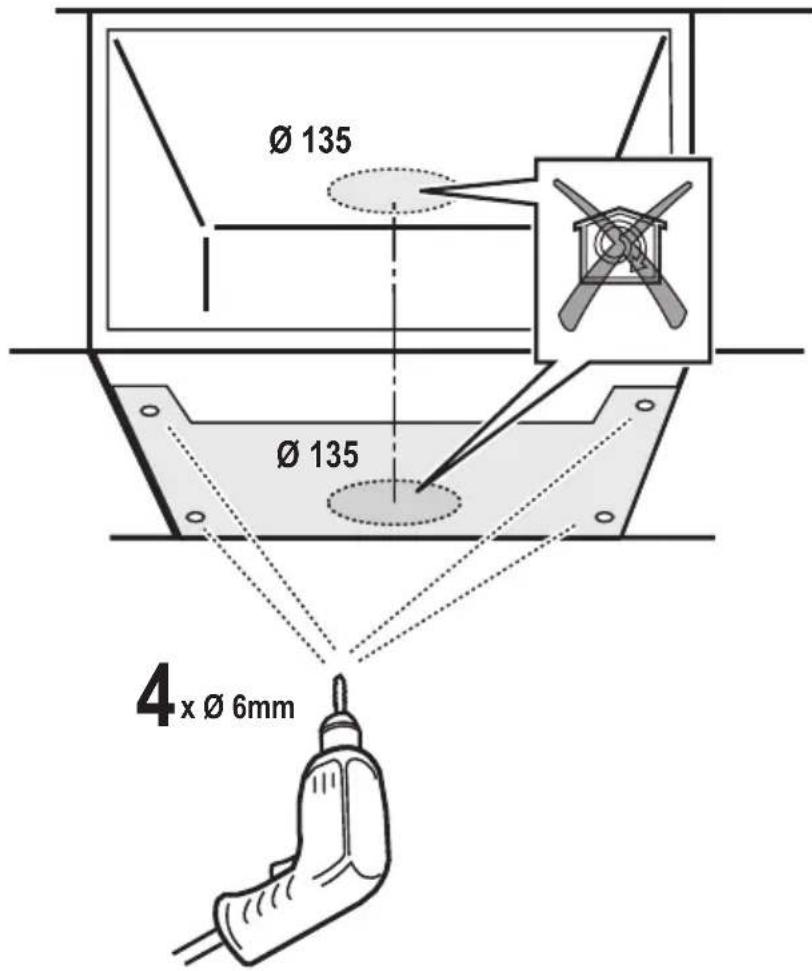

AIR VENT

(for the suction versions)

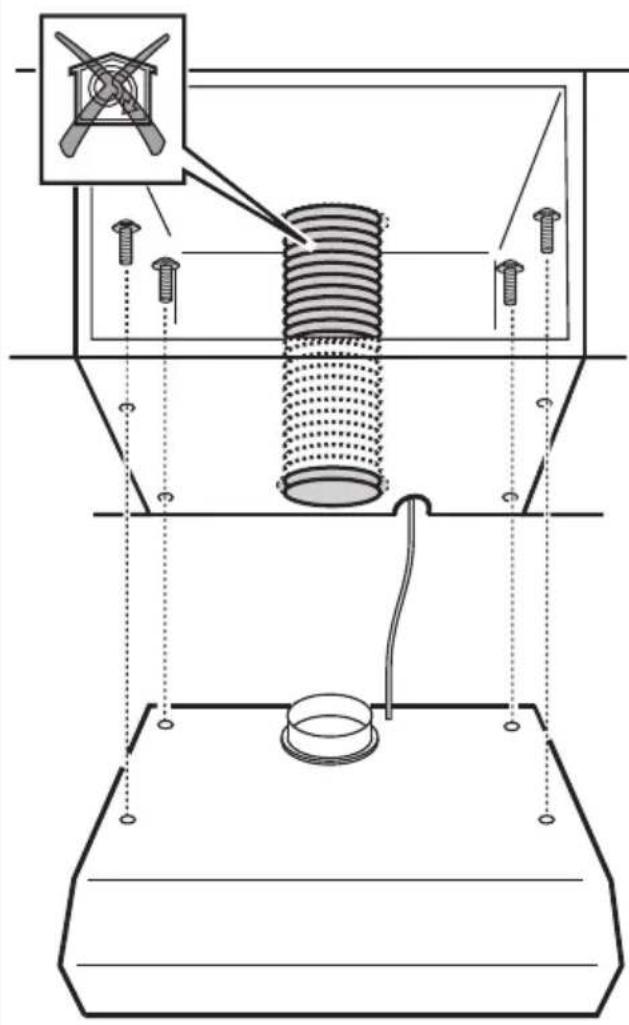

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

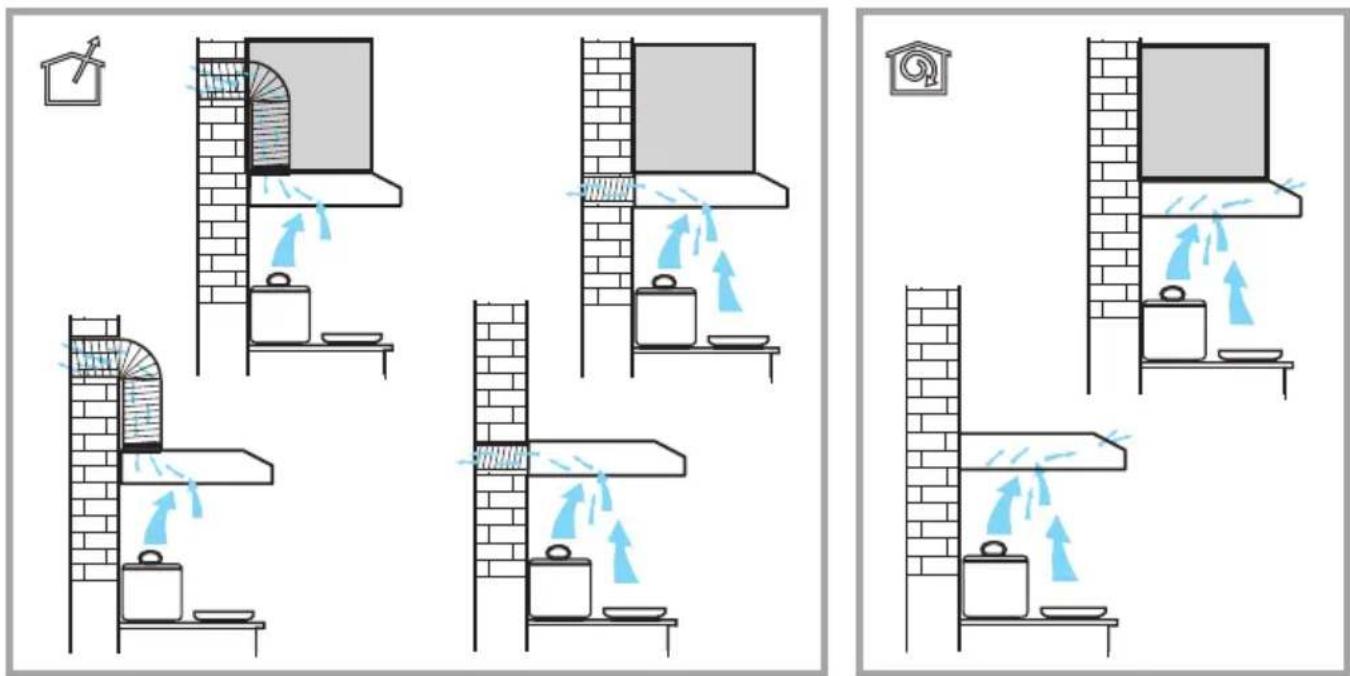

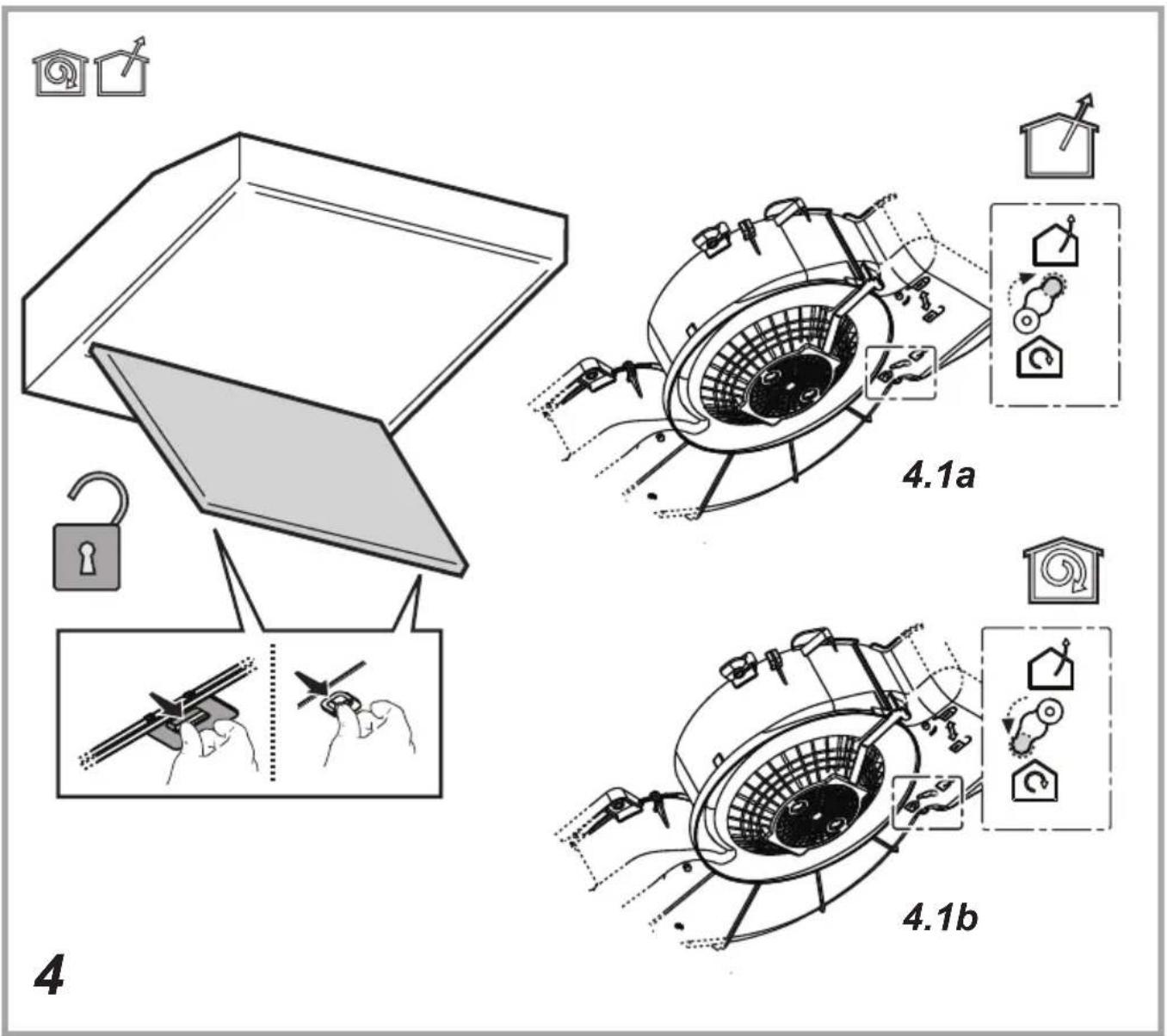

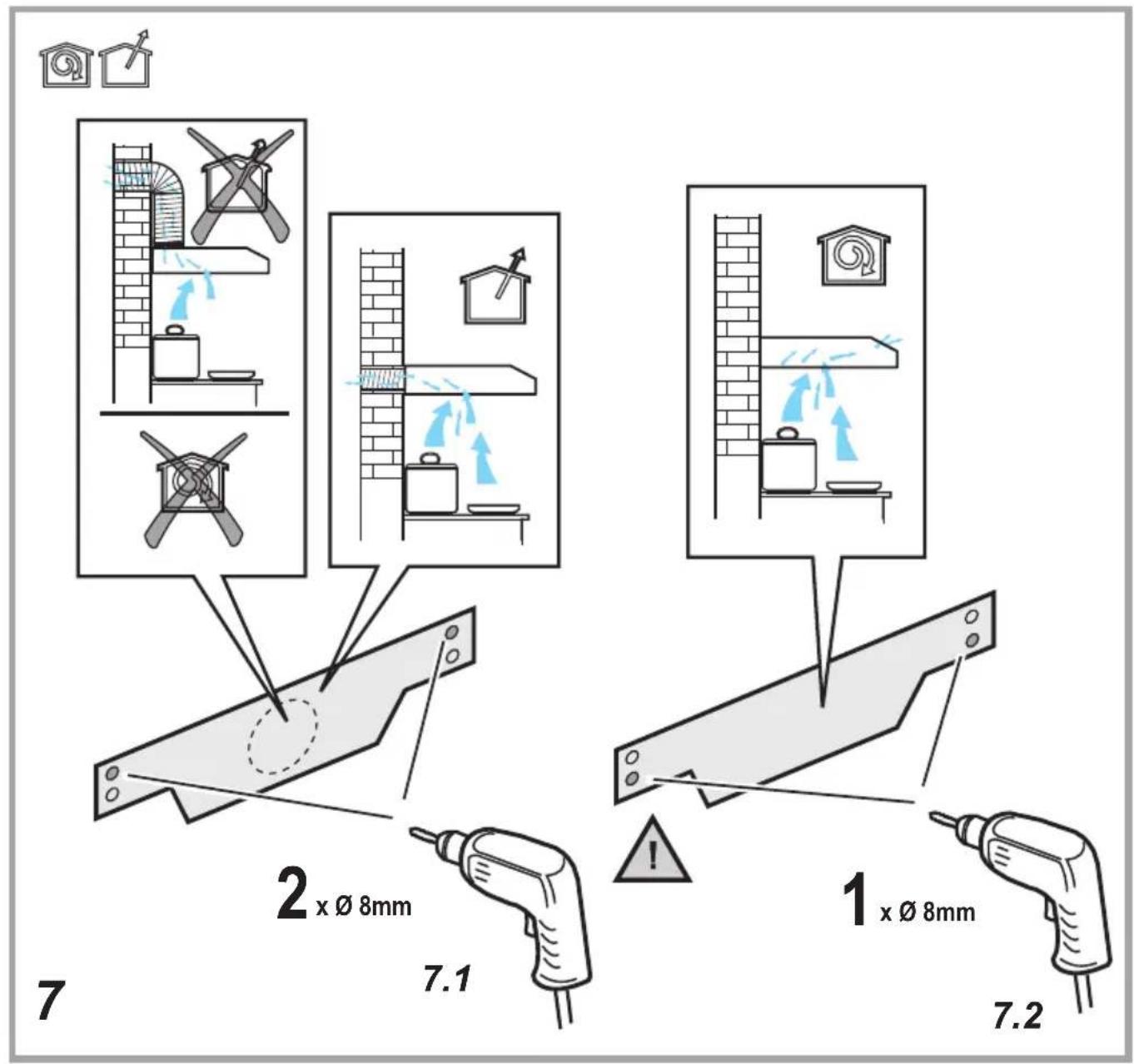

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

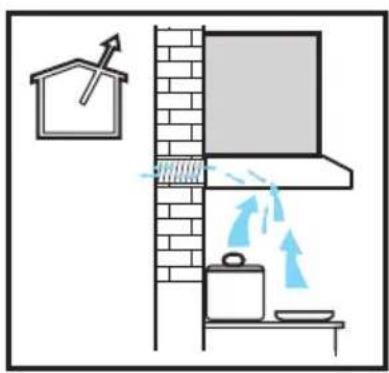

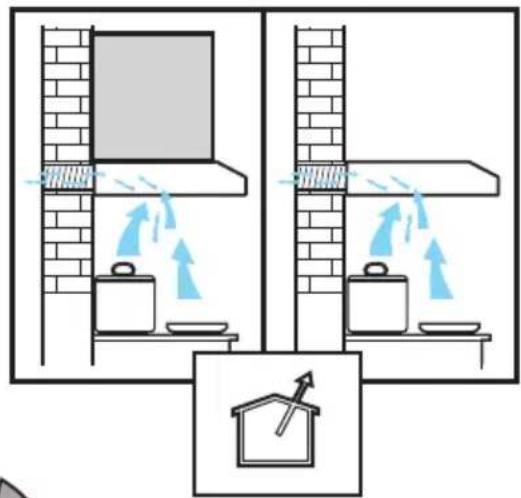

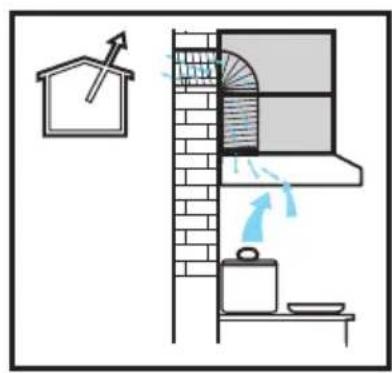

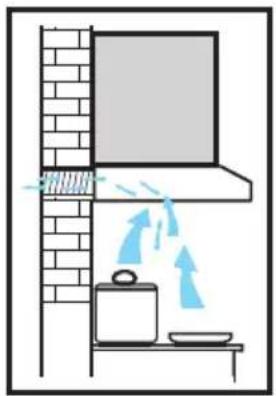

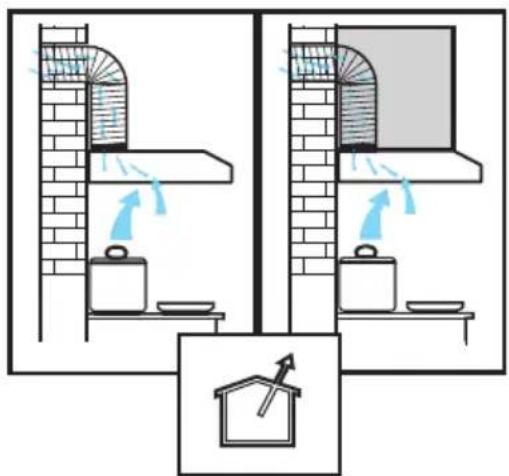

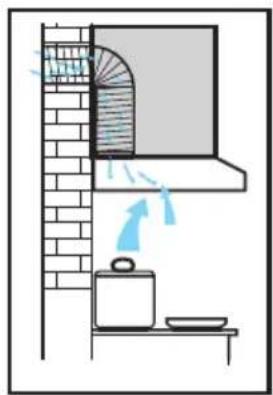

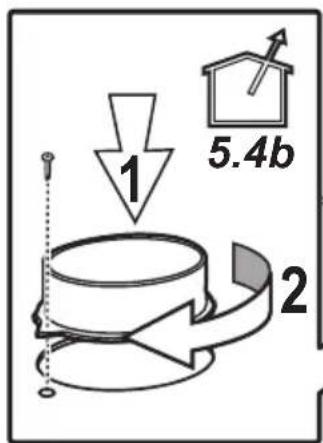

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

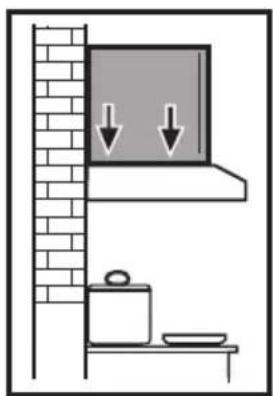

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

a. ON/OFF lighting
b. OFF motors
c. - d. - e. Minimum suction power (c.), medium (d.), maximum (e.).

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

If situated inside the support grill, it may be one of the following types:

Paper filter must be replaced once a month or if colouring appears on upper side, in such cases the colouring is evident through the grill openings.

Metallic filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

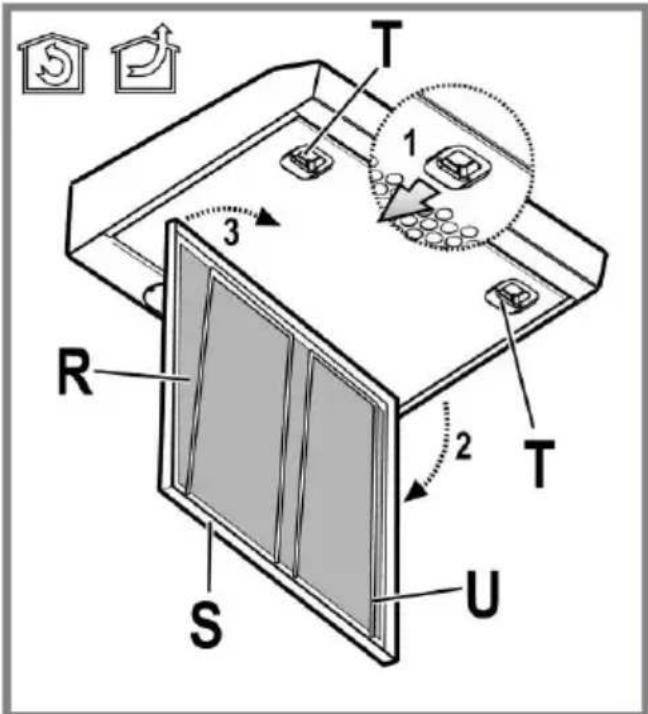

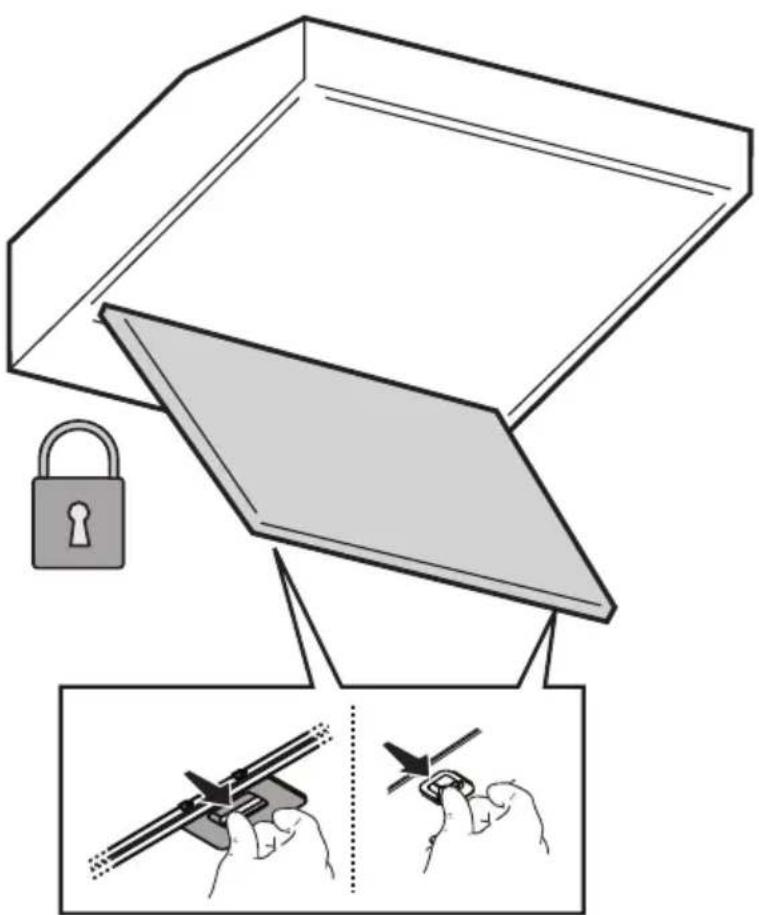

To access the grease filter R open the suction grill S via the release hooks T and free from the supports U.

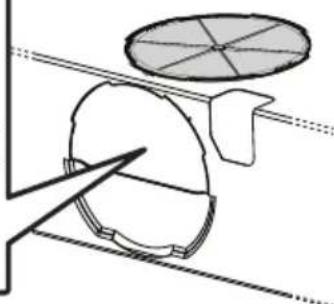

Maintenance of the charcoal filter

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

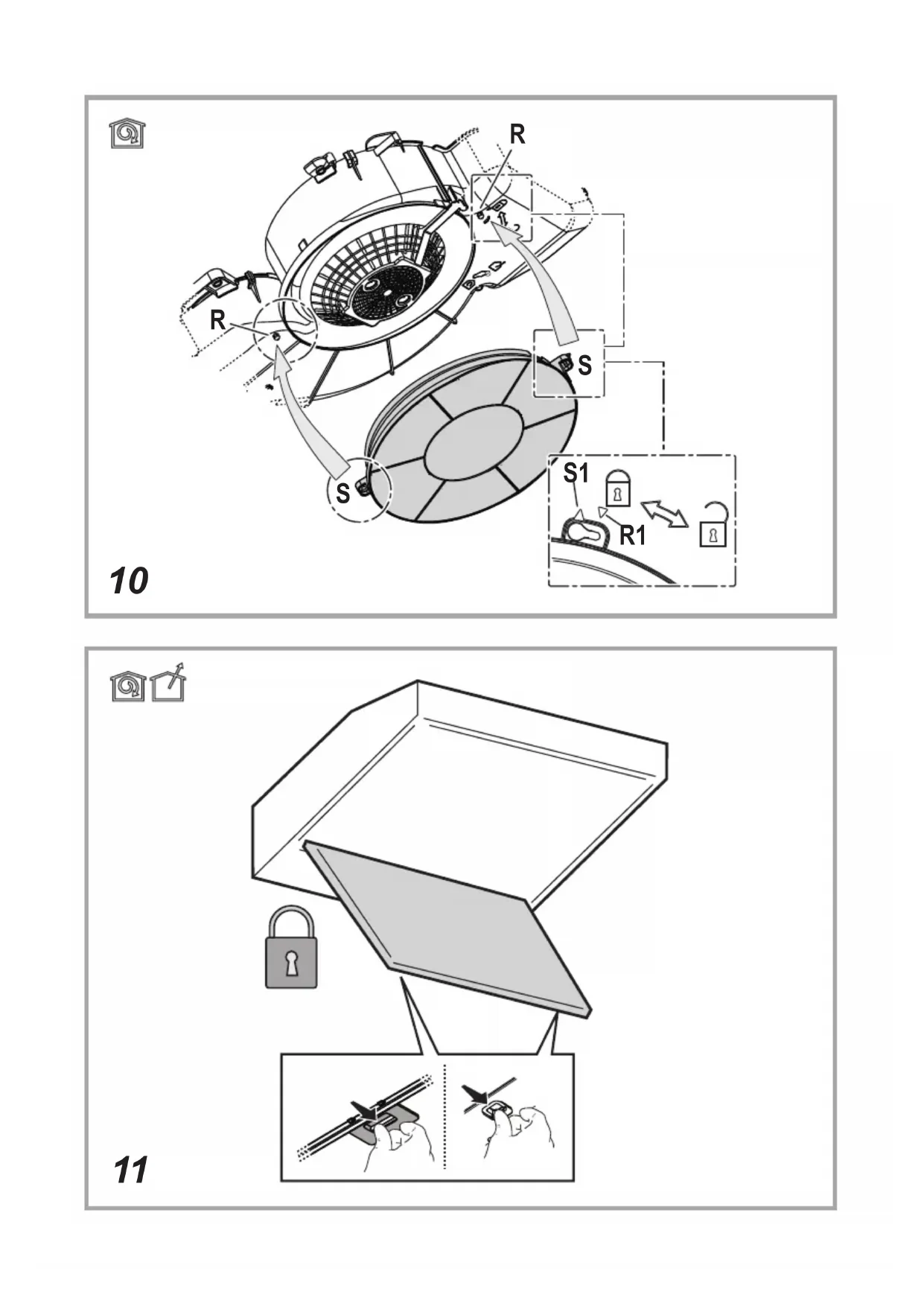

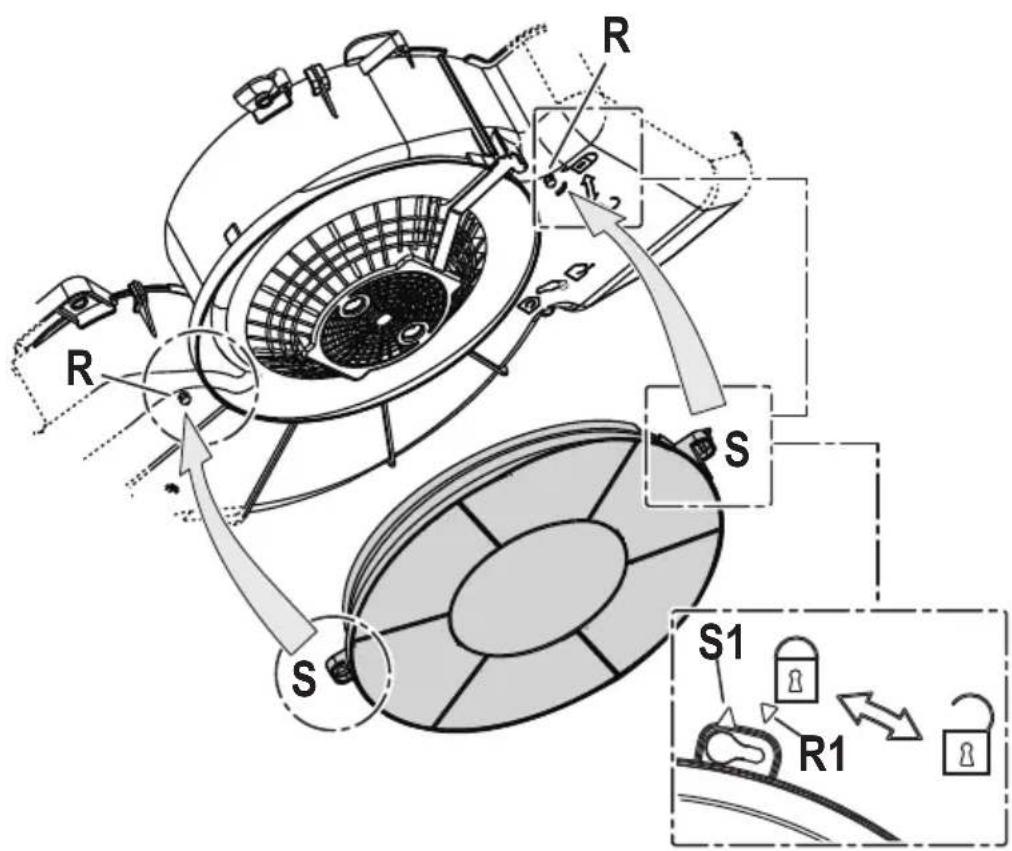

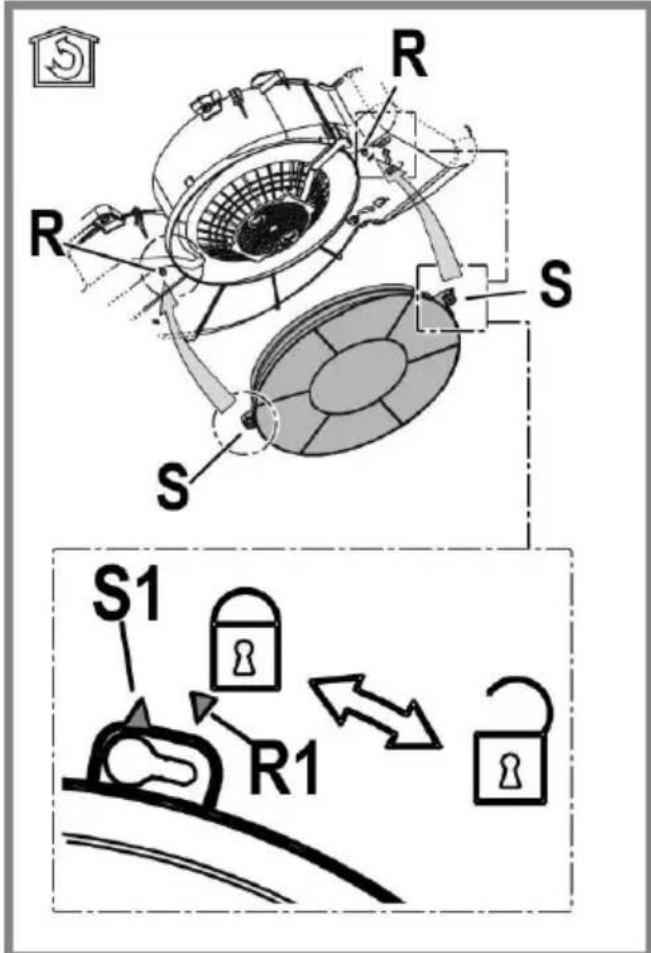

Remove the grease filters.

Fit the charcoalfilters over the motor.

Align the pins R on the cowl with the slots S, then turn the

filter clockwise until it locks in place.

Reverse the above procedure to remove the charcoal filters.

Refit the grease filters.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

To replace lights, contact authorised spare part center.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ____ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

• The power has not been disconnected.
• A speed has been selected.

• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning:

Check that:

• The power has not been disconnected.
• the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
13,3	49,9	51	12,5
13,3	54,9	51	12,5
13,3	59,9	51	12,5
13,3	89,9	51	12,5

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.whirlpool.eu
• Using QR Code

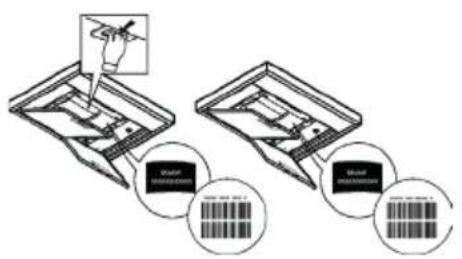

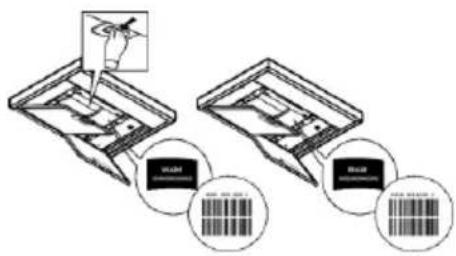

  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

DE

Ersetzen der Lampen

Silhouette of a person pushing a shopping cart (no text or symbols)

FR

SÉCURITÉ GÉNÉRALE

a. ON/OFF lumières
b. OFF moteurs
c. - d. - e. Puissance d'aspiration minimum (c.), moyenne (d.), maximum (e.).

ENTRETIEN

Nettoyage

Silhouette of a person pushing a shopping cart (no text or symbols)

IT

SICUREZZA GENERALE

a. ON/OFF luci
b. OFF motori
c. - d. - e. Potenza aspirazione minima (c.), media (d.), massima (e.).

MANUTENZIONE

Pulizia

Silhouette of a person pushing a shopping cart (no text or symbols)

ES

SEGURIDAD GENERAL

a. ON/OFF luces.

b. OFF motores.

Silhouette of a person pushing a shopping cart (no text or symbols)

PT

SEGURANÇA GERAL

Silhouette of a person pushing a shopping cart (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

استبadal المصابيح

صيانة مرشح الكربون
