• Before operating this unit, please read the instructions carefully.

For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.

• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• WARNING: Do not use the vacuum cleaner when rug or floor is wet.

Do not use to suck up water.

• Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
• Do not use the vacuum cleaner without a dust bag. Change the dust bag before it is full in order to maintain the best efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.

ASSEMBLING THE CLEANER

7 power cord
7 on/off switch
7 power control

MAINTAIN TOOLS AND FILTER

9 using accessory
12 maintain floor tools
12 check filter indicator
13 changing the dust bag
13 cleaning inlet filter
13 cleaning outlet filter
14 change the battery (optional)

TROUBLESHOOTING

PRODUCT FICHE

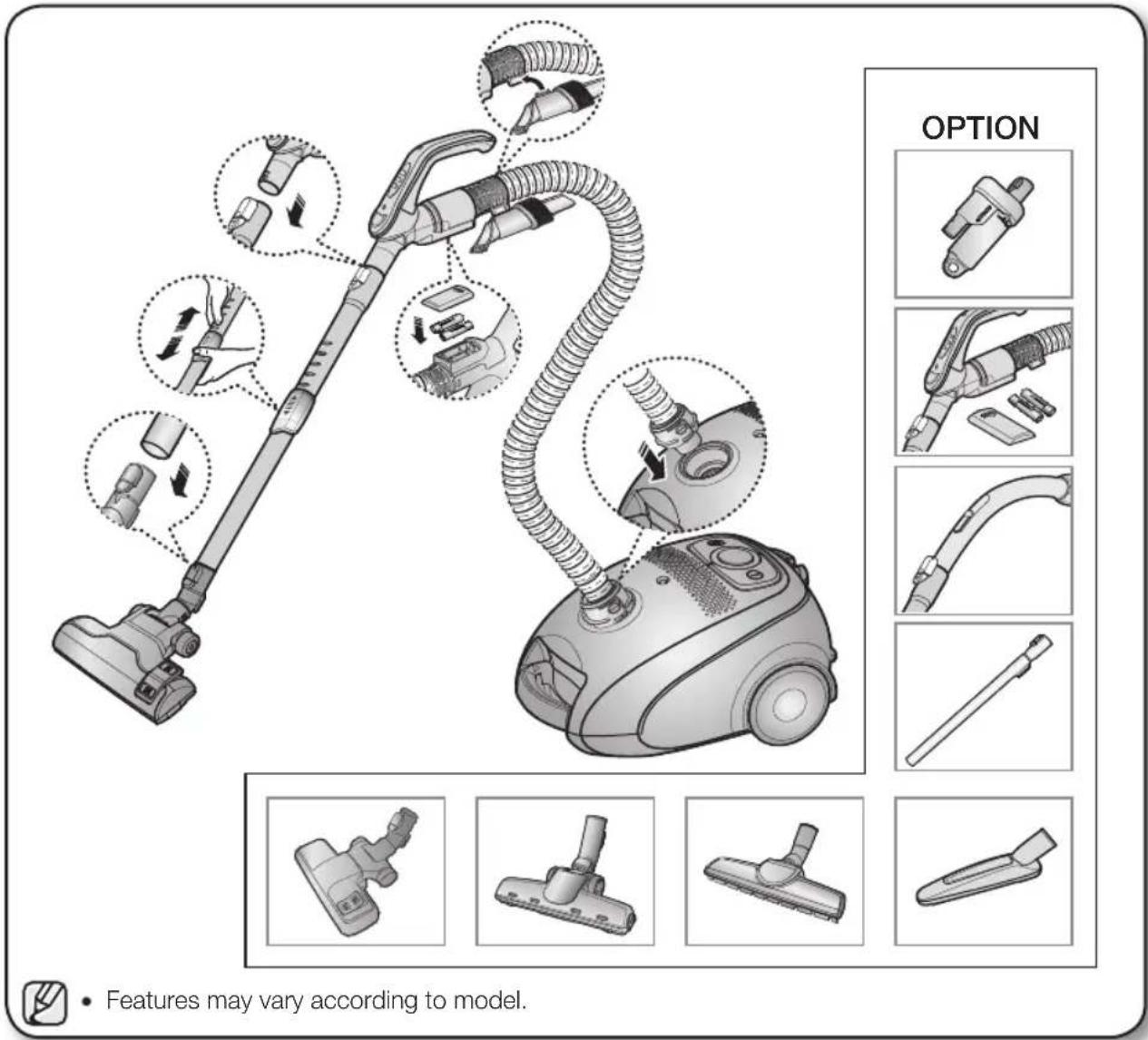

Assembling the cleaner

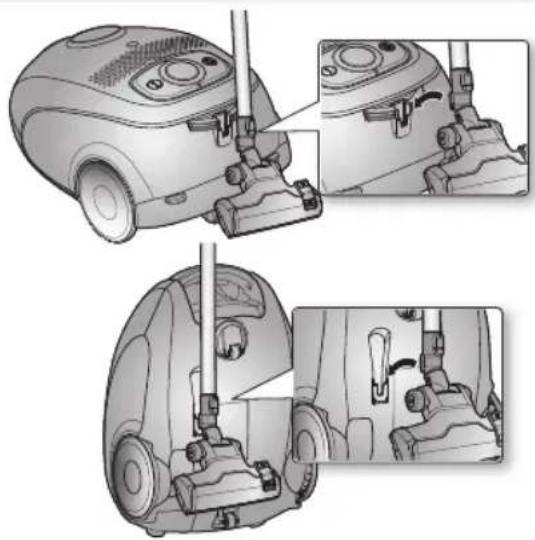

- For storage, park the floor nozzle.

Operating the cleaner

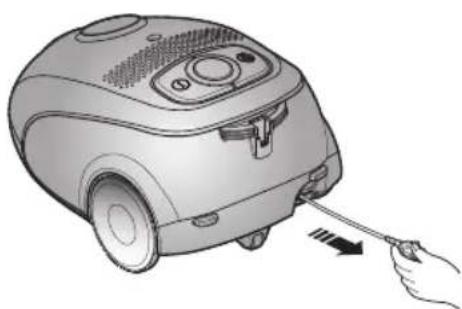

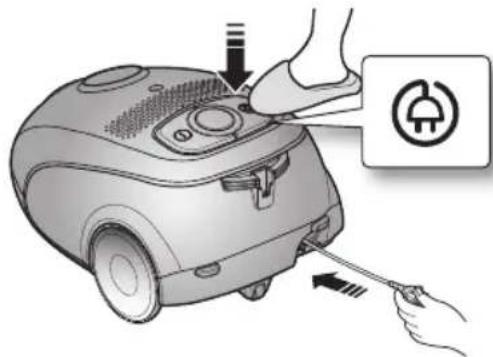

POWER CORD

• When removing the plug from the electrical outlet, grasp the plug, not the cord.

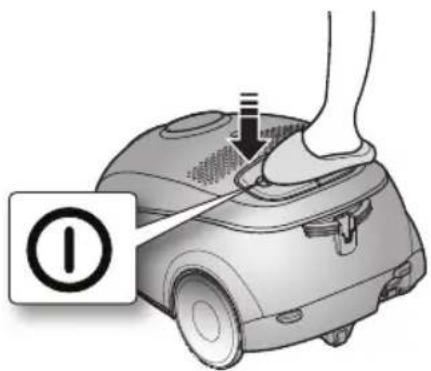

ON/OFF SWITCH

POWER CONTROL

Remote-control type (OPTIONAL)

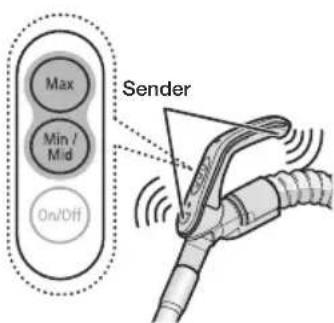

HOSE

1. Vacuum cleaner ON/OFF

Press the ON/OFF button to operate the vacuum cleaner.

Press again to stop the vacuum cleaner.

1. Vacuum cleaner MIN/MID

Press the MIN/MID button to operate the vacuum at a low level (for curtain cleaning, etc.).

Press again to operate the vacuum in a MID mode.

1. Using at MAX

Press the MAX button to operate the vacuum at maximum intake.

HANDLE CONTROL

[The cleaner is controlled by using infrared signals.]

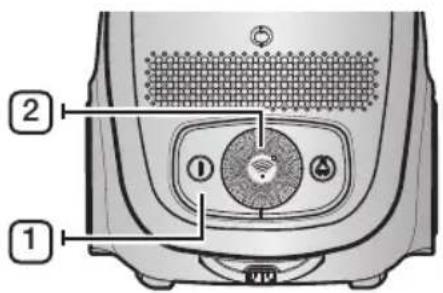

BODY

Press the power ON/OFF button repeatedly to start and to stop the vacuum cleaner. (OFF ON OFF)

If the remote handle control is not working, the cleaner can be operated using the ON/OFF button on the body of the machine.

1	The ON/OFF button operates the vacuum cleaner or stops it.
2	The INFRARED light indicates the part that receives the infra-red signal from the handle control.

Body-control type (Optional)

HOSE

To reduce suction for leaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open

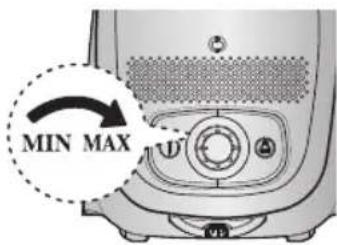

BODY (VOLUME TYPE ONLY)

To control power level, just slide the power control bottom right and left.

MIN = For delicate fabrics, e.g.net curtains.

MAX = For hard floors and heavily soiled carpets.

Maintain tools and filter

USING ACCESSORY

Pipe

• Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

• To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

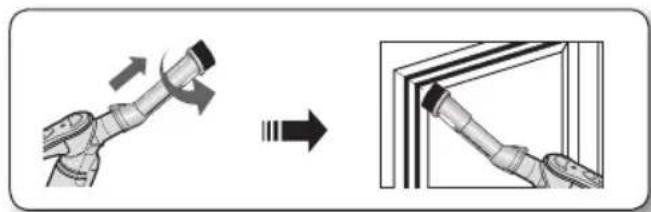

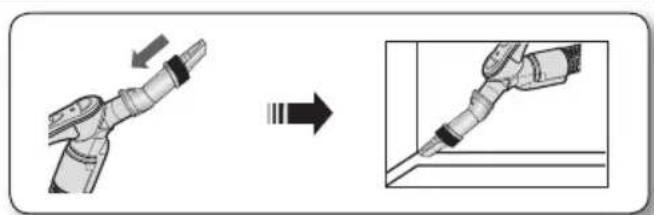

Accessory (Optional)

• Push the accessory on to the end of the hose handle.

• Pull out and turn the dusting brush for cleaning delicate areas.

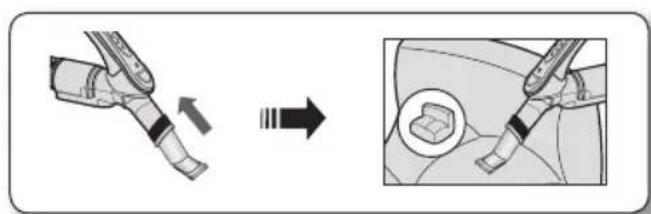

• To use the upholstery tool, push the accessory on to the end of the hose handle in the opposite direction.

Accessory (Optional)

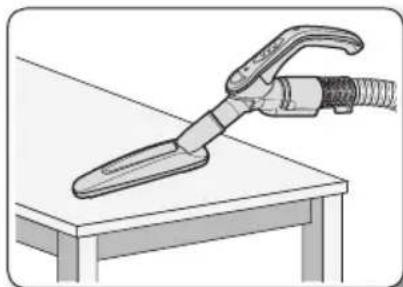

• Furniture brush for desk, Furniture and Floor.

Cleaning the cyclone filter (Option)

1. Release the handle and pipe from cyclone filter.

1. Rotate dust bin to counterclockwise and pull out.

1. Please dust trash in garbage after turn to the unlock direction.

1. Clean the cyclone filter body.

1. Clean the dust bin and grille with water.

1. Leave the dust bin and grille in the shade until completely dry.

1. Install the dust bin and grille.

1. Install the handle and pipe from cyclone filter.

Maintain tools and filter

MAINTAIN FLOOR TOOLS

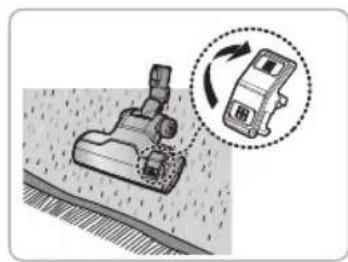

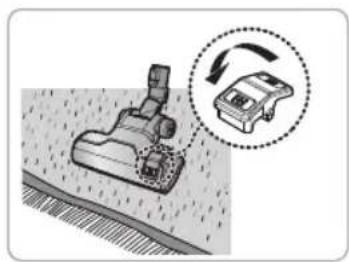

2-Step Brush

• Adjust the inlet lever according to the floor surface.

Carpet Cleaning Floor Cleaning

• Remove waste matter completely if the inlet is blocked.

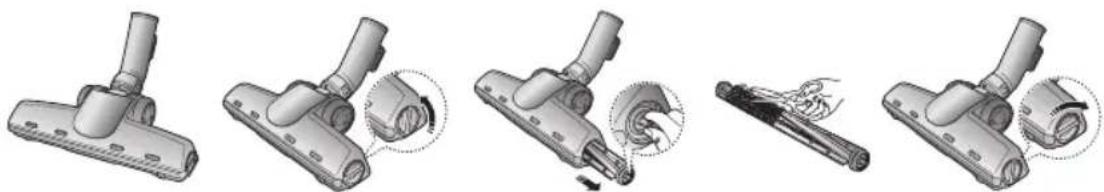

Pet Brush (Option)

For improved pick-up of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

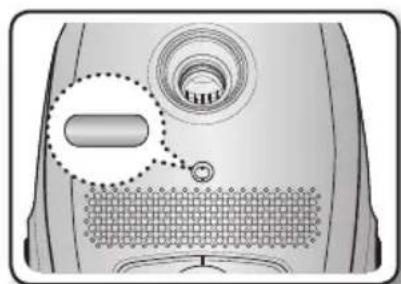

CHECK FILTER INDICATOR

If the "Filter Check" indicator turns to red color while you are cleaning, the dust bag requires replacement.

If the "Filter Check" indicator continues to display red color even after having changed bag into new one, turn the cleaner off and check if there is any clogging in the hose, tube, floor nozzle, or on the inlet/outlet filter.

Maintain tools and filter

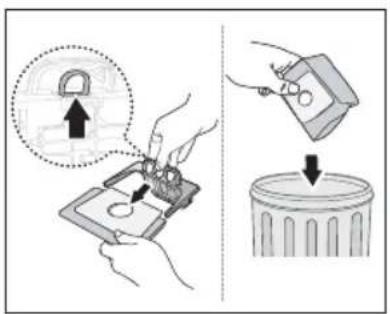

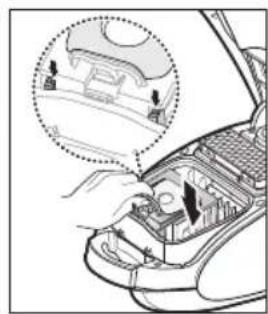

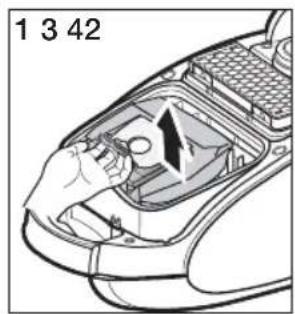

CHANGING THE DUST BAG

You can purchase dust bags in the shops where you bought this vacuum cleaner.

Paper bag can be used as you prefer (Micro-bag:VP-78M, Paperbag:VP-77)

OPTIONAL

• For Cloth Bag

After using, if the cloth bag is full of dust, clean the cloth bag and use it again.

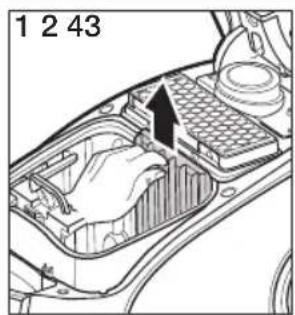

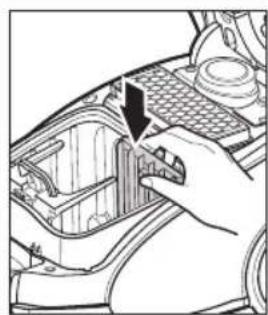

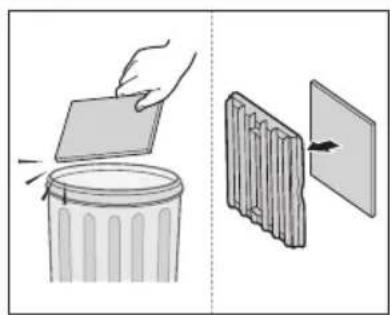

CLEANING INLET FILTER

Don't throw away the filter.

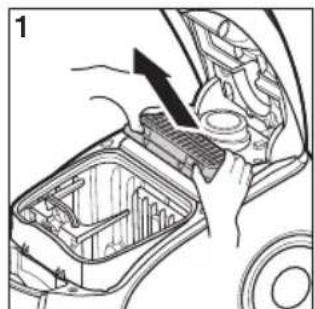

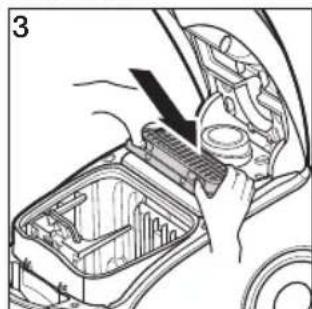

CLEANING OUTLET FILTER

Replacement filters are available at your local Samsung distributor.

CHANGE THE BATTERY (OPTIONAL)

1. When the vacuum cleaner dows not work, replace the batteries. If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AA.

1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles
4. Dispose of the batteries property.

BATTERY TYPE:AA Size

Troubleshooting

PROBLEM SOLUTION
Motor dows not start.	Check cable, plug and socket. Leave to cool.
Suction force is gradually decreasing.	Check for blockage and remove.
Cord does not rewind fully.	Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner dows not pick up dirt.	Check hose and replace if required.
Low or decreasing suction	Please check filter and, if required, clean as illustrated in the instructions.

This Vacuum cleaner is approved the following.

Electromagnetic Compatibility Directive: 2004/108/EEC

Low Voltage Directive: 2006/95/EC

[English]

According to Commission Regulation (EU) No 666/2013

A Supplier Samsung Electronics Co., Ltd.
B Model VCJG07RV VCJG07SV VCJG05TV	VCJG05TH
C Annual Energy Consumption (kWh/yr) 28.0	22.0
D Sound Power Level (dBA) 76 76
E Rated Input Power (W) 700 500
F Type General purpose vacuum cleaner

1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
2) Measurements for power consumption and performance are based on methods in EN 60312 - 1 and EN 60704.
