USER MANUAL NCH1K5BK00 NewAir
1500 Count Cigar Humidor
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus of our business.
From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.
Count on Newair
As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.
Contact Us
Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call: 1-855-963-9247
Email: support@newair.com
Online: www.newair.com
A team member will respond to you within 24 hours.
Follow Us
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
Specifications 5
Register Your Product Online. 6
Safety Information &Warnings 7
Parts List. 9
Circuit Board. 10
Assembly & Installation 11
Installing Your Cigar Humidor 12
Factory Odor Removal 13
Operating Instructions 14
Seasoning Your Cigar Humidior 14
Turning On Your Cigar Humidor 15
Control Panel Instructions 16
Temperature Settings 17
Cigar Storage Guide. 17
Humidification System. 18
Automatic Defrosting System 20
How to Remove the Cedar Printer 21
How to Install the Door Handle 21
Cleaning & Maintenance 22
Cleaning Your Cigar Cabinet. 22
How to Dispose of Your Humidor 22
Troubleshooting 23
Operation Malfunctions 23
Power Failures 23
Common Usage Problems. 24
Limited Manufacturer's Warranty 26
SPECIFICATIONS
| MODEL NO. | NCH1K5BK00 |
| CAPACITY: | 4.84 Cu. Ft. |
| VOLTAGE: | 110-120V |
| CURRENT: | 1.4 A |
| FREQUENCY: | 60Hz |
| TEMPERATURE RANGE: | 54 - 72°F |
| NET WEIGHT: | 100lbs. |
| DIMENSIONS: | 23.81" W x 23.62" D x 34.25" H |
| REFRIGERANT: | R600a |
| HUMIDITY CONTROL SYSTEM: | Ultrasonic |
| WATER TANK CAPACITY: | 50.7 FI. Oz. |
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Newair promotions and offers
Registering your product information online is safe & secure and takes less than 2 minutes to complete:
newair.com/register
Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase:
Serial Number:
Model Number:
SAFETY INFORMATION &WARNINGS
Before use, please read and follow all safety rules and operating instructions in this manual.
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND HARM TO THE USER AND/OR PROPERTY.
- Read all instructions before using this cigar humidor cabinet.
- Never allow children to operate or play with this appliance.
- Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
- Do not store or use any flammable vapors and liquids in the vicinity of this appliance. The fumes can create a fire hazard or explosion.
- This appliance is not intended for food storage.
- This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, lack of experience or knowledge of its operation, unless well instructed or under supervision of a person responsible for their safety.
Risk of child entrapment!
Keep children away from cigar humidors in use. Lock the door to your appliance and warn children not to play inside of it.
Childproof old humidors and other appliances you plan to discard or leave in storage by removing the door completely with a screwdriver.
R600a WARNINGS
For your safety observe the following recommendations:
- This appliance contains a small quantity of R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
- During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
- Avoid using sharp objects near the appliance.
-
Leaking refrigerant can ignite.
-
In the event any damage does occur, avoid exposure to open fires and any device which creates a spark, disconnect the appliance from the main power, thoroughly ventilate the room in which the appliance is located for several minutes, and notify Customer Service for necessary action and advice.
- The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- When positioning the appliance, ensure the supply cord is not trapped or damaged.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center.
WARNING: It is hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.
- The appliance is designed for freestanding or built-in installation. For freestanding installation, leave 5 inches (127mm) of space around the back and sides of the unit to allow proper air circulation to cool the compressor.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not tamper with the refrigerant circuit.
- Do not use extension cords or ungrounded (two prong) adapters.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.

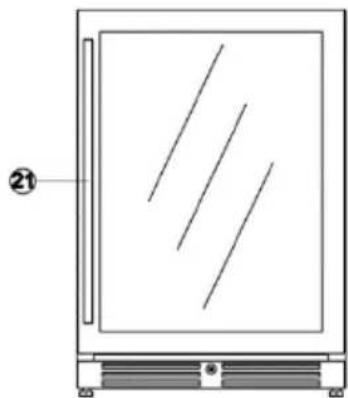

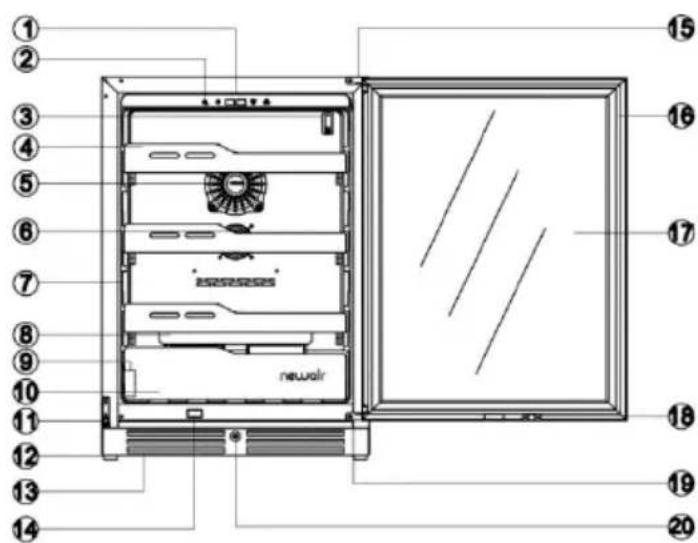

PARTS LIST
- Control Panel
- Top LED light
- Humidity sensor and Temperature sensor
- Cigar shelf
- Fan motor
- Fan motor of heater
- Side LED light
- Humidifier system
- Adding water box
-
Cigar drawer
-
Drop-proof device
- Cabinet leg
- Kick plate
- Magnetic switch
- Upper door hinge
- Door seal
- Glass door
- Magnet
- Lower door hinge
- Security lock
- Handle

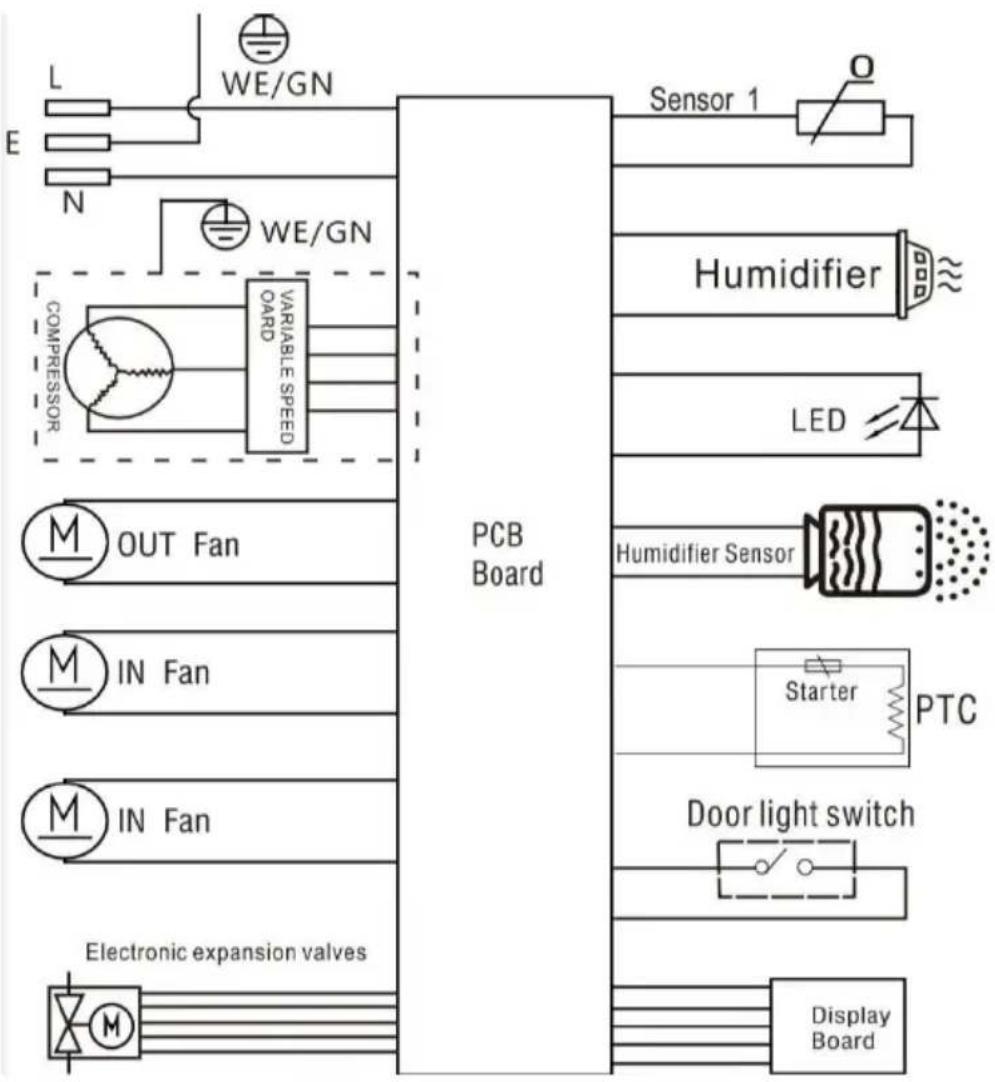

CIRCUIT BOARD
ASSEMBLY & INSTALLATION
Allow 24 hours before switching on the cigar humidor. During this time, we recommend that you leave the door open to clear any residual odors.
Recommendations
The location you have selected for your cigar humidor should:
- Be well ventilated.
- Be away from any heat source and direct sunlight.
- Be in a mostly dry environment (avoid places like laundry rooms, bathrooms, etc.).
- Be on a level surface.
- Be connected to a standard and reliable electricity supply. It is NOT recommended to use a multi-socket or extension cord.
- Be connected to a standard 120V electrical outlet.
- Placed away from the microwave oven. Certain microwave ovens do not have a wave interference shield. When placed within 3 feet vicinity of a microwave over, the cigar humidor's operation may be affected.
Grounding Instructions
The cigar humidor must be grounded in case of wire leakage. Grounding reduces the risk of electrical shock. The cigar humidor is equipped with a power cord having a grounding wire and plug. The cigar humidor plug must be plugged into a properly affixed and grounded electrical outlet.
Improper use of the grounding plug can result in the risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood.
If the supply cord is damaged, it must be replaced by a qualified person in order to avoid electrical hazard.
INSTALLING YOUR CIGAR HUMIDOR
Unpack and remove all the protection and adhesive strips from the packaging around and inside the cigar humidor.
The cigar humidor must be positioned such that the plug is accessible. The cigar humidor should be installed in a suitable place where the compressor will not be subject to physical contact.
Leveling Your Cigar Humidor
The cigar humidor must be leveled BEFORE loading your cigars.
Your cigar humidor is equipped with 4 adjustable feet to facilitate easy leveling. It is recommended that you tighten the back feet to the maximum and adjust the front feet to level the cigar humidor.
Installing the Front Grill
The front grill must be installed before you build your cigar humidor into a cabinet.
- Remove the front grill from the cabinet and position it in the open space at the bottom of the humidor.
- Align the holes on the side of the front grill with the holes on the bracket.
- Screw the front grill onto the bracket with the short screws (4) provided.
FACTORY ODOR REMOVAL
Wash the interior of the humidor with a mild detergent and warm water. Make sure to not get the wood wet. Leave the door open and allow it to air dry thoroughly. If a "plastic" smell persists, place a dish of baking soda in the unit or stuff the humidor with newspapers overnight. When finished, let the unit run a full day to complete the airing out process.
If the supply cord is damaged, it must be replaced by a qualified person in order to avoid electrical hazard.
OPERATING INSTRUCTIONS
It is recommended that you setup the cigar cabinet in a place where the ambient temperature is between 50 - 77^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause the interior temperature to fluctuate or not reach the appliance's range.
The temperature may fluctuate depending on whether the interior light is on or off or how cigars are placed on the upper, middle, or lower section.
It is best to season your wood shelves and drawers before adding your cigars so that the wood is at an ideal relative humidity (RH) and does not absorb humidity from your cigars. To season your new cigar humidor:
- Add distilled water to the included moisture container or add a sponge that is damp with distilled water. Make sure that the water is not touching the wood directly or this may damage the wood.
- Allow the moisture container, or other humidity-adding device, to sit in the humidor until it reaches a relative humidity of 5% higher than your preferred level. This process may take as long as 3 days but is the best way to ensure your cigars stay optimal.
- Once the humidor reaches this mark, you can begin to add cigars. You may add a few at a time in order to monitor the RH and make sure it stays at a level you want it at. If it drops too much, you can use the same seasoning method to bring it back up.
NOTE: During this entire process, it is recommended to not open the door unnecessarily, as this lets moisture escape and can delay the process.
Plug in and switch on the appliance by pressing on the power button for 3 seconds.
When you use the cigar humidor for the first time (or restart the cigar humidor after having it shut off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the cigar humidor is running for a few hours everything will stabilize.
IMPORTANT: If the unit is unplugged, power is lost or turned off, wait 3 to 5 minutes before restarting the unit. The cigar humidor will not start if you attempt to restart before this time delay.
Operating Noises
To reach the desired temperature settings, our cigar humidor, like all cigar humidors operating with compressors and fans, may produce the following types of noises. These noises are normal and may occur as follows:
- Gurgling sound - caused by the refrigerant flowing through the appliance's coils.
- Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas to produce cold.
- Fan operating sound - to circulate the air within the cigar humidor.
CONTROL PANEL INSTRUCTIONS
MODE button:
Press the MODE button to switch the control function from adjusting the temperature to adjusting the humidity.
ON/OFF button:
Press the button ON/OFF button for 3 seconds to turn the unit on. Press the ON/OFF button for 3 seconds to turn the unit off. When you turn off the unit, all other functions will turn off except for the LED light. Press again (without delay) and the power turns on again.
LED LIGHT button:
Press the LED LIGHT button and the light turns on. Press the button again and the light turns off.
TEMPERATURE display window:
Displays internal temperature.
HUMIDITY display window:
Displays internal humidity level.
UP button:
Press the UP button to increase the temperature or humidity by 1 degree Celsius/Fahrenheit or by 1% , depending on which mode the humidor is set to.
DOWN button:
Press the UP button to decrease the temperature or humidity by 1 degree Celsius/Fahrenheit or by 1% , depending on which mode the humidor is set to.
Change between Celsius and Fahrenheit.
TEMPERATURE SETTINGS
- When you turn on your cigar humidor for the first time, the LED temperature control panel displays the actual internal air temperature by default.
- This cigar humidor comes with a memory function. In the event of a power interruption, all previous temperature settings are automatically reinstated, and it will revert to a preset temperature setting.
- There is a difference between the air temperature inside the cigar humidor and the actual temperature of the cigar: You will need to wait approximately 12 hours before noticing the effects of temperature adjustment due to the critical mass within a full cigar humidor.
- Once the temperature is set, it is strongly advised not to adjust it frequently. The thermostat will maintain the temperature inside the cigar humidor within a +/- 2.5^ range, but the actual temperature of the cigar will only fluctuate 0.5^ to 1^ .
CIGAR STORAGE GUIDE
- The ideal temperature for storing cigars is between 65^ and 73^ F.
- The ideal relative humidity (RH) for storing cigars is between 65% and 75% RH. To properly maintain RH in this unit, you will need to include a method of adding humidity. For your convenience, a moisture container is included.
- To add humidity to the unit using the included moisture container, simply fill the container with distilled water or a damp sponge wet with distilled water and place it back in the unit. Please note this water should be changed after reaching the desired humidity and refilled when used again.
- Keep cigars out of direct sunlight to avoid exposure to damaging UV rays.
- It is recommended to keep cigars in their original boxes and packaging as long as possible. Keep unwrapped cigars separate in your humidor to avoid unwanted mingling of flavors.
- Check cigars regularly for signs of tobacco beetles and mold, and take preventative measures if necessary.
Properly stored cigars can improve with age for as long as 5-10 years, and can be kept even longer in ideal conditions
The cigar humidor has an automatic humidification system that is located at the bottom of the cabinet and the water- filling box is in the lower left side of the humidor. Open the plastic cover of the drawer to add water as shown below.
Notes:
- Avoid opening or removing any parts of the humidification system without technical assistance.
- Avoid filling with unfiltered water since it may cause harm to cigar quality or taste.
- Check the water-filling box often if you live in an arid climate.
-
It is normal to experience a +/-5% fluctuation in the set humidity level. It is suggested to monitor the humidity level to assess if the cigar humidor levels need to be adjusted.
-

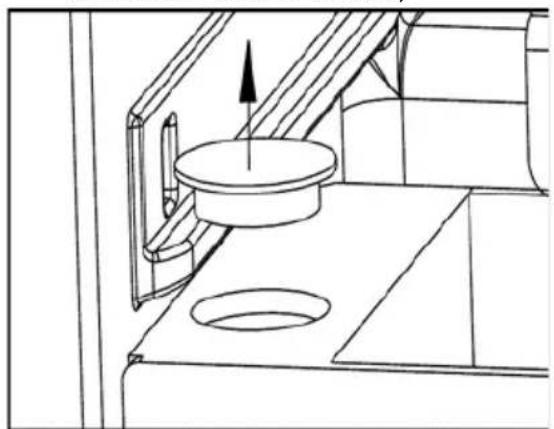

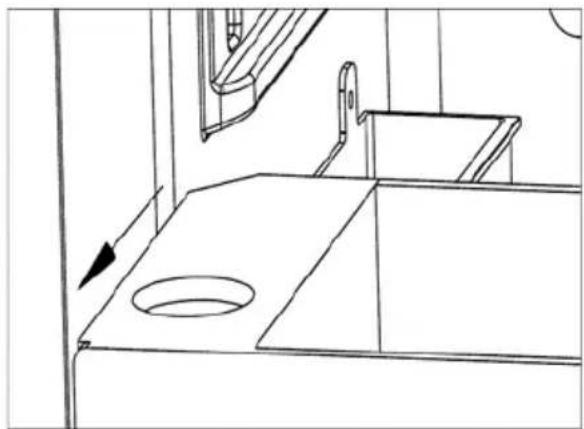

Open the plastic cover on the bottom drawer following the direction of the arrow:
- Pull out the bottom drawer in the direction of the arrow;

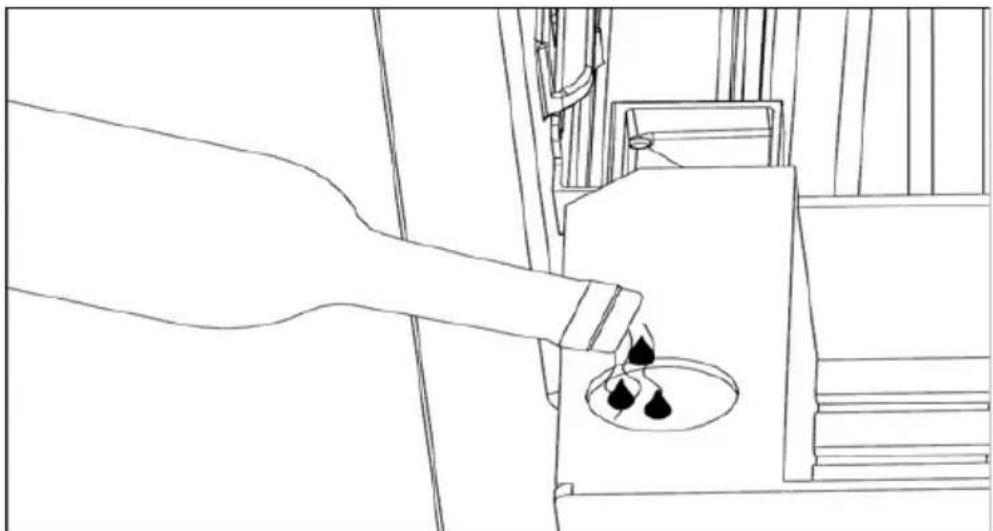

- Add water in the opening of the bottom drawer;

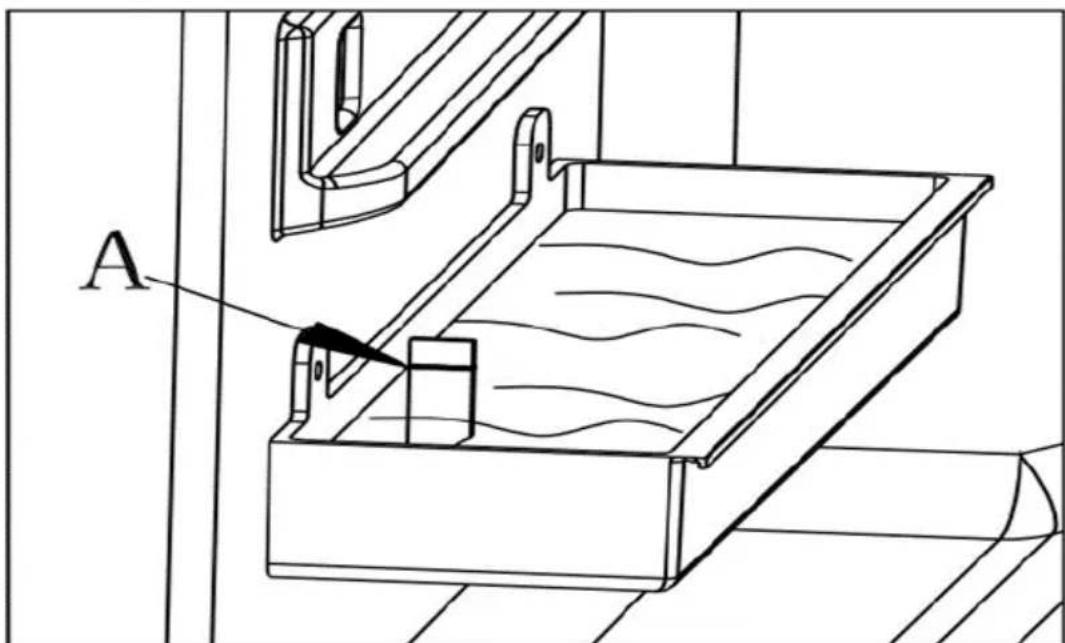

- Make sure the added water does not exceed the fill line A shown in the figure below.
AUTOMATIC DEFROSTING SYSTEM
Your cigar humidor comes with an auto-cycle defrost system. This system will only self-activate if the internal temperature of the humidor falls lower than 53F for extend periods of time.
If frost build up occurs, the defrost function will melt the frost and collect it in a tray located at the back of the cigar humidor next to the compressor where the compressor's heat will evaporate the water and recycle it into the humidor's humidification system.
This system, when self-activated, helps maintain the humidity level inside your cigar humidor by adding moisture back into the cigar cabinet.
NOTE: This cigar humidor is equipped with a double-glazed glass door that has a third internal acrylic layer to minimize condensation on the glass door.
HOW TO REMOVE THE CEDAR DRAWER

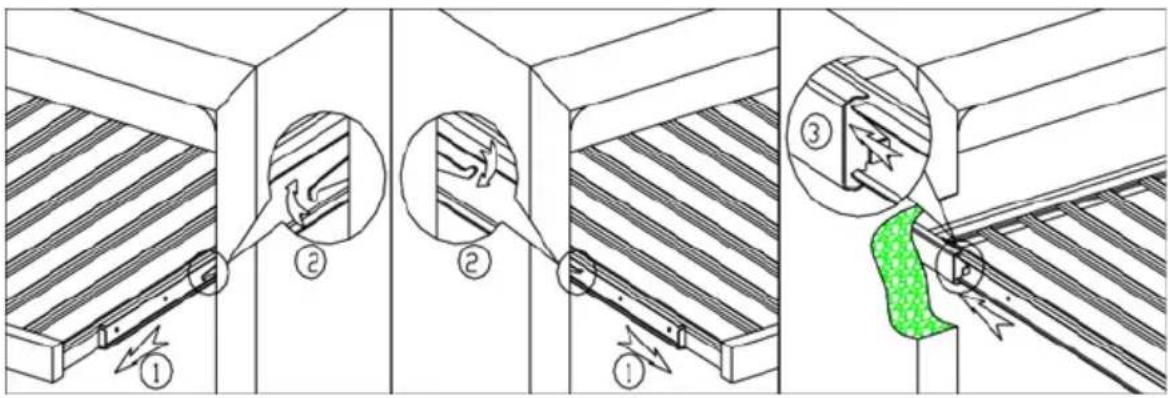

- Pull the drawer out to reveal the metal latches on either side of the sliding roller rack.
- Lift the left side of the drawer up and out of the latch. At the same time, move the right side of the drawer down.
- Pull the drawer off the sliding roller rack and out of the cigar humidor.

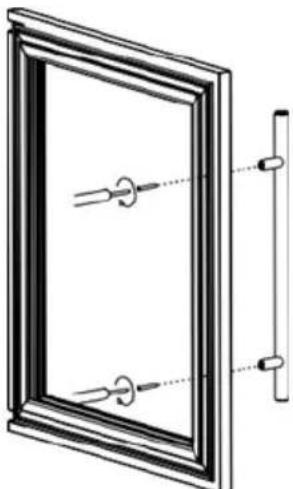

HOW TO INSTALL THE DOOR HANDLE
- To install the handle into place, align the holes on the handle with the screws on the door frame and tighten with a Phillips screwdriver, then fix the door seal as needed.
CLEANING & MAINTENANCE
CLEANING YOUR CIGAR CABINET
To clean your cigar cabinet:
- Unplug the cigar humidor and remove its contents and trays.
- Wash the inside with warm water and a baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- The outside of the cigar humidor should be cleaned with mild detergent and warm water.
- Remove the water reservoir and wash with mild detergent and warm water.
HOW TO DISPOSE OF YOUR HUMIDOR
- Disconnect the main plug from the main socket.
- Cut off the main cable and discard it.
Correct Disposal of This Product
This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local council., your household waste disposal service, or the shop where you purchased the product.
TROUBLESHOOTING
OPERATION MALFUNCTIONS
If your cigar humidor appears to be malfunctioning, unplug it and contact our customer service team. Any intervention on the cold circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealing system. Similarly, any intervention on the electrical circuit should be performed by a qualified electrician.
WARNING: Any intervention performed by a non-authorized technician will lead to the warranty being void.
POWER FAILURES
In the event of a power interruption, all previous temperature settings are automatically reinstated, and it will revert to a preset temperature setting.
Most power failures are corrected within a short period of time. An hour or two loss of power will not affect cigar humidor's temperatures. To avoid sudden change of temperature while the power is off, you should avoid opening the door. For longer periods of power failure, take steps to protect your cigars.
COMMON USAGE PROBLEMS
You can resolve most common usage problems easily by reviewing and following the troubleshooting information below.
| Problem | Possible Causes | Solution |
| The humidor will not operate. | The unit may be plugged in using a different voltage. | Check if using the wrong voltage. |
| The circuit breaker may be tripped or there is a blown fuse. | Reset the circuit breaker or check for a broken fuse. | |
| The humidor is not cold enough. | The external environment may require a higher setting. | Lower the temperature of the humidor. |
| The door may be opened too frequently. | Open the door less frequently. | |
| The door is not closed completely. | Make sure the door is closed securely. | |
| The door seal does not seal properly. | Replace the seal on the door. Replacements can be acquired from the Newair customer support department. | |
| The humidor does not have sufficient clearance. | Make sure there is at least 5 inches clearance between the back of the unit and any adjacent walls. | |
| The light does not work. | There may be a problem with the display board. | Contact the Newair customer support department. |
| The humidor vibrates while operating. | The unit is not sitting on a level floor, or the unit's feet are not correctly installed. | Make sure the unit's feet are in the proper position and tightened securely. |
| The humidor produces a lot of noise. | The unit is not leveled. | See above. |
| Check the fan. | Check the fan to make sure there is no debris or obstruction. If not, contact the Newair Customer Support Department. | |
| Left window shows HH “High Temperature”. | Ambient temperature is too high. | Avoid using at ambient temperature above 108 degrees Fahrenheit. |
| Leakage in refrigeration system or failure of indoor fan. | Contact a qualified technician for repairing. | |
| Left window shows LL “Low Temperature”. | Ambient temperature is too low. | Avoid using at ambient temperature below 32 degrees Fahrenheit. |
| Refrigeration system failure. | Contact a qualified technician for repairing. | |
| Right window shows HH “High Humidity”. | Appliance is in a high humidity environment and shows higher than set humidity by 15% for more than 48 hrs. | If there is water in the water box it must be drained at this time. |
| Refrigeration system failure. | Contact a qualified technician for repairing. | |
| Right window shows LL “Low Humidity”. | Humidity is lower than set humidity by 15% for more than 48 hrs. There might be no water in the water box. | Add water to the water box. |
| Refrigeration system failure. | Contact a qualified technician for repairing. |
LIMITED MANUFACTURER'S WARRANTY
This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.
Warranty Terms
During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions
The warranty will not apply if damage is caused by any of the following:
Power failure.
- Damage in transit or when moving the appliance.
- Improper power supply such as low voltage, defective household wiring or inadequate fuses.
- Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures).
- Use in commercial or industrial applications.
- Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
- Use of force or damage caused by external influences
- Partially or completely dismantled appliances.
- Excess wear and tear by the user.
Obtaining Service
When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a Newair authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email support@newairusa.com.
Un nom de confiance
Instagram.com/newairusa
Twitter.com/newairusa
LISEZ ET CONSERVEZ CES INSTRUCTIONS
TABLE DES MATIÈRES
Email: support@newair.com
En Linea: www.newair.com
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa
