Brand Rockford Fosgate
Model RFRNGRPMXDK
Product Type Digital audio receiver (source unit)
Dimensions (mounting diameter) 77 mm (round hole required)
Approximate weight 0.5 kg
Power supply 12 V DC (10.5-16 V)
Fuse Check appropriate rating
Audio sources FM/AM/Weather (WB), USB, AUX, Bluetooth, Pandora, SiriusXM
Internal amplifier Yes (enable/disable)
Outputs Front, Rear, Subwoofer (RCA or line)
Equalizer 7-band with presets (Flat, Rock, Classic, etc.) and Custom
Crossover filter 60/80/120 Hz or APF for front, rear, sub
Punch EQ +18 dB at 45 Hz / +12 dB at 12.5 kHz
Bluetooth Audio streaming and control (pairing)
Settings Balance, Fader, Source gain, Volume (0-40), Subwoofer (0-20)
Display Brightness dimmer (2 levels)
Maintenance and cleaning Soft dry cloth; avoid solvents and abrasives
Safety Disconnect battery before installation; use fuses
Spare parts and repairability Contact Rockford Fosgate customer service
General information Manual available in multiple languages; software update possible

Frequently Asked Questions - RFRNGRPMXDK Rockford Fosgate

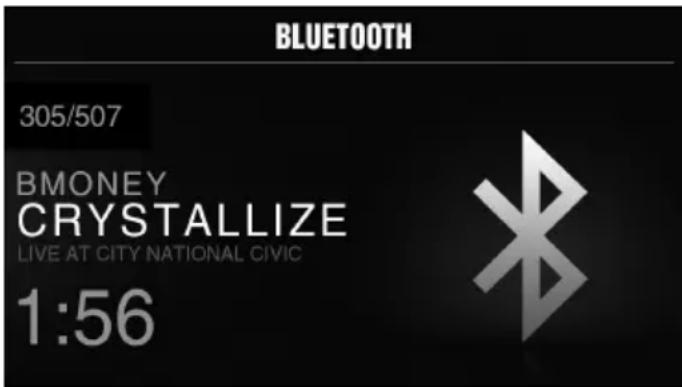

How do I pair my phone via Bluetooth?
In the menu, select BT PAIRING and enable discovery. On your phone, search for 'Rockford PMX' and select it to pair.
How do I reset the device to factory settings?
Access the menu by long-pressing MENU, then choose FACTORY DEFAULT. You can reset only the audio or the entire system by selecting YES.
Why is the radio not picking up any stations?
Check that the antenna is properly connected. If the signal is weak, disable LOCAL mode in the tuner settings to pick up distant stations.
Can I use a USB drive with this receiver?
Yes, plug in a USB drive containing MP3 or WMA files. Select the USB source. Android devices are not supported via USB.
How do I adjust the subwoofer level?
Use the SUB+ and SUB- buttons to adjust the subwoofer output from 0 to 20 while listening.
What equalizer settings are available?
The 7-band equalizer offers presets: Flat, Rock, Classic, Acoustic, Dance, Electronic, Hip-Hop, Custom. In Custom mode, adjust each frequency manually.
How do I reduce the screen brightness?
Briefly press the DIMMER button to toggle between two brightness levels.
How do I change the audio source?
Briefly press the SRC (or MENU) button to cycle through sources: FM, AM, Weather, USB, AUX, Bluetooth, Pandora, SiriusXM. Turn the rotary encoder to select.
What are the basic installation steps?

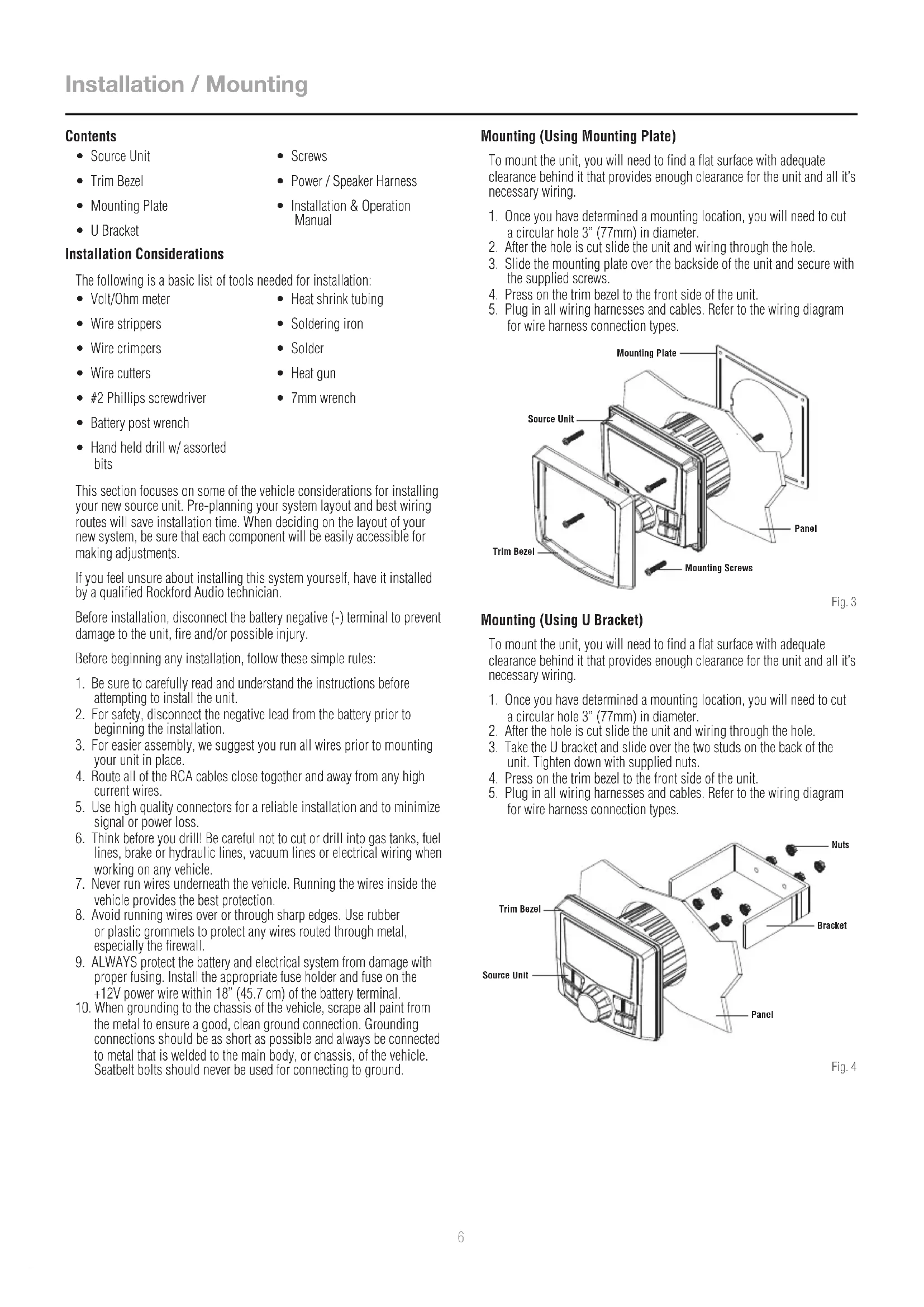

Disconnect the battery, cut a 77 mm hole, slide in the unit and wiring, secure the mounting plate or U-bracket, connect the harnesses and trim ring. Refer to the wiring diagram.
What to do if the device does not turn on?
Check the fuse (replace if necessary), that the red wire receives 10.5-16 V, and that the ground is correct.
