USER MANUAL SJF1560E0AEU SHARP

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the rst time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.EN -2-

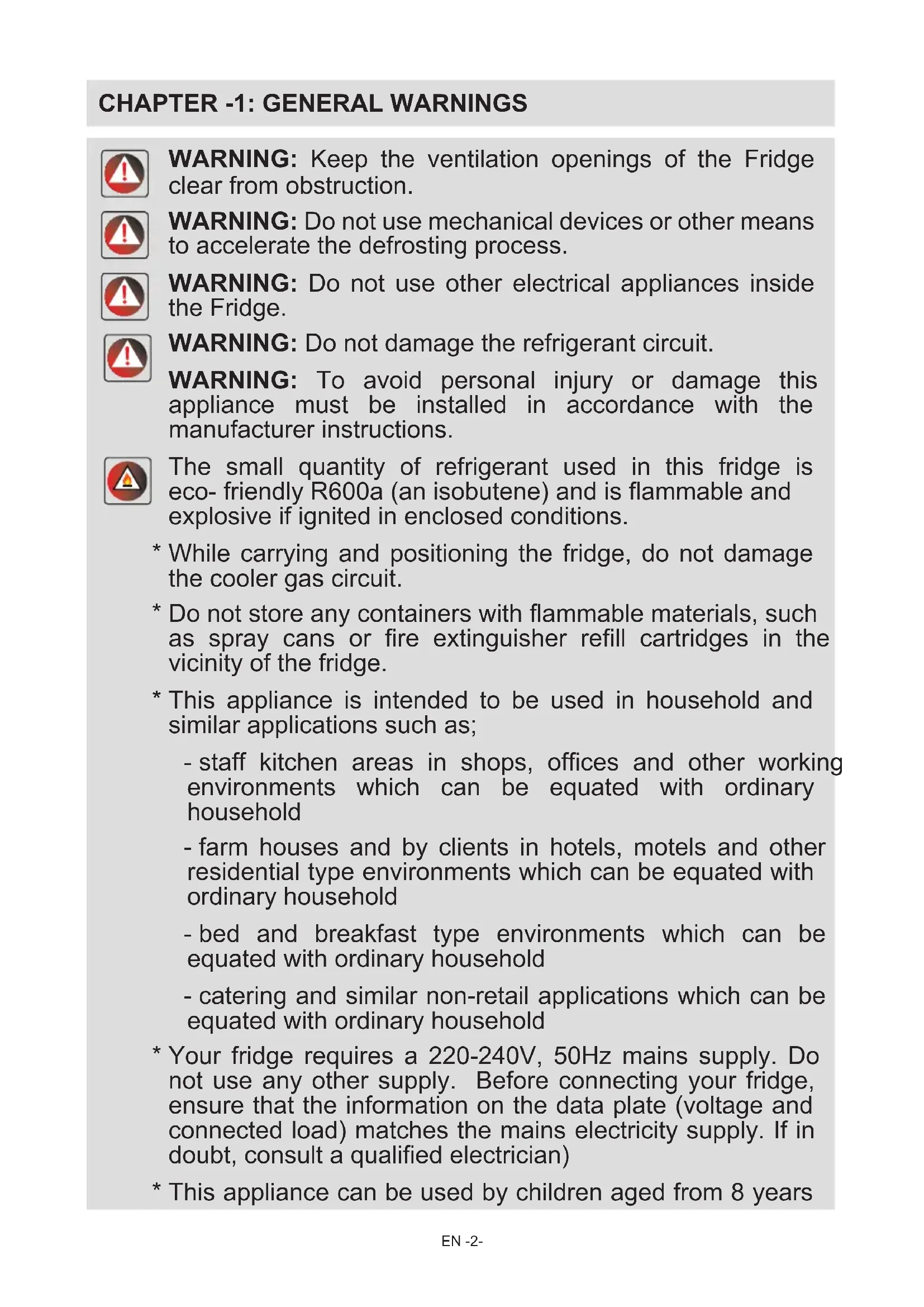

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge

clear from obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage this

appliance must be installed in accordance with the manufacturer instructions. The small quantity of refrigerant used in this fridge is eco- friendly R600a (an isobutene) and is ammable and explosive if ignited in enclosed conditions.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store any containers with ammable materials, such as spray cans or re extinguisher rell cartridges in the vicinity of the fridge.

• This appliance is intended to be used in household and similar applications such as; - staff kitchen areas in shops, ofces and other working environments which can be equated with ordinary household - farm houses and by clients in hotels, motels and other residential type environments which can be equated with ordinary household - bed and breakfast type environments which can be equated with ordinary household - catering and similar non-retail applications which can be equated with ordinary household

• Your fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualied electrician)

• This appliance can be used by children aged from 8 yearsEN -3-

CHAPTER -1: GENERAL WARNINGS

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• A damaged power cord /plug can cause re or give you an electric shock. When damaged it must be replaced, this should only be done by qualied personnel.

• This appliance is not intended for use at altitudes exceeding 2000 m.EN -4- Disposal

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.

• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case. Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

• A damaged power cord / plug can cause re or give you and electric shock. When damaged it must be replaced, this should only be done by qualied personnel.

• Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.

• Do not refreeze food once it has thawed out. Disposal of your old appliance This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from. Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

CHAPTER -1: SAFETY INSTRUCTIONS

For Denmark products: The appliance is equipped with a plug approved in the EU ( EU-Schuko Plug) and can be used in Finland, Norway and Sweden. In Denmark, the appliance is only approved for use with a wall outlet type E or type CEE7 // 7-S with a ground leg. If there is only wall outlet type K at the connection point, Replacing EU-Schuko plug with the Danish plug must be performed by only an authorized service personel. Alternatively, connect a suitable and approved power adapter to transition between Schuko plug and Danish earth system. This adapter (min. 10 amps and up to max. 13 amps) can be ordered via at well assorted whitegoods dealer or authorized electrician. Only with one of these methods it can be ensured that the appliance is the correct safety ground. In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur. Installation Information Before unpacking and manoeuvering your fridge freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Do not expose your fridge freezer to moisture or rain.

• Your fridge freezer should be positioned at least 20mm away from another freezer.

• Clearance of at least 150 mm is required at the top and back of your fridge freezer. Do not place anything on top of your fridge freezer.

• For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.EN -5-

CHAPTER -1: SAFETY INSTRUCTIONS

Before Using your Fridge Freezer

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged

• When using your fridge freezer for the rst time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efcient operation and prevents damage to the compressor.

• You may notice a light odour when using your fridge freezer for the rst time. This is perfectly normal and will fade away as the fridge starts to cool. NO FROST technology Differs from many other standard fridge freezers. Other appliances may experience ice in the freezer compartment due to the opening of the doors and humidity caused by the food. In such appliances defrosting is required. They have to be turned off periodically, the food inside moved and the ice removed. Your "no frost" fridge freezer prevents such problems by evenly distributing in the fridge and freezer compartments through the use of a fan. This cools your food evenly and uniformly, preventing humidity and freezing. Blue arrows: Blow cold air Red arrows: Returning hot airEN -6-

This gure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance. A) Fridge compartment B) Fridge / Freezer compartment B1. Zone-1 / B2. Zone-2

1) Fridge compartment shelves

2) Chiller compartment

4) Cheese-Butter shelf covers *

8) Door bottle shelves

• In some models Ice-matic (In some models) General features of your appliance The LED lights are designed to come on gradually and will take a few seconds to reach 100% brightness. Electronic display 1.Fridge Compartment Temperature indicator 2.Left Freezer Compartment Temperature indicator 3.Right Freezer Compartment Temperature indicator

The values on the screen indicate temperature values specied by the consumer. The display is designed to avoid error if unintentionally touched. To interact with the display touch and button for 2 seconds, an audible beep will sound and to indicate it is ready for use.EN -7-

CHAPTER -3: USING YOUR FRIDGE FREEZER

Cooling beverages [q.drink] To activate q.drink mode press the q.drink button. The time is set in increments of 5 minutes (up to a maximum of 30). The time selected is shown in the q.drink alarm counter - when the time has completed an audible beep will sound. Important: It should not be confused with the cooling mode. Please adjust the time according to the number of bottles you are placing in the freezer compartment. You can extend the time of the feature if the temperature of the bottles are not cool enough but it is important to check the temperature of the bottles regularly as they may explode if left too long. Economic mode [eco] Ensures that your refrigerator runs within ideal temperatures. In order to activate “ECO” mode, just press [mode] button until “eco and e” light is on. Holiday mode (H) (Umbrella & Sun Icon) Use this mode if you are going away for a period of time and do not need to use the fridge compartment. Press the holiday mode button until the holiday icon and H light appear. Quick freezing (sf / super freeze) Designed to quickly freeze meals and large amounts of food quickly. Press the [zone1] or [zone2] button until "sf" is displayed on the screen and you hear an audible beep. Please note this mode will automatically revert to the standard set temperature after 24 hours if not deactivated before - or when the freezer has reached the sufcient temperature. Quick cooling (sc / super cool) Quick Cooling is designed to cool large amounts of food quickly when placed in the fridge section. Press the cooler button until you see the "sc" letters in the display and you hear and audible beep. This mode will automatically revert to the standard temperature setting after a period to 4-6 hours or when the refrigerator has reached the required temperature. Cooler [cooler] Sets the fridge temperature in values of 1 from 2 - 8 Celsius. Freezer / Cooler 1 [ZONE 1] It is temperature setting button for the bottom-left compartment. By pressing [zone 1] button freezing value of bottom- left part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24 Celsius temperature values. If you do not want to use bottom-left part as cooler, press [zone1] button for 3 seconds to switch to this mode, and set to 2, 3, 4, 5, 6, 7, 8 Celsius temperature values. Freezer [ZONE 2] It is temperature setting button for the bottom-right compartment. By pressing [zone 2] button freezing value of bottom- right part can be set as -16, -17, -18, -19, -20, -21, -22, -23, -24 Celsius temperature values. Child lock Activate the Child Lock by pressing the [cooler] and [zone 2] buttons simultaneously, this will deactivate the display. To remove the Child Lock repeat the process. Screensaver [s.saver] Use the Screensaver mode to save energy. Hold the [s.saver] button down for 3 seconds, to deactivate repeat the process. Night sensor Press the [mode] and [s.saver] buttons for 3 seconds to activate. This will turn the fridge lights off and save energy. To deactivate repeat the process. Alarm If the alarm light comes on it means there is something wrong with the fridge freezer and you will need to contact the Sharp service team. This indicator will continue to show until a qualied service engineer has seen the product. Compartment On-Off mode To turn off Zone1, Zone2 and the cooler at the same time;

• Press and hold the [mode] and [cooler] buttons simultaneously for 3 seconds. All gures indicating the part turned off will disappear on the digital indicator panel.

• Press and hold the [mode] and [zone 2] buttons simultaneously for 3 seconds. All gures indicating the part turned off will disappear on the digital indicator panel. To turn off the Zone1 compartment, press and hold the [mode] and [zone 1] buttons simultaneously for 3 seconds. All gures indicating the part turned off will disappear on the digital indicator panel. To reactivate the turned-off compartment, use the same combination of buttons. Using a Freezer Compartment as Cooler Compartment Based On Demand The bottom left compartment on the appliance can be used either as freezer or as a cooler. Press and hold the [zone 1] button for 3 seconds to change the bottom-left compartment from a freezer to a cooler. Important : If the Zone1 compartment will be converted from a freezer to a cooler:

• Empty the food from the Zone1 compartment and leave the door closed for four hours. Then food can be placedEN -8-

• Baskets and/or shelves removed from the compartment should be re-tted.

• Similarly, in order to utilize any of bottom compartments used as cooler as freezers again, press and hold the related compartment button for 3 seconds. Important : If the Zone1 compartment will be converted from cooler to freezer:

• Empty the food from the Zone1 compartment and leave the door closed for two hours. Then food can be placed in the compartment.

• When the zone 1 compartment is used as a cooler and the appliance is switched to Holiday or Economic setting, the zone 1 compartment will keep on running as cooler. Warnings for temperature settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required,change the temperature setting.

• It is not recommended that you operate your fridge in environments colder than 10°C.

• The thermostat setting should be set by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator and the environment in which and the positioning of the appliance.

• We recommend that when rst using the fridge freezer it should be left running for 24 hours uninterrupted to ensure it is completely cooled. Do not open the fridge doors, or put food inside for this period.

• Your fridge freezer has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your fridge freezer, it will begin to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efciency.

• This appliance is designed for use at an ambient temperature within the 10 °C - 43 °C range. Note: If the ambient temperature is higher than 42°C, the compartment temperature cannot be set to -23°C or -24°C. It can only be set to -16°C, -17°C, -18°C, -19°C, -20°C,-21°C or -22°C. Climate Class Ambient Temperature

T Between 16 and 43 (°C) ST Between 16 and 38 (°C) N Between 16 and 32 (°C) SN Between 10 and 32 (°C) Temperature indicator In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Accessories Icematic (In some models)

• Take out the ice making tray

• Fill the water to the line.

• Place the ice making tray in its original position

• When ice cubes are formed, twist the lever to drop ice cubes into the icebox. Note:

• Do not ll the icebox with water in order to make ice. It may be broken.

• The movement of the ice maker may be difcult while the refrigerator is running. In such a case, it should be cleaned after removing the glass shelves.EN -9-

CHAPTER -3: USING YOUR FRIDGE FREEZER

Crispers Chiller Chiller / Breakfast Compartment When this compartment is used as 0°C compartment (chiller), it ensures that your food is preserved at 0°C. You can keep the frozen foods that you take out of the deepfreeze compartment in order to defrost them or you can keep the meats and cleaned shes (in plastic bags or packets) etc. which you will use within 1-2 days without need for freezing. Note: Water is frozen in 0°C but the foods including salt or sugar can be frozen in colder environments. ! Please do not put the food you would like frozen or iceboxes in this partition. Crisper air ow adjustment If the salad crispers are full turn the knob (located between the chiller and the crisper) to the open position. This will increase the air ow and ensure food stays fresher for longer. Crisper air adjustment button Cleaning

• Before cleaning your fridge freezer, turn your mains supply off and remove the plug from the socket.

• Do not wash your fridge freezer by pouring water on to it.

• Use a warm, soapy cloth or sponge to wipe the interior and exterior of your fridge freezer.

• Carefully remove all shelves and drawers by sliding upwards or outwards and clean with soapy water. Do not wash in a washing machine or dishwasher.

• Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your fridge freezer. This may cause damage to the plastic surfaces and other components with the chemicals they contain.

• Clean the condenser at the back of your fridge freezer at least once a year with a soft brush or vacuum cleaner. Make sure that your fridge is unplugged while cleaning. Cleaning evaporation bowl Your fridge defrosts automatically. Water produced by defrosting ows to the evaporating container passing through the water collecting groove, and vaporizes here by itself. Visual and text descriptions on the accessories section may vary according which model you have.. Replacing LED Lighting If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.EN -10-

CHAPTER -4: FOOD STORAGE GUIDE

The Fridge Compartment:

• Take care when storing tropical fruit such as pineapples as they can quickly deteriorate in lower temperatures.

• Divide and separate food into smaller pieces before storage.

• Cover or wrap food to prevent odours. We recommend that you store meat loosely covered as this allows air to circulate around the meat causing the surface to dry slightly, helping to prevent the growth of bacteria.

• Do not store food close so that it blocks the crisper air adjustment button. The table below is a quick guide, showing you the most efcient way to store the major food groups in your refrigerator compartment. Food Storage Duration Location Fruits and Vegetables 1 week Loose in Vegetable Holder Fish and Meat 2-3 Days Wrapped on Glass Shelf Fresh Cheese 3-4 Days Top Door Shelf Butter and Margarine 1 Week Top Door Shelf Bottles, Yogurt and Milk Refer to Packaging Top Door Shelf Eggs 1 month In Egg Holder The Freezer Compartment: You should use the freezer compartments for storing food for long periods and making ice. Aim to freeze fresh food as quickly as possible so that it keeps its taste and appearance. We recommend that you place food you would like to freeze in the upper tray of the freezer compartment for 24 hours before placing it next to other frozen foods. It is important that you do not exceed the maximum freezing capacity of your Fridge Freezer, this will help to ensure that your food freezes as quickly as possible. The storage durations of frozen food can be changed by a variety of factors, such as; the frequency of the doors opening and closing, thermostat settings, food types and the period of time that elapsed from when the food was acquired to the time it entered the freezer. It is important that you follow the packaging on frozen foods and do not exceed the storage duration. The table below contains some recommendations on freezing. Food Preparation Storage Duration (Months) Thawing Period at Room Temperature (Hours) Beef Steak Cut into single Portions 6-10 1-2 or until completely thawed Lamb Cut into single Portions 6-8 1-2 or until completely thawed Minced Meat Packed in convenient Portions 1-3 2-3 or until completely thawed Sausage Must be packed 1-2 Until completely thawed Chicken and Turkey Packed in convenient portions 1-2 10-12 or until completely thawed Freshwater Fish (such as trout) Cleaned well inside and scaled. Washed and dried. Cut off head and tail where necessary 2 Until completely thawed Lean Fish (such as Sea Bass) 4-8 Until completely thawed Fatty sh (such as Mackerel) 2-4 Until completely thawed Peas Shelled and washed 12 May Be Used From Frozen

WARNING: Do not re-freeze frozen food once it has thawed. It may be a danger to your health.EN -11-

CHAPTER -5: TROUBLESHOOTING

Your Fridge Freezer is equipped with a built in fault detection system, which is able to give you guidance should your fridge freezer not operate as expected. In the event of an error a symbol will be displayed on the control panel. The most common error symbols are shown below. If your fridge freezer displays a symbol not shown below contact the Sharp help-desk. ERROR DISPLAY ERROR TYPE REMARK DO’s and audible warning Error warning Part of your Fridge Freezer may not be working properly, or there could be a cooling problem. Contact the Sharp Help-desk Freezer compartment is not cold enough. This could be the result of a power supply disruption or failure of the cooling equipment. Use the SUPERFREEZE mode, or set the freezer compartment to a lower temperature until the warning symbol disappears. Do not place fresh food in the freezer compartment when this warning symbol is showing. Fridge compartment is not cold enough This could be the result of a power supply disruption or failure of the cooling equipment. Use the SUPERCOOL mode or set the refrigerator to a lower temperature until the warning symbol disappears. Do not open the door while the warning system is displayed. The refrigerator compartment is too cool. Food in the refrigerator is at risk of being frozen. Cancel the SUPERCOOL function if it is active. Decrease the temperature of the fridge compartment. The supply voltage has dropped below 170V. This symbol is intended for advice and to act as a precaution. It will disappear once the supply voltage rises above 170V.

Troubleshooting information If your Fridge Freezer is not operating as expected, you may nd a simple solution listed in the table below. If your Fridge Freezer has developed a fault not covered in this manual, please contact the authorised service. Fault Possible Cause Solution Your Fridge Freezer does not operate. It is switched off at the mains. Check that your Fridge Freezer is plugged in and turned on at the mains. The different compartments of your Fridge Freezer do not get cold enough. The temperature is set too high. Set the temperature to a lower value. The doors are opened and closed too frequently. Try to reduce the number of times the doors are opened and closed. The door seals are faulty. Contact the Sharp helpdesk. The refrigerator compartment is overlled. Check that there is enough space between items to allow air circulation. Make sure that no items are food are blocking the air vents. Food in the Freezer compartment is colder than necessary. The temperature setting may be too low. Select a higher value for the temperature setting. Your Fridge Freezer is noisy. Your Fridge Freezer may not be level. Adjust the feet to level your Fridge Freezer. Please note that certain noises may heard from your Fridge Freezer during use. They are perfectly normal from a frost free Fridge Freezer and are not damaging your Fridge Freezer. Contact the Sharp helpdesk if you have any concerns.EN -12-

1. Always allow foodstuffs to cool before storing in the appliance.

2. Thaw food in the fridge compartment, this helps save energy.

Fault Possible Cause Solution There is moisture on the inner parts of your Fridge Freezer. The doors are opened and closed too frequently. Try to reduce the number of times the doors are opened and closed. The doors do not close properly. Items of food may prevent them from closing. Make sure that the doors are free from obstruction. The shelves and drawers are not correctly in position. Check that the shelves and drawers are properly placed in position. The door seal is damaged. Contact the Sharp helpdesk. Your Fridge Freezer is not level. Adjust the feet to level your Fridge Freezer.DE -13- Inhalt

5. Lys for super frysing
