ORT52BX - Toaster Orima - Free user manual and instructions

Product Type	Toaster
Brand	Orima
Model	ORT52BX
Power supply	220-240 V ~ 50/60 Hz
Power	900 W (estimated)
Dimensions (L x W x H)	30 x 18 x 20 cm (estimated)
Weight	1.2 kg (estimated)
Capacity	2 slices of bread
Main functions	Toasting, defrosting, reheating, emergency stop
Browning control	Electronic, 5 levels (1 lightly toasted to 5 very toasted)
Buttons	Transport lever, defrost (frozen), reheat, cancel
Crumb tray	Removable, regular cleaning recommended
Safety	Automatic shut-off at end of cycle, lever only locks when the appliance is on, do not use near combustible materials
Maintenance and cleaning	Unplug and allow to cool before cleaning; removable crumb tray; exterior cleaned with a damp cloth; interior by shaking the appliance over the sink
Spare parts and repairability	Power cord replaceable by a qualified technician; in case of failure, contact after-sales service
General information	Household use only, do not immerse, do not use with external timer

Frequently Asked Questions - ORT52BX Orima

How to use the Orima ORT52BX toaster?

Plug in the appliance, place up to two slices of bread, select the browning level (1 to 5), lower the transport lever until it locks. The toasting cycle starts automatically. The toaster turns off when the bread is ready.

How to toast frozen bread?

Place the frozen bread in the slots, select the desired browning level, lower the lever, then press the frozen button. The defrost and toasting cycle will run automatically.

How to reheat toast without toasting it?

Place the toast in the slots, lower the lever, then press the reheat button. The toaster will warm the toast without further toasting.

What to do if the bread gets stuck in the slots?

Turn off the toaster completely and unplug it. Carefully remove the bread from the slots without damaging the heating elements. Never use a knife or metal object to avoid the risk of electric shock.

How to clean the toaster?

Always unplug the appliance and let it cool before cleaning. Remove the crumb tray and empty it. Clean the exterior with a slightly damp cloth then a soft cloth. For the interior, turn the appliance over the sink and shake to release crumbs.

Where is the crumb tray located and how to clean it?

The crumb tray is located under the toaster. It is removable: remove it, empty the crumbs, wash it with soapy water if necessary, dry it and put it back. Regular cleaning is recommended to avoid crumb buildup.

Can I use metal objects to unblock the bread?

No. Never use a knife or metal object to extract stuck bread, as this could cause electric shock. Follow the procedure in the manual.

Can the appliance be used by children?

This appliance can be used by children aged 8 years or older under adult supervision. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children under 8 years without supervision.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by a qualified technician to avoid any danger. Do not use the appliance until the cord is repaired.

How to interrupt the toasting cycle?

You can interrupt the cycle at any time by pressing the cancel button. The toaster will turn off and the bread will pop up automatically.

USER MANUAL ORT52BX Orima

Exterior view of a modern stainless steel toaster with a circular button and side panel (no visible text or symbols)

www.orima.pt

facebook.com/orima.pt

MMA

MÁRIO MURANDA DE ALMEIDA

TORRADEIRA

Toaster | Tostadora | Grille Pain

ORT-52-BX

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone]

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

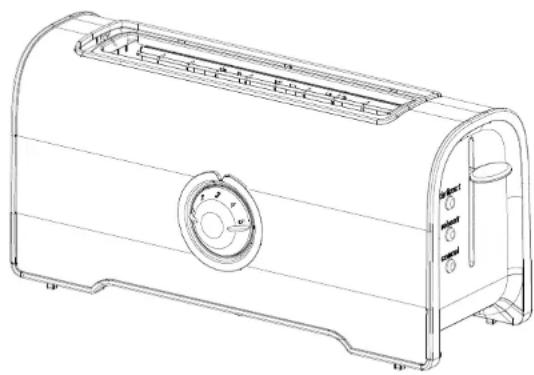

Line drawing of a toaster oven with handle and control panel (no text or symbols)

220-240V 50/60Hz 820-980W

INSTRUÇÕES DE UTILIZAÇÃO GUARDE ESTAS INSTRUÇÕES PARA FUTURA REFERÊNCIA

INFORMAÇÕES IMPORTANTES

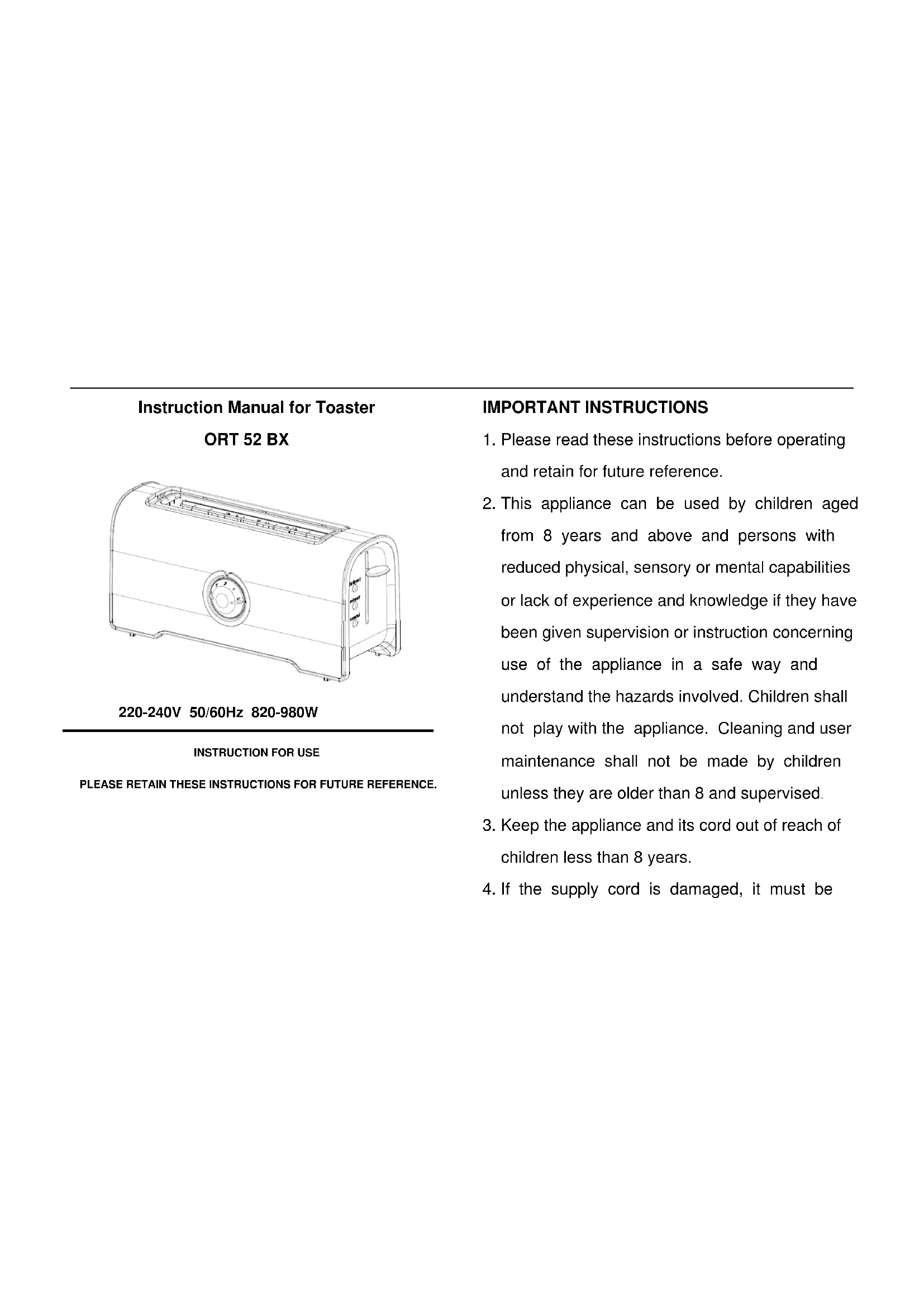

Instruction Manual for Toaster ORT 52 BX

Line drawing of a toaster oven with control panel and door (no text or symbols)

220-240V 50/60Hz 820-980W

INSTRUCTION FOR USE

PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT INSTRUCTIONS

1. Please read these instructions before operating and retain for future reference.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
2. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
3. Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the section "Care and Cleaning".

4. This appliance is intended to be used in household and similar applications such as : - staff kitchen areas in shops, offices and other working environments;

5. farm houses;
   – by clients in hotels, motels and other residential type environments;
   – bed and breakfast type environments.

6. To protect against electrical hazard do not immerse any part of the appliance or cord in water or any other liquid.

7. Close supervision is necessary when the appliance is near children.

8. Do not leave the appliance unattended when in use.
9. Always use the appliance on a dry, level surface.
10. Do not use this appliance outdoors.

11. Always unplug from the plug socket when not in use and before cleaning.

12. Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to the customer service department for repair, because special purpose tools are required.

13. In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the customer service department.

14. Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Allow the unit to cool before wrapping the cord around base for storage.

15. Care must be taken, not to touch any hot surfaces, do not store or cover the appliance until it has fully cooled down.

16. Do not place this appliance on or near a hot gas or electric burner, in or where it could touch a heated oven, or a microwave oven.
17. Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this appliance.

18. When using this appliance, allow adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use. CAUTION is required on surfaces where heat may cause a problem - an insulated heat pad is recommended.

19. Do not use the toaster without the crumb tray in place. The crumb tray should be cleaned regularly. Do not allow crumbs to build up in the tray.

20. Do not use this appliance with any foodstuff product containing sugar content or with products containing jam or preserves.
21. The temperature of accessible surfaces may be high when the appliance is operating.

WARNING!!

Never attempt to extract jammed toast, muffins, bagels or any other item with a knife or any other object, as contact with live elements may cause electrocution.

Allow the appliance to cool down, unplug and carefully remove the bread.

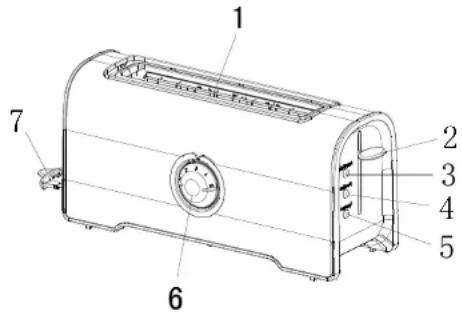

FEATURES OF TOASTER

1 2 3 4 5 6 7

1. Variable width toasting slots.
2. Carriage control lever.
3. Defrost button.
4. Reheat button.
5. Cancel button.
6. Electronic variable browning control.
7. Pull out crumb tray.

OPERATING TOASTER

1. Insert the plug into a suitable mains supply socket.
2. Place up to two slices of bread, muffins, or bagels into bread slots.
3. Select the desired browning setting, from No.1 to No.5 on the browning control knob.(No.1-lightest, No.5-darkest).
   When using the toaster for the first time we suggest you toast on number 3. Varying types of bread and personal preference may require a different browning setting.
4. Press the carriage control lever down until it clicks into place. Toasting cycle will automatically commence. Please note: if the

toaster is not plugged in and switched on at the power point the carriage control lever will not click into place.

1. The toaster turns off when the desired toast color is achieved and automatically raises the toast. The toasting process can be stopped at any time by pressing the cancel button.

TOASTING FROZEN BREAD: To toast frozen bread, place the bread into the bread slots and select the desired browning setting. Press the carriage control lever down until it clicks into place then press the frozen button.

REHEATING TOAST: The toaster allows you to reheat toast without additional toasting. To reheat, place toast into bread slots, lower the carriage control lever until it clicks into place and press the reheat button.

In the unlikely event that the bread or crumpet becomes jammed, switch the toaster off at the power outlet, remove the plug from the supply socket and carefully ease the bread out of the toaster, ensuring that you do not damage the element.

CARE AND CLEANING

1. Always turn the power off, remove the plug and allow the toaster to cool before cleaning.
2. To remove any crumbs from the toaster, slide out the crumb tray from under the toaster, empty and replace in the toaster before using it again.
3. Wipe the outside of the toaster with a slightly dampened cloth and polish with a soft dry cloth.
4. Do not immerse the unit in water.
5. To clean the interior, turn the toaster upside down over the sink and shake crumbs free.

The crumb tray should be cleaned regularly. Do not allow breadcrumbs to accumulate in the bottom of the toaster.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Line drawing of a toaster oven with handle and control panel (no text or symbols)

220-240V 50/60Hz 820-980W

Line drawing of a toaster oven with handle and control panel (no text or symbols)

220-240V 50/60Hz 820-980W
