USER MANUAL Z31656A MELINERA
Operation and Safety Notes
FR BE
| GB/IE/NI | Operation and Safety Notes | Page | 5 |
| FR/BE | Instructions d’utilisation et consignes de sécurité Page 18 | ||
| NL/BE Bedienings- en veiligheidsinstructies Pagina 33 | |||
| DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 47 | |||
Introduction......Page 6
Intended use......Page 6
Parts description......Page 7
Technical Data ...... Page 7
Scope of delivery ...... Page 8
General safety instructions......Page 8
Battery safety information.....Page 9
Initial use......Page 11
Replacing batteries...Page 13
Cleaning and Care ..... Page 14
Disposal instructions......Page 14
Warranty......Page 16

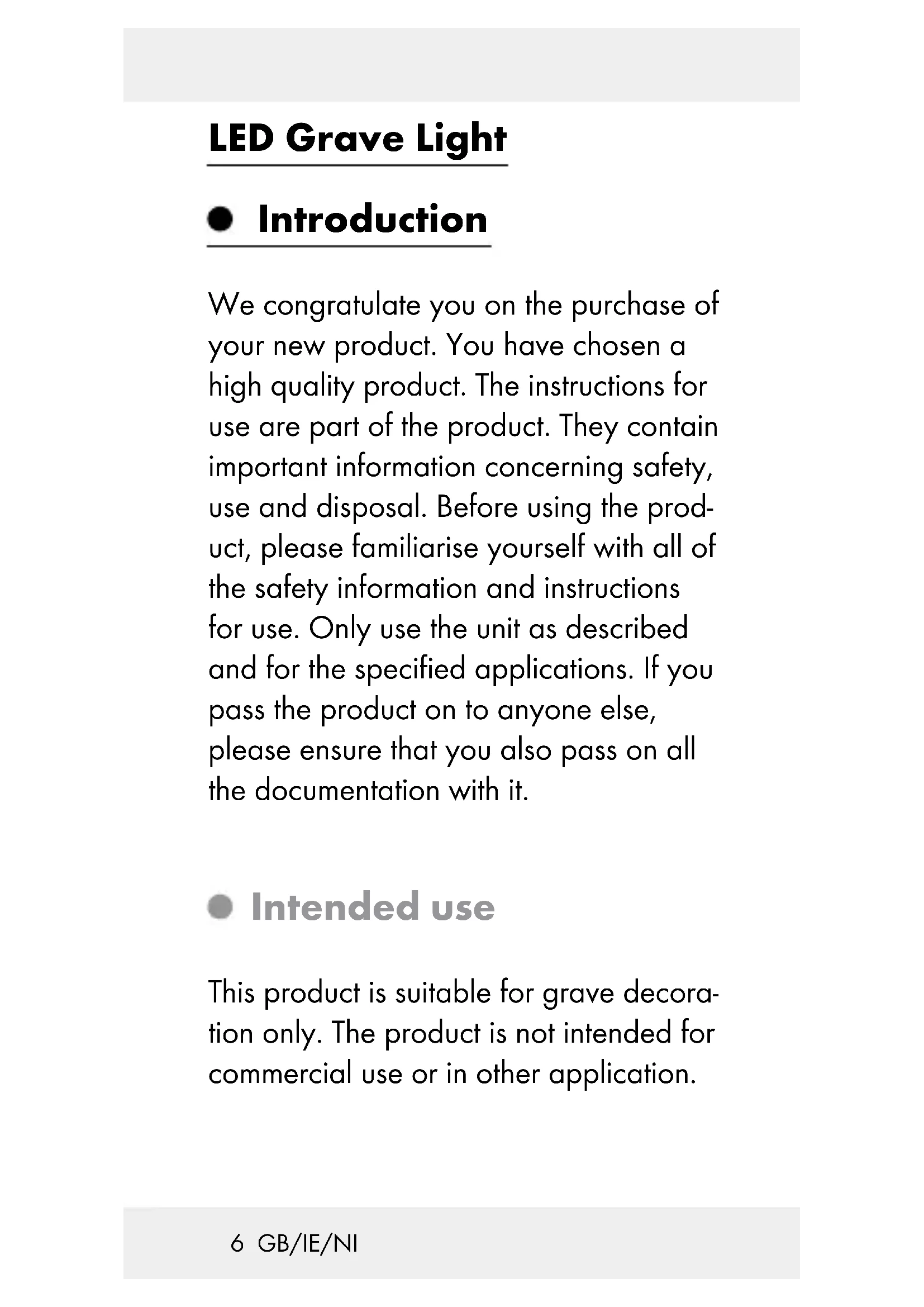

LED Grave Light
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Intended use
This product is suitable for grave decoration only. The product is not intended for commercial use or in other application.
■ Not suitable for ordinary
lighting in household
room illumination.

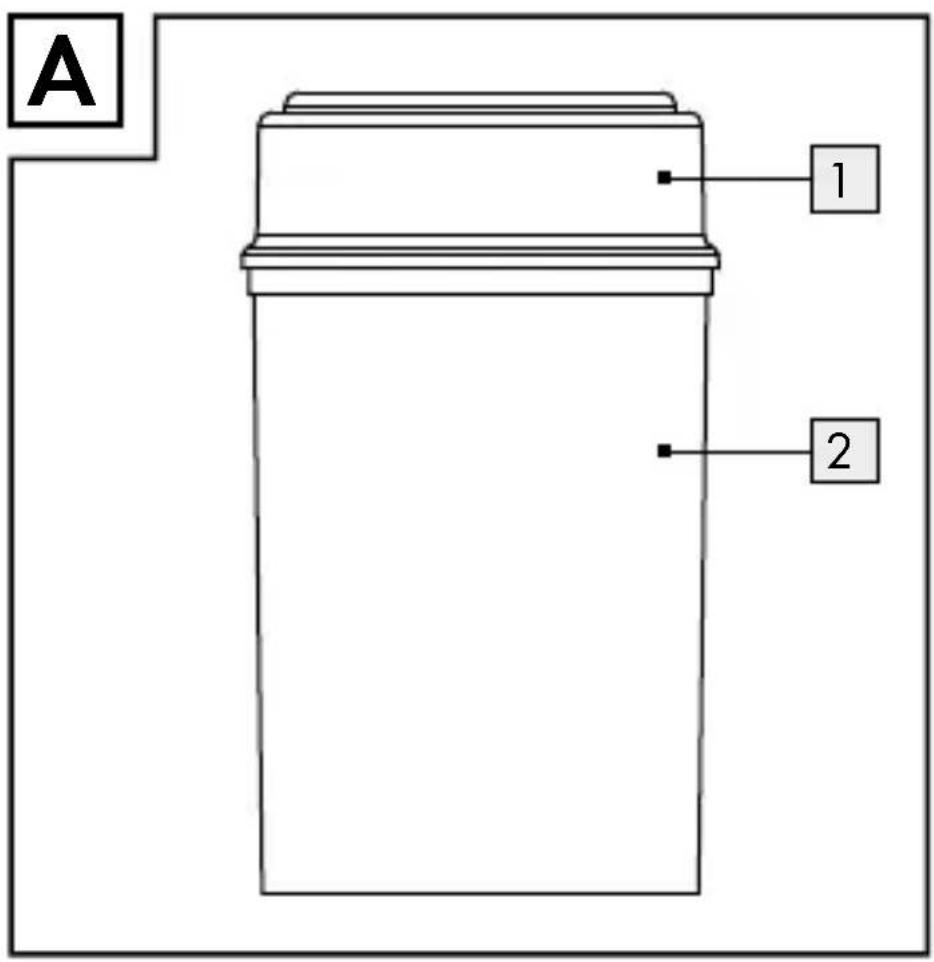

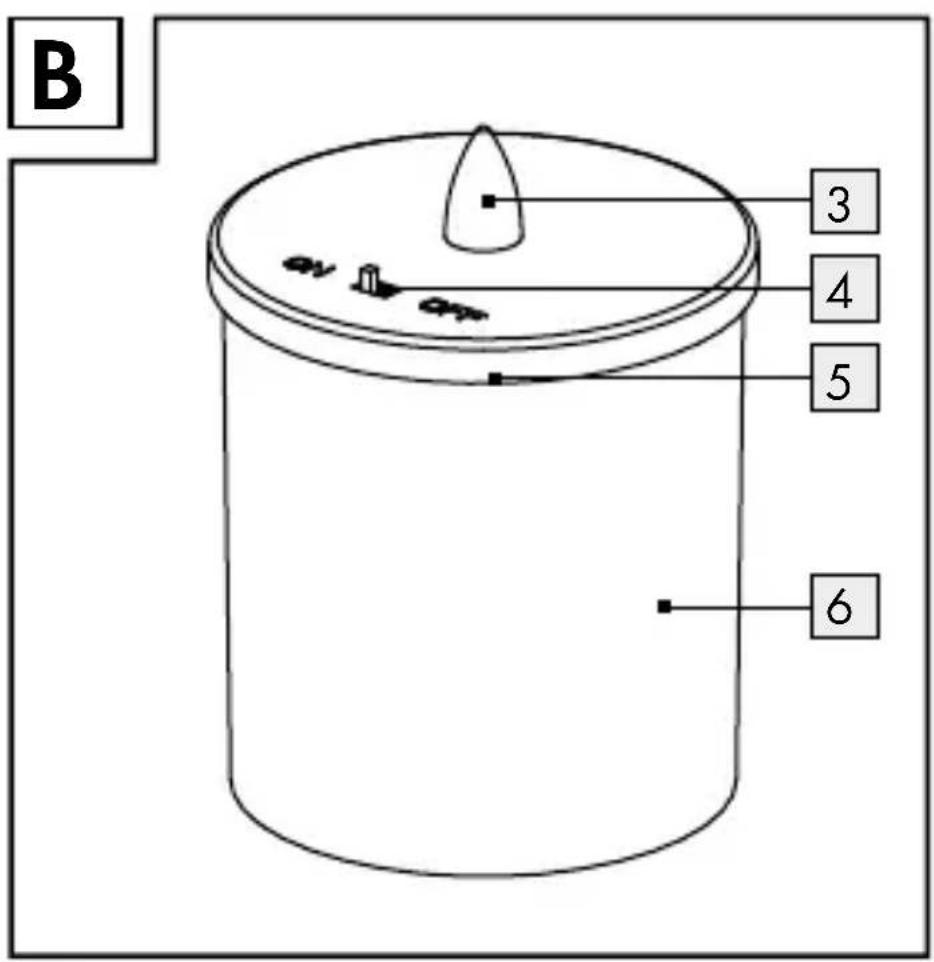

Parts description
1 Grave light cover
2 Grave light housing
3 LED
4 ON/OFF switch
5 Battery case cover
6 Battery case
7 Battery compartment
- Technical Data
Operating voltage: 3V,
approx. 0.012 W
Lamp: 1 LED (LED not
replaceable)
Batteries: 2 × 1.5 ~V
LR14 (Type C)
Light on time: approx. 180 days
Chromaticity
coordinate: X > 0.530
- Scope of delivery
1 Grave light
2 Batteries (preinstalled)
1 Set of operating instructions
Generalsafety instructions
■ Please familiarise yourself with all operating and safety instructions before using this product! When passing this product on to others, please also include all the documents!
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
- Do not put this device in water or other liquids.
■ Always place the product, that it cannot fall into a tub or sink.
■ Never fill the container with liquid. - Do not use the product if you notice any damages.
■ The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire light must be replaced.
Battery safety information
WARNING! DANGER TO LIFE!
Batteries are not intended for children. If accidentally swallowed seek immediate medical attention!
CAUTION! EXPLO- SION HAZARD!
Never recharge nonrechargeable batteries, shortcircuit and/or open batteries!
■ Never throw batteries into fire or water!
■ Do not exert mechanical loads to batteries!
Risk of battery leakage
In the event of a battery leak, immediately remove it from the device to prevent damage!
- Avoid contact with the skin, eyes and mucous membranes! In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention!
■ Only use the same type of batteries!
Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may impact batteries, e.g. radiators!
■ Remove batteries from the device after extended periods of non-use!
Risk of equipment damage
■ Only use the specified battery type!
- When inserting the battery ensure the correct polarity! This is shown in the battery compartment!
If necessary, clean the batteries and device contacts before inserting batteries!
■ Promptly remove drained batteries from the product!
- Initial use
Note: Risk of short circuit!
■ Make sure that the lid is always closed properly and securely, in order to prevent rain or moisture get into the container and cause a short circuit.
■ Make sure the lid shows no damages. Do not use the product if the lid is damaged.
☐ Remove the grave light cover 1 from the grave light housing 2. It is clipped on.
☐ Remove the small polystyrene block inside. This is only for transport safety.

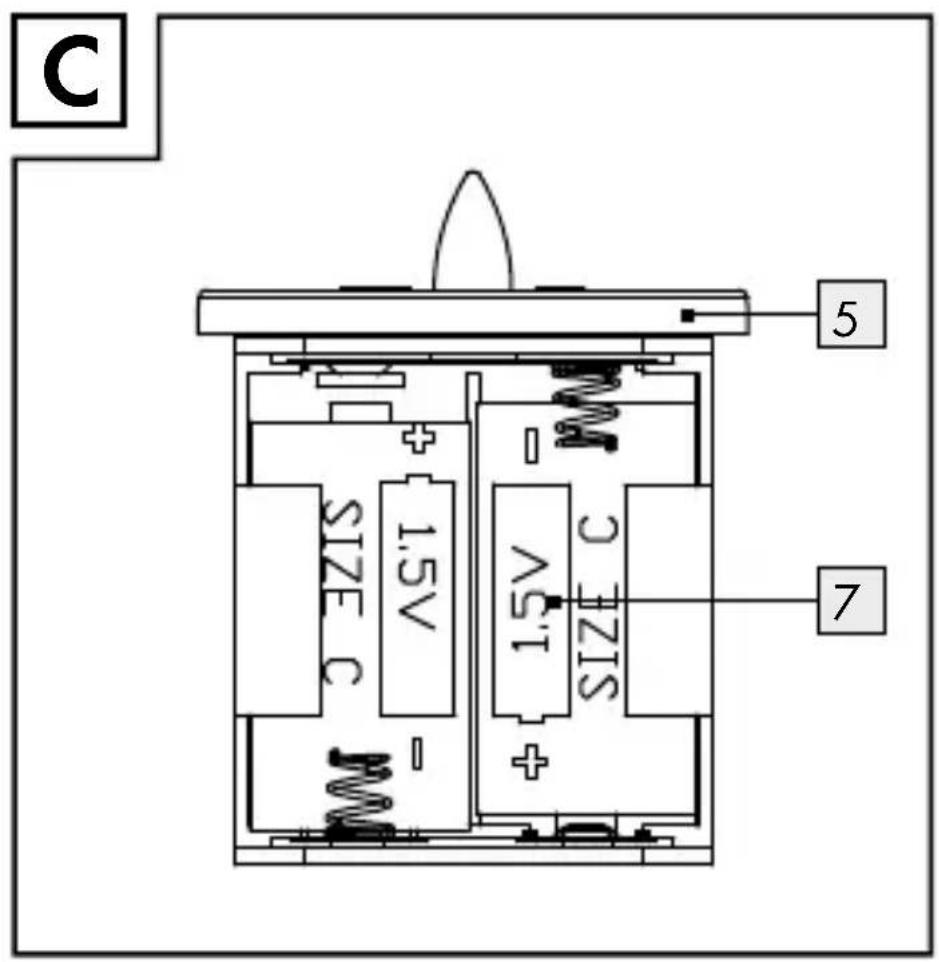

☐ Remove the battery casing 6 and slide off the battery casing cover 5. This is clipped on.
□ Carefully remove the battery compartment 7.
☐ Remove the insulating strip inside. This is only for transport safety.
☐ Slide the battery compartment back into the battery casing and replace the battery casing cover.
Place the battery casing back inside the grave light housing.
☐ Switch on the grave light using the ON/OFF switch 4 (setting ON) or off (setting OFF). The LED will flicker to simulate candlelight.
☐ Close the grave light housing with the grave light cover.
● Replacing batteries
Note: when using alkaline batteries the batteries should be replaced approximately every 180 days.
☐ To do so, remove the grave light cover 1 from the grave light housing 2 and remove the battery housing 6.
☐ Switch the grave light off with the ON/OFF switch 4 (setting OFF). Carefully remove the battery casing cover 5.
Remove the battery compartment from the battery casing.
Remove the old batteries and insert fresh batteries. Ensure correct polarity. This is shown in the battery compartment.
☐ Reassemble all parts. The grave light is now operational again.
- Cleaning and Care
☐ Switch off the grave light and remove batteries before cleaning.
☐ Use a dry, soft and lint-free cloth for cleaning and care.
☐ Use a slightly dampened cloth and mild washing-up liquid to remove stubborn dirt.
- Disposal instructions
The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities.
Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.
reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries must be recy- cled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the device to the provided recycling facilities.
Improper disposal of batteries can harm the environment!
Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.
- Warranty
The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.
The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
