| Product Type | Automatic Sprinkler |
| Brand | Aqua Joe |
| Model | AJIST72ZM |
| Max Covered Area | 129.1 m² |
| Max Spray Diameter | 12.8 m |
| Max Pressure | 120 psi |
| Max Flow Rate | 15.5 L/min |
| Max Jet Range | 6.4 m |
| Jet Shapes | Intense to mist |
| Adjustable Spray Area | Partial or full circular sector up to 360° |
| Telescopic Tripod Height | 111.8 cm to 182.9 cm |
| Support | Aluminum tripod |
| Sprinkler Material | Zinc |
| Connection | Standard garden hose |
| Net Weight | 2.4 kg |
| Main Functions | Range, shape, angle and height adjustment; 360° watering; anti-splash |
| Maintenance and Cleaning | Drain water after use; store away from frost; fold tripod legs |
| Safety | Do not use with excessive pressure; drain before frost to avoid damage |
| Warranty | 2 years residential use |
Frequently Asked Questions - AJIST72ZM Aqua Joe
User questions about AJIST72ZM Aqua Joe
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Automatic sprinkler in PDF format for free! Find your manual AJIST72ZM - Aqua Joe and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AJIST72ZM by Aqua Joe.
USER MANUAL AJIST72ZM Aqua Joe
1-866-SNOWJOE (1-866-766-9563)
Know Your Impulse 360° Telescoping Sprinkler
Read the owner's manual and safety rules carefully before using your impulse 360^ telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Coverage Max....1390 sq ft (129.1 m²)
Spray Diameter Max....42 ft (12.8 m)
Max Pressure ^* .....120 PSI
Max Flow....4.1 GPM
Spray Distance Max 21 ft (6.4 m)
Spray Patterns....Jet to mist
Adjustable Coverage.... Partial to full 360° circle
Telescopic Tripod Height....44 in. to 72 in. (111.8 cm to 182.9 cm)
Base ......Aluminum tripod
Sprinkler .... Zinc
Fitting Size .... Standard garden hose
Net Weight....5.3 lbs (2.4 kg)
Operation
Distance Control

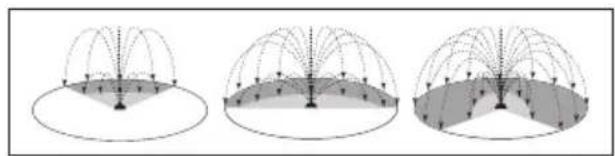

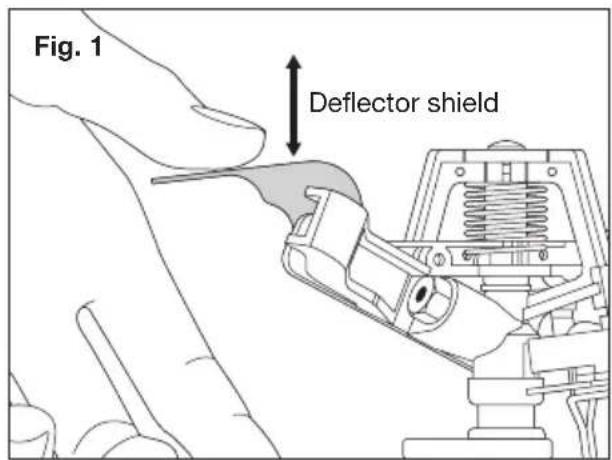

Use deflector shield to adjust the length of the spray. (Fig. 1).


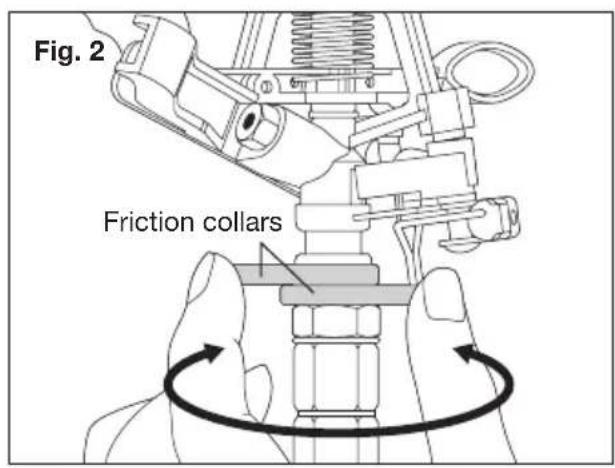

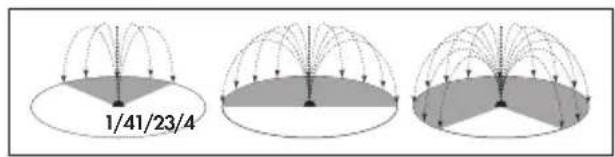

Set the friction collars for desired part circle coverage (5° - 360°) (Fig. 2).


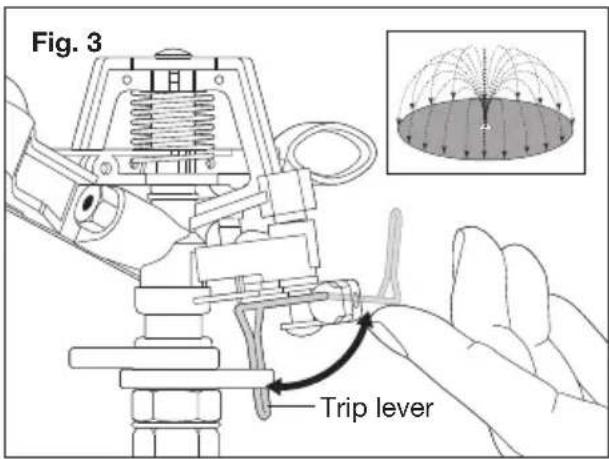

Flip the trip lever up for full circle ( 0^-360^ ) (Fig. 3).


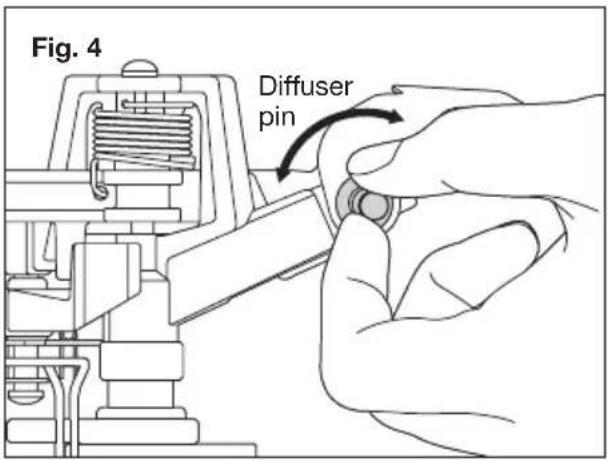

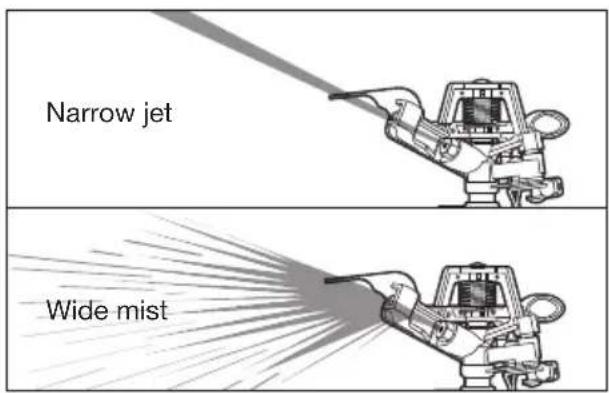

Turn diffuser pin to adjust spray from narrow jet to wide mist (Fig. 4).


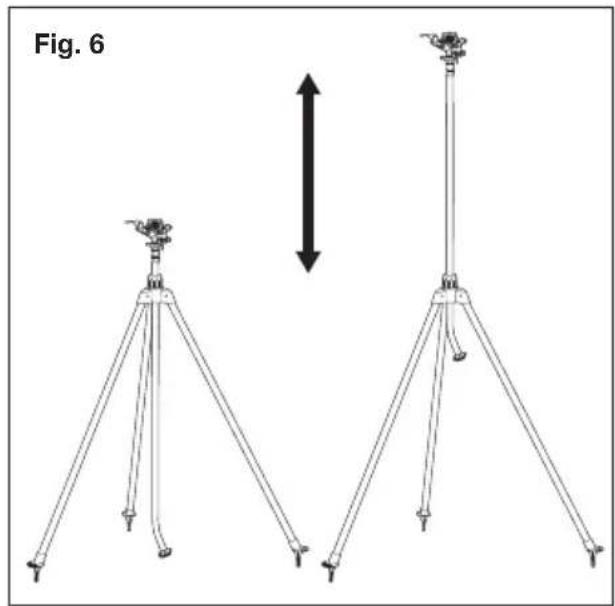

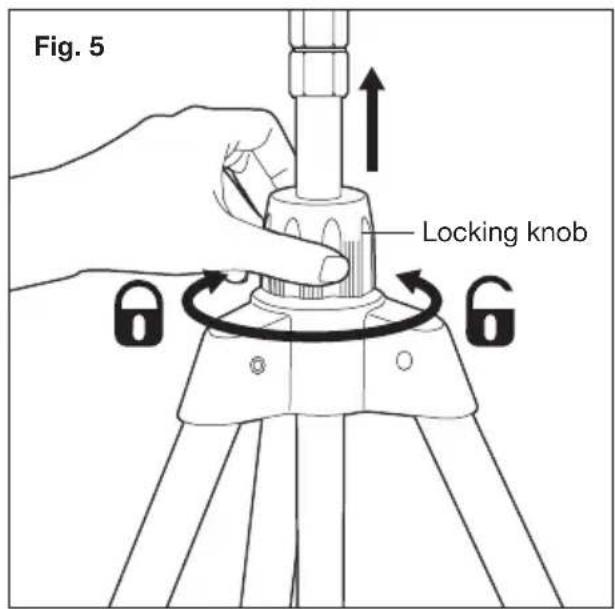

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in positon by turning the locking knob clockwise (Figs. 5 – 6).


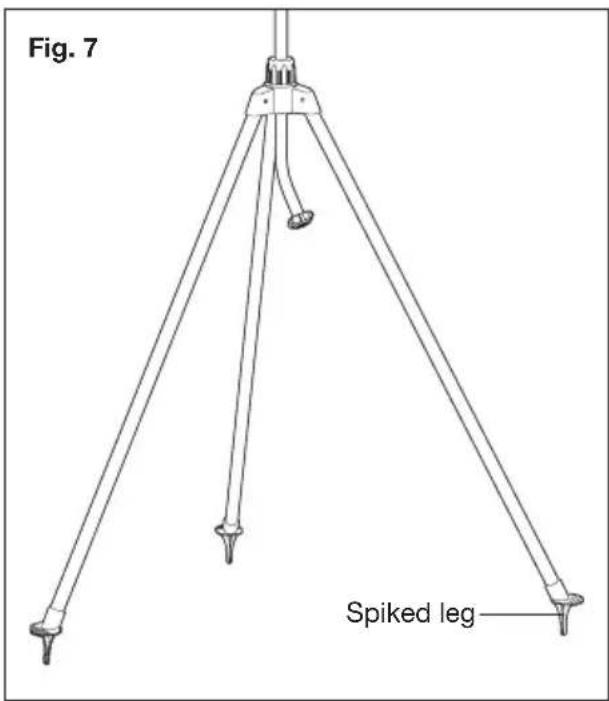

The spikes pierce the soil for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).
Open the spiked legs wide and push them into the soil.


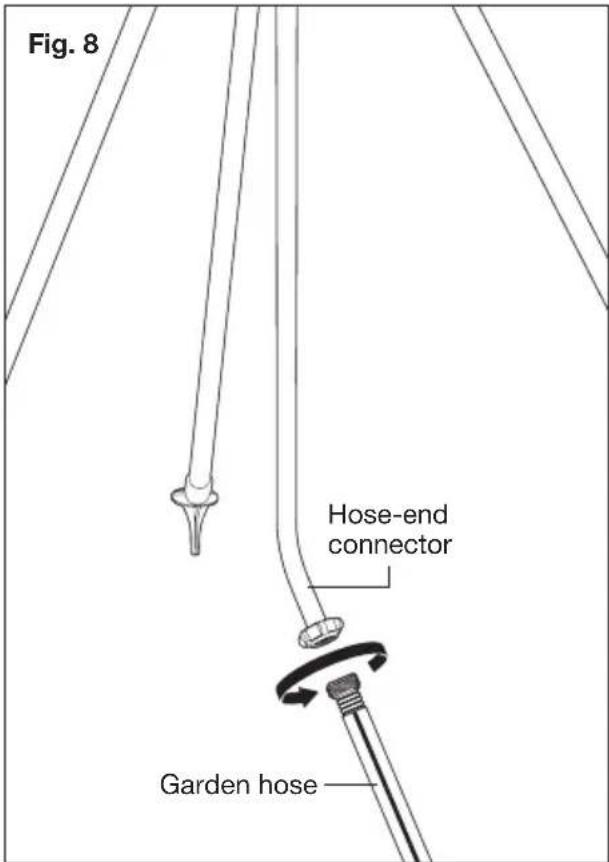

Attach your garden hose to the hose-end connector (Fig. 8).
Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.
NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).
Maintenance

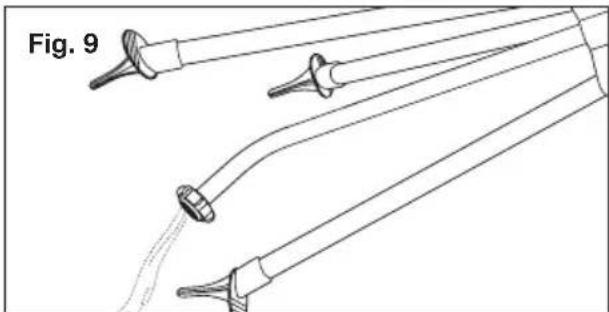

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).


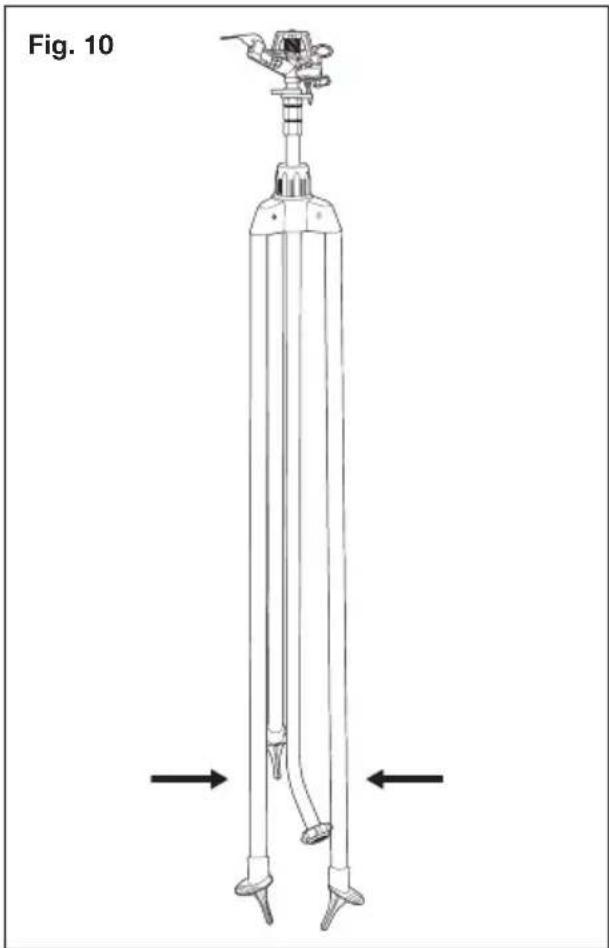

Collapse the tripod legs for storage (Fig. 10).
If your Aqua Joe ^® AJ-IST72ZM Zinc Impulse 360° Telescoping Sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Model + Serial Numbers
When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.
ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
OUR WARRANTY:
Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!
This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
PRODUCT REGISTRATION:
Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.
WHO CAN SEEK LIMITED WARRANTY COVERAGE:
This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.
WHAT IS NOT COVERED?
This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
