Product type	Hood
Brand	Inventum
Model	AKB9005ZWA
Color	Black
Width	900 mm
Outlet diameter	150 mm
Energy efficiency class	A
Light efficiency class	A
Grease filtration efficiency class	D
Airflow min / max	250 / 645 m³/h
Sound power level min / max	50 / 69 dB
Number of motors	1
Lighting	2 x 2 W LED
Number of metal grease filters	3
Charcoal filter (optional)	KB93 (to be ordered separately)
Power supply	220-240 V ~ 50 Hz, 264 W
Minimum distance - electric hob	65 cm
Minimum distance - gas hob	75 cm
Functions	3 speeds + off, lighting, extraction or recirculation
Maintenance	Monthly cleaning of grease filters (dishwasher safe), replace charcoal filter every 3 months
Safety	Automatic shut-off in case of overheating (according to manual), disconnect before maintenance
Warranty	2 years full, extension possible to 5 years under conditions

Frequently Asked Questions - AKB9005ZWA INVENTUM

How to clean the grease filters of the hood?

Remove the metal filters and clean them at least once a month. You can wash them by hand with warm soapy water or in the dishwasher at low temperature. Make sure they are dry before reinstalling them.

What is the minimum distance between the hood and the hob?

For an electric, ceramic or induction hob, the minimum distance is 65 cm. For a gas hob, it is 75 cm. Also check the manual of your hob if a larger distance is recommended.

How to replace the LED lighting?

Unplug the hood or turn off the fuse. Remove the grease filters, push the spotlight holder downwards, turn the broken LED counterclockwise to remove it. Replace it with a 2.0 W spot LED, then reassemble in reverse order.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode. To do this, you must install a charcoal filter (model KB93) or a plasma filter (IPF800R), sold separately. The air is then filtered and returned to the kitchen.

What to do if the hood does not turn on?

First check that the plug is properly connected and the socket is powered. Also check the fuse in the electrical panel. If the problem persists, contact technical support.

What is the extraction power of the hood?

The airflow is 250 m³/h at minimum speed and 645 m³/h at maximum speed.

How to install the hood?

Installation must be carried out by a qualified electrician. The hood can be mounted on the wall or under a cabinet. Use a 150 mm exhaust duct or choose recirculation. Respect the minimum distances from the hob.

How often should the charcoal filter be replaced?

The charcoal filter must be replaced at least every 3 months, or more often depending on usage. It cannot be cleaned.

The hood makes noise, what to do?

Check that the exhaust duct is not obstructed and that it is of diameter 150 mm. Clean the grease filters. If the noise persists, ensure there is sufficient fresh air supply.

What is the warranty of the hood?

Inventum offers a 2-year warranty on manufacturing defects. You can extend this warranty to 5 years by registering the product within 45 days of purchase at www.inventum.eu/garantie-registratie. Exchange costs apply from the 3rd to the 5th year.

USER MANUAL AKB9005ZWA INVENTUM

Exterior view of a black stainless steel HVAC unit (no signage or text visible)

1. safety instructions page 14
2. appliance description page 18
3. before the first use page 18
4. operating the appliance page 19
5. cleaning and maintenance page 19
6. troubleshooting page 20
7. installation instructions page 21
   technical specifications page 23
   general terms and conditions of service and warranty page 48

Deutsch

Extra informatie:

KOOLSTOFFILTERS VERVANGEN

HET VERVANGEN VAN DE LED LAMP

Technical diagram showing a mechanical assembly with a magnified circular detail and a small circular component (no text or symbols)

6 storingen

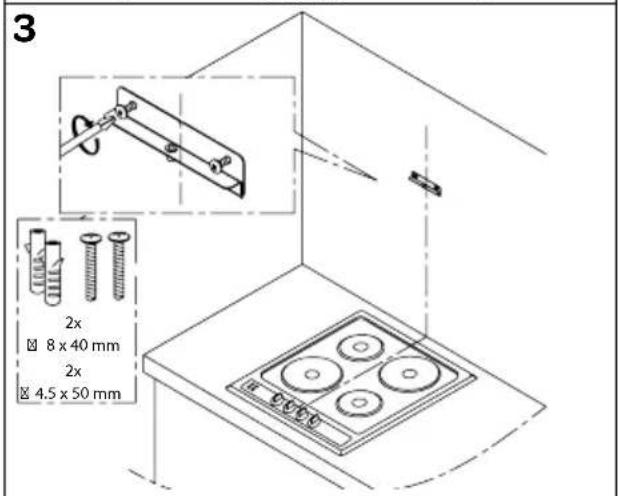

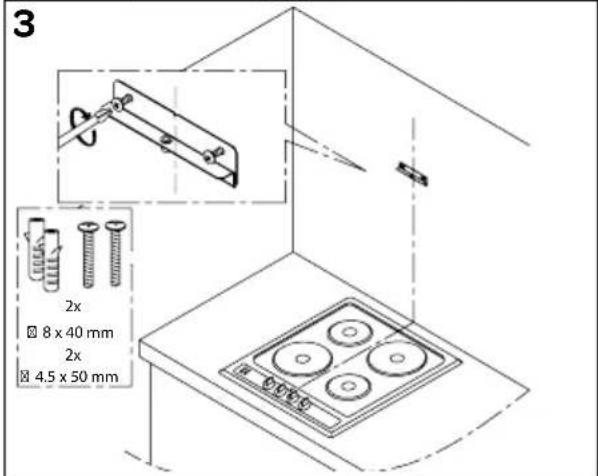

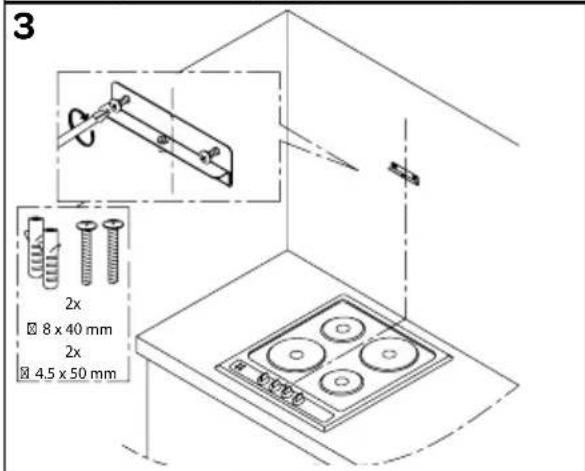

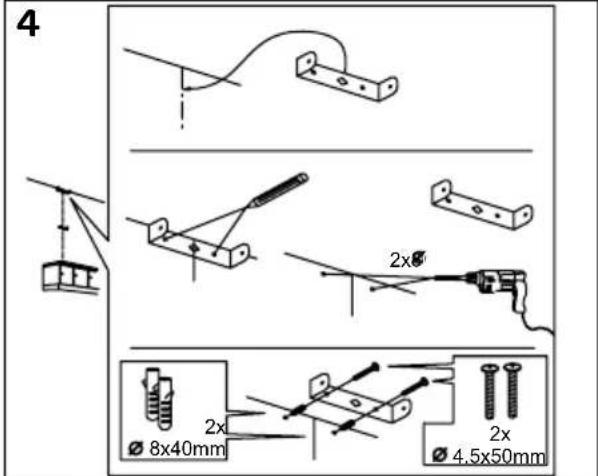

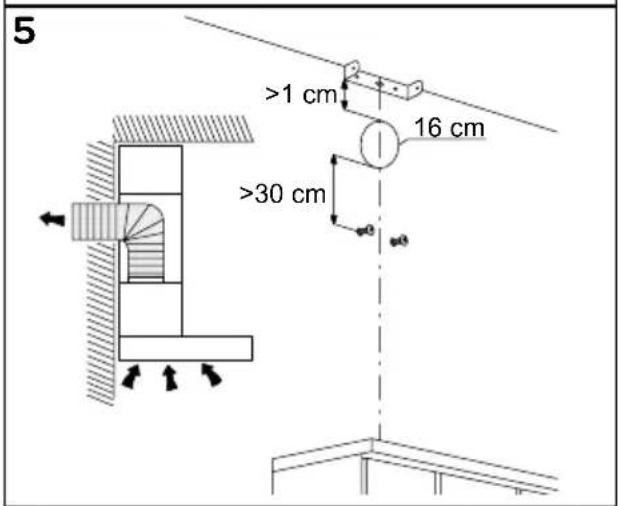

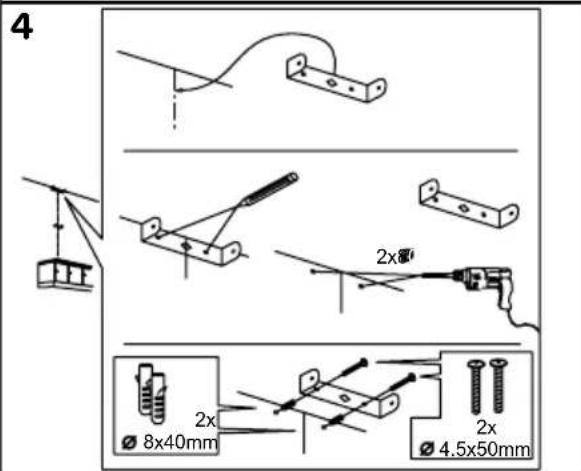

Isometric line drawing of a mechanical setup with a base, block, and hanging component (no text or symbols)

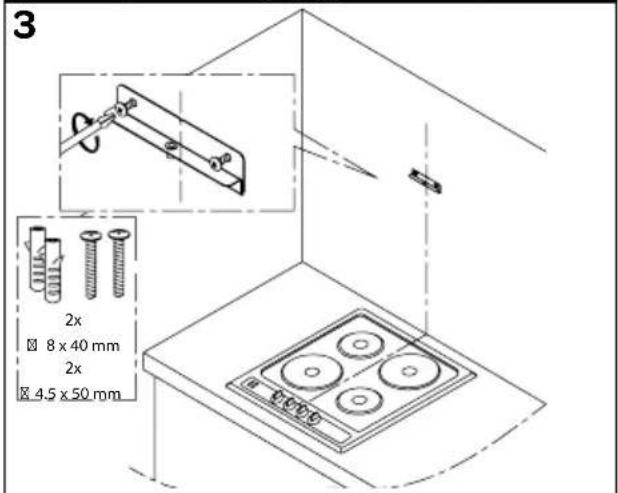

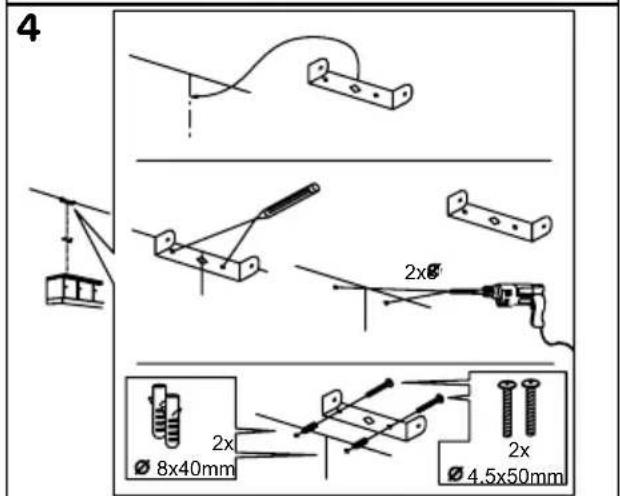

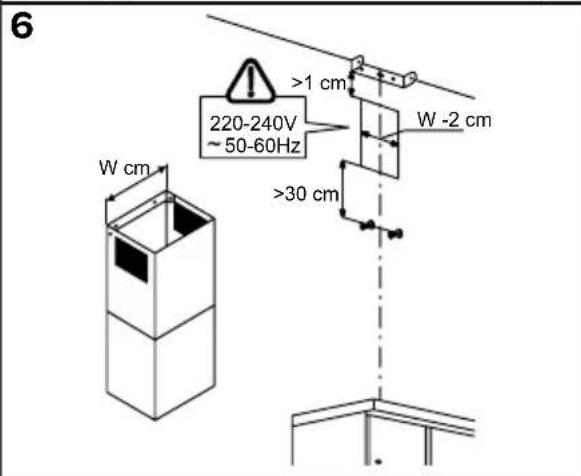

Technical diagram showing a mechanical setup with a cylindrical component and a coiled spring, no text or symbols present.

Isometric line drawing of a mechanical or electrical device with a coiled duct and base, no text or symbols present

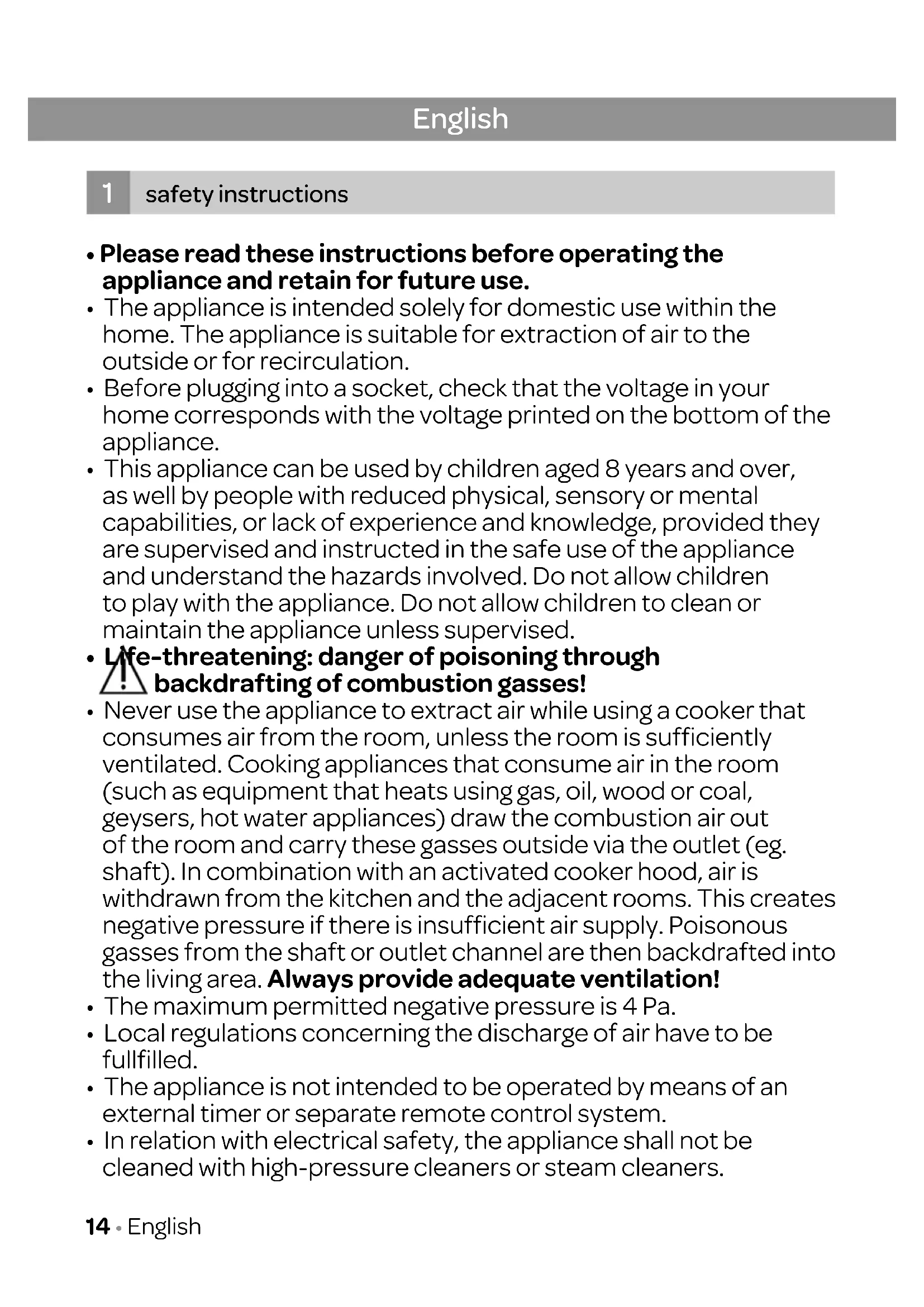

1 safety instructions

- Please read these instructions before operating the appliance and retain for future use.

- The appliance is intended solely for domestic use within the home. The appliance is suitable for extraction of air to the outside or for recirculation.

- Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

- This appliance can be used by children aged 8 years and over, as well by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance unless supervised.

• Life-threatening: danger of poisoning through backdrafting of combustion gasses!

- Never use the appliance to extract air while using a cooker that consumes air from the room, unless the room is sufficiently ventilated. Cooking appliances that consume air in the room (such as equipment that heats using gas, oil, wood or coal, geysers, hot water appliances) draw the combustion air out of the room and carry these gasses outside via the outlet (eg. shaft). In combination with an activated cooker hood, air is withdrawn from the kitchen and the adjacent rooms. This creates negative pressure if there is insufficient air supply. Poisonous gasses from the shaft or outlet channel are then backdrafted into the living area. Always provide adequate ventilation!

• The maximum permitted negative pressure is 4 Pa.
• Local regulations concerning the discharge of air have to be fulfilled.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
• In relation with electrical safety, the appliance shall not be cleaned with high-pressure cleaners or steam cleaners.

- Warning: Avoid the risk of electric shock; make sure the appliance is switched off before replacing the lighting or cleaning the appliance.

- Do not use the cooker hood if the grease filter has not been fitted properly!

- Do not lean against the cooker hood.

- Never use the cooker hood as a working surface unless this is indicated explicitly.

- If the cooker hood is used in combination with a gas hob ensure sufficient ventilation.

- The outlet should not be connected to a flue duct used by other appliances.

- Never flambé under a cooker hood and clean the filters on time. To prevent hot grease catching fire you should only deep fry under continuous supervision.

- The cooker hood should be cleaned regularly both on the outside as well as the inside (at least 1 x a month). Insufficient cleaning or a delay in the replacement of filters can cause fire hazard.

- The grease filters can become hot during use. After cooking wait at least 30 minutes before cleaning.

- Please note! Intensive use can lead to condensation on the cooker hood. Condensation is simple to remove with a dry cloth.

- Grease and oil are inflammable when overheated. Remain in the cooking area when preparing meals.

- Fire danger! There is a risk of fire if the instructions for cleaning or replacing grease filters and/or carbon filters are not followed.

- Fire danger! through grease deposits in the metal grease filter. Never work with open flame under the appliance (eg. flambéing). Always use the appliance with the metal grease filter. Clean the grease filter regularly.

- Fire danger! through overheated grease or oil. Never extinguish a fire with water; always use a fire blanket, lid or plate.

- The appliance may have sharp edges; please be careful during cleaning.

• This appliance should only be connected by a registered installer.
• Always follow the installation instructions in the installation manual (chapter 7) provided.
• Check the appliance for transport damage. Do not connect a damaged appliance.
• Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.
• If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.
  • Always use the original cable and plug to connect the appliance.
• The electrical connection must comply with national and local regulations.
• The wall plug socket and plug should always be accessible.
• If you want to make a fixed connection, make sure that an omnipolar switch with a contact separation of at least 3 mm is fitted in the supply cable.
• The appliance should not be connected to the mains via a multi-plug adapter or extension cable, as the safe use of the equipment cannot be guaranteed.
• Warning: Never open the appliance casing. The casing may only be opened by a service technician.
• Disconnect the appliance from the mains supply before starting any repair work.
• We advise to wear protective gloves when assembling the cooker hood because of the possible sharp edges.
• The distance between the lowest point of the cooker hood and the supported surface for the cooking pans gas hob should be at least 75 cm. With an electric, ceramic or induction hob this distance should at least be 65 cm.
• If the instructions of the gas hob specify a greater distance, this should be taken into account.
• Warning: failure to install screws or fixing devices in accordance with these instructions may result in electrical hazard.

- If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas, in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

- Only use the appliance inside the home.

- If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the socket.

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling.

Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

2 appliance description

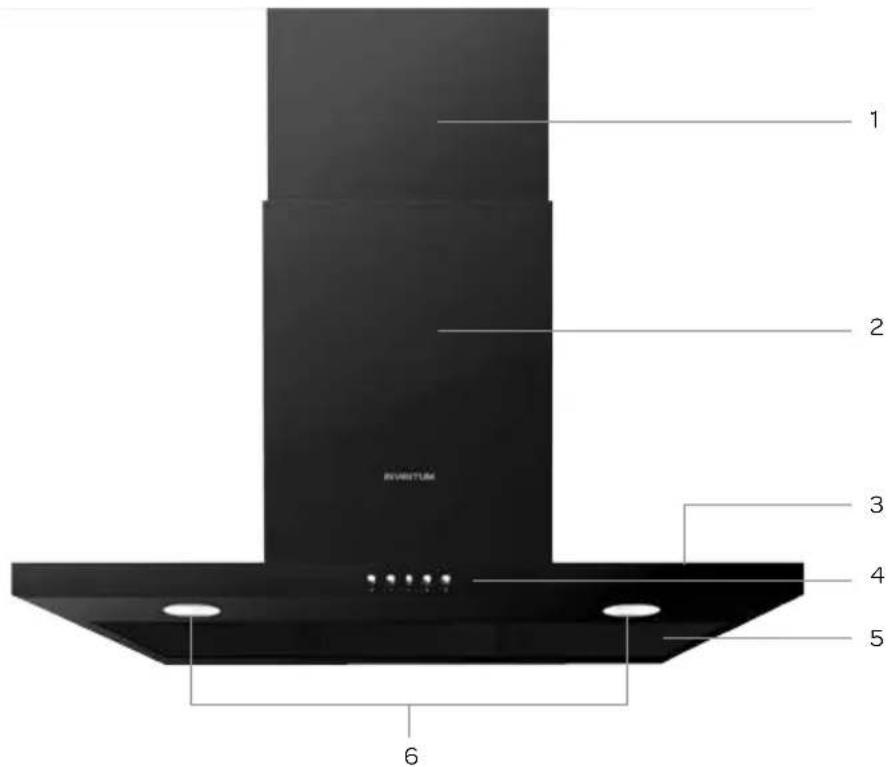

1. Inner shaft
2. Outer shaft
3. Cooker hood
4. Controls
5. Metal grease filters - 3
6. Lighting (LED spots 2 x 2.0W)

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic, polystyrene and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation. Place the appliance on a flat and stable surface.

This appliance should be installed and connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations.

How to install the appliance, is instructed in the installation instructions (chapter 7).

The appliance must be connected with a properly installed fused socket. The power supply and voltage at the operating point must correspond with the details on the rating label of the appliance.

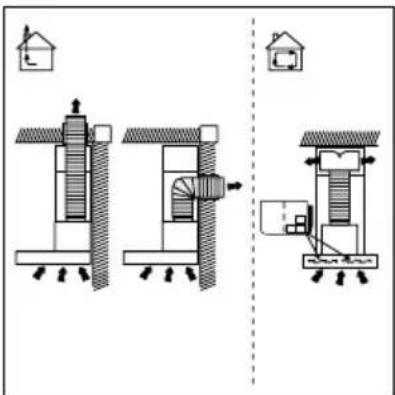

EXTRACTION SYSTEM

This cooker hood can be connected in two ways: to a duct or as a recirculation hood. Install the cooker hood according to the instructions, depending on your choice.

VENT OUTSIDE - to a duct, the cooking vapours extracted by suction are carried outside, once the grease particles have been filtered.

RECIRCULATE - as a recirculation hood, the grease particles and the smell in the extracted vapours are filtered. The air that is sucked in is not carried outside, but recirculates in the kitchen. A good out flow of the air is necessary.

Extra information:

• Note: new houses may no longer vent outside.

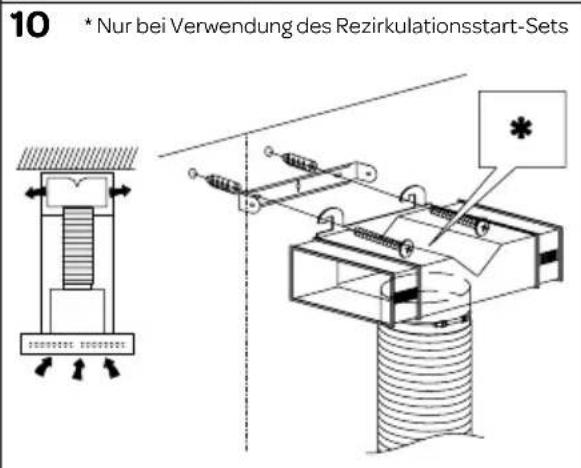

- For recirculation, it is necessary to use carbon filters or a plasma filter. For more information on the differences between carbon and plasma filters check the website www.inventum.eu.

Attention! The starter kit for recirculation, carbon filters and plasma filter are not included. You need to order these separately.

4 operating the appliance

0

1

2

3

☀️

SWITCHING THE COOKER HOOD ON AND OFF

• Press 0 to turn the motor off.
• Press 1 and the motor runs at the lowest speed.
• Press 2 and the motor runs at the middle speed.
• Press 3 and the motor runs at the highest speed.
• Press ⚙ and the lighting switches on. Press the button again to switch the lighting off.

Switch the lighting on if you need more light on your cooking appliance. It is recommended to operate the appliance a few minutes prior to cooking. Leave the appliance in operation for 5 to 10 minutes after the cooking is finished to remove all the smells from the kitchen.

5 cleaning and maintenance

Before performing any maintenance operation, disconnect the cooker hood from the mains power supply. Ensure that it is switched off and pull the plug or remove the connector fuse.

Clean the in- and outside of the cooker hood regularly. Clean the cooker hood with warm soapy water and a soft cloth. If your model is stainless steel, clean it with a stainless steel care product. Do not use any abrasive cleaning agents such as powder cleaners or cleaners that contain alcohol. Clean the controls only with a damp cloth.

Attention: failure to carry out the basic cleaning recommendations can cause fire risks.

GREASE FILTERS

A metal grease filter filters the grease particles in the air. Therefore, the filter can get clogged, depending on the use. The metal grease filter does not have to be replaced, but should at least be cleaned once a month. You can clean it either by hand or in the dishwasher on a low temperature. Make sure the grease filters are completely dry before placing them back.

Do not use any abrasive cleaning agents.

Not cleaning the grease filters on time can cause fire risks.

Cleaning the grease filters in the dishwasher can cause discoloration. This has no effect on the operation.

REMOVING THE GREASE FILTER

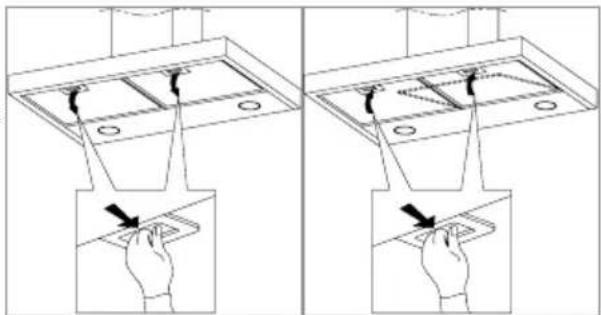

Switch off the electricity! Remove the plug from the socket. Pull the grease filter towards you and tilt it downwards at the front. Make sure you guide the grease filter with your other hand to prevent the grease filter from falling down on your cooking appliance.

REPLACING THE CARBON FILTERS

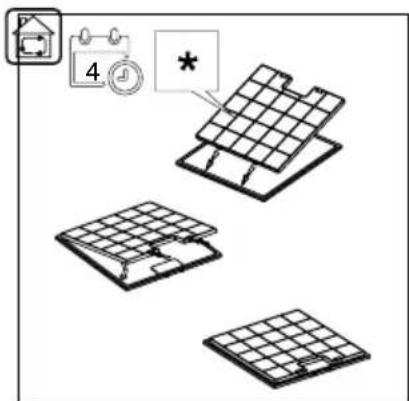

A carbon filter cleans the air and filters the smell that occurs during cooking. A carbon filter can not be washed and reused. In all cases, it is necessary to replace the carbon filter at least every four months.

• Remove the grease filters.
• Attach three carbon filters to the grease filters.
• Replace the grease filters.

CHANGING A LED SPOT

When a LED spot of the cooker hood is broken, you can replace it yourself. Follow these steps:

• Unplug the appliance or remove the connector fuse.

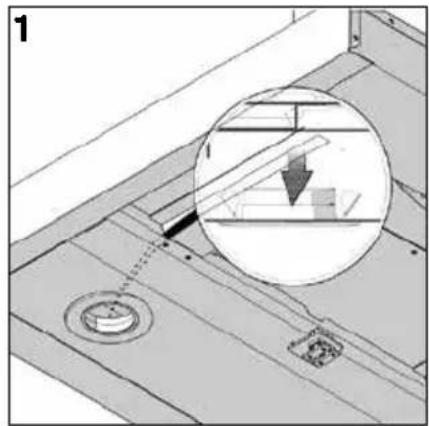

• Remove the grease filters and push the complete spot from the inside downwards - figure 1.

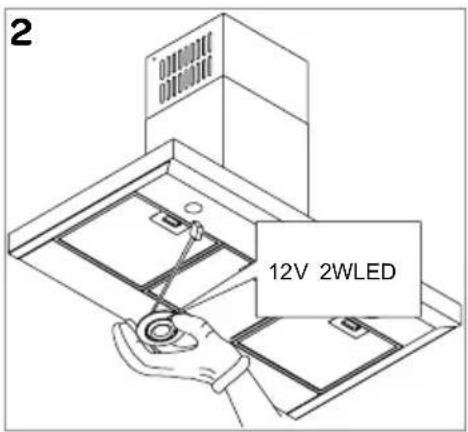

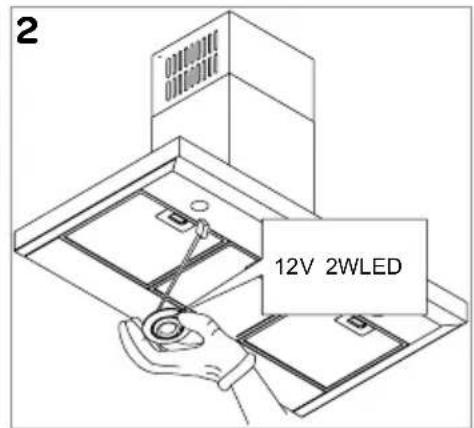

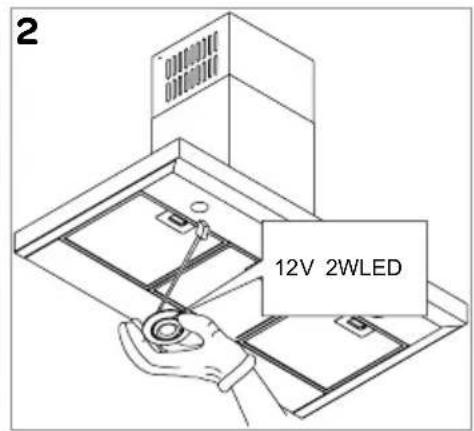

• Unplug the broken LED from the transformer - figure 2. Replace the complete LED with a matching type (2.0 W, LED L27A).
• Plug the new LED in the transformer and push the complete spot back in the housing of the cooker hood.
• Replace the grease filters and plug the appliance in.

Technical diagram showing a mechanical assembly with a magnified circular detail and a downward arrow, no readable text or symbols present.

6 troubleshooting

What to do in case of a malfunction? In most cases, you will be able to correct these faults easily yourself. Please check the solutions below before contacting the Inventum service department.

The motor is not running

• Is it plugged in correctly?
• Is there a power outage?
- Check the electrical installation.

The performance of the cooker hood is not correct and makes more noise.

• Is the diameter of the exhaust-air pipe correct?
• Is the duct blocked?
• The diameter of the duct must be 150 mm. A smaller diameter can negatively influence the suction of the motor.
- Are the grease filters clean?
- Are the carbon filters not replaced within the last 6 months? Replace the carbon filters.
• Is there enough air supply to replace the extracted air?

7 installation instructions

Read these installation instructions carefully before starting the installation.

Decide whether there is a duct available or if the cooker hood needs to recirculate. We advise installing the cooker hood with two persons.

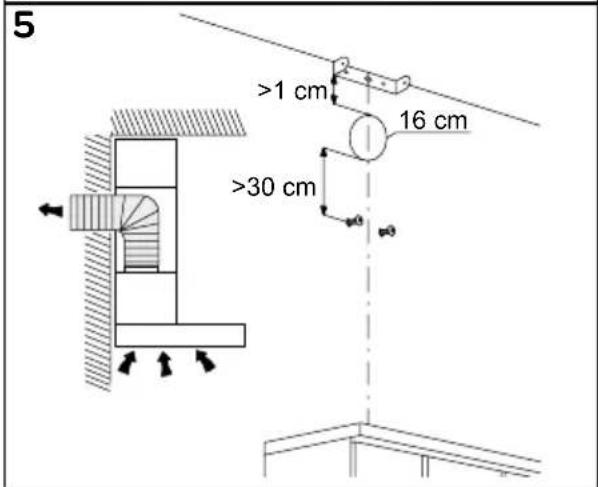

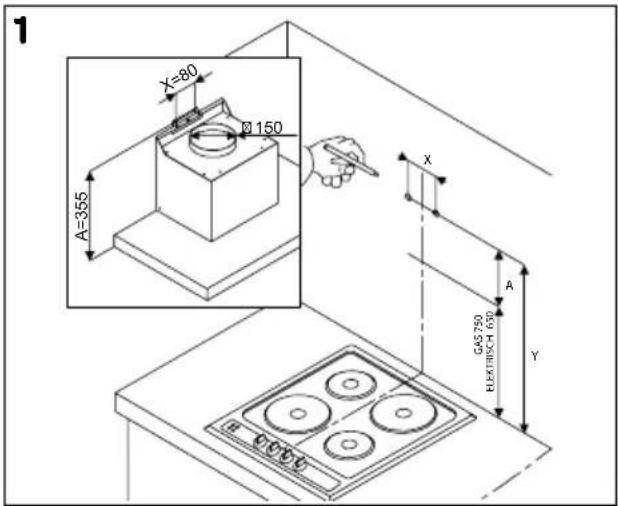

• The minimum distance between the supporting surface for the cooking pans on the cooker and the lowest part of the hood must be:
• 65 cm for an electric, ceramic or induction cooker
• 75 cm for a gas hob
• If the cooker hood is to be fitted to an existing duct, no other appliances, such as a geyser or heater, may be connected to that same duct.
• The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.
  • The connection pipe for the cooker hood has a diameter of 150 mm.

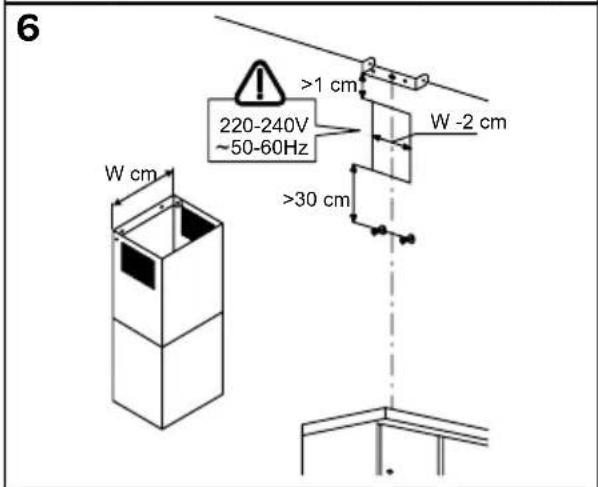

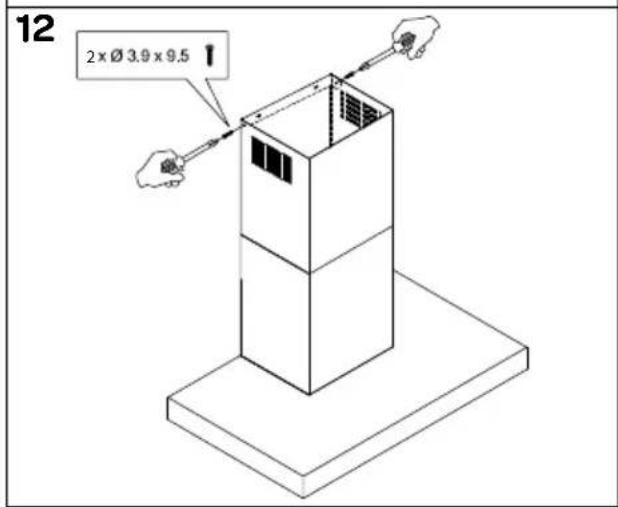

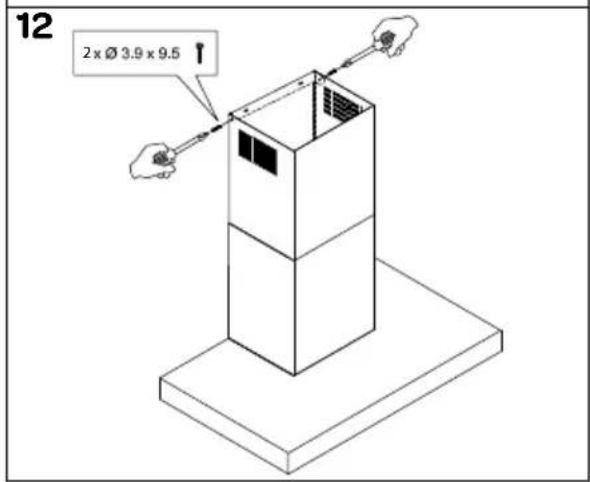

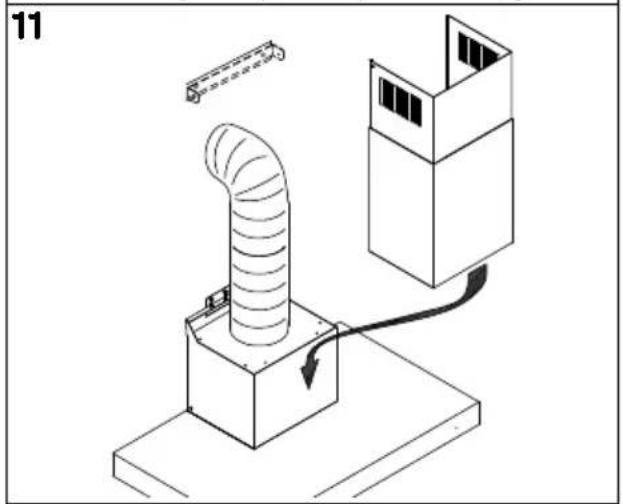

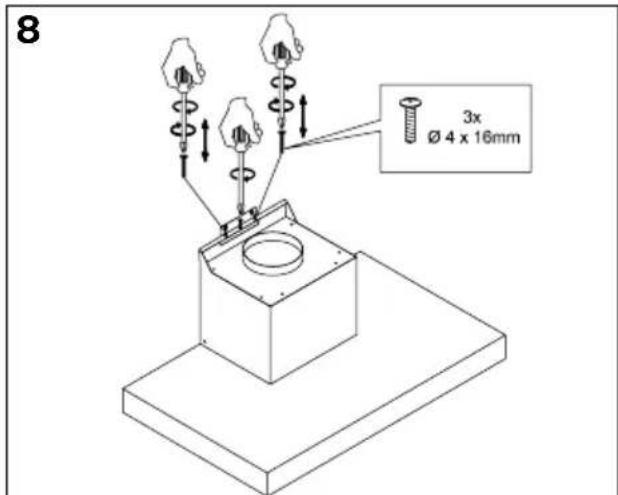

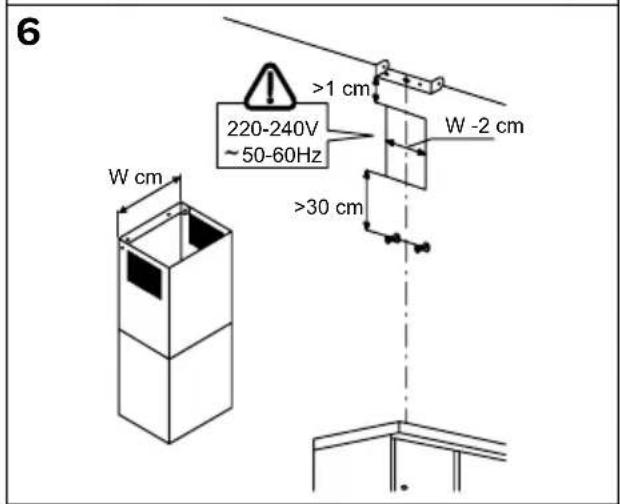

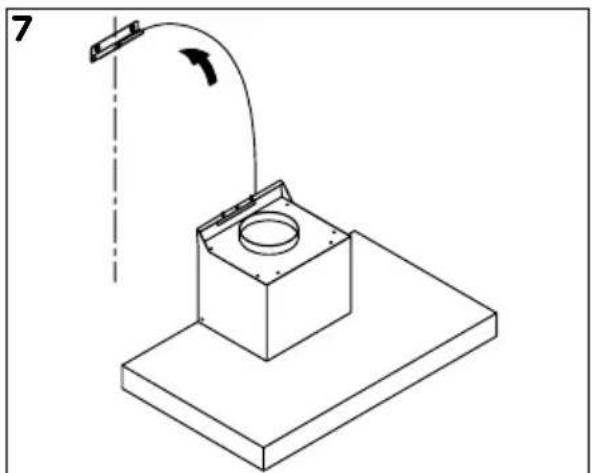

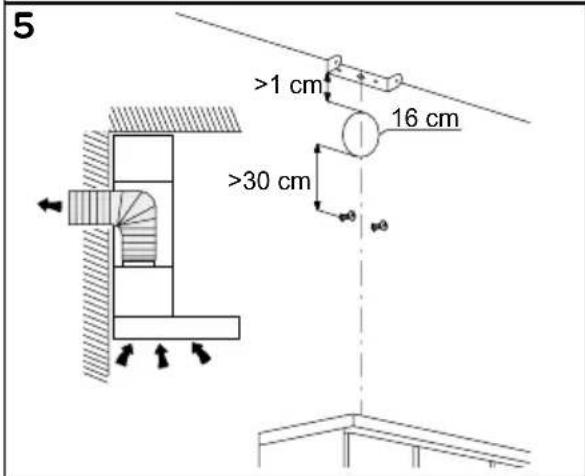

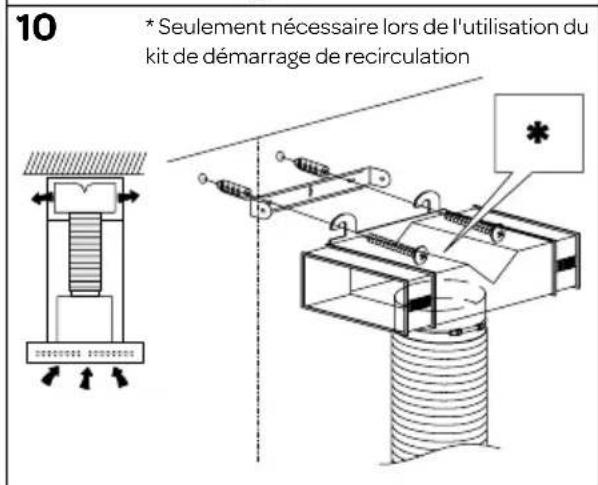

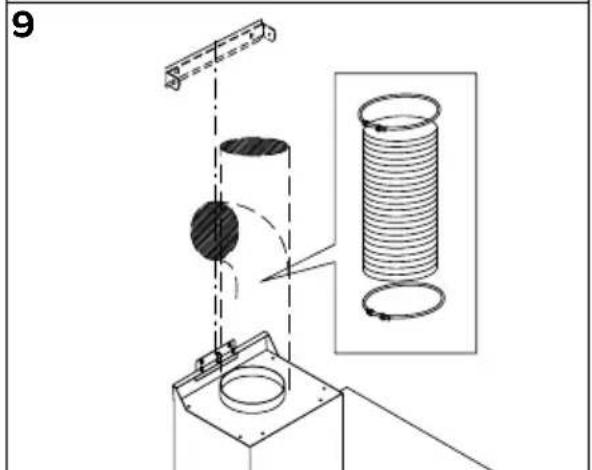

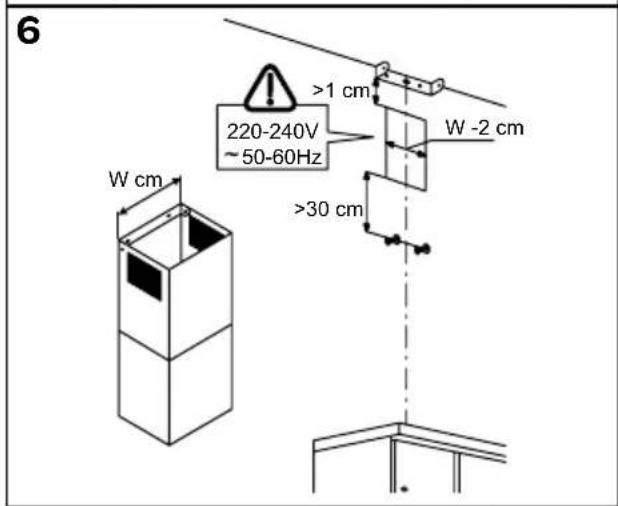

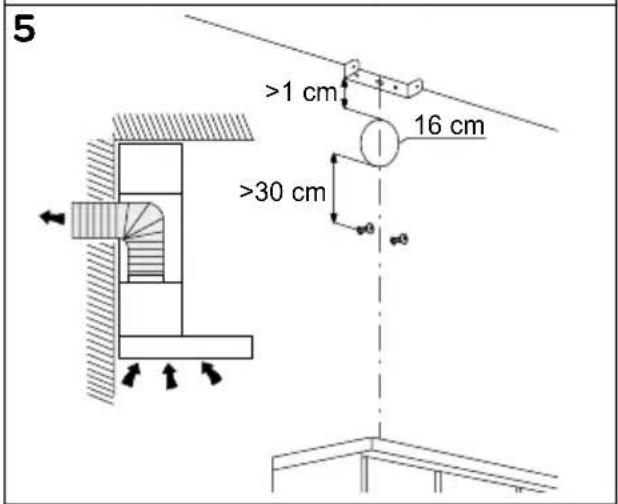

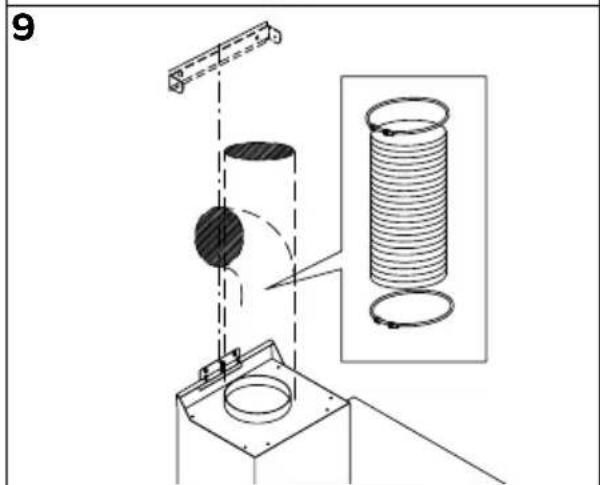

Isometric line drawing of a mechanical setup with a base, block, and hanging component (no text or symbols)

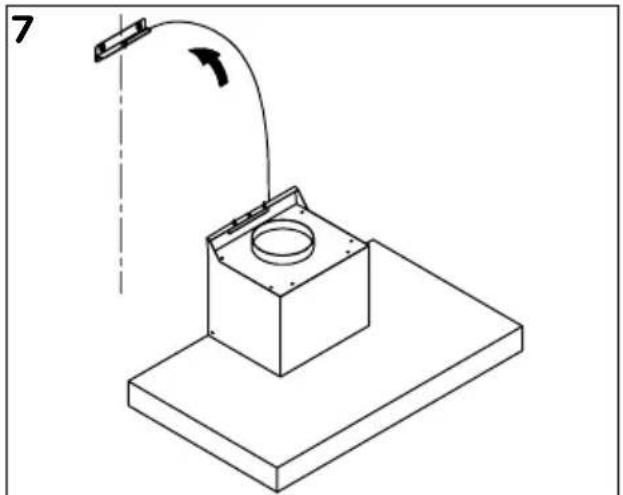

Technical diagram showing a mechanical setup with a cylindrical component and a coiled spring, no text or symbols present.

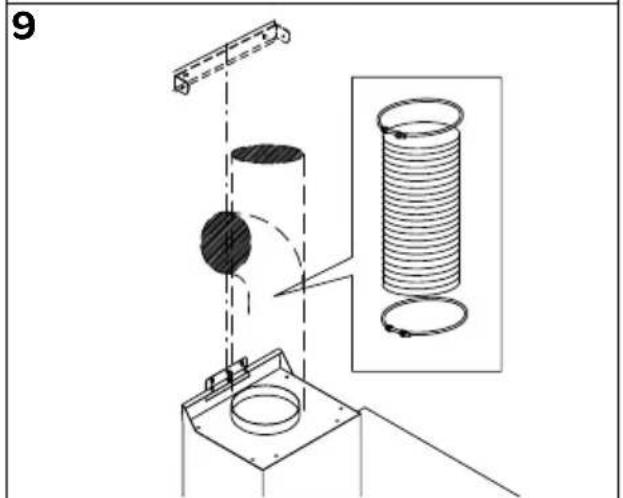

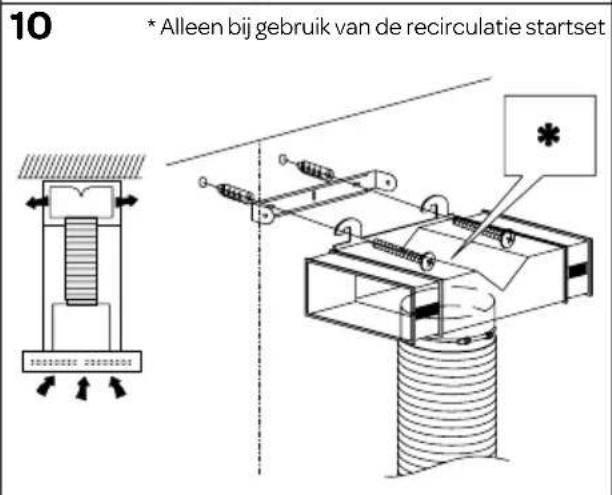

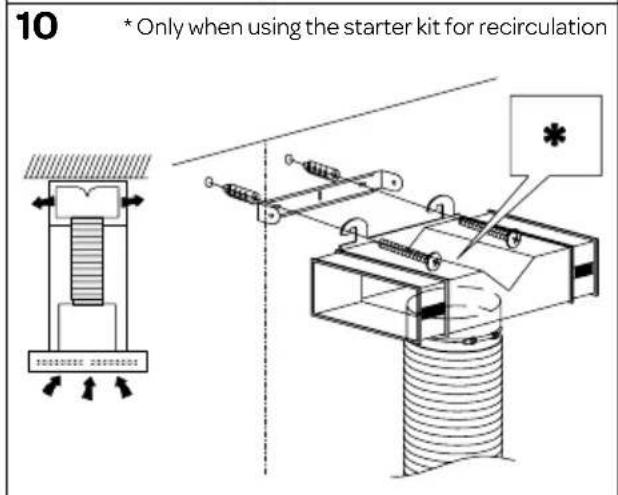

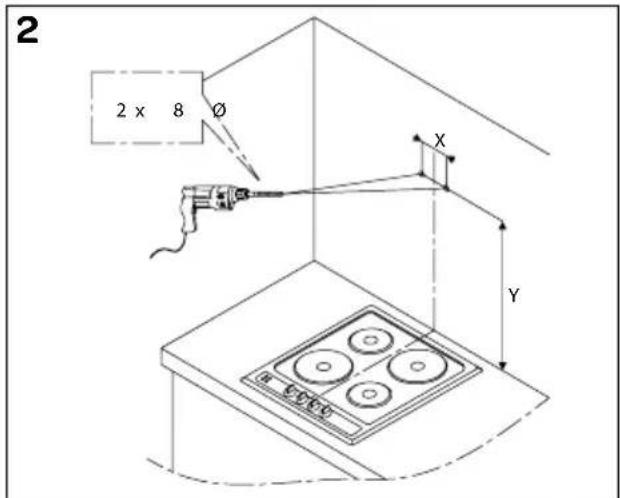

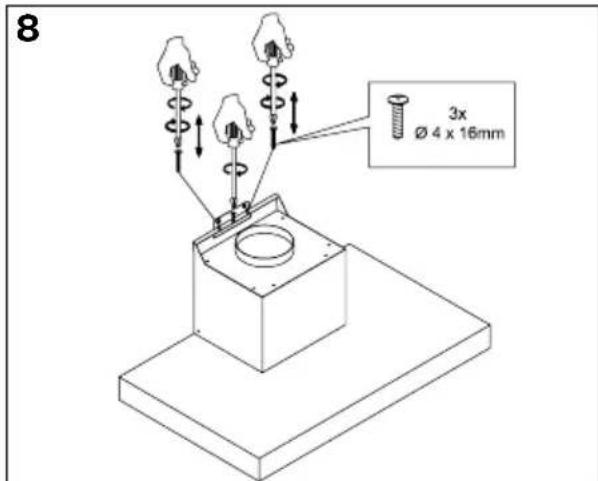

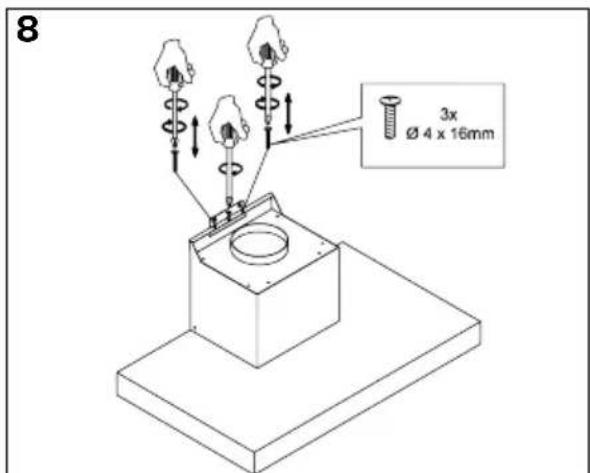

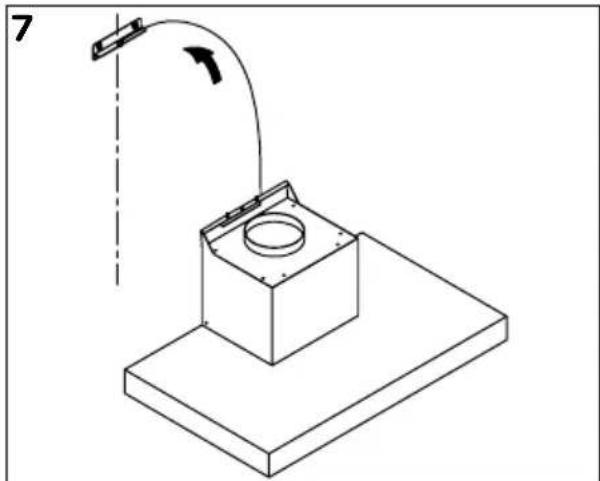

Isometric line drawing of a mechanical or electrical device with a coiled duct and base, no text or symbols present

ELECTRIC CONNECTION

Make sure the supply voltage ratings correspond with those stated on the rating plate. Plug the appliance in. The cooker hood is provided with a plug. Make sure the plug remains accessible. Place the socket, if necessary, out of sight behind the exhaust-air pipe.

Attention: if you want to make a fixed connection, ensure that a multipole switch with a distance between contacts of 3 mm is installed in the supply cable.

TECHNICAL SPECIFICATIONS

	INVENTUM
Type AKB9005ZWA
Energy efficiency class [ EEI_cooker hood ]	A
Lighting efficiency class A
Grease filtering efficiency D
Air flow rate (at min / max speed) [ m^3/h ] 250/645
Noise level at min / max speed [dB] 50/69
Power consumption in the off-mode ( P_o ) [W] -
Power consumption in the standby-mode ( P_s ) [W] -
Execution
Color material black
Number of motors 1
Lighting 2 x 2W
Number of aluminum grease filters 2
Fitting carbon filter (not included) KB93
Fitting plasma filter (not included) IPF800R
Dimensions
Width [mm] 900
Diameter exhaust [mm]	150
Technical specifications
Power consumption [W]	264 W
Rated voltage [V] / frequency [Hz]	220-240V ~ 50Hz

Note: On the rating label, which you can find on the inside of the appliance, you can also find the technical specifications.

30 • Deutsch

Technical diagram showing a mechanical assembly with a magnified circular detail and a downward arrow, no readable text or symbols present.

6 Storüngen

32 • Deutsch

Isometric line drawing of a mechanical setup with a square base and curved arrow, no text or symbols present

Isometric line drawing of a mechanical device with a coiled duct and base, no text or symbols present

REEMPLACER LES FILTRES À CHARBON

REEMPLACER LA LAMPE LED

Technical diagram showing a mechanical assembly with a magnified circular detail and a dashed line indicating a dimension (no text or symbols present)

6 pannes

42 • Français

Technical line drawing of a mechanical setup with a base platform and a hanging component (no text or symbols)

Technical diagram showing a mechanical setup with a cylinder, housing, and a coiled spring (no text or symbols)

Isometric line drawing of a ventilation system with a coiled duct and base unit (no text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

5-year Inventum warranty

1. Inventum offers a 5-year warranty on most large domestic appliances and a selection of small domestic appliances. This 5-year Inventum warranty consists of a 2-year full manufacturer's warranty, extended by a further 3-year warranty. The only thing you need to do to qualify for the 3-year extended warranty is to register the product within 45 days of purchase. You can read more about registering the product in the following paragraph.
2. In accordance with the 5-year Inventum warranty provisions, a faulty product or part will always be exchanged for a new model during the first 2 years under the warranty. During the 3rd to 5th year under the warranty, you will only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten.
3. In order to claim under the 5-year Inventum warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
4. The 5-year warranty period starts from the date the product is bought.
5. In order to claim under the warranty, you must produce a copy of the original receipt.
6. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Product registration

1. The 3-year extended warranty is easy to obtain, free of charge, by registering the product within 45 days of purchase, via the website www.inventum.eu/garantie-registratie. If you did not register the product within 45 days of purchase, you can still do so up to 2 years after the purchase date. However, there will be a charge. The one-off registration charge is €89 for each separate product. Registration is possible only for products that are subject to the 5-year Inventum warranty. Whether the product qualifies for the 5-year Inventum warranty is stated in the product user manual and in the product information sheet, on Inventum's website.
2. The warranty period always starts from the date the product is bought. If the product is registered for the extended warranty at a later date, the warranty period still starts from the original date of purchase.
3. The 3-year extended warranty can only be applied for if you are in the possession of a copy of the original receipt and the Inventum 5-year warranty certificate.

Large domestic appliances

1. Breakdowns or faults in large domestic appliances (separate and built-in white goods) can be registered via the form at www.inventum.eu/service-aanvraag, by calling the Inventum costumer service department or in the store where you bought the device. The telephone number of the costumer service department can be found at www.inventum.eu.
2. In the event of breakdowns or faults in large domestic appliances, Inventum will have the option to have a service engineer inspect the faulty device onsite at the customer in the Netherlands and to carry out repairs, there and then. The Inventum customer service department can also decide to have the device exchanged.
3. If you suffer a breakdown or fault in a large domestic appliance during the first 2 years from the date of purchase, Inventum will not charge any costs for the exchange, call-out or for parts and labour.
4. If you registered the product as described before at www.inventum.eu/garantie-registratie and you subsequently report a breakdown of a large domestic appliance in the 3rd to 5th year of the date of purchase, the 5-year Inventum warranty applies and the device will be repaired or exchanged, free of charge. In the event of a repair or exchange of the device, you only pay the costs of exchange. The current costs of exchange are listed at www.inventum.eu/omruilkosten. If you did not register the product, the 3-year extended warranty does not apply.
5. When reporting a breakdown or fault, a service engineer will contact the customer within 1 working day in order to make an appointment. When the report is made in a weekend or during a public holiday, this will be the next working day.
6. If you report a breakdown or fault via the form at www.inventum.eu/service-aanvraag, you will be kept informed of the progress via mobile messages and e-mail.
7. The warranty period starts from the date the product is bought.
8. In order to claim under the warranty, you must produce a copy of the original receipt and the Inventum 5-year warranty certificate.
9. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, grease filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. Parts that have been replaced, packaging material and exchanged devices are taken back by the service engineer and become the property of Inventum.
3. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
4. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
5. Inventum cannot be held liable for damage as a result of devices built in incorrectly.
6. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
7. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

instagram.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908
