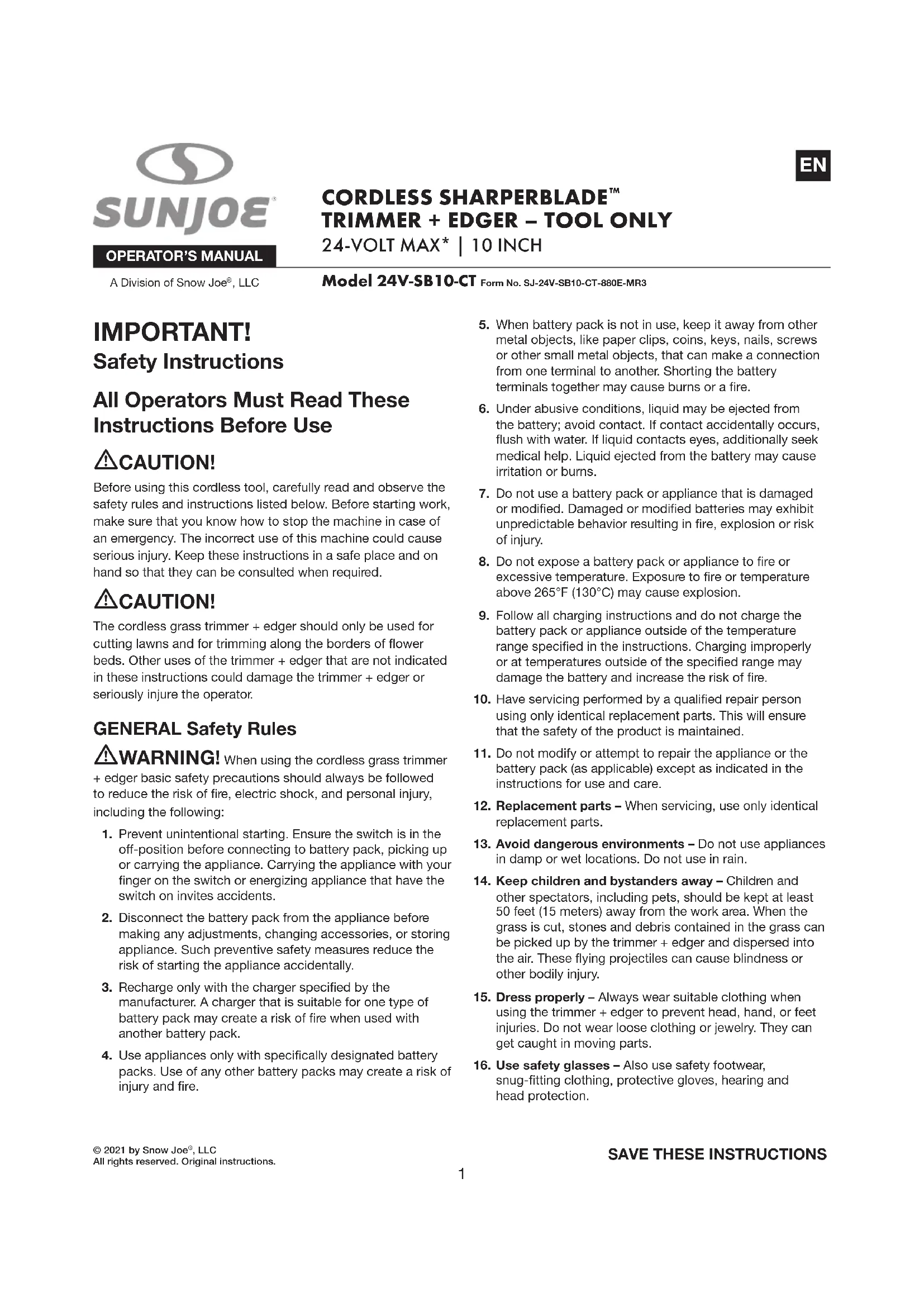

USER MANUAL 24VTBLTE Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe , LLC

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use mCAUTION! Before using this cordless tool, carefully read and observe the safety rules and instructions listed below. Before starting work, make sure that you know how to stop the machine in case of an emergency. The incorrect use of this machine could cause serious injury. Keep these instructions in a safe place and on hand so that they can be consulted when required. mCAUTION! The cordless grass trimmer + edger should only be used for cutting lawns and for trimming along the borders of ower beds. Other uses of the trimmer + edger that are not indicated in these instructions could damage the trimmer + edger or seriously injure the operator. GENERAL Safety Rules mWARNING! When using the cordless grass trimmer + edger basic safety precautions should always be followed to reduce the risk of re, electric shock, and personal injury, including the following:

1. Prevent unintentional starting. Ensure the switch is in the

o-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your nger on the switch or energizing appliance that have the switch on invites accidents.

2. Disconnect the battery pack from the appliance before

making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

3. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

4. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

5. When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

6. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

7. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

8. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 265°F (130°C) may cause explosion.

9. Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

10. Have servicing performed by a qualied repair person

using only identical replacement parts. This will ensure that the safety of the product is maintained.

11. Do not modify or attempt to repair the appliance or the

battery pack (as applicable) except as indicated in the instructions for use and care.

13. Avoid dangerous environments – Do not use appliances

in damp or wet locations. Do not use in rain.

14. Keep children and bystanders away – Children and

other spectators, including pets, should be kept at least 50 feet (15 meters) away from the work area. When the grass is cut, stones and debris contained in the grass can be picked up by the trimmer + edger and dispersed into the air. These ying projectiles can cause blindness or other bodily injury.

15. Dress properly – Always wear suitable clothing when

using the trimmer + edger to prevent head, hand, or feet injuries. Do not wear loose clothing or jewelry. They can get caught in moving parts.

16. Use safety glasses – Also use safety footwear,

snug-tting clothing, protective gloves, hearing and head protection.2

17. Use the right tools – Do not use tools for any job except

that for which they are intended.

18. Do not force the tool – It will do the job better and with

less likelihood of injury if it is used at the rate for which it was designed.

19. Do not overreach – Keep proper footing and balance at

20. Stay alert – Watch what you are doing. Use common

sense. Do not operate the trimmer + edger when you are tired, or under the inuence of alcohol or drugs.

21. Store idle tools indoors – When not in use, tools should

be stored indoors in a dry and high or locked-up place out of the reach of children.

22. Maintain tools with care – Keep cutting edges sharp

and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect the trimmer + edger periodically and replace if damaged. Repair the trimmer + edger only at an authorized service facility. Keep handles dry, clean, and free from oil and grease.

23. Checked for damaged parts – Before continuing to use

the trimmer + edger, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for the alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may aect the trimmer + edger’s operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

ADDITIONAL SAFETY INSTRUCTIONS

FOR GRASS TRIMMER + EDGER

1. Keep guards in place and in working order.

2. Keep hands and feet away from the cutting area.

mWARNING! Never use steel blades or other devices. Use of any other accessories or attachments will increase the risk of injury. mCAUTION! The safety guard is critical to the safety of the operator and the safety of people standing within a safe distance of the trimmer + edger. The safety guard keeps the trimmer + edger in good working order and must always be in place during operation.

• Do not try to stop the cutting device (SharperBlade

) with your hands. Always let it come to a stop by itself. mWARNING! After switching o the tool, the cutting device (SharperBlade

) continues to rotate for a few seconds.

. Do not under any circumstances use metal line or nylon line instead of SharperBlade

• Do not use the tool to cut grass which is not on the ground. For example, do not cut grass growing on walls or rocks.

• Do not switch on the tool in an enclosed or poorly ventilated space or in the presence of ammable and/or explosive substances such as liquids, gases and powders.

• Only cut during broad daylight or with adequate articial light.

• Check that all grass cuttings and dirt have been removed from the ventilation vents.

• Do not cross roads or gravel paths while the tool is still running.

• When the tool is not in use, store it in a dry place and out of reach of children.

• After use, remove the battery and check for damage. If you have any doubt about the condition of the tool, contact an authorized service center or call the Snow Joe

• Only use the tool according to the instructions given in this manual.

• Check regularly that the screws are tight.

• Do not try to repair the tool or access internal parts. Contact an authorized service center or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Battery + Charger Safety Instructions NOTE: This unit is the tool only. The battery and the charger are not included. They must be purchased separately. Model 24V-SB10-CT is compatible with the iON+ 24V System batteries and chargers. See page 18 for more information. We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage.3 IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the cordless trimmer + edger and cause it to malfunction, which can lead to serious personal injury. mWARNING! Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. Do not modify or attempt to repair the battery pack except as indicated in the instructions for use and care. Have your battery pack serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. mCAUTION! To reduce the risk of injury, charge the iON+ 24V lithium-ion battery pack only in its designated iON+ 24V lithium-ion charger. Other types of chargers present risk of re, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery pack. Vented gases may explode. NOTE: The safe temperature range for the battery is 41°F – 105ºF (5°C – 40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Check the rated input for the charger before using – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the battery or charger are damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery uids, wash the aected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – A battery pack will short circuit if a metal object makes a connection between the positive and negative contacts on the battery pack. Do not place a battery pack near anything that may cause a short circuit, such as paper clips, coins, keys, screws, nails and other metallic objects. A short-circuited battery pack poses a risk of re and severe personal injury.

• Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer.4 Information about the battery

1. For optimum battery performance, avoid low discharge

cycles by charging the battery pack frequently.

2. Store the battery pack in a cool place, ideally at

77°F (25°C) and charged to at least 40%.

3. Lithium-ion batteries are subject to a natural aging

process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your trimmer + edger, and therefore pose a safety risk.

4. Do not throw battery packs into an open re as this poses

a risk of explosion.

5. Do not ignite the battery pack or expose it to re.

6. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.

7. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

8. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

9. If the battery pack suers overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. IMPORTANT! Do not press the ON/OFF switch any more if the protective cut-o has been activated. This may damage the battery pack.

10. Use only original battery packs. The use of other batteries

poses a re risk and may result in injuries or an explosion. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery pack and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery pack will become

warm. Allow the battery pack to cool to room temperature before inserting it into the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

8. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re.

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suered dangerous damage.

11. Do not use batteries that have suered curvature or

deformation during the charging process or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).

12. Never fully discharge the battery pack (maximum

recommended depth of discharge is 80%). A complete discharge of the battery pack will lead to premature aging of the battery cells.5 Protection from environmental inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77°F (25°C). Protect the battery pack, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

8. Prevent the lithium-ion battery pack from freezing.

Battery packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.6 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. Disconnect the battery pack before any repair or maintenance. WARNING! Do not expose the unit to rain or wet conditions.

WEAR EYE AND HEARING

PROTECTION – For protection against injury, wear ear defenders and safety goggles. Keep bystanders and children a safe distance away. Symbols SymbolsDescriptions Descriptions Wear safety gloves during use to protect hands. Wear non-slip footwear that will protect your feet and improve your footing on slippery surfaces. Beware of ying objects and debris. Indoor use only. Only use battery charger indoors. DANGER! Beware of thrown objects to bystanders. Keep bystanders at least 15 m (50 ft) away from the machine.7

1. Battery compartment

3. Storage compartment

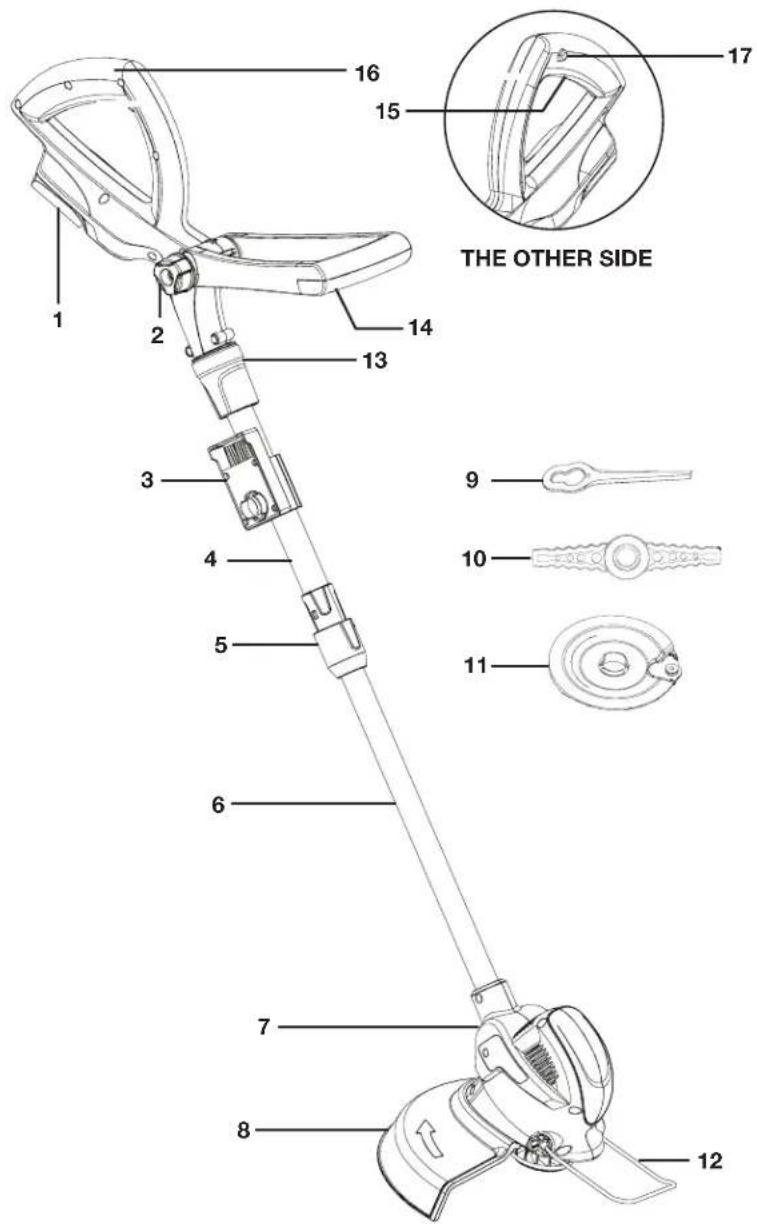

Know Your Cordless Grass Trimmer + Edger Read the owner’s manual and safety instructions carefully before operating the cordless grass trimmer + edger. Compare the illustration below to the cordless trimmer + edger in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

• Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts. Unpacking Carton Contents

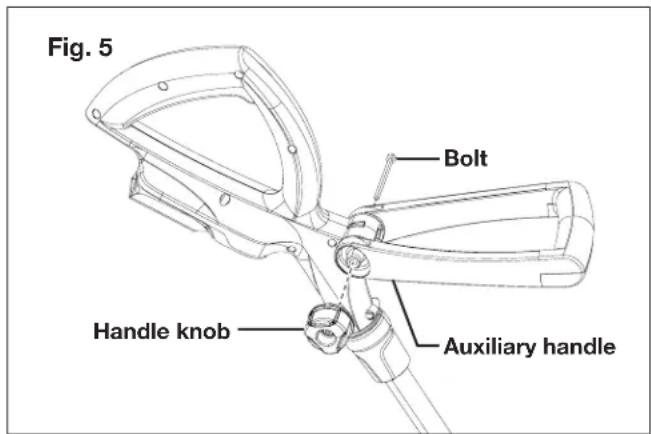

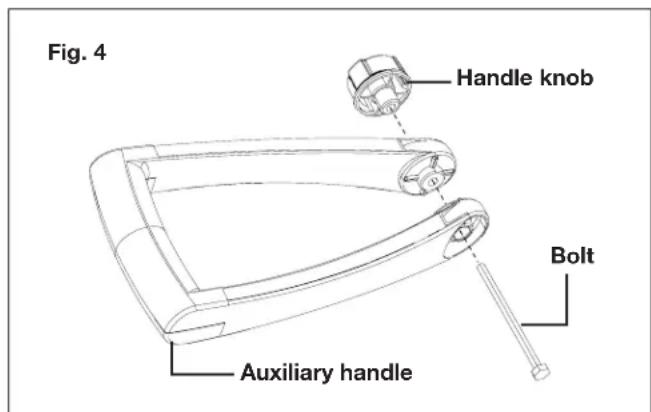

• Auxiliary handle with knob and bolt

• Trimmer plate (pre-assembled)

• Grass blades (x10) (pre-assembled)

• Storage compartment (pre-assembled)

• Washer (pre-assembled)

• Screw knob (pre-assembled)

• Manual with registration card NOTE: In order to operate this cordless trimmer + edger you will need iON+ 24V System batteries and chargers. See page 18 for battery options and specications, or visit sunjoe.com.

1. Carefully remove the cordless grass trimmer + edger and

check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless grass trimmer + edger. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free. Battery Charge Level Indicator The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator:

• All 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.

• 1 level monitoring LED is lit: Battery is at. Stop work IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. NOTE: If the charge level button does not appear to be working, insert the battery into the charger and charge as needed. NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. In order to operate this cordless trimmer + edger you will need an iON+ 24V System battery and charger. See page 18 for battery and charger options and specications, or for more information visit sunjoe.com. TOOL ONLY

BATTERY + CHARGER SOLD SEPARATELY

Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights9 Charger Operation In order to operate this cordless trimmer + edger you will need an iON+ 24V System battery and charger. See page 18 for battery and charger options and specications, or for more information visit sunjoe.com. TOOL ONLY

BATTERY + CHARGER SOLD SEPARATELY

mWARNING! Charge only iON+ 24V lithium-ion battery packs with its compatible iON+ 24V lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to ow into the charger's AC/DC plug. When to Charge the iON+ 24V Lithium- Ion Battery NOTE: The iON+ 24V lithium-ion battery packs do not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before placing it into the charger.

• Use the battery charge indicator lights to determine when to charge your iON+ 24V lithium-ion battery pack.

• You can "top-o" your battery pack's charge before starting a big job or after a long day of use. Charging the Battery

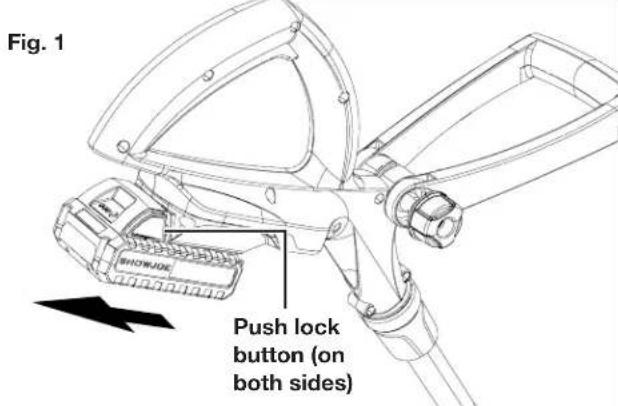

1. Press the push lock buttons on the battery to pull the

battery pack out of the equipment (Fig. 1).

2. Depending on your Snow Joe

charger model, how to recharge your lithium-ion battery will vary. You may either insert your 24-volt battery into the 24VCHRG-QC Quick Charger (sold separately) or the 24VCHRG-DPC Dual Port Charger (sold separately) (Figs. 2 – 3).

3. The battery indicator LEDs will illuminate one by one

during the charging process. Unplug the charger immediately when the 3 LEDs are all illuminated.

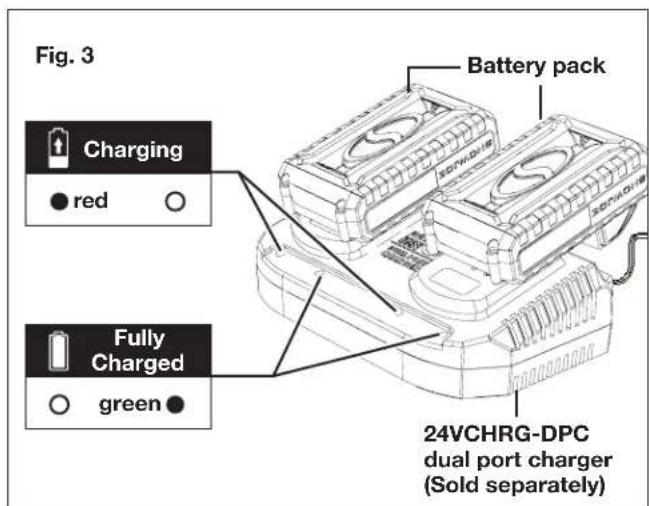

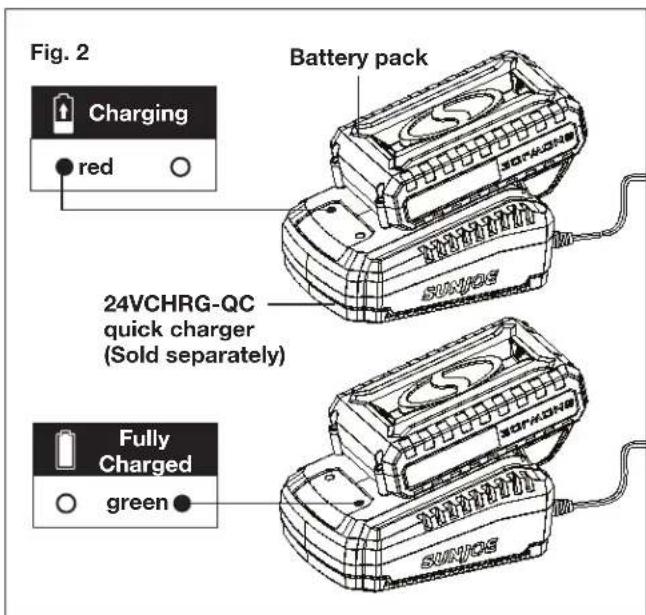

4. The 24VCHRG-QC Quick Charger (sold separately) and

the 24VCHRG-DPC Dual Port Charger (sold separately) are also equipped with additional charging indicating lights which will indicate the charging status (Figs. 2 – 3). mCAUTION! FIRE HAZARD. When disconnecting the charger from the battery, be sure to unplug the charger from the outlet rst, then disconnect the charger from the battery. mWARNING! The chargers do not automatically turn o when the battery is fully charged. Please take care not to leave the battery plugged into the charger. Switch o or unplug the charger at the mains when charging is complete.

5. Timely recharging of the battery will help prolong the

battery's life. You must recharge the battery pack when you notice a drop in the equipment's power. Fig. 1 Push lock button (on both sides) Fig. 2 Battery pack 24VCHRG-QC quick charger (Sold separately) red Charging green Fully Charged Battery pack 24VCHRG-DPC dual port charger (Sold separately) red Charging green Fully Charged Fig. 310 IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery. 6. When charging is complete, remove the battery from the charger by pulling the push lock button and sliding the battery backward to unlock it from the charger. Secrets to a Long Lasting SharperBlade

CONGRATULATIONS! You are about to experience a faster, easier way of grooming your lawns edge and managing weeds.First, you will notice that there are obvious dierences between your SharperBlade and string line, among which are size and shape. These dierences require you to operate your trimmer + edger slightly dierent:1. Use MINIMAL pressure when edging against concrete, brick, or stone. Since the SharperBlade is more rigid than string, you may feel the need to put pressure on the blade while edging. The more pressure you apply, the FASTER the blade will wear. In contrast, the less pressure you apply against hard surfaces, the LONGER the blade will last! The SECRET is to keep the blade just o the hard surface.2. NEVER FORCE your SharperBlade . High speed, along with an impact against any hard surface, may cause the blade to buckle near the center hub, and tear. The SECRET is to allow the SharperBlade to do ALL the work without extra eort. Assembly Before using the SharperBlade cordless grass trimmer + edger, follow these instructions to assemble. mWARNING! Do not insert the battery until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. Fitting the Auxiliary Handle 1. Remove the handle knob and bolt that that come pre-assembled on the auxiliary handle (Fig. 4).2. Fit the auxiliary handle into position and align the holes. Fix by the bolt and the handle knob. Tighten the handle knob to secure (Fig. 5). Fitting the Safety Guard mWARNING! The safety guard must be properly installed. The safety guard provides partial protection from the risk of thrown objects to the operator and other bystanders.1. Use a screw driver to remove the 4 safety guard screws that pre-assembled on the motor housing (Fig. 6). Retain the screws. Pressure = LONG LASTING Fig. 4Auxiliary handleHandle knob Bolt Auxiliary handleHandle knob Bolt Fig. 5Fig. 6Safety guard screwsMotor housing11

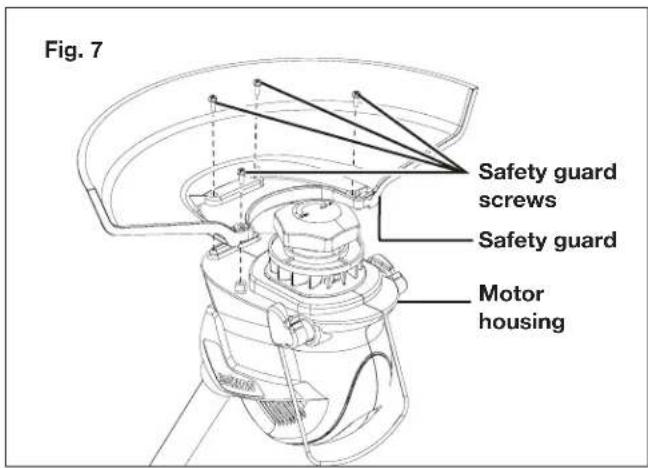

2. Place the safety guard over the motor housing as shown.

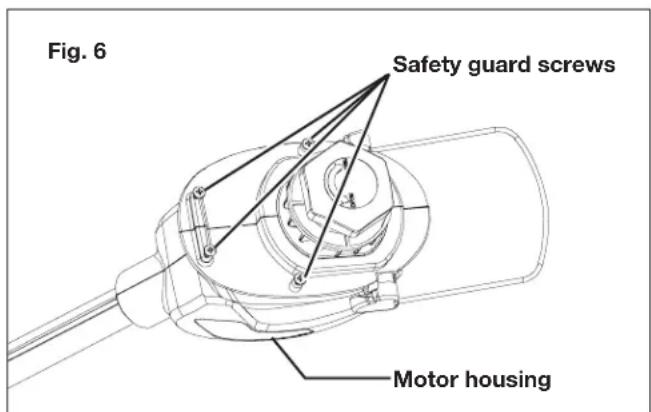

Align the holes. Fix with the original 4 safety guard screws. Tighten to secure (Fig. 7). Installing the Storage Compartment

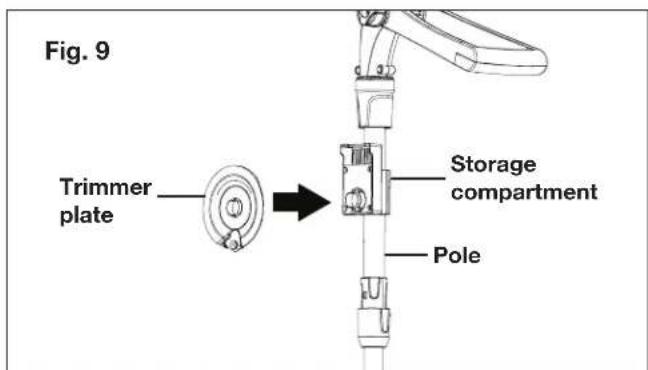

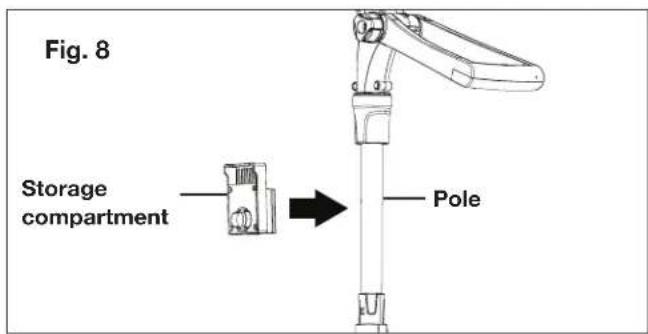

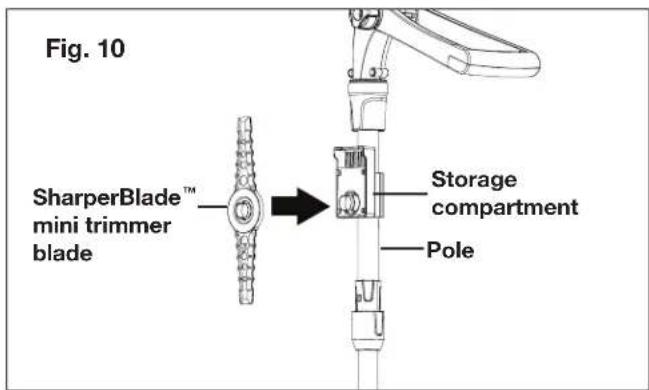

1. To store your grass blades easily, just simply snap the

storage compartment onto the pole of the trimmer and edger. Be sure that the storage compartment is right side up to prevent blades from falling out (Fig. 8).

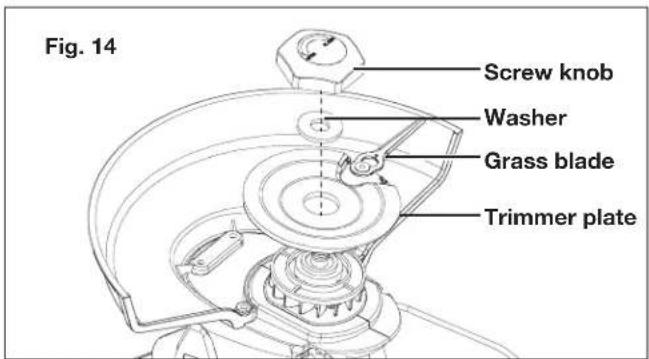

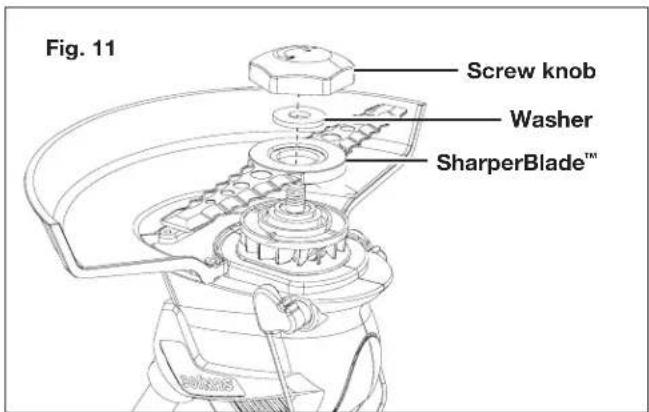

2. The trimmer plate (or SharperBlade

mini trimmer blade) can be snapped directly onto the compartment for safe storage, when not in use. (Fig. 9-10). Installing + Changing SharperBlade™ mini trimmer blade NOTE: When you rst purchase your trimmer + edger, the blade will come separately with the machine. Refer only to the instructions for tting the SharperBlade

(Step 3). Should you need to replace the blade in the future, follow all the steps in this section.

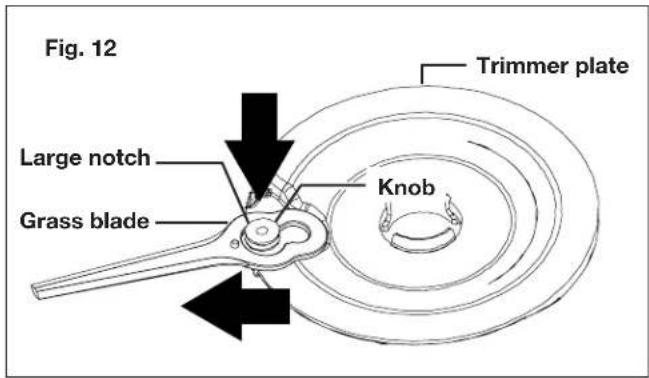

1. Switch o the machine and remove the battery. Wait until

the machine comes to a complete stop.

2. Loosen the screw knob by screwing it counterclockwise.

Remove the screw knob to expose the worn blade and the washer (Fig. 11).

to the cordless grass trimmer + edger with the washer placed in the middle (Fig. 11). Fix the whole assembly with the screw knob. Twist clockwise to secure. Installing + Changing Grass blade NOTE: When you rst purchase your trimmer + edger, the blade will come separately with the machine. Refer only to the instructions for tting the grass blade (Step 2-3). Should you need to replace the blade in the future, follow all the steps in this section.

1. Switch o the machine and remove the battery. Wait until

the machine comes to a complete stop.

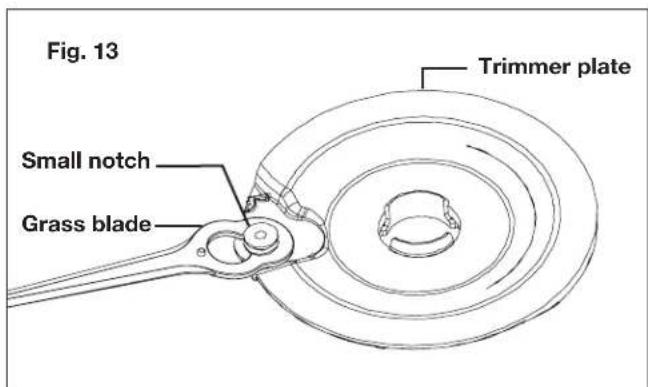

2. Place the large notch of the grass blade over the knob on

the trimmer plate (Fig. 12). Pull the grass blade until the knob snaps into the small notch (Fig. 13). Safety guard Fig. 7 Safety guard screws Motor housing Storage compartment Pole Fig. 8 Trimmer plate Pole Storage compartment Fig. 9 SharperBlade

3. Loosen the screw knob by screwing it counterclockwise.

Remove the screw knob to expose the blade and the washer (Fig. 14).

to the cordless grass trimmer + edger with the washer placed in the middle (Fig. 14). Fix the whole assembly with the screw knob. Twist clockwise to secure. Operation The cordless grass trimmer + edger is designed to cut grass and weeds under bushes, and on slopes and edges that cannot be reached with the lawn mower. The trimmer + edger must be used outdoors only, at an ambient temperature between 32ºF (0ºC) and 113ºF (45ºC). mWARNING! Remove stones, small sticks and other objects from the cutting area. The SharperBlade

continues to rotate for a few seconds after the trimmer + edger is switched o. Let the motor come to a complete stop before switching the trimmer + edger back on. Do not rapidly switch the trimmer + edger o and on. mWARNING! Rocks or debris may ricochet or be thrown into eyes and face, cause blindness, or other serious injury. Never lean over the trimmer head and always wear eye protection. When operating the machine, check for the following:

• Wear eye protection and heavy clothing.

• Hold the rear handle with one hand and auxiliary handle with the other hand.

• Keep the trimmer + edger below your waist level.

• Cut only from your right to your left to ensure debris is thrown away from you. Without bending over, keep the trimmer + edger near and parallel to the ground. mWARNING! Use only Sun Joe

trimmer + edger replacement blade (Model SB10-BLD-3PK) with this unit. Other products will not work properly and will result in improper cutting head function or can cause serious injury. Do not use other materials such as steel blades, wire, string, rope, etc. Other materials can break o during cutting and become a dangerous missile that can cause serious injury. ON/OFF Switch

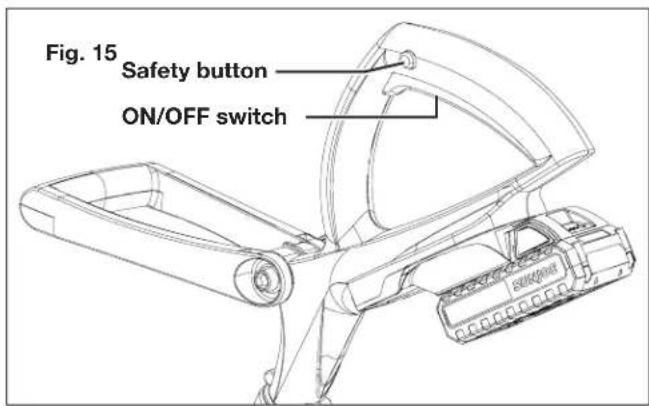

1. Insert the battery into the battery compartment on the

back of the machine. Press until it clicks into position. Press and hold the safety button, then squeeze the ON/OFF switch and release the safety button (Fig. 15).

2. To switch OFF, release the ON/OFF switch (Fig. 15).

Remove the battery. Trimmer plate Fig. 12 Grass blade Large notch Knob Trimmer plate Fig. 13 Grass blade Small notch Screw knob Fig. 14 Grass blade Trimmer plate Washer In order to operate this cordless trimmer + edger you will need an iON+ 24V System battery and charger. See page 18 for battery and charger options and specications, or for more information visit sunjoe.com. TOOL ONLY

1. Switch o the machine and remove the battery. Wait until

the blade comes to a complete stop.

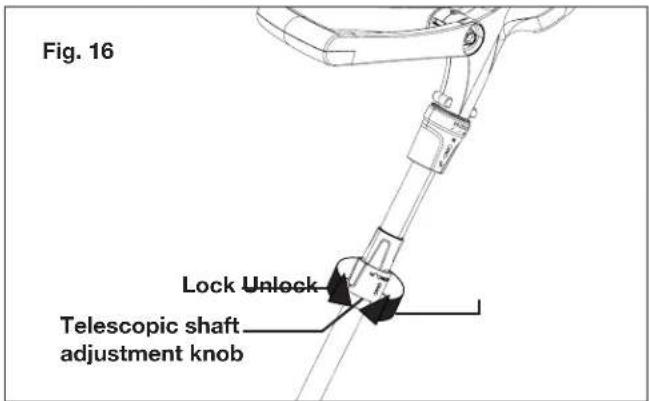

2. Rotate the telescopic shaft adjustment knob as shown to

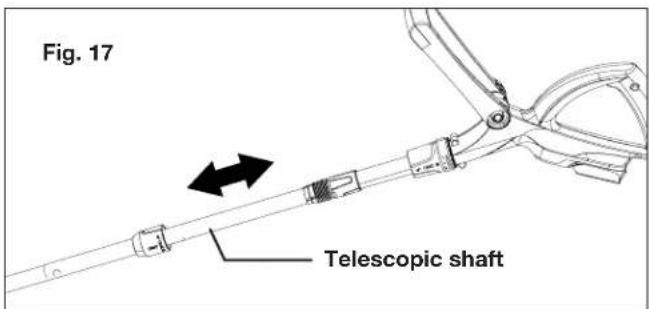

3. Pull and adjust the shaft to a comfortable height (Fig. 17).

4. Tighten the knob to lock the pole (Fig. 16).

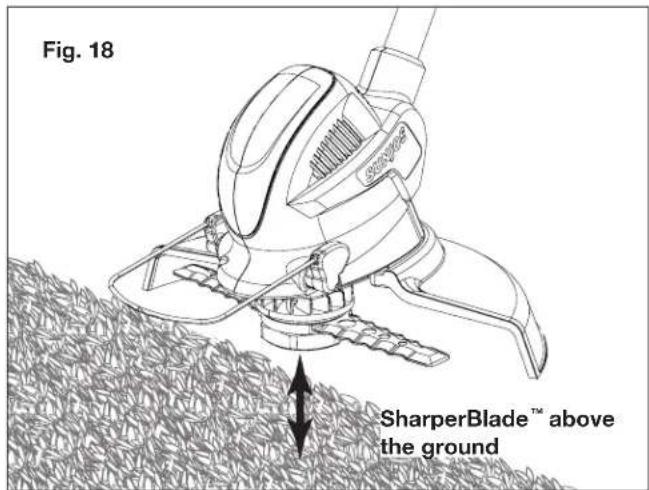

Trimming Hold the bottom of the trimmer head above the ground and at an angle if desired. Allow only the SharperBlade™ to make contact. Do not force SharperBlade™ into work area (Fig. 18). Scalping The scalping technique removes unwanted vegetation down to the ground. Hold the bottom of the trimmer head about 3 in. (8 cm) above the ground and at an angle. Allow the tip of the SharperBlade

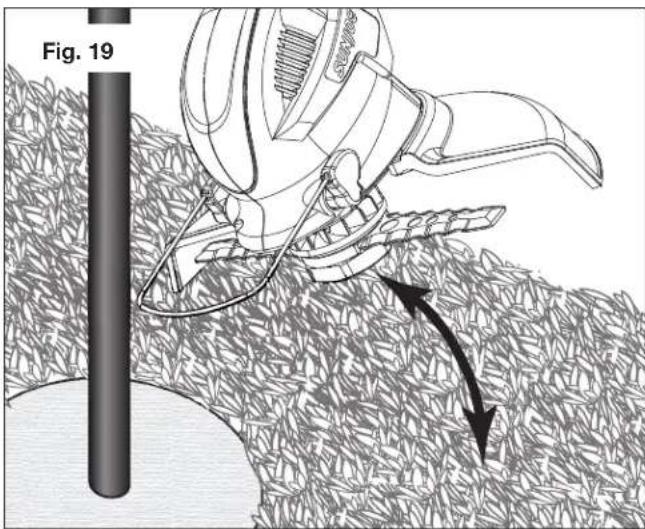

to strike the ground around trees, posts, monuments, etc. This technique increases SharperBlade

wear (Fig. 19). Mowing Your trimmer is ideal for mowing in places conventional lawn mowers cannot reach. In the mowing position, keep the SharperBlade

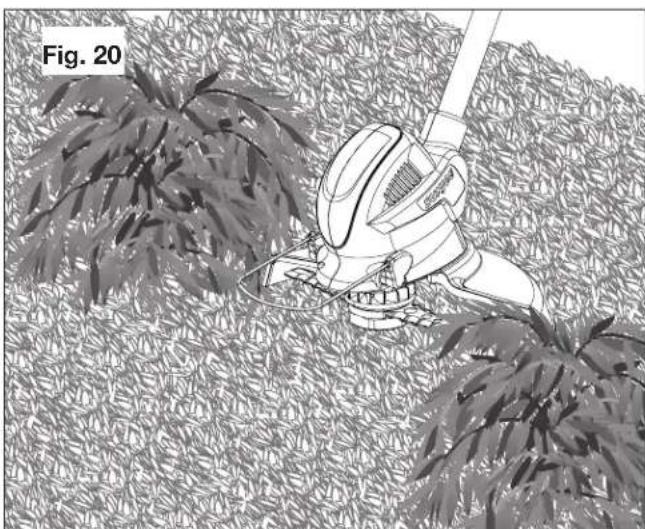

parallel to the ground. Avoid pressing the head into the ground as this can scalp the ground and damage the tool (Fig. 20). Sweeping Fanning action can be used for quick and easy clean up. Keep the SharperBlade

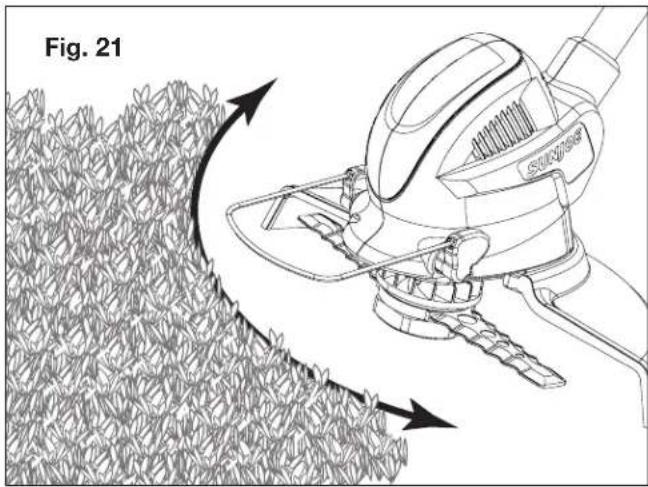

parallel to and above the surfaces being swept and move the tool from side to side (Fig. 21). Fig. 16 Telescopic shaft adjustment knob Lock Unlock Fig. 17 Telescopic shaft Fig. 18 SharperBlade

above the ground Fig. 19 Fig. 2014 Edging mWARNING! Because this procedure is close to the On/O switch, make sure to remove the battery before converting the machine.

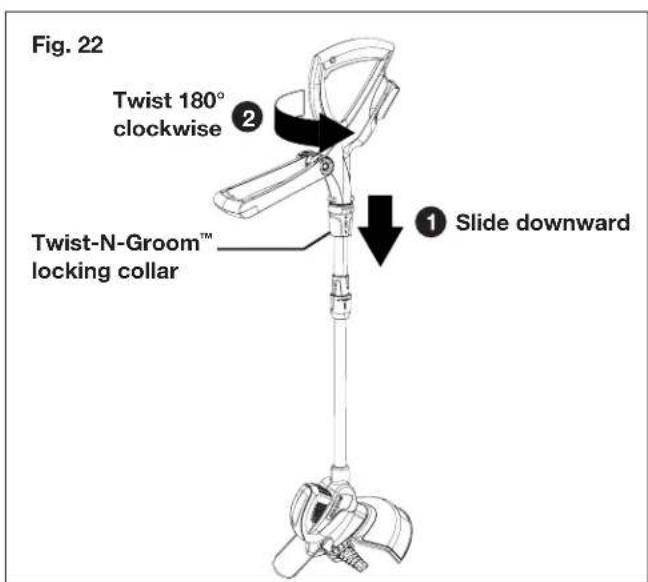

trimmer into an edger, slide the Twist-N-Groom

locking collar downward and twist the handle clockwise to an angle of 180° while holding the pole. Release the collar and ensure it snaps into place (Fig. 22).

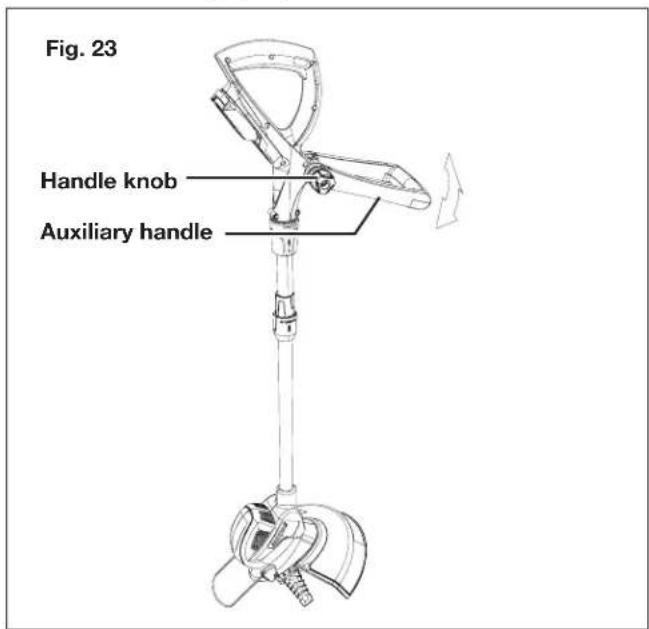

2. Loosen the handle knob and adjust the auxiliary handle by

pivoting it to a comfortable position. Tighten the handle knob to secure (Fig. 23).

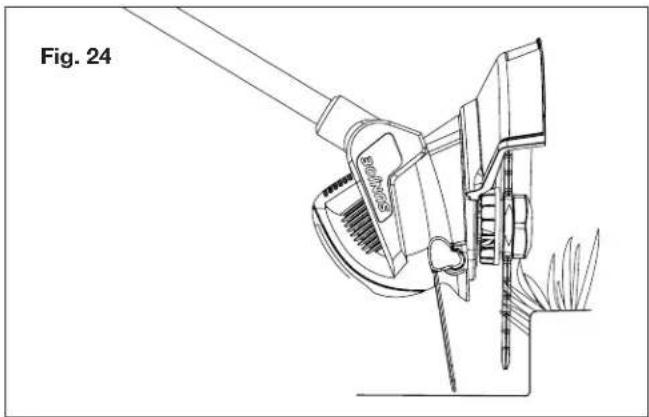

3. Use the edge of the guard as a guide when cutting near

locking collar Slide downward Twist 180° clockwise

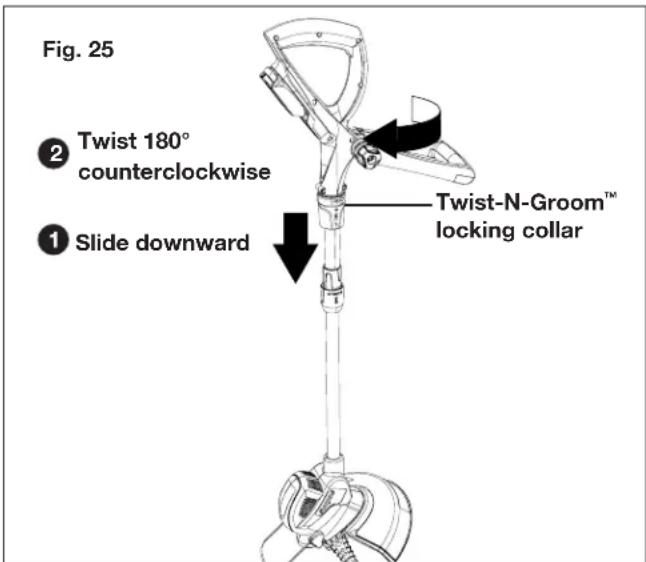

locking collar downward and twist the handle counterclockwise to an angle of 180° while holding the pole. Release the collar and ensure it snaps into place (Fig. 25). Adjust the auxiliary handle as needed. Maintenance

WARNING! Before performing any maintenance task, turn o the machine and remove the battery. mWARNING! Always wear protective gloves during maintenance tasks. Do not carry out maintenance when the engine is running or hot.

• Regular cleaning and maintenance of you grass trimmer + edger will ensure eciency and prolong the life of your machine.

• After each cutting operation, take apart and clean out the grass and soil from the whole trimmer + edger and guard.

• During operation, keep the air vents clean and free from grass.

• Only use a cloth soaked with hot water and a soft brush to clean the grass trimmer + edger.

• Do not spray or wet the appliance with water.

• Do not use detergents or solvents as these could ruin the trimmer. The plastic parts can easily be damaged by chemical agents.

no longer cuts or breaks, have the blade replaced properly. mCAUTION! The SharperBlade™ can inict deep cuts. Handle with care; use with caution.

• For repairs which have not been explained in these instructions, contact an authorized service center at 1-866-SNOWJOE (1-866-766-9563). IMPORTANT! Repairs, maintenance, and adjustments to this power tool should be performed only by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. Contact your authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Proper Care for Battery + Charger mWARNING! To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger before performing any maintenance task. Never disassemble the battery pack or charger. Contact your Snow Joe

dealer or the Snow Joe

customer service center for ALL repairs.

1. To reduce the risk of injury and damage, never immerse

your battery pack or charger in liquid or allow any liquid to ow inside these components.

2. Clean out dust and debris from charger vents and

electrical contacts by blowing with compressed air.

3. Use only a soft, clean and dry brush to clean the battery

pack and charger, keeping away from all electrical contacts. Certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around battery packs, battery chargers or tools.

4. The iON+ 24V lithium-ion battery chargers have no

serviceable parts. Storage Follow these recommendations for storing the grass trimmer + edger.

• Clean the grass trimmer + edger thoroughly before storing.

• Store the trimmer + edger in a stable and safe location out of the reach of children. Keep the trimmer + edger in a dry place where the temperature is not too hot or too cold.

• Do not store the grass trimmer + edger resting against the oor. Hang it by the upper handgrip so that the guard does not touch anything. If the guard rests against a surface, its shape and dimensions could be permanently altered, and could render the machine unsafe to use. Fig. 25 Twist-N-Groom

locking collar Slide downward Twist 180° counterclockwise

Battery + Charger O-Season Storage

1. Do not expose your battery pack or charger to water,

rain or allow them to get wet. This could permanently damage the charger and the battery pack. Do not use oil or solvents to clean or lubricate your battery pack as the plastic casing can become brittle and crack, causing a serious risk of injury.

2. Store the battery pack and charger at room temperature

away from moisture. Do not store in damp locations where corrosion of terminals may occur. As with other battery pack types, permanent capacity loss can result if the pack is stored for long periods of time at high temperatures (over 120ºF/49ºC).

3. iON+ 24V lithium-ion battery packs maintain their charge

during storage longer than other battery pack types. As a general practice, it is best to unplug the battery charger and remove the battery pack when they are not in use. Recharge the battery pack every 6 months to 50% capacity (2 lights on) during o-season storage to maintain optimal battery performance. Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual

for specic information.

2. Install only new batteries of the same type in your product

3. Failure to insert batteries in the correct polarity,

as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not mix Alkaline, Standard (Carbon-Zinc) or

Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

6. Do not dispose of batteries in re.

7. Batteries should be recycled or disposed of as per state

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: 24V-SB10-CT Model #: Serial #:17 Troubleshooting Most diculties are easy to x. Consult the troubleshooting table for common problems and their solutions. If you continue to experience problems or need repairs beyond these minor adjustments, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. mWARNING! Always remove the battery before performing any adjustments, maintenance or repairs to your cordless grass trimmer + edger. Problems Possible Solution Grass trimmer + edger vibrates Grass trimmer + edger does not start

and clean the slots, carefully remove any grass and weeds and so forth.

• If vibration persists after reassembly, replace the SharperBlade

• In the event of the problem not disappearing, Contact your authorized Snow Joe

dealer or call Snow Joe

• Make sure the battery has enough power and is inserted properly.

• Make sure the battery is not overheat.

• If the trimmer + edger does not start after completing the checks, Contact your authorized Snow Joe

dealer or call Snow Joe

WARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this cordless trimmer + edger. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless trimmer + edger. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. 24V iON+ Lithium-Ion Battery Quick Charger 24VCHRG-QC ModelAccessories Item

24V iON+ 5.0 Ah Lithium-Ion Battery 24VBAT-XR 24V iON+ Lithium-Ion Battery Dual Port Charger 24VCHRG-DPC19 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

universal wall bracket SJWB (Fits most Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
