Product type	Electric grill plate
Brand	Melchioni
Model	Spiedina
Product code	118330021
Power supply	AC 220-240V ~ 50/60Hz
Power	1600W
Use	Indoor use only
Maximum temperature	High (caution)
Heating element material	Not specified
Grid material	Not specified
Included accessories	Double grill
Cooking type	Grilling
Safety	Safety latch on heating element
Cleaning	Rinse with water, do not immerse heating element
Warranty	2 years
Compliance	CE, WEEE, RoHS

Frequently Asked Questions - Spiedina Melchioni

How to assemble the Spiedina grill?

Mount the support onto the base using the two fixing screws. Hang the heating element on the support, ensuring the safety latch engages in the hole under the handle.

Can I use charcoal with this grill?

No, this grill is electric. Never use charcoal or any other solid/liquid fuel.

How to clean the grill after use?

Unplug it and wait for complete cooling. Clean the grill and base with a non-abrasive sponge. Do not immerse the heating element in water.

What to do if the heating element does not heat?

Check that the element is properly hung on the support and that the safety latch is engaged. Ensure the outlet is working. Otherwise, contact an authorized service center.

Can I use an external timer or programmer?

No, the ignition must not be controlled by an external timer or remote control device for safety reasons.

Is it safe to leave the grill unattended?

No, operation must be constantly supervised. Never leave the grill unattended during use.

Can I cook fatty foods on this grill?

Yes, but watch carefully as fats can burn easily. Place the grill on a splash-resistant surface.

How to store the grill after use?

After cleaning and complete cooling, store it in a cool, dry place, away from sunlight and humidity.

Is the power cable replaceable?

If damaged, the cable must be replaced only by an authorized technical service center.

What is the warranty of this product?

The conventional warranty is 2 years from the date of purchase, subject to presentation of the receipt. It covers manufacturing defects.

USER MANUAL Spiedina Melchioni

Exterior view of a stainless steel grating with black handles and metal grating (no text or symbols visible)

IT Manuale d'uso 1

EN User manual 7

Technical diagram showing three views of a heating element with labeled parts 1, 2, and 3

Technical diagram of a device with labeled components and an inset showing internal structure

Fermo di sicurezza

Line drawing of a folded paper or sheet with a handle and label '7' (no text or symbols on the diagram itself)

Thank you for purchasing this product. Before use, it is recommended that you carefully read all the instructions and keep them for future reference. Do not use this appliance for purposes other than those described in this manual.

CONNECTION TO THE MAINS SUPPLY

The equipment should only be connected to an earth socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the barbecue.

IMPORTANT SAFETY INSTRUCTIONS

ATTENTION:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• The temperature of accessible surfaces may be high when the appliance is operating.
  • Children should be supervised to ensure that they do not play with the appliance.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Caution: do not, under any circumstances, cover the grill rack with aluminous foil, barbecue dishes or other items, as the resulting build-up of heat could cause irreparable damage to the grill.
• Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
• During operation, the barbecue must be placed on a level, heat-resistant surfaces, impervious to splashes and stains. When grilling food with a high fat or moisture content, splashes are not always avoidable.
• When using the appliance, be careful not to position it next to a wall or corner and ensure that no inflammable materials are stored near it.
• Remember that the food with a high fat or moisture content may tend to ignite.
• Before the grill is used, always check that the heating element is correctly fitted in the grill pan and safely locked.
• The barbecue must be supervised at all times during operation. For reasons of safety, always keep it out of the reach of children.
• Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill.
• Always bear in mind that the housing surfaces as well as the heating element become very hot during operation. Even after the heating element is switched off, it must not be touched until it has sufficiently cooled down-there is otherwise a severe danger of burns.
• To avoid the risk of electric shock, the heating element and the power cord must not be immersed in liquid or even allowed to come into contact with it.

- Do not allow the power cord to touch any hot parts of the appliance.

• Always remove the plug from the mains supply socket:

• in the case of any malfunction
• prior to cleaning, and maintenance

• after use

• The use of an extension-lead reel causes a loss of power, possibly combined with a subsequent heat built-up in the cable. It is therefore necessary to unwind the cable completely if a cable reel is used.
  • Before carrying, transporting or storing the grill, ensure that is has sufficiently cooled down.

• Ensure that the grill is not stored outdoors. Or in any other location where it might be subjected to extremes of temperature or high humidity.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.
  • This barbecue is designed for domestic use only and not for commercial applications.
• In order to comply with safety regulations and to avoid hazards, all repairs of electrical appliances must only be performed by qualified personnel. Substantial dangers for the user can appear from inappropriate repairs.
• Should the barbecue fail to operate or should it be damaged, please contact the nearest authorized service centre as special tools are needed for its repair. Never attempt to repair the barbecue yourself.
  • WARNING: Indoor use only.
• WARNING: Never put the heating element, control box and the plug into water.
• WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
  • WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

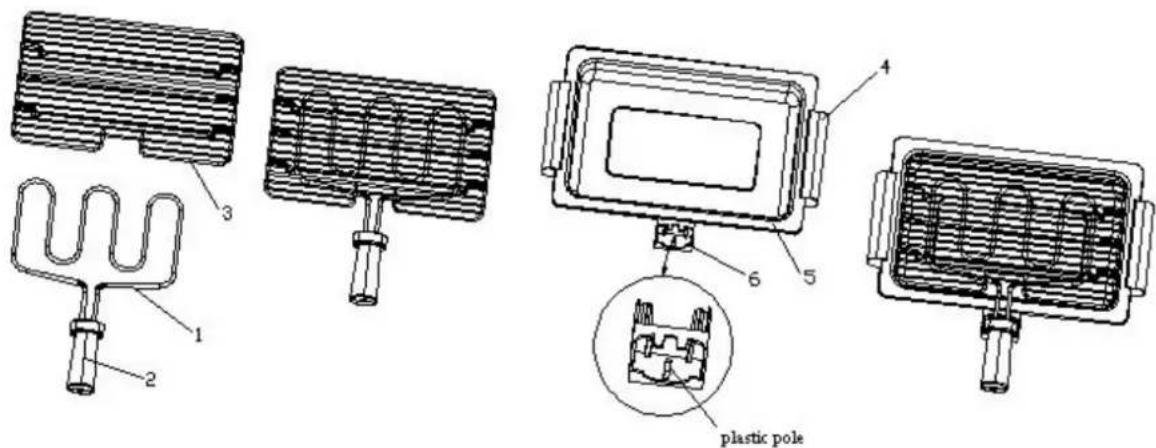

ASSEMBLE THE GRILL AS THE CHART:

Technical diagram showing exploded views of a heat exchanger with labeled components and plastic pole insertion.

Technical line drawing of a folded paper or sheet with a handle and label '7' (no text or symbols beyond the label)

1 Heating element
2 Control box
3 Grill rack
4 Handle
5 Grill pan
6 Control seat

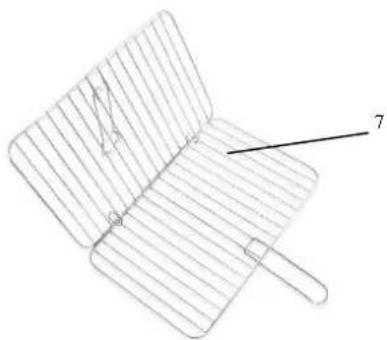

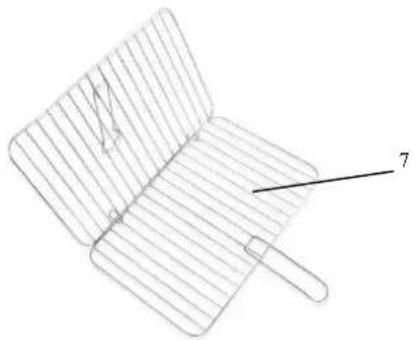

7 Double grill

BEFORE USING FOR THE FIRST TIME

1. Remove any packaging materials from the appliance.

2. Clean the grill rack and its accessories.

3. The barbecue assembly:

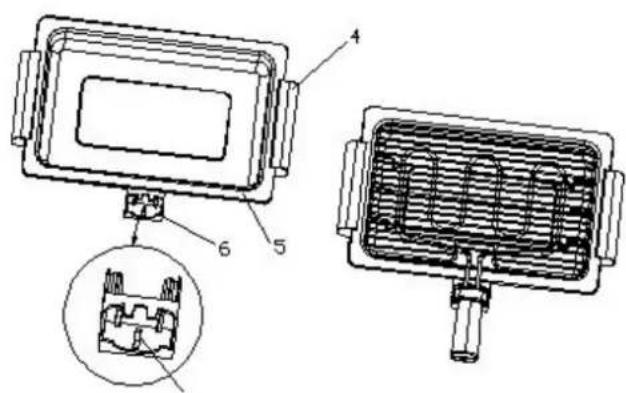

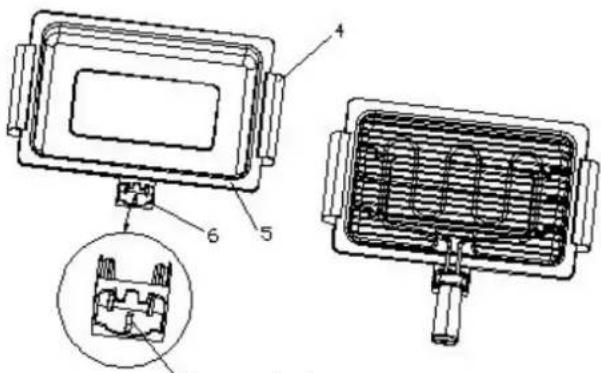

a) Use two screws joint the grill body and the control seat. Note: the plastic pole must be upturned. Insert the heating element into the grill rack (as the chart)
b) Place the heating element with the grill rack into the grill pan. Insert the control box into the grill pan. Guarantee the plastic pole of the grill pan insert the hole under the control box, and assemble right.
c) Place the grill on the table. Ensure that the grill is placed in a safe and stable position. The power cord should be placed suitably in order that no one is likely to trip over it.
d) Let the grill heat up for a moment without any food on the rack. This will reduce the smell when first switching on a new grill (a slight smell and a little smoke may be emitted-ensure sufficient ventilation).

USE OF THE GRILL

1. Fix the heating element; then ensure that the grill rack is placed correctly on the element.
2. Insert the plug into the mains supply socket.
3. Then you place the food stuffs on the grill rack.
4. When grilling is finished, disconnect the grill from the mains supply socket.
5. If you want to cook foods that need to be tossing and turning during cooking, you can use the supplied double grid when placed over the heating element.
6. Always use a glove to handle the double cooking grill and allow to cool before handling and cleaning.

GENERAL CARE AND CLEANING

Ensure that the grill is thoroughly cleaned after use.

Before cleaning your barbecue, always make sure that the plug has been disconnected from the mains supply socket.

Allow the grill to cool down thoroughly before cleaning.

Then you should remove the heating element and control box from the gill pan. Never switch the heating element on when it is not placed onto the appliance.

Clean the heating element with a clean and dry cloth only.

Clean the grill rack and the grill pan with warm soapy water and dry afterwards.

Don't use harsh abrasive cleanser or a metal sponge to clean the grill rack and the grill pan.

STORAGE

After cleaning, the grill should be stored indoors in a dry location.

SPECIFICATIONS

Power supply: AC 220-240V \~ 50/60Hz

Power: 1600 W

PRODUCT CONFORMITY

The producer Melchioni Spa declares that the product Elektrogrill 1600W Mod. Spiedina (Cod. 118330021) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Spa declares that the product Elektrogrill 1600W Mod. Spiedina (Cod. 118330021) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The producer Melchioni Spa declares that the product Elektrogrill 1600W Mod. Spiedina (Cod. 118330021) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Spa declares that the product Elektrogrill 1600W Mod. Spiedina (Cod. 118330021) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate

collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.

WARRANTY

Melchioni Spa, based in Milan (Italy), via Colletta 37, recognizes a conventional guarantee on the product for a period of two years from the date of the first purchase by the consumer. This guarantee does not affect the validity of the legislation in force concerning consumer goods (Legislative Decree 6 September 2005 n. 206 art. 128 and following), of which the consumer

remains the owner. This guarantee applies to the entire territory of the European Union.

The components or parts that are found to be defective for ascertained manufacturing causes will be repaired or replaced free of charge through the dealer, during the above warranty period.

Melchioni Spa reserves the right to make a complete replacement of the device, if repairability is impossible or excessively expensive, with another device of similar characteristics (Legislative

Decree 6 September 2005 no. 206 art. 130) during the warranty period. In this case, the validity of the warranty remains that of the original purchase: the service provided under warranty does not extend the warranty period.

In any case, this appliance will not be considered defective in terms of materials or manufacture should it be adapted, changed or adjusted, in order to comply with national or local safety and / or technical standards, in force in a country other than that for which it is was originally designed and manufactured. This appliance has been designed and built for domestic use only: any other use will invalidate the benefits of the guarantee.

The warranty does not cover:

• parts subject to wear or tear, nor those parts that require periodic replacement and / or maintenance
  • professional use of the product
• malfunctions or any defects due to incorrect installation, configuration, software / BIOS / firmware update not performed by authorized Melchioni Spa
  • repairs or interventions carried out by persons not authorized by Melchioni Spa
• manipulation of assembly components or, where applicable, of the software
• defects caused by fall or transport, lightning, voltage fluctuations, liquid infiltration, opening of the appliance, bad weather, fire, public disturbances, inadequate ventilation or incorrect power supply
  • any accessories, for example: boxes, bags, batteries, etc. used with this product
  • home interventions for convenience checks or presumed defects

The recognition of the guarantee by Melchioni Ready S.r.l. is subject to the presentation of a tax document that proves the actual date of purchase. The same must not show any tampering or deletions, in the presence of which Melchioni Spa reserves the right to refuse the provision of treatment under warranty.

The warranty will not be recognized if the serial number or model of the appliance is non-existent, abraded or modified.

This warranty does not include any right to compensation for direct or indirect damage, of any nature, to people or things, caused by any inefficiency of the appliance. Any extensions, promises or services in this regard, insured by the retailer, will be borne by the latter.

Technical line drawing of a mechanical component with hatched surfaces and a labeled part (7), no readable text or symbols present.

1 Elemento calefactor

2 Manijas

3 Rejilla

4 Asas básicas

5 Base

6 Soporte de la manija

CONFORMIDAD DEL PRODUCTO

Technical diagram showing three labeled components of a coiled spring or heat exchanger device, with parts numbered 1, 2, and 3.

Technical diagram of a device with labeled components and an inset showing internal structure

Verrou de sécurité

Technical line drawing of a mechanical component with hatched surfaces and a labeled part (7), no readable text or symbols present.

Consommation: 1600 W

CONFORMITÉ DU PRODUIT

Technical line drawing of a mechanical component with hatched surfaces and a labeled part (7), no readable text or symbols present.
