| Product Type | Heart rate monitor |
| Brand | Pioneer |
| Model | SGYHR500 |
| Transmitter dimensions | 64 mm (W) x 35 mm (L) x 10 mm (D) |
| Strap length | 680 to 1000 mm |
| Power source | CR2032 lithium battery (3 V) |
| Estimated battery life | Approximately 3 years (1 hour of use per day) |
| Water resistance | Up to 30 meters (98.4 feet) |
| Operating temperature | 0 °C to 50 °C |
| Wireless communication | ANT+™ (2.4 GHz band) |
| Main functions | Heart rate acquisition and transmission to compatible ANT+ cycle computers |
| Certification | ANT+™, compliant with IC CNR |
| Strap material | Fabric with electrodes |
| Transmitter maintenance | Wipe with a dry cloth after each use |
| Strap maintenance | Hand wash in cold water, dry in the shade, do not use detergent or washing machine |
| Safety | Do not use with a pacemaker; consult a doctor before physical activity |
| Spare parts | Strap, CR2032 battery, cover rubber gasket |
| Repairability | Do not disassemble; contact the dealer in case of failure |
Frequently Asked Questions - SGYHR500 PIONEER
User questions about SGYHR500 PIONEER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heart rate monitor in PDF format for free! Find your manual SGYHR500 - PIONEER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SGYHR500 by PIONEER.
USER MANUAL SGYHR500 PIONEER
For information on the Speed & Cadence sensor, refer to the User's Manual of the Speed & Cadence Sensor SGY-CS500.
Product Configuration....13
Putting the Sensor on Your Body 14
Installing and Removing the Battery 16
Troubleshooting....18
Care, Maintenance, and Storage 19
Specifications 20
Features
Heart Rate Data Acquisition
This device measures and transmits heart rate data for display on compatible ANT+ cyclocomputers.
This product is ANT+™ certified.
Visit http://www.thisisant.com/directory/ for a list of compatible products and apps.

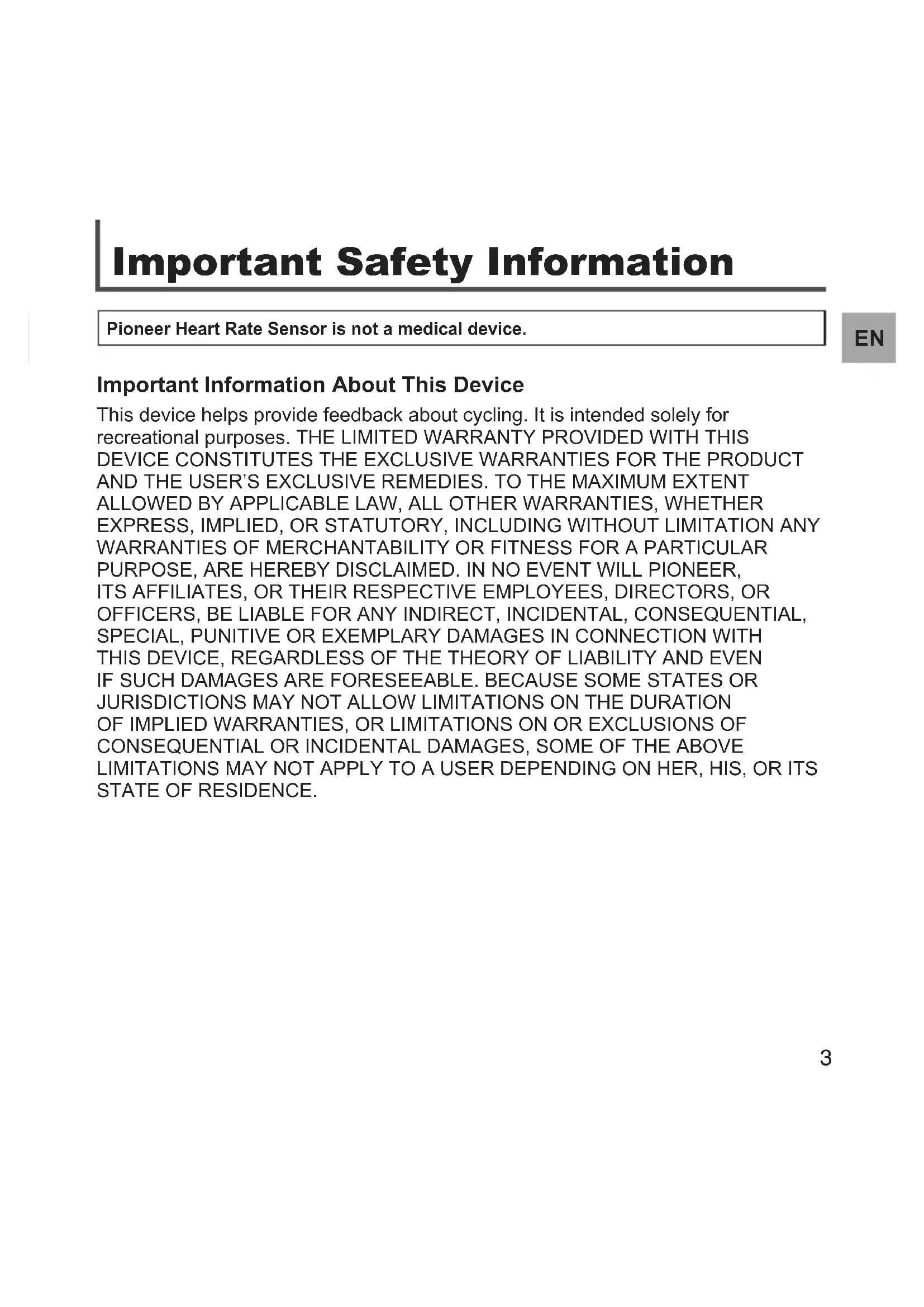

Important Safety Information
Pioneer Heart Rate Sensor is not a medical device.
EN
Important Information About This Device
This device helps provide feedback about cycling. It is intended solely for recreational purposes. THE LIMITED WARRANTY PROVIDED WITH THIS DEVICE CONSTITUTES THE EXCLUSIVE WARRANTIES FOR THE PRODUCT AND THE USER'S EXCLUSIVE REMEDIES. TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW, ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, OR STATUTORY, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR RESPECTIVE EMPLOYEES, DIRECTORS, OR OFFICERS, BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, PUNITIVE OR EXEMPLARY DAMAGES IN CONNECTION WITH THIS DEVICE, REGARDLESS OF THE THEORY OF LIABILITY AND EVEN IF SUCH DAMAGES ARE FORESEEABLE. BECAUSE SOME STATES OR JURISDICTIONS MAY NOT ALLOW LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, OR LIMITATIONS ON OR EXCLUSIONS OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SOME OF THE ABOVE LIMITATIONS MAY NOT APPLY TO A USER DEPENDING ON HER, HIS, OR ITS STATE OF RESIDENCE.
WARNING
DO NOT USE THIS PRODUCT IF • YOU ARE USING A PACEMAKER.
BEFORE BEGINNING OR • MODIFYING ANY EXERCISE ACTIVITY, ALWAYS CONSULT YOUR PHYSICIAN FIRST. IF YOU ARE USING ANY TYPE OF IMPLANTED DEVICE EXCEPT FOR A PACEMAKER, CONSULT YOUR PHYSICIAN BEFORE USING A HEART RATE SENSOR.
THIS PRODUCT IS NOT A • MEDICAL DEVICE, AND COULD EXPERIENCE INTERFERENCE FROM EXTERNAL ELECTRICAL SOURCES.
HEART RATE DATA IS FOR • REFERENCE ONLY, AND PIONEER IS NOT RESPONSIBLE FOR ITS ACCURACY.
WARNING
Follow these guidelines as well to ensure safe Cycling:
Always use your best judgement, • and ride in a safe manner. Do not become distracted by this device while riding, and always be fully aware of your surroundings.
If a rash occurs on the skin, please stop use immediately.
Metal snap fasteners may cause an • allergic reaction.
Please replace the strap if it becomes damaged, loose, or has too much slack since it is consumables.
Only use provided straps.
Secure your bicycle in a safe place • before replacing batteries as the bicycle could fall causing injury.
Upon replacing the battery, install • the battery cover securely to ensure water resistance and prevent potential injury if the cover falls off.
Do not leave small parts such as the battery or screws in an area that infants and small children can reach to prevent accidental swallowing. If you think this may have happened, call 911 for a medical emergency.
Do not leave this device in places that are exposed to direct sunlight, high temperature, high humidity, or a lot of dust as it may cause the device to malfunction.
Never dismantle, refurbish, or repair • this device or any attached parts as it could cause electrical shock or the device to malfunction.
Do not use this device if any unusual conditions exist such as penetration by a foreign object, water submersion, smoke is detected, or an unusual odor is detected. Stop using this device immediately and have it repaired.
This device communicates using • ANT+ radio communication. Do not use in areas that forbid the use of electronic devices such as hospitals or airplanes as unintended interference from this device could cause serious accidents.
CAUTION
Do not wipe this device with • detergents, chemical duster, or volatile compounds such as benzine or thinner as they may cause the device to malfunction.
Avoid overly violent impacts on • this device as it may cause it to malfunction.
Do not touch or deform the battery • contacts. This could cause a faulty connection or short circuit.
WARNING
Batteries (batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like.
"Perchlorate Material - special handling may apply.
See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
(Applicable to California, U.S.A.)”
WARNING
STORE SMALL PARTS OUT OF REACH OF CHILDREN AND INFANTS. IF ACCIDENTALLY SWALLOWED, CONTACT A DOCTOR IMMEDIATELY.
Radio wave caution
This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (microwave ovens and cordless phones, etc.). In the event noise appears on your television image, there is the possibility this unit (including products supported by this unit) are causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).
[For American Users]
IMPORTANT NOTICE
KEEP WARRANTY CARD IN A SAFE PLACE FOR FUTURE REFERENCE.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This Equipment may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).
Information to User
Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.
WARNING: This product contains chemicals known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. –
Increase the separation between the equipment and receiver. –
Connect the equipment into an outlet on a circuit different from that to which the - receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. –
[For Canadian Users]
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).
The ANT+ antenna cannot be removed (or replaced) by user.
Operating Environment
Operating environment temperature and humidity:
0 °C to +50 °C (+32 °F to +122 °F); less than 85 %RH
Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
Before Use (Important)
EN
Safety Precautions
DANGER
About this Device
Do not throw this device, strike it with a hammer or other object, or pierce this device in any way.
Do not use or leave this device in places where it will be exposed to extremely high temperatures, such as near a stove or fire.
Always keep this device out of the • reach of infants and small children.
WARNING
About this Device
Do not use this device if it emits an unusual odor, heats up, changes color or shape, or if any other abnormalities occur during use.
Do not place this device in a • microwave oven or expose it to high pressure, since the device may overheat, rupture, or ignite.
Keep the lithium battery out of the • reach of children. Should the battery be swallowed, immediately consult a doctor.
CAUTION
Do not recharge, disassemble, heat or dispose of the battery in fire.
Use a CR2032 (3 V) lithium battery • only. Never use other types of batteries with this unit.
Do not handle the battery with metallic tools.
Do not store the battery with metallic • materials.
When disposing of used batteries, • please comply with governmental regulations or environmental public institutions rules that apply in your country or area.
Always check carefully that you are • loading battery with its (+) and (-) poles facing in the proper directions.
CAUTION
About Water-resistance
Observe the following precautions in regard to this device's water-resistant.
Do not expose to rain for long periods of time.
Do not pour or place in warm • water or water containing soap or detergent.
Do not use at or near the beach. • This could cause rust. If exposed to seawater, thoroughly wipe off the moisture immediately with a dry cloth.
If the rubber packing becomes • soiled, wipe it clean with a dry, clean cloth.
Do not open the battery cover • in humid environments in which this device could get exposed to water.
If this device is exposed to a large • amount of water or moisture, immediately wipe it down with a dry cloth.
Only open or close the transmitter cover after having completely wiped off any moisture. Be sure your hands are completely dry and you are in an environment where the unit will not get exposed to moisture again.
Over exposure or submersion in • water may require servicing.
This device has been designed with water resistance to 30 m.
Malfunctions due to water damage caused by improper use are not covered by the product warranty, even if they occur within the warranty period.
Depending on conditions of use, the water-resistant features are not necessarily guaranteed even during the warranty period.
We recommend you have the battery cover and the rubber gaskets in the transmitters of the sensors replaced periodically. (This is a paid service.)
Product Configuration
This product contains the following parts.

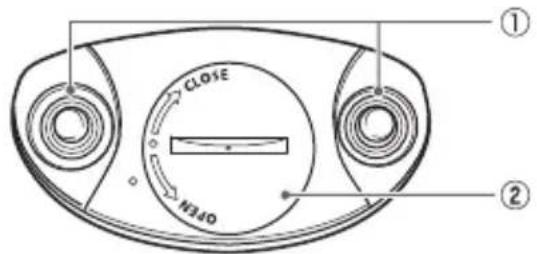

Heart rate sensor (transmitter)
Front View Back View


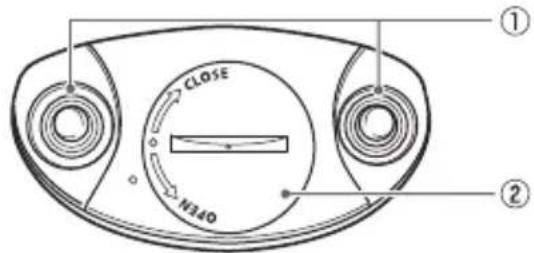

CLOSE N340① Attaching snap fastener
② Battery cover
Heart rate sensor (strap)
Outside


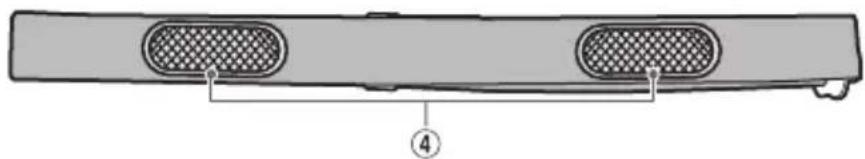

② Clip for length adjustment
③ Attaching snap fastener

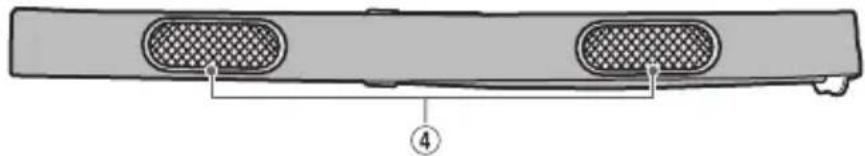

④ Electrode pad
Others
User's Manual (this manual)•
Warranty Card•
Putting the Sensor on Your Body
EN
Do not use this product if you are using a pacemaker.
1. Wet the electrode pad with water.
To reliably detect the heart rate signal, wet the electrode pad with water.
Firmly attach the snap fasteners of the transmitter and strap until they click.
Before riding, confirm that the snap • fasteners are not loose. If they are loose, replace them.

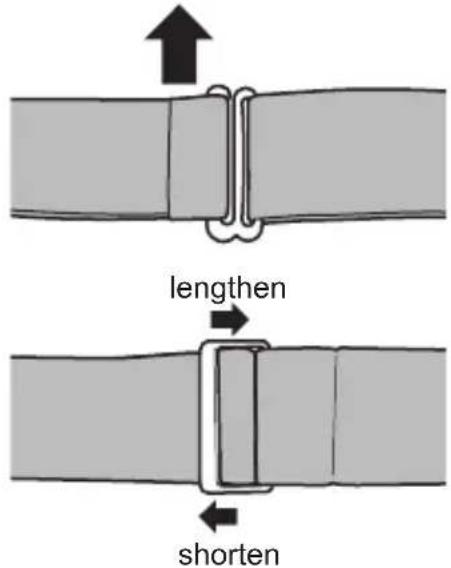

3. Adjust the length of the strap.
Undo the strap's hook, and use the clip to adjust the strap's length.


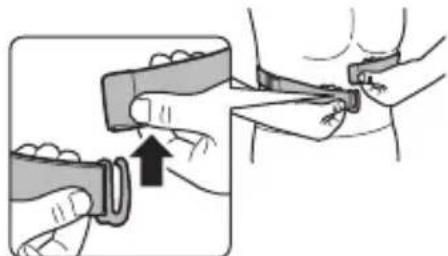

lengthen shorten4. Wear the strap around your chest.
Wrap the strap around your chest and attach the hook to the strap.
Do not use excessive force pulling or adjusting while wearing. Doing so may break the strap and cause an injury. Be careful not to bend the electrode pad. Doing so may cause it to malfunction.

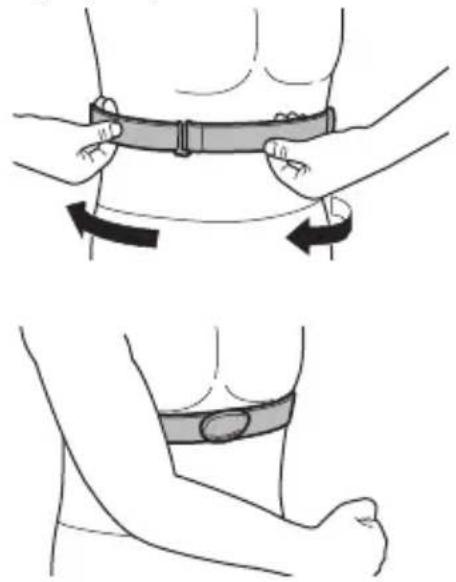

5. Place the electrode pad against the chest.
Rotate the strap to adjust the position of the electrode pad so it attaches tightly to your chest.
Attach the strap firmly so it does not • slip down when riding.
Confirming Connection to the Cyclocomputer
After attaching the Heart rate sensor, pair the sensor with your cyclocomputer. Refer to your cyclocomputer's ANT+ pairing instructions.
Pairing with the cyclocomputer may not be possible due to the influence of the 2.4 GHz frequency band. If pairing fails, try again someplace where there is no interference from microwaves, radio waves, or wireless equipment.
Installing and Removing the Battery
EN
The battery is pre-installed to this product. If the battery is almost empty (see page 18), replace the battery with new one.

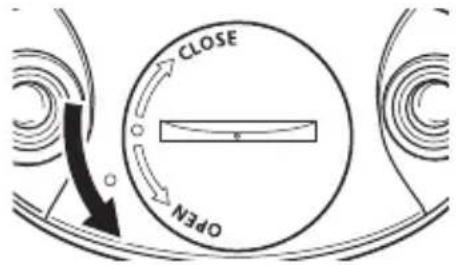

1. Remove the battery cover of the Heart rate sensor.
Turn the cover counterclockwise with a tool such as a coin or screw driver.


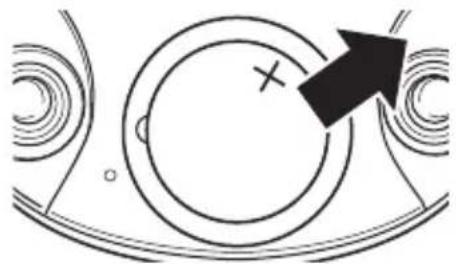

CLOSE O3d2. Remove the old battery.


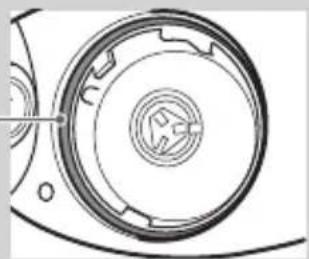

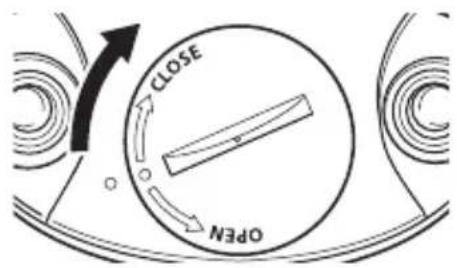

Insert the battery with its (+) side facing up. Align the cover with the mark and turn it clockwise to close it securely.
Do not use batteries other than CR2032.
Install the cover firmly to ensure • water resistant performance.
Be careful not to lose the rubber • gaskets when removing the battery cover.
Rubber gaskets
Keep coin batteries out of reach of • children.
Troubleshooting
EN
If you have problems with your device, check the following items. If a solution to your problem cannot be found here, contact your dealer.
Heart rate information is not displayed on the cyclocomputer. / ■ I cannot pair the sensor with the cyclocomputer.
| Cause Solution | |
| The battery is almost empty. Replace (+) or (-) side of the battery is installed in the opposite side. | the battery with a new one (see page 16).Install the battery in the proper side (see page 16). |
| The battery is not installed correctly. Install the battery again (see page 16). | |
| The transmitter is off the strap. Install the transmitter firmly to the strap (see page 14). | |
| Sensitivity of the sensor has become low due to dirt on the snap fasteners or electrode pad. | Wipe off dirt from the snap fasteners or electrode pad. |
| Sensitivity of the sensor has become low due to rust of the snap fasteners. | Attach and remove the strap to and from the transmitter several times. If the problem continues, replace the strap with a new one. |
| The electrode pad of the strap is damaged. | Replace the strap with a new one. |
| The heart rate signal is not detected because the electrode pad is not wet. | Wet the electrode pad with water (see page 14). |
The strap becomes loose. / The hook etc. has broken. ■
| Cause Solution | |
| - Replace the strap with a new one. | |
Care, Maintenance, and Storage
- After use, remove the transmitter from the strap and wipe off any sweat and dirt with a soft cloth and then dry it.
Do not use detergents.
- After use, wipe off sweat and dirt from the snap fasteners of the transmitter and strap and dry them to prevent rust.
- After use, hand-wash the strap in cold water and dry it naturally in the shade. Do not use detergents or bleach.
Do not clean the strap using a washing machine or expose it to direct sunlight as it may shorten its life. Never put it in a dryer.
When hand-washing the strap, put the strap into a washing bag or mesh • laundry bag to prevent the strap from getting tangled.
Do not bend the electrode pad while drying it. Doing so may cause it to malfunction.
Never put the transmitter in a washing machine or dryer. Doing so may cause it to malfunction.
Remove the transmitter from the strap when not in use. Keeping the transmitter • attached may shorten its battery's life.
Specifications
EN
Weight: About 47 g (0.104 lbs)
Dimensions: Transmitter:
64 mm(W) x 35 mm (H) x 10 mm(D)
(2.52 in.(W) x 1.38 in.(H) x 0.39 in.(D))
Strap length:
680 to 1000 mm
(26.77 to 39.37 in.)
Water resistant: Water resistant to 30 m (98.4 ft).
(Heart rate readings cannot be acquired underwater.)
Communications method (sensors): ANT+ wireless
Battery: CR2032
Operation temperature: 0 to 50°C (32 to 122°F)
Estimated usable period: About 3 years (at one hour per day of use)
ANT+ is a Wireless Personal Network protocol with very low power • requirements using 2.4GHz frequency band.
For more information, visit http://www.thisisant.com/
Specifications and design are subject to change without notice.
- Illustrations used in this manual may be different from actual appearance.
EN
Table des matières
Fonctionnalités 22
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).
The ANT+ antenna cannot be removed (or replaced) by user.
Diagram of a mechanical component with numbered parts labeled ①, ②, and ③Intérieur
Illustration of a belt with water droplets above and below it, no text or symbols presentnatural_image
Diagram showing a circular object above a smooth surface with two circular markers below (no text or symbols)natural_image
Illustration showing a person adjusting a belt buckle with a close-up of the buckle being adjusted (no text or symbols present)natural_image
Illustration of a person's torso and arm holding a belt with directional arrows indicating motion (no text or symbols)
CLOSE N3pOtext_image
CLOSE OPENnatural_image
Pure diagram of a circular object with a plus sign and arrow, no text or symbols presentnatural_image
Technical line drawing of a mechanical component with concentric circles and a central hub (no text or symbols)Poids: Environ 47 g (0,104 lbs)
http://www.pioneerelectronics.com http://www.pioneerelectronics.ca
PIONEER CORPORATION
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN
PIONEER ELECTRONICS (USA) INC.
P.O. Box 1540, Long Beach, California, 90801-1540, U.S.A.
TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA INC.
340 Ferrier Street, Unit 2, Markham, Ontario, L3R 2Z5, Canada
TEL: 1-877-283-5901
TEL: 905-479-4411
©2014 PIONEER CORPORATION. All rights reserved.
5615N4630005R00
