Macondo - Garden fireplace Blumfeldt - Free user manual and instructions

Brand	Blumfeldt
Model	Macondo
Product type	Garden fireplace / Brazier
Usage	Outdoor only
Fuel	Wood logs
Material	Steel
Included parts	Rain cover, top part, back, side parts, doors, fire bowl, handle, support, ash drawer, slides, feet, base, poker, screws, nuts, wrench
Included accessories	Poker, wrench
Ash drawer capacity	Makes ash cleaning easier
Safety	Do not use in an enclosed space; do not use gasoline or alcohol; wear heat-resistant gloves; do not leave unattended
Maintenance	Clean after cooling with a damp cloth and mild dish soap; do not use abrasive cleaner
Storage	Store after complete cooling and removal of ashes
Repairability	Spare parts available from the manufacturer; regular inspection of components
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Importer (UK)	Chal-Tec UK limited

Frequently Asked Questions - Macondo Blumfeldt

What type of fuel to use?

Use only dry wood logs. Never use gasoline, burning alcohol or lighter fluid.

Where to install the Macondo fireplace?

Install it outdoors, away from any combustible material. Never use it in a building, garage or enclosed space.

How to light the fire?

Place the logs on the grate, centered and not too high. Put dry wood chips underneath to facilitate lighting.

Can I use the fireplace in rainy weather?

Yes, thanks to the included rain cover. However, never leave the fire unattended.

How to clean the ash drawer?

Wait until the fire is completely out and the appliance has cooled. Remove the drawer, empty the ashes and clean it with a damp cloth.

Is it safe to leave the fireplace burning unattended?

No, never leave it unattended. Embers can fall and cause a fire.

How to maintain the exterior appearance?

Clean the exterior with water and a mild dish soap. For stubborn stains, use a citrus-based cleaner and a nylon brush.

Can I store the fireplace immediately after use?

No, wait until it is completely cooled and the ashes are removed. Store it in a dry place.

What to do if a part is damaged?

Inspect the appliance regularly. If a part is damaged or rusty, have it repaired or replaced before next use. Contact the manufacturer.

What precautions to take during use?

Wear heat-resistant gloves, keep children and pets away, and do not overload the firebox with fuel.

USER MANUAL Macondo Blumfeldt

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Parts 11

Operation 12

Cleaning and Care 14

Producer 14

SAFETY INSTRUCTIONS

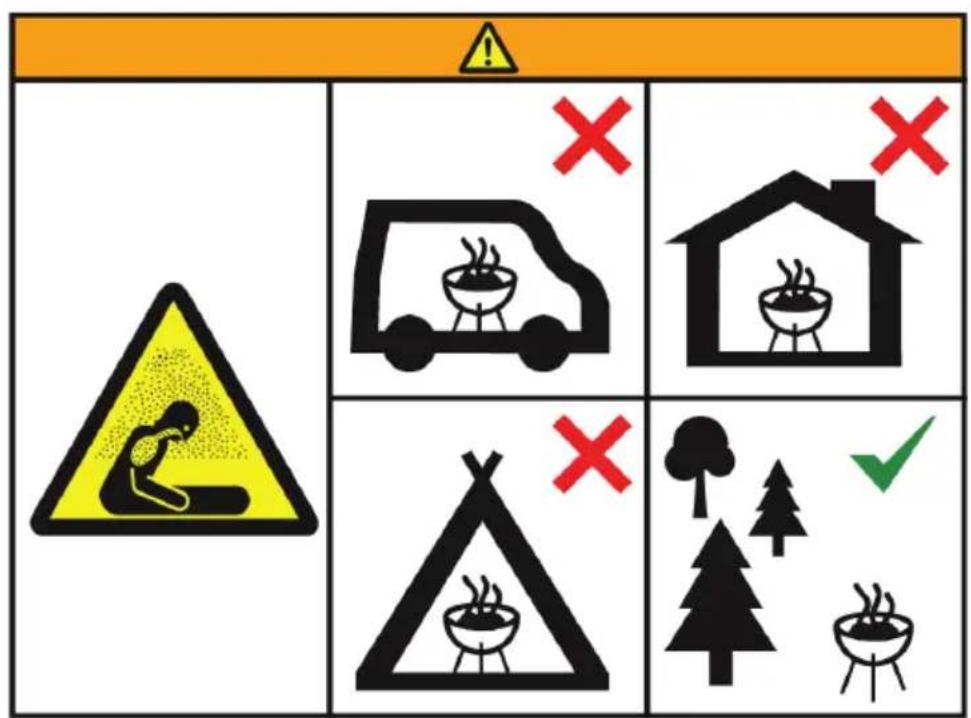

WARNING

Risk of suffocation! This fire pit is for outdoor use only and shall not be used in a building, garage or any other enclosed area.

Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire pit is not for commercial use.
• This fire pit should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire pit. This fire pit is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire pit until it is completely assembled and all parts are securely fastened and tightened.

• Do not use the fire pit on decking or any other flammable surfaces such as dry grass, wood chips, leaves.

• Always empty this fire pit after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.

• Do not touch the fire pit until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire pit when in use as it is hot.
• Do not attempt to store the fire pit until all ashes and charcoal are completely extinguished.
  Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire pit with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire pit as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
• Always thoroughly inspect the fire pit before use.
• A slight discolouration of finish may occur after use.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

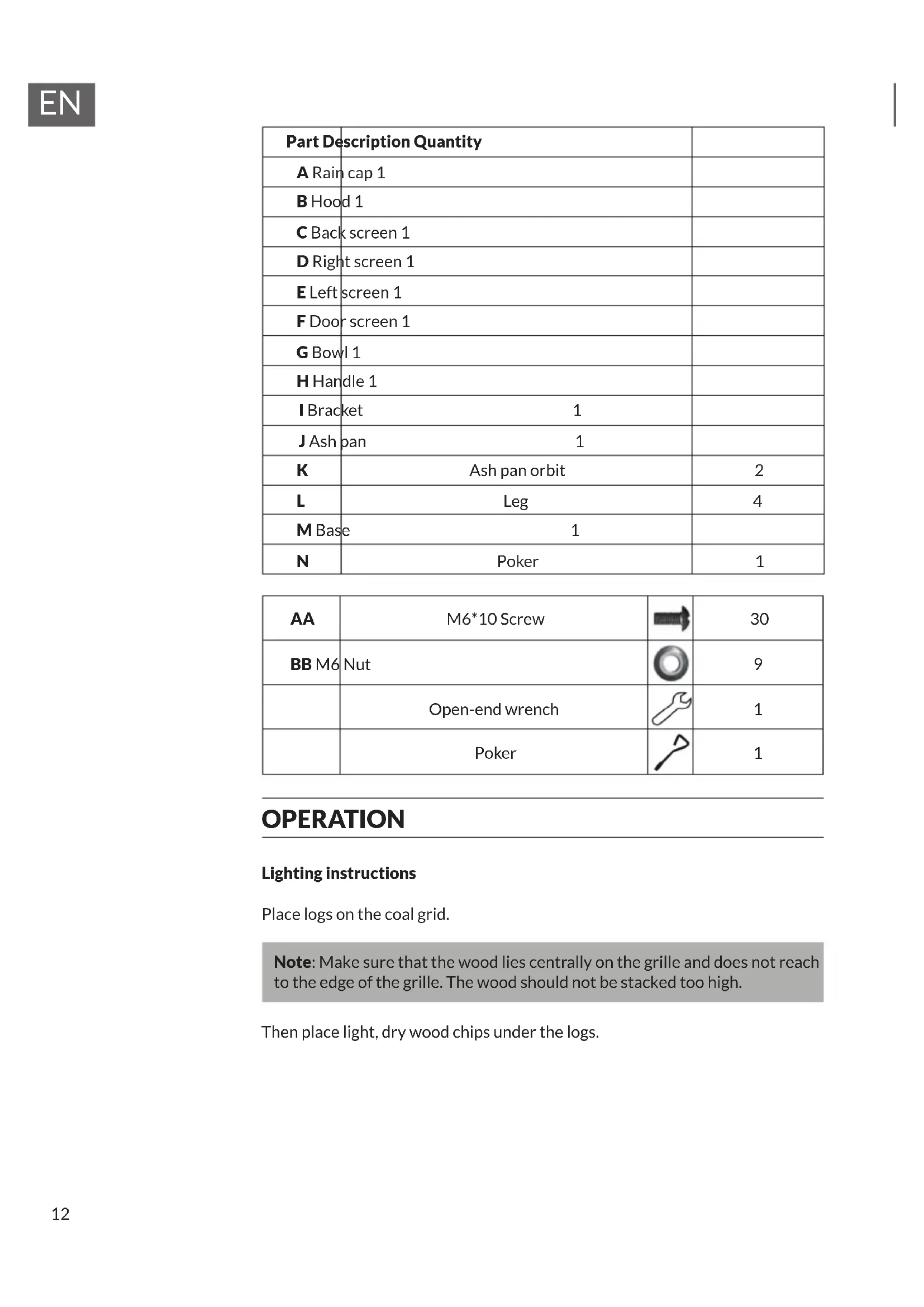

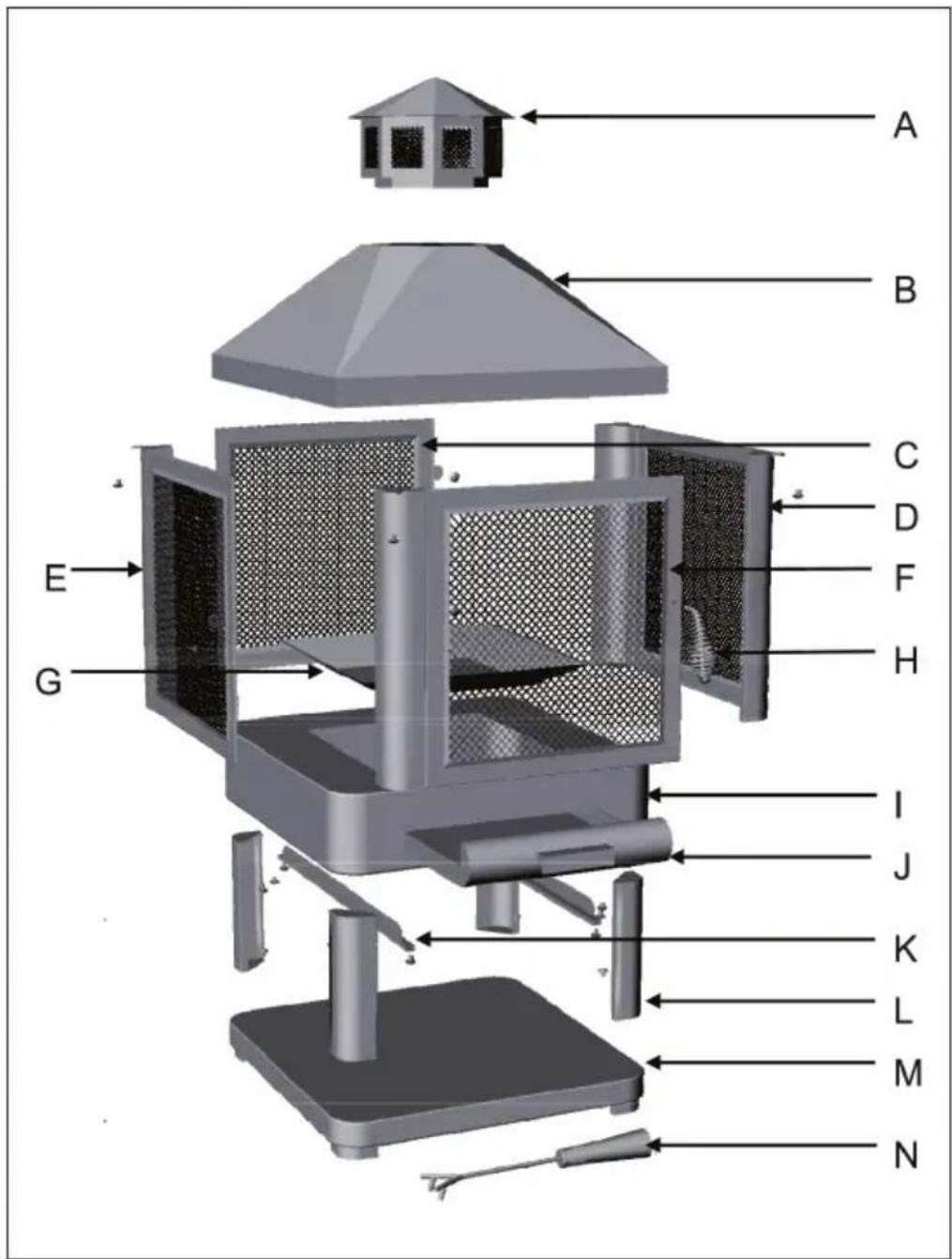

PARTS

EN

Part Description Quantity
A Rain cap 1
B Hood 1
C Back screen 1
D Right screen 1
E Left screen 1
F Door screen 1
G Bowl 1
H Handle 1
I Bracket 1
J Ash pan 1
K Ash pan orbit		2
L Leg		4
M Base 1
N Poker		1

AA	M6*10 Screw	→	30
BB M6	Nut		9
	Open-end wrench		1
	Poker		1

OPERATION

Lighting instructions

Place logs on the coal grid.

Note: Make sure that the wood lies centrally on the grille and does not reach to the edge of the grille. The wood should not be stacked too high.

Then place light, dry wood chips under the logs.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fire replace to cool completely before inspecting or cleaning it for damage.

Inspect the fi replace for damage

Check the fi replace regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the fi replace repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire replace.
• Make sure the fire is completely extinguished and the fire replace has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fi replace regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
